LAVE-VAISSELLE

GUIDE D'OPERATION RAPIDE

APERCU DU PRODUIT....8

CONSIGNES D'INSTALLATION....9

INSTALLATION DE BANDE D'ISOLATION ACOUSTIQUE....14

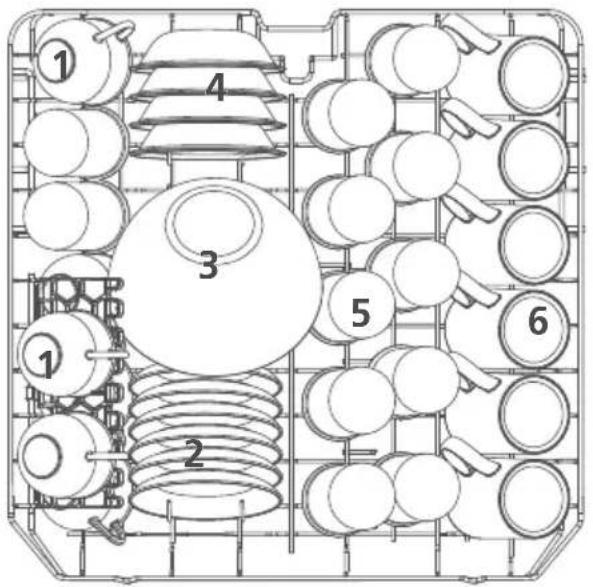

CHARGEMENT DES PANIERS CONFORMÉMENT À LA NORME EN60436 ....16

UTILISATION DE VOTRE LAVE-VAISSELLE ....18

GUIDE D'UTILISATION RAPIDE ....29

PROGRAMMATION DU LAVE-VAISSELLE....30

ENTRETIEN ET NETTOYAGE....33

CODES D'ERREUR 37

COMPTEUR D'UTILISATION 37

GUIDE DE DÉPANNAGE 38

INFORMATIONS TECHNIQUES 41

ENLEVEMENT DES APPAREILS MENAGES USAGES....4

Remarque:

Line drawing of a woven basket with a handle and grid pattern (no text or symbols)

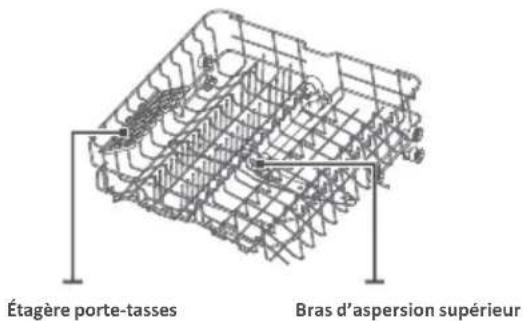

Panier à couverts

Technical line drawing of a grid-like mechanical component with no visible text or symbols

Panier inférieur

REMARQUE :

Diagram showing a structural change from a grid-like structure to a multi-layered container with circular patterns (no text or symbols)

CONSIGNES D'INSTALLATION

AVERTISSEMENT

Symbolic illustration of a hand emitting smoke or vapor, with lightning bolts indicating electrical hazard (no text or labels)

Line drawing of hands holding a faucet with a threaded handle (no text or symbols)

Diagram showing a hand holding a tool inside a device with an inset close-up of the handle (no text or symbols)

REMARQUE :

Line drawing of a minimalist kitchen sink with a grid-patterned wall and side table (no text or symbols)

Pure technical line drawing of a structural beam or support bracket (no text or symbols)

Haut

Simple line drawing of a rectangular beam with two ends marked by circles (no text or symbols)

Gauche

Simple line drawing of a rectangular object with two circular holes, no text or symbols present.

Droite

REMARQUE:

Simple line drawing of a cabinet or enclosure with arrows indicating direction (no text or symbols)

Simple line drawing of a 3D box-like structure with an arrow indicating direction (no text or symbols)

Diagram showing two steps of a mechanical or structural assembly with labeled components and directional arrows

Technical line drawing of a mechanical assembly or enclosure with no visible text, numbers, or symbols.

Technical diagram of a mechanical or electrical component with numbered parts labeled 1 through 6.

1 2 3 4 5 6 7 8

Technical line drawing of a mechanical component with no visible text or symbols

Pure geometric diagram of vertical planes or panels arranged in a grid pattern (no text or symbols)

Circular diagram with grid lines and a crossed X mark, no text or symbols present

Diagram of a refrigerator control panel with buttons, lamp, and indicator lights (no text or symbols)

Rôle du détergent

Illustration of a hand pressing down on a device control panel with buttons and icons (no text or symbols)

Illustration of a hand inserting a device into a device panel (no text or symbols visible)

Illustration of a hand pressing down on a control panel with icons and arrows (no text or symbols)

Hand interacting with a touchscreen device displaying icons (no text or symbols)

Diagram of a refrigerator control panel with icons for lighting, ventilation, and indicator lights

Illustration of a hand pressing down on a kitchen control panel with buttons and a directional arrow (no text or symbols)

Diagram of a shared sink with a washing machine and tubing (no text or labels)

Simple line drawing of a screw and a bowl with liquid, no text or symbols present

Illustration of a hand pouring liquid into a digital device with control panel (no text or symbols)

Simple line drawing of a kitchen appliance with sound waves (no text or symbols)

AVERTISSEMENT

Simple line drawing of a container with lid and handle (no text or symbols)

Simple line drawing of a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation or movement (no text or symbols)

Illustration of hands using a tool to clean or spray liquid from a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism and a close-up of a mechanical component with directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component inside a transparent frame (no text or symbols visible)

Illustration of a hand using a spray gun to clean or spray liquid onto a surface (no text or symbols)

P1 L H P2

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

USER MANUAL ALV1247DB6NE

EN

Front view of a modern white appliance with control buttons and a digital display (no visible text or symbols)

Dishwasher

Quick operation guide

For detailed operating method read the corresponding content of the instruction manual.

Switch on the appliance	Press the Power switch button to switch on the appliance, Open the door.

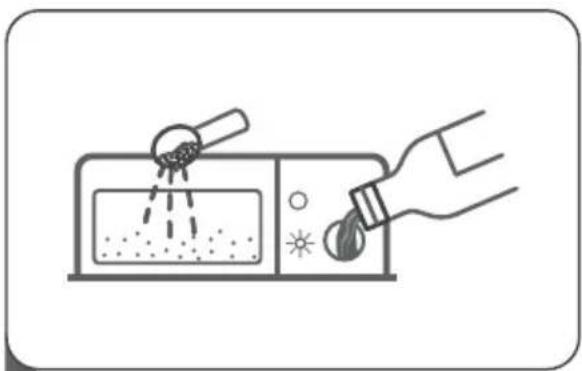

Fill the detergent dispenser	Compartment A:With each wash cycle.Compartment B:For programmes with pre-wash only.(Follow the user instructions!)

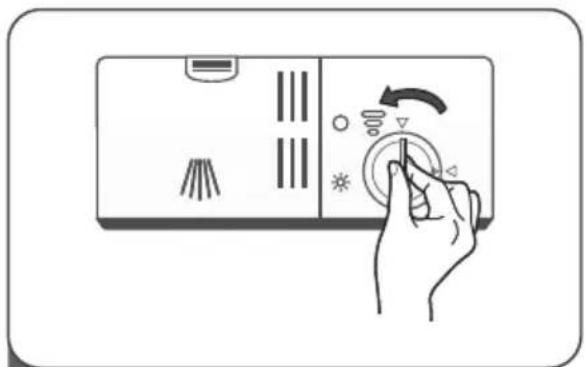

Check the rinse aid level	Mechanical indicator C.Electric indicator on control panel (if provided).
Check the regeneration salt level	(On models with water softener system only.)Electric indicator on control panel (if provided).If there is no salt warning light in the control panel(for some models), you can estimate when to fill the salt intothe softener by the number of cycles the dishwasher has run.

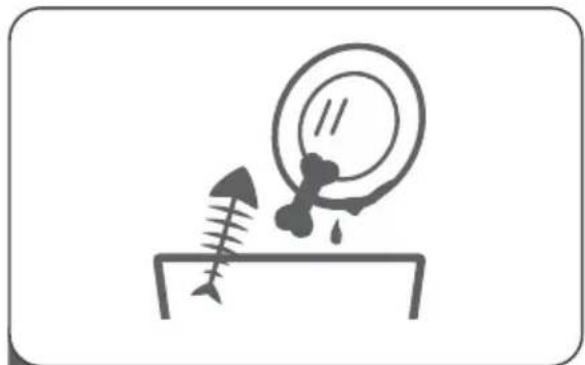

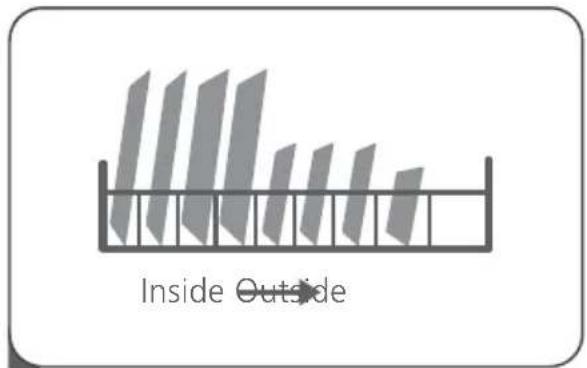

Load the baskets	Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,then load the baskets. Refer to the dishwasher loading instructions.
Select a programme	Close the door,press the program button to select the programs.( See the section entitled “Operationg instruction”)
Running the dishwasher	Turn on the water tap and press the Start/Pause Button. The machinewill start working.

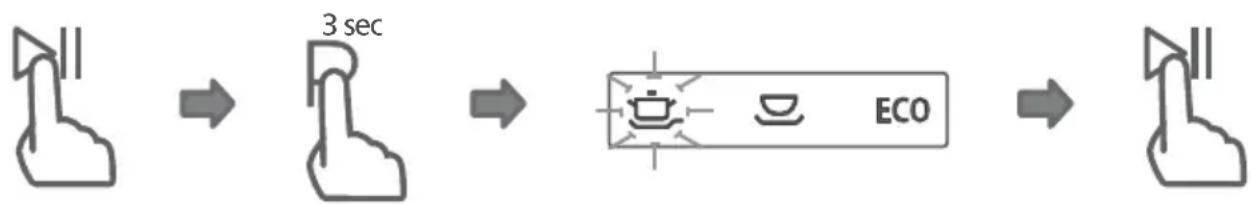

Changing the programme	1. A running cycle can only be modified if it has been running for a short time.Otherwise the detergent may have already been released drained.If this is the case, the detergent dispenser must be refilled.2. Press the Start/Pause button, Then press the program button more than 3 seconds tocancel the running program.3. Select a new programme.4. Restart the dishwasher.	WARNING!Open the doorcarefully.Hot steam mayescape when thedoor is opened!

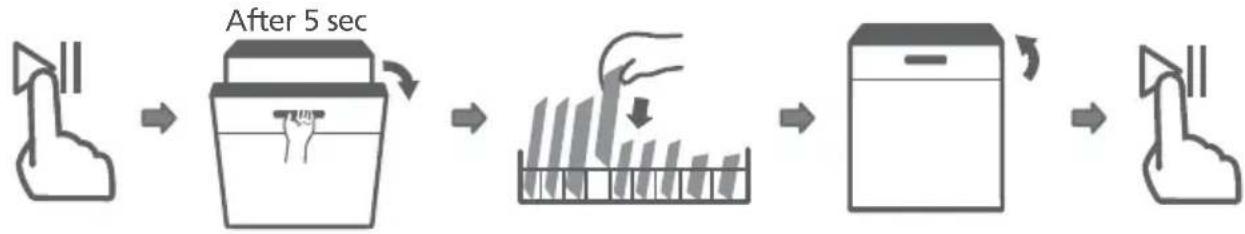

Add forgotten dishes in the dishwasher.	1. Press the Start/Pause Button to stop the machine.2. Open the door.3. Add forgotten dishes.4. Close the door, Then Press the Start/Pause Button, the dishwasher willrun after 10 seconds.
If the appliance is switched off during a wash cycle.	If the appliance is switched off during a wash cycle, when switchedon again, please re-select the washing cycle and operate the dishwasheraccording to the original Power-on state).

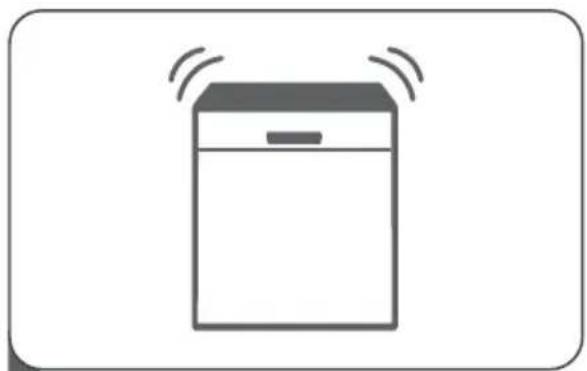

Switch off the appliance	When the working cycle has finished, the buzzer of the dishwasher will sound 8 times,then stop.Turn off the appliance using the ON/OFF button.Since the appliance is standing by, it will power off automatically after 30 minutes withoutany operation.
Turn off the water tap,unload the baskets	Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher toavoid handling the dishes and utensils while they are still hot and more susceptible tobreak.They will also dry better.Unload the appliance, starting from the lower basket.

WARNING!

TABLE OF CONTENTS

IMPORTANT SAFETY INFORMATION....46

PRODUCT OVERVIEW....51

INSTALLATION INSTRUCTION....52

SOUND-ABSORBING STRIP INSTALLATION....57

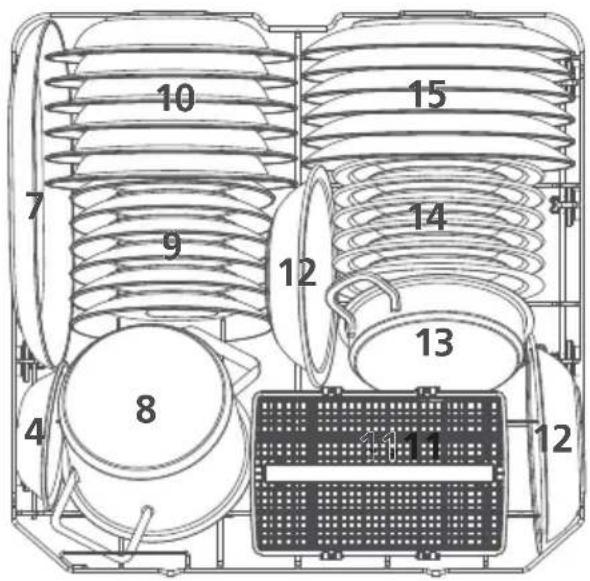

LOADING THE BASKETS ACCORDING TO EN60436....59

USING YOUR DISHWASHER....61

QUICK USER GUIDE....72

PROGRAMMING THE DISHWASHER....73

MAINTENANCE AND CLEANING....76

ERROR CODES....80

USAGE COUNTER 80

TROUBLESHOOTING TIPS....81

TECHNICAL INFORMATION....85

CORRECT DISPOSAL OF THIS PRODUCT....88

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

IMPORTANT SAFETY INFORMATION

WARNING! When using your dishwasher, follow the precautions listed below:

• Installation and repair can only be carried out by a qualified technician
- This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

-CAUTION: This product is intended for household dishwashing use only.

-CAUTION: This product is not suitable for commercial or collective use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children without supervision.

• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.

To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

- Please unplug before cleaning and maintenance the appliance.

Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• The appliance shall be connected to the water mains using new hose-sets supplied with the appliance, old hose-sets should not be reused.

• The door should not be left in the open position since this could present a tripping hazard.

• Regarding the information pertaining to the installation, handling, loading, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

• Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.
• The ventilation openings must not be obstructed by a carpet.

©Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.

• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.

• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance if it does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.
  Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.
• Check that there are no detergent residues after completion of the wash cycle.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.

• To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction.

• The maximum number of place settings to be washed is 12.

• The maximum permissible inlet water pressure is 1MPa.

- The minimum permissible inlet water pressure is 0.04MPa.

- The eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation;

- Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings and information on correct loading of tableware and main consequences of incorrect loading;

- Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended;

- Washing tableware in a dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the dishwasher is used according to the manufacturer's instructions;

PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

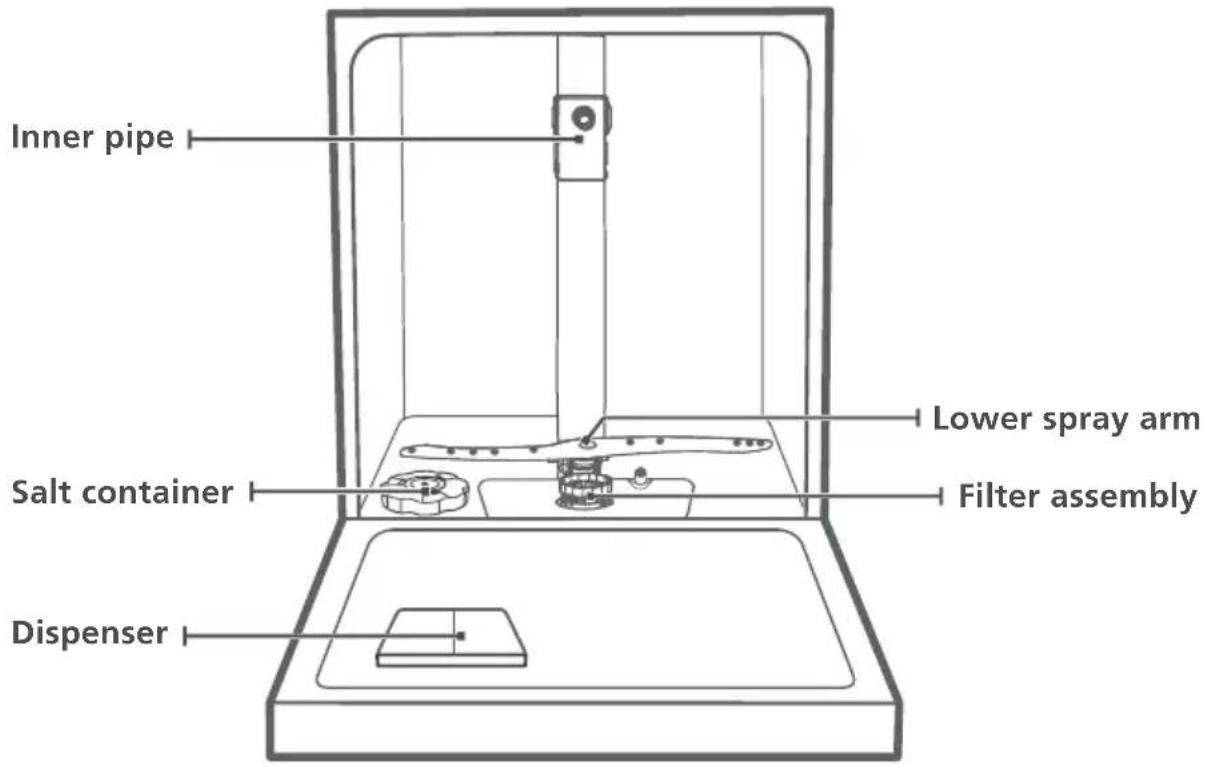

Inner pipe Lower spray arm Salt container Filter assembly Dispenser

Line drawing of a woven basket with handle and grid pattern (no text or symbols)

Cutlery basket

Cup rack upper spray arm

Upper basket

Technical line drawing of a multi-layered grid structure with no visible text or symbols

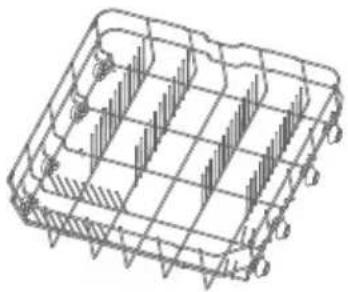

Lower basket

NOTE:

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Diagram showing a structural transformation from a grid-patterned structure to a multi-layered container-like structure (no text or symbols)

INSTALLATION INSTRUCTION

WARNING

Symbolic illustration of a hand emitting smoke or vapor, with lightning bolt and flame (no text or labels)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• About Power Connection

WARNING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Water Supply And Drain

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Line drawing of a hand holding a wrench, no text or symbols present

ordinary supply hose

WARNING

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

⚠️ Please securely fix the drain hose in either position A or position B

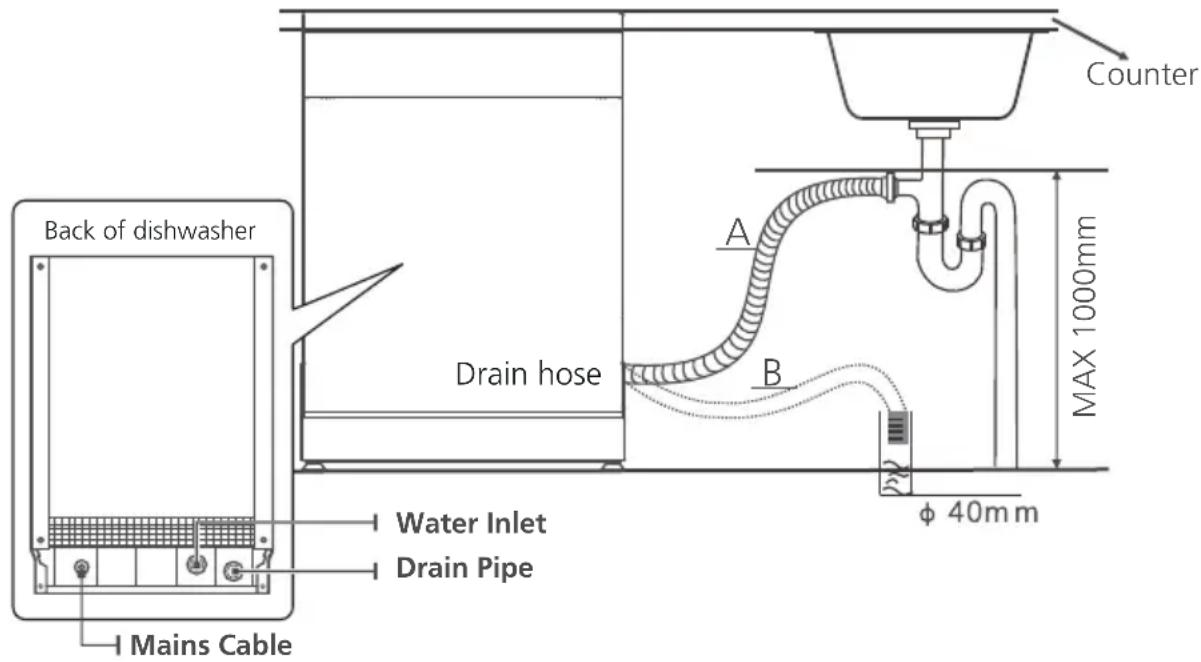

Counter Back of dishwasher Drain hose A B MAX 1000mm φ 40mm Water Inlet Drain Pipe Mains Cable

How to drain excess water from hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Position The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2^ .

Diagram showing a hand holding a tool with an arrow indicating rotation, no text or symbols present

NOTE:

Only apply to the free standing dishwasher.

Free Standing Installation

Fitting between existing carbinets

The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached.

The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

Line drawing of a minimalist kitchen counter with a grid-patterned wall and an arrow indicating a component (no text or symbols)

Underneath existing work top

(When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).

a b a b

Caution

After removing the work top, the screws must be screwed again under the rear edge of the top (b).

The height will then be reduced to 815 mm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top

SOUND-ABSORBING STRIP INSTALLATION

Sound-absorbing strip

Pure technical line drawing of a structural beam or support bracket (no text or symbols)

Top

Simple line drawing of a rectangular object with two side markers (no text or symbols)

Left

Simple line drawing of a rectangular beam with two flanged ends (no text or symbols)

Right

NOTE:

• When fitting beneath a work top you need to remove the work top of the , dishwasher first.
• If the machine is not embedded, then you can skip the first three steps, just install the sound insulation bar on the left and right sides.

Simple line drawing of a 3D rectangular box with arrows indicating direction (no text or symbols)

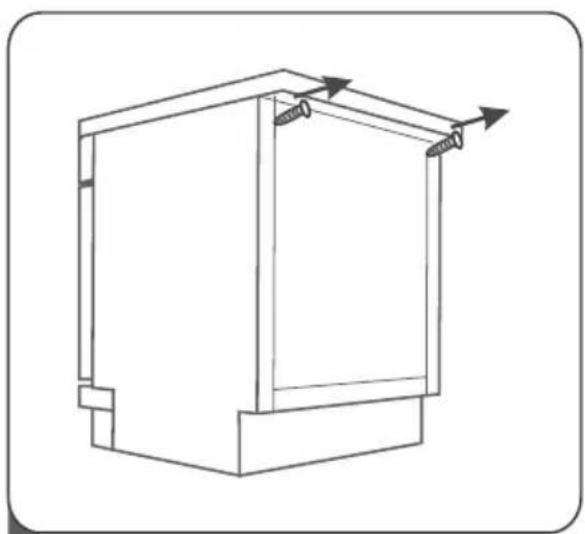

1 Unscrew the screws under the rear edge of the top.

Simple line drawing of a 3D box-like structure with an arrow indicating direction (no text or symbols)

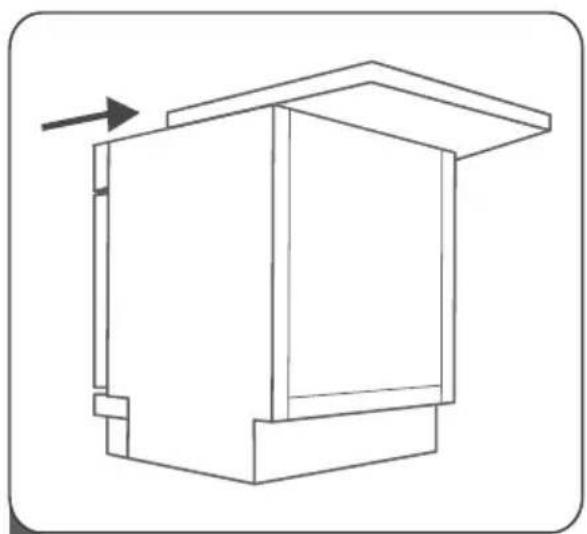

2 Push the work top of the dishwasher backwards and you can unload it.

Diagram showing two steps of a mechanical or structural assembly with labeled components and directional arrows

3 Remove the protection from the sound-absorbing strip, then fix the strip on the frame.

Take away

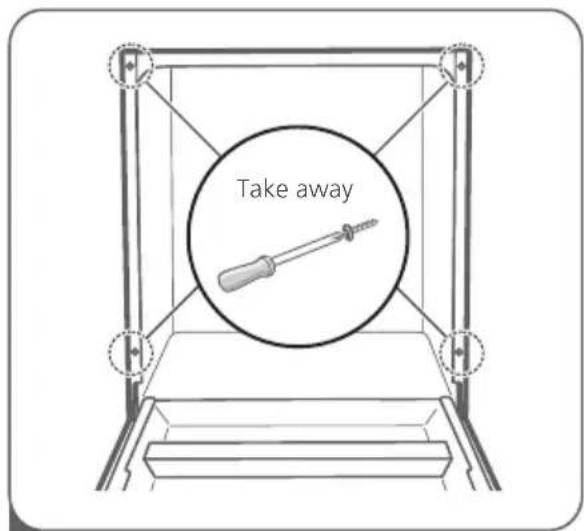

4 Take away the four screws from the right and left side plates.

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

5 Remove the protection from the sound-absorbing strips, then stick the strips to the side plates, please align to the hole position.

Screw into

6 Screw on the screws after all.

LOADING THE BASKETS ACCORDING TO EN60436:

1. Upper basket:


Technical diagram of a mechanical or electrical component with numbered parts labeled 1 to 6

Number	Item
1	Cups
2	Saucers
3	Glass bowl
4	Dessert bowls
5	Glasses
6	Mugs

1. Lower basket:


10 15 7 9 12 14 8 13 4 11 12

Number	Item
7	Oval platter
8	Small pot
9	Dessert plates
10	Soup plates
11	Cutlery basket
12	Melamine bowls
13	Oven pot
14	Melamine dessert plates
15	Dinner plates

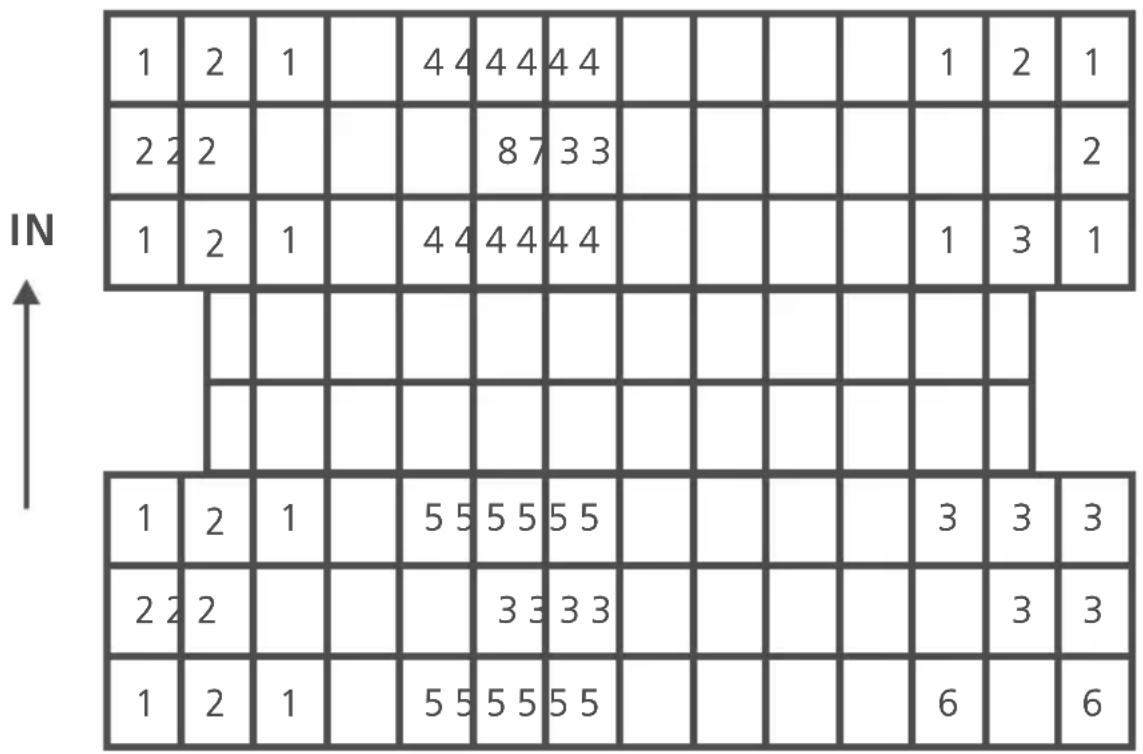

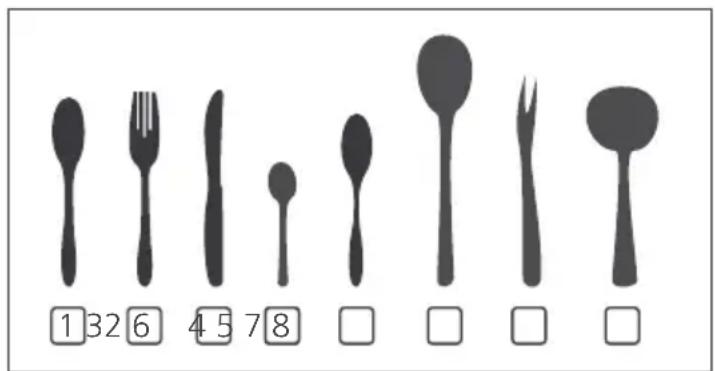

3.Cutlery basket:

1326 4578 □ □ □ □

Information for comparability

tests in accordance with EN60436

Capacity: 12 place settings

Position of the upper basket: lower position

Program: ECO

Rinse aid setting: Max

Softener setting: H3

Number	Item
1	Soup spoons
2	Forks
3	Knives
4	Teaspoons
5	Dessert spoons
6	Serving spoons
7	Serving forks
8	Gravy ladles

According to this manual loading the household dishwasher will contribute to energy and water savings.

USING YOUR DISHWASHER

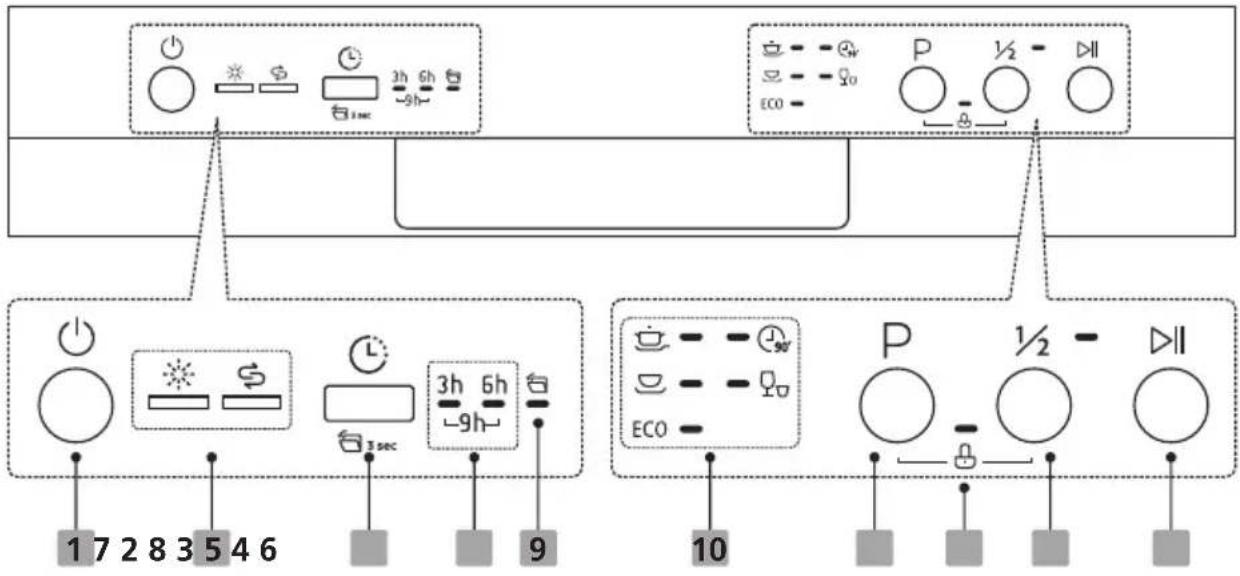

Control Panel

1 Power	Press this button to turn on your dishwasher.
2 Delay	Press the button to set the delay time, corresponding indicator will be lit.
3 Program	Press this button to select the appropriate washing program, the corresponding program indicator will be lit.
4 Half load	When you have about or less than half of full place settings dishware to wash, you can choose this function to save energy and water. (It can only be used with Intensive, Universal, ECO and 90 min.)
5 Child lock	This option allows you to lock the buttons on the control panel, except the Power button, so children cannot accidentally start the dishwasher by pressing the buttons on the panel.To lock or unlock the buttons on the control panel, press and hold the Program button + the Half load button for 3 seconds.
6 Start/Pause6	To start the selected washing program or pause it when the dishwasher is working.

Display

7	Warning indicator	Rinse AidIf the “ ❌” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. SaltIf the “ ⇌” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.
8	Delay time	To show the delay time (3h/6h/9h).
9	Auto open	Auto openAfter washing, the door will open automatically to achieve better drying effect. (It can only be used with Intensive, Universal, ECO, 90 min).Press and hold the Delay button for 3seconds to enable or cancel this function. When the icon lights up, the function of Auto open is selected.
10	Program indicator	[YTTS] IntensiveFor heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food. UniversalFor normally soiled loads, such as pots, plates, glasses and lightly soiled pans. ECOThis is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.[243H] 90 minFor normally soiled loads that need quick wash.[237Y] RapidA shorter wash for lightly soiled loads that do not need drying.

Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The more minerals there are, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Close the door and switch on the appliance.
2. Press the Program button for more than 5 seconds, when the salt indicator flashes means entering the water softener settings.

set model within 60 seconds after the appliance was switched on.

1. Press the Program button to select the proper set according to your local environment, the sets will change in the following sequence:

1. Without operation in 5 seconds or press the Power button to complete the setup and exit the setup mode.

WATER HARDNESS				Water softener level	Salt consumption (gram/cycle)
German *dH	French *fH	British *Clarke	Mmol/l
0 - 5	0 - 9	0 - 6	0 - 0.94	H1-> Rapid Light bright	0
6 - 11	10 - 20	7 - 14	1.0 - 2.0	H2-> 90 min Light bright	9
12 - 17	21 - 30	15 - 21	2.1 - 3.0	H3-> 90 min, Rapid Light bright	12
18 - 22	31 - 40	22 - 28	3.1 - 4.0	H4-> ECO Light bright	20
23 - 34	41 - 60	29 - 42	4.1 - 6.0	H5-> ECO, Rapid Light bright	30
35 - 55	61 - 98	43 - 69	6.1 - 9.8	H6-> ECO, 90 min Light bright	60

1^ = 1.25 Clarke=1.78 fH=0.178mmol/l

The manufactory setting: H3

Contact your local water board for information on the hardness of your water supply.

Please check the section 3 "Loading The Salt Into The Softener".

NOTE:

If your model does not have any water softener, you may skip this section.

Water Softener

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

Preparing And Loading Dishes

• Consider buying utensils which are identified as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing the following cutlery/dishes

Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
- Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
- Pewter or cooper items
- Crystal glass
• Steel items subject to rusting
- Wooden platters
• Items made from synthetic fibres

Are of limited suitability

• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolour during washing
- Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in following way:

• Items such as cups, glasses, pots/pans, etc. are faced downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
  • To avoid damage, glasses should not touch one another.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket upper basket. first, followed by the

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical line drawing of a mechanical component with no visible text or symbols

Loading the lower basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Pure diagram of vertical slats arranged in a grid pattern without any text, numbers, or symbols

Loading the cutlery basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

WARNING

Circular diagram with grid lines and intersecting X-shaped marks (no text or symbols)

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

For the best washing effect, please load the baskets refer to LOADING THE BASKETS.

Function Of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid dispenser

Unless the rinse-aid warning light ( ※ ) on the control panel is on, you can always estimate the amount from the color of the optical level indicator located next to the cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.

Rinse aid level indicator

Diagram of a kitchen appliance with shower, fan, and control knob (no text or symbols)

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full

3/4 full 1/2 full 1/4 full

○ Empty

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

• Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash dishes.

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Filling The Rinse Aid Reservoir

Illustration of a hand pressing down on a device panel with control buttons and icons (no text or symbols)

1 Remove the rinse aid reservoir cap by rotating it counterclockwise.

Illustration of a hand operating a device with a circular dial and control knob (no text or symbols)

2 Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.

Illustration of a hand pressing down on a device panel with icons and a scroll wheel (no text or symbols)

3 Close the rinse aid reservoir cap by rotating it clockwise.

NOTE:

Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.

Adjusting the rinse aid reservoir

Hand inserting a button into a device (no text or symbols visible)

Turn the rinse aid indicator dial to a number. The higher the number, the more rinse aid the dishwasher uses.

If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

Filling The Detergent Dispenser

Push latch to open

1 Press the release catch on the detergent dispenser to open the cover.

A B

2 Add detergent into the larger cavity (A) for the main wash cycle. For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle.

Illustration of a hand pressing down on a kitchen fan with a directional arrow indicating rotation (no text or symbols)

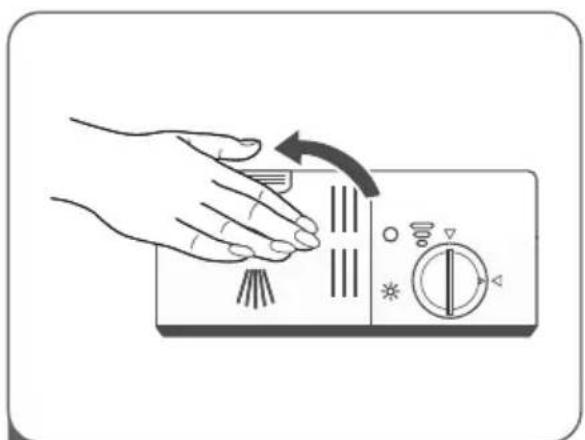

3 Close the cover and press on it until it locks into place.

NOTE:

• Be aware that depending on the soiling of water, setting may be different.
• Please observe the manufacturer's recommendations on the detergent packaging.

Before using your dishwasher :

1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket
4. Fill the dispenser

Please check the section 1 "Water Softener" of PART II: Special Version, If you need to set the water softener.

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section. Always use salt intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

• Only use salt specifically designed for dishwashers use!
  Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
  • Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Please follow the steps below for adding dishwasher salt:

Three-step illustration showing hands pouring liquid from a container into a lid, with arrows indicating direction (no text or symbols)

1. Remove the lower basket and unscrew the reservoir cap.

2. Pour in about 1.5kg of dishwasher salt into the reservoir.

3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will stop being after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should

be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

- The salt container must only be refilled when the salt warning light ( ⇌ ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

• If salt has spilled, run a soak or quick program to remove it.

QUICK USER GUIDE

Please read the corresponding content on the instruction manual for detailed operating method.

Pure diagram of a piping system with a cabinet and valve, no text or symbols present

1 Install the dishwasher

(Please check the section "INSTALLATION INSTRUCTION")

Simple line drawing of a fish on a surface with a magnifying glass above it (no text or symbols)

2 Removing the larger residue on the cutlery

Inside Outside

3 Loading the baskets

Illustration of a hand pouring liquid into a microwave oven with a tool (no text or symbols)

4 Filling the dispenser

Simple line drawing of a refrigerator with sound waves (no text or symbols)

5 Selecting a program and running the dishwasher

PROGRAMMING THE DISHWASHER

Wash Cycle Table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.

( ● )Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Description Of Cycle	Detergent Pre/Main	Running Time(min)	Energy (kWh)	Water (L)	Rinse Aid
Intensive	Pre-wash(50°C)
	Wash(65°C)
	Rinse	4/16g(1 or 2 pieces)	205	1.651	18.6	●
	Rinse
	Rinse(60°C)
	Drying
Universal	Pre-wash(45°C)
	Wash(55°C)
	Rinse	4/16g(1 or 2 pieces)	175 1.451		18.5	●
	Rinse
	Rinse(60°C)
	Drying
ECO (*EN60436)	Wash(50°C)
	Rinse	20g(1 piece)	210	0.824 11.0		●
	Rinse(45°C)
	Drying
90 min	Wash(55°C)
	Rinse	20g(1 piece)	90 0.891		11.3	●
	Rinse(50°C)
	Drying
Rapid	Wash(40°C)	12g(1 piece)	30 0.781		11.0	○
	Rinse(40°C)
	Rinse(55°C)

NOTE:

The ECO program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

The values given for programmes other than the eco programme are indicative only.

Starting A Cycle Wash

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page "Product fiche". Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Changing The Program Mid-cycle

A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds - the program will cancel.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.

Forget To Add A Dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.

WARNING

Simple line drawing of a box with a lid and handle, no text or symbols present.

It is dangerous to open the door mid-cycle, as hot steam may scald you.

Auto Open

After washing, the door will open automatically to achieve better drying effect.

NOTE:

The dishwasher door must not be blocked when set to open automatically.

This can disrupt door lock functionality.

Simple line drawing of a bin with a downward arrow indicating rotation (no text or symbols)

1. Don't stand in front of dishwasher door during operation to avoid hot air injury and collision when the door opens.
2. Close the door when the program ends to avoid collision and/or moisture rising under the worktop.

(There is beeping sound when program ends.)

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. Follow the steps below to clean the filters in the wash cabinet.

NOTE:

Pictures are only for reference, different models of the filtering system and spray arms may be different.

Illustration of a hand holding a kitchen utensil with arrows indicating rotation (no text or symbols)

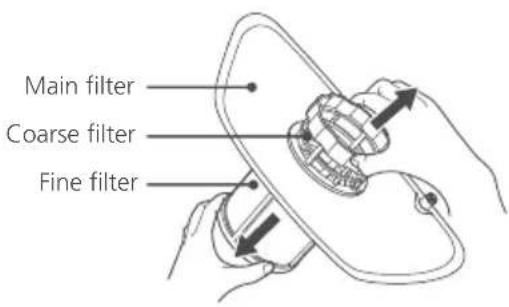

1 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

Main filter Coarse filter Fine filter

2 The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Line drawing of hands using a tool to clean or spray liquid from a sink (no text or symbols)

3 Larger food remnants can be cleaned by rinsing the filter under running water.

For a more thorough clean, use a soft cleaning brush.

Illustration of a hand using a tool to interact with a small container, showing rotation and movement (no text or symbols)

4 Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

Mechanical assembly diagram showing a lever mechanism and a close-up of the component (no text or symbols)

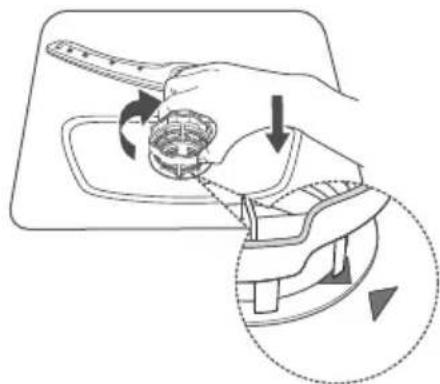

1 To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

2 To remove the lower spray arm, pull out the spray arm upward.

Line drawing of hands using a tool to clean or spray liquid onto a kitchen sink (no text or symbols)

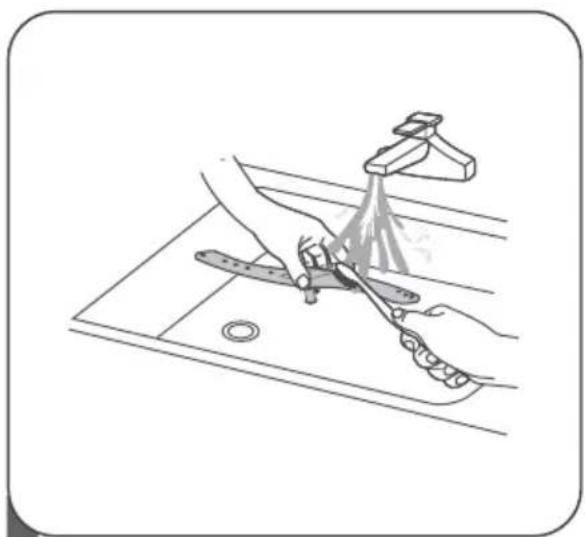

3 Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a longtime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

ERROR CODES

If there is a malfunction, the dishwasher will display error codes to identify these:

	Meanings	Possible CausesCodes
The Rapid light flicker fleetly	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
The Rapid and 90 min light flicker fleetly	Not reaching required temperature.	Malfunction of heating element.
The ECO light flicker fleetly	Overflow.	Some element of dishwasher leaks.
The ECO, Rapid and Universal indicator flicker fleetly	Failure of communication between main PCB with display PCB.	Open circuit or break wiring for the communication.

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

USAGE COUNTER

Since this model has no display screen, the cycles number will informed by using

4 LEDs, the detailed introduction is as follows:

1. When the power cord is connected, but the dishwasher is not turned on, close the door, press and hold the Delay button for 5 seconds, the dishwasher display will show the usage count;
2. The counting will be done from units to thousands sequence as below: Rapid flash indicate units of cycles, 90 min flash indicate tens of cycles, ECO flash indicate hundreds of cycles, Universal flash indicate thousands of cycles;
3. For example, 1234 cycles will indicated as below illustration.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit break tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
Water not pumped form dishwasher	Twisted or trapped drain hose.	Check the drain hose.
	Filter clogged.	Check coarse the filter.
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining, you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub Wrong detergent.		Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the bottom of the dishwasher.Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared.Repeat if necessary.

Problem Possible Causes What To Do

	Spilled rinse-aid. Always wipe up rinse-aid spills immediately.
Stained tub interior Detergent with colourant may have been used.		Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt.
	The lid of the softer is loose.	Check the softener lid is secure.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program and rearrange the items which are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the program and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See PART II “Preparing And Loading Dishes”.
	The program was not powerful enough.	Select a more intensive program.
Problem Possible Causes What To Do
The dishes are not clean.	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the movement of the spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses.	Hard water area can cause limescale deposits.	Add more detergent.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly.
The dishes aren't drying	Improper loading Load the dishwasher as suggested in the directions.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
Problem	Possible Causes What To Do
The dishes aren't drying	Wrong program has been selected.	With a short program, the washing temperature is lower, decreasing cleaning performance.Choose a program with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

TECHNICAL INFORMATION

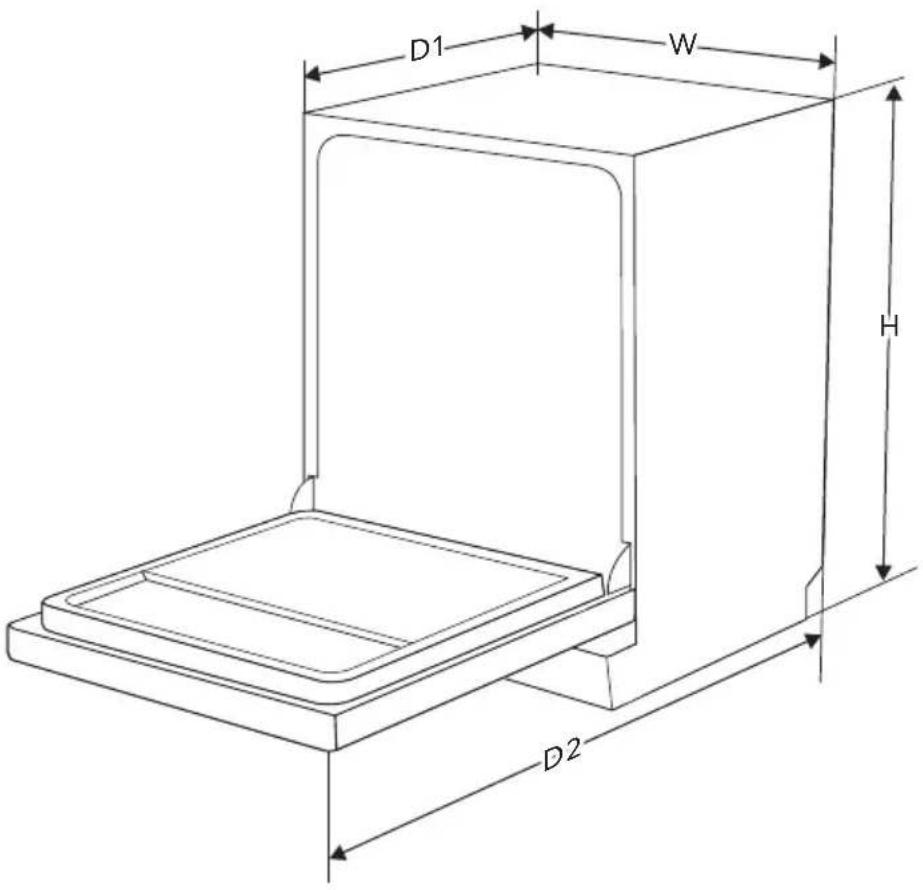

D1 W H D2

Height (H)	845mm
Width (W)	598mm
Depth (D1)	600mm (with the door closed)
Depth (D2)	1175mm (with the door opened 90° )

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2017 with regard to energy labelling of household dishwashers
Supplier's name or trade mark: AYA
Supplier's address: BUT INTERNATIONAL, AVENUE SPINOZA 1, 77184 EMERAINVILLE, FR
Model identifier: ALV1247DB6NE
General product parameters:
Parameter Value Parameter Value
Rated capacity(a)(ps)	12	Dimensions in cm	Height 85
			Width 60
			Depth	60
EEI(a)	49,9	Energy efficiency class(a)	D
Cleaning performance index(a)	1,125	Drying performance index(a)	1,065
Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0,824	Water consumption in litres [per cycle], based on the eco programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	11,0
Programme duration(a)(h:min)	3:30	Type	Free-standing
Airborne acoustical noise emissions(a)(dB(A) re 1 pW)	47	Airborne acoustical noise emission class(a)	C
Off-mode (W) (if applicable)	-	Standby mode (W) (if applicable)	0,49
Delay start (W) (if applicable)	1,00	Networked standby (W) (if applicable)	-
Minimum duration of the guarantee offered by the supplier: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.but.fr

(a) for the eco programme.
Flash the QR code on energy label to access its main information.

CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

If you need access to the list of spare parts and technical documentation for your product, please go to https://pieces-detachees-butelectro.sfg.fr There you will be able to buy spare parts for repairing your product or having it repaired.

Duration of availability of spare parts: 10 years.

In accordance with Article L.217 of the Consumer Code, your porduct has 2 year legal guarantee of conformity. To contact our After-Sales Service before going to BUT store.

09 78 97 97 97

Monday to Friday from 09:00 to 19:00, and Saturday 09:00 to 18:00 Price of a local call

This instruction manual is also available on our website: www.but.fr

LE TRI + FACILE BAC DE TRI
