ZCBob - Processor DBX - Free user manual and instructions

Brand	DBX
Model	ZCBob
Category	Processor
Type	Zone controller
Dimensions (W x H x D)	483 x 44 x 152 mm
Weight	2.1 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption	20 W
Main functions	Zone control, audio signal processing
Maintenance and cleaning	Clean with a dry cloth, do not use liquid
Safety	Do not open, do not expose to water, indoor use only
Spare parts and repairability	Contact DBX customer service
General information	Indoor use only, max altitude 2000 m
Warranty	Warranty void if device opened
Compliance	CE, FCC, Low Voltage Directive 2014/35/EU
Operating temperature	0-40 °C
Humidity	<80% non-condensing

Frequently Asked Questions - ZCBob DBX

How to install the ZCBob?

Install the device in a standard 19-inch rack, ensuring not to block the ventilation slots. Use the screws provided. Connect the power supply after checking the voltage.

How to clean the ZCBob?

Clean the device with a dry, lint-free cloth. Never use liquid or chemical products.

What to do if the device does not turn on?

Check the power cord and outlet. Ensure the switch is in the on position. If the problem persists, contact technical support.

Can I use the ZCBob outdoors?

No, the device is designed for indoor use only. Do not expose it to rain or moisture.

What is the maximum operating altitude?

The maximum operating altitude is 2000 meters.

How to connect audio cables?

Use balanced XLR or Jack cables. Connect inputs to sources and outputs to amplifiers. Refer to the wiring diagram provided in the manual.

Does the device heat up normally?

Yes, slight heat is normal. Do not place the device near heat sources and ensure adequate ventilation.

Can I repair the device myself?

No, do not attempt to repair the device. Opening voids the warranty and may present risks. Contact a qualified technician.

What to do in case of a storm?

Unplug the device from the mains outlet to avoid damage from lightning.

Where to find spare parts?

Contact DBX customer service or an authorized dealer. Use only parts recommended by the manufacturer.

USER MANUAL ZCBob DBX

Wall-Mounted Zone Controllers

ZC-1-4

ZC-6-9

ZC-Fire

ZC-BOB

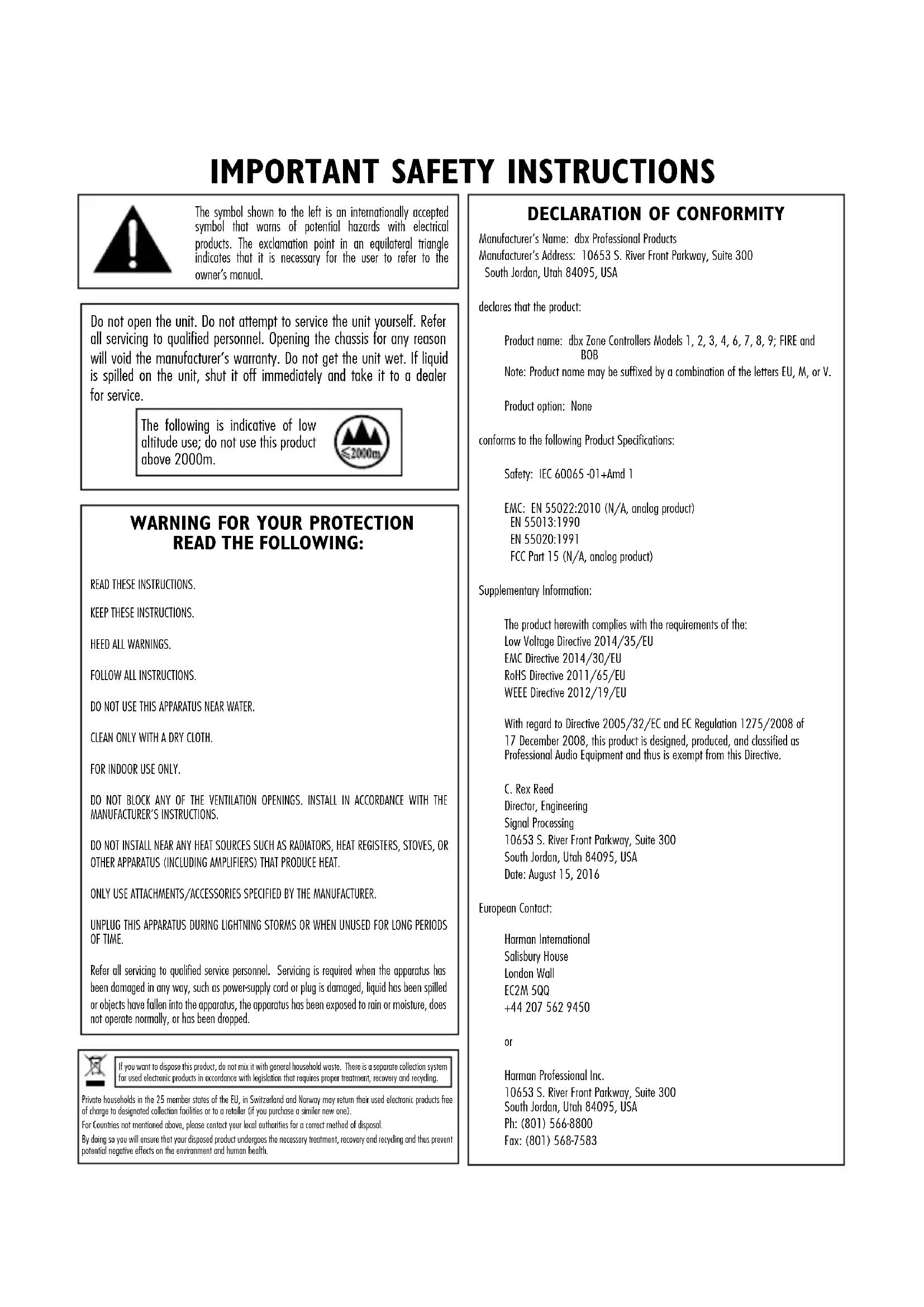

IMPORTANT SAFETY INSTRUCTIONS

The symbol shown to the left is an internationally accepted symbol that warns of potential hazards with electrical products. The exclamation point in an equilateral triangle indicates that it is necessary for the user to refer to the owner's manual.

Do not open the unit. Do not attempt to service the unit yourself. Refer all servicing to qualified personnel. Opening the chassis for any reason will void the manufacturer's warranty. Do not get the unit wet. If liquid is spilled on the unit, shut it off immediately and take it to a dealer for service.

The following is indicative of low altitude use; do not use this product above 2000m.

WARNING FOR YOUR PROTECTION READ THE FOLLOWING:

READ THESE INSTRUCTIONS.

KEEP THESE INSTRUCTIONS.

HEED ALL WARNINGS.

FOLLOW ALL INSTRUCTIONS.

DO NOT USE THIS APPARATUS NEAR WATER.

CLEAN ONLY WITH A DRY CLOTH.

FOR INDOOR USE ONLY.

DO NOT BLOCK ANY OF THE VENTILATION OPENINGS. INSTALL IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS.

DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS, HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING AMPLIFIERS) THAT PRODUCE HEAT.

ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE MANUFACTURER.

UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

DECLARATION OF CONFORMITY

Manufacturer's Name: dbx Professional Products

Manufacturer's Address: 10653 S. River Front Parkway, Suite 300

South Jordan, Utah 84095, USA

declares that the product:

Product name: dbx Zone Controllers Models 1, 2, 3, 4, 6, 7, 8, 9; FIRE and BOB

Note: Product name may be suffixed by a combination of the letters EU, M, or V.

Product option: None

conforms to the following Product Specifications:

Safety: IEC 60065-01+Amd 1

EMC: EN 55022:2010 (N/A, analog product)

EN 55013:1990

EN 55020:1991

FCC Part 15 (N/A, analog product)

Supplementary Information:

The product herewith complies with the requirements of the:

Low Voltage Directive 2014/35/EU

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

WEEE Directive 2012/19/EU

With regard to Directive 2005/32/EC and EC Regulation 1275/2008 of

17 December 2008, this product is designed, produced, and classified as

Professional Audio Equipment and thus is exempt from this Directive.

C. Rex Reed

Director, Engineering

Signal Processing

10653 S. River Front Parkway, Suite 300

South Jordan, Utah 84095, USA

Date: August 15, 2016

European Contact:

Harman International

Salisbury House

London Wall

EC2M 5QQ

[phone]

or

Harman Professional Inc.

10653 S. River Front Parkway, Suite 300

South Jordan, Utah 84095, USA

Ph: [phone]

Fax: [phone]

CONSIGNES DE SÉCURITÉ IMPORTANTES

DÉCLARATION DE CONFORMITÉ

Nom du fabricant : dbx Professional Products

Adresse du fabricant : 10653 S. River Front Parkway, Suite 300

South Jordan, Utah 84095, ÉTATS-UNIS

Directive RoHS 2011/65/UE

Directive DEEE 2012/19/UE

10653 S. River Front Parkway, Suite 300

South Jordan, Utah 84095, ÉTATS-UNIS

Date : 15 août 2016

Harman Professional Inc

10653 S. River Front Parkway, Suite 300

South Jordan, Utah 84095, ÉTATS-UNIS

The Zone Controllers, (ZC-1, ZC-2, ZC-3, ZC-4, ZC-6, ZC-7, ZC-8, ZC-9 and ZC-Fire) can be wired serially or in parallel. To wire in series, each Zone Controller must have an identification or zone number chosen using the DIP switches on the side of the controller (see diagram A). Each controller must have a unique number chosen — although there may be multiple Zone Controllers controlling a single zone, or a single Zone Controller that controls multiple outputs. The Zone Controllers can then be wired together and connected to the compatible device (e.g., DriveRack® 220i, 260, ZonePRO™, etc.) (see diagram B).

The Zone Controllers may also be wired in parallel with the use of the ZC-BOB. To wire in parallel (home run cabling), each controller must have a unique identification or number chosen using the DIP switches on the rear of the panel (see diagram A). To wire in parallel, each controller must be wired into a port of the ZC-BOB with a connecting wire going to the controlled device (see diagram C). Diagram D shows the typical wiring for ZC-4 Euroblock connections in which the installer needs to use SPDT (single-pole, double-throw) switches with one side being connected to 5 volts (+VREF) and the other side to ground (GND). Diagram E shows the proper way to interface the ZC-Fire to the fire alarm system. Use only the relay/switch closure or the 5-24V DC inputs. Do not use both inputs at the same time. For information regarding ZC setup, please see the respective manual for the device that you are setting up.

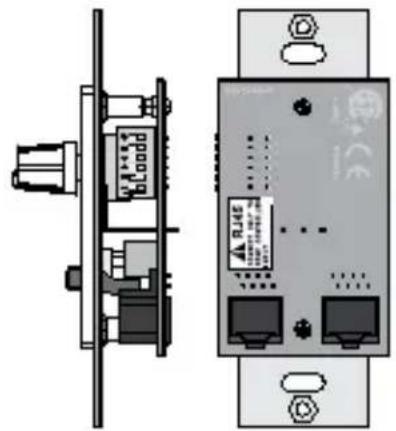

Diagram A

Technical diagram of an electronic device showing front and side views with ports and connectors (no text or symbols)

Diagram B

ID # 1 ID # 4 dbx USB

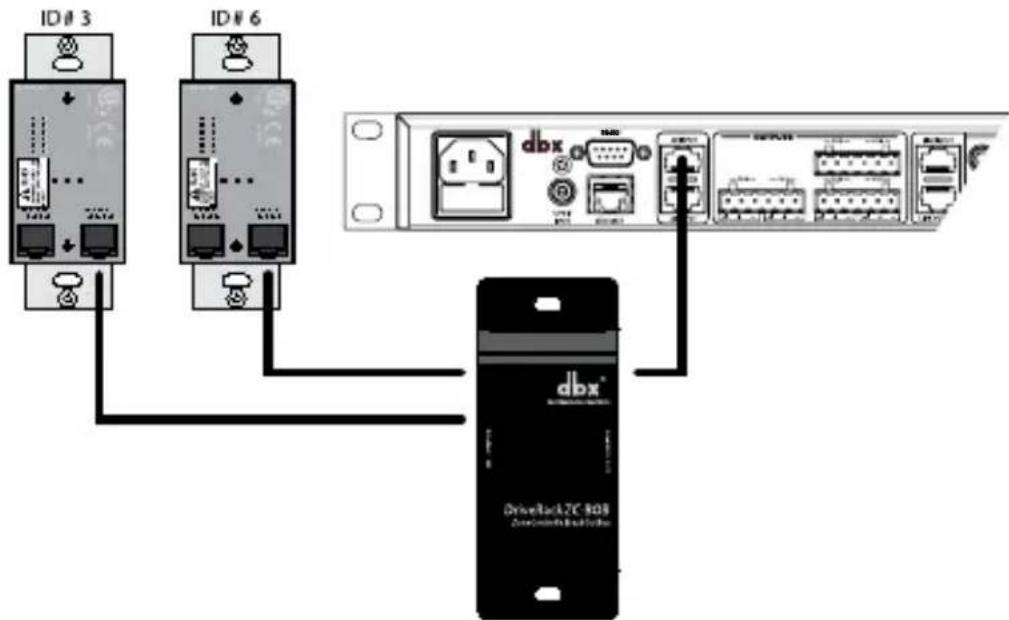

Diagram C

ID# 3 ID# 6 dbx dbx® DriveBack2C 808 DriveBack2C 808

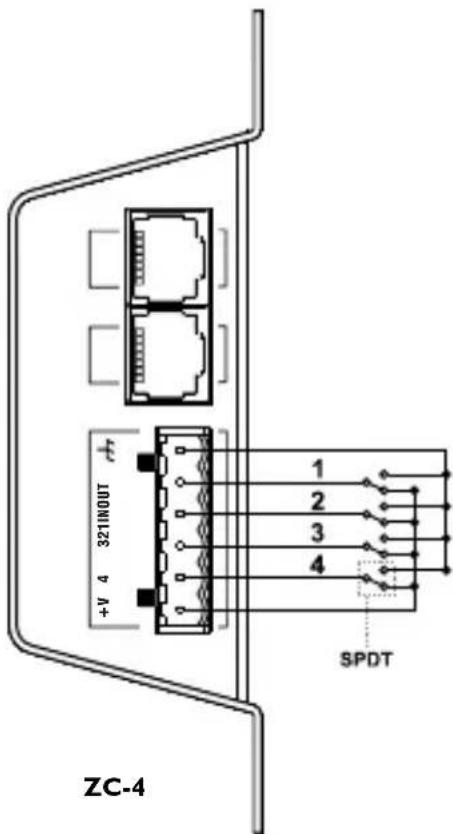

Diagram D

+V 4 321N408 +V 4 SPDT ZC-4

ZC-4 Binary Appnotes
SW4	SW3	SW2	SW1 Hex Setting
0 0 0	0 0 0
0 0 0	1 1
0 0 1	0 2 2
0 0 1	1 3 3
0 1 0	0 4 4
0 1 0	1 5 5
0 1 1	0 6 6
0 1 1	1 7 7
1 0 0	0 8 8
1 0 0	1 9 9
1 0 1	0 A 10
1 0 1	1 B 11
1 1 0	0 C 12
1 1 0	1 D 13
1 1 1	0 E 14
1 1 1	1 F 15

Switches SW1-SW4 correspond to switch inputs 1-4 on the ZC-4's EuroBlock connector. Each switch connected to the ZC-4 must be a Single-Pole Double-Throw (SPDT). One pole of each switch should be connected to the ground reference on the ZC-4's EuroBlock connector while the other pole should be connected to the +V reference. Because there are four switch inputs, there are 16 possible switch combinations. In the chart above, a "0"

corresponds to a switch connected to the ground reference; a "1" corresponds to the switch being connected to the +V reference. None of the poles should be left hanging but should either be connected to +V or ground.

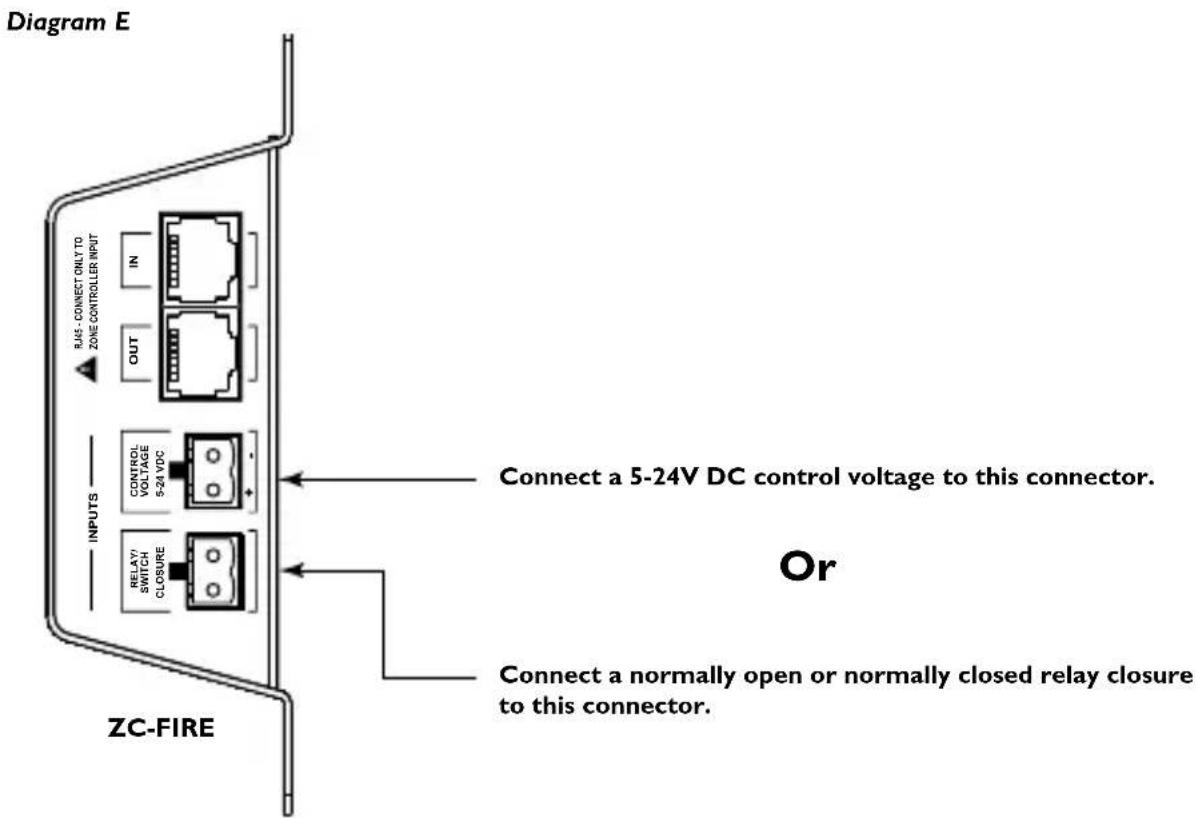

Diagram E RAJ5- CONNECT ONLY TO ZONE CONTROLLER INPUT IN OUT INPUTS CONTROL VOLTAGE 5-24 VDC RELAY SWITCH CLOSURE Connect a 5-24V DC control voltage to this connector. Or ZC-FIRE Connect a normally open or normally closed relay closure to this connector.

Zone Controller Maximum Cable Length

Note - The following cable lengths were achieved using Cat5 Enhanced cable exhibiting a maximum D.C. resistance of 29 Ohms per 1,000 feet. When connecting Zone Controllers in series, the following cable length restrictions apply:

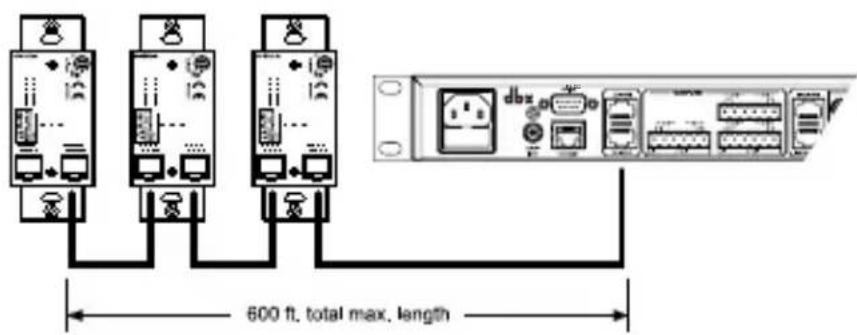

• As shown in Diagram F, any (3) Zone Controllers may be wired in series as long as the total cable length does not exceed 600 feet.
• Any (6) Zone Controllers may be wired in series as long as the total cable length does not exceed 300 feet. Refer to Diagram G.
- Cable runs of up to 1,000 feet may be achieved using “Home Run” wiring. An example of this is shown in Diagram H. A dbx Zone Controller Break Out Box (dbx ZC-BOB) is used to parallel several cable runs. It should be noted that a 1,000 foot cable with a single Zone Controller may be connected directly to the controlled device.

Note - Daisy chaining Zone Controllers to a ZC-BOB (connecting them serially) is not supported or recommended.

Diagram F

600 ft. total max. length

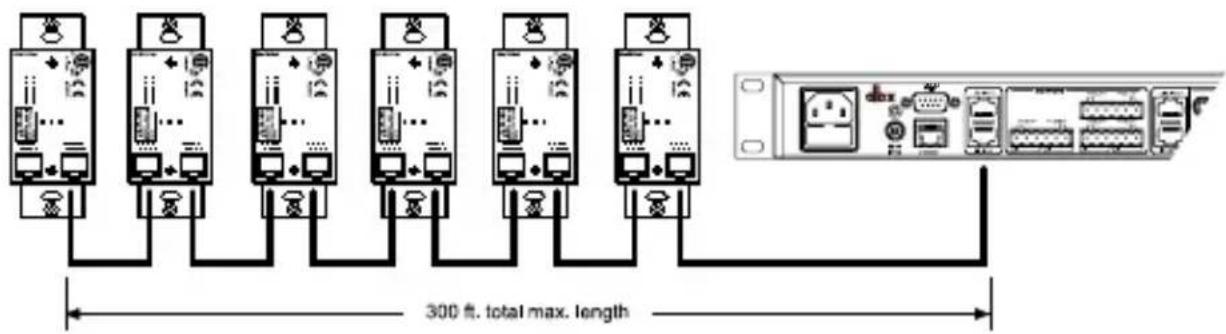

Diagram G

300 ft. total max. length

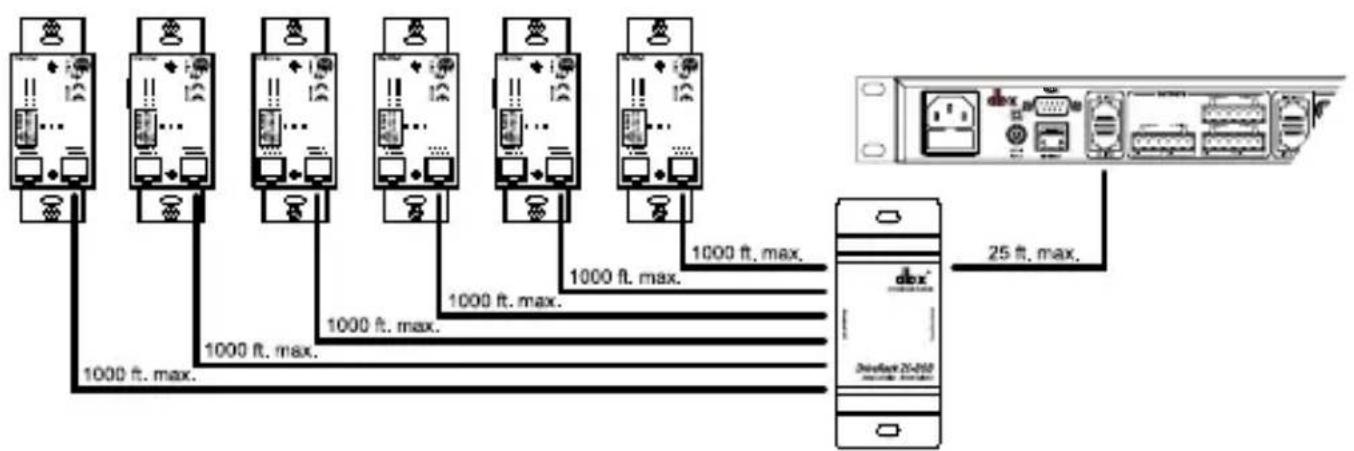

Diagram H

1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 1000 ft. max. 100 25 ft. max. dtx DvExfae 20-667

Cable Spec: Cat5 Cable - 4-Twisted Pairs of 24AWG wire

RJ-45(8-Position)	White / Orange	RJ-45(8-Position)
1		Voltage Reference
2	Orange	Controller 1/7 ON1 2 3 4 5 6
3	White / Green	Controller 2/8 ON1 2 3 4 5 6
4	Blue	Controller 3/9 ON1 2 3 4 5 6
5	White / Blue	Controller 4/10 ON1 2 3 4 5 6
6	Green	Controller 5/11 ON1 2 3 4 5 6
7	White / Brown	Controller 6/12 ON1 2 3 4 5 6
8	Brown	Ground

Zone Controller Compatibility Chart

	DriveRack 220i	DriveRack 260	DriveRack 4800/4820	ZonePRO 640(M) / 641(M)	ZonePRO 1260(M) / 1261(M)	SC 32 / 64
ZC-1	XXXXXX
ZC-2	XXXXXX
ZC-3	XXXXXX
ZC-4	XXXXXX
ZC-6			XXXX
ZC-7			XXXX
ZC-8			XXXX
ZC-9			XXX
ZC-Fire			XXXX
ZC-BOB	XXXXXX

Safety Warning

The installation of the Zone Controllers MUST be accomplished with the use of cable which is rated VW-1 or higher. Common NEC designations which meet this rating include: CMP, CMR, CMG, CM and CMX.

Specifications

Connections: ZC-1, ZC-2, ZC-3, ZC-6, ZC-7, ZC-8 and ZC-9 Connectors: (2) RJ-45

ZC-4 Connectors: (2) RJ-45, (1) 6-Pin Phoenix

ZC-BOB Connectors: (7) RJ-45

ZC-Fire Connectors: (2) RJ-45, (2) 2-Pin Phoenix

Wiring: Maximum cable length depends on number of Zone Controllers and wiring schematic.

Series Wiring: Maximum cable length varies with number of Zone Controllers. For example, three Zone Controllers: 600 ft., six Zone Controllers: 300 ft.

Parallel Wiring: Using a ZC-BOB: Up to six Zone Controllers: 1000 ft.

Cable: CAT5 or CAT5E with <28.6 Ohm/M (Ohm/1000 ft.) nominal DCR and rated VW-1 or higher.

Safety Agency Approvals: UL 60065-07, IEC 60065, EN 55013

Shipping Weight: .7 lb.

Dimensions

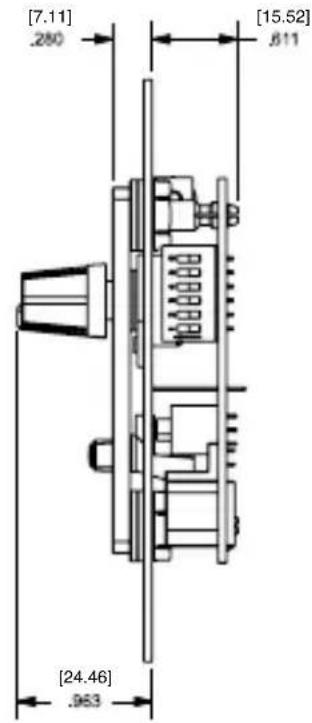

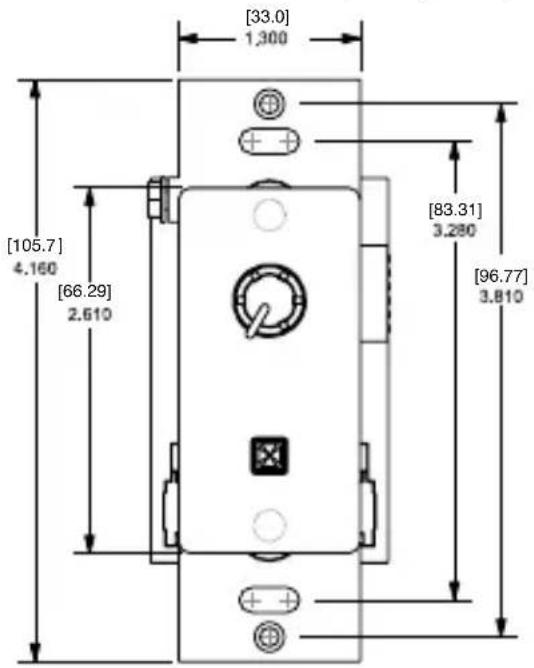

ZC-1, ZC-2, ZC-3, ZC-6, ZC-7

[33.0] 1,300 [105.7] 4.160 [66.29] 2.610 [83.31] 3.280 [96.77] 3.810

[7.11] .280 [15.52] .611 [24.46] .963

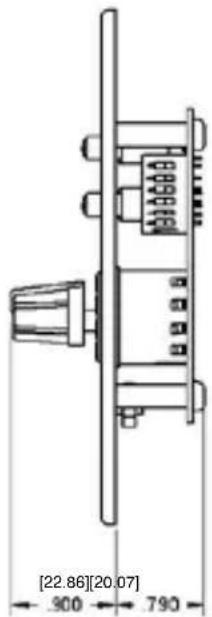

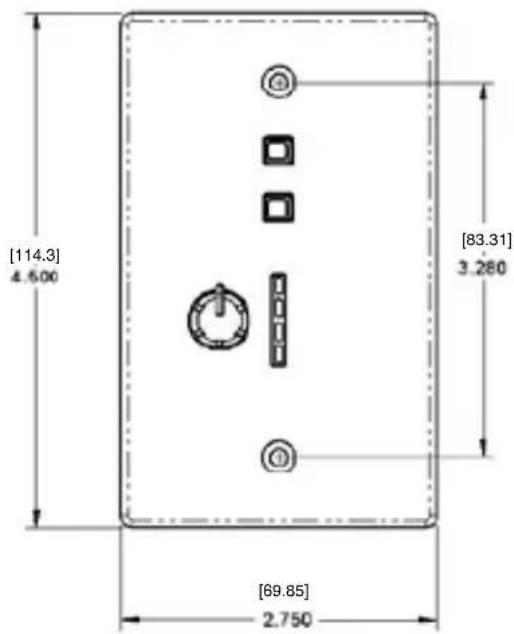

ZC-8 and ZC-9

[114.3] 4.500 [83.31] 3.260 [69.85] 2.750

[22.86][20.07] 900 790

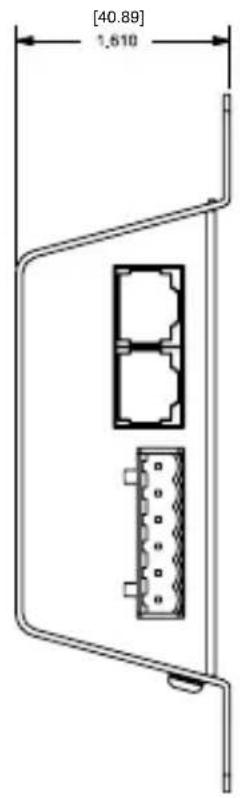

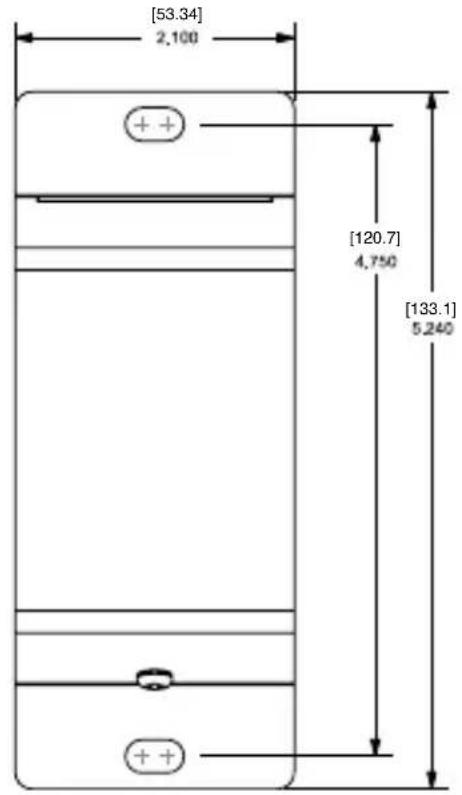

ZC-4, ZC-BOB and ZC-Fire

[53.34] 2,100 [120.7] 4,750 [133.1] 5,240 [+ +]

[40.89] 1.610

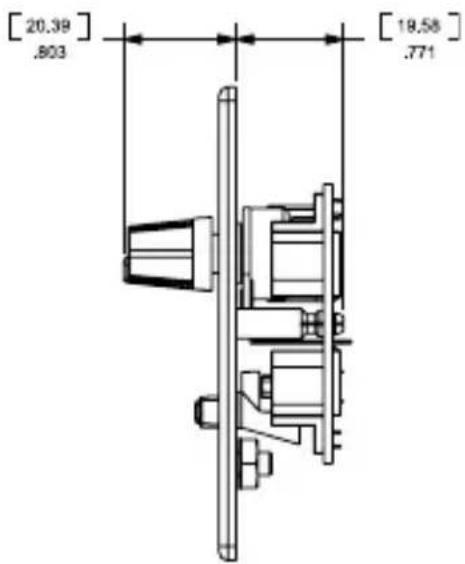

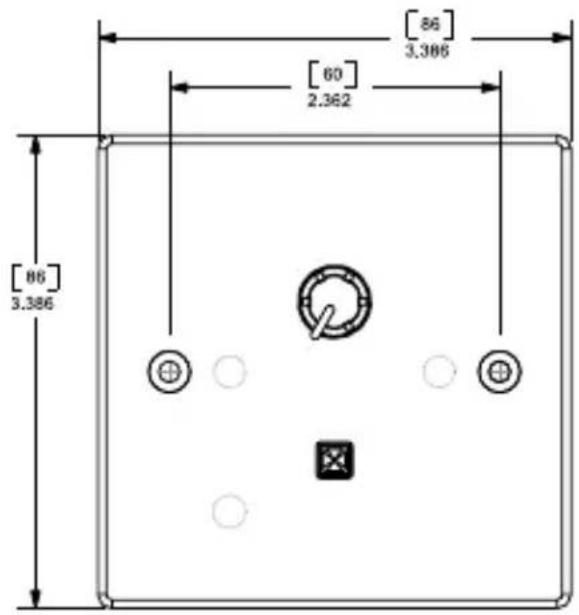

ZC-1, ZC-2, ZC-3, ZC-6, ZC-7, ZC-8 and ZC-9 EU Models

[86] 3.386 [60] 2.362 [86] 3.386

[20.39] .803 [18.58] .771
