Product type	Wine cellar
Brand	Hotpoint
Model	HA6 WC711 0
Maximum capacity	46 bottles
Temperature range	+6°C to +18°C
Temperature zones	Dual zone (upper adjustable, lower non-adjustable)
Climate class	SN, N, ST, T (10°C to 43°C)
Refrigerant	R134a or R600a (according to rating plate)
Defrost	Automatic
Shelves	5 oak wood shelves, including one removable black shelf
Maximum weight per shelf	40 kg
Door	Glass, opens 90°, non-reversible
Interior lighting	Button-controlled lamp
Installation	Away from heat sources, min. 3.5 cm gap from furniture, 60 cm from walls
Electrical connection	Earthing mandatory, do not use extension cord
Interior cleaning	Sponge soaked in warm water and mild detergent
Exterior cleaning	Soft cloth dampened with water
Cleaning wooden shelves	Damp cloth
Glass cleaning	Specific glass cleaner
Use	Reserved exclusively for wine storage

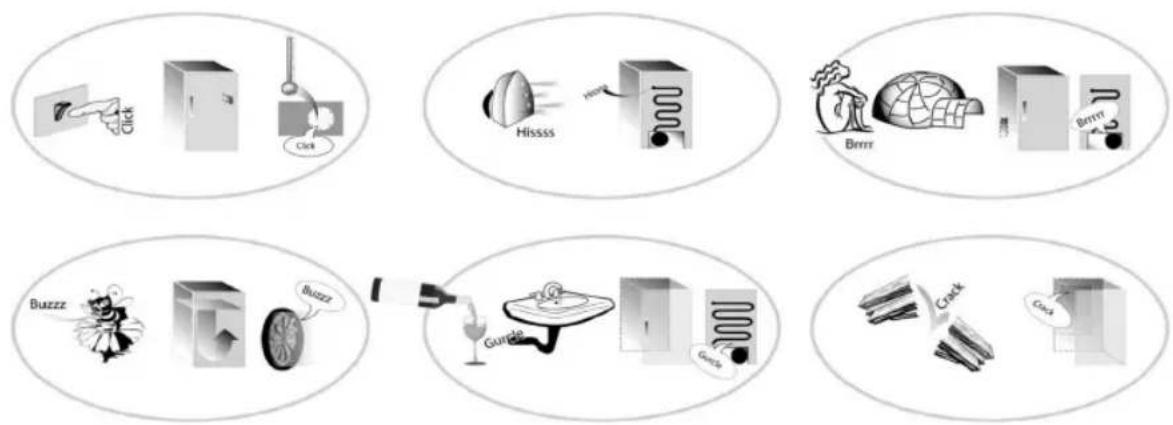

Noise	Normal: hissing, gurgling, humming, crackling, clicking
After-sales service	Available, provide model, serial number, and fault description

Frequently Asked Questions - HA6 WC711 0 HOTPOINT

How do I set the temperature on my Hotpoint HA6 WC711 0 wine cellar?

Press the + or - button on the control panel for about one second until the display flashes, then select the desired temperature (from +6°C to +18°C). Wait 5 seconds for the setting to be saved.

What is the maximum bottle capacity?

The maximum capacity is 46 bottles in mixed configuration (lying and standing bottles). In classic configuration, it can hold up to 36 Bordeaux bottles.

Can I store food in this wine cellar?

No, this wine cellar is exclusively designed for wine storage. Do not place any other type of food in it.

How do I clean the wooden shelves?

Use a damp cloth to clean the oak wood shelves. Avoid abrasive products and do not let them soak in water.

What to do if the appliance does not work?

First check the power supply: plug inserted, switch on, electrical protections. If the problem persists, unplug the appliance and wait one hour before plugging it back in. Contact after-sales service if necessary.

How do I reverse the door opening?

The door opening of this wine cellar cannot be reversed. It is designed to open on one side only.

What noises are normal during operation?

Noises such as hissing, gurgling, humming, crackling, or clicking are normal and indicate the operation of the compressor and fan.

How do I use the dual temperature zone?

Place the removable black shelf on the guides of the fourth tier to separate the two zones. Set the temperature of the upper compartment (from +6°C to +18°C). The lower compartment will be warmer (about 5-6°C higher). For a single zone, remove the black shelf and replace it with a wooden shelf.

At what temperature should I store my wines?

The ideal storage temperature is between 8°C and 12°C. Avoid sudden variations. For serving, refer to the optimal temperature table in the manual.

How do I get the serial number for after-sales service?

The serial number is on the rating plate located inside the appliance. Also note the model and type of fault before contacting after-sales service.

USER MANUAL HA6 WC711 0 HOTPOINT

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

Close-up of wooden clothespins and clips, no text or symbols visible

Brugsanvisning

Bruksanvisning

Käyttöohje

Black and white photo of two glass bottles with black lids, one partially filled in a white container (no text or symbols visible)

Close-up of several glasses with clear reflections, no text or symbols visible

Οδηγίες χρήσης

Close-up of a white industrial or kitchen appliance with perforated door and mounting bracket (no visible text or symbols)

Návod k použití

Návod na použitie

Simple black-and-white sketch of a tree with three rounded canopy and a small hill in the background (no text or symbols)

Interior view of a wine cellar with wooden barrels and shelves (no visible text or labels)

Lagerungsort

Interior view of a wine cellar with rows of wine bottles on the walls and an arched corridor (no visible text or labels)

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a multi-tiered refrigerator with six bottles on the front and circular compartments on the back (no text or symbols)

SERVICE

42 Flaschen

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

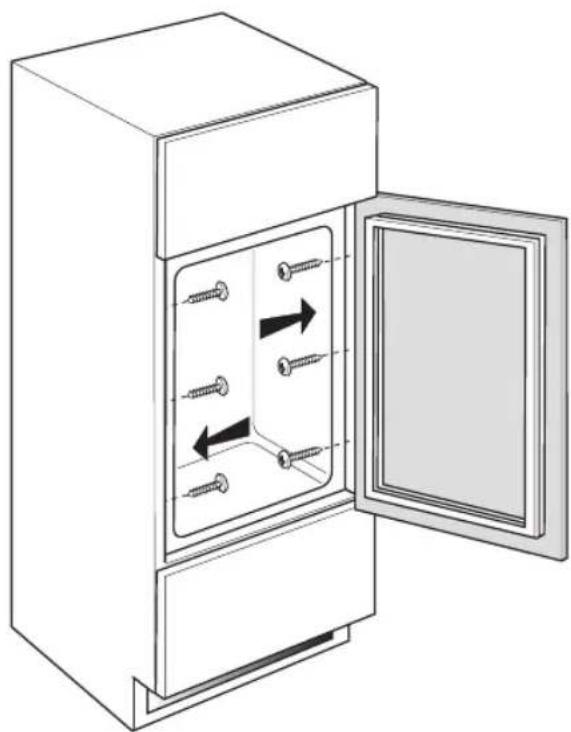

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

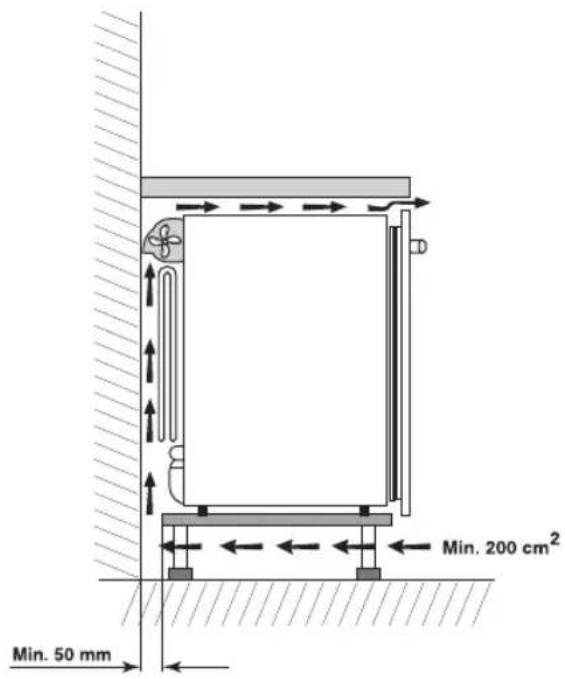

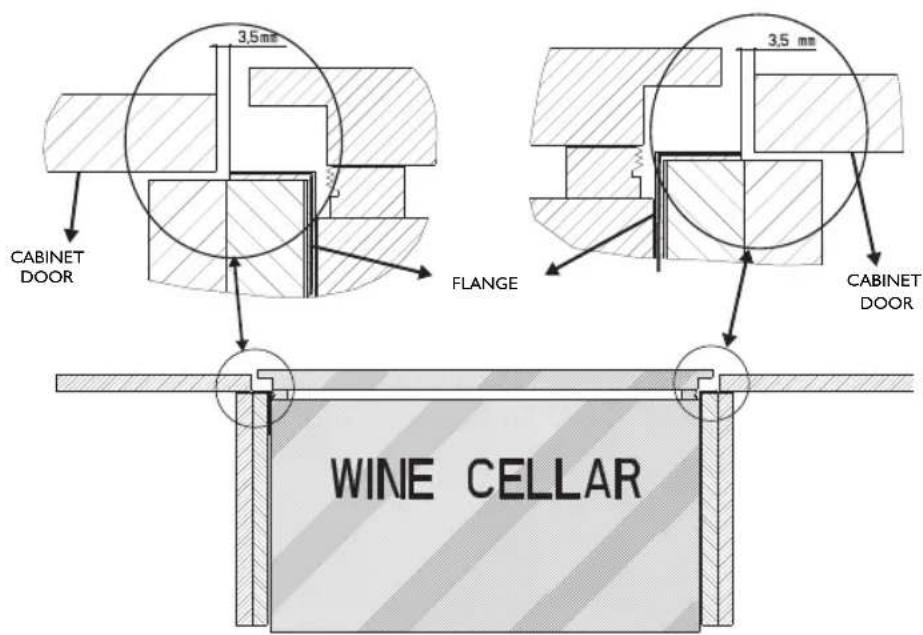

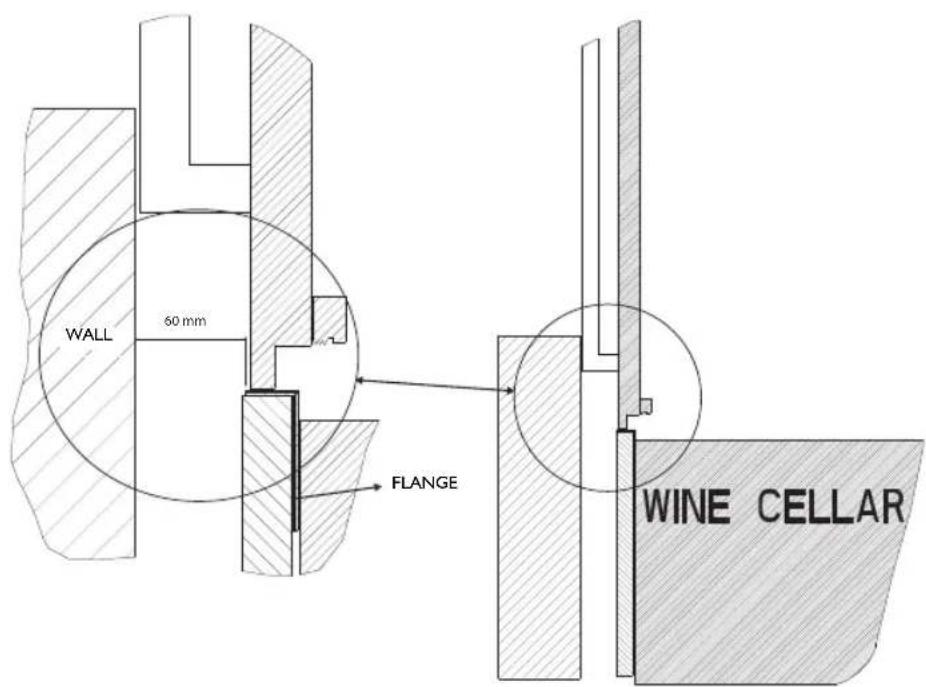

INSTALLATION

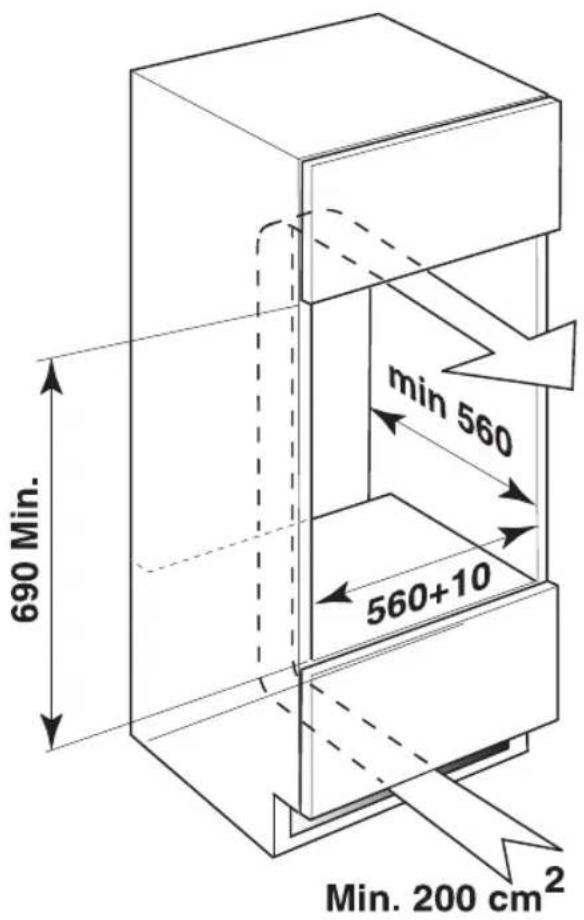

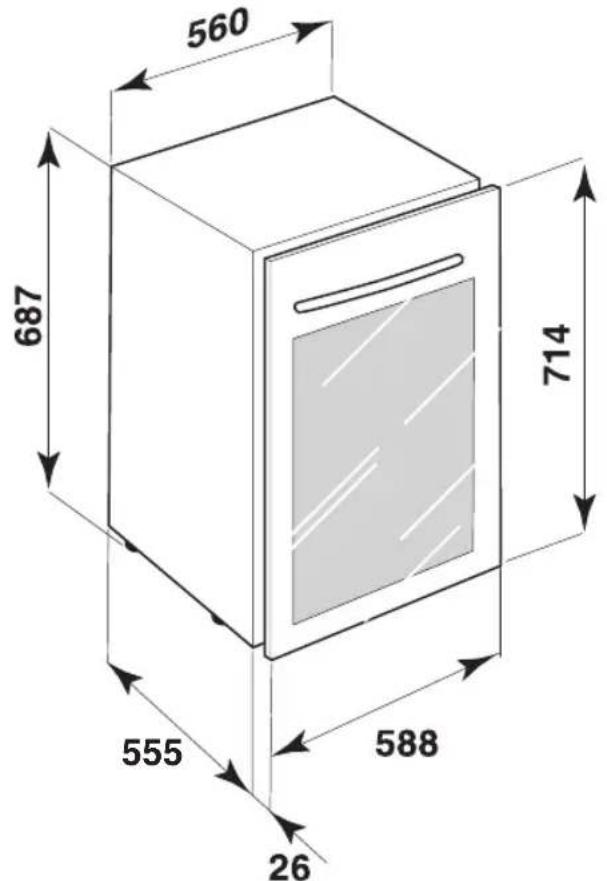

690 Min. min 560 560+10 Min. 200 cm²

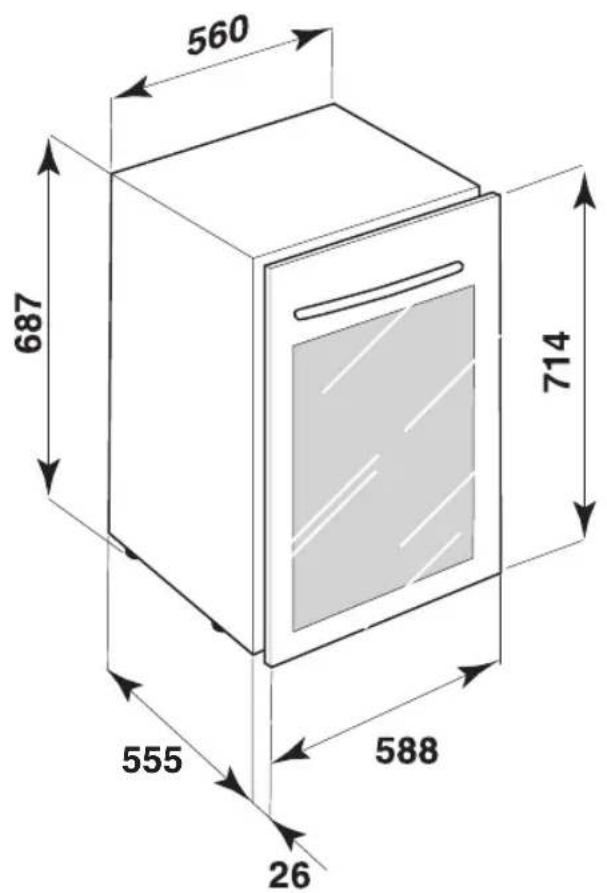

560 687 714 555 588 26

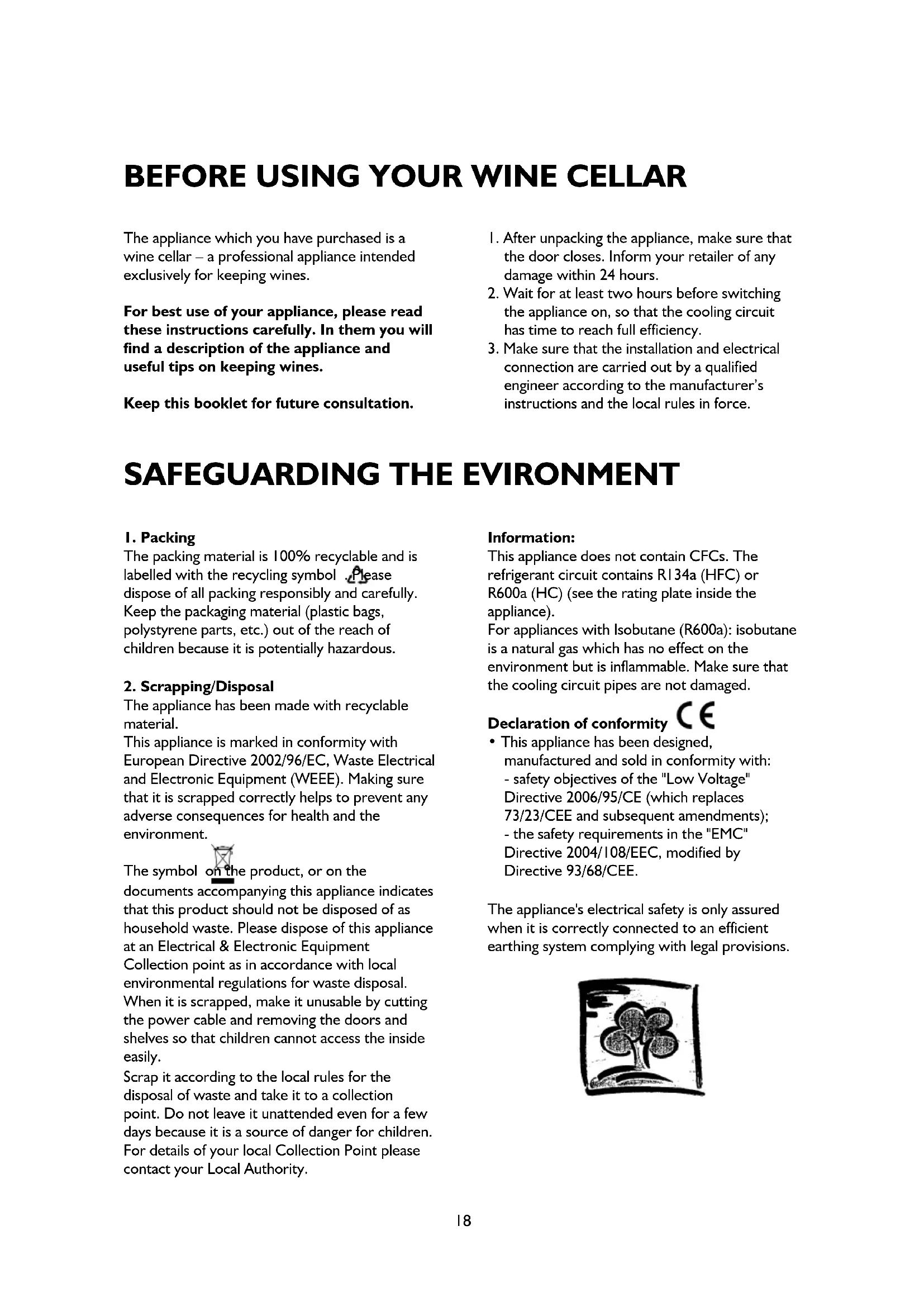

INSTALLATION

The appliance which you have purchased is a wine cellar – a professional appliance intended exclusively for keeping wines.

For best use of your appliance, please read these instructions carefully. In them you will find a description of the appliance and useful tips on keeping wines.

Keep this booklet for future consultation.

I. After unpacking the appliance, make sure that the door closes. Inform your retailer of any damage within 24 hours.
2. Wait for at least two hours before switching the appliance on, so that the cooling circuit has time to reach full efficiency.
3. Make sure that the installation and electrical connection are carried out by a qualified engineer according to the manufacturer's instructions and the local rules in force.

SAFEGUARDING THE EVIRONMENT

I. Packing

The packing material is 100% recyclable and is labelled with the recycling symbol. Please dispose of all packing responsibly and carefully. Keep the packaging material (plastic bags, polystyrene parts, etc.) out of the reach of children because it is potentially hazardous.

2. Scrapping/Disposal

The appliance has been made with recyclable material.

This appliance is marked in conformity with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Making sure that it is scrapped correctly helps to prevent any adverse consequences for health and the environment.

The symbol on the product, or on the documents accompanying this appliance indicates that this product should not be disposed of as household waste. Please dispose of this appliance at an Electrical & Electronic Equipment Collection point as in accordance with local environmental regulations for waste disposal. When it is scrapped, make it unusable by cutting the power cable and removing the doors and shelves so that children cannot access the inside easily.

Scrap it according to the local rules for the disposal of waste and take it to a collection point. Do not leave it unattended even for a few days because it is a source of danger for children. For details of your local Collection Point please contact your Local Authority.

Information:

This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance).

For appliances with Isobutane (R600a): isobutane is a natural gas which has no effect on the environment but is inflammable. Make sure that the cooling circuit pipes are not damaged.

Declaration of conformity CE

• This appliance has been designed, manufactured and sold in conformity with:
• safety objectives of the "Low Voltage"
  Directive 2006/95/CE (which replaces
  73/23/CEE and subsequent amendments);
• the safety requirements in the "EMC"
  Directive 2004/108/EEC, modified by Directive 93/68/CEE.

The appliance's electrical safety is only assured when it is correctly connected to an efficient earthing system complying with legal provisions.

Simple black-and-white sketch of a four-leaf tree on a hill (no text or symbols)

GENERAL PRECAUTIONS AND SUGGESTIONS

• Use the wine cellar only to store wines and do not put any other type of food into it.
• Be careful not to cover or obstruct the appliance's ventilation openings.

To avoid the risk of suffocation and becoming trapped, do not allow children to play or hide inside the appliance.

• Before any maintenance or cleaning, unplug the plug from the power socket or switch off the electrical power.
• Only an authorised person can replace the power supply cable.
• Do not keep explosive substances in the appliance.
• Be careful when moving the appliance not to damage flooring (e.g. parquet).
• Do not use extensions or multiple adapters.
• The appliance is not intended for use by young children or unsupervised infirm people.
• Do not damage the cooling fluid circuit.
• Do not use electrical appliances inside the wine cellar, if they are not of the type recommended by the manufacturer.
• Place the appliance in a dry and well-ventilated room. The appliance is designed to work in rooms where the temperature falls within the following intervals, which in turn are a function of the climatic class given on the data plate: the appliance may not work correctly if it is left for a long time at a temperature higher or lower than the interval specified.

Climatic Class	Room T. (°C)	Room T (°F)
SN from 10	to 32 from 50	to 90
N from 16	to 32 from 61	to 90
ST from 16	to 38 from 61	to 100
T from 16	to 43 from 61	to 110

Important:

• If large amounts of wine are put in the appliance, it may take several days for it to reach a constant temperature.
• Caution! The storage temperature must never drop below +6°C.
• When the appliance is working, drops of dew or frost may form on the inner liner wall. This depends on the operation. There is no need to scrape the frost off or dry off the dew. The back wall defrosts automatically. The defrost water is automatically conveyed to a drain hole, and then collected in a container where it evaporates.
• The bottles can be stored neatly on the wooden racks. Each shelf can bear a maximum weight of 40 Kg.

Remember when arranging

• Place the bottles in a central position on the rack.
• When closing the door make sure that the bottles do not touch the glass door.
• Caution: highly concentrated alcohol must be kept hermetically closed and in a vertical position.
• Because of the circulation of air in the refrigerator, different temperature zones form:

The colder zones are those near the back wall, the warmer zones are close to the door glass.

- Always store bottled wines individually and not in cases or cardboard boxes.

INTRODUCTION TO WINE

Storing wine

As is well known, wine will keep for a long time; if kept in a suitable place white wines will keep for about two years from the date of harvest. Light red wines can be kept for up to two years although preferably they should be consumed within a year. While some full-bodied red wines can keep for ten years and heavy red wines even twenty years. When you buy a bottle of wine put it in the cellar or another suitable place immediately. Three factors are vital in the process which starts from the cultivation of the grape, through to ripening, harvesting and wine making: light, air humidity and room temperature. If the taste of the wine is to reach full maturity while maintaining the wine's bouquet, it must be stored with these three factors in perfect balance.

Interior view of a wine cellar with wooden barrels and stacked barrels on the walls (no visible text or labels)

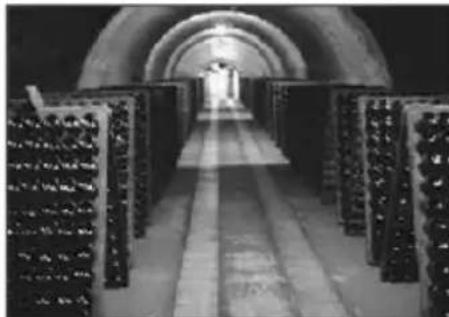

Storage space

Not everyone has an underground storage space which can be used as a cellar. Recently technology has evolved to produce a suitable substitute for the classic wine cellar. The Wine Cellar which you have purchased is a special appliance designed to contain and store wines correctly. It should not be used to store fruit, vegetables or other food, but only your favourite bottles of wine. So, without having a cellar area, every type of wine can be correctly stored, matured and enjoyed.

Interior view of a wine cellar with rows of wine bottles on the walls and an arched corridor (no visible text or labels)

Storage rules

A vital rule for keeping your favourite bottles is that they should be placed on their sides or inclined so that the wine bathes the cork. Many people think that this causes the well-known “cork” smell. In reality contact between the wine and the cork helps the elasticity of the cork so guaranteeing its effectiveness. Being able to remove the bottles easily avoids accidental shaking which, like vibration, could cause the sediments to suspend again, so altering the appearance of the wine over time. Move your bottles as little as possible and let the wine rest. Also avoid letting the bottles come into contact with the bottom wall because this would not only affect efficient defrosting but could ruin the bottle labels because of the drops of water collected during defrosting. The shelves on which the bottles are placed are made of wood, which efficiently absorbs any vibrations and keeps the bottle away from the wall which transmits the cold. The bottles of wine must also be kept away from substances or places which have a strong smell because this could easily be transmitted to the wine.

The temperature

The temperature represents a critical factor which is important throughout the wine's life cycle. It determines wine's good development while it remains in the bottle to mature. For best storage the temperature must be kept constant between 8 and 12^ . Rapid and wide changes of temperature must be avoided: too high a temperature dilates the liquids and speeds up the maturing process, while too low a temperature (below 4 - 5^ ) could cause the precipitation of tartrates, which could affect the wine's appearance. In extreme cases in which the temperature drops below 0^ , the wine may freeze and cause the cork to be expelled.

The cork

The cork is a fundamental component of a bottle of wine: its quality, chosen by the wine producer, is very important for the maturation of the wine itself. The perfect condition of the cork, in the bottles which we buy, depends exclusively on the standards of use and storage used by the producer or bottler.

STORING THE BOTTLES

Classical storage with 36 bottles

If you want to arrange the bottles for storing wine so that they are visible and easy to take out, we recommend the 36-bottle configuration (Bordeaux bottle or mixed Bordeaux bottle and German-type bottle). Position a maximum of 6 bottles in the niches of each of the 5 wooden shelves; another 6 bottles can be placed in the slots on the bottom of the cellar to give a total of 36 bottles.

The wooden shelves have a locking system to avoid accidental removal which could cause the bottles to fall. The larger bottles (German-type bottle) should be placed on their side.

Storage with Champagne bottles.

Because Champagne bottles are larger than normal ones, a maximum of 5 must be placed on the bottom of the cellar. If you want to store more Champagne bottles remove the 5th shelf and stack the bottles on top of the bottles placed on the base of the cellar but in the reverse direction. Up to 9 Champagne bottles can be stored in this way.

Taking out the wooden shelves

To take out the wooden shelves proceed as follows:

1. Hold the front part of the shelf with one hand.
2. Remove the shelf slowly by pulling it slowly towards you one third of its length.

If there are only a few bottles

If there are not enough bottles to fill the wine cellar they should be distributed between all the available shelves, avoiding loading them all at the top or all at the bottom. So that they can be more easily seen from outside, they should be placed centrally on all the shelves.

STORING THE BOTTLES

Possible configurations for storing bottles

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

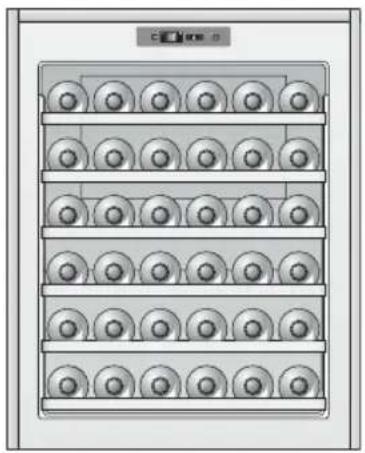

STANDARD

36 Bottles (100% on their sides)

5 racks used

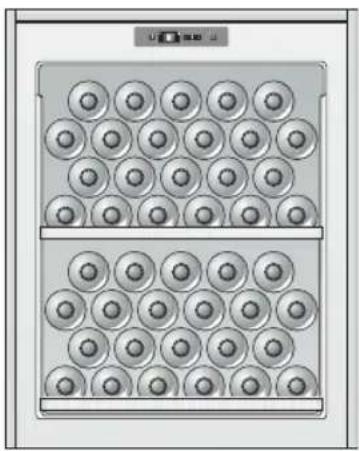

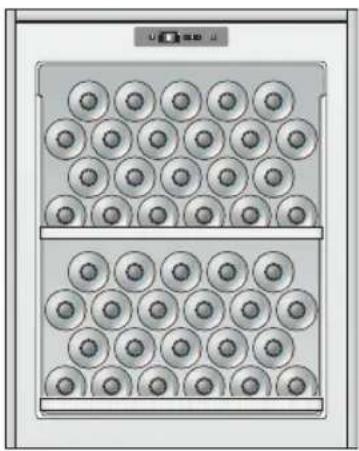

STORAGE 44 Bottles (100% on their sides) I rack used

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols visible)

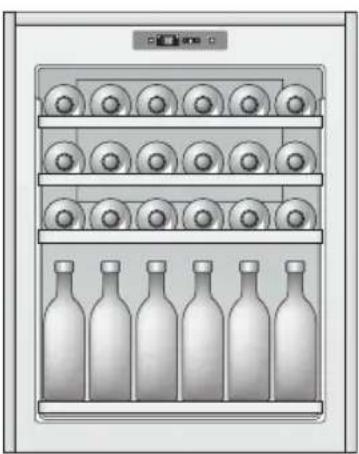

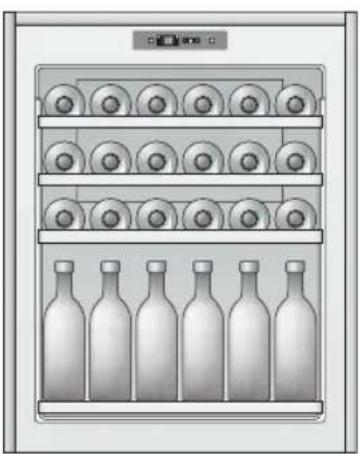

STORAGE

42 Bottles

(50% on their sides and 50% upright)

3 racks used

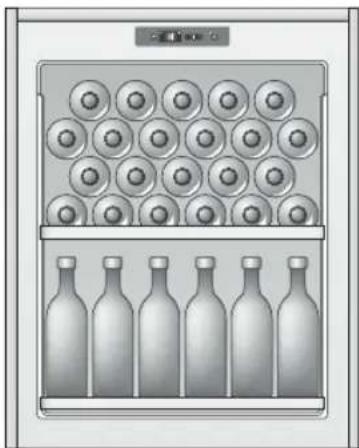

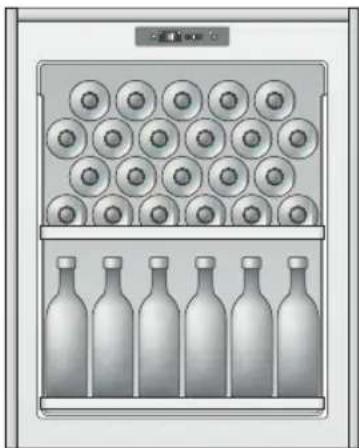

MAXIMUM STORAGE

46 Bottles (48% on their sides and 52% upright)

I rack used

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

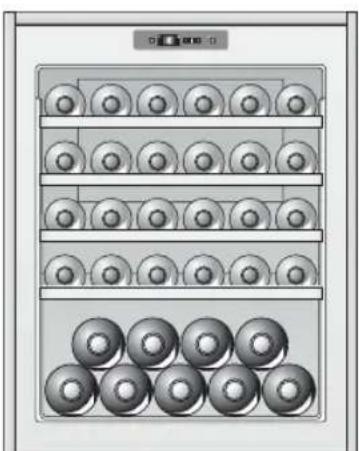

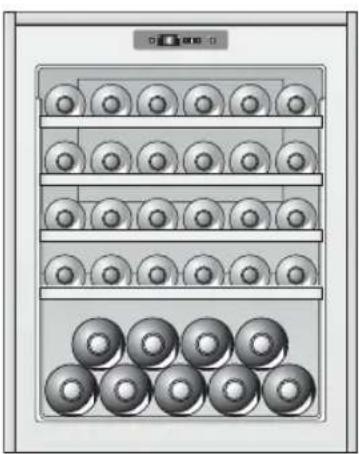

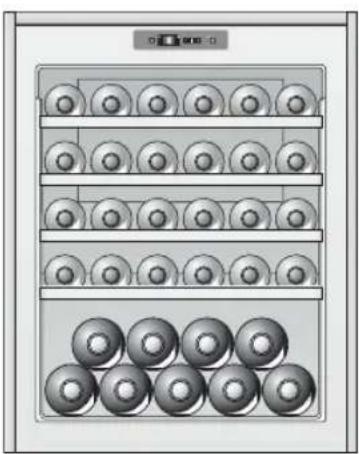

STORING CHAMPAGNE BOTTLES

Never take out more than one sliding shelf at once.

TABLE OF THE BEST SERVING TEMPERATURES FOR WINES

The table gives the indicative temperatures at which the wine should be served.

If the wine must be served at a higher temperature than that set inside the cellar, it should be left out for as long as is necessary.

Barolo 17°C
Barbaresco 17°C
Beaujolais 13°C
White Dry Bordeaux 8°C
Red Bordeaux 17°C
White Burgundy 11°C
Red Burgundy 18°C
Brunello 17°C
Champagne 6°C
Chianti Classico 16°C
Passito di Pantelleria 6°C
Rosé Cote de Provence 12°C
Dry and Sweet Spumanti 6°C

Verdicchio 8°C
White Trentino wines	11°C
White Franciacorta wines 11°C
Dry white wines	8°C
Friuli wines	11°C
Rhone wines	15°C
Dry White Loire wines	10°C
Liqueur Loire wines	7°C
Red Loire wines	14°C
Liqueur raisin wines	8-18°C
Vins Nouveaux	12°C
Light Red wines, without much tannin	14°C
Quite full-bodied Red wines, with some tannin	16°C

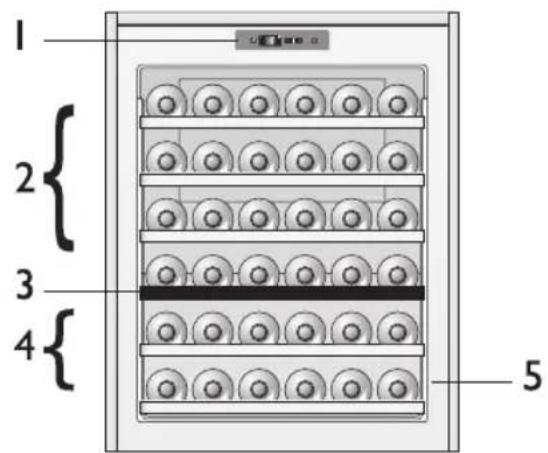

DESCRIPTION OF THE APPLIANCE

I. Electronic Control Panel
2. Upper compartment with racks
3. Removable separator (black)
4. Lower compartment
5. Rating plate

1 2 3 4 5

HOW TO OPERATE THE APPLIANCE

Preparing the appliance for use

Switching on the appliance

Insert the plug to start the appliance and then set the temperature on the front panel. A green pilot light comes on to indicate that the appliance is switched on.

The product has an internal light that does not come on automatically when the door is opened, but can be switched on as necessary from the control panel by pressing the relevant button.

Setting the temperature

For the appliance to work correctly we recommend setting the temperature according to the indications given in the "Introduction to wine" section.

Note:

The room temperature, the door opening frequency and the position of the appliance can influence the internal temperatures.

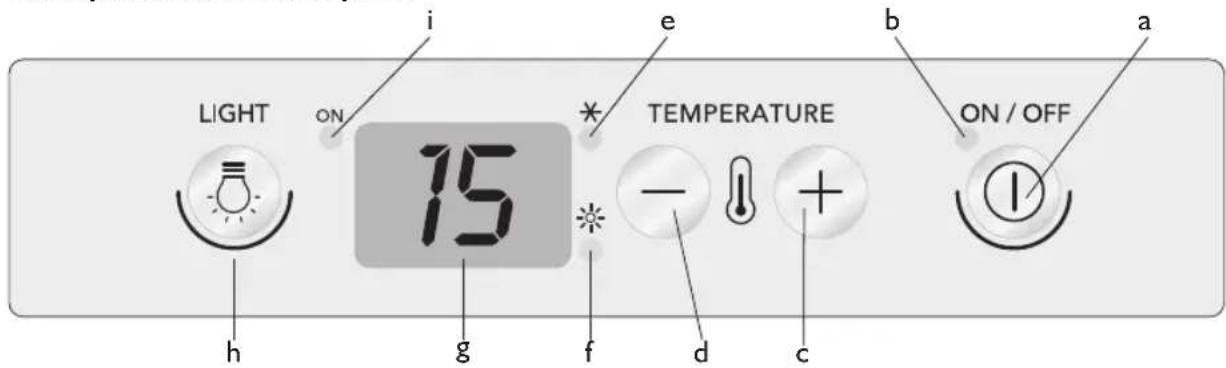

Description of the control panel

LIGHT ON i e b a 75 TEMPERATURE ON / OFF h g f d c

a) ON/OFF button: appliance on/off
b) appliance operating pilot light
c) (+) button to increase the temperature (max +18°C)
d) (-) button to decrease the temperature (min +6°C)
e) cooling activated pilot light
h) heating activated pilot light
g) temperature in inner compartment display
h) inside light button
i) inside light pilot light

Cellar working with double or single temperature zone

The cellar is designed to work with two temperature zones or, as an alternative if the customer so requires, with a single temperature zone. For two-temperature operation position the black bottle-holder rack on the rails of the fourth shelf (starting from the first at the top), then set the temperature required in the upper zone, remembering that once the required temperature is reached the temperature of the lower compartment will be higher than that set (the temperature of the lower zone cannot be set separately).

Note:

To store the wine correctly we recommend setting the thermostat temperature at 10^ C (upper compartment) to obtain a temperature of 15 - 16^ C. For working with one temperature zone the black bottle-holder rack is removed and replaced with the accessory rack (the same type as the other wood-colour racks already installed). Keep the unused rack in a dry and cool place to avoid it being damaged by humidity or other atmospheric agents and thus being unusable in the future.

Setting the temperature

The appliance temperature was set in the factory and corresponds to 15^ C (upper compartment).

If necessary, the temperature of the upper compartment can be changed as follows:

I. When connecting to the electrical power supply, the display shows the temperature set inside the compartment.
2. Press the (+) button for about a second; the temperature indicator will start to flash.
3. Press the (+) or (-) buttons until the required temperature has been reached.
4. Wait for 5 seconds for the indicator to shine steadily; the temperature has now been set.
5. Wait for the temperature change to take effect and put the bottles of wine in the cellar. The inside light does not come on (or goes out temporarily) when the inside temperature is higher than 24^ C, so that the set temperature can be reached more quickly.

Controlling the temperature

Upper zone: the temperature of the upper zone is that normally shown on the control display.

Lower zone: the temperature of the lower zone cannot be set separately, but is higher than that of the upper compartment. To display the temperature of the lower zone just press the (-) button for a second and the temperature of the lower zone will be displayed for three seconds.

This operation can be repeated several times to check the temperature of the lower zone.

When single-temperature operation is selected by removing the separator, just see the temperature indicated on the control display, without pressing any buttons.

CLEANING AND MAINTENANCE

Before any maintenance or cleaning, unplug the appliance or disconnect the appliance from the power supply.

The wine cellar defrosts completely automatically.

- Occasional drops of water on the appliance's inner back wall indicate the automatic defrosting phase. The defrost water is automatically conveyed to a drain hole, and then collected in a container where it evaporates.

If necessary...

I. Empty the wine cellar completely.
2. Disconnect the appliance from the mains.
3. To prevent the formation of moulds, bad smells and oxidation, the appliance door must remain slightly open (about 3 – 4 cm).
4. Clean the appliance.

• Clean the inside regularly with a sponge dampened in lukewarm water and/or neutral detergent.
• Rinse and clean with a soft cloth. Do not use abrasives.
• Clean the outside with a soft cloth dampened with water. Do not use abrasive pastes or pads, stain removers (e.g. acetone, trichloroethylene) or vinegar.
• Clean the outside glass with a specific glass cleaner and the inside just with a damp cloth, avoiding using detergents where the wines are properly stored.

Rack cleaning

Use a damp cloth to clean the oak racks. Be careful not to damage the gasket when taking the rack out of the appliance. Open the door as wide as possible.

TROUBLESHOOTING GUIDE

Before contacting the Customer Care Center...

Problems of operation are often due to simple causes, which may be identified and solved without using any tools.

Appliance noises are normal because its fans and compressors switch on and off automatically.

Some operating noises may be reduced by:

• levelling the appliance and installing it on a flat surface
• separating and avoiding contact between the appliance and the units
- making sure that the internal components are placed correctly
- making sure that there is no contact between the bottles and the containers.

Some possible operating noises:

• a whistle when the appliance switches on for the first time or after a long time.
• a splash when the cooling fluid enters the pipes.
  • a buzz when the fan start working.
• a crackle when the compressor starts.
• an unexpected trip when the compressor switches on and off.

When you hear these noises...

...your appliance is alive!!!

TROUBLESHOOTING GUIDE

I. The appliance does not work.

• Is there a power cut?
• Is the plug plugged into the socket properly?
  • Is the 2-pole mains switch on?
• Are the electric circuit safety devices installed in the house fully functional?
  • Is the power supply cable broken?

2. The temperature inside the wine cellar is not cold enough.

• Has the door been closed properly?
• Are the bottles stopping the door from closing?
• Has the appliance been installed near a heat source?
  • Is the selected temperature correct?

- Is the circulation of air through the ventilation openings blocked?

3. The temperature inside the wine cellar is too cold.

• Is the selected temperature correct?

4. The appliance is too noisy.

• Has the appliance been correctly installed?
• Are the pipes in the back part touching or vibrating?

5. There is water on the bottom of the appliance.

• Is the defrost water drain blocked?

REPAIR INSTRUCTION

To change the values of the temperature settings go through the procedure as following:

• Press temperature selection buttons "+" and "-" till "bOF" appears on the display
• Access to settings menu pushing button "+" now it appears "Cnf", keep pushed button "+" until it show "hy1" blinking (first parameter)
• Run through the parameter menu with button "-" up till item "OFI" appears in the display

• Press button "+" to access the parameter modification

• With buttons "+" and "-" the setting values of temperature can be modified

• Wait till the display stops blinking and goes back to the working temperature
• Now pushing the buttons "+" and "-" till the word "bON" doesn't appear anymore in the display, which blocks the access to the menu and saves the chosen parameter settings

AFTER-SALES SERVICE

Before contacting the Customer Care Centre:

Switch the appliance on again to see if the problem has been eliminated. If it has not, switch off the appliance and repeat the operation after one hour. If your appliance still does not work properly after carrying out the checks listed in the troubleshooting guide and switching the appliance on again, contact the Customer Care Centre, clearly explaining the problem and specifying:

• the appliance type and serial number (given on the rating plate).
• the type of fault.
• the model.
• the Service number (the number after the word SERVICE on the rating plate inside the appliance).
• your full address.
• your telephone number and area code.

SERVICE

0000 000 00000

INSTALLATION

• Assemble the appliance with the correct ventilation as shown in the figures.
• The doors cannot be reversed on this wine cellar.
  • Install the appliance away from heat sources.
• Installation in a hot room, direct exposure to the sun's rays or placing the appliance near a heat source (radiators, cookers), increase power consumption and should be avoided.
• When this is not possible, the following minimum separations should be respected:

- 30 cm from coal or oil cookers;

- 3 cm from electric and/or gas cookers.

• Position it in a clean and well-ventilated place.
• Clean the inside (see the "Cleaning and maintenance" chapter).
• Insert the accessories supplied.

Min. 50 mm Min. 200 cm²

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALLATION

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALLATION

A) Installation next to kitchen units or cabinets

To allow complete 90° opening of the door, install the product ensuring a space of at least 3.5 mm between the side flanges and the doors of any adjacent kitchen units/cabinets or electrical appliances (as shown in figure 1).

3.5mm CABINET DOOR FLANGE 3.5 mm CABINET DOOR WINE CELLAR

Fig. I

B) Installation next to walls

If a protruding handle is fitted, to allow complete 90^ opening of the door, install the product ensuring a space of at least 60 mm between the side flange and the adjacent wall (as shown in figure 2).

WALL 60 mm FLANGE WINE CELLAR

Fig. 2

Electrical connection

• The electrical connections must conform to the local regulations.
  • The data on the voltage and power consumption are given on the rating plate inside the appliance.
  • Earthing the appliance is obligatory by law.
• The manufacturer declines any responsibility for any damage suffered by people, animals or things caused by failure to observe the rules given above.
• If the plug and socket are not of the same type, have a qualified electrician replace the socket.
• Do not use extensions or multiple adapters.

Electrical disconnection

Electrical disconnection must be possible either by unplugging the plug or by means of a 2-pole mains switch upstream of the socket.

ELECTRICAL CONNECTION FOR GREAT BRITAIN AND IRELAND ONLY

Warning - this appliance must be earthed

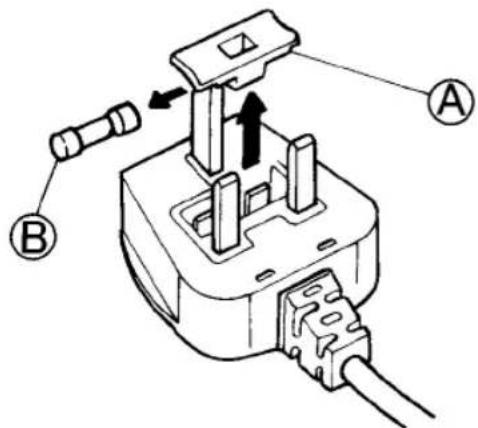

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

Technical diagram of an electrical plug with labeled components A and B, showing internal wiring and a directional arrow indicating movement.

I. Remove the fuse cover (A) and fuse (B).
2. Fit replacement I3A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact After-sales Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified technician in compliance with the manufactures instructions and current standard safety regulations.

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

PRÉCAUTIONS ET CONSEILS D'ORDRE GÉNÉRAL

Interior view of a wine cellar with wooden barrels and brick walls (no visible text or symbols)

Interior view of a wine cellar with rows of wine bottles and arched ceilings (no visible text or labels)

Mode de conservation

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 bouteilles

(100% couchées)

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols)

SERVICE

42 bouteilles

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

STOCKAGE AVEC DES

BOUTEILLES DE CHAMPAGNE

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Diagram of a door opening with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALLATION

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALLATION

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

ALGEMENE VOORZORGSMAATREGELEN EN ADVIEZEN

Interior view of a wine cellar with barrels and wooden pallets, no visible text or symbols

Bewaarplaats

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Bewaarwijze

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDAARD

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols visible)

SERVEREN

Illustration of a refrigerator with multiple bottles and circular compartments (no text or symbols)

Front view of a multi-tiered storage unit with circular components and a control panel (no text or symbols visible)

OPSLAG VAN

CHAMPAGNEFLESSEN

BESCHRIJVING VAN HET APPARAAT

HOE U HET APPARAAT MOET LATEN FUNCTIONEREN

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALLATIE

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALLATIE

Simple black-and-white sketch of a tree with four rounded leaves and a curved trunk (no text or symbols)

PRECAUCIONES Y SUGERENCIAS GENERALES

Interior view of a wine cellar with barrels and wooden pallets, no visible text or symbols

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

ESTÁNDAR

36 botellas

(100% acostadas)

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols visible)

SERVICIO

42 Botellas (50%

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical units (no text or symbols)

ALMACENAMIENTO

DE BOTELLAS

CHAMPAÑESAS

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Diagram of a door opening with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALACIÓN

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALACIÓN

Simple black-and-white sketch of a tree with three rounded canopy and two curved leaves, enclosed in a square frame (no text or symbols)

PRECAUÇÕES E SUGESTÕES GERAIS

Interior view of a wine cellar with wooden barrels and stacked shelves (no visible text or labels)

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Se as garrafas forem poucas

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 Garrafas (100% deitadas)

5 Grelhas utilizadas

CONSERVAÇÃO

44 Garrafas (100% deitadas)

I Grelha utilizada

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a multi-tiered refrigerator with bottles on the shelves (no text or symbols)

SERVIZIO

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

ARMAZENAGEM

COM GARRAFAS

CHAMPAGNOTTA

Diagram of a door opening with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALAÇÃO

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALAÇÃO

Simple line drawing of a tree with three rounded canopy and two curved leaves, no text or symbols present.

Interior view of a wine cellar with wooden barrels and brick walls (no visible text or symbols)

Interior view of a wine cellar with arched ceilings and rows of wine bottles (no visible text or labels)

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 Bottiglie

(100% coricate)

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols visible)

SERVIZIO

42 Bottiglie

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered storage unit with circular components and a control panel (no text or symbols)

STOCCAGGIO

CON BOTTIGLIE

CHAMPAGNOTTA

GUIDA RICERCA GUASTI

GUIDA RICERCA GUASTI

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALLAZIONE

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALLAZIONE

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

FÖRSIKTIGHETSÅTGÄRDER OCH ALLMÄNNA FÖRSLAG

Interior view of a wine cellar with wooden barrels and shelves (no visible text or labels)

Lagringsplats

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Lagringssätt

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 flaskor (alla liggande)

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols)

KORTTIDSFÖRVARING

42 flaskor

Illustration of a refrigerator with multiple bottles and circular compartments (no text or symbols)

Illustration of a multi-tiered storage unit with circular components and a control panel (no text or symbols)

LAGRING AV

CHAMPAGNEFLASKOR

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALLATION

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALLATION

A) Installation bredvid köksenheter eller skåp

2. Kassering/Avhending

Apparatet er fremstilt av resirkulerbart materiale.

Simple line drawing of a tree with four rounded leaves on a hill (no text or symbols)

GENERELLE RÅD

Interior view of a wine cellar with large barrels and storage shelves (no visible text or labels)

Oppbevaringssted

Interior view of a server room with rows of server racks and an arched corridor (no visible text or symbols)

Oppbevaringsmåte

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 flasker (100 % liggende)

5 rister i bruk

OPPBEVARING 44 flasker (100 % liggende) I rist i bruk

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols)

SERVICE

42 flasker (50 %

liggende og 50 % stående)

3 rister i bruk

MAKS. LAGRING

46 flasker (48 %

liggende og 52 % stående)

I rist i bruk

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered storage unit with circular components and a control panel (no text or symbols)

LAGRING MED

CHAMPAGNEFLASKER

Six grayscale oval icons representing different consumer goods or product categories, including boxes, servers, books, and containers.

...dette er et levendeprodukt!!!

FEILS∅KINGSLISTE

Diagram of a door opening with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALLASJON

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALLASJON

3.5 mm SKAPD∅R FLENS 3.5 mm SKAPD∅R WINE CELLAR

Fig. I

B) Plassering inntil en vegg

OPLYSNINGER OM MILJ∅HENSYN

I. Emballage

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

ADVARSLER OG GENERELLE RÅD

Interior view of a wine cellar with wooden barrels and stacked shelves (no visible text or labels)

Opbevaringssted

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Opbevaringsmetode

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 flasker (alle flasker liggende)

5 hylder i brug

OPBEVARING

44 flasker (alle flasker liggende)

I hylde i brug

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a multi-tiered refrigerator with six bottles on the front and circular compartments on the back (no text or symbols)

BRUG

42 flasker (50 %

liggende og 50 % stående)

3 hylder i brug

MAKS. OPBEVARING

46 flasker (48 %

liggende og 52 % stående)

I hylde i brug

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

PLACERING MED

CHAMPAGNEFLASKER

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

OPSTILLING

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

OPSTILLING

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

YLEISIÄ VAROTOIMIA JA SUOSITUKSIA

Interior view of a wine cellar with barrels on the walls and shelves on the wall (no visible text or labels)

Säilytyspaikka

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Säilytystapa

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARDI

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols visible)

KÄYTTÖ

42 pulloa (50%

Front view of a multi-tiered storage cabinet with circular compartments (no visible text or labels)

Illustration of a refrigerator with multiple bottles and circular compartments (no text or symbols)

SAMPPANJAPULLOVARASTO

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

ASENNUS

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

ASENNUS

Interior view of a wine cellar with wooden barrels on the walls and brick walls (no visible text or labels)

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Sposób konserwacji

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 butelek (100% poziomo)

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a multi-tiered refrigerator with six bottles on the front and circular compartments on the back (no text or symbols)

SERWIS

42 butelki (50%)

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

SKŁADOWANIE

BUTELEK TYPU

SZAMPAŃSKIEGO

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALACJA

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALACJA

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

VŠEOBECNÉ POKYNY A UPOZORNĚNÍ

Interior view of a wine cellar with stacked barrels and shelves (no visible text or labels)

Místo skladování

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Způsob skladování

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARDNÍ

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a multi-tiered refrigerator with six bottles on the front and circular compartments on the back (no text or symbols)

OBSLUHA

42 lahví (50%

na ležato a 50% na stojato)

3 použité mřížky

MAXIMÁLNÍ USKLADNĚNÍ

46 lahví (48%

na ležato a 52% na stojato)

1 použitá mřížka

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

SKLADOVÁNÍ

ŠAMPAŇSKÝCH

LAHVÍ

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALACE

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALACE

Interior view of a wine cellar with wooden barrels on the walls and brick walls (no visible text or labels)

Miesto skladovania

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Spôsob skladovania

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

KLASICKÉ

36 fliaš (100% naležato)

5 použitých mriežok

SKLADOVANIE / 44 Fl'aše (100% naležato) 1 mriežka

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a multi-tiered refrigerator with six bottles on the front and circular compartments on the back (no text or symbols)

PRE POUŽÍVANIE

42 Fl'aše (50%

Naležato a 50% postojačky

3 použité mriežky.

} 4 rady (6x4)

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

MAXIMÁLNY POČET FLIAŠ SKLADOVANIA

46 Fliaš (48% naležato e 52%

stojato) 1 požitá mriežka

4 rady (6x4) {

SKLADOVANIE FLIAŠ TYPU NA ŠUMIVÉ VÍNA (CHAMPAGNOTTA)

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

INŠTALÁCIA

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INŠTALÁCIA

Interior of a wine cellar with barrels on pallets and shelves of wine (no visible text or labels)

Tárolóhely

Interior view of a wine cellar with rows of wine bottles under arched ceilings (no visible text or labels)

Tárolási szabályok

Front view of a multi-tiered rack cabinet with circular components (no visible text or labels)

STANDARD

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols visible)

TÁROLÁS

42 palack

Illustration of a refrigerator with multiple bottles and circular compartments (no text or symbols)

Front view of a multi-tiered storage cabinet with circular compartments (no visible text or labels)

PEZSGŐS PALACKOK TÁROLÁSA

Diagram of a door with screw holes and directional arrows indicating internal movement (no text or symbols)

ÜZEMBE HELYEZÉS

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

©

Simple line drawing of a tree with four rounded leaves and a small trunk, enclosed in a square frame (no text or symbols)

ОБЩИ ПРЕДПАЗНИ МЕРКИ И ПРЕПОРЪКИ

Interior view of a wine cellar with wooden barrels on the walls and brick walls (no visible text or labels)

Място на съхранение

Interior view of a wine cellar with rows of wine bottles on either side, no visible text or labels

Режим на съхранение

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

СТАНДАРТ

36 Бутилки (100% легнали)

5 употребени решетки

СЪХРАНЕНИЕ

44 Бутилки (100% легнали)

1 употребена решетка

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a multi-tiered refrigerator with multiple bottles on the shelves (no text or symbols visible)

ООБСЛУЖВАНЕ

42 Бутилки (50%

Illustration of a refrigerator with multiple bottles and circular compartments (no text or symbols)

Illustration of a multi-tiered storage unit with circular components and a control panel (no text or symbols)

СКЛАДИРАНЕ НА

БУТИЛКИ

CHAMPAGNOTTA

Diagram of a door opening with screw holes and directional arrows indicating internal movement (no text or symbols)

ИНСТАЛИРАНЕ

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

ИНСТАЛИРАНЕ

Simple line drawing of a tree with four rounded canopy and curved trunk (no text or symbols)

MĂSURI DE PRECAUTIE ȘI RECOMANDĂRI GENERALE

Interior view of a wine cellar with wooden barrels and storage shelves (no visible text or symbols)

Locul de conservare

Interior view of a wine cellar with rows of wine bottles under arched ceilings (no visible text or labels)

Modalitatea de conservare

Front view of a multi-tiered rack-mounted device with circular components (no visible text or symbols)

STANDARD

36 de sticle (100% culcate)

5 grătare utilizate

CONSERVARE

44 de sticle (100% culcate)

1 grătar utilizat

Diagram of a dual-chamber electronic device with circular components and a control panel (no text or symbols)

Illustration of a refrigerator with multiple bottles on the shelves (no text or symbols)

SERVICIU

42 de sticle (50%

4 rânduri (6x4)

STOCAJ MAXIM

46 de sticle (48%

Illustration of a refrigerator with multiple bottles on the shelves and circular compartments (no text or symbols)

Illustration of a multi-tiered rack-mounted device with circular components and a grid of spherical parts (no text or symbols)

4 rânduri (6x4) {

STOCAJ CU STICLE

CHAMPAGNOTTA

...aparatul tău e viu!!!

GHID DE DETECTARE A DEFECTIUNILOR

Diagram of a door opening with screw holes and directional arrows indicating internal movement (no text or symbols)

INSTALAREA

690 Min. min 560 560+10 Min. 200 cm²

560 687 714 555 588 26

INSTALAREA
