USER MANUAL Animal Crossing OTL Technologies

• This product is not a toy.

• Do not disassemble, repair, or modify the headphones.

• Do not place headphones in or near re to avoid danger.

• Do not store the headphones in extreme temperatures, this can shorten the battery life and may aect the headphones.

• Do not use headphones during a thunderstorm to avoid irregular function and increased risk of electric shock.

• Do not use harsh chemicals or strong detergents to clean the headphones.

• Keep the headphones dry.

• Avoid dropping the headphones as it may cause damage to the product.

• Do not insert jack plug into electric sockets. SAFETY INSTRUCTIONS:

• Read all the instructions carefully before using the product and keep them for future reference.

• Wearing headphones limits your ability to hear noises around you, regardless of the volume level. Use with caution and consideration.

• Do not immerse in water.

• Unsuitable for use by children under the age of 3 due to small parts which may cause choking.

• We recommend that children aged 3-7 are supervised by an adult whilst using the product, prolonged use is not advised.

• Do not use these headphones whilst operating machinery, driving, riding a motorbike or bicycle, or in situations where an inability to hear surrounding noise may present a danger to yourself or others.

• The device may become warm while charging.

• Set volume to low before turning on sound.

• Long-term exposure to loud noise may cause damage to eardrums or loss of hearing. CONTENTS USB Type-C charging cable Sharing AUX cable User guide & warranty leaet Headphones

ISPECIFICATION Bluetooth V5.0 Chipset Information: JL AC6955F List of Bluetooth Protocols: A2DP/AVRCP/HFP Operation distance: 10m Battery Voltage: 3.7V Battery Capacity: 500mAh Battery Charging Voltage: DC5V Charging Time: about 1-2 hours Working Time: about 24 hours Impedance: 32 Ω Sensitivity: 85 dB ± 3 dB or 95 dB ± 3 dB Speaker Diameter: 40mm

PAIR WITH BLUETOOTH DEVICES

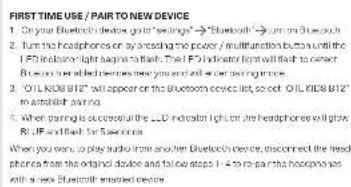

Please ensure that the Bluetooth function has been turned on in the settings of your Bluetooth enabled device. You must pair the headphones with a Bluetooth enabled device before it can be used wirelessly. You only need to pair your headphones to each Bluetooth enabled device once. They will automatically reconnect to each device when turned on in their vicinity. If two or more devices are available, the last device paired will be the one that reconnects. FIRST TIME USE / PAIR TO NEW DEVICE

1. On your Bluetooth device, go to “settings” “Bluetooth” turn on Bluetooth

2. Turn the headphones on by pressing the power / multifunction button until the

LED indicator light begins to ash. The LED indicator light will ash to detect Bluetooth enabled devices near you and will enter pairing mode.

3. “OTL KIDS BT2” will appear on the Bluetooth device list, select “OTL KIDS BT2”

to establish pairing.

4. When pairing is successful the LED indicator light on the headphones will glow

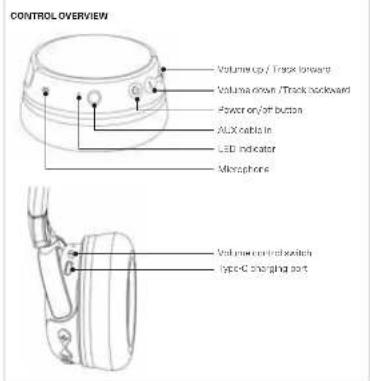

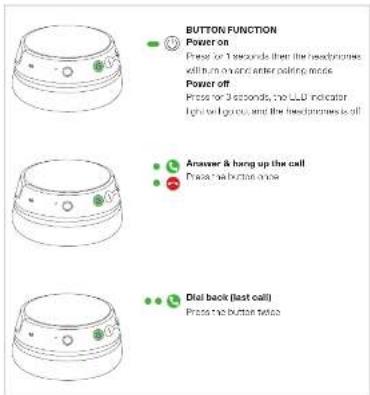

BLUE and ash for 5 seconds. When you want to play audio from another Bluetooth device, disconnect the head- phones from the original device and follow steps 1- 4 to re-pair the headphones with a new Bluetooth enabled device. CONTROL OVERVIEW Microphone Volume control switch Type-C charging port AUX cable in Power on/o button LED indicator Volume down /Track backward Volume up / Track forwardBUTTON FUNCTION Power on Press for 1 seconds then the headphones will turn on and enter pairing mode Power o Press for 3 seconds, the LED indicator light will go out and the headphones is o Play / pause Press the button once Note: If there’s an incoming call, music will automatically stop. To continue playing music after call, simply press the button once Track forward Press the button for 2 seconds Answer & hang up the call Press the button once Voice assistant Press the button for 2 seconds to activate voice assistant (i.e Siri or Google Assistant) Volume down Press the button as many times as required until the desired volume level is reached Dial back (last call) Press the button twice Volume up Press the button as many times as you want until reach to desire volume level* *Long-term exposure to loud noise may cause damage to eardrums or loss of hearing Track backward Press the button for 2 seconds

• Connect the headphones to a smartphone, audio device or laptop (see overview diagram for location) with the sharing AUX cable or 3.5mm AUX cable(included).

• When the headphones are used with the AUX cable, all functions are disabled, including the volume control switch on earcup.

CHARGING THE HEADPHONES

Note: Headphones will not work if charging cable is still connected. Please charge your headphones before rst time use.

1. When the battery is low, please charge via the included USB Type-C cable.

The charging time is approximately 1-2 hours and provides up to 24 hours of continuous operation.

2. The LED indicator light will be red during charging and will turn o once it is fully

charged. When the battery is low, the LED indicator light will ash red.PRODUCT GUARANTEE AND SAFETY INFORMATION WARRANTY: This product is warranted against defective materials and workmanship. If the war- ranty service is required, you should return the product to the retailer from where it was purchased. If the item was purchased in the United Kingdom, the guarantee period is for 12 months from the date of purchase. If it was purchased in the EU, then the guarantee period is 24 months from the date of purchase. WARRANTY CONDITIONS

1. This warranty is only valid if, when warranty service is required, the original

invoice or sales slip is produced, and the serial number on the product has not been defaced.

2. The manufacturer’s obligations are limited to the repair or, at its discretion,

replacement of the product or the defective part.

3. Warranty repairs must be carried out by an authorised dealer or authorised

service centre. No reimbursement will be made for repairs carried out by non- authorised parties, and any such repair work or damage to the product caused by such repair work will not be covered by the warranty.

4. This product will not be considered to be defective in materials or workmanship

by reason that it requires adaptation in order to conform with national or local technical or safety standards in force in any country other than those for which it was originally designed and manufactured. This warranty will not cover, and no reimbursement will be made for, any such adaptation, nor any damage which may result from it. TROUBLESHOOT

• When an error occurs with the headphones, please turn o the headphones and restart it to troubleshoot.

• When the headphones power is low, the Bluetooth range may be aected. Please charge the headphones to avoid disruptions during use.

• Please see our website www.otltechnologies.com for general trouble shooting instructions.

5. This warranty covers none of the following:

• Maintenance and repair or replacement of parts due to normal wear and tear.

• Cost relating to transport, removal or installation of the product.

• Misuse (including the failure to use this product for its normal purpose) or incorrect installation.

• Damage caused by lightning, water, re, Acts of God, war, public disturbances, or other causes beyond the control of the manufacturer.

6. This warranty is valid for any person who legally acquired the product during the

7. The consumer’s statutory rights under any applicable legislation, whether against

the retailer or the manufacturer, and whether arising under contract or otherwise, are not aected by this warranty. INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT (PRIVATE HOUSEHOLD) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general house hold waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative eects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.DECLARATION OF CONFORMITY Oceania T rading Ltd / OTL Technologies Ltd declares that this product complies with the following directives :
