USER MANUAL HC66 SABO

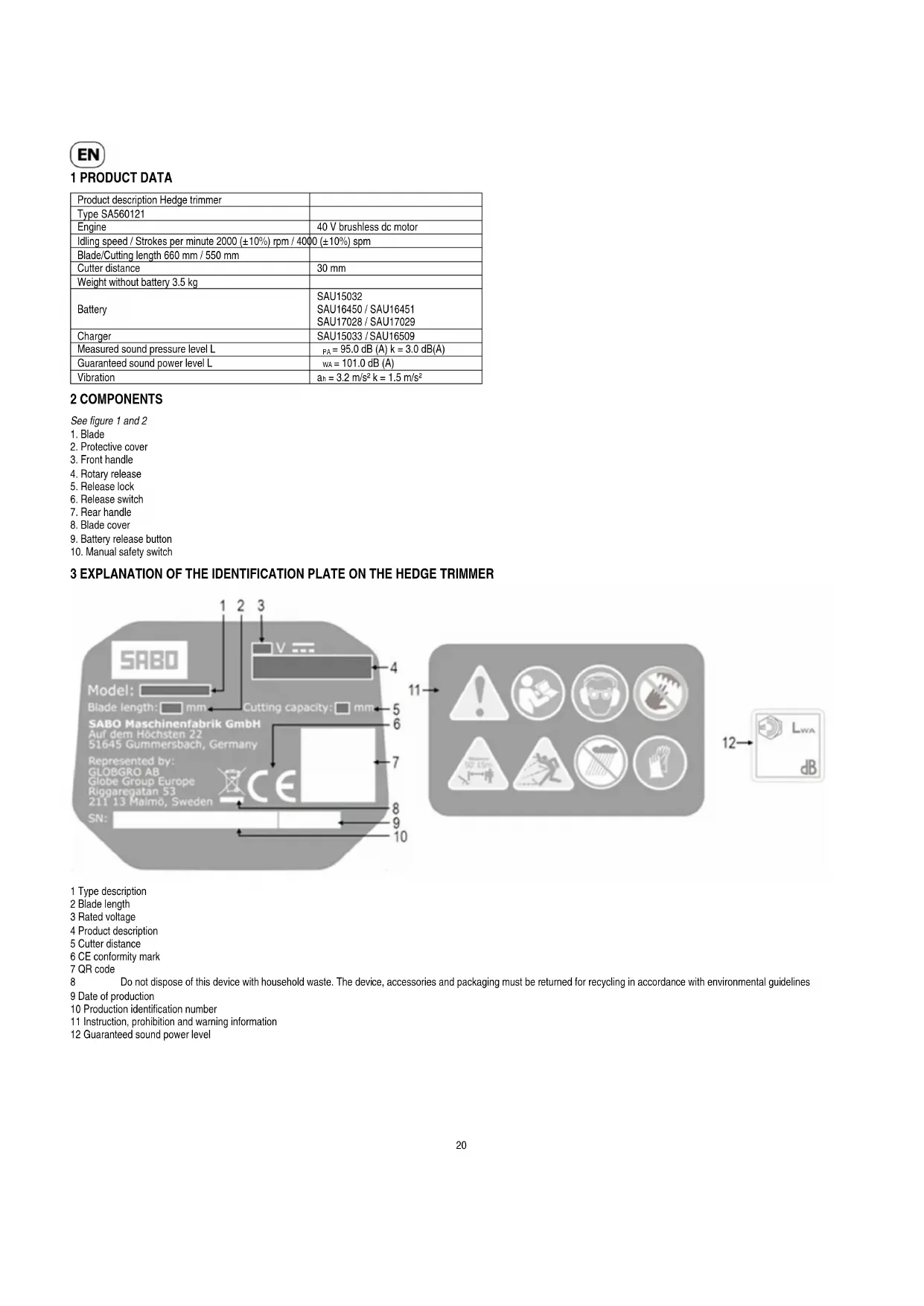

1 PRODUCT DATA....20

2 COMPONENTS....20

3 EXPLANATION OF THE IDENTIFICATION PLATE ON THE HEDGE TRIMMER ... 20

4 EXPLANATION OF THE SYMBOLS 2

5 INTENDED USE....2

6 SAFETY INFORMATION......2

7 SAFETY INSTRUCTIONS 23

8 ASSEMBLY....23

9 COMMISSIONING....23

10 MAINTENANCE AND CARE....24

11 STORAGE....25

12 TROUBLESHOOTING....25

13 DISPOSING OF THE DEVICE....25

14 SPARE PARTS LIST 25

1 PRODUCTGEGEVENS 26

2 ONDERDELEN 26

3 VERKLARING VAN HET OP DE HEGGENSCHAAR AANGEBRACHTE TYPEPLAATJE....26

4 VERKLARING VAN DE SYMBOLEN 27

5 BEOOGD GEBRUIK 27

6 VEILIGHEIDSINSTRUCTIES 28

12 PROBLEEMOPLOSSING 31

13 VERWIJDERING VAN HET APPARAAT 32

14 RESERVEONDERDELENLIJST 32

1 ESPECIFICACIONES DEL PRODUCTO....33

2 COMPONENTES 33

HECKENSCHERE AUSSCHALTEN

Siehe Abb. 2 und 3

Product description Hedge trimmer
Type SA560121
Engine	40 V brushless dc motor
Idling speed / Strokes per minute 2000 (±10%) rpm / 4000 (±10%) spm
Blade/Cutting length 660 mm / 550 mm
Cutter distance	30 mm
Weight without battery 3.5 kg
Battery	SAU15032SAU16450 / SAU16451SAU17028 / SAU17029
Charger	SAU15033 / SAU16509
Measured sound pressure level L	_PA = 95.0 dB (A) k = 3.0 dB(A)
Guaranteed sound power level L	_WA = 101.0 dB (A)
Vibration	a_n = 3.2 m/s ^2 k = 1.5 m/s ^2

2 COMPONENTS

See figure 1 and 2

1. Blade
2. Protective cover
3. Front handle
4. Rotary release
5. Release lock
6. Release switch
7. Rear handle
8. Blade cover
9. Battery release button
10. Manual safety switch

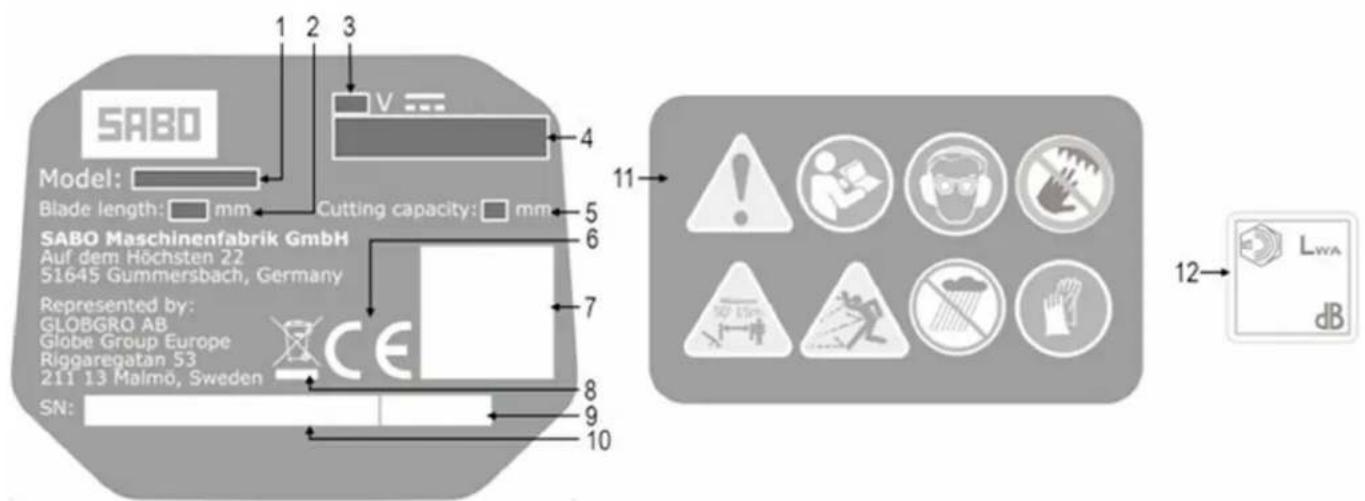

3 EXPLANATION OF THE IDENTIFICATION PLATE ON THE HEDGE TRIMMER

SABO Model: Blade length: mm Cutting capacity: mm SABO Maschinenfabrik GmbH Auf dem Höchsten 22 51645 Gummersbach, Germany Represented by: GLOBGRO AB Globe Group Europe Riggaregatan 53 211 13 Malmö, Sweden SN: 1 2 3 4 5 6 7 8 9 10 11 12 LWA dB

1 Type description
2 Blade length
3 Rated voltage
4 Product description
5 Cutter distance
6 CE conformity mark
7 QR code
8 Do not dispose of this device with household waste. The device, accessories and packaging must be returned for recycling in accordance with environmental guidelines
9 Date of production
10 Production identification number
11 Instruction, prohibition and warning information
12 Guaranteed sound power level

4 EXPLANATION OF THE SYMBOLS

The following symbols are found on the device. Please look at these and learn their meaning. A good understanding of these symbols will assist you in using the product better and more safely.

SYMBOL		DESCRIPTION/EXPLANATION
		Important safety measures This is about your safety.
		Read the operating instructions and observe the warnings and safety requirements.
		Wear eye and ear protection.
		Objects can collide and cause injuries or damage. Wear protective clothing and boots.
		Wear thick and non-slip work gloves.
		Keep persons, especially children and animals, at least 15 m from the work area.
		Do not use device in the rain.
		Danger – Keep hands and feet away from blade.

The following signal words and meanings indicate the degree of risk associated with this product.
SYMBOL SIGNAL MEANING
	DANGER:	Describes an immediate dangerous situation that, if it is not prevented, can lead to death or serious injuries.
	WARNING:	Describes a possible dangerous situation that, if it is not prevented, can lead to death or serious injuries.
	ATTENTION!	Describes a possible dangerous situation that, if it is not prevented, can lead to minor and moderate injuries.
	ATTENTION!	(without safety symbol) Describes a situation which can lead to material damage.

5 INTENDED USE

This hedge trimmer is designed for cutting and trimming hedges and shrubs in domestic use. It is not designed for cutting above shoulder height.

- The device is to be used only for the following purposes:

○Cutting and trimming hedges, shrubs and bushes in domestic use.

Any use going beyond this is not considered proper use; the manufacturer is not liable for any damage resulting from such use, the risk is borne by the user alone. Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.

• Special care is required during use in public areas, parks, sports facilities, on roads and in agricultural and forestry operations.
- The hedge trimmer is not designed for cutting above shoulder height.
- The hedge trimmer is not designed for forestry work.
- Please note that this device is not designed for commercial, trade or industrial use. We accept no warranty claims for devices that are used in commercial, trade or industrial operations or similar activities.
- The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee shall be null and void. Unauthorised modifications to this device exclude the manufacturer from liability for any damage resulting from these modifications.
• There is a residual risk despite the intended use and particular care of the user. Use the device with care at all times.

EN

Safetydatasheet

Your hedge trimmer has been developed and produced with the highest levels of reliability, user-convenience and user safety. It maintained carefully, the device will work reliably and fault-free for many years.

6 SAFETY INFORMATION

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

- Do not use the device in bad weather if there is any risk of a lightning strike.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
  • Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  • If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock
  NOTE The term "residual current device (RCD)" may be replaced by the term "ground fault circuit interrupter (GFCI)" or "earth leakage circuit breaker (ELCB)".

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

• Do not overload the tool. Use the right power tool for your task. You can work better and more safely within the specified performance range with the right power tool.
• Do not use a power tool with a defective switch. A power tool which can no longer be switched on or off is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store all unused power tools out of the reach of children. Do not let persons use the device who are unfamiliar with it or who have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.
• Carefully maintain your device. Check that the moving parts work correctly. Make sure that no part of the device is damaged. Check the assembly and all other elements that could affect the operation of the device. If parts are damaged, you must have your device repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges get stuck less often and are easier to use.
• Use power tools, accessories, tool bits, etc. according to their instructions. Consider the working conditions and work to be performed. The use of power tools for purposes other than the intended uses can lead to dangerous situations.

Specific safety provisions for battery-powered devices

• Before inserting the battery, make sure that the switch is either at "Off" or is locked. Inserting a battery into a switched-on device can lead to accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a
• connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• All safety information regarding the handling, storage, safekeeping, transport, disposal of the lithium-ion battery and first-aid measures and measures for combating fires is contained in the "Product safety datasheet" at www.sabo-online.com under Instructions.

Information hotline for lithium ion batteries

[phone]

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

7 SAFETY INSTRUCTIONS

• Keep body parts away from the blade. Do not remove cuttings or hold objects that you are cutting while the blades are moving. The blades continue to turn after the device is switched off. Make sure that the switch is turned off when you are removing any lodged material. Even a momentary lapse of attention when using the hedge trimmer can result in serious injuries.
• Hold the hedge trimmer by the handle and when the cutting blades are at rest. Always use the blade cover when transporting or storing the hedge trimmer. Correctly handling the hedge trimmer reduces possible injuries from the cutter.
• Hold the tool only by the insulated parts of the handle because the cutting blade could come into contact with hidden power cables. If the cutter touches or cuts a live cable, metal parts of the power tool can become live and expose the user to an electric shock.
• Keep cable away from cutting area. During use, the cable could become hidden by branches and be accidentally cut by the blade.
  • Use both hands when using the hedge trimmer. Use of the device with only one hand can lead to loss of control and cause serious injuries.
  • DANGER – Keep hands and feet away from blade. Contact with the blade will cause serious injuries.
• WARNING – Use the hedge trimmer only with properly fitted handle and protective cover. Using the hedge trimmer without the handle or the provided protective cover can lead to serious injuries.

8 ASSEMBLY

UNPACKING

• This product does not need to be assembled.
• Carefully remove the product and accessories from the box. Check whether all the objects listed in the list of contents are included.
- Carefully inspect the product and make sure that no damage has occurred during the transport.
• Do not immediately dispose of the packaging material until you have carefully inspected and successfully used the product.

PACKING LIST

• Hedge trimmer
• Blade cover
• Operator manual

9 COMMISSIONING

For full instructions about charging, please read the operating instructions for your battery and charger model.

PLEASE NOTE: To prevent serious injuries when carrying or transporting the tool, always remove the battery first and do not hold it close to the release button.

CAUTION

When you insert the battery into your hedge trimmer, ensure that the ridge in the battery is aligned with the groove in the hedge trimmer. Improper insertion of the battery can result in damage to the internal parts.

INSERTING THE BATTERY

See figure 2

• Align the bars on the battery with the slots in the battery compartment of the hedge trimmer.
• Push the battery forward until it locks in position.

REMOVING THE BATTERY

See figure 2

• Press the battery release button (9), the battery can then be removed from the battery compartment.
• Hold the battery and remove it from the hedge trimmer.

SWITCH ON THE HEDGE TRIMMER

See Figure 1 - 3

EN

- Remove the blade cover (8).

• Insert the battery (9).
• For extra safety, a manual safety switch (10) is provided in the front handle. When using the hedge trimmer, hold with both hands. One hand presses the release lock (5) and the release switch (6) and the other hand presses the manual safety switch (10).
• Release the release lock (5) and hold the release switch (6) and manual safety switch (10) to continue operation.

SWITCH OFF HEDGE TRIMMER

See figure 2 and 3

• Release the release switch (6) and/or the manual safety switch (10) to stop the hedge trimmer.
  • After releasing the release switch (6), the release lock (5) automatically returns to locked position.
• Remove the battery (9) from the hedge trimmer.

USE THE ROTATING REAR HANDLE

See figure 1 and 4

• Place the hedge trimmer on a flat base.
  • Make sure that the hedge trimmer is switched off.
• Press the rotary release (4) and turn the rear handle (7). Release the rotary release and turn the handle to one side by 45 or 90 degrees until it catches and the rotary release is locked.
• To return the handle to the middle, press the rotary release (4) again and turn the rear handle (7) slightly. Release the rotary release and continue turning the handle until the handle locks.

INSTRUCTIONS FOR USE

DANGER

Never touch the cutter after cutting into an electrical wire. The cutter may be carrying live current! Hold the device by the insulated read handle only and slowly put the device down. Disconnect the damaged wire from the power supply (pull out the plug, switch off the fuse) and remove it from the cutter. Misuse can lead to serious injuries or death.

WARNING

Check the cutting area before starting work. Remove all objects such as strings, cables or fence parts. These can get in the cutter and cause injuries and damage.

• Do not force the cutting through strong and thick material. The cutting speed can be reduced here. In this case slow the cutting speed.
  • Do not cut branches or twigs with a diameter over 15 mm or any material that is clearly too large for the cutter. Use a different, appropriate tool for this.
• In the event that the cutter jams, stop the motor, remove the battery and release the cutter. You can use a piece of string as a guide to determine and control the cutting height on a hedge. See figure 5 Place the piece of string on the hedge for the length and width and cut your hedge at this height. This way you will enjoy optimal cutting results on your hedge. See figure 6
• Wear safety goggles for thorns or prickly plants. When cutting young shoots, cut with a sweeping motion. Older growth is more solid and can be cut with a normal forwards motion.

10 MAINTENANCE AND CARE

CUTTER CARE

WARNING

Any time there is a battery in the device, the device is capable of restarting at any time, even unintentionally. To avoid serious injury, the battery must always be removed before performing maintenance or changing the cutter and before any other cleaning, service, adjustment or repair work.

CUTTER MAINTENANCE

• Lubricate the cutter after each use.
- Inspect the cutter regularly for damage.
- Only use original spare parts.

LUBRICATE THE CUTTER

See figure 7

• Remove the battery.
  • Lubricate the cutter after each use, this helps it to last longer. Place the device a flat base. Use special, environmentally friendly oil and apply a little oil at each point as shown.
  • The cutter should be lubricated from time to time, and more frequently for longer jobs. To do this, remove the battery and carry out the procedure before replacing the battery.

LUBRICATE THE HEDGE TRIMMER

Your device is fitted with maintenance-free bearings, and for that reason no maintenance is necessary.

WARNING

Never try to modify, convert or add third-party accessories or unauthorised spare parts to the device. Such procedures can result in injuries, damage and can void the warranty.

WARNING

To prevent injuries and damage, regularly check your device for damage and that the screws are tight.

CLEANING YOUR DEVICE

WARNING

Remove the battery before all cleaning, maintenance, setting and repair work.

WARNING

Do not use solvents when cleaning the plastic parts. Most plastics are sensitive to solvents and can be damaged by their use. Use a clean cloth to remove dirt such as dust, oil, lubricants etc. Use only original spare parts for maintenance. The use of other parts can cause danger or damage the product.

WARNING

Never bring plastic parts into contact with liquids such as petrol-based products, oil, aromatised oils, brake fluid, fuels and diluents. These can attack plastic materials or destroy them.

• Remove the battery.
• Clean your device with a damp cloth or a gentle cleaning agent such as soapy water.
• Moisture can lead to electric shocks. Carefully dry the device with a dry cloth before use.
  • Use a small brush or a small vacuum cleaner with brush to remove dust from the small ventilation slots on the battery and on the motor housing.
• Keep the ventilation slots clean.

11 STORAGE

See figure 1 and 8

• Clean your tool thoroughly before storage.
  • Store the device in a well-ventilated, dry location out of the reach of children. Keep the device away from corrosive chemicals and salt.
  • Always install the blade cover (8). See figure 8
  • Store the battery at room temperature. Lower or higher temperatures may reduce the life. Store the battery dry and at a temperature below 27^ C.
• Never store discharged batteries.
• The battery's charge declines during storage. The higher the temperature, the faster the discharge. Recharge the batteries monthly is stored for a longer period. This increases the life and maintains performance.

12 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES SOLUTION
Motor does not start when the release switch and the manual safety switch are pressed.	Battery is not engaged.	To lock in the battery, make sure that the tabs on the top of the battery engage
	The battery is not charged.	To charge the battery, please follow the operating instructions for your battery and charger model.
The motor runs, but the cutters are not moving.	The hedge trimmer is defective. Stop using the hedge trimmer and call technical service.
	Dirt or something else is blocking the cutter.	Stop the machine.Remove the battery.Remove the obstructing objects from the cutters.
The hedge trimmer smokes during operation.	The hedge trimmer is defective. Stop using the hedge trimmer and call technical service.
There are unusual noises and/or strong vibrations during operation.	Parts are loose.	Stop the machine.Remove the battery.Check the machine for damage.Check the machine for loose parts and tighten them if necessary
	Parts are damaged. Stop using the hedge trimmer and call technical service.

13 DISPOSING OF THE DEVICE

Do not dispose of electric devices with household waste. Dispose of these devices at recycling centres. Contact the relevant authorities or your retailer for information about this. Separate collection of used products and packaging allows materials to be recycled. The reuse of materials helps to prevent pollution and reduces the need for raw materials. Dispose of batteries at the end of their use and consider the environment. The battery contains material that is dangerous to you and the environment. Therefore, it must be disposed of separately in a facility that accepts lithium-ion batteries.

14 SPARE PARTS LIST

• See spare parts catalogue

NL

1 PRODUCTGEGEVENS

Productbenaming Heggenschaar
Type SA560121
Motor	40 V borstelloze gelijkstroommotor
Leegloop toerental / Sneden per minuut 2000 (±10%) rpm / 4000 (±10%) spm
Lengte mes/ Snijlengte 660 mm / 550 mm
Mesafstand	30 mm
Gewicht zonder accu 3,5 kg
Accu	SAU15032SAU16450 / SAU16451SAU17028 / SAU17029
Lader	SAU15033 / SAU16509
Gemeten geluidsdrukniveau L	_PA = 95,0 dB (A) k = 3,0 dB(A)
Gegarandeerd geluidsdrukniveau L	_WA = 101,0 dB (A)
Trilling	a_n = 3,2 m/s ^2 k = 1,5 m/s ^2

2 ONDERDELEN

Zie afb. 1 en 2

1. Zwaard
2. Beschermende afdekking
3. Voorste handgreep
4. Draairegeling
5. Schakelbeugel
6. Schakelhendel
7. Achterste handgreep
8. Mesafdekking
9. Accu-ontgrendelingsknop
10. Hand-veiligheids-knop

3 VERKLARING VAN HET OP DE HEGGENSCHAAR AANGEBRACHTE TYPEPLAATJE

SABO Model: Blade length: mm Cutting capacity: mm SABO Maschinenfabrik GmbH Auf dem Höchsten 22 51645 Gummersbach, Germany Represented by: GLOBGRO AB Globe Group Europe Riggaregatan 53 211 13 Malmö, Sweden SN: 1 2 3 4 5 6 7 8 9 10 11 12 LWA dB

12 PROBLEEMOPLOSSING

IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC

62321-7-2:2017, IEC 62321-8:2017

GLOBGRO AB, Globe Group Europe

EU DECLARATION OF CONFORMITY

Manufacturer:

GLOBGRO AB, Globe Group Europe

Riggaregatan 53, 211 13 Malmö, Sweden

Name and address of person who is authorised to prepare the technical file:

Name: Peter Söderström

Address: Riggaregatan 53, 211 13 Malmö. Sweden

We herewith declare that the product

Category:

40 V hedge trimmer

Model

SA560121

Serial number: see product identification plate

Year of manufacture:

see product identification plate

• complies with the corresponding conditions of the Machinery Directive (2006/42/EC)

• complies with the conditions of the following other directives: EMC Directive: 2014/30/EU

Directive 2000/14/EC on noise emissions as amended by 2005/88/EC

RoHS Directive 2011/65/EU as amended by 2015/863/EU

and we also declare that the following (parts/conditions from) European harmonised standards

have been applied

EN 62841-1:2015, EN 62841-4-2:2019

EN 55014-1:2017. EN 55014-2:2019

EN ISO 3744:1995, EN ISO 3744:2010, ISO 11094:1991

IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC

62321-7-2:2017, IEC 62321-8:2017

Measured sound power level:

95.0 dB(A)

Guaranteed sound power level:

101.0 dB(A)

Conformity assessment method following Directive 2000/14/EC Annex V.

Place, date: Malmö, 01/01/2021

Signature:

Ralf Pankalla

GLOBGRO AB, Globe Group Europe

as authorised representative of the manufacturer

DÉCLARATION DE CONFORMITÉ UE

IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC

62321-7-2:2017, IEC 62321-8:2017

GLOBGRO AB, Globe Group Europe

GLOBGRO AB, Globe Group Europe

Riggaregatan 53, 211 13 Malmö, Schweden

IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC

62321-7-2:2017, IEC 62321-8:2017

GLOBGRO AB, Globe Group Europe

IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC

62321-7-2:2017, IEC 62321-8:2017

GLOBGRO AB, Globe Group Europe

IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC

62321-7-2:2017, IEC 62321-8:2017

GLOBGRO AB, Globe Group Europe
