HC61 - Hedge Trimmers SABO - Free user manual and instructions

Product type	Cordless hedge trimmer
Model	HC61 (SA560020)
Brand	SABO
Motor	40 V DC, brushless
No-load speed	3000 min⁻¹ (±10%)
Blade length	63 cm
Blade gap (tooth spacing)	27 mm
Weight (without battery)	2.70 kg
Compatible battery	SAU16450 / SAU16451 (40 V Li-ion)
Compatible charger	SAU15033 / SAU16509
Sound pressure level (LpA)	78.6 dB(A), k=3.0
Guaranteed sound power level (LwA)	100 dB(A)
Vibration (triaxial value)	< 2.5 m/s², k=1.5 m/s²
Intended use	Cutting and trimming hedges, shrubs and bushes at home
Rotating rear handle	Yes, 45° and 90° positions
Safety	Microswitch on front handle + trigger switch + lock
Blade guard	Removable protective cover (SAA12590)
Maintenance	Regular blade lubrication after each use
Cleaning	Damp cloth or soapy solution; do not use solvents
Spare parts available	Blade cover (SAA12590), Protective cover (SAA12592)
Repairability	Have it repaired by an authorized after-sales service with original parts
Warranty	Manufacturer's warranty according to conditions; non-professional use

Frequently Asked Questions - HC61 SABO

How to start the SABO HC61 hedge trimmer?

Insert the charged battery. Then, press and hold the trigger switch (7) on the rear handle while simultaneously pressing the microswitch (4) on the front handle. Release the lock button (8) after starting. To stop, release the trigger switch and the microswitch.

Which type of battery to use with the HC61?

The HC61 works with SABO 40 V batteries, references SAU16450 or SAU16451. Use only the appropriate charger (SAU15033 or SAU16509) to recharge.

How to lubricate the hedge trimmer blade?

After each use, remove the battery. Apply a few drops of special oil (environmentally friendly) to each lubrication point indicated on the blade (see figure 7 of the manual). This extends the tool's lifespan.

What to do if the blade jams?

Immediately release the trigger switch and microswitch to stop the motor. Remove the battery. Carefully remove any debris or branches stuck in the blade. Never force it and do not touch the blade while it is moving.

The motor does not start, what to check?

Check that the battery is properly engaged (the tabs must click). Make sure it is charged. If the problem persists, the hedge trimmer may be defective; do not use it and contact an authorized after-sales service.

How to use the rotating rear handle?

With the device stopped, press the rotating lever (5) and turn the rear handle to 45° or 90° on one side. Release the lever to lock. To return to center, press the lever again and turn until it clicks.

What are the important safety instructions?

Always wear protective equipment (goggles, gloves, hearing protection). Keep hands and feet away from the blade. Do not use the device in the rain. Keep other people and animals at least 15 m away. Read the entire manual before use.

How to clean and maintain the hedge trimmer?

Remove the battery before any cleaning. Use a damp cloth or mild soapy solution to clean the exterior parts. Dry thoroughly. For ventilation slots, use a small brush or vacuum cleaner. Never use solvents or corrosive products.

Where can I buy spare parts?

Original spare parts are available from authorized SABO dealers. Main references: blade cover (SAA12590) and protective cover (SAA12592). Use only original parts for safety and warranty.

How to store the HC61 in winter or during prolonged non-use?

Clean the device thoroughly, install the blade cover. Store it in a dry, well-ventilated place out of reach of children. Recharge the battery every month during storage. Never store a discharged battery.

USER MANUAL HC61 SABO

Cordless Hedge Trimmer

OPERATOR'S MANUAL

Accu heggenschaar

BEDIENINGSHANDLEIDING

Cortasetos inalámbrico

MANUAL DEL OPERADOR

TagliaSiepi a battery

MANUALE DELL'OPERATORE

SABO

SAU16881

Printed in Germany

Fig.1
Fig. 3

Fig. 5

Fig. 7

Fig. 2

Fig. 4

Fig. 6
Fig. 8

Deutsch Originalbetriebsanleitung	DE
Français Mode d'emploi d'origine	FR
English Original Instructions	EN
Nederlandis Originele begruiksaanwijzing	NL
Español Manual del operador original	ES
Italiano Manuale d'uso originale	IT

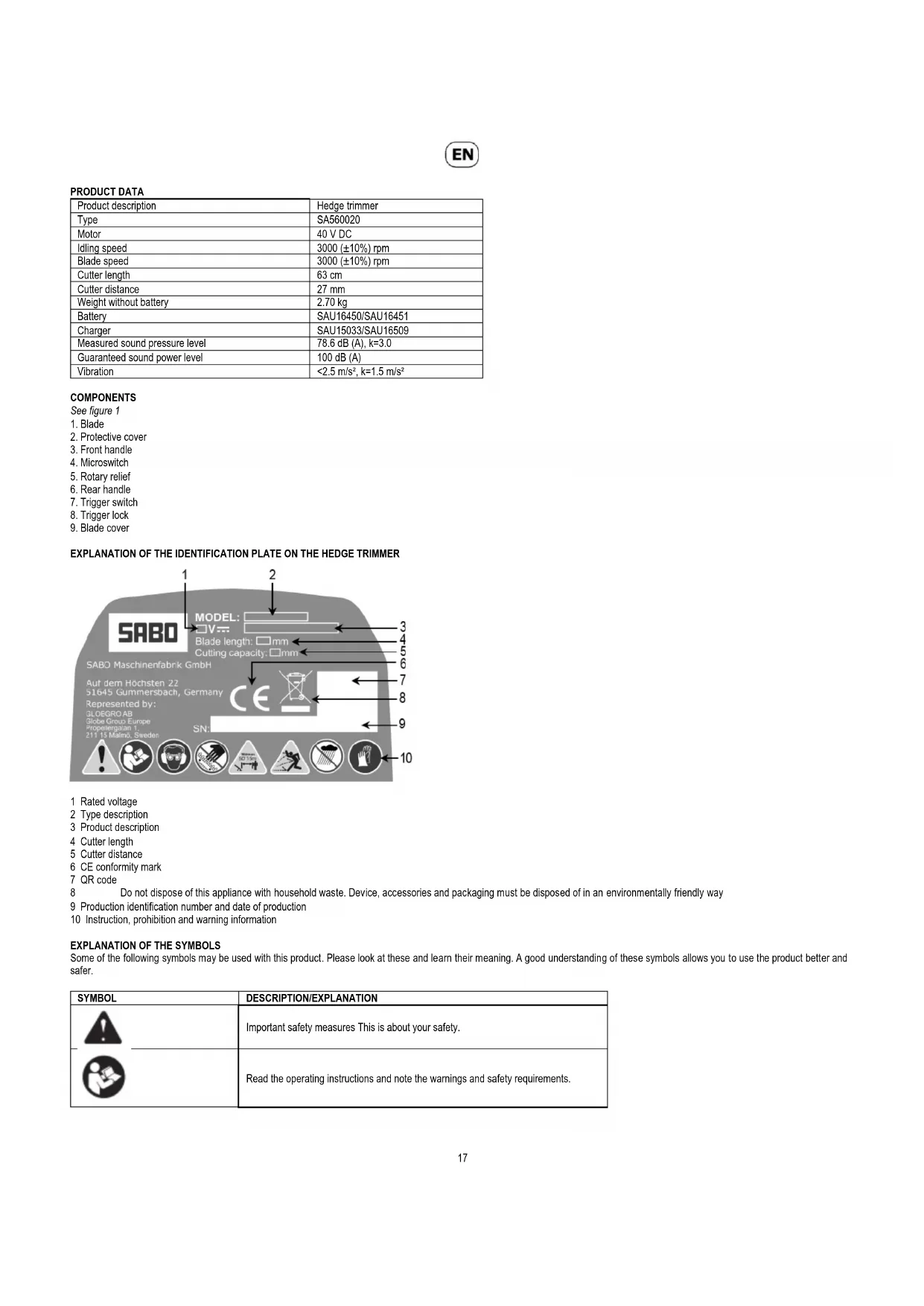

PRODUKDATEN

HECKENSCHERE AUSSCHALTEN

Siehe Abb. 3

CHARACTERISQUES DU PRODUIT

Product description	Hedge trimmer
Type	SA560020
Motor	40 V DC
Idling speed	3000 (±10%) rpm
Blade speed	3000 (±10%) rpm
Cutter length	63 cm
Cutter distance	27 mm
Weight without battery	2.70 kg
Battery	SAU16450/SAU16451
Charger	SAU15033/SAU16509
Measured sound pressure level	78.6 dB (A), k=3.0
Guaranteed sound power level	100 dB (A)
Vibration	<2.5 m/s², k=1.5 m/s²

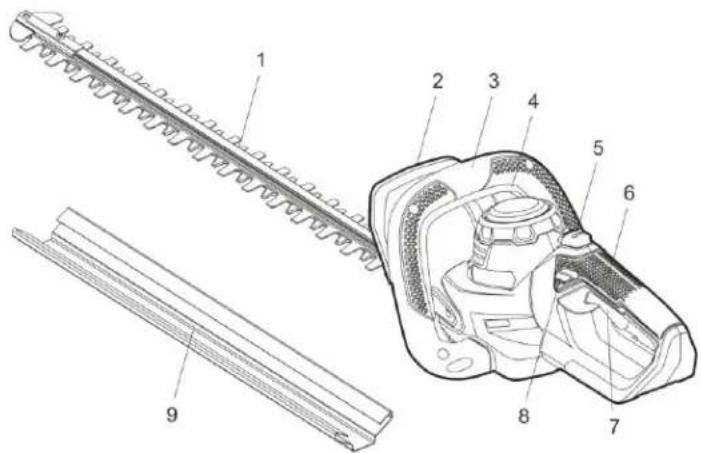

COMPONENTS

See figure 1
1.Blade
2. Protective cover
3. Front handle
4. Microswitch
5. Rotary relief
6. Rear handle
7. Trigger switch
8. Trigger lock
9. Blade cover

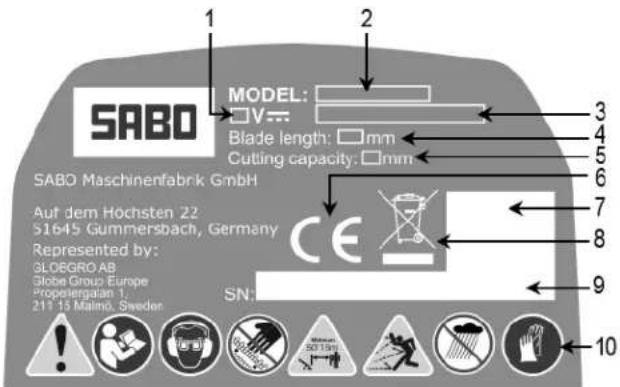

EXPLANATION OF THE IDENTIFICATION PLATE ON THE HEDGE TRIMMER

1 Rated voltage
2 Type description
3 Product description
4 Cutter length
5 Cutter distance
6 CE conformity mark
7 QR code
8 Do not dispose of this appliance with household waste. Device, accessories and packaging must be disposed of in an environmentally friendly way
9 Production identification number and date of production
10 Instruction, prohibition and warning information

EXPLANATION OF THE SYMBOLS

Some of the following symbols may be used with this product. Please look at these and learn their meaning. A good understanding of these symbols allows you to use the product better and safer.

SYMBOL	DESCRIPTION/EXPLANATION
	Important safety measures This is about your safety.
	Read the operating instructions and note the warnings and safety requirements.
	Wear eye and ear protection.
	Objects can collide and cause injuries or damage. Wear protective clothing and boots.
	Wear thick and non-slip work gloves.
	Keep persons, especially children and animals, at least 15 m from the work area.
	Do not use device in the rain.
	Danger - Keep hands and feet away from blade.

The following signal words and meanings should highlight the degree of risk associated with this product.
SYMBOL	SIGNAL	MEANING
	DANGER:	Describes an immediate dangerous situation that, if it is not prevented, can lead to death or serious injuries.
	WARNING:	Describes a possible dangerous situation that, if it is not prevented, can lead to death or serious injuries.
	ATTENTION!	Describes a possible dangerous situation that, if it is not prevented, can lead to small and medium injuries.
	ATTENTION!	(without safety symbol) Describes a situation, which can lead to material damage.

INTENDED USE

The hedge trimmer is designed for cutting and trimming hedges and shrubs in domestic use. It is not designed for cutting above shoulder height.

The appliance may only be used for the following purposes:
Cutting and trimming hedges, shrubs and bushes in domestic use. Any use going beyond this is considered not proper; the manufacturer is not liable for any damage resulting from such use, the risk is borne by the user alone. Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.
Special care is required during use in public areas, parks, sports facilities, on roads and in agricultural and forestry operations.
The hedge trimmer is not designed for cutting above shoulder height.
The hedge trimmer is not designed for forestry work.
Please note that this appliance has intentionally not been designed for commercial, trade or industrial use. We do not assume any guarantee if the appliance is used in commercial, trade or industrial companies or equivalent activities.
The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee are considered null and void. Unauthorized modifications to this appliance exclude the manufacturer from liability for any damage resulting from these modifications.
There is a residual risk despite the intended use and particular care of the user. Please always use the appliance with care.

Safety datasheet

Your hedge trimmer has been developed and produced with the highest levels of reliability, user-convenience and user safety. It maintained carefully, the device will work reliably and fault-free for many years.

SAFETY INFORMATION

WARNING

Read all the safety warnings and instructions. Electric shock, fire, and/or serious injuries can result from non-observation of the safety information and instructions.

Retain all the safety warnings and instructions for the future.

The term "power tool" used in the safety information refers to mains-powered electric tools (with mains cable) and to battery-powered tools (without mains cable).

Workplace safety

• Keep your work area clean and well lit. Messy or unlit work areas can lead to accidents.
  Do not use the power tool in an explosive environment with flammable liquids, gases or dust. Power tools generate sparks, which can ignite the dust or vapours
• Keep children and other persons at a distance when using the power tool. If distracted, you may lose control of the device.
  Do not use the appliance in bad weather if there is a danger that lightning could strike.

Electrical safety

• Avoid touching earthed surfaces such as pipes, heaters, ovens and fridges. There is an increased risk of electric shock if your body is earthed.
• Keep power tools out of the rain and wet. Water penetrating a power tool increases the risk of an electric shock.

Personal safety

Pay attention. Watch what you are doing and take care when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention during use of the power tool can lead to serious injuries.
- Wear personal protective equipment and always safety goggles. Wearing personal protective equipment, such as dust masks, non-slip safety gloves, a helmet or ear protectors reduces the risk of injuries depending on the type and use of power tool.
- Avoid accidental start up. Ensure that the power tool is switched off before inserting the battery, carrying lifting or carrying it. If your finger touches the switch when carrying the power tool or if the battery is inserted when the power tool is on, it may lead to accidents.
- Remove setting tools or screw keys before switching on the power tool. A tool or key inside a rotating tool can lead to injuries.
- Avoid unergonomic postures. Make sure you are standing on safe base and keep your balance at all times. This allows you to control power tool better in unexpected situations.
Wear appropriate clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can be trapped in moving parts.

Careful handling and use of power tools

Do not overload the tool. Use the right power tool for your task. You work better and more safely in the stated performance range with the right power tool.
Do not use a power tool if its switch is defective. A power tool, which can no longer be switched on or off, is dangerous and must be repaired.
- Remove the battery before adjusting settings, replacing accessories or after use. The safety provisions prevent the power tool from starting accidentally.
Store all unused power tool out of the reach of children. Do not let persons use the device, who are unfamiliar with it or who have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.
Carefully maintain your device. Check the moving parts work correctly. Ensure that no part of the device is damaged. Check the assembly and all other elements that could affect the operation of the device. If parts are damaged, you must get your device repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges get stuck less often and are easier to use.
- User power tools, accessories, insert tools, etc. according to their instructions. Consider the working conditions and work to be performed. Using power tools for other applications other than intended can lead to dangerous situations.

Specific safety provisions for power tools

Before inserting the battery, ensure that the switch is either at "Off" or is locked. Inserting a battery into a switched-on device can lead to accidents.
Charge your device's battery only with the charger specified by the manufacturer. An unsuitable charger can cause a fire if it is used with a battery type other than that specified by the manufacturer.
A specific battery type must be used for each battery -powered tool. The use of a different battery may lead to fire.
- Keep an unused battery away from metal objects such as paperclips, coins, keys, screws, nails and all other objects that could connect the contacts. A short circuit of the battery can cause burning or fires.
- Avoid all contact with battery fluid because of misuse. If battery fluid escapes, the affected area must be rinsed with fresh water. See a doctor if battery fluid comes into contact with the eyes. Splashed battery fluid can cause irritations or burns.

All safety information regarding the handling, storage, safekeeping, transport, disposal of the lithium-ion battery and first-aid measures and measures for combating fires is contained in the "Product safety datasheet" at www.sabo-online.com under Instructions.

Information hotline for lithium ion batteries

[phone]

Repair

Only have your power tool repaired by a qualified expert and only with original spare parts. This ensures that the power tool remains safe.

SAFETY INSTRUCTIONS

• Keep body parts away from the blade. Do not remove cut material or hold material being cut while the blades are moving. The blades continue to turn after switching off. Ensure that the switch is turned off when you are removing stuck material. A brief moment of inattention during use of the hedge trimmer can lead to serious injuries.
• Hold the hedge trimmer by the handle and when the cutting blades are at rest. Always use the blade cover when transporting or storing the hedge trimmer. Correctly handling the hedge trimmer reduces possible injuries from the cutter.
  Only hold the tool by the insulated parts of the handle because the cutting blade could come into contact with hidden power cables. If the cutter touches or cuts a live cable, metal parts of the power tool can become live and expose the user to an electric shock.
• Keep cable away from cutting area. During use, the cable could become hidden by branches and be accidentally cut by the blade.
  Use both hands when using the hedge trimmer. Use with only one hand can lead to loss of control and cause serious injuries.
  DANGER - Keep hands and feet away from blade. Contact with the blade will cause serious injuries.
  WARNING - Only use the hedge trimmer with correctly fitted handle and protective cover. Using the hedge trimmer without the handle or protective cover provided can lead to serious injuries.

ASSEMBLY

UNPACKING

• This product does not need to be assembled.
  Carefully remove the product and accessories from the box. Check whether all the objects listed in the list of contents are included.
  Inspect the product carefully and ensure that no damage has occurred during the transport.
  Do not immediately dispose of the packaging material until you have carefully inspected and successfully used the product.

PACKING LIST

Hedge trimmer
- Operating instructions

COMMISSIONING

For full instructions about charging, please read the operating instructions for your battery and charger model.

PLEASE NOTE: To prevent serious injuries when carrying or transporting the tool, always remove the battery first and do not hold it close to the release button.

INSERTING THE BATTERY

See figure 2

Align the bars on the battery with the slots in the battery compartment of the hedge trimmer.
- Push the battery down until it locks in position.

REMOVING THE BATTERY

See figure 2

Press the battery release button (10), the battery can then be removed from the battery compartment.
- Hold the battery and remove it from the hedge trimmer.

CAUTION

When you insert the battery into your hedge trimmer, ensure that the ridge in the battery is aligned with the groove in the hedge trimmer. Incorrectly inserting the battery can lead to damage to the internal parts.

SWITCH ON THE HEDGE TRIMMER

See figure 3

• Remove the blade protection.
• Insert the battery.
  For extra safety, there is a microswitch (4) in the front handle. When using the hedge trimmer, hold with both hands. One hand presses the trigger block (8) and the trigger switch (7) and the other hand presses the microswitch (4).
• Release the trigger block (8) and the press the trigger switch (7) and the microswitch (4) for further operation.

SWITCH OFF HEDGE TRIMMER

See figure 3

• Release the microswitch (4) and the trigger (7) in order to stop the hedge trimmer.
  After releasing the trigger switch (7), the safety button (8) automatically returns to the lock position.
• Remove the battery from the hedge trimmer.

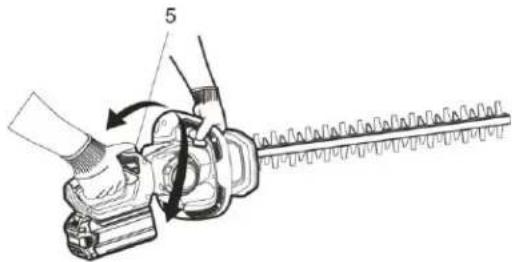

USE THE ROTATING REAR HANDLE

See figure 4

• Place the hedge trimmer on a flat base.
• Ensure that the hedge trimmer is switched off.
  Press the rotary lever (5) and turn the rear handle. Release the rotary lever and turn the handle by 45 or 90 degrees until it catches and the lever is locked.
  To return the handle to the middle, press the rotary lever again and turn the handle slightly. Release the rotary lever and turn the handle again until the handle locks.

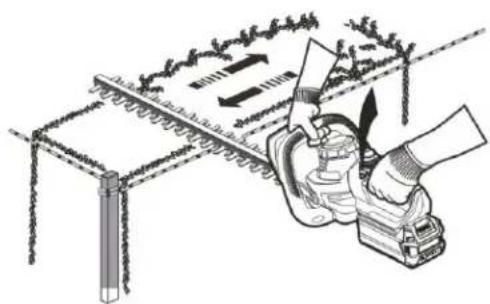

INSTRUCTIONS FOR USE

Do not force the cutting through strong and thick material The cutting speed can be reduced for this. In this case slow the cutting speed.
Do not cut branches or twigs with a diameter of 15mm or material that is obviously too big for the cutter. Use a different, suitable tool for this.
If the cutter sticks, stop the motor, remove the battery and release the cutter. You can use a piece of string as a guide to determine and check the cutting height on a hedge. See figure 5 Place the piece of string on the hedge for the length and width and cut your hedge at this height. This achieves an optimum cut for your hedge. See figure 6
- Wear safety goggles if there are thorns or prickly plants. When cutting new shoots, use a sweeping motion to cut the material. Older growth is more solid and can be cut with a normal forwards motion.

DANGER

Never touch the cutter if you get an electric cable in the cutter. By cutting into the cable, the cutter can become live and carry this voltage. Only hold the device by the insulated read handle, slowly put down the device. Disconnect the damaged cable from the power supply (pull out the plug, switch off the fuse) and release the cutter. Misuse can lead to serious injuries or death.

WARNING

Check the cutting area before starting work. Remove all objects such as string, cables or fence parts. These can get in the cutter and lead to injuries and damage.

WARNING

When cleaning the plastic parts, do not use solvents. Most plastics are sensitive to solvents and can be damaged by their use.

Use a clean cloth to remove dirt such as dust, oil, lubricants etc.

Only use original spare parts for maintenance.

The use of other parts can cause danger or damage the product.

WARNING

Never bring plastic parts into contact with liquids such as petrol-based products, oil, brake fluid, fuels and diluents. These can attack plastic materials or destroy them.

MAINTENANCE AND CARE

CUTTER CARE

WARNING

Battery-powered devices do not have to be plugged in, as result they are always in a powered state, however. In order to prevent serious injuries, the battery has to be removed before any maintenance or before changing the cutter.

WARNING

Remove the battery before all cleaning, maintenance, setting and repair work.

CUTTER MAINTENANCE

• Lubricate the cutter after each use.
• Inspect the cutter regularly for damage.
  Only use original spare parts.

LUBRICATE THE CUTTER

See figure 7

• Remove the battery.

Lubricate the cutter after each use, this helps it to last longer. Place the device a flat base. Use special, environmentally friendly oil and apply a little oil at each point as shown.
You should occasionally lubricate the cutter, also more frequently if used for longer periods. To do this, remove the battery and carry out the procedure before replacing the battery.

LUBRICATE THE HEDGE TRIMMER

Your device is fitted with maintenance-free bearings, for this reason no maintenance is necessary here.

WARNING

Never try to modify, convert the device of fit third-party accessories or the wrong spare parts. These procedures can lead to injuries, damage and can void the guarantee.

WARNING

To prevent injuries and damage, regularly check your device for damage and that the screws are tight.

CLEANING YOUR DEVICE

WARNING

Remove the battery before all cleaning, maintenance, setting and repair work.

• Remove the battery.
  Clean your device with a damp cloth or a gentle cleaning agent such as soapy water.
• Never bring plastic parts into contact with liquids such as petrol-based products, oil, aromatised oils, brake fluid, fuels and diluents. These can attack plastic materials or destroy them.
  Moisture can lead to electric shocks. Carefully dry the device with a dry cloth before use.
  Use a small brush or a small vacuum cleaner with brush to remove dust from the small ventilation slots on the battery and on the motor housing.
• Keep the ventilation slots clean.

SAFEKEEPING

See figure 8

• Clean your tool thoroughly before storage.
  Store it in a well-ventilated, dry location out of the reach of children. Keep the device away from corrosive chemicals and salt.
  Always install the blade cover. See figure 8
  Store the battery at room temperature. Lower or higher temperatures may reduce the life. Store the battery dry and at a temperature below 27^
• Never store discharged batteries. You must let an excessively warm battery cool before charging.
  The battery's charge declines during storage. The higher the temperature, the faster the discharge. Recharge the batteries monthly is stored for a longer period. This increases the life and maintains performance.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSES	SOLUTION
Motor does not start when the switch and the microswitch are pressed.	Battery is not locked in.	To lock in the battery, ensure that the latches on the top of the battery are locked.
	Battery is not charged.	Charge battery according to the instructions supplied with your model.
Motor runs, but cutter does not move.	Hedge trimmer is faulty.	Do not use hedge trimmer and call the technical customer service.
Hedge trimmer smokes during use.	Hedge trimmer is faulty.	Do not use hedge trimmer and call the technical customer service.
Motor buzzes, but cutter does not move.	Dirt or something else is blocking the cutter.	Remove the battery and remove the blocking objects from the cutters.

DISPOSING

Do not dispose of electric devices with household waste. Dispse of these devices at recing centres. Contact the relevant authorities or your retailer for information about this. Separate collection of used products and packaging allows materials to be recycled. The reuse of materials helps to prevent pollution and reduces the need for raw materials. Dispos of batteries at the end of their use and consider the environment. The battery contains material that is dangerous to you and the environment. Therefore, it must be disposed of separately in a facility that accepts lithium-ion batteries.

SPARE PARTS LIST

• Blade cover - Order no. SAA12590
  Protective cover (handle protection) - Order no. SAA12592

PRODUCTGEGEVENS

Productbenaming	Heggenschaar
Type	SA560020
Motor	40 V DC
Leegloop toerental	3000 (±10%) min-1
Aantal knipbewegingen	3000 (±10%) min-1
Meslengte	63 cm
Mesafstand	27 mm
Gewicht zonder accu	2,70 kg
Accu	SAU16450/SAU16451
Lader	SAU15033/SAU16509
Gemeten geluidsdrukniveau	78,6 dB (A), k=3,0
Gegarandeerd geluidsdrukniveau	100 dB (A)
Trilling	<2,5 m/s², k=1,5 m/s²

ONDERDELEN

Zie afb. 1
1.Zwaard
2. Beschermende afdekking
3. Voorste handgreep
4.Microschakelaar
5.Drairegeling
6. Achterste handgreep
7. Schakelhendel
8. Schakelbeugel
9. Mesaftekking

VERKLARING VAN HET OP DE HEGGENSCHAAR AANGEBRACHTE TYPEPLAATJE

GLOBGRO AB, Globe Group Europe

GLOBGRO AB, Globe Group Europe

EU DECLARATION OF CONFORMITY

Manufacturer:

GLOBGRO AB, Globe Group Europe

Propellergatan 1,211 15 Malmö,Sweden 11421

Name and address of the person authorised to compile the technical file:

Name: Peter Soderstrom

Address: Propellergatan 1, 211 15 Malmö, Sweden 11421

Herewith we declare that the product

Category: 40V Cordless Hedge Trimmer

Model: SA560020

Serial number: See product rating label

Year of Construction: See product rating label

is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC)

• is in conformity with the provisions of the following other EC-Directives: EMC Directive (2014/30/EU), Noise Emission Directive (2000/14/EC) amended by 2005/88/EC

and furthermore, we declare that the following (parts/clauses of) European

harmonised standards have been used

EN 60745-1, EN 60745-2-15, EN ISO 3744, ISO 11094, EN 55014-1, EN 55014-2

Measured sound power level: 98.6 dB(A)

Guaranteed sound power level: 100.0 dB(A)

Conformity assessment method to Annex V / Directive 2000/14/EC

Place, date: Malmö, 01.01.2020

Signature:

Ralf Pankalla

Managing Director / President Europe

GLOBGRO AB, Globe Group Europe

as authorized representative of the manufacturer

DECLARATION DE CONFORMITE UE

GLOBGRO AB, Globe Group Europe

GLOBGRO AB, Globe Group Europe

GLOBGRO AB, Globe Group Europe

Propellergatan 1,211 15 Malmö,Zweden 11421

GLOBGRO AB, Globe Group Europe

GLOBGRO AB, Globe Group Europe

Propellergatan 1,211 15 Malmö,Suecia 11421

Gerente / President Europe

GLOBGRO AB, Globe Group Europe

GLOBGRO AB, Globe Group Europe
