PCAKS 3034 - Vacuum Cleaner ProfiCare - Free user manual and instructions

Product type	Rechargeable vacuum cleaner
Brand	ProfiCare
Model	PCAKS 3034
Net weight	Approx. 1 kg
Power supply	Li-ion battery 4 x 3.7 V, 2200 mAh; mains adapter 100-240 V, 50/60 Hz, output 18 V, 500 mA
Tank capacity	170 ml (for liquids)
Running time	20 minutes maximum
Charging time	4.5 hours
Suction types	Dry and wet
Accessories included	Short and long crevice tool, liquid nozzle, brush, wall mount, mains adapter
Filter	Permanent filter (washable)
Cleaning and maintenance	Rinse removable components with clean water (except motor housing); wipe housing with a damp cloth
Safety	Use by children aged 8 and above under supervision; do not vacuum hot ashes, sharp objects, or flammable liquids; do not use without filter
Storage	In a dry, well-ventilated place, out of reach of children
Warranty	See provided warranty terms
General information	Compliant with EU directives; Li-ion battery with no memory effect; low self-discharge

Frequently Asked Questions - PCAKS 3034 ProfiCare

What is the battery life of the PC-AKS 3034 vacuum cleaner?

The maximum operating time is 20 minutes in continuous use.

How long does it take to fully charge the vacuum cleaner?

Full charging time is 4.5 hours. A red light indicates charging, and it turns green when fully charged.

Can I vacuum liquids with the ProfiCare PCAKS 3034 vacuum cleaner?

Yes, it is designed to vacuum liquids up to 170 ml. Use the special liquid nozzle provided.

How do I clean the vacuum cleaner filter?

The permanent filter can be washed with clean water. Let it dry completely before reassembling. Never use the vacuum cleaner without a filter.

Can the vacuum cleaner be used while charging?

No, the appliance only works on battery power. It cannot be used while plugged into the mains. Unplug the adapter to use it.

What should I do if the vacuum cleaner doesn't turn on?

Check if the battery is charged. If it is empty, recharge it. If the problem persists, contact customer service.

Is the vacuum cleaner suitable for vacuuming ashes?

No, never vacuum hot ashes or sharp, pointed objects. This could damage the appliance or cause a fire.

How do I install the wall mount?

Drill two holes, insert wall plugs, then screw in the mount. Ensure there are no cables in the wall. The mount can serve as a charging station if you connect the adapter beforehand.

Can I wash all parts in the dishwasher?

No, no parts are dishwasher safe. Hand wash with soapy water and rinse with clean water.

What should I do if suction power decreases?

Check if the battery is low, the tank is full, or the filter is clogged. Clean the filter and empty the tank to restore power.

USER MANUAL PCAKS 3034 ProfiCare

Exterior view of a modern black handheld vacuum cleaner (no visible text or symbols)

Akku-Sauger PC-AKS 3034

Accugevoede kruimelzuiger • Aspirateur à batterie • Aspiradora con batería

Aspirapolvere a batterie • Battery vacuum cleaner • Odkurzacz akumulatorowy

Akkumulátoros porszívó • Беспроводный пылесос • مكنسة مزودة بYPATRADE

CE

DEUTSCH

Inhalt

Overview of the Components ...... Page 3

Instruction Manual......Page 30

Technical Data......Page 34

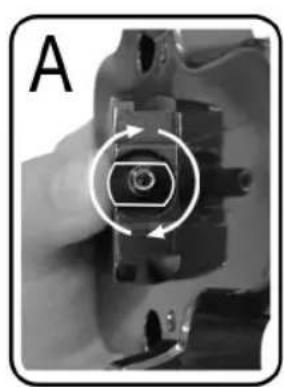

Close-up of a mechanical component with a circular arrow indicating rotation or adjustment (no text or symbols visible)

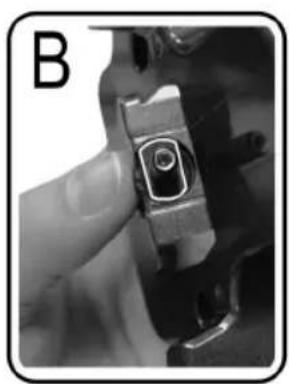

Close-up of a hand holding a small mechanical component, labeled 'B' in the corner (no visible text or symbols on the object itself)

Bedienungsanleitung

Batteries au lithium-ion rechargeables (Li-ion)

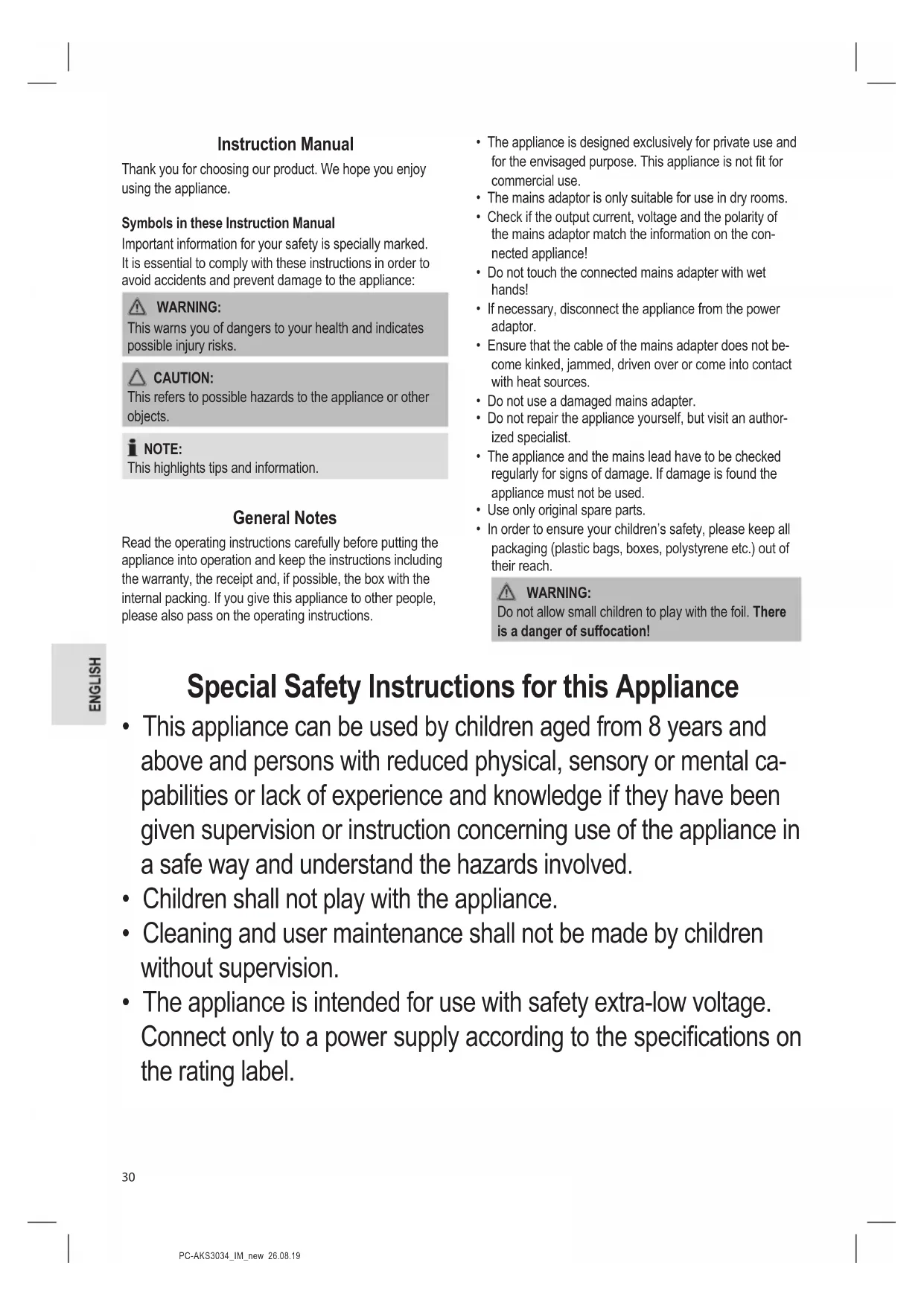

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The mains adaptor is only suitable for use in dry rooms.
• Check if the output current, voltage and the polarity of the mains adaptor match the information on the connected appliance!
• Do not touch the connected mains adapter with wet hands!
• If necessary, disconnect the appliance from the power adaptor.
• Ensure that the cable of the mains adapter does not become kinked, jammed, driven over or come into contact with heat sources.
• Do not use a damaged mains adapter.
• Do not repair the appliance yourself, but visit an authorized specialist.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

• The appliance is intended for use with safety extra-low voltage. Connect only to a power supply according to the specifications on the rating label.

• If the connection cable of this appliance has been damaged, it must be replaced with a special connection cable available from the manufacturer or its customer service.

• Do not use any mains adapter other than the one supplied.
• Do not vacuum combustibles or flammable liquids!
• Do not use this appliance to remove toner particles from a laser printer or copier to prevent fire or explosion.
• Do not suck up hot ashes or pointed or sharp objects!
• Never vacuum without the filter and filter cover installed.

Rechargeable Lithium-Ion Batteries (Li-Ion)

The appliance is equipped with rechargeable Li-ion batteries. This results in numerous advantages compared to other batteries and accumulators:

• A high cell voltage (more volts)
- No memory effect
- A low self-discharge

Safe Handling of Rechargeable Lithium-Ion Batteries

In general, Li-ion batteries are considered safe. Nevertheless, hazards may result from mechanical damage, electrical faults and thermal effects.

Mechanical damage may result in the leakage of gaseous or liquid substances that can be highly irritating, flammable or even toxic.

An electrical fault, such as a short circuit, may lead to overheating and cause a fire.

Even the heating of the outer shell of a Li-ion battery, e. g. due to sunlight or a heating element, may lead to fire or an explosion.

However, Li-ion batteries are safe when handled properly.

Only if used or stored improperly they may become dangerous. Therefore:

• Avoid temperatures above 40^ and below 0^ .
• Do not drop the appliance or the rechargeable battery.
• In case the Li-Ion battery has been dropped and is now damaged, stop using it.
• When storing or disposing of the appliance, mask the terminals to prevent short circuits.
• Dispose of old accumulators properly in collecting containers at the trader or at municipal collection points.

Extending the Life of the Rechargeable Li-Ion Battery

For Li-ion batteries, even more than with other accumulators, their life can be extended by treating them properly. The following simple rules for charging and storing help you keeping the capacity of the battery:

• Temperature: The ideal temperature for these batteries ranges from 10 - 25 °C. Temperatures above may lead to premature aging.
• Charging and discharging: During charging cycles, both full charge and deep discharge should be avoided. When the charging process of the battery is completed, you should disconnect the charger immediately. A charge up to 90 % is considered best.

Conversely, it is also preserving the battery more when it is not discharged to 0%. If the possibility arises, you should already recharge the battery when it is reaching a charge state of 30%.

- Storage: Always store batteries in a dry place and at moderate temperatures between 10 °C and 20 °C. Also consider the effect of self-discharge! When the accumulator is already empty, this effect may lead to a deep discharge resulting in damaging the battery. If you intend to store the battery for an extended period of time, you can counteract this effect. We then recommend charging the battery to approx. 40 % before storage. You should check the state of charge after not more than a month.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Check the delivery scope for completeness.
3. Check the appliance for any transport damage, in order to prevent hazards.

NOTE:

In case of any transport damage, contact your dealer immediately. Do not use a damaged appliance!

1. Remove the transport lock at the on / off switch.

Overview of the Components / Scope of Delivery

1 Dust container release button
2 Charging indicator lamp
3 On / off switch
4 Handle
5 Socket for mains adapter
6 2-part filter insert
7 Dirt collection container
8 Connector for accessories
9 Attachment for wet vacuuming
10 Crevice nozzle, short
11 Wall mount
12 Power adapter
13 Crevice nozzle, long

Not Shown

Brush attachment

Notes for Use

• The appliance is especially suitable for quickly vacuuming small amounts of dry dirt or dust.
• It is furthermore suitable for vacuuming a limited amount of wet dirt or liquids.
• Contaminated filters reduce the suction power of the vacuum cleaner, which is why we recommend regular cleaning of the dirt filters existing.
• The appliance is operated via charged battery. Charge the battery using the power adapter provided. Direct power supply via mains adapter is not possible.

On/Off Switch

I = Appliance on

O = Appliance off

Nozzle Attachments

The different nozzle attachments are easy to attach and to remove.

Assembly the Wall Holder

Inserting the Plug of the Power Supply Unit

If you want to use the wall holder also as the charging station, attach the plug of the power supply unit first. Refer to the illustrations (A and B) on page 3.

NOTE:

Turn the plug at the metal end, not at the cable. Use a pliers if necessary.

1. Set the plug of the power supply unit with the flattened side into the wall holder. (Fig. A)
2. Turn the plug of the power supply unit by 90°. It must sit solidly in the holder and sliding no longer shall be possible. (Fig. B)
3. Fix the cable in the cable guide.

Fastening the Wall Holder

WARNING:

Make sure beforehand whether there are cables in the wall which could be damaged!

CAUTION:

Place the wall holder so that the appliance is not exposed to direct sunlight or other heat sources.

NOTE:

A power outlet must be near.

1. Hold the wall mount against the wall with the drill holes at the bottom of the mount. Mark 2 drill holes.
2. Drill the holes and insert the wall plugs into the wall.
3. Insert the screws through the holes of the wall holder.
4. Tighten the screws with a screwdriver hand-tight.

Charging the Battery

CAUTION:

Do not charge the rechargeable battery unsupervised.

1. Turn off the appliance (switch position: O).
2. Connect the power supply unit with the connection socket (5). If you have prepared the wall holder as a charging station, suspend the appliance from the wall holder.
3. Connect the mains adapter to a certified wall socket. Charge the appliance for 4,5 hours before first-time use.

NOTE:

• The indicator lamp lights up red during charging.
• Once the battery is fully charged, the indicator lamp lights up green.

• It is normal for the appliance to heat up during charging.

• Stop all other charging process after a maximum of 4.5 hours or once the indicator light stays permanently on.

CAUTION:

Always remove the mains plug from the power outlet after charging is complete.

NOTE:

Even when switched off, the rechargeable battery discharges continuously. If the appliance is out of use for a longer period of time, charge the rechargeable battery at least once every 4 to 6 weeks.

Using the Appliance

• Disconnect the appliance from the mains adapter.
• Use the switch to switch the appliance on (I) or off (O).

Vacuuming Dry Dirt

NOTE:

We recommend using only a dry container and filter for vacuuming dry dirt.

- Attach one of the two crevice nozzles (10 / 13). On top of that, you can also attach the brush tool.

Vacuuming Wet Dirt or Liquids

NOTE:

Observe the MAX marking on the container. Maximum vacuuming capacity: 170 ml.

• Empty the collection container before vacuuming liquids or wet dirt.
• Fit the attachment for wet vacuuming (9) or one of the two crevice nozzles (10 / 13).

- In order to remove the nozzle, hold the end of the nozzle down to avoid accidental leakage of the liquid.

Emptying the Collection Container

1. Turn off the appliance (switch position: O).
2. Keep the appliance horizontal when opening the collection container.
3. Press the button (1) to unlock the collection container.
4. First pull the permanent filter from the collection container and then remove the filter cover.
5. Empty the components.
6. Reinstall the components into the collection container in reverse order.
7. Attaching the collection container to the housing: First position the collection container at the bottom of the housing. Then lock it at the button (1) on the top.

Cleaning

WARNING:

• Always disconnect the appliance from the mains adapter before cleaning!
• Under no circumstances should you immerse the motor housing in water in order to clean it. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• The single components are not dishwasher-safe.

Wipe the casing with a damp cloth.

Components 6 to 10 and 13

• These components can be rinsed off under running water. If need be, clean the components in warm soapy water using a soft brush.
• Allow the components to dry before you reassemble the appliance.

Storage

• Clean the appliance as described and allow it to dry.
  • We recommend that you keep the appliance in the original packaging if it will not be used for long periods.
  • Always store the appliance out of the reach of children in a dry, well ventilated place.

Troubleshooting

Problem Possible Cause Remedy
The appliance does not function.	The rechargeable battery is empty.
	The power supply unit is connected.
	The rechargeable battery is defect.
Weak suction power.	The battery is nearly discharged.
	The dust container is full.
	The filter is contaminated.
The rechargeable battery does not keep the charge.	The rechargeable battery has reached the end of its life.

Technical Data

Model: PC-AKS 3034

Net weight: .... approx. 1 kg

Mains Adapter

Protection class:....II

Input: AC 100-240 V, 50/60 Hz, 0.35 A MAX

Output: DC 18 V, 500 mA

Polarity:

Rechargeable battery: 4×3,7V, 2200mAh Li-Ion

Operating time:....20 minutes maximum

Charging time: 4.5 hours

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Accumulator/Battery Disposal

The unit contains a rechargeable battery. Used batteries / accumulators (rechargeable batteries) do not belong in household waste.

The battery must be removed before the product is recycled. Contact qualified personnel.

Information, where batteries / accumulators are to be disposed of can be obtained from your local or municipal authorities.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obsługi
