PCPHE 3092 - Callus removal ProfiCare - Free user manual and instructions

Product type	Electric callus remover (callus shaver)
Brand	ProfiCare
Model	PCPHE 3092
Net weight	Approx. 105 g
Power supply	2 AA batteries (1.5 V, type R6)
Rotation speed	Variable depending on pressure
Interchangeable heads	Yes – 2 heads: fine roller and coarse roller
Recommended use	Feet, palms of hands, elbows
Protection rating	IPX4 (splash-proof)
Head cleaning	Washable in warm water, brush included
Housing cleaning	Slightly damp cloth
Safety	Roller slows down under heavy pressure; switch with lock
Recommended age	From 8 years (with supervision)
Spare parts	Interchangeable rasp heads
Precautions	Do not use on cracked skin, wounds, moles
Standards	EC directives (electromagnetic compatibility, low voltage)

Frequently Asked Questions - PCPHE 3092 ProfiCare

How does the device work?

The rotating roller gently removes excess skin. It automatically slows down under heavy pressure to prevent injury.

On which parts of the body can it be used?

Only on feet, palms of hands or elbows. Do not use on other areas (risk of tangled hair).

Should the skin be prepared before use?

No, calluses are best removed on dry skin. Avoid water or cream before treatment.

When should the device not be used?

Never use on cracked skin, open wounds, birthmarks or moles. Consult a doctor for diabetes, hemophilia or immunodeficiency.

How to clean the device?

Remove the rasp head by pressing the release button. Wash the head in warm water with the brush. Wipe the housing with a damp cloth. Do not immerse the device in water.

How to change the polishing head?

Turn off the device, press the release button and remove the head. Click the new head into place.

What type of batteries to use?

Use 2 AA (R6) 1.5 V batteries. Observe polarity. Remove batteries if device not used for long.

How long before seeing results?

After about 7 to 10 days of regular use (1-2 times per week). Apply moisturizer after treatment.

Is the device suitable for children?

Yes, from 8 years under adult supervision. Children aged 3 and over can use it without supervision for foot care.

What to do in case of battery leakage?

Avoid contact with eyes or mucous membranes. In case of contact, rinse thoroughly with clean water and consult a doctor if irritation persists.

USER MANUAL PCPHE 3092 ProfiCare

Close-up of a white and pink handheld device with a circular button, no visible text or symbols on the device itself.

Illustration of hands performing a medical or therapeutic procedure on a curved object, with an arrow indicating direction (no text or symbols present)

Ein-/Ausschalter

Illustration of hands performing a medical procedure on a curved object, with an arrow indicating direction (no text or symbols present)

Aan-/uitschakelaar

Illustration of hands holding a small object with an arrow indicating direction (no text or symbols)

Illustration of hands performing a finger manipulation or massage technique (no text or symbols visible)

Illustration of hands performing a medical procedure on a curved object, with an arrow indicating direction (no text or symbols present)

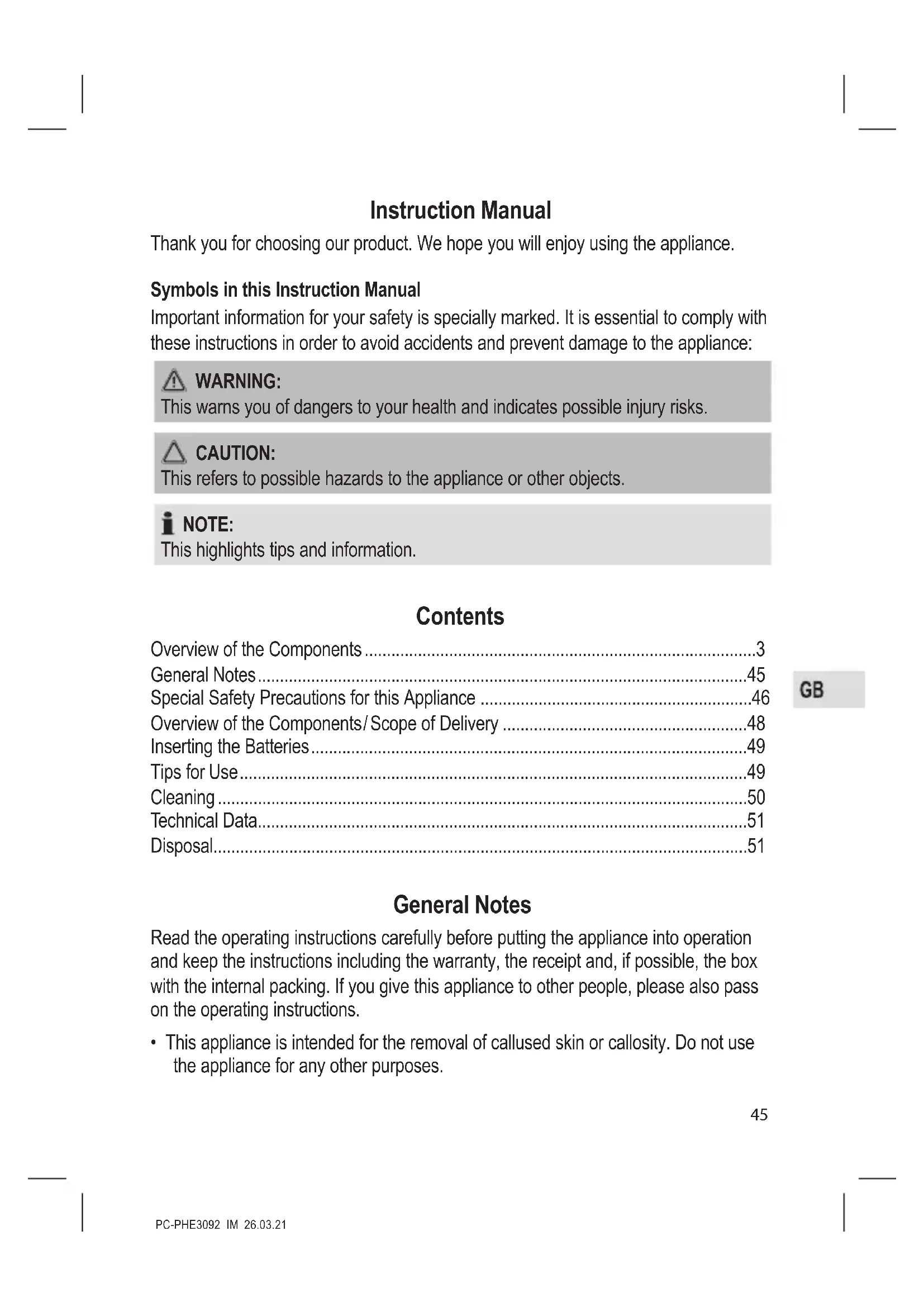

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

Contents

Overview of the Components....3

General Notes......45

Special Safety Precautions for this Appliance 46

Overview of the Components/Scope of Delivery 48

Inserting the Batteries....49

Tips for Use....49

Cleaning 50

Technical Data....51

Disposal....51

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

- This appliance is intended for the removal of callused skin or callosity. Do not use the appliance for any other purposes.

• The appliance is not intended for commercial use.
• Keep the appliance away from heat, direct sunlight and moisture.
• Turn the appliance off when not in use, for cleaning or in case of failure.
• Do not operate a damaged appliance.
• Do not repair the appliance by yourself. Always contact an authorized technician.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil. There is a danger of suffocation!

Special Safety Precautions for this Appliance

GB

WARNING: Risk of injury!

Only use this appliance on the feet, the palms of the hands or on the elbows! If used on other parts of the body, hair could get entangled by the roll and cause injuries.

CAUTION:

- When cleaning the appliance, you can remove the grinding head to rinse it off with water. But do not submerge the appliance in water!

• For hygienic reasons, do not share the polishing head with other persons.
• This appliance may be used by children, from the age of 8 and persons with reduced physical, sensory, or mental capabilities, or persons with inadequate experience and lack of knowledge if they are supervised or have been trained and understand the hazards involved concerning the safe use of the appliance.
• This appliance may be used by children aged 3 and over with supervision.
  • Children must not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

Handling of Batteries

Do not charge!

Danger of explosion!

Do not expose batteries to intense heat, such as sunlight, fire or similar!

Do not disassemble!

Insert correctly! Do not short circuit

• Batteries can leak battery acid. If the appliance is not in use for a long period of time, remove the batteries.
• In case of battery leakage, make sure not to rub the liquid into your eyes or mucous membranes. In case of contact, wash your hands and rinse your eyes with clear water. Seek medical attention if any discomfort persists.
• Different battery types or new and used batteries must not be used together.
• Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

Overview of the Components / Scope of Delivery

1 Protective cap
3 Button to unlock the grinding head
4 Lock
5 On / off switch
6 Battery compartment
7 Battery compartment cover
8 Cleaning brush

2 Grinding head with roller (1 × fine / 1 × coarse)

Inserting the Batteries

(Batteries not included)

1. Open the battery compartment inside the handle. Refer to illustrations A through E.
2. Insert 2 batteries of the type AA / R6. Ensure the correct polarity! Refer to the markings on the appliance.
3. Close the battery compartment again.

Tips for Use

How Does this Method of Callus Removal Work?

The special coating gently removes excess skin. The rotating roller gets to work quickly on the affected areas.

Since the roller slows down when the pressure on it is increased, you are protected against injury. You do not need experience in foot care.

NOTE: To make the treatment more effective

• Always apply the roller gently.
- You can treat individual areas again and again.
- Apply the roller to the affected areas from different directions.

When Should I not Use the Appliance?

• Never use the appliance on badly cracked skin or open wounds!
• Do not use on birthmarks or moles.
• If you suffer from illnesses such as diabetes, haemophilia or immune deficiency, first consult your doctor.
• Excessive use can cause skin irritations. In such a case, do not use the appliance until the reddening has disappeared.

Do I Have to Pre-treat My Feet?

No. The callus is best removed when dry.

Water or skin cream affects the application of the treatment. If necessary, quickly wash your feet and dry well.

i NOTE:

- If the callus is very tough to start with, a more even result will be achieved by repeated short applications. Therefore, gently use the appliance each day.

i NOTE:

• To prevent the skin from cracking, use a skin cream after treatment.
• After about 7 to 10 days you should achieve good results. Normally, 1 to 2 applications per week should suffice thereafter.

Replacing the Polishing Head

Delivery includes 2 grinding heads with assorted rollers.

• For badly keratinised areas, select the grinding head with the coarse roller.
• The grinding head with the fine roller is intended for normally keratinised areas.

WARNING:

Always turn the appliance off before removing the grinding head.

1. In order to clean or replace the polishing head, press button (3).
2. The polishing head can then be removed easily.
3. Applying slight pressure will help the cleaned or replaced polishing head to lock into place.

Illustration of hands holding a wrapped object with an arrow indicating direction (no text or symbols)

On/Off Switch

Use the lock (4) to prevent the appliance from being accidentally switched on.

1. Check the polishing head once again for secure installation before using it.
2. Press the lock to slide the switch to the I or 0 position.

Cleaning

CAUTION:

• Do not immerse the appliance in water. This could destroy the electronics.

• Do not use sharp or abrasive cleaning agents.

• Switch off the appliance before cleaning.

• You may wipe the housing of the appliance with a slightly damp cloth.

Roller

• Remove the polishing head as described above.
• The polishing head and the housing can be easily cleaned with a brush.
• You may also clean the polishing head with hot water.
• Use a disinfectant spray for hygienic cleaning.

Technical Data

Model: PC-PHE 3092

Net weight: ....approx. 105 g

Battery: 2 × 1.5V type AA/R6

Degree of protection against liquids: IPX4*

* This appliance complies with IPX4. This means that the appliance is protected against water splashes.

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations.

Disposal

Battery Disposal

As a consumer you are obliged by law to return old batteries / accumulators.

Your appliance contains batteries. If these batteries are spent, follow the instructions below:

CAUTION:

Batteries / rechargeable batteries must not be disposed of with household waste!

• The batteries must be removed from the appliance.
  • Take spent batteries to the appropriate collection point or to a dealer.
• Your town or local authority can provide information about public collection points.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
