Solo IndoorCam C24 - Surveillance Camera eufy - Free user manual and instructions

Product type	Indoor surveillance camera
Brand	eufy
Model	Solo IndoorCam C24 (T8400)
Video resolution	2K
Viewing angle	Not specified in the manual
Power supply	USB power adapter (5 V, 1 A) included
Connectivity	Wi-Fi (via eufy Security app)
Mobile app	eufy Security (iOS and Android)
Local storage	microSD card slot (not included)
Audio	Built-in microphone and speaker (two-way audio)
Night vision	Yes, infrared (minimum working distance 20 cm)
Detection	Motion and sound detection
Status LED	Blue (ready/working), red (disconnected/detection), blue-purple (initialization), blue/red blinking (update)
Mounting	On table, wall, or ceiling (mount and screws included)
SYNC button	Present for setup
Dimensions	Not specified in the manual
Weight	Not specified in the manual
Care and cleaning	Unplug before cleaning; use a soft, dry cloth
Safety	Compliant with CNR and NMB-003 Canadian standards; minimum 20 cm distance from body for RF
Spare parts and repairability	Not specified; contact eufy support in case of failure
General information	Manual available in multiple languages; free download at notice-facile.com

Frequently Asked Questions - Solo IndoorCam C24 eufy

How to set up the Solo IndoorCam C24?

Download the eufy Security app from the App Store or Google Play. Create an account, tap 'Add Device', then follow the on-screen instructions.

How to install the camera on the wall or ceiling?

Use the provided mounting bracket. Drill 6mm holes, insert wall anchors (for hard walls), attach the plate with screws, then snap the camera into place by sliding it down until it clicks.

What does the steady red LED light mean?

A steady red light indicates that the camera is working properly and someone is viewing the live stream or recording an event.

Does the camera support night vision?

Yes, it has infrared night vision. Maintain a distance of at least 20 cm from walls to avoid reflections that could degrade quality.

How to reset the camera?

Press and hold the SYNC button on the back of the camera until the light flashes blue and red alternately.

Can I use an SD card for storage?

Yes, insert a microSD card into the designated slot. The card is not included.

How to adjust the viewing angle?

Manually rotate the camera while viewing the live stream in the eufy Security app.

Is two-way audio available?

Yes, the camera has a built-in microphone and speaker for real-time audio communication via the app.

What to do if the camera is disconnected from the Internet?

Check your Wi-Fi connection and router. If the light flashes red slowly, the camera is disconnected. See the help in the eufy Security app.

How to clean the camera?

Unplug the camera before cleaning. Use a soft, dry cloth to wipe the lens and housing. Do not use chemicals.

USER MANUAL Solo IndoorCam C24 eufy

Anker Innovations Limited. All rights reserved, eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

51005002219 V01

Line drawing of a digital camera with a square head and stand (no text or symbols)

English

Deutsch

Español

Français

Italiano

Nederlands

日本語

لعرّية

Table of Contents

What's Included 02

Product Overview 03

Setting up the System 04

Mounting the Indoor Cam 05

Powering on the Indoor Cam 09

Notice

10

WHAT'S INCLUDED

Indoor Cam 2K × 1

Model: T8400

Mounting Plate × 1

USB Cable × |

USB Adapter × I

Mounting Screw Pack × 1

QSG × I

02 English English

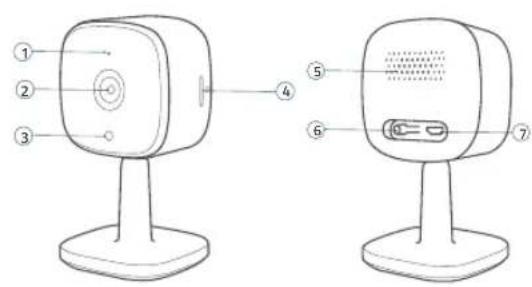

PRODUCT OVERVIEW

Indoor Cam 2K

① Microphone
② Lens
③ Status LED
④ SD card slot

⑤ Speaker
⑥ SYNC button
⑦ Power input

03

SETTING UP THE SYSTEM

I. Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

1. Sign up a eufy Security account. Go to the app homepage. Tap Add Device, and add the Indoor Cam to your system.
2. Follow the on-screen instructions to complete the setup.

LED Status

LED Status Description
Breathing blue Ready for setup
Solid blue Powered on and working properly
Blinking red slowly Disconnected from the internet
Blinking red once Motion or sound detected
Solid red Working properly with someone viewingthe live stream or recording event
Solid bluish violet System is initializing
Flashing blue and redalternately	Firmware upgrade in progress

MOUNTING THE INDOOR CAM

Select a Location for Mounting

The camera can be placed on a table, shelf, or can be mounted on a wall or ceiling. Select a location and height where you can get the desired view, and can reach a power outlet easily.

3D rendering of a small electronic device with two labeled dimensions (>20CM), shown in a corner panel (no text or symbols on the device itself)

• Disconnect the Indoor Cam from the power outlet before mounting.
• Keep the Indoor Cam at least 0.7 ft / 20 cm away from walls or anything that may obstruct the view. Do this to avoid infrared reflection which can have a negative impact on the night vision performance.

Mount the Indoor Cam

The Indoor Cam can be mounted on the wall or ceiling.

To mount the Indoor Cam on the wall:

1. Align the positioning card and then mark the points at which drilling will be required.

1. Drill holes with a 15/64" (6 mm) drill bit.

Line drawing of a hand holding a tool with a small circular object nearby (no text or symbols)

1. Align the holes on the mounting plate with those on the wall, matching the direction as UP and Down indicates. Insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco. Fix the screws with a Phillips-head screwdriver to fasten the mounting plate onto the wall.

1. Align the Indoor Cam's mounting slot with the mounting plate, and then push the camera down until it clicks into place.

08 English English

To mount the Indoor Cam on the ceiling, follow the steps 1-4 to secure the camera base onto the mounting plate.

POWERING ON THE INDOOR CAM

Connect the Indoor Cam to the power outlet using the provided USB cable and USB adapter. After powered on, the Indoor Cam will be connected to the system. When it is successfully connected, the status LED will turn solid blue.

Rotate the Indoor Cam to adjust the view by checking the live streams in the eufy Security app. You are all set to use the Indoor Cam.

For troubleshooting, check Help on the eufy Security app. Refer to the app page for LED indicator status.

NOTICE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/ TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm. Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

10 English English

The following importer is the responsible party

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541

Telephone: [phone]

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site: https://www.eufylife.com/.

This product can be used across EU member states.

The adapter shall be installed near the equipment and shall be easily accessible.

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for T8400 and accessories is 0°C-40°C.

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ C– 25^ C.

Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the device and the guarantee article.

This charger is for indoor use only.

The charger type is TEKA006-0501000EU, output voltage/current is 5Vdc/1A. The plug considered as disconnect device of adapter.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintains a 20cm distance between the device and human body.

Wi-Fi Operating Frequency Range:2412\~2472MHz; Wi-Fi Max Output Power: 17.20dBm (EIRP)

Bluetooth Operating Frequency Range: 2402\~2480MHz; Bluetooth Max Output Power: -4.01dBm (EIRP)

The following importer is the responsible party (contact for EU matters only) Importer: Anker Technology (UK) Ltd

Importer Address: Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

12 English English

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device."

This Class B digital apparatus complies with Canadian ICES-003.

When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.

3D rendering of a small electronic device with two measurement annotations (20CM) on its side, set against a plain background (no text or symbols on the device itself)

Illustration of a handheld electric drill with a headlamp and screw holes (no text or symbols)

Deutsch

3D rendering of a camera with two measurement annotations showing >20CM (no text or symbols on the device itself)

Español

Line drawing of a handheld electric drill with a ball on top, no text or symbols present

Diagram of a wall-mounted sensor or sensor assembly with two sensors and a central component (no text or symbols)

Español

3D rendering of a small electronic device with two 20cm height labels on its side (no text or symbols on the device itself)

Line drawing of a hand holding a power tool with a small inset showing a dot (no text or symbols)

Français 3938

3D rendering of a small electronic device with two measurement annotations (>20CM) on its side, set against a plain background (no text or symbols on the device itself)

Italiano 4746

Illustration of a hand holding a tool with a wall marker and two circular holes (no text or symbols)

① Microfoon
② Lens
③ Status-led
④ SD-kaartsleuf

Nederlands

⑤ Luidspreker

⑥ SYNC-knop

⑦ Voedingsingang

3D rendering of a small electronic device with two measurement annotations (20CM) on its side, set against a plain background (no text or symbols on the device itself)

Diagram of a handheld electric drill with a labeled 'Wall' (no other text or symbols)

Nederlands

3D rendering of a small electronic device with two 20cm measurement labels on its side (no text or symbols on the device itself)

Diagram of a handheld electric tool with a wall marker and circular base (no text or symbols)

日本語 6766

⑤ مکبر صوت

⑥ زر المزامنة

⑦ إدخال الطاقة

① ميكروfoon

② العدسة

③ للحالة LED

SD ④ فتحة بطاقة

ية لغربيه

إعداد nerظام

3D rendering of a smart speaker with two measurement annotations (>20CM) on a plain background (no text or symbols on the device itself)

Line drawing of a handheld electric drill with a head and trigger, no text or symbols present

ية لغربيه

12-month Limited Warranty

United States [phone] Mon-Fri 9AM-5PM (PT)

United Kingdom [phone] Mon-Fri 6AM-11AM (GMT)

Germany [phone] Mon-Fri 6:00-11:00

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan

Road,Mongkok,Kowloon,Hong Kong
