Product type	Built-in electric oven
Brand	AEG
Model	BPB335060M
Net volume	71 L
Energy efficiency class	A+
Energy efficiency index	81.2
Conventional energy consumption	1.09 kWh/cycle
Fan-forced energy consumption	0.69 kWh/cycle
Number of cavities	1
Heat source	Electricity
Front dimensions (H x W x D)	594 x 595 x 567 mm
Rear dimensions (H x W x D)	576 x 559 x 567 mm
Minimum built-in dimensions (H x W x D)	578 x 560 x 546 mm
Depth with open door	1027 mm
Net weight	32.5 kg
Cooking modes	Fan-forced, Top/Bottom Heat, Frozen Food, Pizza Function, Bottom Heat, Defrost, Moist Air Circulation, Grill, Turbo Grill
Assisted cooking	Yes (45 recipes with automatic weight)
Pyrolytic cleaning	Yes (3 levels: light 1h, normal 1h30, complete 3h)
Clock functions	Timer, Cooking time, Delayed start, Counter
Control type	Retractable knobs and touch panel
Removable door	Yes, with removable glass panels for cleaning
Interior lighting	Lamp energy efficiency class G, replaceable

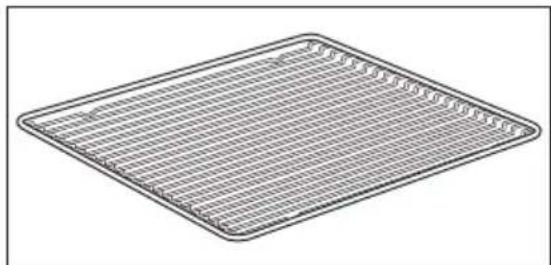

Included accessories	Metal grid, Multi-purpose pan
Safety	Automatic shut-off, Key lock, Door lock during pyrolysis

Frequently Asked Questions - BPB335060M AEG

How to set the current time of the oven?

Access the Settings menu by turning the cooking modes knob to the Menu position. Select Settings then Current time. Use the knob to set the time and press OK to confirm.

How to use the Assisted cooking function?

Turn the modes knob to the Menu position, select Assisted cooking then confirm with OK. Choose the dish from the list, place the food in the oven and confirm. The oven automatically sets the function and temperature. Some dishes allow setting the weight for an adapted cooking time.

How to start pyrolytic cleaning?

Ensure the oven is cold and empty (remove accessories and shelf supports). Access the Cleaning menu via the modes knob. Select the level: C1 (1h, light), C2 (1h30, normal) or C3 (3h, complete). Press OK to start. The door locks automatically during the cycle. Once finished, wait for cooling and wipe the cavity.

What to do if the oven does not heat up?

Check the following: is the oven properly plugged in? Is the automatic shut-off disabled? Is the door properly closed? Has the fuse blown? Is the lock (key lock) disabled? If the problem persists, contact authorized after-sales service.

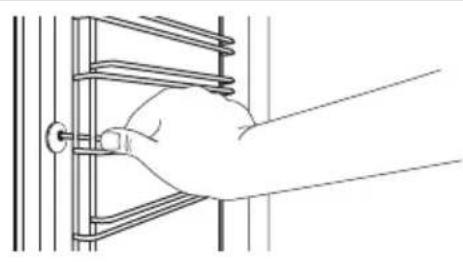

How to remove the shelf supports for cleaning?

Turn off the oven and wait for it to cool. Grasp the front of the shelf support and pull it away from the side wall, then do the same with the back to completely release it. To reinstall, proceed in reverse order.

How to disassemble the oven door?

Open the door fully. Lift and press the locking levers (A) on both hinges. Close the door to the first position (about 70°). Hold it with both hands, lift it and remove it. For the glass panels, remove the door trim (B) by pushing inward, then take out the glass panels. Caution, the door is heavy.

How to replace the oven light bulb?

Turn off the oven and unplug it. Place a cloth at the bottom of the cavity. Turn the glass diffuser to remove it. Replace the bulb with a new one resistant to 300°C (energy efficiency class G). Put the diffuser back.

What does error code Err F102 mean?

The code Err F102 indicates a door lock problem. Check that the door is properly closed and that the door lock is not broken. If the problem persists, contact after-sales service.

How to save energy during cooking?

Use the Moist Air Circulation function which reduces consumption. Do not preheat unnecessarily, open the door as little as possible, use metal dishes, and take advantage of residual heat by turning off the oven a few minutes before the end. Turn off the lighting during cooking.

What accessories are supplied with the oven?

The oven is supplied with a metal grid for cooking dishes and roasts, and a multi-purpose pan for cakes, biscuits or to collect fat.

USER MANUAL BPB335060M AEG

Simple line drawing of a kitchen oven (no text or symbols)

TIL PERFEKTE RESULTATER

Available on the App Store

GETTON Google Play

KUNDEPLEJE OG SERVICE

Brug altid originale reservedele.

Sørg for at have følgende data klar, når du kontakter vores autoriserede servicecenter: Model, PNC, serienummer.

2.1 Installation....5

2.2 El-forbindelse....6

2.3 Brug....7

Line drawing of a rectangular plate with grid pattern (no text or symbols)

Simple line drawing of a rectangular tray with internal diagonals (no text or symbols)

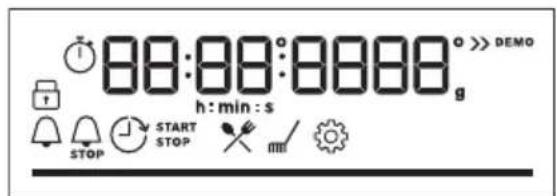

4. SÅDAN TÆNDER OG SLUKKER DU FOR APPARATET

12:40 120° _

88:00:00:0000g h:min:s STOP START STOP DEMO

11.2 Fjernelse: Ovnribber

1. BESCHRIJVING VAN HET PRODUCT.....43

1. PROBLEEMOPLOSSING....64

Line drawing of a rectangular plate with grid pattern, no text or symbols present

Line drawing of a square tray with internal diagonals (no text or symbols)

4. APPARAAT IN- EN UITSCHAKELEN

Line drawing of a hand holding a metal rack with a circular valve (no text or symbols)

1 2

12. PROBLEEMOPLOSSING

WAARSCHUWING!

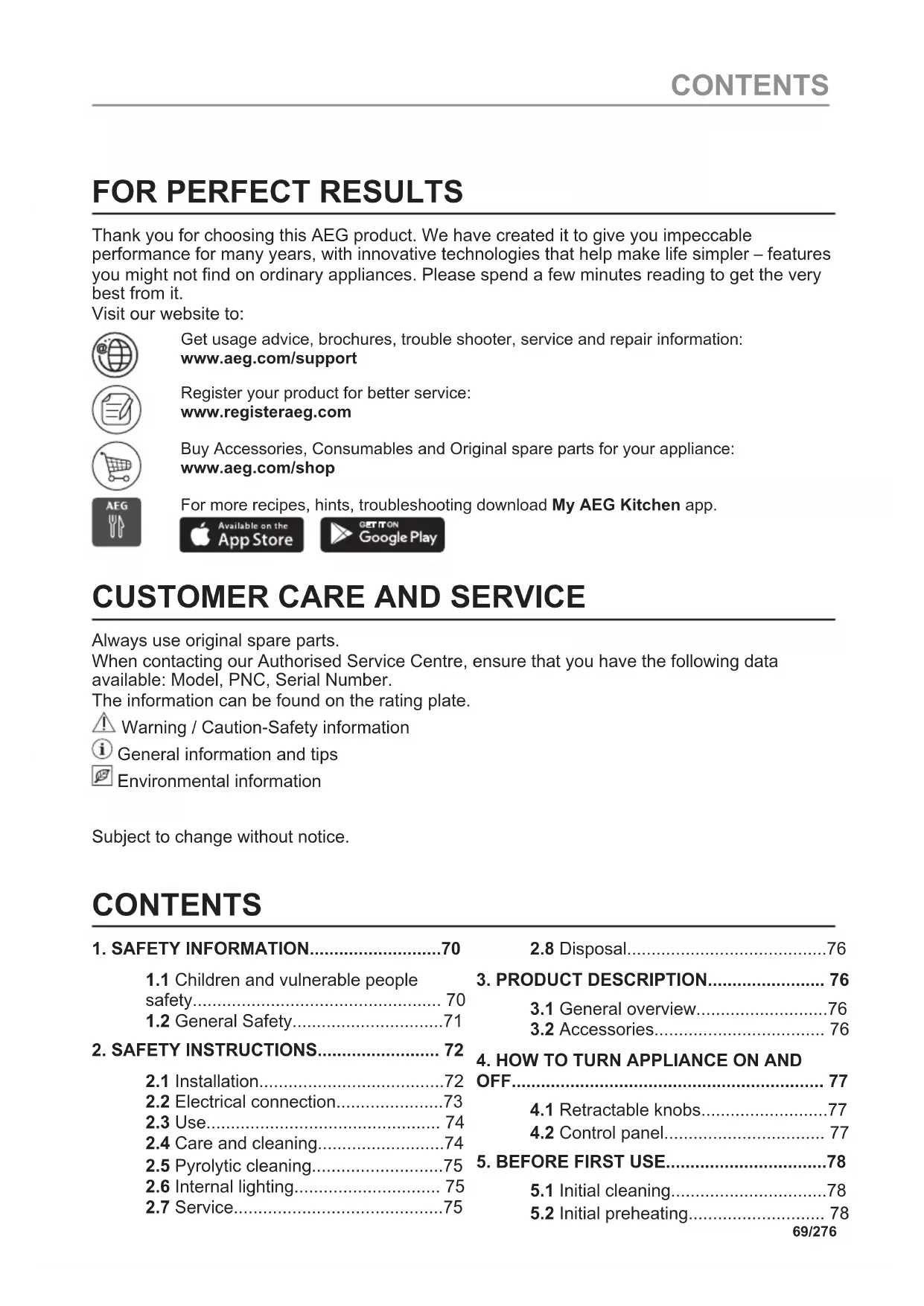

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

For more recipes, hints, troubleshooting download My AEG Kitchen app.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......70

1.1 Children and vulnerable people safety....70

1.2 General Safety....71

2. SAFETY INSTRUCTIONS.... 72

2.1 Installation....72

2.2 Electrical connection....73

2.3 Use....74

2.4 Care and cleaning....74

2.5 Pyrolytic cleaning....75

2.6 Internal lighting.... 75

2.7 Service....75

2.8 Disposal....76

3. PRODUCT DESCRIPTION.... 76

3.1 General overview....76

3.2 Accessories.... 76

4. HOW TO TURN APPLIANCE ON AND OFF....77

4.1 Retractable knobs....77

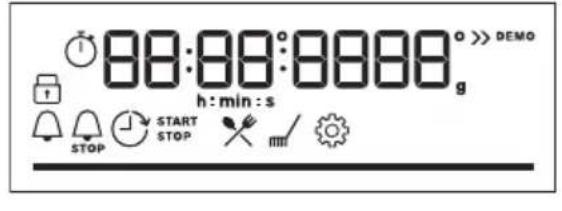

4.2 Control panel.... 77

5. BEFORE FIRST USE....78

5.1 Initial cleaning....78

5.2 Initial preheating.... 78

1. DAILY USE.... 78

6.1 How to set: Heating functions......79

6.2 Heating functions....79

6.3 Notes on: Moist Fan Baking......80

6.4 How to set: Assisted Cooking.....80

6.5 Assisted Cooking....81

1. CLOCK FUNCTIONS......86

7.1 Clock functions.... 86

7.2 How to set: Clock functions...... 86

1. HOW TO USE: ACCESSORIES......88

8.1 Inserting accessories......88

1. ADDITIONAL FUNCTIONS...... 89

9.1 Lock....89

9.2 Automatic switch-off.....89

9.3 Cooling fan....89

1. HINTS AND TIPS....89

10.1 Moist Fan Baking......89

10.2 Moist Fan Baking - recommended accessories....90

10.3 Cooking tables for test institutes..90

1. CARE AND CLEANING....92

11.1 Notes on cleaning....93

11.2 How to remove: Shelf supports ...93

11.3 How to use: Pyrolytic Cleaning.....94

11.4 Cleaning Reminder....95

11.5 How to remove and install: Door..95

11.6 How to replace: Lamp....96

1. TROUBLESHOOTING....96

12.1 What to do if....97

12.2 Service data....98

1. ENERGY EFFICIENCY....98

13.1 Product Information and Product Information Sheet*....98

13.2 Energy saving....99

1. MENU STRUCTURE......100

14.1 Menu....100

1. ENVIRONMENTAL CONCERNS......101

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- This appliance is for cooking purposes only.

- This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- Only a qualified person must install this appliance and replace the cable.

- Do not use the appliance before installing it in the built-in structure.

- Disconnect the appliance from the power supply before carrying out any maintenance.

- If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.

• Always use oven gloves to remove or insert accessories or ovenware.
- To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
- Do not use a steam cleaner to clean the appliance.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
- Before pyrolytic cleaning, remove all accessories and excessive deposits/spills from the appliance cavity.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the work-top minimum height)	578 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 594 mm
Height of the back of the appliance 576 mm
Width of the front of the appliance 595 mm
Width of the back of the appliance 559 mm
Depth of the appliance 567 mm
Built in depth of the appliance 546 mm
Depth with open door 1027 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
  – do not put ovenware or other objects in the appliance directly on the bottom.
  – do not put aluminium foil directly on the bottom of cavity of the appliance.
• do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.
• be careful when you remove or install the accessories.
• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

- Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the oven cavity:

– any excess food residues, oil or grease spills / deposits.
– any removable objects (including shelves, side rails etc., provided with the product) particularly any non-stick pots, pans, trays, utensils etc.

- Read carefully all the instructions for Pyrolytic cleaning.

- Keep children away from the appliance while the Pyrolytic cleaning operates.

The appliance becomes very hot and hot air is released from the front cooling vents.

- Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are strongly advised to:

– provide good ventilation during and after each Pyrolytic cleaning.
– provide good ventilation during and after the first use at maximum temperature operation.

- Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes emitted during the cleaning process of all Pyrolytic Ovens.

- Remove any pets (especially birds) from the vicinity of the appliance location during and after the Pyrolytic cleaning and first use maximum temperature operation to a well ventilated area.

• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.
• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for low level harmful fumes.
• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to humans, including children, or persons with medical conditions.

2.6 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. PRODUCT DESCRIPTION

3.1 General overview

31 2 5 6 7 8 9 1 2 3 4 5

Control panel
Knob for the heating functions
Display
Control knob
Heating element
Lamp
Fan
Shelf support, removable
Shelf positions

3.2 Accessories

Wire shelf

For cookware, cake tins, roasts.

Line drawing of a rectangular plate with grid pattern (no text or symbols)

Combi pan

For cakes and biscuits. To bake and roast or as a pan to collect fat.

Line drawing of a square tray with internal diagonal lines (no text or symbols)

4. HOW TO TURN APPLIANCE ON AND OFF

4.1 Retractable knobs

To use the appliance press the knob. The knob comes out.

4.2 Control panel

Control panel sensor fields Press Turn the knob
				OK
Timer	Fast Heat Up	Light Lock		Confirm setting
Select a heating function to turn on the oven.
Turn the knob for the heating functions to the off position to turn the oven off.

	When the knob for the heating functions is in the off position, the display goes to standby.
	When you cook, the display shows the set temperature, time of day and other available options.

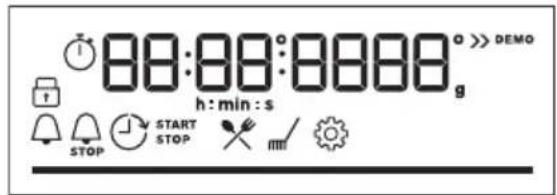

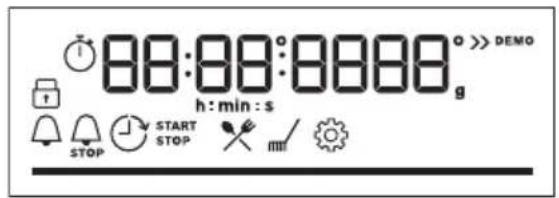

	Display with key functions.

Display indicators
[CBWK]Lock	[SW5H]Assisted Cook-ing	Cleaning	[200W]Settings	[ZZ04]Fast Heat Up
Timer indicators:

Progress bar - for temperature or time. The bar is fully red when the oven reaches the set temperature.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial cleaning

Before first use clean the empty oven and set the time:
			00:00Set the time. Press OK

5.2 Initial preheating

Preheat the empty oven before the first use.
Step 1 Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function: □Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function: ▼Let the oven operate for 15 min.
i The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 How to set: Heating functions

Start cooking
Step 1 Step 2
	°C
Select a heating function.	Set the temperature.PressOK.

6.2 Heating functions

Standard heating functions

Heating function Application
True Fan Cooking	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Conventional Cooking	To bake and roast food on one shelf position.
Frozen Foods	To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy.
Pizza Function	To bake pizza. To make intensive browning and a crispy bottom.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Heating function Application
Defrost	To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
Moist Fan Baking	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.
Grill	To grill thin pieces of food and to toast bread.
Turbo Grilling	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.
Menu	To enter the Menu: Assisted Cooking, Cleaning, Settings.

6.3 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

6.4 How to set: Assisted Cooking

Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature during cooking.

For some of the dishes you can also cook with: •

Weight Automatic

Assisted Cooking - use it to prepare a dish quickly with default settings:
Step 1 Step 2 Step 3 Step 4≡	×	P1 - P45	OK
Enter the menu. Select Assisted Cooking. Press OK		Select the dish. Press OK.	Insert the dish to the oven. Confirm setting.

6.5 Assisted Cooking

Legend
###	Weight Automatic available.
###	Preheat the oven before you start cooking.
###	Shelf level.

When the function ends check if the food is ready.

Dish	Weight Shelf level / Accessory Duration			time
Beef [BXXX]
P1 Roast Beef, rare		1 - 1,5 kg; 4 - 5 cm thick pieces	[KAT72] 2; baking trayFry the meat for a few minutes on a hot pan. Insert to the oven.	40 min
P2 Roast Beef, medium				50 min
P3 Roast Beef, well done				60 min
P4 Steak, medi-um		180 - 220 g per piece; 3 cm thick sli-ces	3; roasting dish on wire shelfFry the meat for a few minutes on a hot pan. Insert to the oven.	15 min
P5 Beef roast / braised (prime rib, top round, thick flank)		1,5 - 2 kg	☐ ☐; roasting dish on wire shelf Fry the meat for a few minutes on a hot pan. Add liquid. Insert to the oven.	120 min
P6 Roast Beef, rare (slow cooking)		1 - 1,5 kg; 4 - 5 cm thick pieces	☐ 2; baking tray Use your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	75 min
P7 Roast Beef, medium (slow cooking)				85 min
P8 Roast Beef, well done (slow cooking)				130 min
P9 Fillet, rare (slow cooking)		0,5 - 1,5 kg; 5 - 6 cm thick pieces	☐ 2; baking tray Use your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	75 min
P10 Fillet, medium (slow cooking)				90 min
P11 Fillet, done (slow cooking)				120 min
Veal ☑
P12 Veal roast (e.g. shoulder)		0,8 - 1,5 kg; 4 cm thick pieces	☐ ☐; roasting dish on wire shelf Use your favourite spices. Add liquid. Roast covered.	80 min
Pork ☑ ☑
P13 Pork roast neck or shoulder		1,5 - 2 kg	☐ ☐; roasting dish on wire shelf Turn the meat after half of the cooking time.	120 min
P14 Pulled pork (slow cooking)		1,5 - 2 kg	☐ 2; baking tray Use your favourite spices. Turn the meat after half of the cooking time to get an even browning.	215 min
P15	Loin, fresh 1 - 1,5 kg; 5-6 cm thick pieces		2; roasting dish on wire shelfUse your favourite spices.	55 min
P16	Spare Ribs 2 - 3 kg; use raw, 2 - 3cm thin spare ribs		3; deep panAdd liquid to cover the bottom of a dish.Turn the meat after half of the cooking time.	90 min
Lamb
P17	Lamb leg with bones	1,5 - 2 kg; 7-9 cm thick pieces	2; roasting dish on baking trayAdd liquid. Turn the meat after half of the cooking time.	130 min
Poultry
P18	Whole chick-en	1 - 1,5 kg;fresh	2; casserole dish on baking trayUse your favourite spices. Turn the chicken after half of the cooking time to get an even browning.	60 min
P19	Half chicken 0,5 - 0,8 kg		3; baking trayUse your favourite spices.	40 min
P20	Chicken breast	180 - 200 g per piece	2; casserole dish on wire shelfUse your favourite spices. Fry the meat for a few minutes on a hot pan.	25 min
P21	Chicken legs, fresh	-	3; baking trayIf you marinated chicken legs first, set lower temperature and cook them longer.	30 min
P22	Duck, whole 2 - 3 kg		2; roasting dish on wire shelfUse your favourite spices. Put the meat on roasting dish. Turn the duck after half of the cooking time.	100 min
Dish	Weight Shelf level	/ Accessory	Duration	time
P23	Goose, whole 4 - 5	kg		110 min
Other
P24	Meat loaf 1 kg		2; wire shelfUse your favourite spices.	60 min
Fish
P25	Whole fish, grilled	0,5 - 1 kg per fish		30 min
P26	Fish fillet -			20 min
Sweet baking / desserts
P27	Cheesecake -			90 min
P28	Apple cake -			45 min
P29	Apple tart -			40 min
P30	Apple pie -			60 min
P31	Brownies 2 kg			30 min
P32	Chocolate muffins	-		25 min
P33	Loaf cake -			50 min
Vegetable / Side dishes
Dish	Weight Shelf level / Accessory Duration			time
P34	Baked potatoes	1 kg	2; baking trayPut the whole potatoes with skin on baking tray.	50 min
P35	Wegdes 1 kg		3; baking tray lined with baking paperUse your favourite spices. Cut potatoes into pieces.	35 min
P36	Grilled mixed vegetables	1 - 1,5 kg	3; baking tray lined with baking paperUse your favourite spices. Cut the vegetables into pieces.	30 min
P37	Croquets, frozen	0,5 kg	3; baking tray	25 min
P38	Pommes, frozen	0,75 kg	3; baking tray	25 min
Gratins, bread and pizza
P39	Meat / vegetable lasagna with dry noodle plates	1 - 1,5 kg	2; casserole dish on wire shelf	45 min
P40	Potato gratin (raw potatoes)	1 - 1,5 kg	1; casserole dish on wire shelfRotate the dish after half of the cooking time.	50 min
P41	Pizza fresh, thin	-	2; baking tray lined with baking paper	15 min
P42	Pizza fresh, thick	-	2; baking tray lined with baking paper	25 min
P43	Quiche -		2; baking tin on wire shelf	45 min
P44 Baguette / Ciabatta / White bread	0,8 kg	3; baking tray lined with baking paperMore time needed for white bread.	30 min
P45 All grain / rye / dark bread all grain in loaf pan	1 kg	2; baking tray lined with baking paper / wire shelf	60 min

7. CLOCK FUNCTIONS

7.1 Clock functions

Clock Function Application
	Minute minder. When the timer ends, the signal sounds.
[2T25]	Cooking time. When the timer ends, the signal sounds and the heating function stops.
	Time Delay. To postpone the start and / or end of cooking.
[G3XA]	Uptimer. Maximum is 23 h 59 min. This function has no effect on the operation of the oven.To turn on and off the Uptimer select: Menu, Settings.

7.2 How to set: Clock functions

How to set: Time of day
Step 1 Step 2 Step 3
To change the time of day enter the menu and select Settings, Time of day.	Set the clock.	Press: OK

How to set: Minute minder
Step 1	The display shows:0:00	Step 2 Step 3
Press:		Set the Minute minder	Press: OK
i Timer starts counting down immediately.

How to set: Cooking time
Step 1 Step 2		The display shows:0:00STOP	Step 3 Step 4
Choose a heating function and set the temperature.	Press repeated-ly: [IMAGE]		Set the cooking time.	Press: OK
i Timer starts counting down immediately.

How to set: Time Delay
Step 1 Step 2		The display shows: the time of daySTART	Step 3 Step 4		The display shows:--:[DWX0]STOP	Step 5 Step 6
Select the heating function.	Press repeatedly: [IMAGE].		Set the start time.	Press:OK.		Set the end time.	Press:OK.
iTimer starts counting down at a set start time.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Wire shelf:Push the shelf between the guide bars of the shelf support.
Deep pan:Push the tray between the guide bars of the shelf support.
Wire shelf, Deep pan:Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

9. ADDITIONAL FUNCTIONS

9.1 Lock

This function prevents an accidental change of the appliance function.
Turn it on when the appliance works - the set cooking continues, the control panel is locked.Turn it on when the appliance is off - it cannot be turned on, the control panel is locked.
	- press and hold to turn on the function.A signal sounds.	- press and hold to turn it off.
3 x flashes when the lock is turned on.

9.2 Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings.

(°C) (h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5
250 - maximum 3

The Automatic switch-off does not work with the functions: Light, Time Delay.

9.3 Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

10. HINTS AND TIPS

10.1 Moist Fan Baking

For the best results follow suggestions listed in the table below.

Use the third shelf position.

	(°C) (min)
Pasta gratin 200 - 220 45 - 55
Potato gratin 180 - 200 70 - 85
Moussaka 170 - 190 70 - 95
Lasagne 180 - 200 75 - 90
Cannelloni 180 - 200 70 - 85
Bread pudding 190 - 200 55 - 70
Rice pudding 170 - 190 45 - 60
Apple cake, made of sponge cake mixture(round cake tin)	160 - 170 70 - 80
White bread 190 - 200 55 - 70

10.2 Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Pizza pan	Baking dish	Ramekins	Flan base tin
Dark, non-reflective28 cm diameter	Dark, non-reflective26 cm diameter	Ceramic8 cm diameter,5 cm height	Dark, non-reflective28 cm diameter

10.3 Cooking tables for test institutes

Information for test institutes

Tests according to: EN 60350, IEC 60350.

BAKING ON ONE LEVEL. Baking in tins
		(°C) (min)
Fatless sponge cake True	Fan Cooking 140 - 150	35 - 50 2
Fatless sponge cake Conventional Cooking	160 35 - 50 2
Apple pie, 2 tins ∅20 cm True Fan Cooking 160 60	- 90 2
Apple pie, 2 tins ∅20 cm Conventional Cooking	180 70 - 90 1

Short bread / Pastry strips Tru

Small cakes, 20 per tray, preheat the empty oven

True Fan Cooking 150 20 - 35

Small cakes, 20 per tray, preheat the empty oven

Conventional Cooking 170|20 - 30

MULTILEVEL BAKING. Biscuits
		(°C) (min)
Short bread / Pastry strips True Fan Cooking 140 25 - 45 1 / 4
Small cakes, 20 per tray, preheat the empty oven	True Fan Cooking 150 23	- 40 1 / 4
Fatless sponge cake True Fan Cooking 160 35 - 50 1 / 4

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

Clean the front of the appliance with a microfibre cloth with warm water and a mild detergent.

Use a cleaning solution to clean metal surfaces.

Clean stains with a mild detergent.

Everyday Use

Clean the cavity after each use. Fat accumulation or other residue may cause fire.

Do not store the food in the appliance for longer than 20 minutes. Dry the cavity with a microfibre cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Use a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dish-washer.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1 Turn off the oven and wait until it is cold.
Step 2 Pull the front of the shelf support away from the side wall.
Step 3 Pull the rear end of the shelf support away from the side wall and remove it.
Step 4 Install the shelf supports in the opposite sequence.

11.3 How to use: Pyrolytic Cleaning

Clean the oven with Pyrolytic Cleaning.

WARNING!

There is a risk of burns.

CAUTION!

If there are other appliances installed in the same cabinet, do not use them at the same time as this function. It can cause damage to the oven.

Before the Pyrolytic Cleaning:
Turn off the oven and wait until it is cold.	Remove all accessories and removable shelf supports.	Clean the oven floor and the inner door glass with warm water, a soft cloth and a mild detergent.

Pyrolytic Cleaning
Step 1	Enter menu: Cleaning
Option Duration
C1 - Light cleaning 1 h
C2 - Normal cleaning 1 h 30 min
C3 - Thorough cleaning 3 h
Step 2	OK- press to select the cleaning programme.
Step 3	OK- press to start the cleaning.
Step 4 After cleaning, turn	the knob for the heating functions to the off position.
During the cleaning the oven lamp is off.
When the oven is at the set temperature, the door locks. Until the door unlocks the display shows:

When the cleaning ends:
Turn off the oven and wait until it is cold.	Clean the cavity with a soft cloth.	Remove the residue from the bottom of the cavity.

11.4 Cleaning Reminder

The oven reminds you when to clean it with pyrolytic cleaning.
flashes in the display for 5 sec after each cooking session.	To turn off the reminder enter the Menu and select Settings, Cleaning Reminder.

11.5 How to remove and install: Door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!

The door is heavy.

CAUTION!

Carefully handle the glass, especially around the edges of the front panel. The glass can break.

Step 1 Fully open the door.
Step 2 Lift and press the clamping levers (A) on the two door hinges.
Step 3 Close the oven door to the first opening position (approximately 70° angle). Hold the door at both sides and pull it away from the oven at an upwards angle. Put the door with the outer side down on a soft cloth on a stable surface.
Step 4 Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.
Step 5 Pull the door trim to the front to remove it.
Step 6 Hold the door glass panels on their top edge one by one and pull them up out of the guide.
Step 7 Clean the glass panel with water and soap. Dry the glass panel carefully. Do not clean the glass panels in the dish-washer.
Step 8 After cleaning, do the above steps in the opposite sequence.
Step 9 Install the smaller panel first, then the larger and the door.

11.6 How to replace: Lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

Before you replace the lamp:
Step 1 Step 2 Step	3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Top lamp

Step 1 Turn the glass cover to remove it.
Step 2 Clean the glass cover.
Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4 Install the glass cover.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

The oven does not turn on or does not heat up
Problem Check if...
You cannot activate or operate the oven. The oven is correctly connected to an electrical supply.
The oven does not heat up. The automatic switch-off is deactivated.
The oven does not heat up. The oven door is closed.
The oven does not heat up. The fuse is not blown.
The oven does not heat up. The Lock is off.

Components

Problem Check if...
The lamp is turned off. Moist Fan Baking - is turned on.
The lamp does not work. The lamp is burnt out.

Error codes

The display shows... Check if...
Err C3 The oven door is closed or the door lock is not broken.
Err F102 The oven door is closed.
Err F102 The door lock is not broken.
00:00 There was a power cut. Set the time of day.

Error codes

If the display shows an error code that is not in this table turn the house fuse off and on to restart the oven. If the error code recurs contact an Authorised Service Centre.

12.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity. Do not remove the rating plate from the appliance cavity.

We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)

13. ENERGY EFFICIENCY

13.1 Product Information and Product Information Sheet\*

Supplier's name AEG
Model identification BPB335060M 944188763
Energy Efficiency Index 81.2
Energy efficiency class A+
Energy consumption with a standard load, conventional mode	1.09 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.69 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 71 l
Type of oven Built-In Oven
Mass 32.5 kg

* For European Union according to EU Regulations 65/2014 and 66/2014.

For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.

For Ukraine according to 568/32020.

Energy efficiency class is not applicable for Russia.

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

13.2 Energy saving

The appliance has features which help you save energy during everyday cooking.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the appliance before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

The fan and lamp continue to operate. When you turn off the appliance, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

14. MENU STRUCTURE

14.1 Menu

三 - select to enter the Menu.

Menu structure
Assisted Cooking ✗	Cleaning √	Settings ⚙️

Step 1 Step 2	Step 3 Step 4 Step 5
Select the Menu, Settings.	Confirm setting.	Select the setting.	Confirm setting.

Settings
O1 Time of day Change O2 Display brightness 1 - 5
O3 Key tones 1 - Beep	2 - Click3 - Sound off	O4 Buzzer volume 1 - 4
O5 Uptimer On / Off O6 Light On / Off
O7 Fast Heat Up On / Off O8 Cleaning Reminder		On / Off
O9 Demo mode Activation	code: 2468	O10 Software version Check
O11 Reset all settings Yes / No

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TÄYDELLISIÄ TULOKSIA

1. KELLOTOIMINNOT.... 120

1. LISÄTOIMINNOT.... 123

9.1 Lukko.... 123

1. △TURVALLISUUSTIEDOT

Line drawing of a rectangular plate with grid pattern (no text or symbols)

Combi-pannu

Simple line drawing of a square tray with internal lines and a diagonal seam (no text or symbols)

4. LAITTEEN KYTKEMINEN TOIMINTAAN JA POIS TOIMINNASTA

12:40 120° _

88:00:0000g h:min:s STOP START STOP DEMO

Line drawing of a hand holding a metal rack with a circular valve (no text or symbols)

1 2

2.1 Installation....139

Line drawing of a rectangular plate with horizontal grooves and a central slot (no text or symbols)

Line drawing of a square tray with internal grid lines (no text or symbols)

4. COMMENT ALLUMER ET ÉTEINDRE L'APPAREIL

12:40 120° _

88:88:8888 h:min:s STOP START STOP > DEMO

Line drawing of a hand holding a metal rack with a circular valve (no text or symbols)

1 2 3

Line drawing of a rectangular metal tray with grid pattern (no text or symbols)

Line drawing of a square tray with internal diagonals (no text or symbols)

4. SO WIRD DAS GERÄT EIN- UND AUSGESCHALTET.

12:40 120° _

88:00:0000 h : min : s STOP START STOP DEMO

Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Line drawing of a rectangular metal tray with grid pattern (no text or symbols)

Line drawing of a square tray with internal diagonals (no text or symbols)

4. CÓMO ENCENDER Y APAGAR EL APARATO

4.1 Mandos escamoteables

12:40 120° _

88:88:8888g h:min:s STOP START STOP PRO

Technical line drawing of a wooden ladder support structure with two magnified views showing internal details (no text or symbols)

2.1 Installation....246

2.2 Elanslutning.... 247

2.3 Använd....248

1. PRODUKTBESKRIVNING....250

Line drawing of a rectangular grating or filter plate with grid lines (no text or symbols)

Ugnspanna

Line drawing of a square tray with internal diagonals (no text or symbols)

4. SLÅ PÅ OCH STÄNGA AV UGNEN

4.1 Infällbara vred

12:40 120° _

88:00:0000g h:min:s STOP START STOP DEMO

Technical line drawing of a structural frame with an inset magnified detail (no text or symbols)

9. TILLVALSFUNKTIONER

9.1 Knapplås

Five circular icons representing shopping and e-commerce activities: cart, printer, gear, and shopping cart (no text or symbols)

CE
