Product Type	Cordless Electric Drain Cleaner
Brand	Milwaukee
Model	M18 Fuel Cable Drive 2772A21
Catalogue Number	2772-20
Voltage	18 V (M18 battery)
No-load Speed	0 - 600 rpm
Cable Feed Speed	0 - 203 mm/s (0 - 8 in/s)
Battery Type	M18™ (Lithium-ion)
Charger Type	M18™
Operating Temperature	-18 °C to 50 °C (0 °F to 125 °F)
Compatible Drain Diameters	32 mm to 75 mm (1 1/4 in to 3 in) depending on cable
Available Cable Lengths	7.6 m, 10.7 m or 15.2 m (25, 35 or 50 ft)
Weight (without battery)	Approximately 4.5 kg (estimate)
Warranty	5 years (tool); 2 years (cleaning cables)
Main Functions	Cable feed and retraction, forward/reverse rotation, variable speed, cable lock, LED lighting
Maintenance and Cleaning	Rinse cable with water after each use, dry and oil; clean tool with a damp cloth and mild soap
Safety	Wear leather gloves and safety glasses; lock the trigger before any adjustment; do not use in explosive atmospheres
Spare Parts and Repairability	Repair by Milwaukee authorized service center; cables and accessories available separately
General Information	Delivered with a cable (depending on version); battery and charger sold separately

Frequently Asked Questions - M18 Fuel Cable Drive 2772A21 MILWAUKEE

What type of battery to use with the M18 Fuel Cable Drive?

Use only Milwaukee M18™ batteries. The charger must also be of the M18™ type.

How to install the cable into the tool?

Remove the battery, set the front handle to the locked position, insert the cable into the nose until it clicks, then switch the handle to feed position and advance the cable.

Can I use cables from other brands?

No, use only cables and accessories recommended by Milwaukee to avoid any risk of damage or injury.

How to clean the cable after use?

Rinse the cable with clean water, dry it completely, then wipe it with an oiled cloth before storing.

What is the maximum distance between the tool and the drain opening?

Do not place the tool more than 304 mm (12 in) from the opening to avoid twisting or breaking the cable.

How to reverse the rotation direction?

Use the rotation switch on the tool: push right for forward rotation (clockwise), left for reverse (counterclockwise). The center position locks the trigger.

What to do if the cable gets stuck in the drain?

Immediately release the trigger, set the front handle to neutral and the switch to reverse, then manually retract the cable.

What gloves to wear?

Always wear leather gloves recommended by the manufacturer. Latex or loose gloves can wrap around the cable and cause injury.

How to store the tool?

Fully retract the cable, set the handle to neutral and lock the switch. Remove the battery and place the tool in its storage bucket, nose down.

Where to find spare parts?

Contact a Milwaukee authorized service center or visit www.milwaukeetool.com for the list of accessories and spare parts.

USER MANUAL M18 Fuel Cable Drive 2772A21 MILWAUKEE

Cat. No. / No de cat.

2772-20

M18™ FUEL™ DRAIN SNAKE WITH CABLE-DRIVETM LOCKING FEED SYSTEM

SONDE SPIRALE M18™ FUEL™ AVEC SYSTÉME DE VERROUILLAGE D'ALIMENTATION CABLE-DRIVE™

SONDA FLEXIBLE PARA DESAGUES M18™ FUEL™ CON SISTEMA DE ALIMENTACION CON BLOQUEO CABLE-DRIVE™

WARNING To reduce the risk of injury, user must read and understand operator's manual.

AWARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (cored) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose

ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the system.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rale for which it was designed.
• Do not use the power tool If the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are preferred.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
  Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265^ (130^) may cause explosion

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES FOR DRAIN SNAKE

-Only grasp the rotating cable with gloves recommended by the manufacturer. Latex or loose fitting gloves or rags can become wrapped around the cable and may result in serious personal injury.
- Do not allow the cutter to stop turning while the cable is turning. This can overstress the cable and may cause twisting, kinking or breaking of the cable and may result in serious personal injury.
- Use latex or rubber gloves inside the gloves recommended by the manufacturer, goggles, face shields, protective clothing, and respirator when chemicals, bacteria or other toxic or infectious substances are suspected to be in a drain line. Drains may contain chemicals, bacteria and other substances that may cause burns, be toxic or infectious or may result in other serious personal injury.
- Practice good hygiene. Do not eat or smoke while handling or operating the tool. After handling or operating drain cleaning equipment, use hot, soapy water to wash hands and other body parts exposed to drain contents. This will help reduce the risk of health hazards due to exposure to toxic or infectious material.
- Only use the drain cleaner for the recommended drain sizes. Using the wrong size drain cleaner can lead to twisting, kinking or breaking of the cable and may result in personal injury.
-Inspect cable for wear and damage before use. Replace a worn or damaged cable before using the drain cleaner.
- Do not twist, klnk or over bend cables. Breaking of the cable may result in serious personal injury.

Inspect the drain to be cleaned before use. If possible, determine the access point(s) to the drain, the size(s) and length(s) of the drain, distance to mainlines, the nature of the blockage, presence of drain cleaning chemicals or other chemicals, etc. If chemicals are present in the drain, it is important to understand the specific safety measures required to work around those chemicals. Contact the chemical manufacturer for required information.

*If needed, place protective covers in the work area. The drain cleaning process can be messy.

• Make sure cable is fully retracted inside of the drain cleaner. This will prevent whipping at start up.

• Place the drain cleaner at a distance no greater than six inches from drain opening. If the drain cleaner cannot be placed within six inches from

the drain opening, the drain opening will need to be extended using a similar size pipe and fittings. Greater distances can cause control problems leading to twisting, kinking, breaking or whipping of the cable. One person must control both the trigger switch and cable. If the tool stops rotating, the user must be able to turn the tool off to prevent twisting, kinking, breaking or whipping of the cable.

• Do not operate the drain cleaner in reverse rotation except as described in this manual. Running the tool in reverse, while in a blog or with cable bound, can cause damage to the cable and accessories.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SPECIFICATIONS

Cat. No. 2772-20 Volts 18 DC Cable Spin No Load RPM 0-600 Cable Feed Speed Inches/Second 0-8 Battery Type M18TM Charger Type M18TM

Recommended Ambient Operating Temperature . 0^ to 125^

The added letter in the catalog number signifies the cable(s) included.

SYMBOLOGY

Volts

Direct Current

Only wear leather gloves

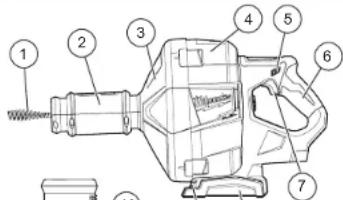

FUNCTIONAL DESCRIPTION

1. Cable

2. Front handle/Twist lock 3. Rubber drum shield

3. Drum cover 5.Forward/reverse switch

4. Handle

5. Trigger switch 8. Flat tool base

6. LED

7. Cable feed icon

8. Cable lock icon

ASSEMBLY

AWARNING Recharge only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery.

Removing/Inserting the Battery

To remove the battery, push in the release buttons and pull the battery pack away from the tool.

AWARNING Always remove battery pack before changing or removing accessories.

To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place.

WARNING Only use accessories specifically recommended for this tool. Others may be hazardous.

Always store tool in its bucket to avoid damage to the cable.

Selecting the Proper Cable

Cat. No.	Description	Pipe Diameter
48-53-2573	1/4" x 25" Inner Core Bulb Head Cable	1-1/4" to 2"
48-53-2574	1/4" x 25" Inner Core Drop Head Cable	1-1/4" to 2"
48-53-2563	1/4" x 25" Inner Core Rust Resistant Bulb Head Cable	1-1/4" to 2"
48-53-2564	1/4" x 25" Inner Core Rust Resistant Drop Head Cable	1-1/4" to 2"
48-53-2571	1/4" x 35" Inner Core Rust Resistant Bulb Head Cable	1-1/4" to 2"
48-53-2672	1/4" x 50" Inner Core Rust Resistant Bulb Head Cable	1-1/4" to 2"
48-53-2571	5/16" x 25" Inner Core Bulb Head Cable	1-1/4" to 2-1/2"
48-53-2572	5/16" x 25" Inner Core Drop Head Cable	1-1/4" to 2-1/2"
48-53-2561	5/16" x 25" Inner Core Rust Resistant Bulb Head Cable	1-1/4" to 2-1/2"

48-53-2562	5'16" x 25 Inner Core Rust Resistant Drop Head Cable	1-14" to 2-12"
48-53-2673	5'16" x 35 Inner Core Rust Resistant Bulb Head Cable	1-14" to 2-12"
48-53-2674	5'16" x 50 Inner Core Rust Resistant Bulb Head Cable	1-14" to 2-12"
48-53-2676	3'8" x 25' Inner Core Rust Resistant Coupling Cable	2" to 3"
48-53-2675	3'8" x 35' Inner Core Rust Resistant Coupling Cable	2" to 3"

Cable Attachments for Use with Milwaukee 3 / 8" Coupling Cables

Cat. No.	Description	Pipe Diameter
48-53-2681	Small Bub Head	2" to 3"
48-53-2682	Small Droo Head	2" to 3"
48-53-2683	1" Spade Bit	2" to 3"
48-53-2684	1" C-Cutter	2" to 3"
48-53-2685	5 pc. Small Drain Line Kit	2" to 3"

CAUTION To prevent damage to the cable, do not use in larger diameter pipes.

Cable Installation

WARNING To reduce the risk of injury, wear safety goggles or glasses with side shields. Always wear leather gloves. The cable is under pressure and can uncoil unexpectedly. Cable tip may be sharp.

Remove the cable for cleaning after each use. Different size and types of cables are available for different applications.

To remove the cable:

1. Remove the battery pack and set the front handle to the feed position 12 according to the instructions in "Controlling the Cable".

2. Pull the cable out through the front handle until the end of cable indicator is reached

NOTE: Cable will appear stuck once the end of cable indicator is reached.

1. Set the front handle to the neutral position and pull out the remaining cable.

To install the cable:

1. Remove the battery pack and set the front handle to the locked position [ ] according to the Instructions in "Controlling the Cable".
2. Insert the cable through the nose of the tool until the cable catches.
3. Set the front handle to the feed position 12 and continue feeding the cable through the front handle.
4. Remove the protective tip cover from new cables before use.

Cable Attachment Installation

To install the attachment:
Snap the attachment coupler into the cable coupler Test the cable before inserting into the drain to make sure the attachment does not fall off during use.
To remove the attachment:
Insert the pin key into the coupling hole and pull attachment off of cable.

OPERATION

AWARNING Always remove battery pack before changing or removing accessories. Only use accessories specifically recommended for this tool. Others may be hazardous.

To reduce the risk of injury, wear safety goggles or glasses with side shields. Always wear leather gloves.

Using Forward/Reverse Switch

1.For forward (clockwise) rotation, push in the forward/ reverse switch from the right side of the tool Check the direction of rotation before use.
2.For reverse (counterclockwise) rotation, push in the forward/reverse switch from the left side of the tool Check direction of rotation before use.
3. To lock the trigger, push the forward/reverse switch to the center position. The trigger will not work while the forward/reverse switch is in the center locked position. Always lock the trigger or remove the battery pack before performing maintenance, changing accessories, storing the tool and any time the tool is not in use.

Starting, Stopping and Controlling Speed This tool may be used at any speed from 0 RPM to full speed.

1. To start the tool, pull the trigger. The trigger controls the cable spin feed and cable feed speed.
2. To vary the driving speed, increase or decrease pressure on the trigger. The further the trigger is pulled, the greater the speed.
3. To stop the tool, release the trigger.

Controlling the Cable

1. To feed the cable, set the forward/reverse switch to the forward position , and the front handle to the feed position pushing and holding the handle forward. To lock the front handle in the feed position, twist the front handle a quarter turn to the right.

NOTE: Varying the degree of turn provides additional cable feed speed control. For fastest feed speed, twist the front handle 90 degrees to the right. CAUTION Never twist front handle more than 90 degrees to the right and back. Turn by hand only.
2. To retract the cable, set the front handle to the feed position and the forward/reverse switch to the reverse position
3. To lock the cable, set the front handle to the locked position U pulling the handle back and twisting it a quarter turn to the right.
4. To put the cable into neutral position, set the front handle to the center position, in between the feed and locked positions.

Inserting Cable Into Drain

1. Set the front handle to the feed position and the forward/reverse switch to the forward position
2. Pull the trigger to begin rotating the cable into the drain. WARNING! Place the tool no more than 12^ from the drain opening. Greater distance can cause twisting, kinking, breaking or whipping of the cable.

NOTE: To avoid fatigue, the tool can be placed on the flat tool base during use.

1. Continue feeding the cable into the drain until the obstruction is reached.

NOTE: The cable is not attached to the inner drum. Use care to insure that it does not come out of the tool. There is an end of cable indicator approximately 3^

away from the rear end of the cable to indicate a low remaining distance.

When the clog is reached, pull the front handle into the locked position. Move the tool in a back and forth motion while spinning the cable until the obstruction is cleared. Repeat until the drain is clear. If the cable binds, release the trigger immediately.

To Unbind Drain Snake

1. Set the front handle to the neutral position and the forward/reverse switch to the reverse position .
2. Pull the trigger and retract the cable by hand.
3. After the cable is free, the tool may be switched back to the feed position

CAUTION Running the tool in reverse, while in a clog or with cable bound, In the feed position f can cause damage to the cable and accessories.

MAINTENANCE

ANWARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Tool

Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs.

AWARNINGTo reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to flow inside them.

Cleaning

Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Cleaning Cable and Bucket

The cable should be thoroughly flushed with water after every use to prevent damaging effects of sediment and drain cleaning compounds. The bucket should also be cleaned regularly. WARNING! Wear leather gloves After washing, dry the cable and bucket completely Then, wipe cable with an oilied rag before returning it to the drum according to the instructions in "Cable Installation". The tool should then be stored nose down into the bucket according to the instructions in "Storing the Drain Snake".

Storing the Drain Snake

1. Make sure cable is fully retracted into the tool.
2. Set the front handle to the neutral position and the forward/reverse switch to the locked position. Remove battery and place it in tray.
3. Place the tool in the storage bucket in the orientation shown. Place top cover and seal with the lid.

Repairs

For repairs, return the tool, battery pack and charger to the nearest service center.

ACCESSIONS

WARNING Use only recommended accessories. Others may be hazardous.

For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warrant questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd

1.300.268.4015

Monday-Friday,7:00AM-4:30PM CST or visit www.milwalkeetool.ca

LIMITED WARRANTY USA & CANADA

Every MILWAUKEE power too (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MIL.WAUKEE will repair or replace any part on an electric power tool which, after examination, has been found to have been damaged by a defect or fault. The workmanship for a period of five (5) years ^44 after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MIL.WAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to the use of this machine. Any defective item from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.
Normal West: Many power tools have periodic parts replacement and maintenance. The most common is the replacement of the motor with a new motor repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw, shoes, blade clamps, plunger, plunger heads, driver blades, pistons, strikers, filers, and bumper cover washers.
This warranty does not cover Air Nails & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Holst - Electric, Lever & Hand Chain; M12TM Heated Gear; Reconditioned Product; and Test & Measurement Products. There are separate and distinct warranties available for these products.
The warranty period for Job Site Radios, M12^TM Power Part, M18^TM Power Source, Jobsite Fan and Trade Titan™ industrial Work Carts is 3 years from the date of purchase. The Warranty period for the Duct Cleaning Cables is two (2) years from the date of purchase. The warranty period for the M18^TM Compact Heat Gun and the 6 Gallon Dust Extractor is three (3) years from the date of purchase. The warranty period for the LED in the LED Work Light and the LED Upgrade Bulbs for the Work Light is the lifetime of the product subject to the manufacturer's warranty. Use the LED or LED Bulb fails, the part will be replaced free of charge.
Warranties are not necessary to obtain the applicable warranty on a MILWAUKEE power lock product. The manufacturing date of the product will be used to determine the warranty period if no proof is given by the manufacturer. This warranty does not apply to acceptance OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT IN NO EVENT SHALL MILWAUKEE BE ANY DELIVERED AS AN ACCURAL CONSEQUENTIAL OR UNLESSD DIAGNOSIS FOR ANY CONTOURS OF EXPENSES, LOSSES OR DELAYS ALLED BE TO AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DELAYS. THE COURT WILL NOT BE RESPONSIVE IN APPLICATING THIS PROOF WITHOUT APPLYING TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LEIEU OF ALL OTHER EXPRESS WARRANTY, WRITTEN OR ORAL TO THE EXTENT PERMITTED BY LAW, MIL WAUKEE DISCLAIMS ANY IMPLIED WARRANTYINGS, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS WITH THE TERMS OF THE WARRANTY. THE COURT WILL NOT BE RESPONSIVE IN APPLICATING ANY DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTY ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. I ACKNOWLEDGE THAT I HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
This warranty applies to product sold in the U.S.A. and Canada only. Please consult the "Service Center Search" in the Parts & Service section of MILWAUKEE's website www.milwaukeel.com or call 1,600-823-4975. This service is an optional service that will be available for warranty and non-warranty service on a Milwaukee electric power tool.

LIMITED WARRANTY - MEXICO, CENTRAL AMERICA & CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 5 years since the original purchase date.

This warranty card covers any defect in material and workmanship on this Product.

To make this warranty valid, present this warranty card, sealed stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sequestered, present the original proof of purchase to the ASC.

Call toll-free 101 [phone] to find the nearest ASC, for service, parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the Warranty card sealed and stamped by the distributor or store where you purchased the product. If you are unable to properly piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process. Exceptions

This warranty is not valid in the following situations

a) When the product is used in a different manner from the end-user guide or instruction manual.

b) When the conditions of use are not normal.

c) When the product was modified or repaired by people not authorized by TECHTRONIC INDUSTRIES.

Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

SERVICE AND ATTENTION CENTER

Call to D01 [phone]

IMPORTED AND COMMERCIAL

TECHTRONIC INDUSTRIES MEXICO, SA DE CV, 120000,USA

Av President Masnik #29 p50 7, Col. Polanco V Section CD-11560, Palao Mipinul Hidatan, CDMX

CP 11500, Deleg. Miguel Hidalgo, CDMX

Model:

Date of Purchase:

Distributor or Store Stamp:

RÉGLES DE SECURITE GÉNÉRALES RELATIVES AUX OUTILS ELECTRIQUES

n0Taeepminute a vide (RPM)

Milwaukee Tool (Canada) Ltd 1,800,268,4015

Monday-Friday,7:00AM-4:30PM CST www.milwaukeetool.ca

GARANTIELIMITE

AUX ETATS-UNIS ET AU CANADA

Av President Masrik #29 pso 7, Col. Polanco V Section CP 11560, Deaje, Miguel Hidalgo, CDMX

Modèle

Date d'achat :

Av. President Masarik #29 piso 7, Col. Polanco V Seccion

CP 11560, Deleg. Miguel Hidalgo, CDMX

Modelo:

Fecha de Compra:
