USER MANUAL M18 Fuel Cable Drive 2772B21XC MILWAUKEE

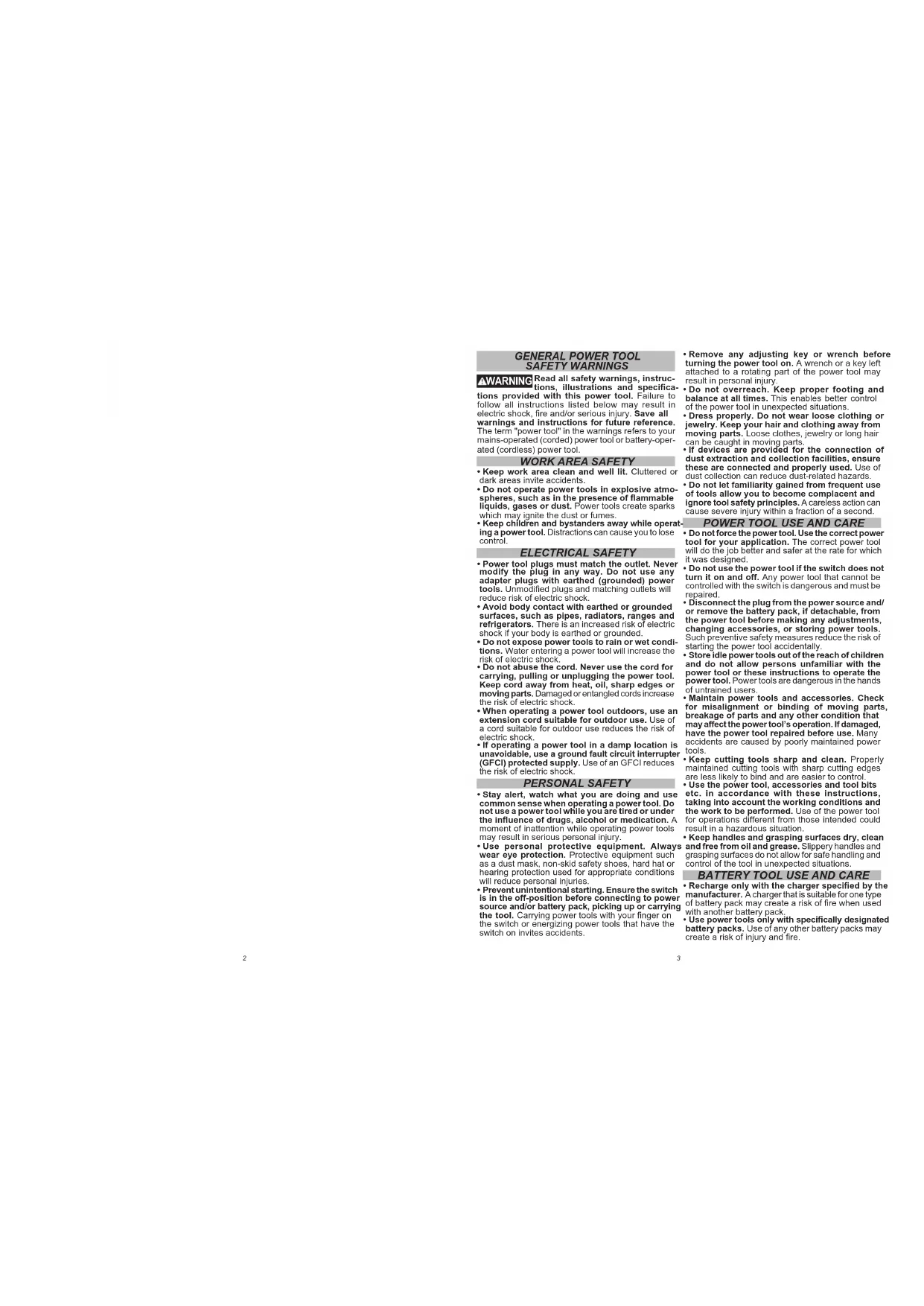

SAFETY WARNINGS WARNING Read all safety warnings, instruc- tions, illustrations and specica- tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operat- ing a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.4

• Inspect the drain to be cleaned before use. If pos- sible, determine the access point(s) to the drain, the size(s) and length(s) of the drain, distance to mainlines, the nature of the blockage, presence of drain clean- ing chemicals or other chemicals, etc. If chemicals are present in the drain, it is important to understand the specic safety measures required to work around those chemicals. Contact the chemical manufacturer for required information.

• If needed, place protective covers in the work area. The drain cleaning process can be messy.

• Make sure cable is fully retracted inside of the drain cleaner. This will prevent whipping at start up.

• Place the drain cleaner at a distance no greater than six inches from drain opening. If the drain cleaner cannot be placed within six inches from the drain opening, the drain opening will need to be extended using a similar size pipe and ttings. Greater distances can cause control problems leading to twisting, kinking, breaking or whipping of the cable.

• One person must control both the trigger switch and cable. If the tool stops rotating, the user must be able to turn the tool off to prevent twisting, kinking, breaking or whipping of the cable.

• Do not operate the drain cleaner in reverse rota- tion except as described in this manual. Running the tool in reverse, while in a clog or with cable bound, can cause damage to the cable and accessories.

• Maintain labels and nameplates. These carry im- portant information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. SPECIFICATIONS Cat. No. ........................................................ 2772-20* Volts ...................................................................18 DC Cable Spin No Load RPM ................................0 - 600 Cable Feed Speed Inches/Second ..................... 0 - 8" Battery Type ..................................................... M18™ Charger Type .................................................... M18™ Recommended Ambient Operating Temperature ......................0°F to 125°F

The added letter in the catalog number signies the cable(s) included. SYMBOLOGY Volts Direct Current No-Load Revolutions per Minute (RPM)

UL Listing Mark for Canada and U.S. Only wear leather gloves

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is dam- aged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or tem- perature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Only grasp the rotating cable with gloves recom- mended by the manufacturer. Latex or loose tting gloves or rags can become wrapped around the cable and may result in serious personal injury.

• Do not allow the cutter to stop turning while the cable is turning. This can overstress the cable and may cause twisting, kinking or breaking of the cable and may result in serious personal injury.

• Use latex or rubber gloves inside the gloves rec- ommended by the manufacturer, goggles, face shields, protective clothing, and respirator when chemicals, bacteria or other toxic or infectious sub- stances are suspected to be in a drain line. Drains may contain chemicals, bacteria and other substances that may cause burns, be toxic or infectious or may result in other serious personal injury.

• Practice good hygiene. Do not eat or smoke while handling or operating the tool. After handling or operating drain cleaning equipment, use hot, soapy water to wash hands and other body parts exposed to drain contents. This will help reduce the risk of health hazards due to exposure to toxic or infectious material.

• Only use the drain cleaner for the recommended drain sizes. Using the wrong size drain cleaner can lead to twisting, kinking or breaking of the cable and may result in personal injury.

• Inspect cable for wear and damage before use. Replace a worn or damaged cable before using the drain cleaner.

• Do not twist, kink or over bend cables. Breaking of the cable may result in serious personal injury. 48-53-25625/16" x 25' Inner Core Rust Resistant Drop Head Cable1-1/4" to 2-1/2"48-53-26735/16" x 35' Inner Core Rust Resistant Bulb Head Cable1-1/4" to 2-1/2"48-53-26745/16" x 50' Inner Core Rust Resistant Bulb Head Cable1-1/4" to 2-1/2"48-53-26763/8" x 25' Inner Core Rust Resistant Coupling Cable2" to 3"48-53-26753/8" x 35' Inner Core Rust Resistant Coupling Cable2" to 3" Cable Attachments for Use with Milwaukee 3/8" Coupling Cables Cat. No. Description Pipe Diameter 48-53-2681 Small Bulb Head 2" to 3"48-53-2682 Small Drop Head 2" to 3"48-53-2683 1" Spade Bit 2" to 3"48-53-2684 1" C-Cutter 2" to 3"48-53-2685 5 pc. Small Drain Line Kit 2" to 3" CAUTION To prevent damage to the cable, do not use in larger diameter pipes. Cable Installation WARNING To reduce the risk of injury, wear safety goggles or glasses with side shields. Always wear leather gloves. The cable is under pressure and can uncoil unexpectedly. Cable tip may be sharp. Remove the cable for cleaning after each use. Differ- ent size and types of cables are available for different applications. To remove the cable:

1. Remove the battery pack and set the front handle to

the feed position according to the instructions in "Controlling the Cable".

2. Pull the cable out through the front handle until the

end of cable indicator is reached . NOTE: Cable will appear stuck once the end of cable indicator is reached.

3. Set the front handle to the neutral position and pull

out the remaining cable. To install the cable:

1. Remove the battery pack and set the front handle to

the locked position according to the instructions in "Controlling the Cable".

2. Insert the cable through the nose of the tool until the

3. Set the front handle to the feed position and

continue feeding the cable through the front handle.

4. Remove the protective tip cover from new cables

before use. Cable Attachment Installation To install the attachment: Snap the attachment coupler into the cable coupler. Test the cable before inserting into the drain to make sure the attachment does not fall off during use. To remove the attachment: Insert the pin key into the coupling hole and pull attach- ment off of cable. FUNCTIONAL DESCRIPTION

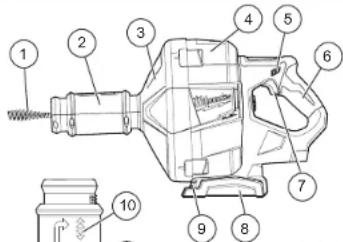

2. Front handle/Twist lock

ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator’s manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always remove battery pack before changing or removing accessories. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. Always store tool in its bucket to avoid damage to the cable. Selecting the Proper Cable Cat. No. Description Pipe Diameter 48-53-2573 1/4" x 25' Inner Core Bulb Head Cable 1-1/4" to 2"48-53-2574 1/4" x 25' Inner Core Drop Head Cable 1-1/4" to 2"48-53-25631/4" x 25' Inner Core Rust Resistant Bulb Head Cable1-1/4" to 2"48-53-25641/4" x 25' Inner Core Rust Resistant Drop Head Cable1-1/4" to 2"48-53-26711/4" x 35' Inner Core Rust Resistant Bulb Head Cable1-1/4" to 2"48-53-26721/4" x 50' Inner Core Rust Resistant Bulb Head Cable1-1/4" to 2"48-53-2571 5/16" x 25' Inner Core Bulb Head Cable 1-1/4" to 2-1/2"48-53-2572 5/16" x 25' Inner Core Drop Head Cable 1-1/4" to 2-1/2"48-53-25615/16" x 25' Inner Core Rust Resistant Bulb Head Cable1-1/4" to 2-1/2"6

OPERATION WARNING Always remove battery pack before changing or removing accessories. Only use accessories specically recommended for this tool. Others may be hazardous. To reduce the risk of injury, wear safety goggles or glasses with side shields. Always wear leather gloves. Using Forward/Reverse Switch

1. For forward (clockwise) rotation, push in the forward/

reverse switch from the right side of the tool ►. Check the direction of rotation before use.

2. For reverse (counterclockwise) rotation, push in the

forward/reverse switch from the left side of the tool ◄. Check direction of rotation before use.

3. To lock the trigger, push the forward/reverse switch

to the center position. The trigger will not work while the forward/reverse switch is in the center locked position. Always lock the trigger or remove the bat- tery pack before performing maintenance, changing accessories, storing the tool and any time the tool is not in use. Starting, Stopping and Controlling Speed This tool may be used at any speed from 0 RPM to full speed.

1. To start the tool, pull the trigger. The trigger controls

the cable spin feed and cable feed speed.

2. To vary the driving speed, increase or decrease pres-

sure on the trigger. The further the trigger is pulled, the greater the speed.

3. To stop the tool, release the trigger.

Controlling the Cable

1. To feed the cable, set the forward/reverse switch to

the forward position ►, and the front handle to the feed position by pushing and holding the handle forward. To lock the front handle in the feed position, twist the front handle a quarter turn to the right. NOTE: Varying the degree of turn provides additional cable feed speed control. For fastest feed speed, twist the front handle 90 degrees to the right. CAUTION! Never twist front handle more than 90 degrees to the right and back. Turn by hand only.

2. To retract the cable, set the front handle to the feed

position and the forward/reverse switch to the reverse position ◄.

3. To lock the cable, set the front handle to the locked

position by pulling the handle back and twisting it a quarter turn to the right.

4. To put the cable into neutral position, set the front

handle to the center position, in between the feed and locked positions. Inserting Cable Into Drain

1. Set the front handle to the feed position and the

forward/reverse switch to the forward position ►.

2. Pull the trigger to begin

rotating the cable into the drain. WARNING! Place the tool no more than 12" from the drain opening. Greater distance can cause twisting, kinking, breaking or whipping of the cable. NOTE: To avoid fatigue, the tool can be placed on the at tool base during use.

3. Continue feeding the cable into the drain until the

obstruction is reached. NOTE: The cable is not attached to the inner drum. Use care to insure that it does not come out of the tool. There is an end of cable indicator approximately 3' away from the rear end of the cable to indicate a low remaining distance.

4. When the clog is reached, pull the front handle into

the locked position . Move the tool in a back and forth motion while spinning the cable until the obstruction is cleared. Repeat until the drain is clear. If the cable binds, release the trigger immediately. To Unbind Drain Snake

1. Set the front handle to the neutral position and the

forward/reverse switch to the reverse position ◄.

2. Pull the trigger and retract the cable by hand.

3. After the cable is free, the tool may be switched back

to the feed position . CAUTION Running the tool in reverse, while in a clog or with cable bound, in the feed position can cause damage to the cable and accessories. MAINTENANCE WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before per- forming any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the bat- tery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. WARNING To reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Cleaning Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning sol- vents, ammonia and household detergents containing ammonia. Never use ammable or combustible solvents around tools. Cleaning Cable and Bucket The cable should be thoroughly ushed with water after every use to prevent damaging effects of sediment and drain cleaning compounds. The bucket should also be cleaned regularly. WARNING! Wear leather gloves. After washing, dry the cable and bucket completely. Then, wipe cable with an oiled rag before returning it to the drum according to the instructions in "Cable Installation". The tool should then be stored nose down into the bucket according to the instructions in "Storing the Drain Snake". Storing the Drain Snake

1. Make sure cable is fully

retracted into the tool.

2. Set the front handle

to the neutral position and the forward/reverse switch to the locked po- sition. Remove battery and place it in tray.

3. Place the tool in the

storage bucket in the orientation shown. Place top cover and seal with the lid. Repairs For repairs, return the tool, battery pack and charger to the nearest service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: [e-mail] Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA Every MILWAUKEE power tool* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workman-ship for a period of ve (5) years** after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers.*This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain; M12™ Heated Gear; Reconditioned Product; and Test & Measurement Products. There are separate and distinct warranties available for these products.**The warranty period for Job Site Radios, M12™ Power Port, M18™ Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the Drain Cleaning Cables is two (2) years from the date of purchase. The warranty period for the M18™ Compact Heat Gun and the 8 Gallon Dust Extractor is three (3) years from the date of purchase. The war-ranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb fails, the part will be replaced free of charge. Warranty Registration is not necessary to obtain the applicable war-ranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON-TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSE-QUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX-CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR-RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR-RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.This warranty applies to product sold in the U.S.A. and Canada only.Please consult the ‘Service Center Search’ in the Parts & Service sec-tion of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.8

TECHTRONIC INDUSTRIES' warranty is for 5 years since the original purchase date. This warranty card covers any defect in material and workmanship on this Product. To make this warranty valid, present this warranty card, sealed/ stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC. Call toll-free1 01 [phone] to nd the nearest ASC, for service, parts, accessories or components. Procedure to make this warranty valid Take the product to the ASC, along with the warranty card sealed/ stamped by the distributor or store where you purchased the product, and any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process. Exceptions This warranty is not valid in the following situations a) When the product is used in a different manner from the end-user guide or instruction manual. b) When the conditions of use are not normal. c) When the product was modied or repaired by people not authorized by TECHTRONIC INDUSTRIES. Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
