USER MANUAL Premium Wireless Doorbell SILVERCREST

Assembly, operating and safety instructions

FR BE

SONNETTE SANS FIL DESIGN

GB / IE Assembly, operating and safety instructions Page 5

Diagram illustrating two methods of screwdriver tool tiping, showing step-by-step insertion and disassembly.

Ø 6 mm

A

HG00783A HG00783B

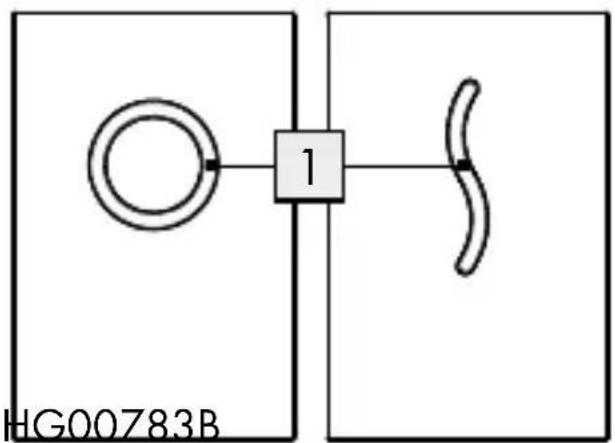

HG00783B

Simple line drawing of a door frame with no text or symbols

7 6 2 3 4 5

B 8 6 - + + - +

C1 18 211 15

C2 14 13 CR2032

D 7 16 17

E 17 16

F 14

G 18 12

H 12 18 19 C B A

4 - 12V, AC/ 4 - 12V, DC

J B C

Introduction......Page 6

Intended use ......Page 6

Parts and features......Page 6

Included items......Page 7

Technical data Page 8

Safety Page 8

General safety information....Page 9

Safety instructions for batteries....Page 9

Assembly Page 10

Preparing for use Page 11

Inserting / replacing the batteries ......Page 11

Synchronising transmitter/receiver......Page 12

Setting the signal type....Page 13

Setting the volume ......Page 13

Selecting the chime......Page 14

The procedure for connecting the transmitter to existing bell

system or existing doorbell button....Page 14

Connecting the transmitter to a existing bell system....Page 15

Connecting a existing doorbell button ......Page 15

Troubleshooting......Page 16

Cleaning and maintenance......Page 16

Declaration of conformity......Page 18

Warranty Page 18

Premium Wireless Doorbell

- Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is intended for the wireless transmission of the doorbell signal. The product is not intended for commercial use.

Parts and features

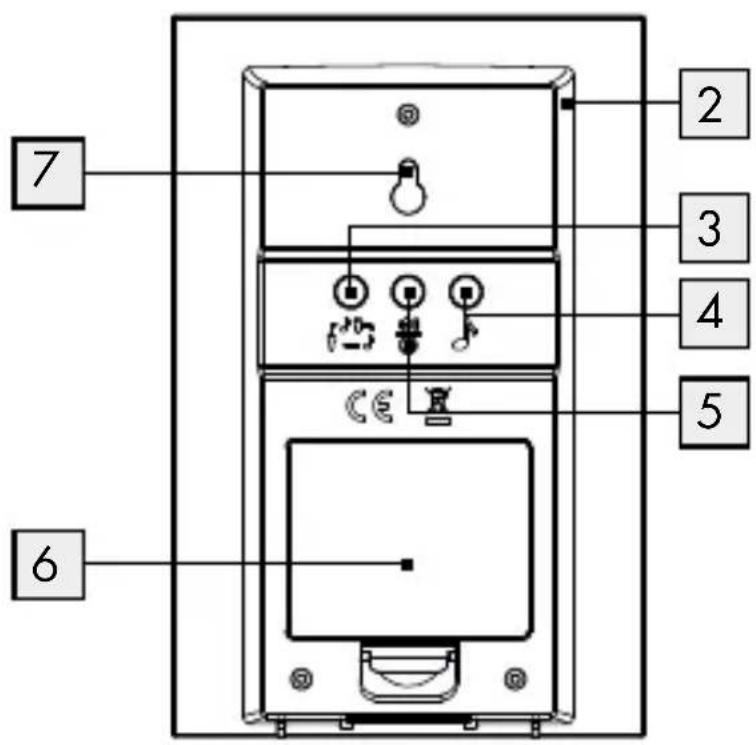

Receiver

1 Signal indicator
2 Speaker
3 Signal type selector button (optical, acoustic, optical and acoustic signal)
4 Melody selection button

5 Volume/Synchronisation button
6 Battery compartment cover
7 Hanger
8 Battery compartment

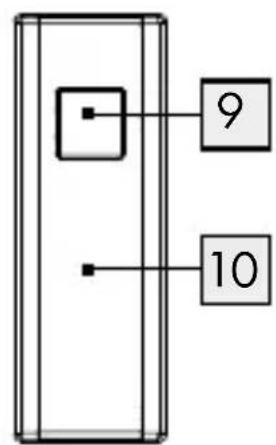

Transmitter

9 Chime button
10 Name plate
11 Lock
12 Holder (for wall mounting)
13 Battery compartment
14 Inner cover

Mounting

15 Rubber cover
16 Screw
17 Dowel
18 Cable exit hole
19 Cable holder

Includeditems

1 Transmitter
1 Receiver
3 Batteries 1.5 V—, type AA (receiver)
1 Battery 3 V---, type CR2032 (transmitter)
3 Screws (for transmitter and for mounting the receiver on a wall)

3 Dowels
5 Name plates (for the doorbell)
1 Operating instructions

●Technicaldata

Range: 150 m (unobstructed area)

Transmission frequency: 434 MHz

Battery types: Receiver: 3 x 1.5 V

--- (type AA / LR6),

Transmitter: 1 x 3 V---(type CR2032)

Receiver: Audible signal volume (at maximum

volume setting): approx. 73 dB (at a

distance of 1 m from the device)

Ingress protection rating

of the transmitter: IP44 (splash water proof)

Safety

WARNING!

Read all safety information and instructions!

STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE!

General safety information

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Check that all parts are in sound condition. If you use damaged parts when assembling the device, you risk injury.

Safety instructions for batteries

DANGER TO LIFE! Batteries can be swallowed, which can prove fatal. Consult a doctor immediately if anyone swallows a battery.

EXPLOSION HAZARD! Never recharge non-

rechargeable batteries, short-circuit and / or open batteries. This can cause them to overheat, burn or burst.

Never throw batteries into fire or water. The batteries may explode.

Immediately remove depleted batteries from the device; otherwise there will be an increased risk of leakage!

Always replace all the batteries at the same time and insert batteries of the same type.

• Do not use different types of batteries or mix used and new batteries together.
  ■ Batteries do not belong in household refuse. Dispose of used batteries in an environmentally friendly manner.
  ■ Consumers are under a legal obligation to dispose of batteries in the proper way.
• Keep the battery out of the reach of children, do not dispose of the battery in fire, do not short-circuit it, and do not take it apart.
  Failure to observe these instructions may result in the battery discharging beyond its end voltage, which poses a risk of leakage. If the battery in your instrument has leaked, have it removed immediately to prevent damage to the instrument.
• Avoid contact with skin, eyes and mucous membrane. In the event of contact with battery acid, rinse the affected area with plenty of water and / or consult a doctor.
  ■ Never use rechargeable batteries.
  ■ The supply terminals are not to be short-circuited.
• Do not mix old batteries with new ones.
  ■ Remove the batteries from the device if they have not been used for a long period.
  ■ Make sure you insert the batteries the right way round (polarity).

Assembly

Note: You will need a screwdriver and a drill to assemble the doorbell.

Note: Only use the screws and dowels supplied for the assembly of the device.

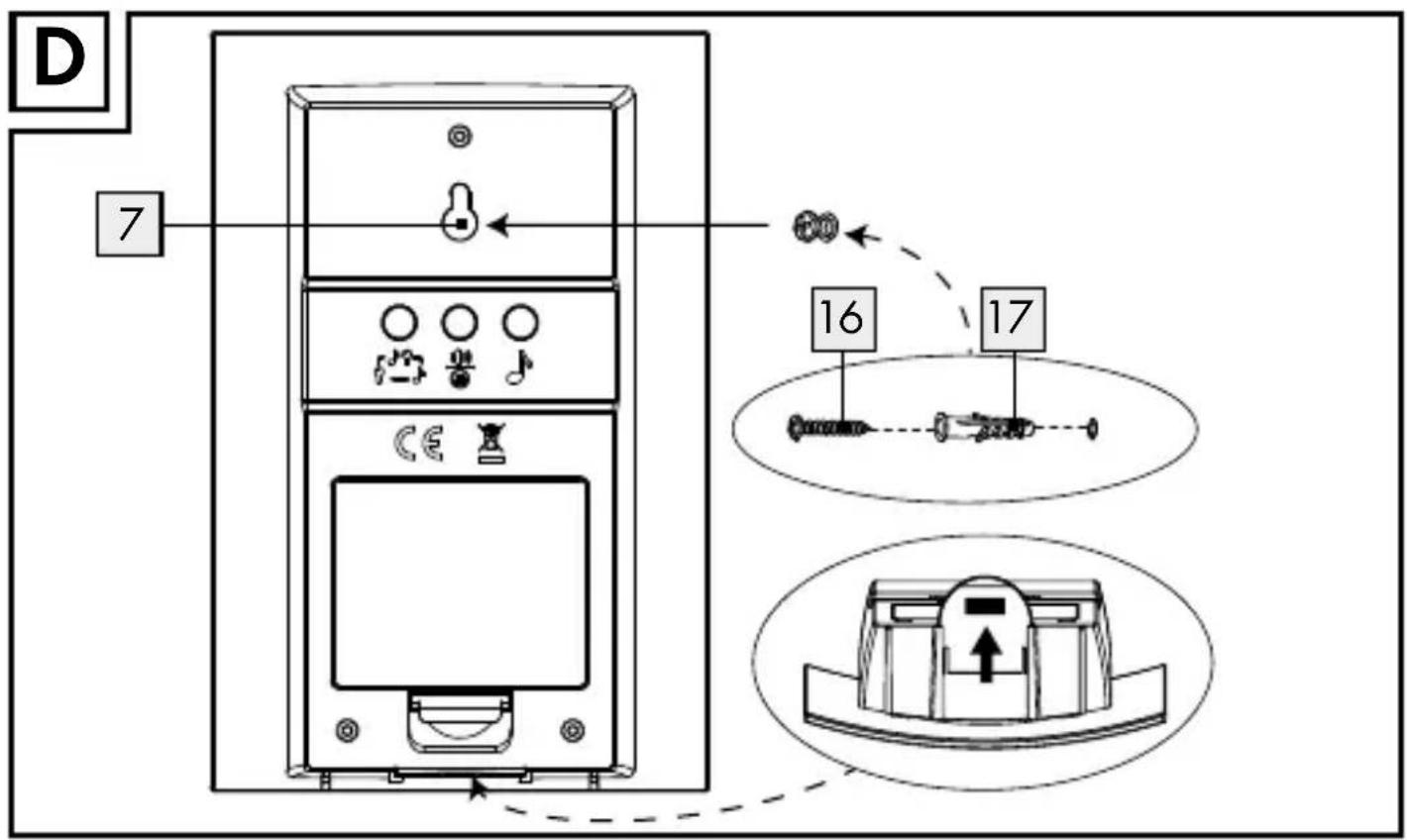

Mount the receiver (see Fig. D)

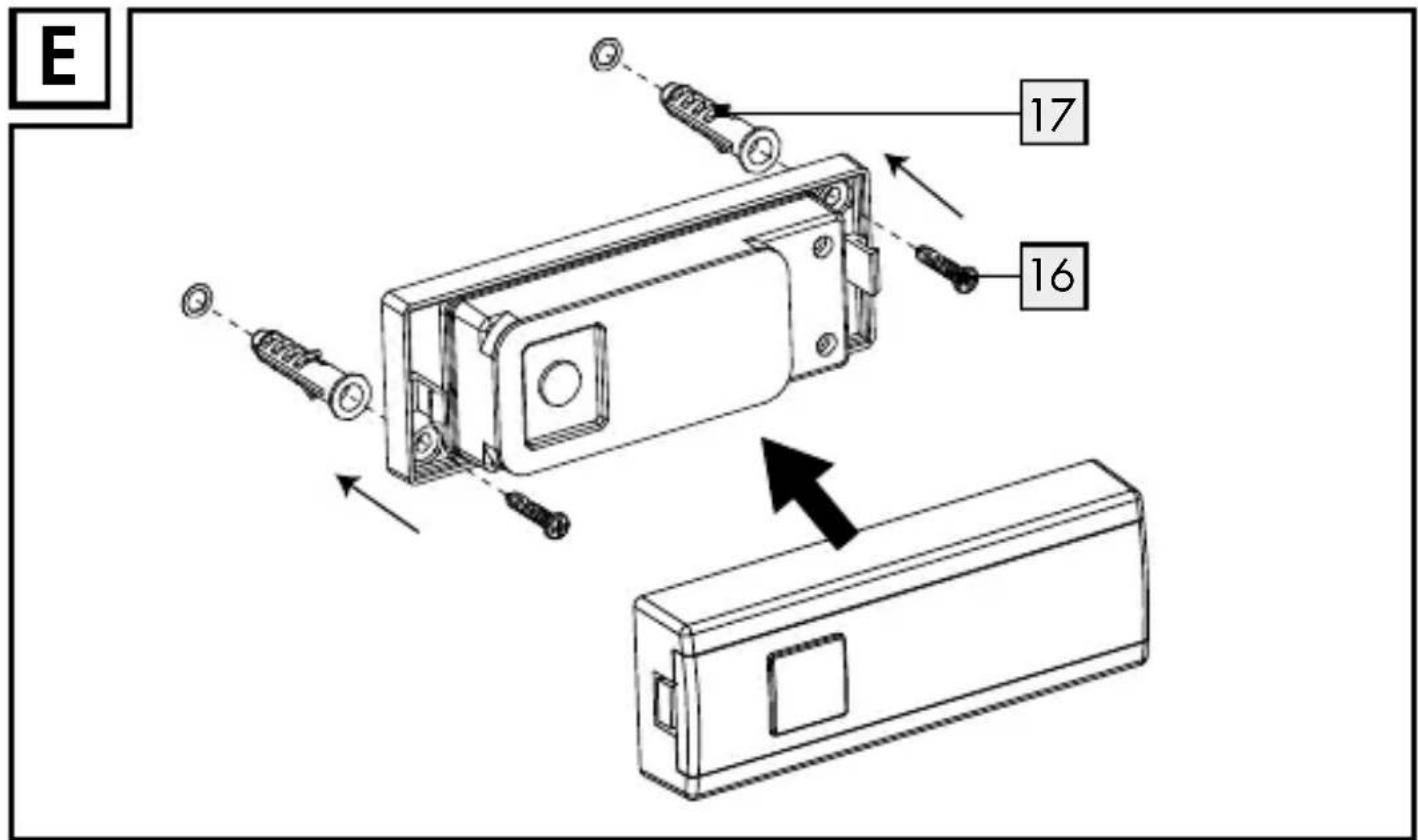

Mount the transmitter (see Fig. E)

● Preparing for use

- Inserting / replacing the batteries

☐ Insert the batteries to provide power to the device before preparing it for use.

CAUTION! Use the indicated battery types only. Failure to observe this advice may result in damage to the product.

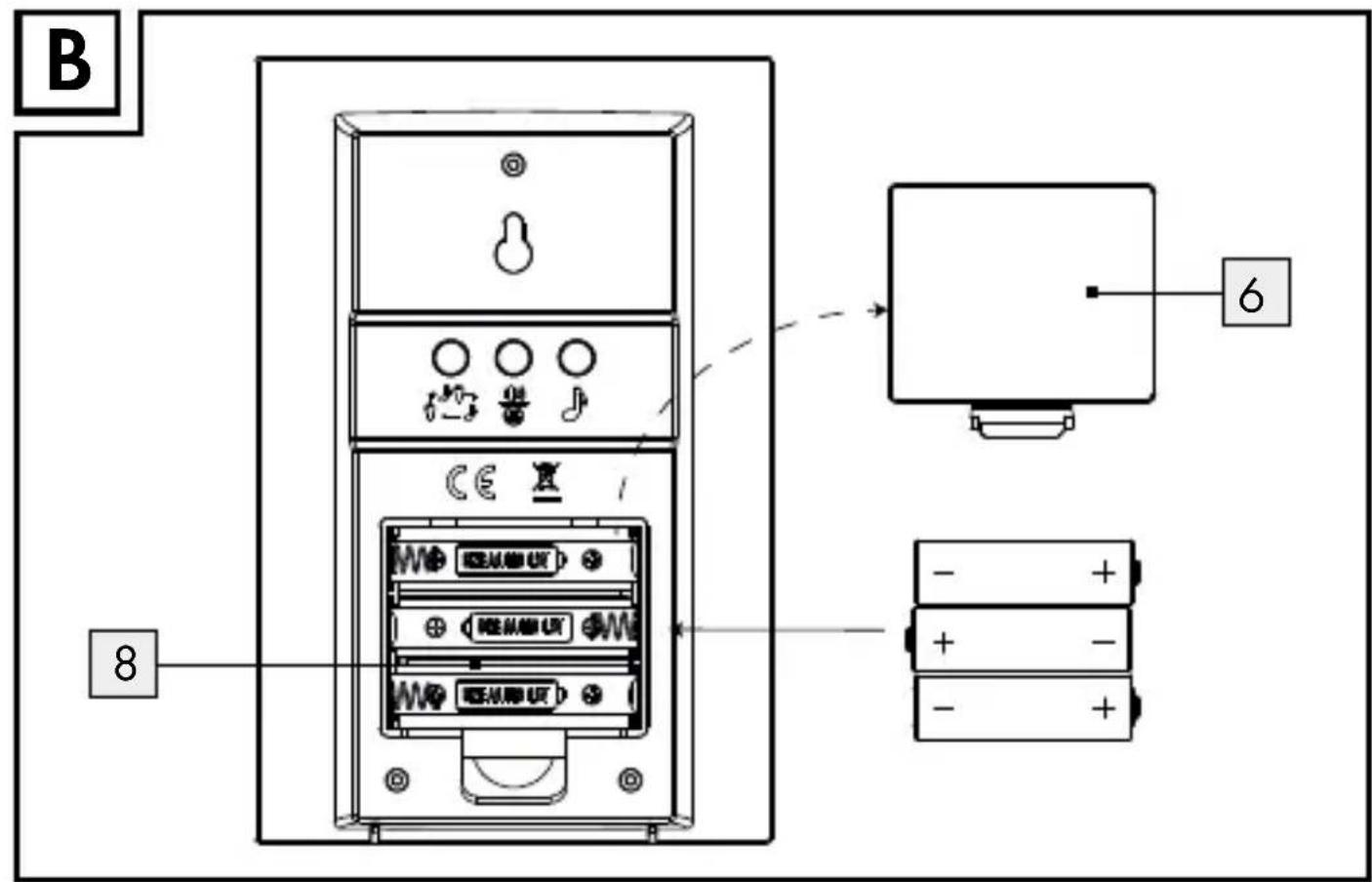

Receiver (see Fig. B):

☐ Remove the battery compartment cover 6 from the back of the device.
☐ Remove the used batteries, if present.
☐ Insert 3 batteries (1.5 V ——, type AA).

Note: Ensure correct polarity. This is indicated in the battery compartment 8.

☐ Close the battery compartment 8.

Transmitter:

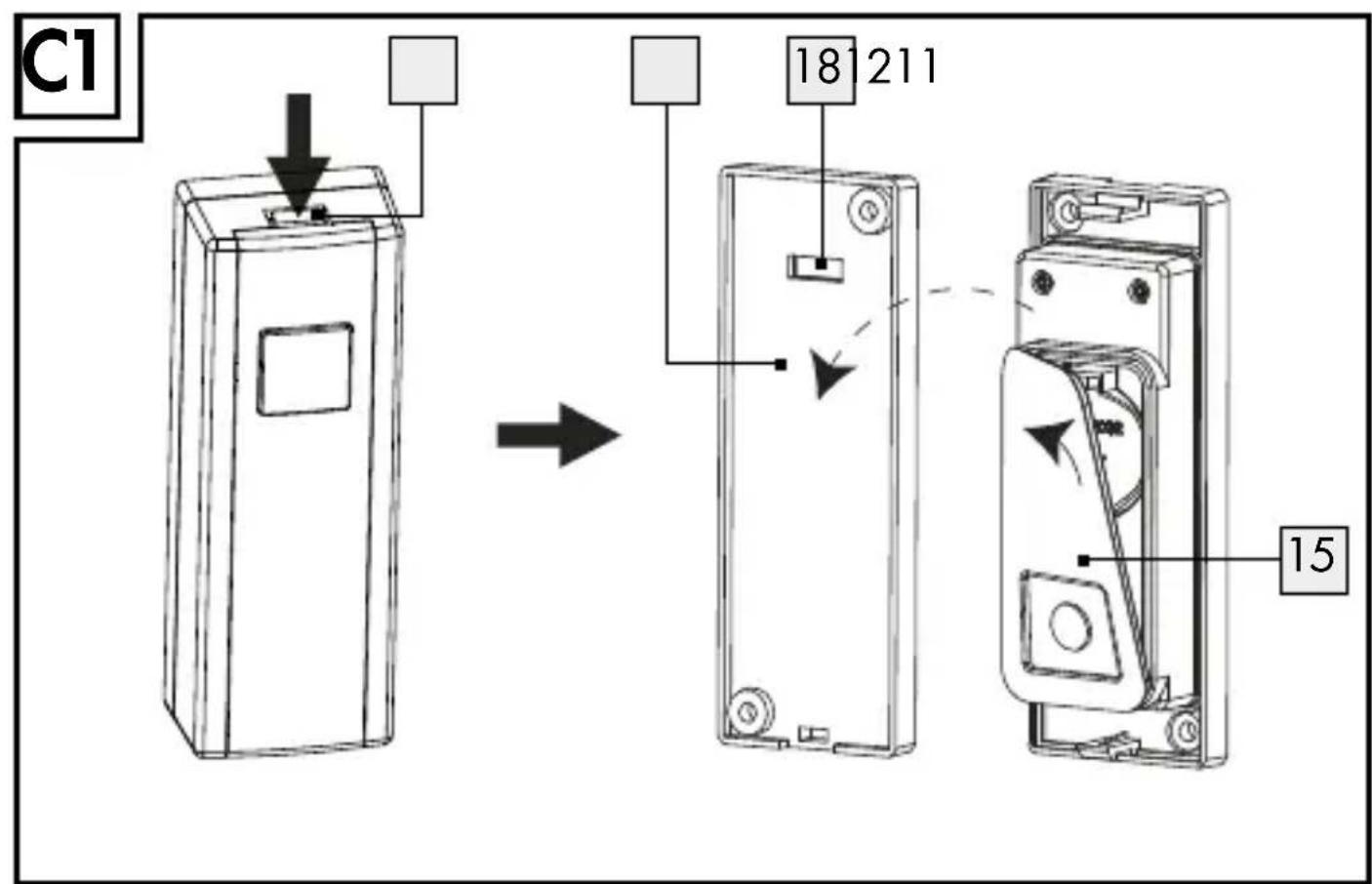

☐ Remove the holder 12 by pressing the lock 11 from the back of the transmitter and remove the rubber cover 15 (see fig. C1).

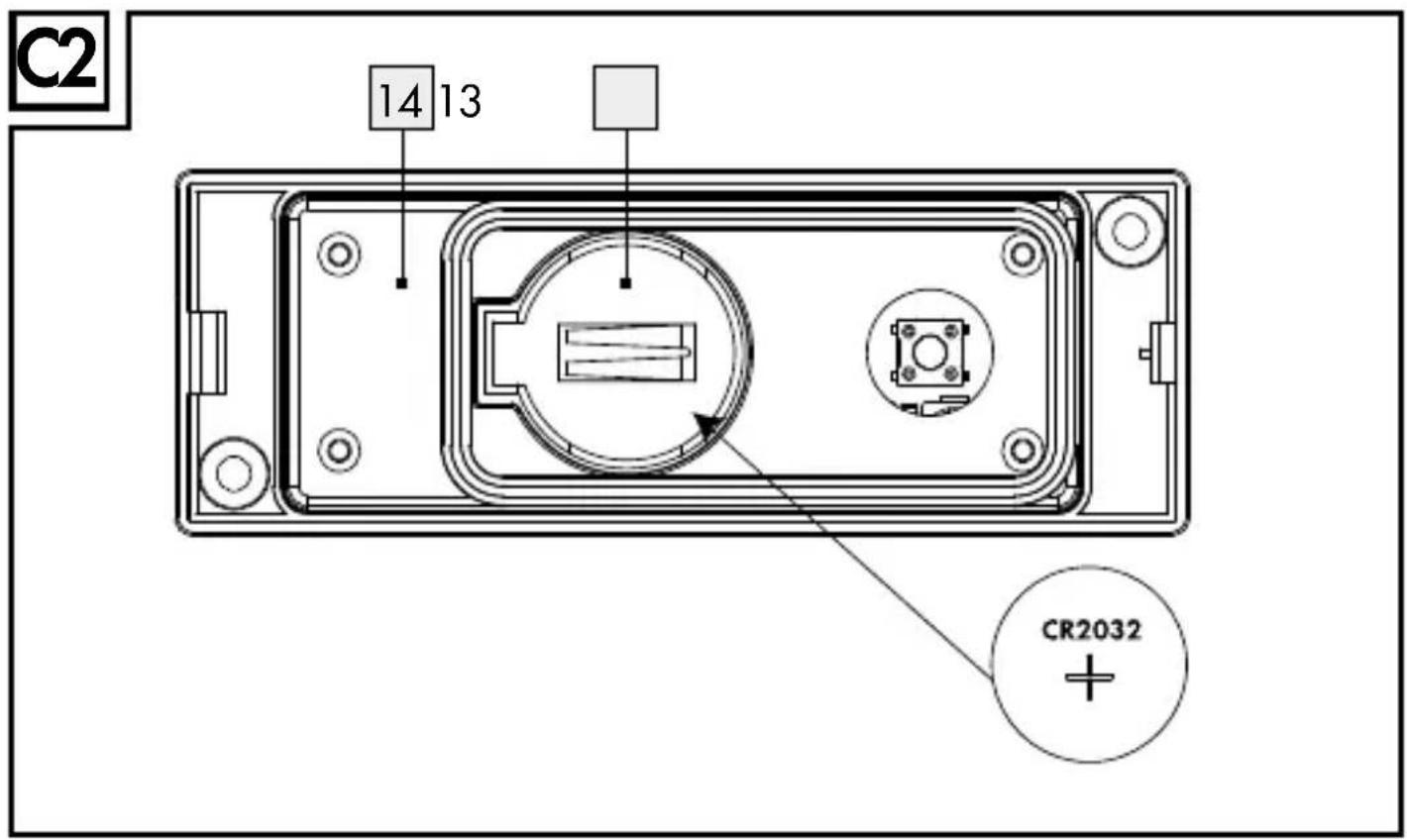

☐ Remove the used batteries, if present (see fig. C2).
☐ Insert a battery (3 V ——, type CR 2032). The side marked “+” must face upwards.
☐ Install the rubber cover 15, close the holder 12 of the transmitter back on to the back of the device.

- Synchronising transmitter/receiver

The doorbell works on 434 MHz which is a quite common frequency. To ensure that the function gets no influenced be doorbells in the neighborhood, the transmitter and the receiver hence have to be synchronized in regard of the encryption. Every transmitter is working with a different encryption of the signal.

Synchronise the transmitter and receiver as follows:

☐ As soon as the batteries are installed, the receiver enters synchronizing mode for approx. 1 minute. During the synchronizing mode, the signal indicator 1 steadily lights up in blue color.
☐ You can also manually enter synchronising mode by holding the synchronising button 5 for approx. 3 seconds.
☐ The signal indicator 1 on the receiver will steadily light up for approx. 1 minute, to indicate that the receiver is in synchronizing mode.
☐ Press the chime button 9 of the transmitter, while the receiver is in synchronise mode. If the receiver receives the signal, the steady blue light of the signal indicator 1 flickers 6 times to indicate that the synchronization is successful.

- Setting the signal type

The receiver can indicate the reception of a door signal either both optically and acoustically, acoustically or optically.

☐ Using the signal type selector button 3, select whether the signal is to be indicated both optically and acoustically or acoustically or optically.

☐ Press the signal type selector button 3 once. An acoustical signal will sound up and the afterwards the signal indicator 1 will flash. The receiver will now indicate the door signal acoustically and optically. Press again the signal type selector button 3. An acoustical signal will sound. The receiver will now indicate the door signal acoustically. Press again the signal type selector button 3. The receiver will now indicate the door signal in an optical way.

- Setting the volume

☐ Press the volume button 5 until the desired volume is reached. There are a total of 4 possible volume settings: very loud, loud, medium, soft.

- Selecting the chime

Note: The doorbell has 16 different chimes.

☐ Press the melody selection button 4. The first audible signal sounds.
☐ Press the melody selection button 4 again to move on to the next audible signal.
☐ Repeat this process until you have selected your desired audible signal. The last-selected audible signal is automatically stored.

- The procedure for connecting the transmitter to existing bell system or existing doorbell button

☐ Remove the holder 12 by pressing the lock 11 from the back of the transmitter and remove the rubber cover 15 (see fig. C1).

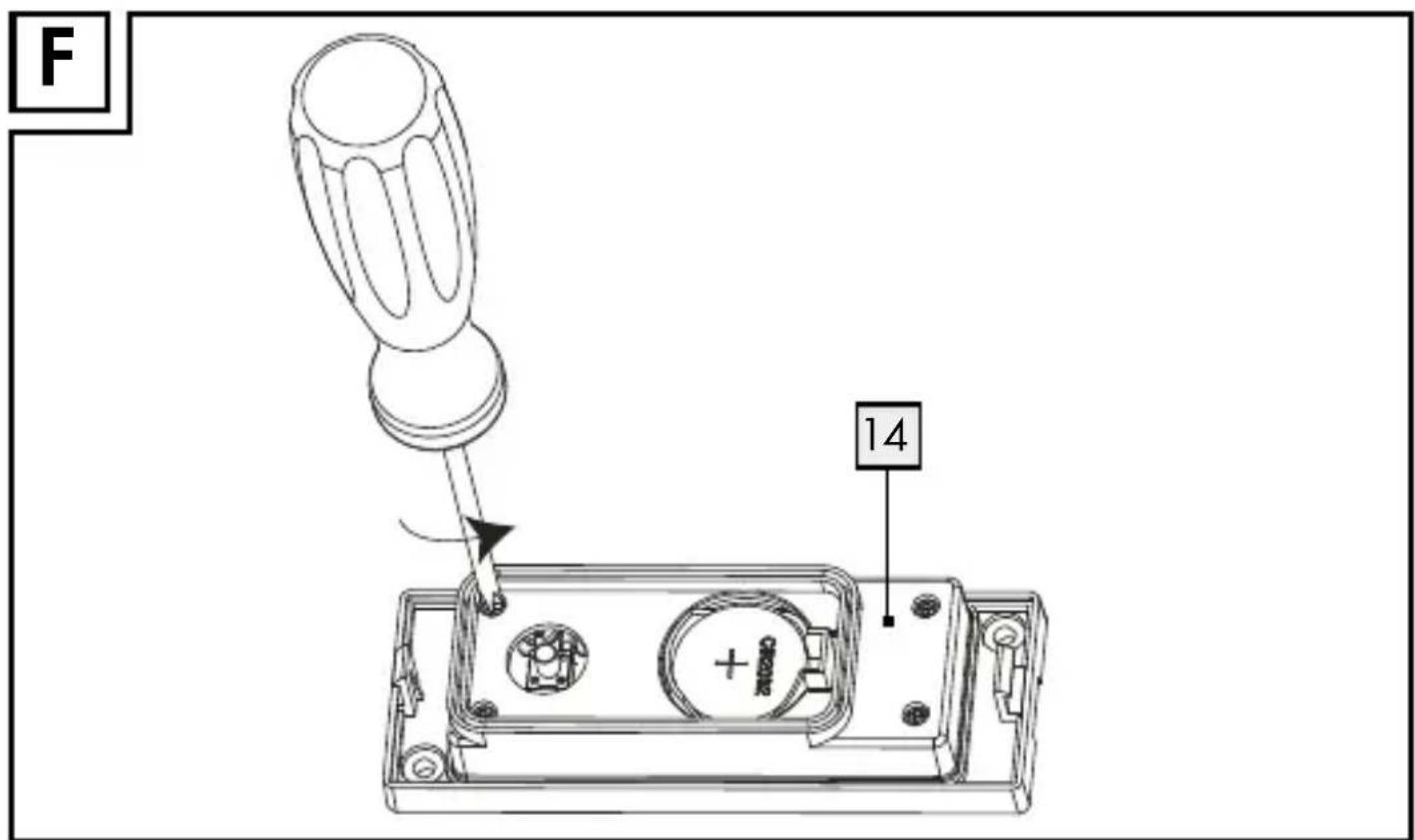

☐ Open the inner cover 14 by cross head screw driver (see fig. F).

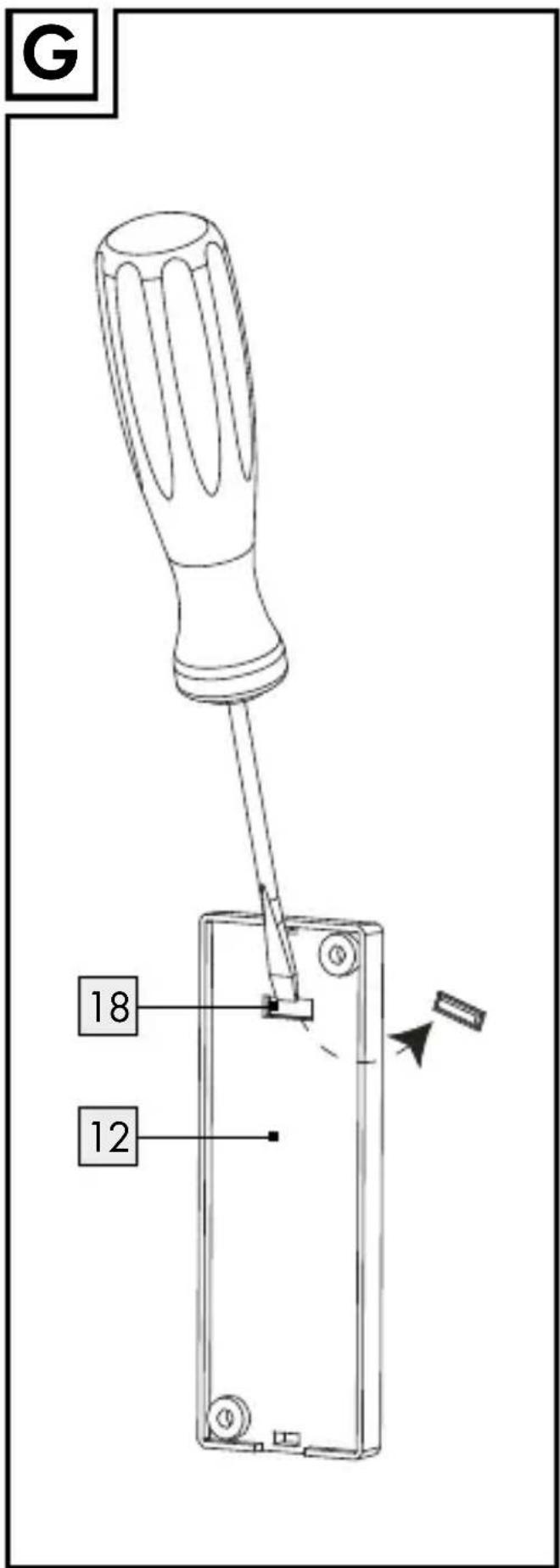

☐ Remove the plastic clip of cable exit hole 18 with a flat head screw driver (see fig. G).

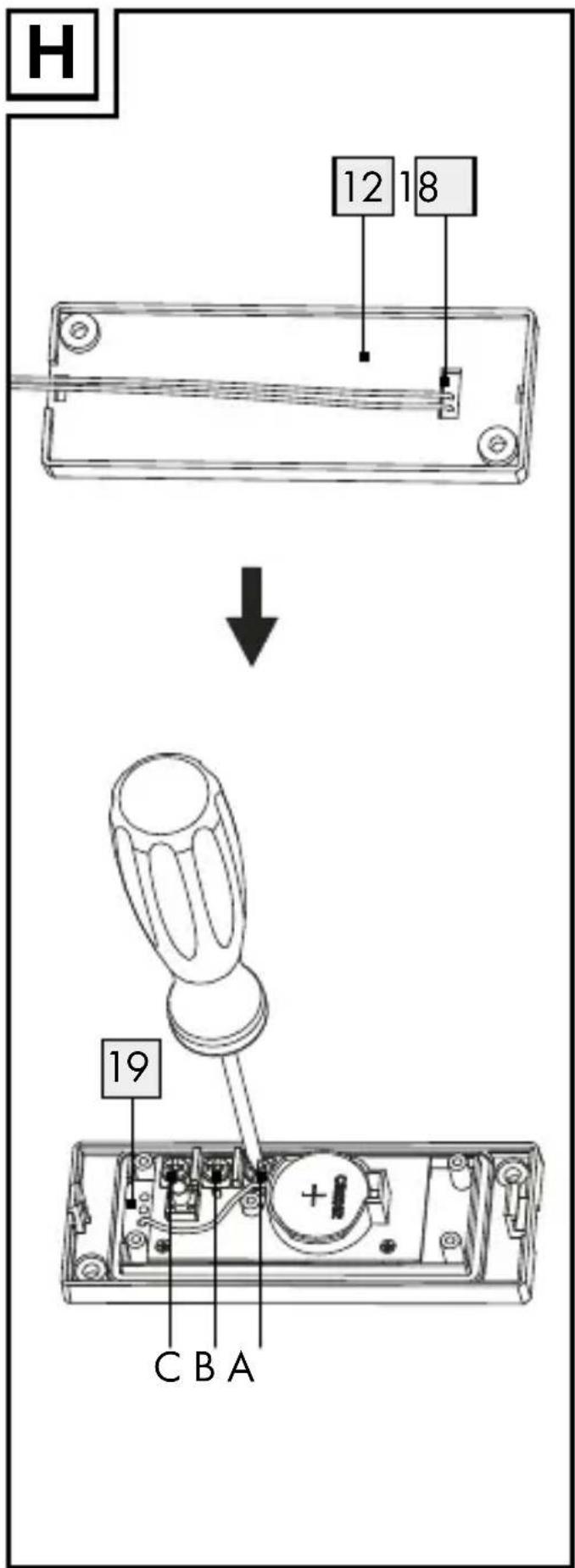

☐ Insert the cable through cable holder 19 and cable exit hole 18 (see fig. H).
☐ Connect cable to the terminals A and C (for connecting to existing doorbell) or the terminals B and C (for connecting to existing door bell button) by using screw driver (see fig. H).

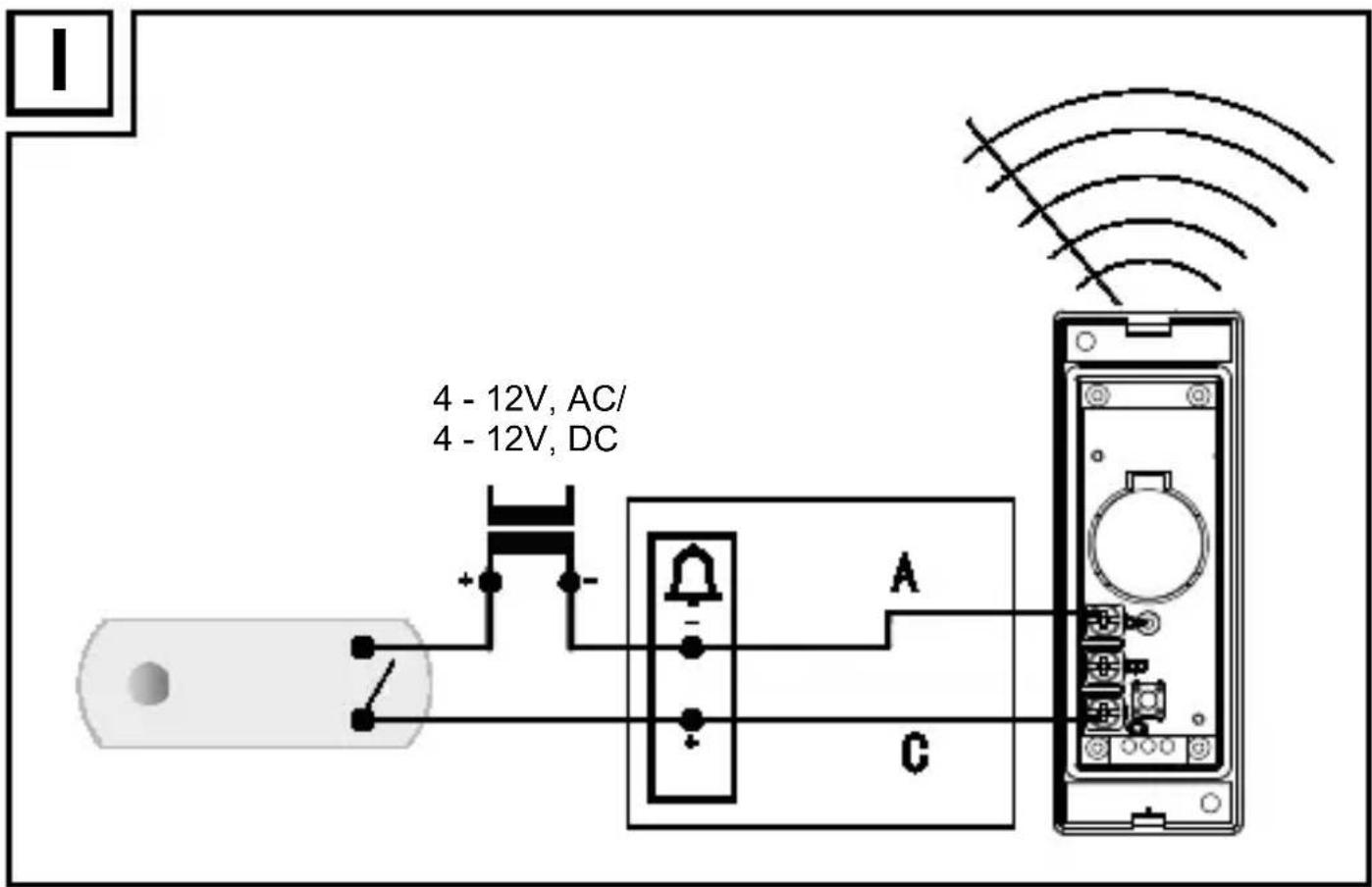

- Connecting the transmitter to a existing bell system (see Fig. I)

Extension of an already existing doorbell system:

An already existing doorbell system can be extended with this wireless doorbell.

The operating voltage of the doorbell system must be between 4–12 V. It makes no difference whether this comes from direct current or 50 Hz alternating current. In the event that you are dealing with an existing doorbell system using direct current, you must connect the positive terminal of the doorbell to contact C of the transmitter and the negative terminal to contact A of the transmitter.

IMPORTANT! Never reverse polarity. This can damage the device. The connection terminals A and C, found on the circuit board of the transmitter as shown in fig. I must be connected directly to the electrical connection terminals of the signal generators (e.g. bell). The button of the transmitter may also be used for this type of operation.

Note: Contact a qualified electrician in case of problems during installation.

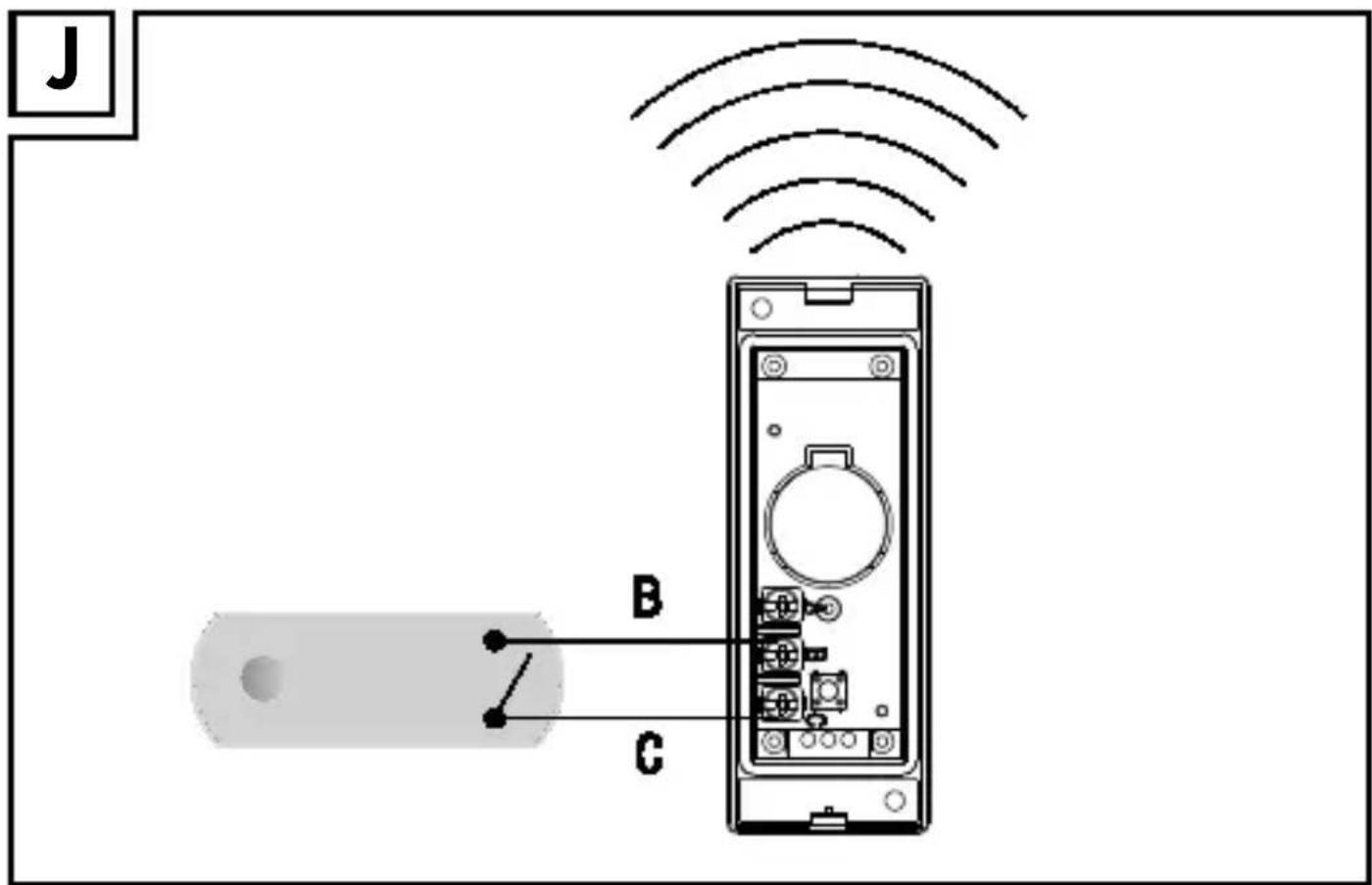

- Connecting a existing doorbell button (see Fig. J)

The separate bell button must not be connected to the existing door-bell system. The battery must remain in the transmitter. The B and C

terminals are to this purpose with a two-core cable connected to the bell push. The bell push may only be connected to the transmitter.

●Troubleshooting

After the influence of extraordinary environmental conditions (e.g. a strong electromagnetical field) the function of the item may be affected. In this case, please take off the batteries of both appliances for approximately 2 minutes. Then proceed again as described in the section "Synchronising the transmitter / receiver".

Electrostatic discharges may lead to malfunctions. If such malfunctions do occur, remove the battery for a short time and then replace it again. Then proceed again as described in the section “Synchronising the transmitter/receiver”.

- Cleaning and maintenance

■ Under no circumstances should you use liquids or detergents, as these will damage the device.
☐ The device should only be cleaned on the outside with a soft dry cloth.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

● Declaration of conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, D-74167 Neckar-sulm, hereby declare under our sole responsibility that the product: Premium Wireless Doorbell, Model No.: HG00783A/HG00783B, Version: 03 / 2016, to which this declaration refers, complies with the standards/normative documents of 1999/5/EC.

Tobios (Roccy)

The complete declaration of conformity can be viewed at: www.owim.com.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within

three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
