USER MANUAL DOS193 LIVOO

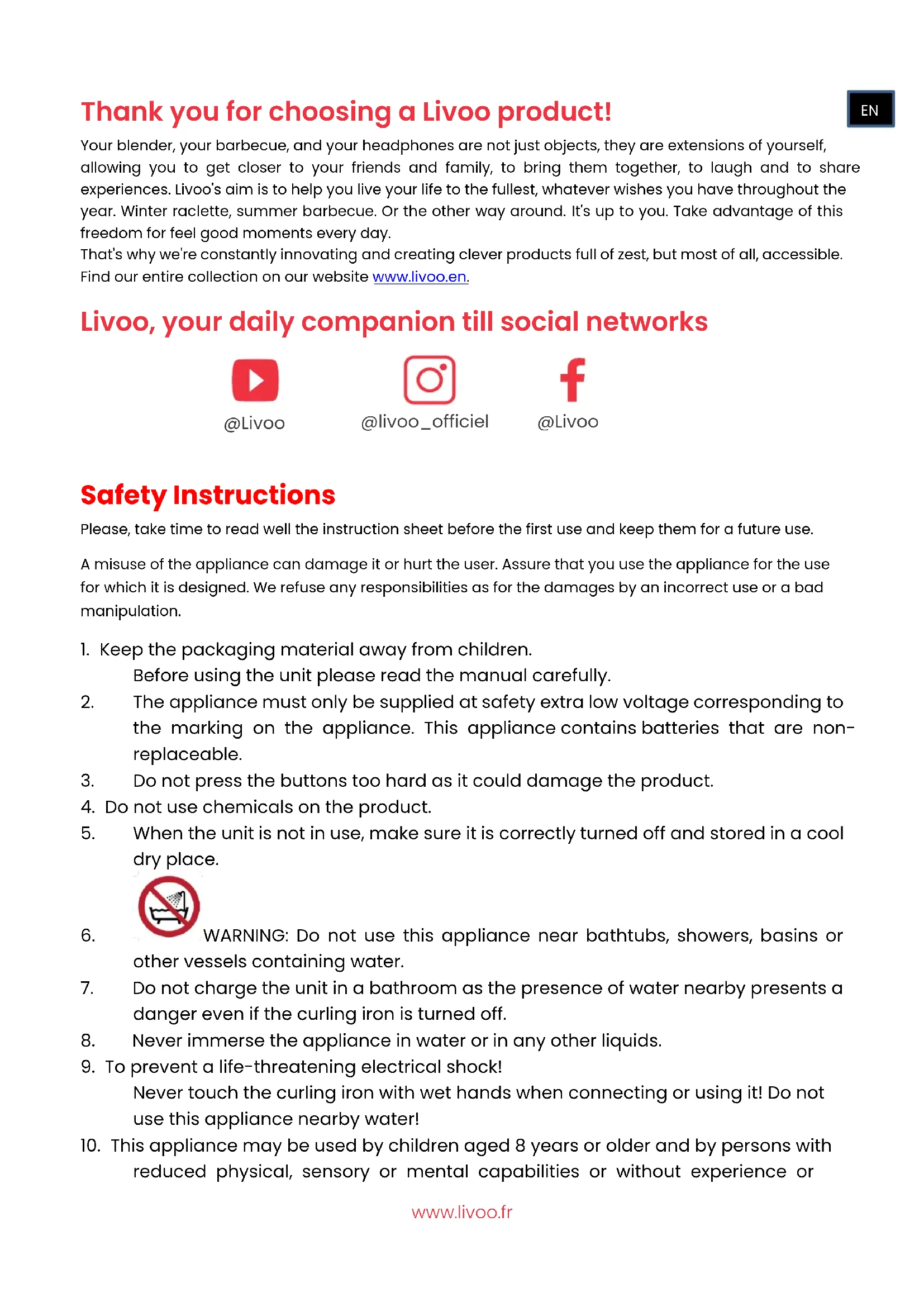

FRwww.livoo.fr Thank you for choosing a Livoo product! Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day. That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en. Livoo, your daily companion till social networks

Safety Instructions Please, take time to read well the instruction sheet before the first use and keep them for a future use. A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

1. Keep the packaging material away from children.

Before using the unit please read the manual carefully.

2. The appliance must only be supplied at safety extra low voltage corresponding to

the marking on the appliance. This appliance contains batteries that are non- replaceable.

3. Do not press the buttons too hard as it could damage the product.

4. Do not use chemicals on the product.

5. When the unit is not in use, make sure it is correctly turned off and stored in a cool

6. WARNING: Do not use this appliance near bathtubs, showers, basins or

other vessels containing water.

7. Do not charge the unit in a bathroom as the presence of water nearby presents a

danger even if the curling iron is turned off.

8. Never immerse the appliance in water or in any other liquids.

9. To prevent a life-threatening electrical shock!

Never touch the curling iron with wet hands when connecting or using it! Do not use this appliance nearby water!

10. This appliance may be used by children aged 8 years or older and by persons with

reduced physical, sensory or mental capabilities or without experience or @livoo_officiel @Livoo @Livoo ENwww.livoo.fr knowledge, if they are properly supervised or if they have been given instructions on how to use the appliance safely and if the risks involved are understood.

11. Children should not play with the appliance.

12. Cleaning and maintenance by the user must not be carried out by children without

supervision. Avoid children playing with or touching the curling iron when using it or when it is cooling down.

13. If the USB cable is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid hazard.

14. Do not pull the charging cable

15. Only use the appliance when the appliance, cable and plug show no sign of

damage. Never use a defective appliance.

16. Never try to repair a defective appliance yourself.

17. Danger of burning! Curling chamber warm very fast, do not touch it. Hold the

appliance distant from your skin. Let cool after use.

18. Avoid direct contact with hot surfaces of the curling iron, especially eyes, ears, face

19. Never cover the curling iron. Make sure that the device remains free of lint or hair.

20. Do not place this unit on objects that cannot withstand heat during use.

21. Do not leave the unit unattended when not in use.

22. Insert no object into the appliance.

23. This appliance is reserved for a domestic use. Any other use (professional,

commercial, etc.) is excluded.

24. Danger of fire due to high temperatures. Do not use on artificial hair or capillary

If the appliance overheat switch off entirely and let it cool for about 6 to 15 minutes. Once cooled down, the appliance can be used again.

26. This appliance is intended to be used in household and similar applications such

• staff kitchen areas in shops, offices and other working environments

• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments Technical Specifications Battery capacity : 3.65V 4000mAh Power : Input : DC 5V, 2.0A MAX Cleaning and maintenance

1. Unplug the automatic hair curler, and let it cool down.

2. Any cleaning, maintenance or servicing must be carried out once the unit has cooled down

3. Remove any residues, such as hair or dandruff, which remain on the appliance after use.

4. Clean the different parts of the appliance with a damp cloth.

5. Never use any abrasive agents or solvent.

Drawing of the device Figure 1

Charging instructions:

1. Fully charge the battery before use for optimal operation, insert the micro USB part into input and the

other USB into any other device of your choice (computer, adaptor, powerbank,etc).

2. Do not use while charging.

3. Disconnect the charger when the battery is fully charged.

4. While charging, the display shows a flashing indicator light. When the battery is fully charged, the

indicator stops flashing and shows 4 bars.

5. When the battery level is low, the display flashes and the unit will automatically switch off.

1. Press and hold the power button (fig. 1 right button) for 2 seconds to start the product. You will hear a

"beep" and the LCD display will light up. The product will start to heat up according to the temperature indicated by the power on.

2. Press and hold the power button for 2 seconds to turn the product off. If you forget to turn off the product,

it will automatically turn off after eight minutes.

3. Press the power button to select the temperature, temperature display mode and timer, you need to

press once to select each setting one by one. Then press the menu button (fig. 1 left button) to scroll through the degrees °C/°F, the time in seconds or the temperature display mode, press and hold to confirm your choice.

4. Press the adjustable button, the left or right, (fig. 1) to choose the rotation direction and make your loops.

Note: The heating symbol flashes during heating. When it reaches the selected temperature, it stops flashing and beeps twice.

5. Comb your hair to avoid tangles and divide the hair into section of up to 2 cm wide. Let the section of

hair through the curling chamber (fig.2), press the left or right adjustable button to to choose the rotation direction and activate the motor to draw hair into curling chamber. ENwww.livoo.fr When you hear the beep, the automatic curling is complete (the beep corresponds to your timer setting. If your setting is 8, a beep will be heard after 8 seconds). To release your hair, simply release gently.

Correct disposal of the unit (Electrical and Electronic Equipment). (Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.
