DOP214 - Blender LIVOO - Free user manual and instructions

Product Type	Blender
Brand	Livoo
Model	DOP214
Dimensions (H x W x D)	40 cm x 20 cm x 20 cm
Weight	2 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	600 W
Jug Capacity	1.5 L
Jug Material	Plastic (Tritan)
Blade Material	Stainless Steel
Speed Settings	2 Speeds + Pulse
Safety Features	Safety lock, non-slip feet, overheat protection
Dishwasher Safe Parts	Jug, lid, and blades (top rack)
Cleaning Instructions	Wipe base with damp cloth; wash detachable parts in warm soapy water
Spare Parts Availability	Jug, lid, and blade assembly available as spares
Warranty	2 years

Frequently Asked Questions - DOP214 LIVOO

How do I clean the Livoo DOP214 blender?

Unplug the blender. Remove the jug, lid, and blade assembly. Wash these parts in warm soapy water or place them on the top rack of the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base in water.

What is the maximum capacity of the blender?

The jug has a maximum capacity of 1.5 liters. Do not exceed the max fill line to avoid spillage.

Can I crush ice with this blender?

Yes, the Livoo DOP214 is designed to crush ice. Use the pulse function for best results. Ensure ice cubes are not too large.

The blender is not starting. What should I check?

Ensure the jug is properly locked onto the base. Check that the plug is securely inserted into a working outlet. If it still doesn't start, contact Livoo customer service.

Can I blend hot liquids?

Do not blend hot liquids above 60°C. Allow them to cool first. Blending hot liquids can cause pressure build-up and lid ejection.

What is the warranty period for this blender?

The Livoo DOP214 comes with a 2-year warranty against manufacturing defects. Keep your proof of purchase.

How do I prevent the blender from moving during operation?

Place the blender on a dry, flat, and stable surface. The non-slip feet help keep it in place. Do not operate with wet hands.

Are spare parts available for the DOP214?

Yes, spare parts such as the jug, lid, and blade assembly can be purchased from Livoo or authorized dealers.

Can I use the blender to make smoothies?

Absolutely. The Livoo DOP214 is ideal for smoothies. Add fruits, liquids, and ice, then blend using speed 2 or pulse.

What should I do if the blade assembly leaks?

Check that the sealing ring is properly fitted. Tighten the blade assembly by hand. If it still leaks, replace the sealing ring or contact Livoo support.

USER MANUAL DOP214 LIVOO

Black and white photo of aLivoo blender with handle and control knob (no visible text or symbols on body)

Reference 5 DOP214

Version 5 1.4

Language5 English

Livoo

Feel good moments

User manual

You have purchased a product LIVOO brand and we thank you. We take great care in design, ergonomics and ease of use of our products. We hope that this product will give you complete satisfaction.

This instruction manual is available too on our website www.livoo.fr

GENERALOINSTRUCTIONSO

PLEASE, TAKE TIME TO READ WELL THE INSTRUCTIONS FOR USE PARTICULARLY BEFORE THE FIRST USE.

A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed; we refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

1. Before use check that the voltage of your wall outlet correspond to the rated voltage manner.
2. Do not operate the appliance with a damaged cord or after malfunction or has been damaged in any manner.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard (*).
4. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
5. Do not let cord hang over edge of table or counter or touch hot surface.
6. To reduce the risk of electric shock, never operate this product with wet hands, spill liquid in the product or submerge it in water

Livoo

Feel good moments

User manual

1. Do not place an appliance on or near a hot gas or on a heated oven.

2. Do not use outdoors (Household use only).

3. Do not touch the cutting blades and do not insert any kind of object (knives, forks, spoons etc.) into the bowl while the product is operation. A spatula may be used only when the product is not in operation, avoiding the risk of serious injury.

4. Never operate the product when the bowl is empty and do not remove the bowl lid before the blades come to a complete stop.

5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

6. Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

7. Children shall not play with the appliance.

8. The appliance is not intended to be operated by means of external timer or separate remote control system.

9. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

10. Regarding the instructions for cleaning surfaces in contact with food or oil, thanks to refer to the below paragraph "cleaning" in manual.

11. There is potential injury for misuse.

12. Be careful when handling the sharp cutting blades, emptying

Livoo

Feel good moments

User manual

the bowl and during cleaning.

1. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use
2. Accessories, other than those supplied with the appliance, shall include instructions for their safety use.
3. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
4. Regarding the instructions for the use of accessories, operation times and speed settings, thanks to refer to the below paragraphs.

5. This appliance is intended to be used in household and similar applications such as:

6. staff kitchen areas in shops, offices and other working environments

7. farm houses
8. by clients in hotels, motels and other residential type environments
   • bed and breakfast type environments

TECHNICAL CHARACTERISTICS

Voltage: 220-240V \~ 50-60Hz

Power: 400W

Livoo

Feel good moments

User manual

KB: Max operating time: 3min ON 1 min OFF 10 cycles max for 600g vegetables/900g water

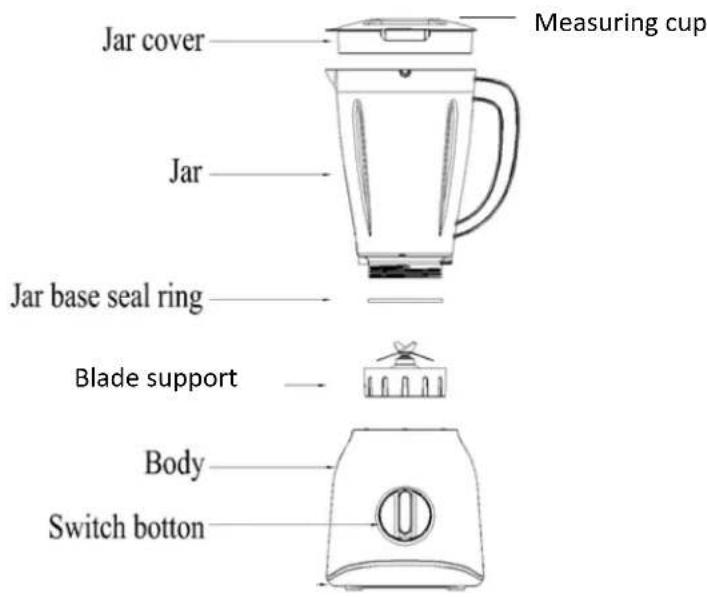

DESCRIPTION

Jar cover Measuring cup Jar Jar base seal ring Blade support Body Switch bottom

USE

All parts of the blender are to be thoroughly cleaned before being used for the first time.

WARNING

Always handle the blade/knife carefully as it is very sharp.

Never touch the moving parts

Never overfill the jar to avoid any spillage

Do not remove the lid and never replace accessories without switching off the appliance and if the accessory being used has not stopped working.

1. Wash the food to be mixed (fruits, vegetables...). If needed, peel skin or eliminate fruit stones, then cut into 15-15mm slices.
2. Put the slices into the blend cup, add some water (example: carrot 600g/water 900g), then close the cover and tight the cup by turning it.
3. Put the jar on its base.
4. Plug in the power source.

Max operating time: 3min ON 1 min OFF 10 cycles max for 600g vegetables/900g water

1. Chose the speed setting to start blending.
2. When you push "P" (Pulse) button, the blender will operate immediately. This function is setting for short-time blending (a few second), therefore it is easy to control the blending time. If you want to add ingredients while the blender is working, remove the measuring cup and place through

Livoo

Feel good moments

User manual

the lid opening.

When crushing ice or hard food, keep one hand firmly on the lid and use only speed 2

1. To stop appliance turn speed button to 0 position

Useful0tips:00

1. To achieve the best results when pureeing solid ingredients, place small portions into the jar one by one instead of placing a large quantity all at once.
2. When mixing solid ingredients start off first with a small amount of liquid. Gradually add more and more liquid through the opening in the lid.
3. Always place your hand on top of the blender when you are operating the appliance.
4. Be careful when processing hot liquids.
5. For stirring solid or very thick liquid ingredients we recommend that you use the blender in impulse mode to prevent the blades from becoming stuck.

CLEANING AND MAINTENANCE

1. Remove the plug from the main socket.
2. Take off the cover from the appliance and clean it and the jar with a soapy water
3. Use a dry damp cloth to clean.
4. Never immerse the base of your appliance in water

Simple0cleaning:0

Empty the jar and fill it with water. Place the jar on the motor base and turn the switch into the 'P' setting. Empty the jar and rinse until clean.

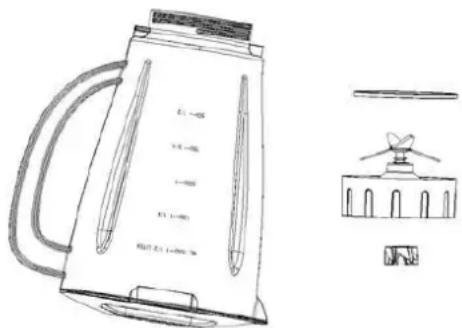

Thorough0cleaning0of0the0dismantled0glass0jar:0

Ensure that the jar is completely empty before disassembled it. Be careful when handling the cutting blade.

E1 - 400 E2 - 400 E3 - 400 E4 - 400 E5 - 400 E6 - 400 E7 - 400 E8 - 400 E9 - 400 E10 - 400 E11 - 400 E12 - 400 E13 - 400 E14 - 400 E15 - 400 E16 - 400 E17 - 400 E18 - 400 E19 - 400 E20 - 400 E21 - 400 E22 - 400 E23 - 400 E24 - 400 E25 - 400 E26 - 400 E27 - 400 E28 - 400 E29 - 400 E30 - 400 E31 - 400 E32 - 400 E33 - 400 E34 - 400 E35 - 400 E36 - 400 E37 - 400 E38 - 400 E39 - 400 E40 - 400 E41 - 400 E42 - 400 E43 - 400 E44 - 400 E45 - 400 E46 - 400 E47 - 400 E48 - 400 E49 - 400 E50 - 400 E51 - 400 E52 - 400 E53 - 400 E54 - 400 E55 - 400 E56 - 400 E57 - 400 E58 - 400 E59 - 400 E60 - 400 E61 - 400 E62 - 400 E63 - 400 E64 - 400 E65 - 400 E66 - 400 E67 - 400 E68 - 400 E69 - 400 E70 - 400 E71 - 400 E72 - 400 E73 - 400 E74 - 400 E75 - 400 E76 - 400 E77 - 400 E78 - 400 E79 - 400 E80 - 400

Dishwasher0safe0accessoriesWith0low0temperature0program0jar,0lid,0cup0

Livoo

Feel good moments

User manual

0 0Correct0Disposal0of0this0product0

0 0(Waste0Electrical060Electronic0Equipment)0

0 able0in0the0European0Union0and0other0European0countries0with0separate0collection0systems)0

The European Directive 2012/19/EU

on Waste Facilities Electrical and Electronic (WEEE)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes

at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product or their local authority office, for details of where and how they can take this item for environmentally safe recycling.

CE

• Photo no contractual
- Worried about the quality of his products the manufacturer reserves the right to make modifications without advance notice
