USER MANUAL DOS229 LIVOO

Black Livoo hairbrush with digital display and adjustable settings (no visible text or symbols on the brush itself)

Diagram showing exploded view of hair styling tools including a brush, comb, and clip with numbered labels

Figure 1

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Thank you for choosing a Livoo product!

EN

Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day.

That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en.

Livoo, your daily companion till social networks

@Livoo

@livoo_officiel

@Livoo

Safety Instructions

Please, take time to read well the instruction sheet before the first use and keep them for a future use.

A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

1. CAUTION: resistant to immersion in up to 1 meter of water for 30 minutes. Please observe these conditions.
2. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
3. WARNING: Ensure that the appliance is disconnected from the power supply before cleaning to avoid the risk of electric shock.
4. This appliance is for household use only.

5. An appliance should never be left unattended when it's plugged in, except when charging a rechargeable appliance.

6. Close supervision is necessary when this appliance is used by, on, or near children or invalids.

7. Use this appliance only for its intended use as described in this manual.
8. Keep the cord away from heated surfaces.
9. Never drop or insert any object into any of the appliance's openings.
10. Do not use outdoors or operate where aerosol products are being used, or where oxygen is being administered.
11. Please do not expose the device to temperatures less than -10^ or greater than +40^ , to direct sunlight, or to dust.
12. Make sure the cord is disconnected from the groomer when storing.
13. Do not use an extension cord or a voltage converter with this appliance.
14. Do not wrap the cord around the appliance.
15. Shaver, wet shaver, animal clipper, hair clipper, and appliances for manicure and pedicure can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
16. WARNING: Detach the hand-held part from the supply cord before cleaning it in water.
17. Use only accessories that are supplied with the appliance.
18. WARNING: For the purposes of charging, only use the detachable USB cable provided.
19. This device contains batteries that cannot be replaced.
20. If you want to use your device with an adaptor (not supplied) instead of USB cable, only used adaptor with power supply 5V.
21. The battery must be removed from the appliance before it is scrapped.
22. The appliance must be disconnected from the supply mains when removing the battery.

23. The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

24. The battery is to be disposed of safely

25. This appliance is intended to be used in households and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments
- Farm houses
- By clients in hotels, motels and other residential type environments
- Bed and breakfast type environments

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Technical Specifications

Input: DC 5 V 1 A - Li ion battery: 800mAh - Power: 2.96Wh - Charging time: 90min - Battery life: 120 min - IPX7 waterproof: withstands immersion in up to 1 m of water for 30 min

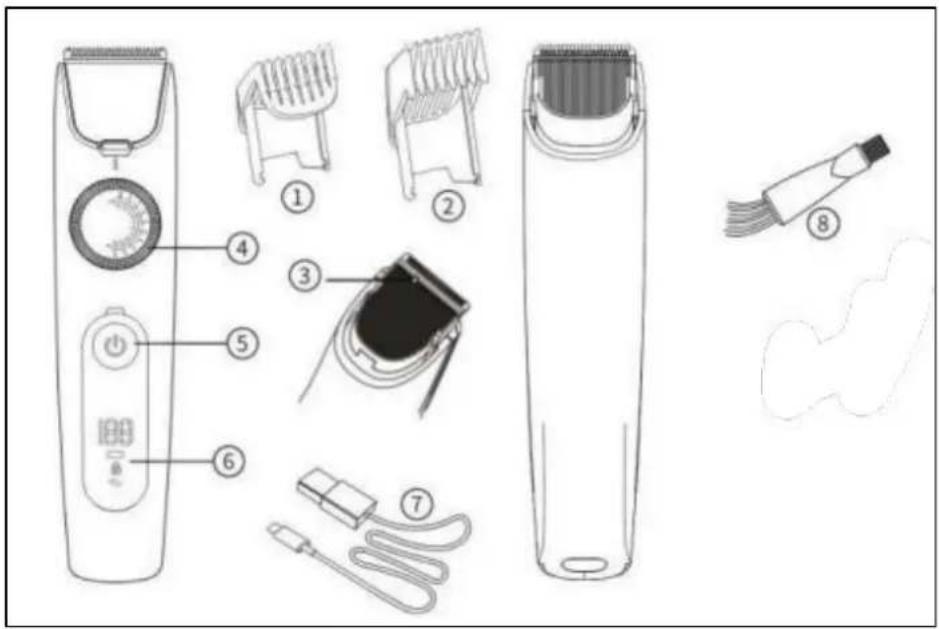

Drawing of the device

1	Shoe 0.5-10 mm
2	Comb 10.5-20 mm
3	Mower blade
4	Cutting height selection wheel

5	On/off
6	LED screen
7	Charging cable
8	Brush

Battery charging

Before first use, fully charge the battery using the included USB cable. Connect it to a USB port capable of delivering the necessary voltage (laptop, computer, AC charger, car charger, etc.). Carefully adhere to the maximum charging voltage of the device (5V) to avoid damage to the device. Do not use the device while charging. The battery indicator is displayed on the screen and flashes when the device needs to be charged. When the battery is charged, it is fixed and indicates full charge.

Use of the device

Travel Lock: This device is equipped with an automatic lock to prevent accidental activation during travel. To activate it, press the on/off button for 3 seconds, the lock symbol appears on the screen. To turn it off, press the on/off button again for 3 seconds. The countdown to unlock appears on the screen and the device starts up again.

Cutting Length Adjustment:

The selection wheel allows you to choose between 20 cutting heights from 1 to 20mm.

To attach a clog:

Hold your chosen hoof with your teeth facing up and the hollow side towards you. Guide the comb rails into the slots on the front of the clipper head and push it in.

To remove a clog:

Holding the clippers with the blades facing outwards, pull the guide comb firmly upwards.

Instruction for Haircut:

Hold the clippers with the hoof teeth facing upwards. Press on/off. Slowly lift the clippers, working up and down and outward through the hair or hair, trimming gradually.

Use the clipper's blade for a precise cut to get a straight, clean line on the legs.

Cleaning and maintenance

After each use:

Make sure the mower is turned off and unplugged. Brush the clipper blade with the brush provided to remove any accumulated hair.

To clean the outside of the unit, wipe with a damp cloth and wipe immediately.

To remove the precision blade from the clipper, push the blade firmly backwards. When the blade is worn out, you can replace it on the site livoo.fr reference PDDOS229-1. To put the blade back in place, proceed the other way around.

Cleaning the hooves: Remove the hoof. Rinse it under running water. Allow it to dry completely before reuse. Caution: Do not use harsh or corrosive cleaners on the appliance, its accessories, or the blade.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Correct disposal of the unit (Electrical and Electronic Equipment).

(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

• Non contractual illustration
- Product information is subject to change without prior notice.
