| Product Type | 3-head electric shaver |
| Brand | Livoo |
| Model | DOS232 |
| Power supply | USB-C 5V 1A (adapter not included) |
| Battery | Lithium-ion 3.7V 600mAh |
| Runtime | 60 minutes |
| Charging time | 90 minutes |
| Water resistance | IPX6 (washable under running water, do not immerse) |
| Shaving heads | 3 floating 360° heads |
| Head attachment | Removable magnetic assembly |
| Charge indicator | LED indicator (red when charging, white when charged) |
| Dimensions (approx.) | 17 x 6 cm |
| Weight (approx.) | 200 g |
| Included accessories | USB-C cable, cleaning brush |
| Usage | Dry or under water (rinsing) |
| Cleaning | Rinse heads under running water; wipe body with a damp cloth |
| Spare parts | Replacement shaver heads (ref. PDDOS232-1) |
| Safety | Disconnect before cleaning; do not immerse; max voltage 5V |
| Target audience | Domestic use |
| Warranty | Check with retailer |
Frequently Asked Questions - DOS232 LIVOO
User questions about DOS232 LIVOO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Shaver in PDF format for free! Find your manual DOS232 - LIVOO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DOS232 by LIVOO.
USER MANUAL DOS232 LIVOO
Figure 1
EN
Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day.
That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en.
Livoo, your daily companion till social networks
@Livoo
@livoo_officiel
@Livoo
Safety Instructions
Please, take time to read well the instruction sheet before the first use and keep them for a future use.
A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.
WARNING
To reduce the risk of electric shock:
- Do not use this appliance nearby water!
WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
-
Except when charging, always unplug this appliance from the electrical outlet immediately after using.
-
WARNING: Ensure that the appliance is disconnected from the power supply before cleaning to avoid the risk of electric shock.
-
This appliance is for household use only.
-
Do not immerse appliance in water.
-
An appliance should never be left unattended when it's plugged in, except when charging a rechargeable appliance.
-
Close supervision is necessary when this appliance is used by, on, or near children or invalids.
-
Use this appliance only for its intended use as described in this manual.
-
Keep the cord away from heated surfaces.
-
Never drop or insert any object into any of the appliance's openings.
-
Do not use outdoors or operate where aerosol products are being used, or where oxygen is being administered.
-
Please do not expose the device to temperatures less than -10^ or greater than +40^ , to direct sunlight, or to dust.
-
Make sure the cord is disconnected from the groomer when storing.
-
Do not use an extension cord or a voltage converter with this appliance.
-
Do not wrap the cord around the appliance.
-
Shaver, wet shaver, animal clipper, hair clipper, and appliances for manicure and pedicure can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
-
The parts that have to be fixed must be installed so they cannot fall into water.
-
WARNING: Detach the hand-held part from the supply cord before cleaning it in water.
-
Suitable for cleaning under a running tap.
-
Use only accessories that are supplied with the appliance.
-
WARNING: For the purposes of charging, only use the detachable USB cable provided.
- This device contains batteries that cannot be replaced.
- If you want to use your device with an adaptor (not supplied) instead of USB cable, only used adaptor with power supply 5V.
- The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
- The battery must be removed from the appliance before it is scrapped.
- The appliance must be disconnected from the supply mains when removing the battery.
- The battery is to be disposed of safely
- This appliance is intended to be used in households and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments
- Farm houses
- By clients in hotels, motels and other residential type environments
- Bed and breakfast type environments
(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.
Technical Specifications
Input: DC 5 V1A - Battery: 3.7 V-600mAh - Autonomy: 60 min - Charging time: 90 min - IPX6 waterproof: cleaning and water-cooling, without immersion - 3 floating heads 360°C
After each use:
Make sure the mower is turned off and unplugged. Brush the shaver heads with the brush provided to remove any accumulated hairs.
Never immerse the device in water.
To clean the body of the device, wipe it with a damp cloth and dry it immediately.

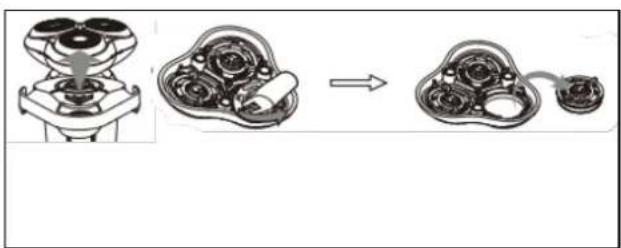

To change the shaver heads (Figure 2): Remove the magnetic head assembly from the body of the machine. Pull the heads carefully. You can replace them on the site www.livoo.fr reference PDDOS232-1. To put them back in, insert them into the side notches and press lightly.
Cleaning the shaver: Rinse the heads under running water. Allow to dry completely before reuse.
Warning: Do not use aggressive or corrosive cleaners on the appliance, its accessories, or the blade.

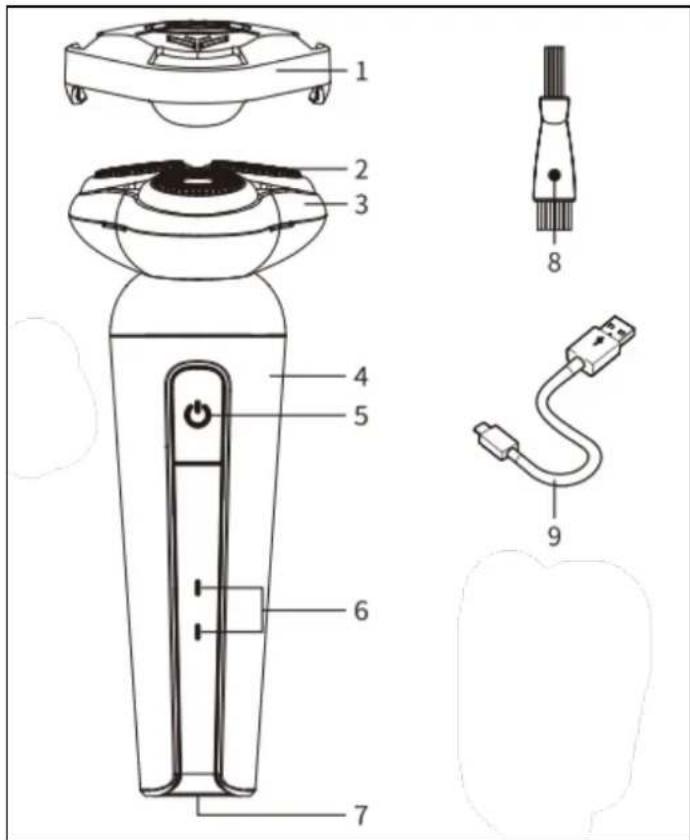

Drawing of the device
| 1 | Lid |
| 2 | Shaver heads |
| 3 | Magnetic head assembly |
| 4 | Body of the device |
| 5 | Bouton on/off |
| 6 | Charging and operating indicator light |
| 7 | USB port |
| 8 | Brush |
| 9 | USB C Cable |
Battery charging
Before first use, fully charge the battery using the included USB cable. When the light is red, plug it into a USB port that can deliver the necessary voltage (laptop, computer, AC charger, car charger, etc.). Carefully adhere to the maximum charging voltage of the device (5V) to avoid damage to the device. Do not use the device while charging. The indicator light turns white when the device is fully charged..
Using the device
Cleanse and dry your face. Remove the lid and press on/off. The function indicator light will illuminate. Move the razor against your skin in the direction of the hair. When you're done, press on/off again.
(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.
• Non contractual illustration
- Product information is subject to change without prior notice.
