CD229 - Fridge POLAR - Free user manual and instructions

Product type	Refrigerated counter display
Brand	POLAR
Model	CD229
Dimensions (H x W x D)	686 x 696 x 568 mm
Net weight	64 kg
Power supply	230 V / 50 Hz
Power	160 W
Current	1.2 A
Temperature range	0 °C to 12 °C
Net capacity	120 liters
Refrigerant	R600a (50 g)
Number of shelves	2 shelves supplied
Interior lighting	Yes, with switch
Defrost type	Manual (automatic via control panel)
Control panel	Digital with SET button and temperature adjustment
Exterior material	Steel and plastic
Door gasket	Removable for cleaning
Adjustable feet	Yes, for leveling
Maintenance and cleaning	Soapy water, do not use abrasive cleaners
Safety	Grounding mandatory, do not use outdoors
Spare parts	Interior bulb available

Frequently Asked Questions - CD229 POLAR

How to adjust the operating temperature?

Press the SET button to make the display flash, then use the ▲ and ▼ buttons to select the desired temperature. Press SET again to confirm.

How to perform manual defrost?

Press and hold the defrost button for 6 seconds to start the automatic cycle. The defrost indicator lights up.

What to do if the appliance does not turn on?

Check that the appliance is plugged in and the mains socket is live. If the cord is damaged, contact a POLAR authorized technician.

How to clean the condenser?

POLAR recommends calling a POLAR agent or a qualified technician to clean the condenser to extend the appliance's lifespan.

How to replace the interior light bulb?

The interior bulb is a spare part. Contact your POLAR dealer or a qualified electrician for replacement.

Why is water leaking under the appliance?

Check that the appliance is level. Use the adjustable feet to level it.

The appliance makes an abnormal noise, what to do?

Check if any screws or nuts are loose and tighten them. Also make sure the appliance is installed on a flat and stable surface.

How much space should be left around the appliance for good ventilation?

Leave at least 20 cm of distance between the appliance and walls or other objects to ensure sufficient air circulation.

Can medical supplies be stored in this appliance?

No, this appliance is not designed to store medical supplies. Use it only for food preservation.

What is the temperature range of the refrigerator?

The temperature can be set between 0 °C and 12 °C according to factory settings.

USER MANUAL CD229 POLAR

Refrigerated Merchandiser

Instruction manual

Exterior view of a modern glass appliance with three-tiered rack-mounted dish (no visible text or symbols)

NL Refrigerated Merchandiser 8 Handleiding

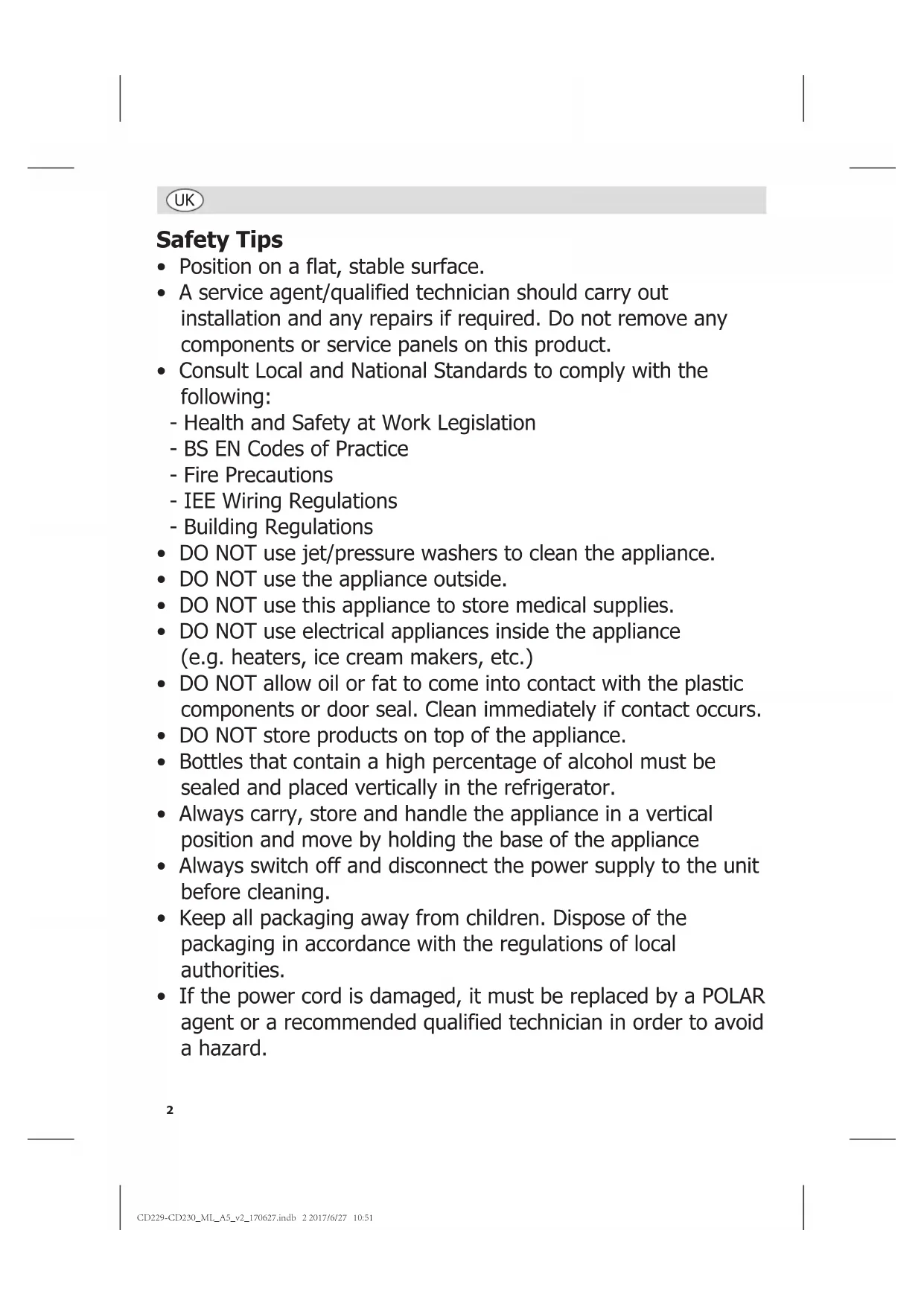

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT use electrical appliances inside the appliance (e.g. heaters, ice cream makers, etc.)
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.

UK

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Polar recommend that this appliance is PAT tested on an annual basis to ensure the product remains safe.

Caution Risk of Fire

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

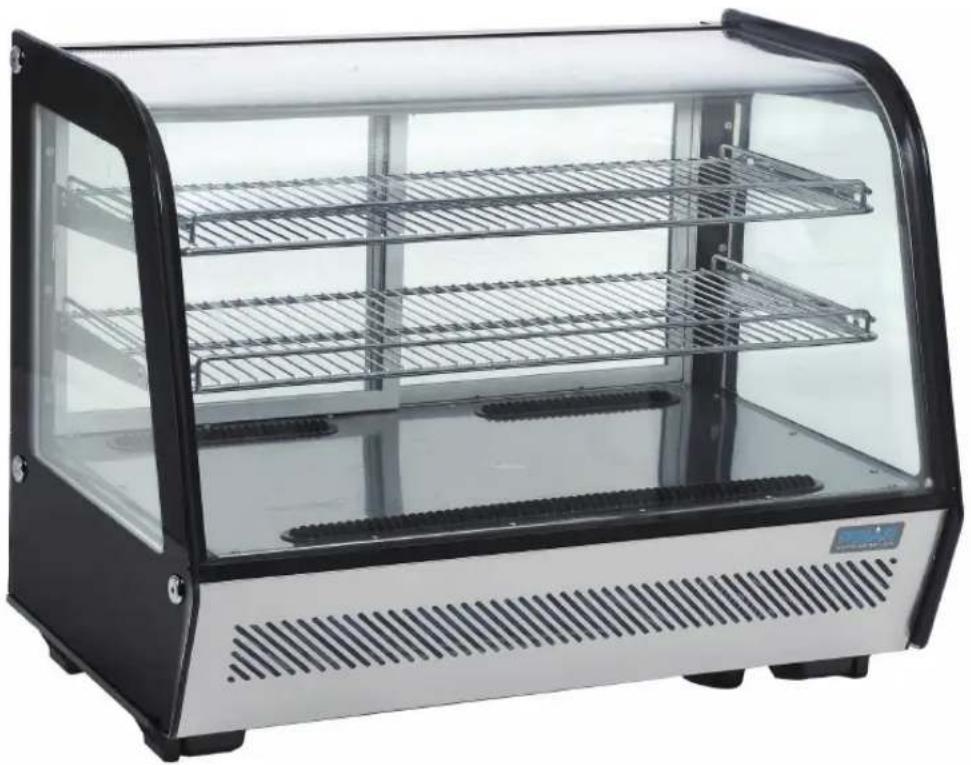

CD229 POLAR Refrigerated Display Merchandiser 120 litre

CD230 POLAR Refrigerated Display Merchandiser 160 litres

Pack Contents

• POLAR Counter-Top Refrigerated Merchandiser

- Instruction manual

- Shelves x 2

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

UK

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Operation

Control Panel

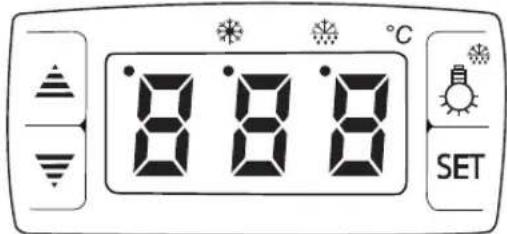

The control panel is located below the doors on the rear of the appliance.

888 C SET

Turn On

1. Close the doors of the appliance
2. Connect the appliance to a mains power supply
3. Press the button to turn the light On or Off as required.

Setting the Operating Temperature

1. Press the SET button. The display will flash
2. Press the or buttons to display the required temperature.
3. Press the SET button to store the temperature

Table of Controller Parameters

The operating parameters of this appliance have been preset for optimum performance and to maximise the life of the appliance

Display Parameter Preset Value Range
E1 Lower set temperature 0°C -20°C to 2°C
E2 Upper set temperature 12°C 2°C to 45°C
E3 Temperature buffer 4°C 1°C to 10°C
E4 Temperature buffer time delay 3 minutes 0 to 10 minutes
E5 Fixed parameter 0	DO NOT CHANGE
E6 Fixed parameter 00	DO NOT CHANGE
F1	Defrost period	25 minutes	1 to 60 minutes
F2	Defrost interval	6 hours	1 to 24 hours
F3	Defrost temperature	20°C 0°C to 22°C
F4	Centigrade/Fahrenheit	0°C °C/°F

Should the parameter need adjusting:

1. Press and hold the SET button for six seconds. The "E1" parameter is displayed
2. Press the or buttons until the required value is displayed
3. Press the SET button to store the new value and cycle to the next parameter

NOTE: The controller times out after 10 seconds if no buttons are pressed

Manual Defrost:

Press and hold the button for 6 seconds to begin automatic defrost. The defrost light illuminates

Cleaning, Care & Maintenance

1. Switch off and disconnect from the power supply before cleaning.
2. The doors can be removed for ease of cleaning
3. Clean the interior of the appliance as often as possible
4. Do not use abrasive cleaning agents. These can leave harmful residues
5. Clean the door seal with warm soapy water
6. Always wipe dry after cleaning

Replacing the Interior Lamp

Call your POLAR dealer or a qualified electrician, the Lamp Assembly is available to purchase as a spare part.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance. POLAR recommend that a POLAR agent or qualified technician clean the condenser.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Fault Probable Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician

UK

Fault Probable Cause Solution
The appliance turns on, but the temperature is too high/ low	Too much ice on the condenser Defrost	st the appliance
	Condenser blocked with dust Call POLAR or qualified technician
	Doors are not shut properly Check doors are shut and seals are not damaged
	Appliance is located near a heat source, in the direct sunlight or air flow to the condenser is being interrupted	Move the refrigerator to a more suitable location
	Ambient temperature is too high Increase ventilation or move appliance to a cooler position
	Unsuitable foodstuffs are being stored in the appliance	Remove any excessive hot foodstuffs or blockages to fan
	Appliance is overloaded Reduce the amount of food stored in the appliance
	Factory default parameters adjusted Call POLAR or qualified technician
The appliance is leaking water	The appliance is not properly levelled	Adjust the screw feet to level the appliance (if applicable)
The appliance is unusually loud	Loose screw/nut Check and tighten all nuts and screws
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary
The display lamp does not illuminate	Lamp needs replacing Call POLAR or qualified technician
	Light not turned on Ensure Light button has been pressed properly
Door does not shut Dirt/obstacle in runners Clean runners

Technical Specifications

Model	Voltage	Power (W)	Current (A)	Temperature Range	Capacity (Litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
CD229	230V50Hz	160	1.2	0°C to 12°C	120	R600a (50g)	686 x 696 x 568	64
CD230	230V50Hz	160	1.2	0°C to 12°C	160	R600a (65g)	686 x 874 x 568	71

Electrical Wiring

POLAR appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

8.8.8 C SET

Inschakelen

888 C SET

Mise sous tension

888 C SET

Einschalten

888 C SET

Accensione

8 8 8 C SET

Encendido

888 °C SET

Ligar

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d’équipement •Gerätetyp •Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento	Display Merchandiser - 120LtrDisplay Merchandiser - 160Ltr
Model • Modèle • Modell • Modello • Modelo • Malli	CD229CD230
Application of Council Directives(s)Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) •Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho	Low Voltage Directive (LVD) 2014/35/EUEN 60335-1:2012 +A11:2014EN 60335-2-49:2003 +A1:2008 +A11:2012EN 62233:2008Electro-Magnetic Compatibility (EMC) Directive 2014/30/EUEN 55014-1:2006 +A1:2009 +A2:2011EN 55014-2:2015EN 61000-3-2:2014EN 61000-3-3:2013Restriction of Hazardous Substances Directive (RoHS) 2011/65/EU
Producer Name • Naam fabrikant • Nom du producteur • Names des Herstellers • Nome del produttore • Nombre del fabricante •Nome do fabricante	Polar
Producer Address • Adres fabrikant • Adresse du producteur •Anschrift des Herstellers • Indirizzo del produttore • Dirección del fabricante • Endereço do fabricante	Fourth Way,Avonmouth,Bristol,BS11 8TBUndited Kingdom

20 ^th June 2017

Ashley Hooper

Technical & Quality Manager

POLAR

REFRIGERATION

http://www.polar-refrigerator.com/

CD229-CD230_ML_A5_v2_170627
