Product Type	Thermal line printer
Printing Method	Thermal line matrix
Maximum Print Speed	350 mm/s (2800 dot lines/s)
Print Resolution	203 dpi (8 × 8 dots/mm)
Supported Paper Widths	80 mm and 58 mm (with separator)
Dimensions (W × D × H)	125 × 165 × 108 mm
Weight	Approx. 1.3 kg
Power Supply	AC adapter 37AD5: input 100-240 V AC, 50/60 Hz, output 24 V DC, 2.1 A
Power Consumption	Approx. 50 W (average), 2 W (standby), 0.2 W (USB power off)
Available Interfaces	USB, RS-232C, Ethernet, Bluetooth, Wireless LAN depending on model
Cutter System	High-speed auto cutter
Sensors	Paper end, paper near end, cover open, cutter error
User Memory	384 KB (storage of logos and user-defined characters)
Barcode Types	UPC-A/E, JAN, ITF, CODE39, CODE128, CODABAR, CODE93, PDF417, QR Code, GS1-DataBar
Print Head Life	200 km or 200 million pulses
Cutter Life	2 million cuts (80 mm paper) / 1.5 million (58 mm paper)
Operating Conditions	5 to 45 °C, 10 to 90% RH (non-condensing)
Recommended Maintenance	Periodic cleaning of thermal head and platen with ethyl alcohol every 2-3 months
Safety Precautions	Do not expose to moisture, heat, dust; use only specified adapter; do not disassemble
Repairability	Contact Citizen Systems dealer; do not repair yourself
Supplied Accessories	AC adapter, power cord, separator, USB cable, cable cover, sample roll, quick start guide
Standards and Certifications	UL, C-UL, FCC Class A, CE marking, CAN ICES-3(A)/NMB-3(A)

Frequently Asked Questions - CTS751 CITIZEN

How to load paper in the CTS751 printer?

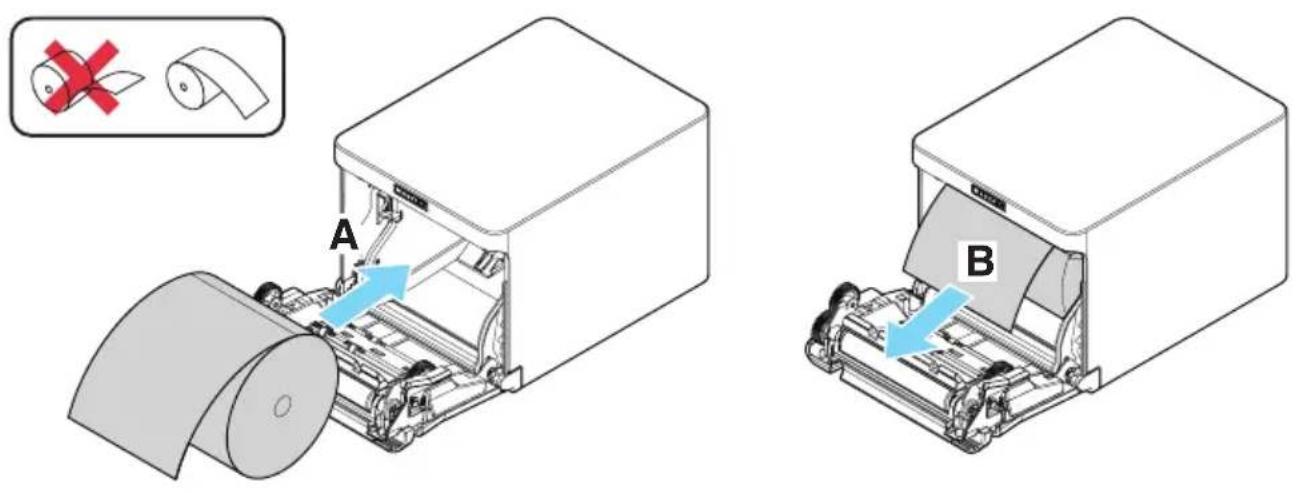

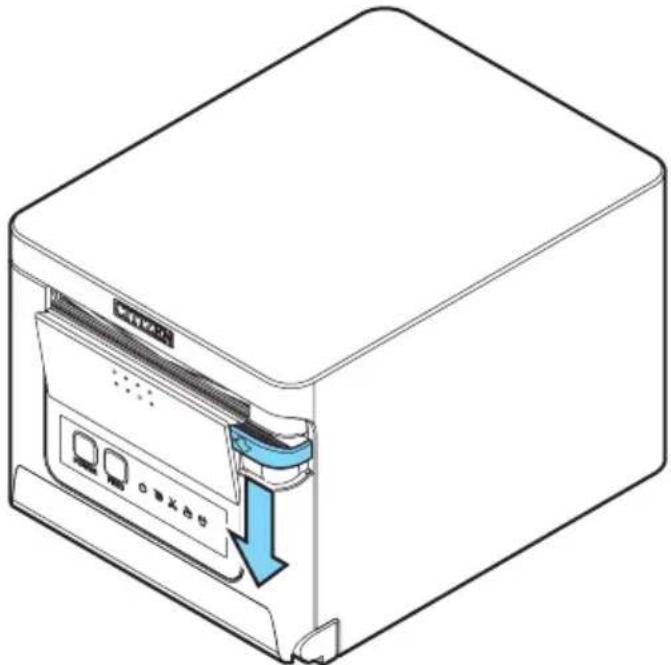

Open the paper cover by pressing the opening lever, place the roll with the printable side facing up, pull a few centimeters of paper straight outward, then close the cover until it clicks. The paper advances and is cut automatically.

What to do in case of cutter error (CUTTER LED flashes)?

Open the paper cover, carefully remove any jammed paper or foreign objects, reload the roll, close the cover and press the FEED key. If the problem persists, contact your dealer.

How to clean the print head?

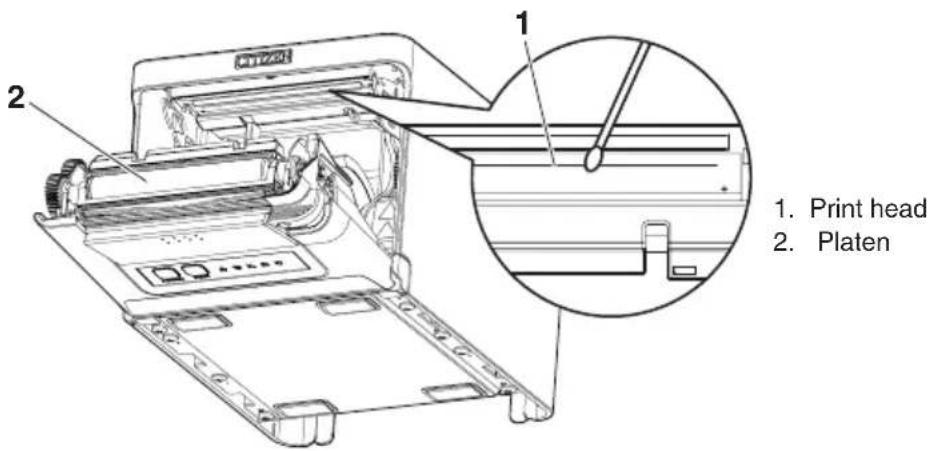

Turn off the printer, open the cover, wait for the head to cool, then use a cotton swab moistened with ethyl alcohol to remove dirt and dust from the head and platen. Perform this operation every 2 to 3 months.

What types of paper are compatible?

Use roll thermal paper of width 80 mm or 58 mm (with separator), thickness 53 to 85 µm, max outer diameter 83 mm, core inner diameter 12 mm and outer diameter 18 mm. Recommended brands include Nippon Paper, Oji Paper, Mitsubishi Paper Mills and Koehler.

How to connect the printer via Bluetooth?

Ensure Bluetooth is enabled on the host, search for devices: the printer appears as 'CT-S751_XX' (XX = last 2 digits of BD address). For initial pairing, enter the access key corresponding to the last 4 digits of the address printed on the self-test.

What do the LED indicators on the control panel mean?

POWER (green): power on; PAPER (green): solid = paper end, flashing = paper near end; CUTTER (green): flashing = cutter error; COVER (green): on = cover open; SERVICE (orange): flashing = internal anomaly. Refer to the manual for details.

The printer does not print, what to check?

Check that the printer is powered on (POWER LED on), paper is properly loaded, cover is closed, interface cable is well connected, and no error is indicated by LEDs. Perform a self-test by holding the FEED key while powering on.

Can I use a power adapter other than the one supplied?

No, use only the specified AC adapter (model 37AD5). Using another adapter may cause fire, electric shock, or damage the printer.

How to adjust the paper near end sensor?

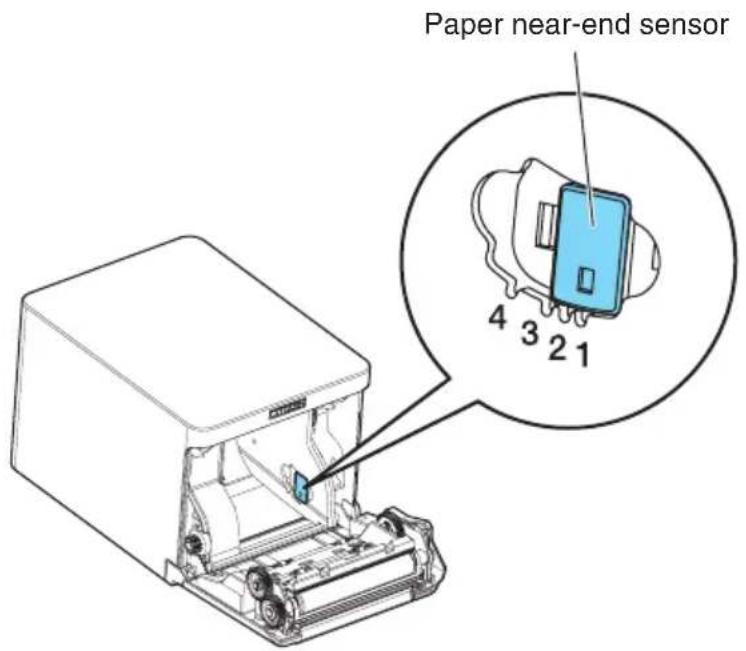

Gently press the sensor and move it left or right according to the roll diameter. Positions are marked: position 1 (approx. ø22 mm), 2 (ø25 mm), 3 (ø29 mm), 4 (ø34 mm). Factory setting is position 1.

The printer emits smoke or strange odor, what to do?

Stop printing immediately, turn off the printer and unplug it from the power outlet. Contact your Citizen Systems dealer. Do not attempt to repair the device yourself.

USER MANUAL CTS751 CITIZEN

LINE THERMAL PRINTER

MODEL CT-S751

User's Manual

Mode d'emploi

Benutzerhandbuch

Manuale dell'utente

Manual de Usuario

Line drawing of a rectangular electronic device with ports and a lid (no text or symbols)

Compliance Statement for European Users

CE marking shows conformity to the following criteria and provisions:

Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), and RoHS directive (2011/65/EU)

Full text of the EU declaration of conformity is available at the following internet address:

http://www.citizen-systems.co.jp/english/support/download/printer/others/eu_doc/

IMPORTANT: This equipment generates, uses, and can radiate radio frequency-energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCCRules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

CAUTION: Use shielded cable for this equipment.

Sicherheitshinweis

This Class A Information Technology Equipment (ITE) complies with Canadian CAN ICES-3(A)/NMB-3(A).

This Information Technology Equipment (ITE) does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

• Before using this product, be sure to read through this manual. After having read this manual, keep it in a safe, readily accessible place for future reference.
  ● The information contained herein is subject to change without prior notice.
• Reproduction or transfer of part or all of this document in any means is prohibited without permission from Citizen Systems.
• Note that Citizen Systems is not responsible for any operation results regardless of omissions, errors, or misprints in this manual.
• Note that Citizen Systems is not responsible for any trouble caused as a result of using options or consumables that are not specified in this manual.
• Except explained elsewhere in this manual, do not attempt to service, disassemble, or repair this product.
• Note that Citizen Systems is not responsible for any damage attributable to incorrect operation/handling or improper operating environments that are not specified in this manual.
• Data is basically for temporary use and not stored for an extended period of time or permanently. Please note that Citizen Systems is not responsible for damage or lost profit resulting from the loss of data caused by accidents, repairs, tests or other occurrences.
• If you find omissions, errors, or have questions, please contact your Citizen Systems dealer.
• If you find any pages missing or out of order, contact your Citizen Systems dealer for a replacement.

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

• iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
• EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
• QR Code is a registered trademark of DENSO WAVE INCORPORATED.
• Ethernet is a registered trademark of Fuji Xerox Corporation.
• Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  ● CITIZEN is a registered trademark of Citizen Watch Co., Ltd.
  ● All other trademarks are the property of their respective owners.
• Citizen Systems use these trademarks in accordance with the license of relevant owners.

Copyright© CITIZEN SYSTEMS JAPAN CO., LTD. 2019

SAFETY PRECAUTIONS...WHICH SHOULD BE STRICTLY OBSERVED

Before using this product for the first time, carefully read these SAFETY PRECAUTIONS. Improper handling may result in accidents (fire, electric shock or injury).

In order to prevent injury to operators, third parties, or damage to property, special warning symbols are used in the User's Manual to indicate important items to be strictly observed.

• After having read this Manual, keep it in a safe, readily accessible place for future reference.
• Some of the descriptions contained in this manual may not be relevant to some printer models.

The following describes the degree of hazard and damage that could occur if the printer is improperly operated by ignoring the instructions indicated by the warning symbols. Be sure to read this information carefully.

WARNING

Neglecting precautions indicated by this symbol may result in fatal or serious injury.

CAUTION

Neglecting precautions indicated by this symbol may result in injury or damage to property.

This symbol is used to alert your attention to important items.

This symbol is used to alert you to the danger of electric shock or electrostatic damage.

This symbol denotes a request to unplug the printer from the wall outlet.

This symbol is used to indicate that the power supply must be grounded.

This symbol is used to indicate useful information, such as procedures, instructions or the like.

This symbol is used to indicate prohibited actions.

PRECAUTIONS ON PRINTER INSTALLATION

WARNING

Do not use or store this product in a place where it will be exposed to:

* Flames or moist air.
* Direct sunlight.
* Hot airflow or radiation from a heating device.
* Salty air or corrosive gases.
* Ill-ventilated atmosphere.
* Chemical reactions in a laboratory.
* Airborne oil, steel particles, or dust.
* Static electricity or strong magnetic fields.

- These locations create the risk of printer damage, as well as product failure, overheating, emission of smoke, fire, or electric shock. They can also result in fire or electric shocks and so should always be avoided.

■ Do not drop any foreign object nor spill liquid into the printer. Do not place any object on the printer either.
■ Do not drop any metallic object such as paper clips, pins or screws into the printer.
■ Do not place a flower vase, pot, or anything containing water on the printer.
■ Do not spill coffee, soft drinks, or any other liquid into the printer.
■ Do not spray insecticide or any other chemical liquid over the printer.
- Dropping a metallic foreign object into the printer, may cause printer failure, fire, or electric shock.
Should it occur, immediately turn the printer off, unplug it from the supply outlet, and call your local Citizen Systems dealer.

Do not handle the printer in the following ways:

■ Do not subject the printer to strong impacts or hard jolts (e.g., being stepped on, dropped or struck).
■ Never attempt to disassemble or modify the printer.
- These actions create the risk of printer damage, as well as product failure, overheating, emission of smoke, fire, or electric shock.
They can also result in fire or electric shocks and so should always be avoided.

■ This device is not appropriate to be used where a child may be present. Install, store, or use the device where it cannot be reached by a child.

- Electric appliances could cause an unexpected injury or accident if they are handled or used improperly.

- Keep the power cord and signal cables out of the reach of children. Also children should not be allowed to gain access to any internal part of the printer.

- The plastic bag the printer came in must be disposed of properly or kept away from children. Wearing it over the head may lead to suffocation.

CAUTION

Do not use the printer under the following conditions.

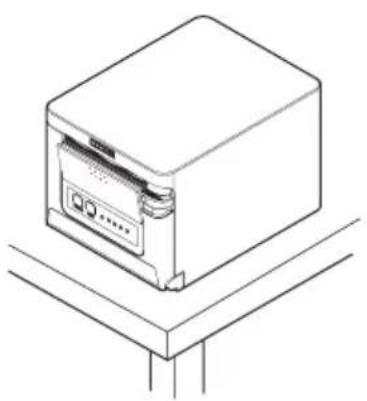

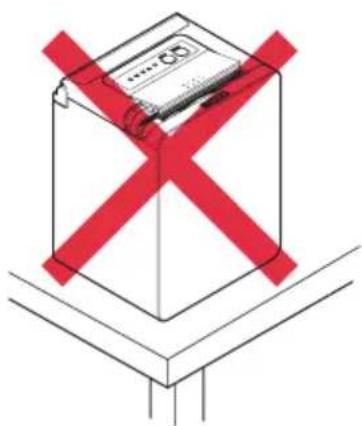

■ Avoid locations subject to vibration or instability.
■ Avoid locations where the printer is not level.
• The printer may fall and cause an injury.
- The quality of printing may deteriorate.
- Do not obstruct the printer's air vents.
■ Do not place anything on the printer.
■ Do not cover or wrap the printer in cloth or blankets.
- Doing so could cause heat to build up and deform the case or start a fire.
■ Avoid using the printer near a radio or TV set or from supplying it from the same electric outlet as these appliances.
■ Avoid using the printer interconnected with a cable or cord that has no protection against noise.

(For interconnections, use shielded or a twisted pair of cables and ferrite cores, or other anti-noise devices.)

■ Avoid using the printer with a device that is a strong source of noise.
- The printer may have an adverse effect on nearby radio or TV transmissions. There may also be cases when nearby electrical appliances adversely influence the printer, causing data errors or malfunction.
■ Installed in any orientation other than those specified.
- Malfunction, failure, or electric shock may result.
■ Connect the printer to a ground.
• Electric leakage may cause an electric shock.
- Do not connect the printer's ground to any of the following:
• A gas explosion could result.

* Gas piping
* Telephone line ground
* Lightning rod

• If lightning strikes a large surge of current may cause fire or shock.
  * Water pipes
• Plastic water pipes should not be used for grounding. (Those approved by a Waterworks Department may be used.)

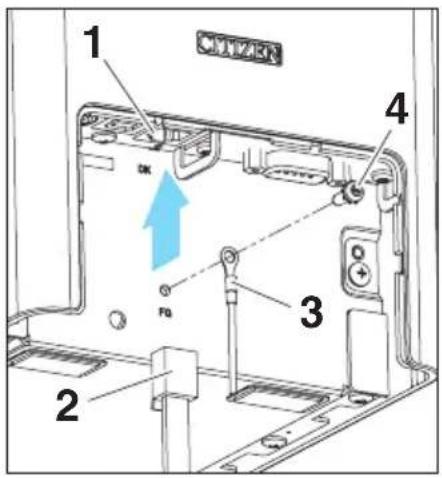

  ■ Before connecting or disconnecting the grounding lead to or from the printer, always unplug it from the electric outlet.

PRECAUTIONS IN HANDLING THE PRINTER

WARNING

Please observe the following precautions for power source and power cord:

■ Do not plug or unplug the power cord with a wet hand.
■ Use the printer only at the specified supply voltage and frequency.
■ Use only the specified AC adapter with the printer.
■ Use only the power cord that comes with the printer, and never use the supplied power cord with another device.
■ Check to make sure that the supply outlet from which the printer is powered has a sufficient capacity.
■ Do not supply the printer from a power strip or current tap shared with other appliances.
■ Do not plug the power cord into an electric outlet with dust or debris left on the plug.
■ Do not use a deformed or damaged power cord.
■ Do not move the printer while its power is on.

- Neglecting to handle it properly may result in printer failure, emission of smoke, fire, or electric shock.

- An overload may cause the power cord to overheat, catch fire, or the circuit breaker to trip.

■ Do not allow anything to rest on the power cord. Do not place the printer where the power cord may be stepped on.

■ Do not subject the power cord to severe bending, twisting, or pulling. Do not carry the product while it is in this state either.

■ Do not attempt to modify the power cord unnecessarily.

■ Do not place the power cord near any heating device.

- Neglecting these cautions may cause wires or insulation to break, which could result in electric leakage, electric shock, or printer failure. If the power cord sustains damage, contact your Citizen Systems dealer.

■ Do not leave things around the electric outlet.

■ Supply power to the printer from a convenient electric outlet, readily accessible in an emergency.

- Pull the plug to immediately shut it down in an emergency.

■ Insert the power plug fully into the outlet.

■ If the printer will not be used for a long time, disconnect it from its electric outlet.

■ Hold the plug and connector when plugging or unplugging the power cord or signal cable after turning off the printer and the appliance connected to it.

CAUTION

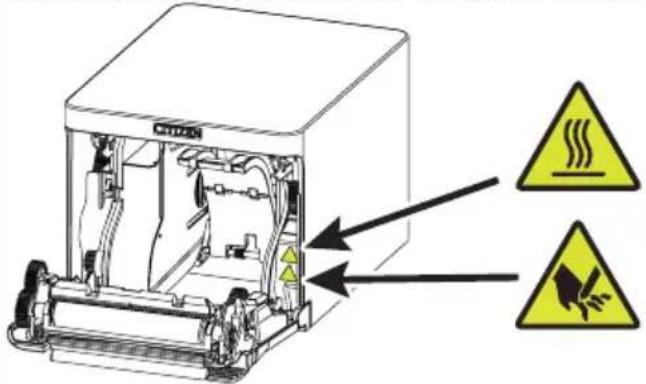

Caution label is attached in the position shown in the following figure. Carefully read the handling precautions before using the printer.

These labels indicate that the head becomes hot, so touching it may cause burns, and touching the auto cutter when opening the paper cover may cause cuts on hands.

Do not transport this printer with the paper roll inside.

- Printer failure or damage may occur.

To prevent possible malfunction or failure observe the following.

■ Do not open the paper cover during printing.
■ Avoid operating the printer without paper properly loaded.
■ Avoid the use of paper not complying with specifications.

- May result in poor print quality.

■ Avoid using torn pieces of paper or paper spliced with plastic adhesive tape.

■ Avoid forcibly pulling already loaded paper by hand.

■ Avoid using a sharp pointed device to operate panel buttons.

Be sure to firmly insert the cable plugs into their mating sockets.

- A cross connection may damage the printer's internal electronics or the host system's hardware.

Only use the printer with devices that have designated solenoid specifications for the cash drawer interface connector.

- Neglecting this caution may result in malfunction or failure.

To prevent injury and printer failures from worsening, observe the following:

■ Do not touch the printing surface of the thermal head.
■ Do not touch any of the moving parts (e.g., paper cutter, gears, active electric parts) while the printer is working.
In case of trouble do not attempt to repair the printer. Ask Citizen Systems service for repair.
■ Be careful that the covers do not pinch your hands or fingers.
■ Be careful of the sharp edges on the printer. Do not allow them to injure you or damage property.
- May result in electric shock, burn, or injury.

If the printer emits smoke, an odd smell, or unusual noise while printing, immediately abort the current print session and unplug the printer from the electric outlet.

DAILY MAINTENANCE

Observe the following precautions for daily maintenance.

■ When cleaning the printer, always turn it off and unplug it from the electric outlet.
■ Use a soft, dry cloth for cleaning the surface of the printer case.

For severe stains, use a soft cloth slightly dampened with water.

Never use organic cleaning solvent such as alcohol, paint thinner, trichloroethylene, benzene, or ketone. Never use a chemically processed cleaning cloth.

■ To remove paper dust, use a soft brush.

CAUTION

The thermal head is at a dangerously high temperature immediately after printing.

Allow it to cool off before starting maintenance work.

THE TABLE OF CONTENTS

1. GENERAL OUTLINE .... 14

1.1 Features 14
1.2 Unpacking 15
1.3 Model Classification 16
1.4 Basic Specifications 16

2. EXPLANATION OF PRINTER PARTS......18

2.1 Printer Appearance .... 18
2.2 Inside the Paper Cover 20
2.3 Other Built-in Functions....21

3. SETUP....23

3.1 Connecting the AC Power Cord....23
3.2 Serial Interface Board....24
3.3 USB Interface 25

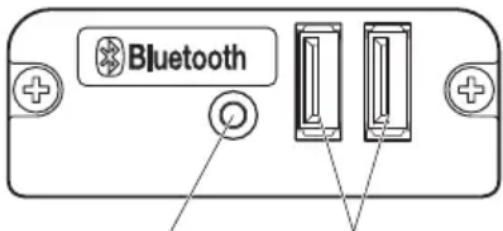

3.4 Bluetooth Interface Board....26
3.5 Bluetooth USB host interface board....29
3.6 Ethernet (LAN)/Wireless LAN Interface Board 35
3.7 USB Power Supply Port 41
3.8 Connecting the Cash Drawer 43
3.9 Precautions for Installing the Printer 45
3.10 Adjusting the Paper Near-end Sensor....46
3.11 Loading Paper 47
3.12 58-mm Width Roll Paper Partition ....49

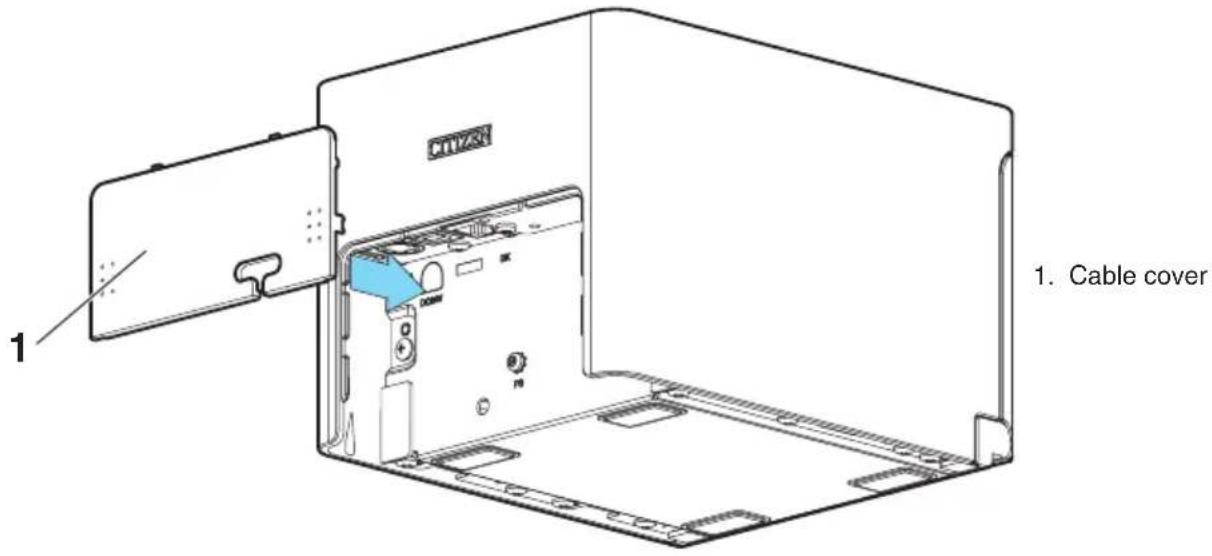

3.13 Mounting the Cable Cover....50
3.14 Precautions for Creating Applications and Practical Operations .....51
3.15 Download Site for Various Electronic Files....51

4. MAINTENANCE AND TROUBLESHOOTING ....52

4.1 Periodic Cleaning 52
4.2 Clearing a Cutter Error 53
4.3 Self Test....54
4.4 Hexadecimal Dump Printing....55
4.5 Error Indications .... 56
4.6 Paper Jams 58
4.7 Precautions for Performing Printing for Which Printing Speed Changes 58

5. OTHER ....59

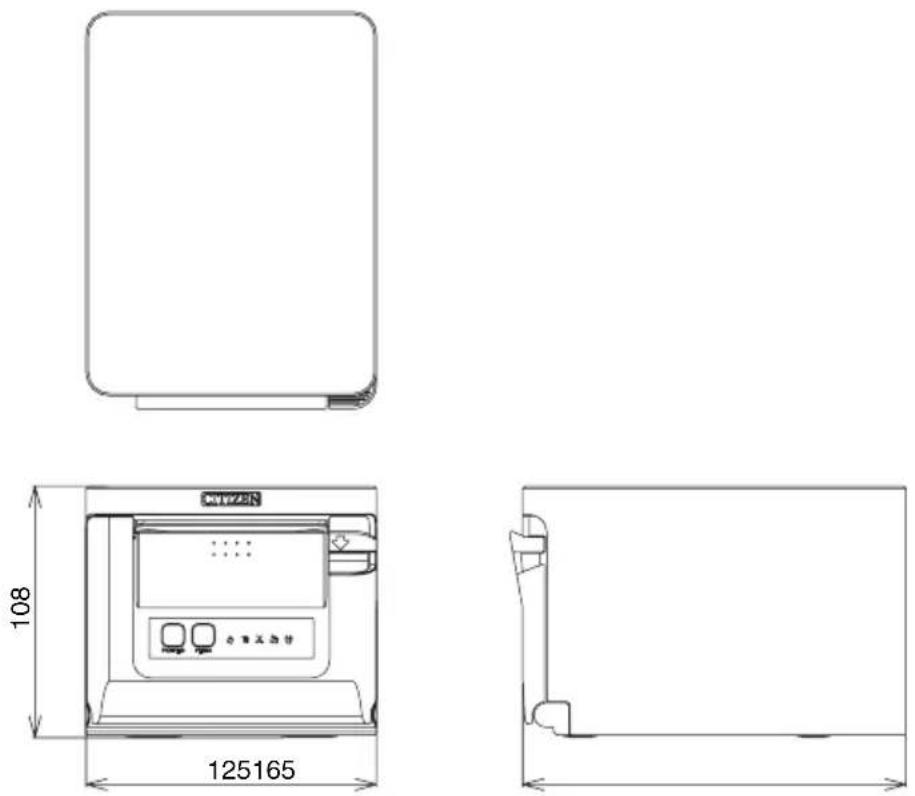

5.1 External Views and Dimensions....59
5.2 Printing Paper....60

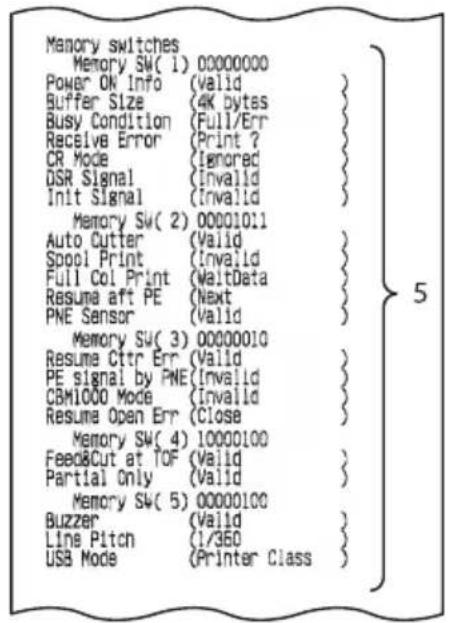

5.3 Manual Setting of Memory Switches....61

1. GENERAL OUTLINE

The CT-S751 line thermal printer series is designed for use with a broad array of terminal equipment including data, POS, and kitchen terminals.

These printers have extensive features so they can be used in a wide range of applications.

1.1 Features

● High-speed printing at up to 350 mm/sec possible
- Stylish design
- Compact size with the lowest possible height
● The front paper eject structure enables use where the height is restricted
● Compliant with IPX1 for drip-proof capabilities *
● Support for paper widths of 80 mm and 58 mm
● High-speed cutter employed
- USB interface included as standard
● Equipped with a standard USB power supply port
- Interchangeable interface board
- XML/Web print function included (wired LAN or wireless LAN model)
- USB host function capable of controlling peripheral devices included (wired LAN or Bluetooth USB host model)
● Printer status and errors indicated by five LEDs
● Built-in drawer kick interface
- USB-linked power OFF function available
● 16 level greyscale and clear printing
● Paper saving function available
● Support for the JIS X0213 third and fourth level Kanji character sets
● Support for the simplified and traditional Chinese character sets and Hangul character set
● Support for UTF-8 using commands
● Various customizations using the memory switches possible
- User created characters and logos can be saved in the user memory
● Support for barcodes including 2D barcodes
- Apple MFi certified Bluetooth communication support (Bluetooth model)

*: The product has been checked to determine that vertically falling drops of water will have no harmful effect, but the product is not guaranteed to be completely drip-proof.

1.2 Unpacking

Make sure the following items are included with your printer.

NAME	QUANTITY	ILLUSTRATION
Printer 1
AC Adapter (37AD5) 1
AC power cord 1
Partition 1
Cable clamp *1 1
L-shaped USB cable *2 1
Cable cover 1
Sample paper roll 1 roll
Quick Start Guide 2

*1: Provided with the RS model
*2: Included with the HBT model

1.3 Model Classification

Model numbers indicate printer features according to the following system.

1. Model name
2. Interface

RS: Serial RS-232C+USB

ET: Ethernet+USB

HET: Ethernet (USB host function) + USB

BT: Bluetooth+USB

HBT: Bluetooth (USB host function)

WF: Wireless LAN+Ethernet+USB

NN: USB

1. Market

U: North America

E: Europe

I: India

1. Body case color

WH: Pure white

BK: Black

Contact us in advance for special combinations, some of which may not be available.

1.4 Basic Specifications

Item Specifications
Model CT-S751
Print method Line thermal dot print method

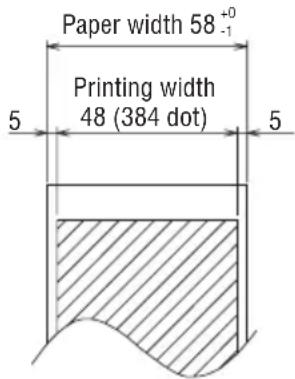

Print widths 72 mm/576 dots, 68.25 mm/546 dots, 64 mm/512 dots, 52.5 mm/420 dots, 48.75 m/390 dots, 48 mm/384 dots, 45 mm/360 dots, factory default 72 mm
Dot density	8 × 8 dots/mm (203 dpi)
Print Speed	350 mm/sec (maximum speed, print density level 100%, 2800 dot lines/sec)
Number of print columns *1	Font	Maximum number of characters (columns) / 80 mm	Maximum number of characters (columns) / 58 mm	Dot configuration (dots)
	Font A	48	35	12 × 24
	Font B	64	46	9 × 24
	Font C	72	52	8 × 16
Character size *2	Font A:1.50×3.00 mm, Font B:1.13×3.00 mm, Font C:1.00×2.00 mm

Item Specifications
Character type Alphan	numeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, WPC1258, Katakana, ThaiCode 11/18 (1Pass/3Pass), TCVN-3, Kanji (JIS first, second, third, and fourth level), Kana, extended characters, JIS X0213, GB18030, BIG5, KS Hangul, EUC Hangul
User memory 384 KB	(capable of storing user-defined characters and logos)
Bar code types UPC-A	A/E, JAN(EAN) 13 digits/8 digits, ITF, CODE39, CODE128, CODABAR (NW-7), CODE93, PDF417, QR Code, GS1-DataBar
Line spacing 4.25 mm	(1/6 inch) (Variable by command)
Paper roll Roll paper:	80 mm x max. ø83 mmPaper thickness: 53 to 85 μm (paper roll inner diameter 12 mm / outer diameter 18 mm)
Interface Serial (RS-232C standard), USB, Bluetooth+USB, LAN, wireless LAN+LAN, LAN (USB host function) (USB 2 port)), Bluetooth (USB host function) (USB 2 port))
Ethernet 100BASE-TX/10BASE-T
Wireless LAN IEEE802.11n, IEEE802.11a, IEEE802.11g, IEEE802.11b
Bluetooth Version: Bluetooth 3.0 + EDRProfile: SPP (Serial Port Protocol), iAP (iPod Accessory Protocol)Power class: Class2
USB power supply port	Max. 2.1 A
Cash drawer kick-out	Supports 2 cash drawers
Input buffer 4 K bytes	45 bytes
Supply voltage DC 24 V ±5%
Power consumption Approximately 50 W (average), 2 W or less (standby), 0.2 W or less (USB-linked power OFF state)
AC Adapter (37AD5)	Rated input: AC 100 to 240 V, 50/60 Hz, 150 VARated output: DC 24 V, 2.1 A
Weight	Approximately 1.3 kg
Outside dimensions	125 (W) × 165 (D) × 108 (H) mm
Operating temperature and humidity	5 to 45°C, 10 to 90% RH (no condensation)
Storage temperature and humidity	-20 to 60°C, 10 to 90% RH (no condensation)
Reliability	Print head life: 200 km, 200 million pulses (room temperature, room humidity, specified recommended paper, specified paper thickness), Auto cutter life: 2 million cuts (3-inch), 1.5 million cuts (2-inch) (room temperature, room humidity, specified recommended paper, specified paper thickness)
Safety standard *3	UL, C-UL, FCC Class A, CE Marking

Notes:

*1: The number of printable columns is selected using a memory switch.
The numbers of columns noted in this table refer to typical models. The number of columns varies depending on specifications.
*2: Characters appear small because the dimensions include a blank area surrounding each character.
*3: This standard applies when our AC Adapter (37AD5) is used.

2. EXPLANATION OF PRINTER PARTS

2.1 Printer Appearance

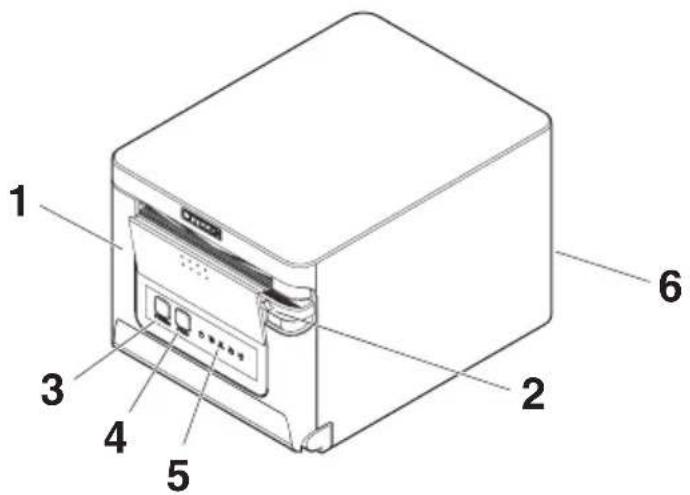

Names of parts

1. Paper cover

Open to load paper.

Also open to clear a cutter error.

* The paper cover cannot be used for manual cutting.

Refer to 4.2 Clearing a Cutter Error

1. Cover open lever

Use to open the paper cover.

1. POWER button

Hold down two or three seconds to switch power on or off.

1. FEED button

Press this button to feed paper.

In case of a cutter error, press the FEED button with the paper cover closed after removing the cause.

The printer enters the mode for setting memory switches and running self test.

Refer to 4.3 Self Test

Refer to 5.3 Manual Setting of Memory Switches

1. Operation panel

2. Rear connectors

Operation panel

The operation panel has five LEDs and two buttons.

	LED name Color Description
	POWER LED Green Lights when the power is on, turns off when the power is off.
	PAPER LED Green		Lights or flashes when no paper or low paper is detected.May also light or flash when other abnormalities are detected.
	CUTTER LED Green		Flashes when a cutter error is detected.May also light or flash when other abnormalities are detected.
	COVER LED Green		Lights or flashes when an open paper cover is detected.May also light or flash when other abnormalities are detected.
	SERVICE LED	Orange Flashes	when an unrecoverable printer abnormality is detected.

Refer to 4.5 Error Indications

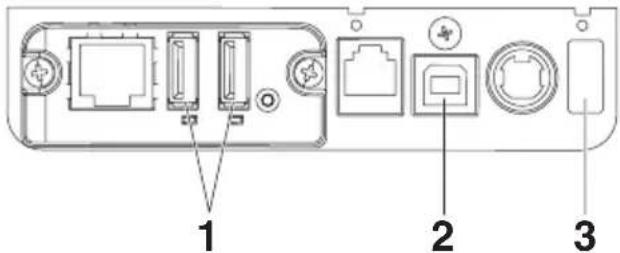

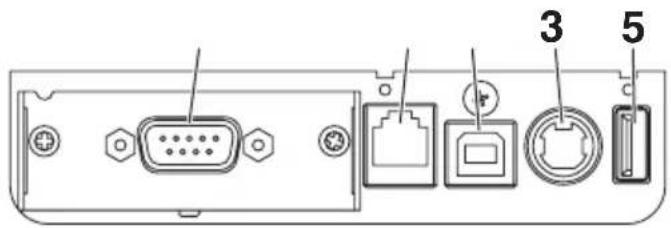

Rear connectors (serial interface example)

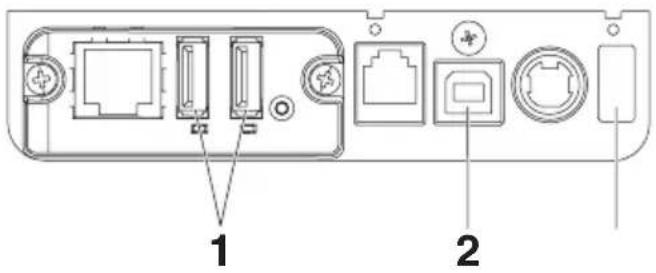

RS: Serial RS-232C + USB

1. Interface connector (serial, USB, etc.) Connect to the interface cable.
2. Cash drawer kick-out connector Connect to the cable from the cash drawer.
3. Power connector Connect to the AC adapter cable.

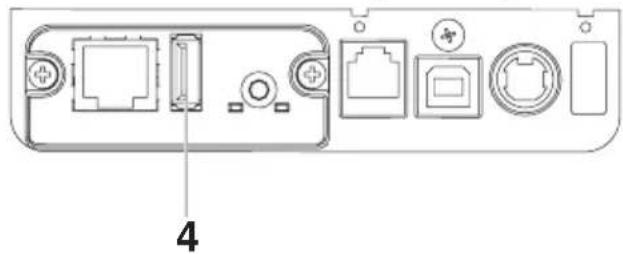

4. USB connector
5. USB power supply port Supply power to a USB device.

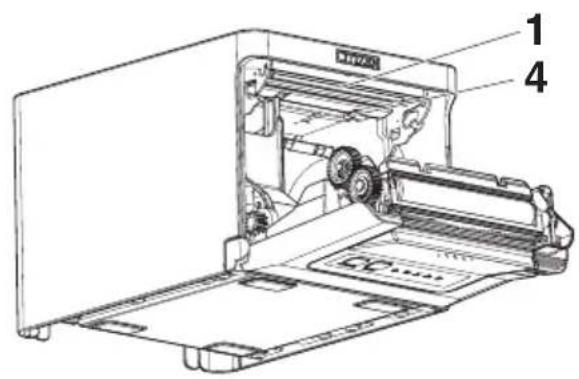

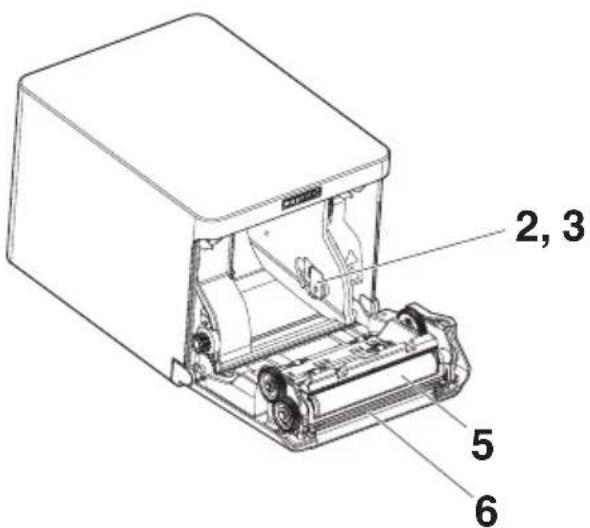

2.2 Inside the Paper Cover

1. Print head (thermal)

Prints characters and graphic data on paper (paper rolls).

1. Paper near-end (PNE) sensor

Detects when the paper is near the end of the roll. Adjust the position of the sensor to determine when it detects the end of the paper is near.

1. Button to change paper near-end sensor

Change the position of the paper near-end sensor to match the paper being used.

Refer to 3.10 Adjusting the Paper Near-end Sensor

1. Paper end (PE) sensor

Detects when there is no paper. Printing stops when this sensor detects there is no paper.

1. Platen

Feeds the paper.

Do not remove the platen except to do maintenance.

1. Auto cutter

Cuts the paper.

Refer to 5.3 Manual Setting of Memory Switches

2.3 Other Built-in Functions

• Buzzer
  Buzzes when errors occur or when operations or command operations are performed.

Refer to 4.5 Error Indications

- User memory

You can save user-defined logo and character data in this memory. Data remains stored in this memory even if the printer is turned off. For information on how to save data, refer to the Command Reference.

- Memory switch

Setting of various kinds of functions can be stored in memory. Settings remain stored in the memory even if the printer is turned off.

- USB-linked power OFF (When MSW6-3 of memory switch is set to ON)

When the printer is connected to PC by USB, the printer becomes the state of USB-linked power OFF after 3 seconds when PC power off or USB connection lost.

This mode is canceled when the PC is turned back on or when a USB connection is established.

CAUTION

■ Since the POWER LED is unlit when the state of USB-linked power OFF, it cannot be identified from the power OFF.
- Pressing the POWER button while the state of USB-linked power OFF turns on power normally.

● Paper saving functions

Memory switches MSW8-3 through MSW8-4 can be used to configure the settings below, which save paper.

- Top margin suppression

The printer back feeds the paper before printing which reduces the blank space at the top edge of the paper.

The back feed amount can be specified.

- Line gap reduce

Automatically compresses the linefeed amount between lines. The compression ratio can be specified.

CAUTION

Remove the partially cut paper before performing back feed for starting printing. The cut paper may be torn off in the next printing process, which may cause a problem.

● Auto side shift (MSW8-6)

This function dissipates heat load during frequent heat generation by a vertical ruled line or other specific head heating element.

If no data is received within 15 seconds after each cut or print, the print position is automatically slid N* dots to the right. The original print position is returned to at the next slide timing.

* N is the MSW8-6 setting value.

CAUTION

■ If the right margin is too narrow, this may result in some print characters being cut off.
■ This function is disabled under initial settings.
■ To enable this function, use MSW8-6 to specify an appropriate value for the maximum slide amount.

3. SETUP

3.1 Connecting the AC Power Cord

1. Turn off the power.

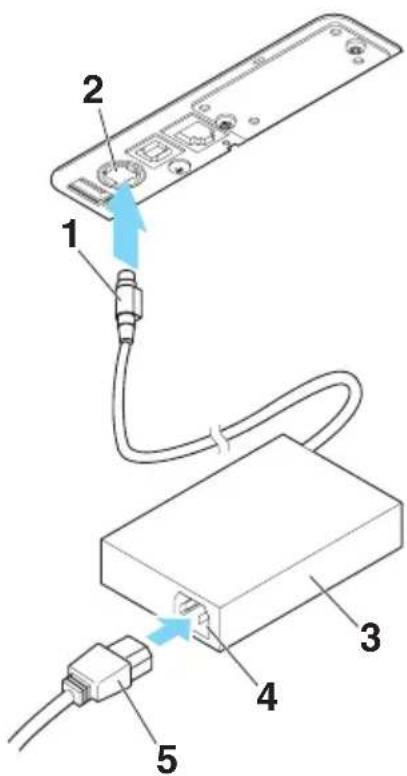

2. Connect the power connector to the AC adapter cable connector. Next, connect the AC power cord to the AC inlet, and insert the plug into an electric outlet.

1. Cable connector
2. Power connector
3. AC adapter
4. AC inlet
5. AC power cord

CAUTION

■ Use only the specified AC adapter.
■ Always hold the AC adapter's cable connector by the connector when removing or inserting it.
■ Use an AC power source that does not also supply power to equipment that generates electromagnetic noise.
■ Pulling on the AC power cord may damage it, cause a fire, electric shock, or break a wire.
If a lightning storm is approaching, unplug the AC power cord from the electric outlet. A lightning strike may cause a fire or electric shock.
- Keep the AC power cord away from heat generating appliances. The insulation on the AC power cord may melt and cause a fire or electric shock.
■ If the printer is not going to be used for a long time, unplug the AC power cord from the electric outlet.
■ Place the AC power cord so that people do not trip on it.

3.2 Serial Interface Board

Data can be exchanged by serial communication.

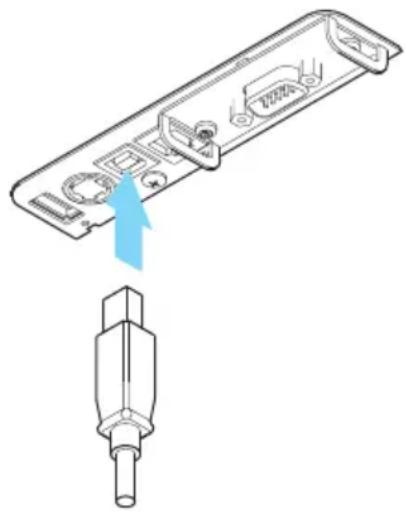

Connecting the Interface Cable

1. Turn off the power.

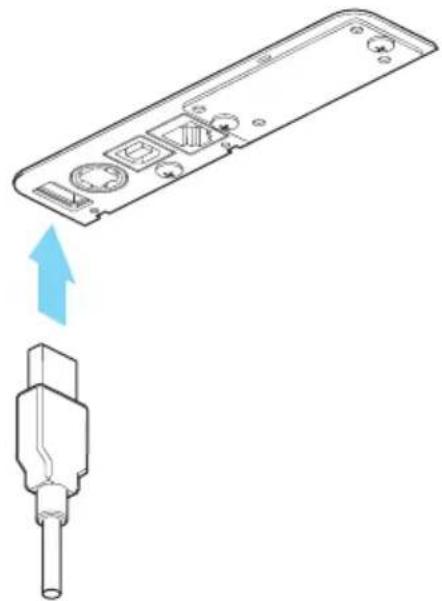

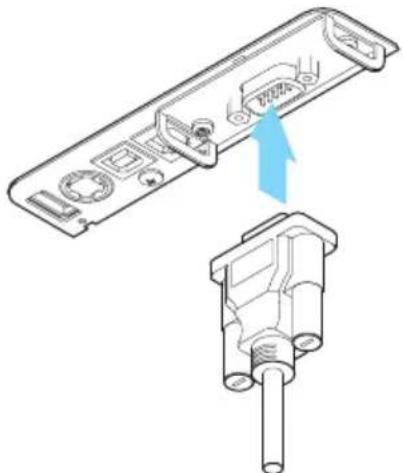

2. Confirm the orientation of the interface cable and connect it to the port.

Technical line drawing of a device component with an arrow indicating assembly or insertion (no text or symbols present)

1. Insert the other connector firmly into the interface port of the host computer.

CAUTION

■ When disconnecting the cable, always hold the connector.
■ Place the interface cable so that people do not trip on it.
■ Do not connect multiple interfaces at the same time.

Use a serial cable with the connection layout shown below.

9-pin (female) - 9-pin (female) cable

PrinterPC

Signal	Pin	Pin	Signal
RXD 2	2	RXD
TXD 3	3	TXD
DTR 4	4	DTR
SG	5	5	SG
DSR 6	6	DSR
RTS 7	7	RTS
CTS 8	8	CTS

3.3 USB Interface

Data can be exchanged by USB communication.

Specifications

Standard USB 2.0 specification-compliant

Communication speed Supports 12 Mbps (Full-Speed) transfer

Connecting the Interface Cable

1. Turn off the power.
2. Confirm the orientation of the interface cable and connect it to the port.

Technical line drawing of a device panel with an arrow pointing to a connector (no text or symbols present)

1. Insert the other connector firmly into the interface port of the host computer.

CAUTION

■ When disconnecting the cable, always hold the connector.
■ Place the interface cable so that people do not trip on it.
■ Do not connect multiple interfaces at the same time.
■ Be careful not to insert the USB cable into the cash drawer kick-out connector.
■ To connect more than one printer to a single computer by USB, you must change the serial number of the USB interface.
■ There are models with a USB port on the interface board side.
With such a model, do not connect USB cables to both the printer main unit side and interface board side.
If USB cables are connected to both, priority will be given to communication of the one connected to the port on the main unit side.

3.4 Bluetooth Interface Board

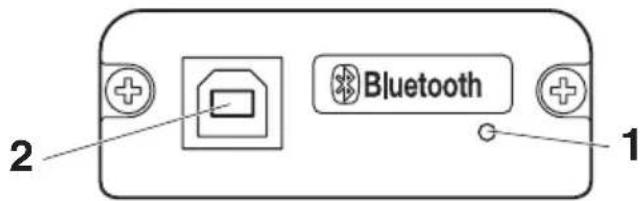

Names of parts

1. Status LED

The Bluetooth communication/connection/error status is indicated by this LED.

2. USB connector

Data can be exchanged by USB communication.

CAUTION

When using this interface board as a USB interface, do not connect USB cables to both the main unit side and interface board side.

If USB cables are connected to both, priority will be given to communication of the one connected to the connector on the main unit side.

Bluetooth status LED

Status Description LED Status
Detection standby (Discoverable)	Standing by for detection and connection
Connection standby (Connectable)	Standing by for connection
iOS connection	Data session un-opened
Communicating	iOS: data session openedOther OS: connec-tion established and communication in progress
Error Error or settings being configured		Unlit

Pairing operation

You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.

1. Detect Bluetooth devices
2. Configure pairing settings

1. Detecting Bluetooth devices

Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices.

This product will show up as "CT-S751_XX"(XX is last 2 digits of unique BD address.) when it is detected.

Select this product from among the detected devices.

Note: You can search for devices and change the names.

When memory switch MSW13-5 is set to "No Response," nothing is displayed by device detection.

You can temporarily switch this setting to device detection (detect mode) by opening the paper cover and holding down the FEED button for two seconds. Detect mode is exited when the connection between the host PC is terminated.

2. Configuring pairing settings

Normally, selecting the printer during device detection will transition directly to pairing settings.

CAUTION

Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection.

The operation required to configure pairing settings depends on whether SSP (secure simple pairing) is enabled on the host PC.

If SSP is enabled on the host PC, pairing can be achieved without additional operations.

If SSP is disabled on the host PC, you will be prompted to input a passkey.

Input the passkey as described below.

Passkey

Last four digits of the address on the self test printout (Letters A through F are uppercase)

Example: If the address is 01:23:45:67:89:AB the passkey is 89AB.

If you delete paring information from the host PC without deleting the corresponding pairing information on the printer, the printer may not show up if you detect devices again with the host PC.

To delete printer pairing information, open the paper cover and then hold down the FEED button for five seconds.

Deleting pairing information on the printer will put the printer into discovery mode.

Auto reconnection

With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection.

CAUTION

This function is enabled when shipped from the factory. (MSW13-6)

Auto reconnection can take some time to connect when the host is not an iOS device.

■ Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function.
- When you want Bluetooth communication to cut off after printing is complete
- When there are multiple iOS devices printing on the same printer
Under such conditions, disable auto reconnection.

Enabling and disabling auto reconnect

During self test, press the FEED button 3 times -> Auto reconnect = Valid

During self test, press the FEED button 4 times -> Auto reconnect = Invalid

At the end of self test, new setting will be printed as Auto reconnect [Valid] or [Invalid].

Refer to 4.3 Self Test

3.5 Bluetooth USB host interface board

In addition to printer control via Bluetooth communication, Bluetooth USB host interfaces can control peripheral devices connected via a USB port.

Connecting a Peripheral Device

1. Turn off the power.

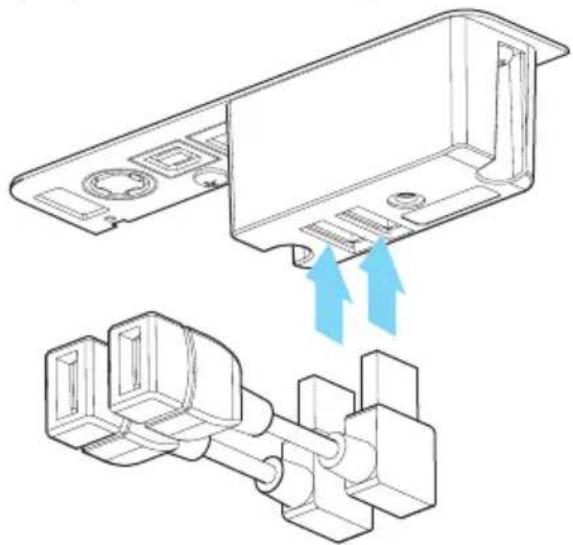

2. Connect the cable of a peripheral device to this port.

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows a connected pipe or connector (no text or symbols)

CAUTION

A peripheral device cannot be controlled if it is connected to the USB power supply port. Be sure to connect it to the USB port of the interface board.

Connecting a USB Device

The function assigned to each USB port differs.

Connect the USB device to be connected to the correct place in reference to the following figure.

1. For peripheral device control

Connect a peripheral device.

The connected peripheral device can be controlled.

2. For host computer communication

Connect with a host computer.

The printer and host computer will communicate via USB.

Refer to 3.3 USB Interface

3. For supplying power

Connect a mobile device or other USB device.

Power can be supplied to a connected USB device.

* This port does not support USB data communication.

Refer to 3.7 USB Power Supply Port

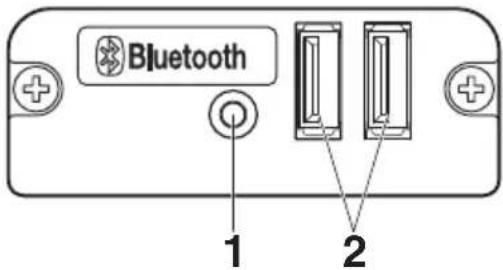

Names of parts

1. Panel button

Control this interface board.

2. USB 2 port

Connect a peripheral device.

CAUTION

■ Only connect peripheral devices specified by our company to the USB port.
■ Only plug in/remove peripheral devices when the printer power is turned off.

Pairing operation

You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.

1. Detect Bluetooth devices
2. Configure pairing settings

1. Detecting Bluetooth devices

Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices.

This product will show up as "CT-S751_XX"(XX is last 2 digits of unique BD address.) when it is detected.

Select this product from among the detected devices.

Note: You can search for devices and change the names.

When memory switch MSW13-5 is set to "No Response," nothing is displayed by device detection.

With these settings, pressing and holding the panel button for at least three seconds and then pressing it twice more places the product temporarily in a state where it will be found in device searching (discovery mode).

Discovery mode cancels when the product is connected to a host PC.

2. Configuring pairing settings

Normally, selecting the printer during device detection will transition directly to pairing settings.

CAUTION

Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection.

The operation required to configure pairing settings depends on whether SSP (secure simple pairing) is enabled on the host PC.

If SSP is enabled on the host PC, pairing can be achieved without additional operations.

If SSP is disabled on the host PC, you will be prompted to input a passkey.

Input the passkey as described below.

Passkey

Last four digits of the address on the self test printout (Letters A through F are uppercase)

Example: If the address is 01:23:45:67:89:AB the passkey is 89AB.

If you delete paring information from the host PC without deleting the corresponding pairing information on the printer, the printer may not show up if you detect devices again with the host PC.

When deleting pairing information, press and hold the panel button for at least three seconds, and after the buzzer sounds, press it four more times.

If successful, "Erase Bonded Device" is printed.

Deleting pairing information on the printer will put the printer into discovery mode.

Auto reconnection

With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection.

CAUTION

This function is enabled when shipped from the factory. (MSW13-6)

Auto reconnection can take some time to connect when the host is not an iOS device.

■ Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function.

- When you want Bluetooth communication to cut off after printing is complete

- When there are multiple iOS devices printing on the same printer

Under such conditions, disable auto reconnection.

Enabling and disabling auto reconnect

During self test, press the FEED button 3 times -> Auto reconnect = Valid

During self test, press the FEED button 4 times -> Auto reconnect = Invalid

At the end of self test, new setting will be printed as Auto reconnect [Valid] or [Invalid].

Refer to 4.3 Self Test

Panel button operation

Use the panel button on the rear of the Bluetooth board to operate this board.

Panel button USB port

● BT device search (MSW13-5) settings

1. Press and hold the panel button to turn on printer power.
2. Press the panel button within one second after starting the printer.

The setting changes in accordance with the number of times you press the panel button.

Two presses: Discovery possible

Three presses: No response

After these operations the printer restarts.

- Print the interface board state

After starting the printer, pressing the panel button once prints the interface board state.

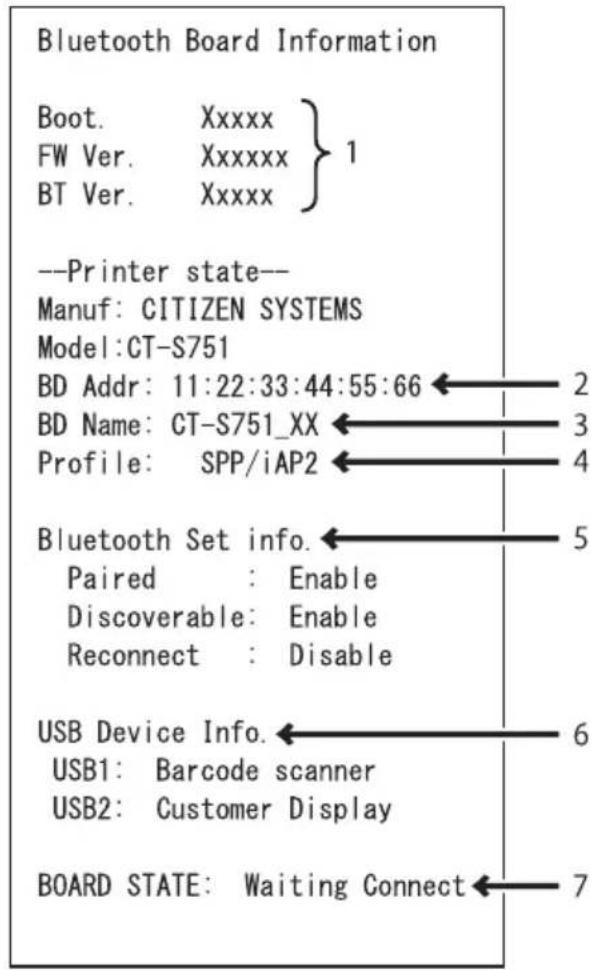

Print example

1. Board firmware version
2. Address of equipped Bluetooth module
3. Bluetooth name
4. Response profile in Bluetooth transmission
5. Bluetooth setting state

6. Board status

7. Name of connected USB device ("No connection" is displayed when there is no connection)

3.6 Ethernet (LAN)/Wireless LAN Interface Board

This section provides an overview of the interface board. For details on this board, including explanations about the USB host function and XML peripheral device support, refer to the separate manual.

Connecting the Interface Cable

1. Turn off the power.

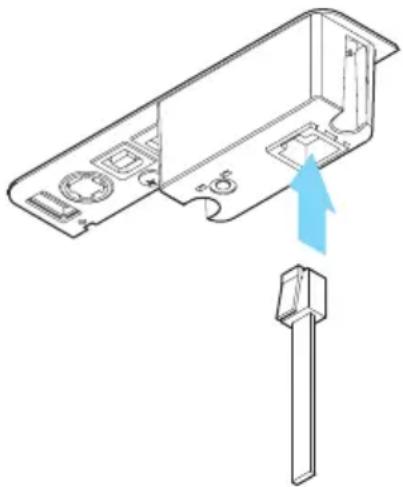

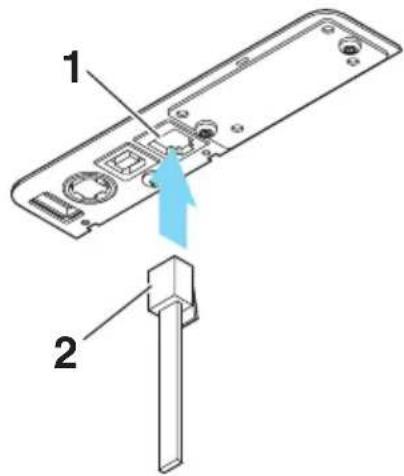

2. Confirm the orientation of the interface cable and connect it to the port.

Technical line drawing of a device casing with an arrow indicating a component or connection (no text or symbols present)

1. Connect the other connector to a hub, router, or similar device.

CAUTION

■ When disconnecting the cable, always hold the connector.
■ Place the interface cable so that people do not trip on it.
■ Do not connect multiple interfaces at the same time.
■ Hold the connector of the LAN cable perpendicular and straight when connecting or disconnecting it. Doing it at an angle may cause the connector to misconnect.

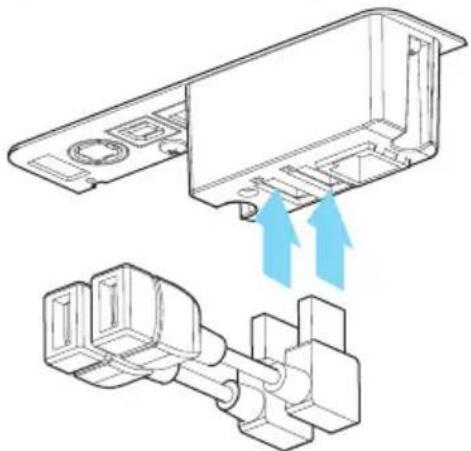

Connecting a Peripheral Device

1. Turn off the power.
2. Connect the cable of a peripheral device to this port.

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows connected pipe fittings (no text or symbols)

CAUTION

A peripheral device cannot be controlled if it is connected to the USB power supply port. Be sure to connect it to the USB port of the interface board.

Connecting a USB Device

The function assigned to each USB port differs.

Connect the USB device to be connected to the correct place in reference to the following figure.

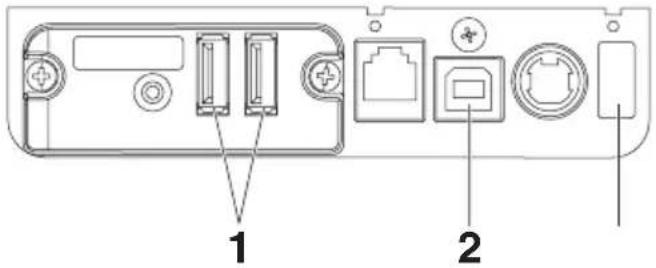

Ethernet USB host model

Wireless LAN

1. For peripheral device control

Connect a peripheral device.

The connected peripheral device can be controlled.

2. For host computer communication

Connect with a host computer.

The printer and host computer will communicate via USB.

Refer to 3.3 USB Interface

3. For supplying power

Connect a mobile device or other USB device.

Power can be supplied to a connected USB device.

* This port does not support USB data communication.

Refer to 3.7 USB Power Supply Port

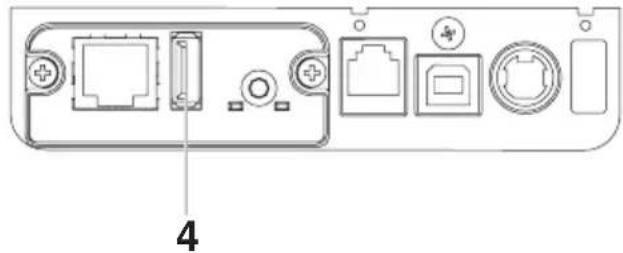

4. For wireless LAN adapter connection

Connect a wireless LAN adapter.

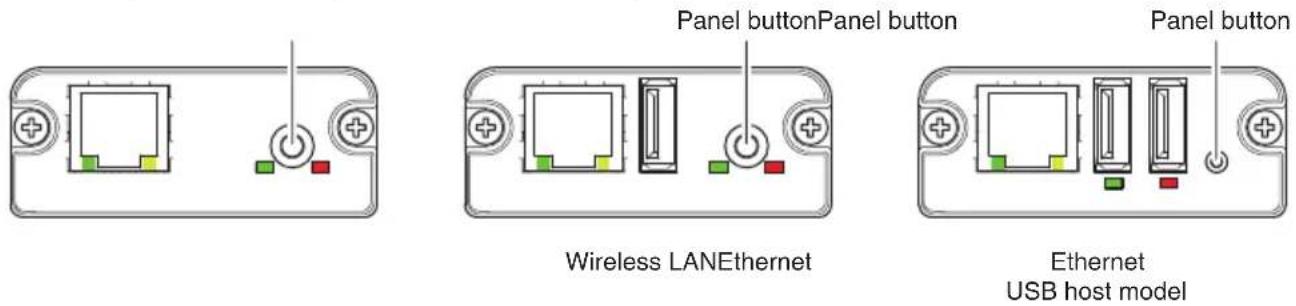

Panel button operation

Board operations are performed using the panel button on the rear of the LAN board.

- Enabling LAN connection

Turn on the printer. Operation of this board will start about 20 seconds later.

● Printing LAN setup information

Press the panel button.

- Entering setting mode

Hold down the panel button. A buzzer* will sound once to indicate that setting mode has been entered.

• You can use setting mode to read factory settings.
• If no operation is performed for 3 seconds in configuration mode, the mode switches back to normal mode.

- Returning to factory settings

Enter the board setting mode, and then hold down the panel button. This returns the board to its factory settings.

CAUTION

The board will automatically restart after this operation is complete. After clearing settings, you will need to re-configure network settings.

LED Functions

The tables below explain how to interpret LED indications.

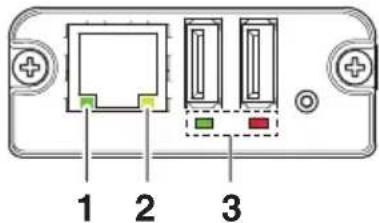

Wireless LANEthernet Ethernet
USB host model

1. Wired LAN transmission speed

Transmission speed LED (green)
100 Mbps Lit
10 Mbps/Not connected Unlit

2. Wired LAN connection/transmission status

Connection status LED (yellow)
Connected Lit
Not connected Unlit
Data transmission in progress	Flashing

3. Wired/Wireless LAN status

Connection status		LED (green)	LED (red)	Description
No printer connection		Unlit	—	Board is not connected with a printer.
Printer connec-tion	No network con- nection	Lit	Unlit	Board is connected with a printer.
	Connected by wired LAN	Lit	Flashing (1-second cycle)	Getting an IP address from the DHCP server over wired LAN.
	Wired LAN operation	Lit	Lit	Network operation being performed over wired LAN.
	Connected by wire- less LAN *	Flashing (2-second cycle)	Flashing (1-second cycle)	Connecting to an access point or getting an IP address from the DHCP server over wireless LAN.
	Wireless LAN opera-tion *	Flashing (2-second cycle)	Lit	Network operation being performed over wireless LAN.
Resource error		Alternate flashing (1-second cycle)		Board is unable to operate normally.
System error		Alternate flashing (0.2-second cycle)		Board is unable to operate normally.

*: Only when using wireless LAN

Web Manager

The interface board has a Web Manager function that can be used to connect to the board with a web browser and change board settings.

Starting up Web Manager

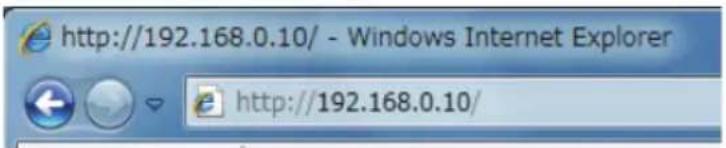

1. Start up a web browser.
2. In the address field, input the board's IP address and then press [Enter].

HOME Screen

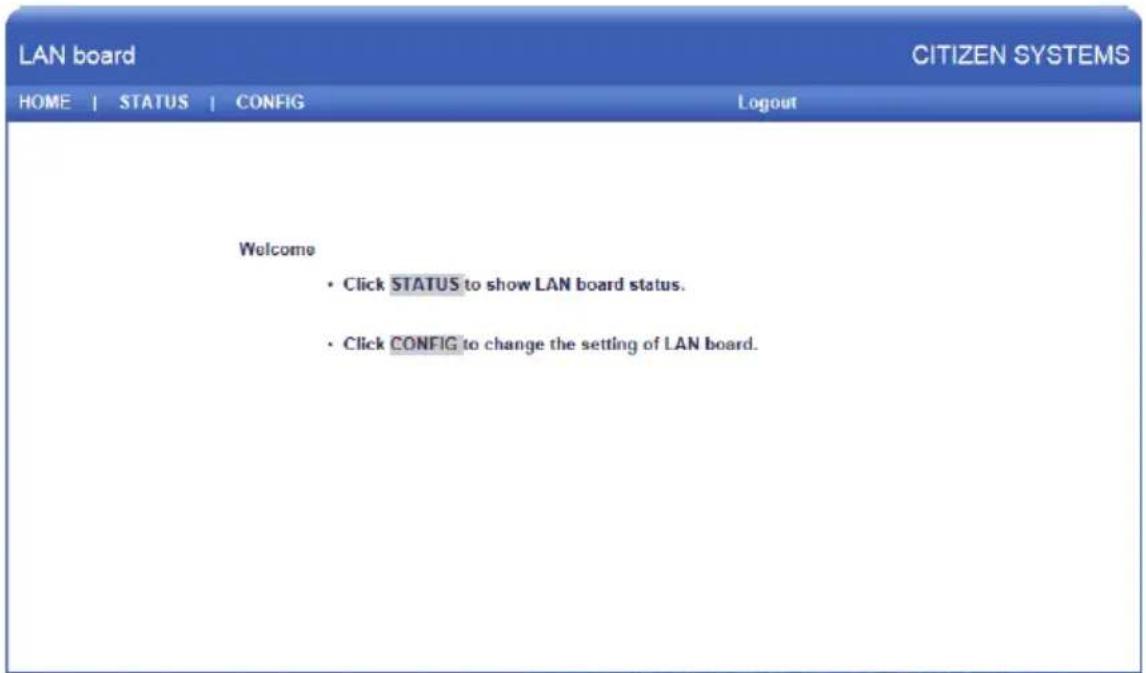

This is the Web manager home screen.

The following screen is an example for a wireless LAN.

Copyright © 2012 CITIZEN SYSTEMS JAPAN CO.,LTD. All rights reserved.

Here, press the [CONFIG] button.

CONFIG Screen

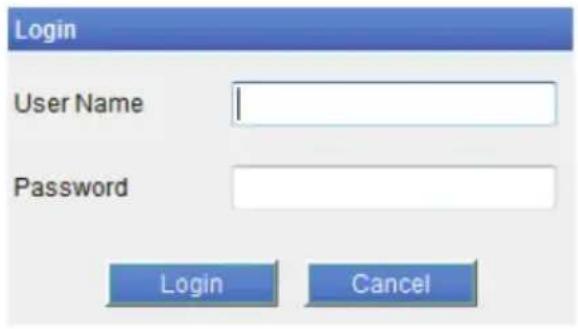

This will display the Login dialog box shown below. Log in as an administrator and then configure interface board settings.

• User Name Input a board administrator user name. (Initial setting: admin)
• Password Input the administrator user password. (Initial setting: admin)
• [Login] button After inputting an administrator user name and password, click the [Login] button. This displays the setting screen. For details about settings, refer to the separate manual.

3.7 USB Power Supply Port

Power (max. 2.1 A) can be supplied to a mobile device or other USB device by connecting the cable of the USB device to the power supply port.

Connecting Mobile Device or Other Device

1. Turn off the power.

2. Connect the cable of a mobile device or other device to the USB power supply port.

Diagram showing a remote control panel with an open socket and a plug inserted into a terminal block, no text or symbols present.

Connecting a USB Device

The function assigned to each USB port differs.

Connect the USB device to be connected to the correct place in reference to the following figure.

1. For peripheral device control

Connect a peripheral device.

The connected peripheral device can be controlled.

1. For host computer communication

Connect with a host computer.

The printer and host computer will communicate via USB.

Refer to 3.3 USB Interface

3. For supplying power

Connect a mobile device or other USB device.

Power can be supplied to a connected USB device.

* This port does not support USB data communication.

Refer to 3.7 USB Power Supply Port

CAUTION

■ This port does not support USB data communication.
Power may not be able to be supplied depending on the USB device to be used. In this case, use the device's dedicated AC adapter or battery charger.
■ A USB cable for power supply is not included with this product. Use a commercially available USB cable or the one that comes with the USB device.

3.8 Connecting the Cash Drawer

1. Turn off the power.
2. Confirm the orientation of the cash drawer kick-out cable connector and connect it to the cash drawer kick-out connector at the back of the printer.
3. Remove the screw for the ground wire.
4. Screw the cash drawer's ground wire to the body of the printer.

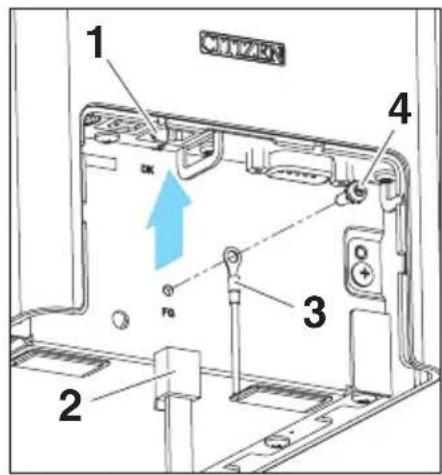

1. Cash drawer kick-out connector
2. Cash drawer kick-out cable connector
3. Ground wire
4. Screw for ground wire

CAUTION

■ Connect only the cash drawer kick-out cable to this connector. (Do not connect a telephone line.)
■ Signals cannot be output from the cash drawer kick-out connector while printing.
■ Hold the connector of the drawer kick cable perpendicular and straight when connecting or disconnecting it. Doing it at an angle may cause the connector to misconnect.

(1) Connector pin configuration

No.	Signal Function
1 FG	Frame ground
2 DRAWER1	Cash drawer 1 drive signal
3 DRSW	Cash drawer switch input
4 VDR	Cash drawer drive power supply
5 DRAWER2	Cash drawer 2 drive signal
6 GND	Signal ground (common ground on circuits)

Applicable connector: RJ-11

(2) Electric characteristics

1) Drive voltage: 24 VDC
2) Drive current: Approx. 1 A max. (not to exceed 510 ms.)
3) DRSW signal: Signal levels: "L" = 0 to 0.5 V, "H" = 3 to 5 V

(3) DRSW signal

Status can be tested by commands.

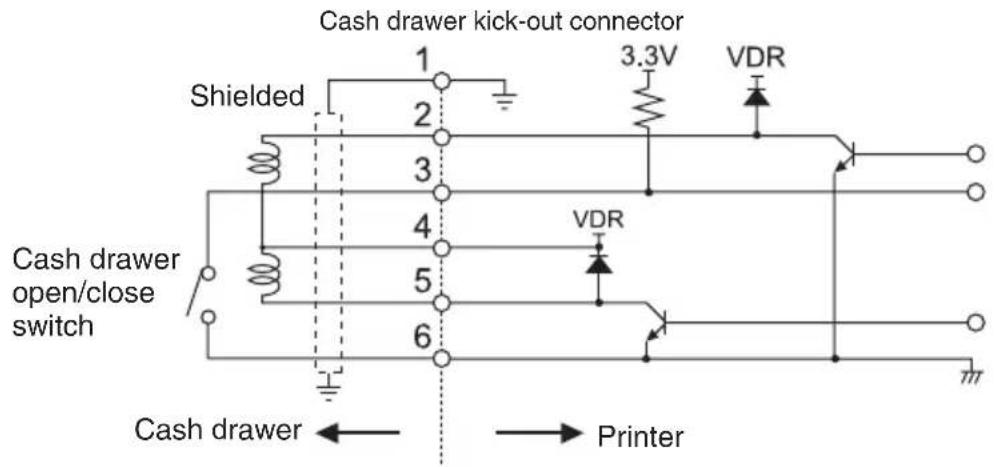

(4) Drive circuit

CAUTION

■ Cash drawers 1 and 2 cannot be operated at the same time.
■ The solenoid used for the cash drawer should be 24 Ω or more. Do not allow the electric current to exceed 1 A. Excessive current could damage or burn out the circuits.

3.9 Precautions for Installing the Printer

This printer can only be positioned horizontally. It cannot be positioned vertically or on a wall.

Line drawing of a rectangular electronic device with a label and ports, placed on a base (no text or symbols)

Horizontal position Vertical position

Diagram of a box with a red X mark indicating prohibition, no text or symbols present

CAUTION

Do not use the printer under the following conditions.

■ Avoid locations subject to vibration or instability.
■ Locations that are very dirty or dusty.
■ Avoid locations where the printer is not level.
• The printer may fall and cause an injury.
• The quality of printing may deteriorate.
■ Oriented other than as specified.
- Malfunction, failure, or electric shock may result.

3.10 Adjusting the Paper Near-end Sensor

Change the settings of the paper near-end sensor to set the position at which the near-end of the paper is detected.

1. Gently press the paper near-end sensor with your finger.
2. Keep the paper near-end sensor pressed as you move it left and right. The sensor positions are shown below for the various diameters of the paper roll used.

(Unit: mm)

Sensor position P	Paper roll outer diameter when near-end is detected	Exterior/ interior diameter of core of paper roll used
1* Approximately ø22.0 ø18/ø12
2 Approximately ø25.0 ø18/ø12
3 Approximately ø29.0 ø18/ø12
4 Approximately ø34.0 ø18/ø12

Notes:

*Sensor position when shipped from the factory. However, factory settings differ depending on the destination market.

CAUTION

The diameter of the roll of paper that is detected is an estimate. Some variations may occur depending on the paper.

3.11 Loading Paper

1. Turn on the power.
2. Push down the cover open lever to open the paper cover.

Line drawing of a device with a blue arrow indicating a download or transfer process (no text or symbols present)

CAUTION

When pushing down on the lever, take care that you do not pinch your fingers in the gap below the bottom of the lever.

1. Load the paper roll so that the printable side of the paper is facing up, as shown by arrow A.
2. Pull a few centimeters of paper straight out in the direction of arrow B.
3. Close the paper cover until you hear a click. Paper is fed and cut automatically (by the factory setting).

CAUTION

■ When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
■ The print head is very hot immediately after printing. Be careful not to touch it with your hands.
■ Do not touch the print head with bare hands or metal objects.
■ Always use the specified types of paper rolls.
■ Confirm that the paper roll is set correctly.
■ If the paper is skewed and not coming straight out of the paper cover, open it and straighten the paper.
■ Always pull a few centimeters of paper straight out of the printer if you open the paper cover while paper is loaded.
■ Press on the center of the paper cover to close it securely.
■ Be careful of paper cuts while loading the paper.

Refer to PRECAUTIONS IN HANDLING THE PRINTER

3.12 58-mm Width Roll Paper Partition

1. Turn off the power.
2. Push down the cover open lever to open the paper cover.

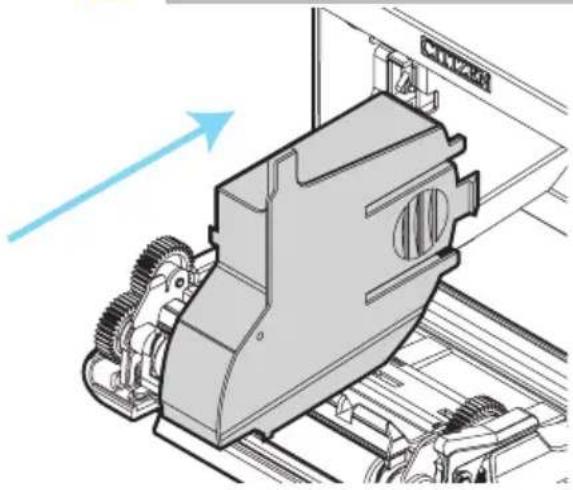

3. Mount the supplied partition to the groove. When using the 80-mm width roll paper, remove the partition.
4. Change the print area width while referring to "Manual Setting of Memory Switches" in Section 5.3.

Refer to 5.3 Manual Setting of Memory Switches

Mechanical assembly diagram showing gear and housing components with a blue arrow indicating direction (no text or symbols)

CAUTION

■ When using 58-mm width media, be sure to mount the partition.
■ When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
■ The print head is very hot immediately after printing. Be careful not to touch it with your hands.
■ Do not touch the print head with bare hands or metal objects.
■ When using 58-mm wide paper, use the printer as a dedicated printer for that paper size. The printer may not correctly feed paper or print if it is switched to 80-mm wide paper after using 58-mm wide paper.

Refer to PRECAUTIONS IN HANDLING THE PRINTER

3.13 Mounting the Cable Cover

- Align the claws of the cable cover with the grooves in the printer main unit and then insert them.

3.14 Precautions for Creating Applications and Practical Operations

If printing is done immediately after the paper is partially cut and torn off, the top of the next print out may be distorted.

For printing after cutting, we recommend to print with the first line empty.

If you are using a serial interface that has a slow data transmission speed, streaks may appear in the printouts when you are printing graphics or gradated text, which require large amounts of data.

USB interfaces may be susceptible to the effects of electromagnetic interference from the host or environment.

If this is the case, try using a cable with ferrite cores on both ends, which are very effective at eliminating EMI.

3.15 Download Site for Various Electronic Files

You can view support information and download the latest documents, drivers, utilities, etc. from the following site.

http://www.citizen-systems.co.jp/support/download/printer/ct-s751/

4. MAINTENANCE AND TROUBLESHOOTING

4.1 Periodic Cleaning

A dirty print head or platen may reduce printing quality or cause malfunctions. We recommend cleaning the printer periodically (every 2 to 3 months) as shown below.

1. Turn off the power.
2. Push down the cover open lever to open the paper cover.
3. Wait a few minutes until the print head cools.
4. Use a cotton swab dampened with ethyl alcohol to wipe off any dirt and dust that is on the print head and platen.

CAUTION

■ When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
■ The print head is very hot immediately after printing. Be careful not to touch it with your hands.
■ Do not touch the print head with bare hands or metal objects.

Refer to PRECAUTIONS IN HANDLING THE PRINTER

4.2 Clearing a Cutter Error

If the auto cutter stops during the auto cutter operation with the blade of the auto cutter in the open position due to foreign matter entering, paper jamming, etc., the CUTTER LED flashes. When a cutter error occurs, resolve the cutter error with the following procedure.

1. Turn on the power.
2. Push down the cover open lever to open the paper cover.
3. Remove any jammed paper including any scraps of paper. (Remove the paper roll that is loaded in the holder also.)
4. Reload the paper roll and close the paper cover.

CAUTION

■ When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
■ The print head is very hot immediately after printing. Be careful not to touch it with your hands.
■ Do not touch the print head with bare hands or metal objects.

Refer to PRECAUTIONS IN HANDLING THE PRINTER

4.3 Self Test

You can use self test to check for printer problems.

Performing a self test operation

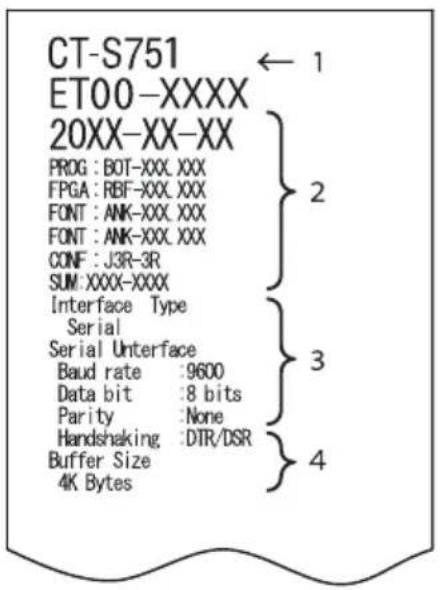

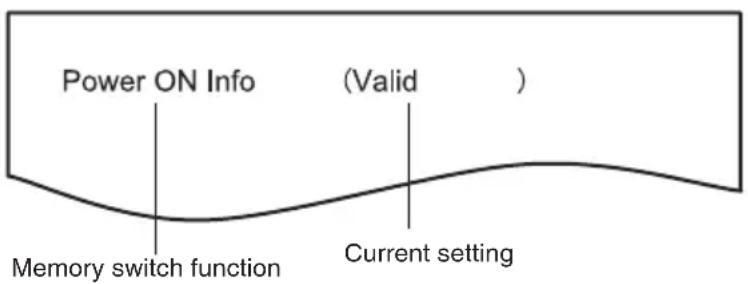

1. While paper is loaded, press and hold the FEED button and turn on the power.
2. Hold the FEED button down for about one second until the buzzer sounds. Release the button to start self test. The printer will print its model name, version, memory switch settings, and built-in fonts.

1. Printer type name
2. Firmware version
3. Interface settings
4. Buffer size
5. Memory switch settings

4.4 Hexadecimal Dump Printing

Print received data in hexadecimal. If problems such as missing or duplicated data occur, this function allows you to check whether or not the printer is receiving data correctly.

How to do hexadecimal dump printing

1. Load paper.
2. While the paper cover is open, hold down the FEED button as you turn on printing power. Keep FEED button pressing until the POWER LED starts to flash, and then close the paper cover.
3. The printer will print "HEX dump print mode" followed by the received data printed in hexadecimal numbers and some characters.

How to stop hexadecimal dump printing

Do one of the following to stop printing.

• Press the FEED button consecutively three times
• Turn off the power
  ● Receive a reset command from an interface

CAUTION

■ The printer prints “.” if there is no character corresponding to the data.
■ None of the commands function during hexadecimal dump printing.
■ If print data does not cover a complete line, press the FEED button to advance the paper.

Print example

HEX dump print mode

61 62 63 64 65 66 67 0A 0D 0D 0D 0D abcdefg.....

.....DO DO DO

4.5 Error Indications

● Paper end, paper near-end

The end of the roll of paper is detected at two stages, paper near-end and paperend.

When paper near-end is detected, the PAPER LED flashes. Prepare a new paper roll.

When paper end is detected, the PAPER LED lights and the buzzer sounds. Load a new paper roll. Memory switch settings can be used to disable the buzzer.

- Cover Open

If the cover is opened, the COVER LED lights and a buzzer sounds. The buzzer may not sound depending on the memory switch setting. Do not open the cover during printing. If the cover is accidentally opened, the COVER LEDflashes.

Check the paper, pull it straight out of the printer by a couple of centimeters, and then close the cover. Printing restarts. A command must be sent to restart printing depending on the memory switch setting.

- Cutter error

If the auto cutter cannot move because of a paper jam or something else, the CUTTER LED flashes and the buzzer sounds. Remove the cause of the trouble and press the FEED button. If the auto cutter still does not move and the paper cover cannot be opened, refer to “Clearing a Cutter Error.”

Refer to 4.2 Clearing a Cutter Error

- Print head hot

When you print dense characters, dark images, or for an extended time in a hot environment, the print head temperature increases. If the print head exceeds a specified temperature, the printer stops printing and waits for the print head to cool. When this happens, the PAPER LED, CUTTER LED, and COVER LED flash. Printing resumes automatically when the print head cools.

The status display for various messages is shown below.

Status PAPER	LED CUTTER LED	COVER LED SER	VICE LED Buzzer*1
Paper near-end		Unlit Unlit Unlit No
Paper-end Lit Unlit Unlit Unlit Yes*2
Cover open*3 Unlit Unlit Lit Unlit Yes*2
Cover open II*4 Unlit	Unlit			Unlit Yes*2
Cutter locked	Unlit		Unlit Unlit	Yes
Low-voltage error				Unlit No
High-voltage error	Unlit Unlit Unlit				No
System error	Unlit Unlit Unlit				No
Memory error Unlit Unlit Unlit					No
Print head hot				Unlit No

Notes:

*1: Buzzer sounds when MSW5-1 (buzzer setting) is set to ON.

*2: MSW10-5 (buzzer event) can be configured to disable the buzzer.

*3: Indicated when a cover is opened during standby.

*4: Indicated when a cover is opened during standby.

4.6 Paper Jams

Take care to avoid obstruction of the paper outlet and paper jamming around the outlet during printing.

If paper cannot get out of the printer, it can roll up on the platen inside the printer and cause an error.

If the paper wraps around the platen, open the paper cover and carefully pull the paper out.

4.7 Precautions for Performing Printing for Which Printing Speed Changes

When printing for which the printing speed changes is performed, white lines may be printed or paper may not be fed depending on the printing conditions. To prevent these problems, change the following memory switch settings.

1. Enable MSW2-3 (buffering).
2. Increase the baud rate of MSW7-1 (serial baud rate).
3. Change MSW10-2 (print speed) to a lower level.

CAUTION

Depending on the serial interface transmission speed, ambient temperature, print data duty, and other factors, changing the above settings may not eliminate the problems.

5. OTHER

5.1 External Views and Dimensions

(Unit: mm)

5.2 Printing Paper

Use the paper shown in the following table or paper of the same quality.

Paper type Product name
Recommended thermal roll paper	Nippon Paper TP50KR-2Y, TP50KJ-R, TL69KS-LHOji Paper PD150R, PD160R, PD160R-63Mitsubishi Paper Mills HP220AB-1, P220ABKoehler KT48-FA

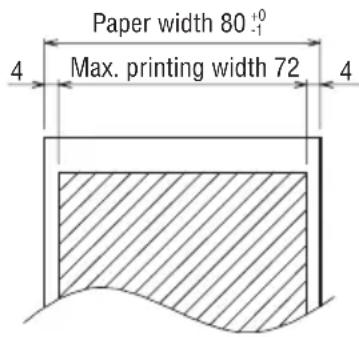

(Unit: mm)

(Unit: mm)

Paper thickness (μm) 53 to 85

Core inner diameter d (mm) ø12

Core outer diameter D (mm) ø18

CAUTION

Use thermal paper that is wound as follows:

■ Not creased and fits tight to the core.
■ Not folded.
■ Not glued to the core.
■ Rolled with the printable side out.

5.3 Manual Setting of Memory Switches

Memory switches are used to set various printer settings. Memory switches can be set manually, or by utilities or commands. This section explains how to perform manual settings.

For information on how to set the memory switches using commands, please refer to the Command Reference.

Quick setting mode

The settings for the memory switches for a replacement printer's manufacturer, model, paper width, and character spacing can be set at the same time to the optimum settings.

Do the settings while confirming the selected items on the printout.

1. Load paper.
2. While the paper cover is open, press and hold the FEED button and turn on the power.
3. Press the FEED button three and close the paper cover.

The printer enters memory switch quick setting mode.

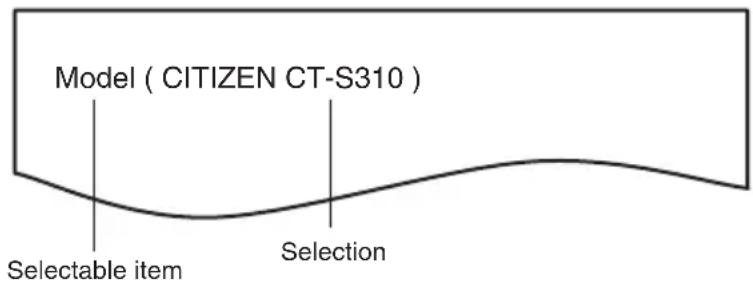

The selectable item "Model" and the selection are printed.

1. Press the FEED button.

A selection is printed in order through the cycle each time the FEED button is pressed.

Press the FEED button until the selection you want is printed.

1. Press the FEED button for at least two seconds.

The selection is set.

If there is another selectable item, it and the selection are printed.

1. Repeat steps 4 and 5 to select and set the printer's model, paper width, character spacing (EPSON T88 only).

When all the items are set, "Save To Memory" is printed.

1. Press the FEED button for at least two seconds.

The changed memory switch settings are saved and a list of them is printed.

The printer exits quick setting mode when printing is finished.

Selected item

Manufacturer	Paper width	Character space	MSW2-4 Full Col Print	MSW3-7 CBM1000 Mode	MSW8-1 Print Width	MSW6-2 Character Space
CITIZEN CT-S310	58 mm - WaitData Invalid 384 dots		-
	80 mm - WaitData Invalid 576 dots		-
EPSON T88	58 mm	0 dot WaitData Invalid 360 dots 0	dot
		1 dot WaitData Invalid 390 dots 1	dot
	80 mm	0 dot WaitData Invalid 512 dots 0	dot
		1 dot WaitData Invalid 546 dots 1	dot
EPSON 203dpi	80 mm - WaitData Invalid 576 dots		0 dot
	58 mm - WaitData Invalid 420 dots		-

Automatic memory switch settings

Individual setting mode

Set the memory switches individually.

Do the settings while confirming the memory switch function and settings on the print-out.

1. Load paper.
2. While the paper cover is open, press and hold the FEED button and turn on the power.
3. Press the FEED button twice and close the paper cover.

The printer enters the mode for setting memory switches individually.

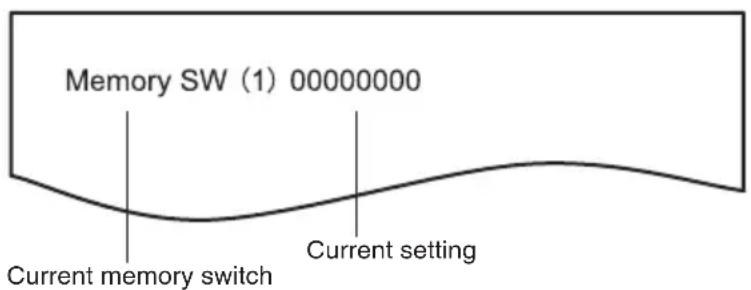

The printer prints "Memory SW (1)" and the current setting, 0 (off) or 1 (on).

(The current settings for memory switches 7 to 13 are not printed.)

1. Press the FEED button.

Each press of the FEED button cycles through the list of memory switches in the following sequence: "Memory SW (1)" > "Memory SW (2)" > ..."Memory SW (11)" or "Memory SW (13)" > "Save To Memory" > "Memory SW (1)".

Press the FEED button until the number for the memory switch you want to change is printed.

1. Press the FEED button for at least two seconds.

A setting for the memory switch is printed, through the cycle, each time the FEED button is pressed for at least two seconds.

Press the FEED button for at least two seconds to cycle through the list until the function of the memory switch you want to change is printed.

1. Press the FEED button.

A setting is printed each time the FEED button is pressed in order through the cycle.

When the current settings are printed, the COVER LED lights.

Press the FEED button until the setting you want is printed.

1. Press the FEED button for at least two seconds.

The selected settings are set.

The next memory switch function and settings are printed.

1. Repeat steps 5 to 7 to change different functions for the current memory switch number.
2. Open the paper cover and close it.

The changed memory switch settings are printed.

1. Repeat steps 4 to 9 to change functions for a different memory switch number.
2. Press the FEED button until "Save To Memory" is printed.
3. Press the FEED button for at least two seconds.

The changed memory switch settings are saved and a list of them is printed.

The printer exits individual setting mode when printing is finished.

Memory switch initialization

Set all the memory switches to the factory settings.

1. Do steps 1 through 3 of the procedure to enter individual setting mode.
2. Press the FEED button until "Save To Memory" is printed.
3. Open the paper cover.
4. Press the FEED button for at least two seconds.

All memory switches change to the factory settings.

1. Close the paper cover.

The function of each memory switch is shown in the following table. (Shaded values are factory settings.)

Switch no. Function OFF ON
MSW1-1 Power ON Info Valid Not Send
MSW1-2 Buffer Size 4K bytes 45 bytes
MSW1-3 Busy Condition Full/Err Full
MSW1-4 Receive Error Print“?” No Print
MSW1-5	CR Mode Ignored	LF
MSW1-6	Reserved	Fixed —
MSW1-7	DSR Signal	Invalid	Valid
MSW1-8	INIT Signal	Invalid	Valid
MSW2-1	Reserved	—	Fixed
MSW2-2	Auto Cutter	Invalid	Valid
MSW2-3	Spool Print Invalid	Valid
MSW2-4	Full Col Print	LineFeed	WaitData
MSW2-5 Resume aft PE Next		Top
MSW2-6	Reserved	Fixed —
MSW2-7	Reserved	Fixed —
MSW2-8	PNE Sensor Valid	Invalid
MSW3-1	Resume Ctr Err	Valid	Invalid
MSW3-2	PE signal by PNE	Valid	Invalid
MSW3-3	Reserved	Fixed —
MSW3-4	Reserved	Fixed —
MSW3-5	Reserved	Fixed —
MSW3-6	Reserved	Fixed —
MSW3-7	CBM1000 Mode	Invalid	Valid
MSW3-8	Resume Open Err Close	Command
MSW4-1	Reserved	Fixed —
MSW4-2	Reserved	Fixed —
MSW4-3	Feed&Cut at TOF Invalid	Valid
MSW4-4	Reserved	Fixed —
MSW4-5	Reserved	Fixed —
MSW4-6	Reserved	Fixed —
MSW4-7	Reserved	Fixed —
MSW4-8	Partial Only	Invalid	Valid
MSW5-1 Buzzer Valid Invalid
MSW5-2 Line Pitch 1/360 1/406
MSW5-3 USB Mode Virtual COM Printer Class
MSW5-4 Reserved Fixed —
MSW5-5 Reserved Fixed —
MSW5-6 Reserved Fixed —
MSW5-7 Reserved Fixed —
MSW5-8 Reserved Fixed —
MSW6-1	Act. For Driver Invalid Valid
MSW6-2	Character Space Invalid Valid
MSW6-3	USB Power Save	Invalid Valid
MSW6-4 Reserved Fixed —
MSW6-5 Reserved Fixed —
MSW6-6 Reserved Fixed —
MSW6-7	USB Power@PW-OFF	Invalid Valid
MSW6-8	Power ON trigger	Power switch ON	AC power input

Switch no.	Function	Initial setting	Setting value
MSW7-1	Baud Rate	9600 bps	1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
MSW7-2	Data Length	8bits	7bits, 8bits
MSW7-3	Stop Bit	1bit	1bit, 2bits
MSW7-4	Parity	NONE	NONE, ODD, EVEN
MSW7-5	Flow Control	DTR/DSR	DTR/DSR, XON/XOFF
MSW7-6	DMA Control	Valid	Valid, Invalid
MSW7-7	VCom Protocol	PC Setting	PC Setting, DTR/DSR, XON/XOFF
MSW8-1	Print Width	576 dots	576 dots, 546 dots, 512 dots, 420 dots, 390 dots, 384 dots, 360 dots
MSW8-3	Top Margin	11mm	2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4	Line Gap Reduce	Invalid	Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5	Reduced Char V/H	100% / 100%	100% / 100%, 75% / 100%, 50% / 100%, 100% / 75%, 75% / 75%, 50% / 75%
MSW8-6	Auto Side Shift	Invalid	Invalid, 1 dot, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
Switch no.	Function Initial setting	Setting value
MSW9-1	Code Page PC437 PC 437	, Katakana, PC	850, PC 858, PC 860, PC 863,PC 865, PC 852, PC 866, PC 857, WPC1252, Spacepage, PC 864, ThaiCode11 1Pass, ThaiCode113Pass, ThaiCode18 1Pass, ThaiCode18 3Pass,TCVN-3, WPC1258
MSW9-2	Int'Char Set U.S.A USA, France, Germany, England, Denmark, Sweden,Italy, Spain, Japan, Norway, Denmark 2, Spain 2, LatinAmerica, Korea, Croatia, China, Vietnam
MSW9-4	Kanji code Invalid Disabled, JIS (Japan), SJIS: CP932 (Japan), SJIS:X0213 (Japan), GB18030 (China), KS Hangul (SouthKorea), EUC Hangul (South Korea), BIG5-HKSCS
MSW10-1	Print Density	100 %	70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 100 %, 105 %,110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2	Print Speed	Level 9	Level 1, Level 2, Level 3, Level 4, Level 5, Level 6,Level 7, Level 8, Level 9
MSW10-4	Old Command Invalid Invalid, CBM1, CBM2
MSW10-5	Buzzer Event Not By C.Open	Open	All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6	Buzzer Sound Tone 2 Tone 1, Tone 2, Tone 3, Tone 4
MSW13-1	Security/Target	Low/All	Low/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5	BT Device Scan	Discoverable	No Response, Discoverable
MSW13-6	Auto Reconnect Valid Valid | Invalid, Valid

FRANÇAIS

PRÉCAUTIONS GÉNÉRALES

RS: Série RS-232C + USB

Technical line drawing of a device component with an arrow indicating assembly or insertion (no text or symbols present)

Technical line drawing of a device panel with an arrow pointing to a connector (no text or symbols present)

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

ATTENTION

Technical line drawing of a device casing with an arrow indicating a component or connection (no text or symbols present)

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

ATTENTION

Copyright © 2012 CITIZEN SYSTEMS JAPAN CO.,LTD. All rights reserved.

Diagram showing a remote control panel with an open socket connected to a plug, and a blue arrow indicating direction (no text or symbols present)

Line drawing of a rectangular electronic device with a label and ports, placed on a base (no text or symbols present)

Position horizontale Position verticale

Diagram of a box with a red X mark indicating prohibition, no text or symbols present

ATTENTION

Line drawing of a device with a blue arrow indicating a download or transfer process (no text or symbols present)

ATTENTION

ATTENTION

Mechanical assembly diagram showing gear and housing components with a blue arrow indicating direction (no text or symbols)

ATTENTION

N° de commutateur Fonction OFF ON
MSW1-1 Power ON Info Valid Not Send
MSW1-2 Buffer Size 4K bytes 45 bytes
MSW1-3 Busy Condition Full/Err Full
MSW1-4 Receive Error Print“?” No Print
MSW1-5	CR Mode Ignored	LF
MSW1-6	Reserved	Fixed —
MSW1-7	DSR Signal	Invalid	Valid
MSW1-8	INIT Signal	Invalid	Valid
MSW2-1	Reserved	—	Fixed
MSW2-2	Auto Cutter	Invalid	Valid
MSW2-3	Spool Print Invalid	Valid
MSW2-4	Full Col Print	LineFeed	WaitData
MSW2-5 Resume aft PE Next		Top
MSW2-6	Reserved	Fixed —
MSW2-7	Reserved	Fixed —
MSW2-8 PNE Sensor Valid		Invalid
MSW3-1	Resume Ctr Err Valid	Invalid
MSW3-2	PE signal by PNE	Valid	Invalid
MSW3-3	Reserved	Fixed —
MSW3-4	Reserved	Fixed —
MSW3-5	Reserved	Fixed —
MSW3-6	Reserved	Fixed —
MSW3-7	CBM1000 Mode	Invalid	Valid
MSW3-8	Resume Open Err Close	Command
MSW4-1	Reserved	Fixed —
MSW4-2	Reserved	Fixed —
MSW4-3	Feed&Cut at TOF Invalid	Valid
MSW4-4	Reserved	Fixed —
MSW4-5	Reserved	Fixed —
MSW4-6	Reserved	Fixed —
MSW4-7	Reserved	Fixed —
MSW4-8	Partial Only	Invalid	Valid
MSW5-1 Buzzer Valid Invalid
MSW5-2 Line Pitch 1/360 1/406
MSW5-3 USB Mode Virtual COM Printer Class
MSW5-4 Reserved Fixed —
MSW5-5 Reserved Fixed —
MSW5-6 Reserved Fixed —
MSW5-7 Reserved Fixed —
MSW5-8 Reserved Fixed —
MSW6-1	Act. For Driver	Invalid Valid
MSW6-2	Character Space Invalid Valid
MSW6-3	USB Power Save	Invalid Valid
MSW6-4 Reserved Fixed —
MSW6-5 Reserved Fixed —
MSW6-6 Reserved Fixed —
MSW6-7	USB Power@PW-OFF	Invalid Valid
MSW6-8	Power ON trigger	Power switch ON	AC power input

N° de commu-tateur	Fonction	Initial setting	Setting value
MSW7-1	Baud Rate	9600 bps	1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
MSW7-2	Data Length	8bits	7bits, 8bits
MSW7-3	Stop Bit	1bit	1bit, 2bits
MSW7-4	Parity	NONE	NONE, ODD, EVEN
MSW7-5	Flow Control	DTR/DSR	DTR/DSR, XON/XOFF
MSW7-6	DMA Control	Valid	Valid, Invalid
MSW7-7	VCom Protocol	PC Setting	PC Setting, DTR/DSR, XON/XOFF
MSW8-1	Print Width	576 dots	576 dots, 546 dots, 512 dots, 420 dots, 390 dots, 384 dots, 360 dots
MSW8-3	Top Margin	11mm	2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4	Line Gap Reduce	Invalid	Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5	Reduced Char V/H	100% / 100%	100% / 100%, 75% / 100%, 50% / 100%, 100% / 75%, 75% / 75%, 50% / 75%
MSW8-6	Auto Side Shift	Invalid	Invalid, 1 dot, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
N° de commu-tateur	Fonction Initial setting Setting value
MSW9-1 Code	de Page PC437 PC 437, Katakana, PC	850, PC 858, PC 860, PC 863,PC 865, PC 852, PC 866, PC 857, WPC1252, Spacepage, PC 864, ThaiCode11 1Pass, ThaiCode113Pass, ThaiCode18 1Pass, ThaiCode18 3Pass,TCVN-3, WPC1258
MSW9-2 Int'	Char Set U.S.A USA, France, Germany	England, Denmark, Sweden,Italy, Spain, Japan, Norway, Denmark 2, Spain 2, LatinAmerica, Korea, Croatia, China, Vietnam
MSW9-4 Kanji code	Invalid Disabled, JIS (Japan), S	JIS: CP932 (Japan), SJIS:X0213 (Japan), GB18030 (China), KS Hangul (SouthKorea), EUC Hangul (South Korea), BIG5-HKSCS
MSW10-1 Print	Density 100 %	70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 100 %, 105 %,110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2	Print Speed	Level 9	Level 1, Level 2, Level 3, Level 4, Level 5, Level 6,Level 7, Level 8, Level 9
MSW10-4	Old Command	Invalid	Invalid, CBM1, CBM2
MSW10-5 Buzzer Event Not By C.		Open	All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6	Buzzer Sound	Tone 2 Tone 1, Tone 2, Tone 3, Tone 4
MSW13-1	Security/Target	Low/All	Low/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5	BT Device Scan	Discoverable	No Response, Discoverable
MSW13-6	Auto Reconnect	Valid	Invalid, Valid

DEUTSCH

RS: Seriell, RS-232C + USB

Technical line drawing of a device component with an arrow indicating assembly or insertion (no text or symbols present)

Technical line drawing of a device with an arrow pointing to a connector (no text or symbols present)

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

VORSICHT

Technical line drawing of a device housing with a blue arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows connected parts (no text or symbols)

VORSICHT

Copyright © 2012 CITIZEN SYSTEMS JAPAN CO.,LTD. All rights reserved.

Diagram showing a remote control panel with an arrow pointing to a plug device (no text or symbols present)

Line drawing of a rectangular electronic device with a label and ports, placed on a base (no text or symbols)

Diagram of a box with a red X mark indicating prohibition, no text or symbols present

Line drawing of a printer with a blue arrow indicating a download or transfer process (no text or symbols present)

VORSICHT

Mechanical assembly diagram showing a motor with gears and a blue arrow indicating direction (no text or symbols)

VORSICHT

RS: Seriale RS-232C + USB

Technical line drawing of a device component with an arrow indicating assembly or insertion (no text or symbols present)

Technical line drawing of a device with an arrow pointing to a connector (no text or symbols present)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows a connected pipe or connector (no text or symbols)

ATTENZIONE

Technical line drawing of a device housing with an arrow indicating a component or connection (no text or symbols present)

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

ATTENZIONE

Modello host USB Ethernet

Wireless LAN

Diagram of a device rear panel with ports and a central switch (no text or symbols)

Diagram of a device rear panel with ports and internal components (no text or labels)

Wireless LANEthernet

Diagram of a device rear panel with ports and internal components (no text or labels)

Modello host USB Ethernet

Wireless LANEthernet Modello host
USB Ethernet

Copyright © 2012 CITIZEN SYSTEMS JAPAN CO.,LTD. All rights reserved.

Diagram showing a remote control panel with an arrow pointing to a plug device (no text or symbols present)

Line drawing of a rectangular electronic device with a label and ports, placed on a base (no text or symbols)

Diagram of a box with a red X mark indicating prohibition, no text or symbols present

ATTENZIONE

Line drawing of a device with a blue arrow indicating a component or process, no text or symbols present.

ATTENZIONE

ATTENZIONE

Mechanical assembly diagram showing a motor housing with gears and a blue arrow indicating direction (no text or symbols)

ATTENZIONE

N. switch Funzione OFF ON
MSW1-1 Power ON Info Valid Not Send
MSW1-2 Buffer Size 4K bytes 45 bytes
MSW1-3 Busy Condition Full/Err Full
MSW1-4 Receive Error Print“?” No Print
MSW1-5 Mode Ignored LF
MSW1-6	Reserved	Fixed —
MSW1-7	DSR Signal	Invalid	Valid
MSW1-8 INIT Signal	Invalid	Valid
MSW2-1	Reserved	—	Fixed
MSW2-2	Auto Cutter	Invalid	Valid
MSW2-3 Spool Print Invalid		Valid
MSW2-4	Full Col Print	LineFeed	WaitData
MSW2-5 Resume aft PE Next		Top
MSW2-6	Reserved	Fixed —
MSW2-7	Reserved	Fixed —
MSW2-8 PNE Sensor Valid		Invalid
MSW3-1	Resume Ctr Err Valid	Invalid
MSW3-2	PE signal by PNE	Valid	Invalid
MSW3-3	Reserved	Fixed —
MSW3-4	Reserved	Fixed —
MSW3-5	Reserved	Fixed —
MSW3-6	Reserved	Fixed —
MSW3-7	CBM1000 Mode	Invalid	Valid
MSW3-8	Resume Open Err Close	Command
MSW4-1	Reserved	Fixed —
MSW4-2	Reserved	Fixed —
MSW4-3	Feed&Cut at TOF	Invalid	Valid
MSW4-4	Reserved	Fixed —
MSW4-5	Reserved	Fixed —
MSW4-6	Reserved	Fixed —
MSW4-7	Reserved	Fixed —
MSW4-8	Partial Only	Invalid	Valid
MSW5-1 Buzzer Valid Invalid
MSW5-2 Line Pitch 1/360 1/406
MSW5-3 USB Mode Virtual COM Printer Class
MSW5-4 Reserved Fixed —
MSW5-5 Reserved Fixed —
MSW5-6 Reserved Fixed —
MSW5-7 Reserved Fixed —
MSW5-8 Reserved Fixed —
MSW6-1 Act. For Driver Invalid Valid
MSW6-2	Character Space	Invalid Valid
MSW6-3	USB Power Save	Invalid Valid
MSW6-4 Reserved Fixed —
MSW6-5 Reserved Fixed —
MSW6-6 Reserved Fixed —
MSW6-7	USB Power@PW-OFF	Invalid Valid
MSW6-8	Power ON trigger	Power switch ON	AC power input

N. switch	Funzione	Initial setting	Setting value
MSW7-1	Baud Rate	9600 bps	1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
MSW7-2	Data Length	8bits	7bits, 8bits
MSW7-3	Stop Bit	1bit	1bit, 2bits
MSW7-4	Parity	NONE	NONE, ODD, EVEN
MSW7-5	Flow Control	DTR/DSR	DTR/DSR, XON/XOFF
MSW7-6	DMA Control	Valid	Valid, Invalid
MSW7-7	VCom Protocol	PC Setting	PC Setting, DTR/DSR, XON/XOFF
MSW8-1	Print Width	576 dots	576 dots, 546 dots, 512 dots, 420 dots, 390 dots, 384 dots, 360 dots
MSW8-3	Top Margin	11mm	2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4	Line Gap Reduce	Invalid	Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5	Reduced Char V/H	100% / 100%	100% / 100%, 75% / 100%, 50% / 100%, 100% / 75%, 75% / 75%, 50% / 75%
MSW8-6	Auto Side Shift	Invalid	Invalid, 1 dot, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
N. switch Funzione Initial setting		Setting value
MSW9-1 Code	Page PC437 PC 437	, Katakana, PC	850, PC 858, PC 860, PC863, PC 865, PC 852, PC 866, PC 857, WPC1252,Space page, PC 864, ThaiCode11 1Pass, ThaiCode11 3Pass, ThaiCode18 1Pass, ThaiCode18 3Pass,TCVN-3, WPC1258
MSW9-2 Int'	Char Set U.S.A USA, France, Germany, England, Denmark, Sweden,Italy, Spain, Japan, Norway, Denmark 2, Spain 2, LatinAmerica, Korea, Croatia, China, Vietnam
MSW9-4 Kanji code	Invalid Disabled, JIS (Japan), S	JIS: CP932 (Japan), SJIS:X0213 (Japan), GB18030 (China), KS Hangul (SouthKorea), EUC Hangul (South Korea), BIG5-HKSCS
MSW10-1	Print Density	100 %	70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 100 %, 105 %,110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2	Print Speed	Level 9	Level 1, Level 2, Level 3, Level 4, Level 5, Level 6,Level 7, Level 8, Level 9
MSW10-4	Old Command	Invalid	Invalid, CBM1, CBM2
MSW10-5	Buzzer Event	Not By C.Open	All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6	Buzzer Sound	Tone 2 Tone	1, Tone 2, Tone 3, Tone 4
MSW13-1	Security/Target	Low/All	Low/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5	BT Device Scan	Discoverable	No Response, Discoverable
MSW13-6	Auto Reconnect	Valid	Invalid, Valid

ESPAÑOL

PRECAUCIONES GENERALES

RS: Serie RS-232C + USB

1. Conector de interfaz (serie, USB, etc.)

Technical line drawing of a device component with an arrow indicating assembly or insertion (no text or symbols present)

Technical line drawing of a remote control panel with an arrow indicating direction, plus a separate view of a screwdriver plug (no text or symbols)

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

PRECAUCIÓN

Technical line drawing of a device casing with an arrow indicating a component or connection (no text or symbols present)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows connected pipe fittings (no text or symbols)

PRECAUCIÓN

Copyright © 2012 CITIZEN SYSTEMS JAPAN CO.,LTD. All rights reserved.

Diagram showing a remote control panel with an arrow pointing to a plug device (no text or symbols present)

Conector applicable: RJ-11

Line drawing of a rectangular electronic device with ports and connectors, placed on a base (no text or symbols)

Diagram of a box with a red X mark indicating prohibition or restriction, no text or symbols present

PRECAUCIÓN

Line drawing of a device with a blue arrow indicating a process or operation, no text or symbols present.

PRECAUCIÓN

Mechanical assembly diagram showing gear and housing components with a blue arrow indicating direction (no text or symbols)

PRECAUCIÓN

N.° de interruptor Función OFF ON
MSW1-1 Power ON Info Valid Not Send
MSW1-2 Buffer Size 4K bytes 45 bytes
MSW1-3 Busy Condition Full/Err Full
MSW1-4 Receive Error Print“?” No Print
MSW1-5 CR Mode Ignored		LF
MSW1-6 Reserved	Fixed —
MSW1-7	DSR Signal	Invalid	Valid
MSW1-8	INIT Signal	Invalid	Valid
MSW2-1 Reserved	—	Fixed
MSW2-2	Auto Cutter	Invalid	Valid
MSW2-3	Spool Print Invalid	Valid
MSW2-4	Full Col Print	LineFeed	WaitData
MSW2-5 Resume aft PE Next		Top
MSW2-6 Reserved	Fixed —
MSW2-7 Reserved	Fixed —
MSW2-8 PNE Sensor Valid		Invalid
MSW3-1	Resume Ctr Err	Valid	Invalid
MSW3-2	PE signal by PNE	Valid	Invalid
MSW3-3 Reserved	Fixed —
MSW3-4 Reserved	Fixed —
MSW3-5 Reserved	Fixed —
MSW3-6 Reserved	Fixed —
MSW3-7	CBM1000 Mode	Invalid	Valid
MSW3-8	Resume Open Err Close	Command
MSW4-1 Reserved	Fixed —
MSW4-2 Reserved	Fixed —
MSW4-3	Feed&Cut at TOF	Invalid	Valid
MSW4-4 Reserved	Fixed —
MSW4-5 Reserved	Fixed —
MSW4-6 Reserved	Fixed —
MSW4-7 Reserved	Fixed —
MSW4-8	Partial Only	Invalid	Valid
MSW5-1 Buzzer Valid Invalid
MSW5-2 Line Pitch 1/360 1/406
MSW5-3 USB Mode Virtual COM Printer Class
MSW5-4 Reserved Fixed —
MSW5-5 Reserved Fixed —
MSW5-6 Reserved Fixed —
MSW5-7 Reserved Fixed —
MSW5-8 Reserved Fixed —
MSW6-1	Act. For Driver	Invalid Valid
MSW6-2	Character Space Invalid Valid
MSW6-3	USB Power Save Mode	Invalid Valid
MSW6-4 Reserved Fixed —
MSW6-5 Reserved Fixed —
MSW6-6 Reserved Fixed —
MSW6-7	USB Power@PW-OFF	Invalid Valid
MSW6-8	Power ON trigger	Power switch ON	AC power input

N.° de inter-ruptor	Función	Initial setting $etting value
MSW7-1	Baud Rate	9600 bps	1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
MSW7-2	Data Length	8bits	7bits, 8bits
MSW7-3	Stop Bit	1bit	1bit, 2bits
MSW7-4	Parity	NONE	NONE, ODD, EVEN
MSW7-5	Flow Control	DTR/DSR	DTR/DSR, XON/XOFF
MSW7-6	DMA Control	Valid	Valid, Invalid
MSW7-7	VCom Protocol	PC Setting	PC Setting, DTR/DSR, XON/XOFF
MSW8-1	Print Width	576 dots	576 dots, 546 dots, 512 dots, 420 dots, 390 dots, 384 dots, 360 dots
MSW8-3	Top Margin	11mm	2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4	Line Gap Reduce	Invalid	Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5	Reduced Char V/H	100% / 100%	100% / 100%, 75% / 100%, 50% / 100%, 100% / 75%, 75% / 75%, 50% / 75%
MSW8-6	Auto Side Shift	Invalid	Invalid, 1 dot, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
N.° de inter-ruptor	Función Initial	setting Setting	value
MSW9-1 Code	Page PC437 PC 437, Katakana, PC	850, PC 858, PC 860, PC863, PC 865, PC 852, PC 866, PC 857, WPC1252,Space page, PC 864, ThaiCode11 1Pass, ThaiCo-de11 3Pass, ThaiCode18 1Pass, ThaiCode18 3Pass,TCVN-3, WPC1258
MSW9-2 Int'	Char Set U.S.A USA, France, Germany	England, Denmark, Sweden,Italy, Spain, Japan, Norway, Denmark 2, Spain 2, LatinAmerica, Korea, Croatia, China, Vietnam
MSW9-4 Kanji code	Invalid Disabled, JIS (Japan), S	JIS: CP932 (Japan), SJIS:X0213 (Japan), GB18030 (China), KS Hangul (SouthKorea), EUC Hangul (South Korea), BIG5-HKSCS
MSW10-1 Print	Density 100 % 70 %, 75 %, 80 %, 85	%, 90 %, 95 %, 100 %, 105 %,110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2 Print Speed	Level 9 Level 1, Level	Level 2, Level 3, Level 4, Level 5, Level 6,Level 7, Level 8, Level 9
MSW10-4	Old Command	Invalid	Invalid, CBM1, CBM2
MSW10-5	Buzzer Event Not	By C.Open	All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6	Buzzer Sound	Tone 2 Tone 1, Tone 2, Tone 3, Tone 4
MSW13-1	Security/Target	Low/All	Low/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5	BT Device Scan	Discoverable	No Response, Discoverable
MSW13-6	Auto Reconnect	Valid	Invalid, Valid

CITIZEN SYSTEMS AMERICA CORPORATION

363 Van Ness Way, Suite 404 Torrance, CA 90501. USA

Tel: [phone] Fax:[phone]

http://www.citizen-systems.com

CITIZEN SYSTEMS EUROPE GmbH

Elizabeth House, 56-60 London Road

70329 Stuttgart

Staines-Upon-Thames, TW18 4HF

Germany

United Kingdom

Tel: [phone]

Tel: [phone]

Fax: [phone]

Fax: [phone]

http://www.citizen-europe.com
