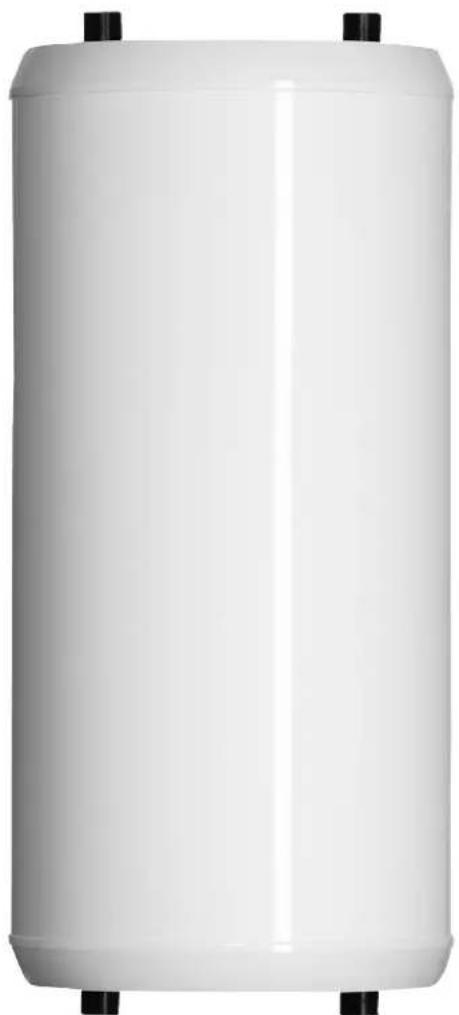

| Product type | Buffer tank (boiler) |
| Brand | Nibe |
| Model | UKV 20750 |
| Volume | 98 liters |
| Net weight | 31 kg |
| Dimensions (diameter x height) | Ø450 mm x 1012 mm |
| Maximum operating pressure | 6 bar (0.6 MPa) |
| Temperature range | +4 °C to +95 °C |
| Hydraulic connections | 4 x G1" int. (system flow/return, heat pump flow/return) |
| Energy efficiency class | C |
| Heat loss | 60 W |
| Tank material | Steel with polyurethane insulation |
| Exterior coating | White powder-coated sheet metal with plastic ends |
| Main functions | Increase in volume and flow rate, reduction of temperature peaks, protection of the heat pump |
| Maintenance | Check the safety valve 4 times a year; contact the installer for general maintenance |
| Safety | Safety valve max 6 bar; frost-free installation; do not use by children without supervision |
| Spare parts | Use only original NIBE parts |
| Reference | 088 207 |
| Transport and storage | Protected from moisture, temperature above 0 °C |
Frequently Asked Questions - UKV 20750 Nibe
User questions about UKV 20750 Nibe
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Boiler in PDF format for free! Find your manual UKV 20750 - Nibe and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UKV 20750 by Nibe.
USER MANUAL UKV 20750 Nibe
611182
Svenska
4Viktig information
6Till användaren
7Till installatören
This manual describes installation and service procedures for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning an user maintenance shall not be made by children without supervision.
This is an original manual. It may not be translated without the approval of NIBE. Rights to make any design or technical modifications are reserved.
©NIBE 2023.
SERIAL NUMBER
The serial number can be found on top of the product.
Caution
Always give the product's serial number when reporting a fault.
RECOVERY
Leave the disposal of the packaging to the installer who installed the product or to special waste stations.
Do not dispose of used products with normal
se household waste. It must be disposed of at a special waste nderation or dealer who provides this type of service.
Improper disposal of the product by the user results in ad- ministrative penalties in accordance with current legislation.
SYMBOLS
Explanation of symbols that may be present in this manual.
NOTE
This symbol indicates danger to person or machine.
Caution
This symbol indicates important information about what you should consider when installing or servicing the installation.
MARKING
Explanation of symbols that may be present on the product's label(s).
GENERAL
UKV 100 is designed and manufactured according to sound engineering practice in order to ensure safe usage.
INSPECTION OF THE INSTALLATION
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be carried out by a suitably qualified person.
| √ | DateSignatu | |||
| Heating medium (page 14) | ||||
| Shut o valves | ||||
| Safety valve | ||||
For the User
MAINTENANCE
The safety valve in the system where the accumulator tank is installed must be inspected regularly (about four times a year) to prevent blockages.
To inspect the valve, open the safety valve manually and check that water ows through the overow pipe. If this does not happen then the safety valve is defective and must be replaced.
SERVICE
For service, contact the installer. Serial number (PZ3) (14 digits) and installation date should always be stated.
Only replacement parts supplied by NIBE may be used.
For the Installer
GENERAL
UKV 100 has several dierent areas of use.
UKV 100 can be used during external control of the heating system. The heat pump then charges UKV 100 with oating or xed condensing. The external control function controls the heat distribution from UKV 100 to the consumer.
If the ow to the heating system can be restricted using radiator thermostats, for example, install a UKV 100 as an intermediate tank. This ensures a secure ow for the heat pump.
UKV 100 also allows a greater ow to the heating system than across the heat pump.
In some installations, so-called heating clicks occur as a result of movements during changes in temperature. To eliminate temporary changes in temperature, and thereby prevent heating clicks, install a UKV 100 after the heating installation.
UKV 100 can also be used to increase the system volume and thereby prevent malfunctions.
The accumulator tank consists of a condensation-insulated steel vessel with polyurethane insulation. Outer cladding in white, powder-coated sheet metal with ends of durable plastic.
The accumulator tank is designed and manufactured for maximum cut-o pressure of 6 bar.
The working temperature is +4 to +95 °C.

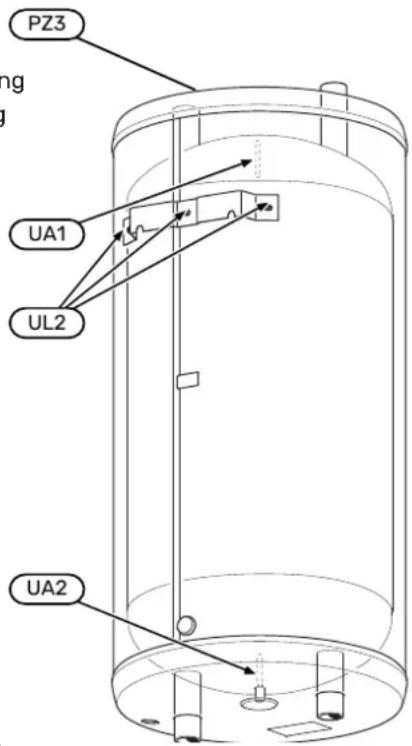

COMPONENT LOCATION
UKV 100
| tion | NameDesigna- |
| a | Submerged tube 09,5 mmUA1 |
| Submerged tube 09,5 mmUA2 | |
| Holes for wall bracketUL2 | |
| Serial number platePZ3 |
TRANSPORT
UKV 100 should be transported and stored in the dry.
ASSEMBLY
The accumulator tank must be installed in a dry area at a temperature that does not drop below 0 °C (frost-free).
MOUNTING
UKV 100 has to be installed vertically suspended on the wall. First install the enclosed mounting bracket on the wall, then suspend UKV 100 from the bracket.
SUPPLIED COMPONENTS
Suspension bracket.
INSTALLATION
All connections (including connections or holes that are used) must be insulated to minimise energy losses.
DOCKINGS
NOTE
These are outline diagrams. Actual installations must be planned according to applicable standards.
Volume increase as well as reduction of spikes
A UKV 100 is installed as a volume increaser in those cases. Vent the accumulator tank by loosening the connection where the system volume in the climate system is below (XL1) at the top of the accumulator tank. the minimum recommended volume for the heat pump. 2. Fill the vessel through the drain valve.
Volume and ow increaser and reduction in heat spikes
A UKV 100 is installed as a volume and ow increaser in those cases where the system volume in the climate system is below the minimum recommended volume for the heat pump and/or the ow is restricted without control.
Volume increase as well as reduction of heat spikes
A UKV 100 is installed as a volume increaser in those cases where the system volume in the climate system is below the minimum recommended volume for the heat pump.
PIPE INSTALLATION
Pipe installation must be carried out in accordance with current norms and directives.
The drain valve is installed on the heating system's return line (XL2).
The system where UKV 100 is installed must be supplied with a safety valve of max. 6 bar (0.6 MPa).
The overow pipe must be the same size as the safety valve's. Route the overow pipe from the safety valve, sloping along its entire length, and ensure that it is frost- eat of and well supported. The mouth of the overow pipe must be visible and not placed close to electrical components.
Ensure that incoming water is clean.
If uncertain, contact a plumber alternatively see applicable standards.
FILLING
Fill the accumulator tank as follows:
Cases Vent the accumulator tank by loosening the connection w (XL1) at the top of the accumulator tank.
-
Fill the vessel through the drain valve.
-
When only water comes out of the connection (XL1) (an air-water mixture emerges initially), the connection can be closed and the accumulator tank is lled.
Technical data

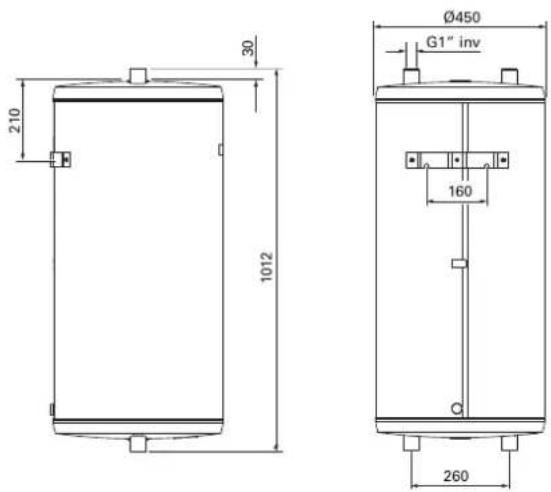

DIMENSIONS
UKV 100
TECHNICAL SPECIFICATIONS
| UKV100M | ||
| 98litreVolume | ||
| 31kgNet weight | ||
| 0.6 / 6MPa/barMax | ||
| °CMax4oper95ng tempera | ||
| Part No. | 088 207 | |
ENERGY LABELLING
| Supplier | NIBE | |
| Model | UKV-100 | |
| Eciency class 1 | C | |
| Heat loss | W | 60 |
| Volume | I | 98 |
1 Scale for the product's eciency class A+ to F.

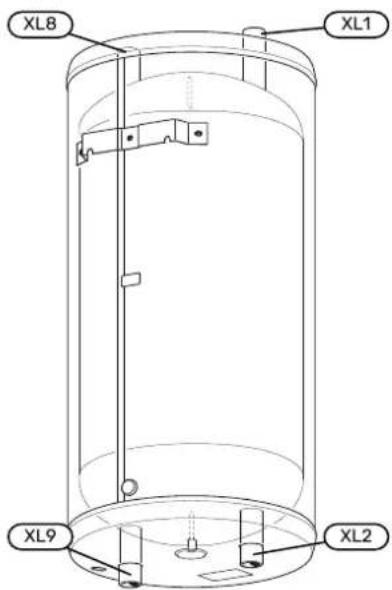

PIPE CONNECTIONS
UKV 100
PIPE DIMENSIONS
| Connection | ||
| G1" int.Supply line, heating systemXL1 | ||
| G1" int.Return line, heating systemXL2 | ||
| G1" int.Docking from heat pumpXL8 | ||
| G1" int.Docking to heat pumpXL9 | ||
