Package Includes

NPOE-EXT-1G30WP Gigabit PoE+ Extender
(x2) Water-Resistant Covers
- Owner's Manual

Product Features

• Save time and money by extending data and power over existing network cables past the 100m (328 ft.) limit
• Extend a 10/100/1000 Mbps application over longer distances by cascading multiple extenders up to 500m (1640 ft.)
  Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE/PoE+ devices (wireless LAN access points and bridges, VoIP, IP surveillance cameras)
• Automatically detects and protects PoE/PoE+ equipment from being damaged by incorrect installation (non-PoE devices only receive data)
• Compact aluminum case is IP65 rated for protection against water splashes
• Plug and play—no additional power required
• Compact, wall-mountable design

RJ45 Cable Wire and Crimp Steps

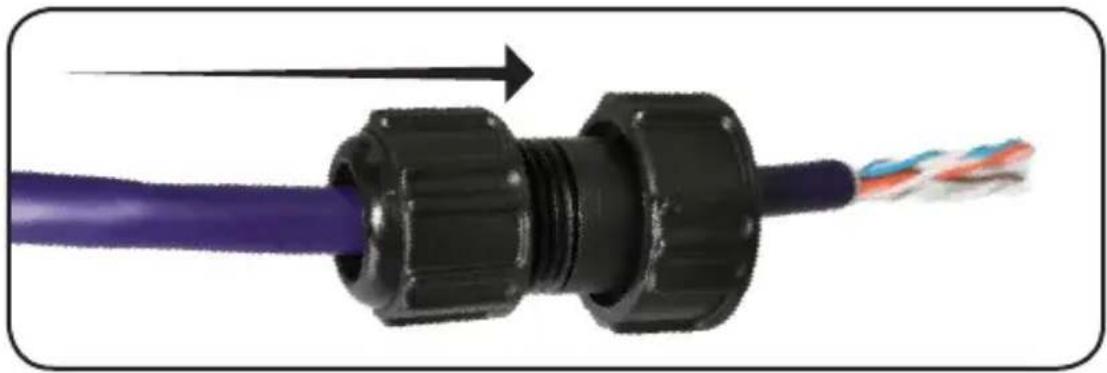

1. Strip an inch or so of the outer skin of a Cat5e/6 cable with a utility knife. Separate and straighten the internal wires, and arrange them in the proper order. Use a wire cutter to trim the wires evenly. Slide one of the included water-resistant covers along the end of the cable.

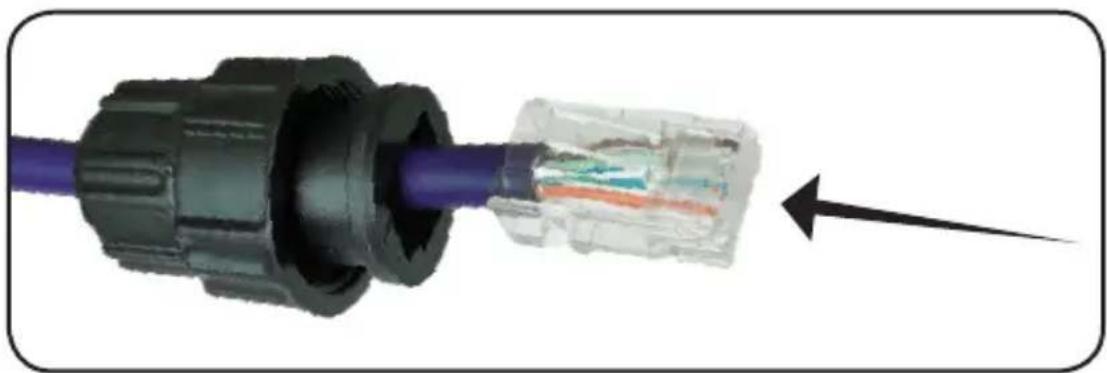

1. Insert the neatly trimmed wires into an RJ45 modular connector plug (such as Tripp Lite's N230-100) in the correct order. Use your crimping tool (such as Tripp Lite's T100-001-TST) to press the cable jacket and the wires into the RJ45 connector. Be sure to test the connection to ensure the cable is working properly.

RJ45 Cable Wire and Crimp Steps

1. Tighten the rear of the water-resistant cover until it fits snugly over the cable jacket and will not slide.

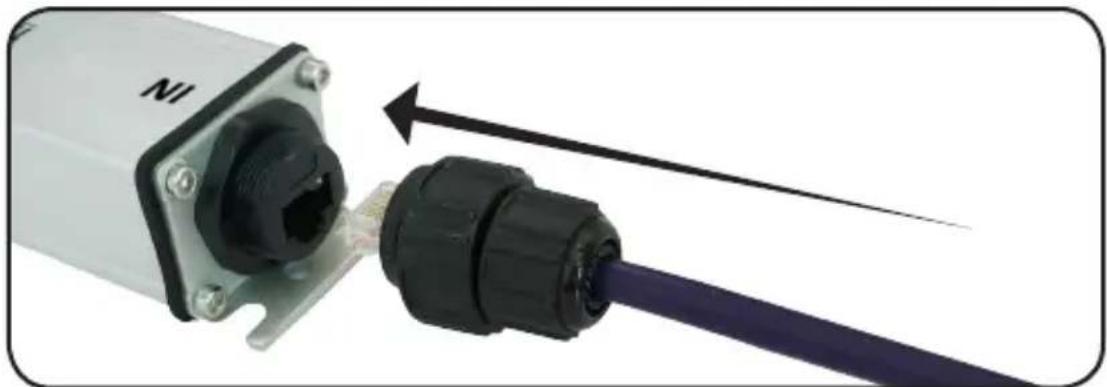

1. Connect the cable's male RJ45 plug to the NPOE-EXT-1G30WP's female RJ45 port.

RJ45 Cable Wire and Crimp Steps

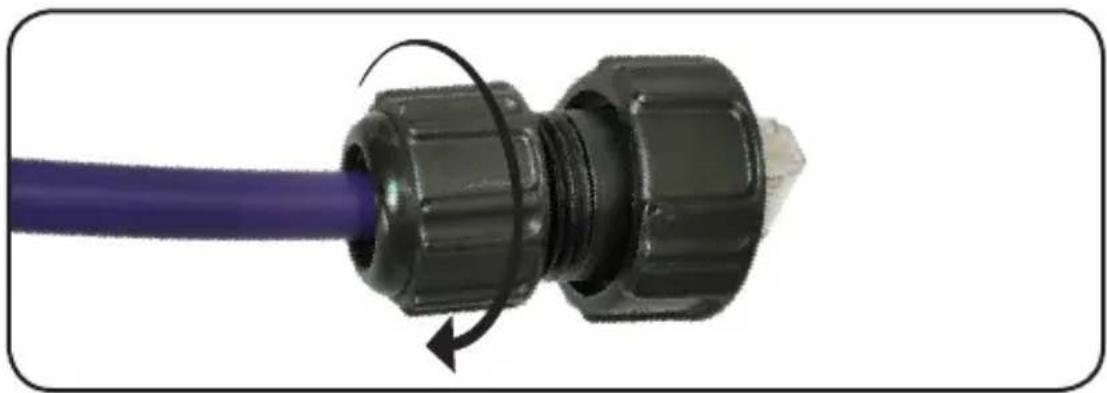

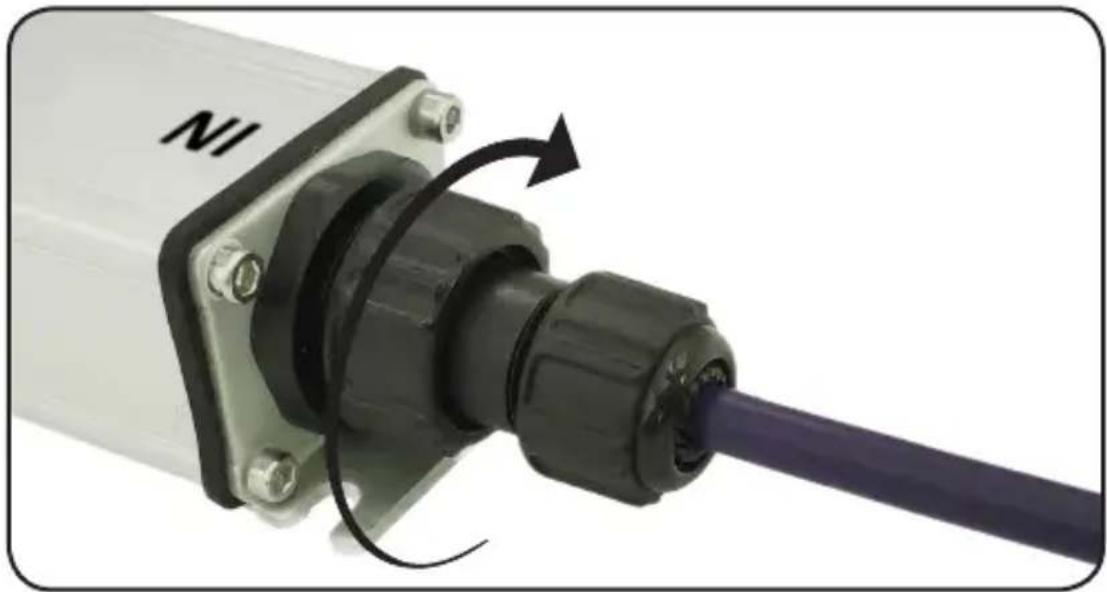

1. Screw the threaded coupling clockwise for maximum tightness. When installed correctly, the IP65-rated extender will be protected against dust and water spray from all directions.

Single Extender Installation

Note: Prior to connecting the RJ45 cable to input/output ports, install the included water-resistant dust caps onto the cable. Caps can be screwed onto the end of the port connection (see RJ45 Cable Wire and Crimp Steps for more information).

1. Using a Cat5e/6 cable (up to 100 m / 328 ft. long), connect your powered source device (such as a PoE switch) into the "IN" port on the unit.
2. Using another Cat5e/6 cable (up to 100 m / 328 ft. long), connect your remote PoE powered device (PD) (such as VoIP or IP surveillance camera) into the "OUT" port on the unit.

Note: Your PoE source must meet or exceed IEEE 802.3at / 802.3af standards. Please see Maximum Supported Power table for more information.

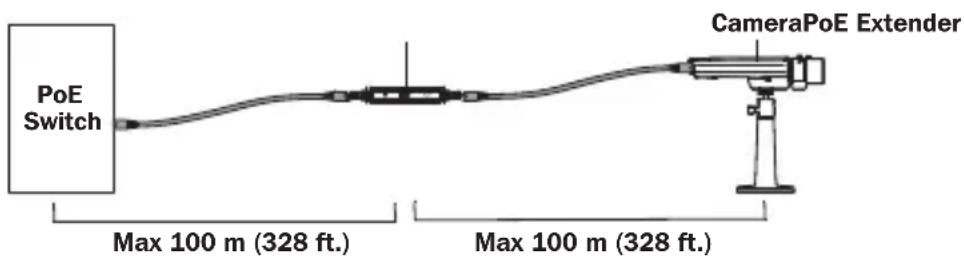

Single Extender Installation Diagram

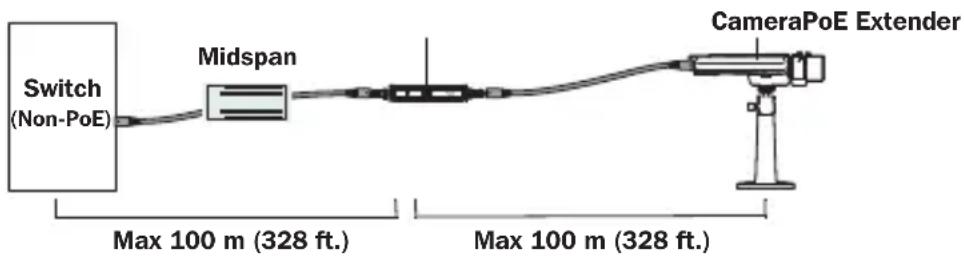

Single Extender Installation with Midspan Diagram

Note: Where external power is required, the power source (e.g.. midspan or PoE injector) must be installed between the Ethernet switch (non-PoE source) and the first NPOE-EXT-1G30WP extender.

Multiple Extender Installation

Note: You may only cascade four PoE extender units up to 500 m (1640 ft.) in a single installation.

1. Using a Cat5e/6 cable up to 100 m long, connect your powered source device (such as a PoE switch) into the "IN" port on the unit.
2. Using another Cat5e/6 cable up to 100m long, connect the "OUT" port of the first extender to the "IN" port of the second extender.
3. Repeat Step 2 up to two more times for each additional PoE extender you wish to add, or connect your remote PoE powered device (PD) to the "OUT" port of the second PoE extender.

Notes:

The 4th PoE extender will only supply IEEE 802.3af up to 12W.
- Your PoE source must meet or exceed IEEE 802.3at / 802.3af standards. Please see Maximum Supported Power table for more information.

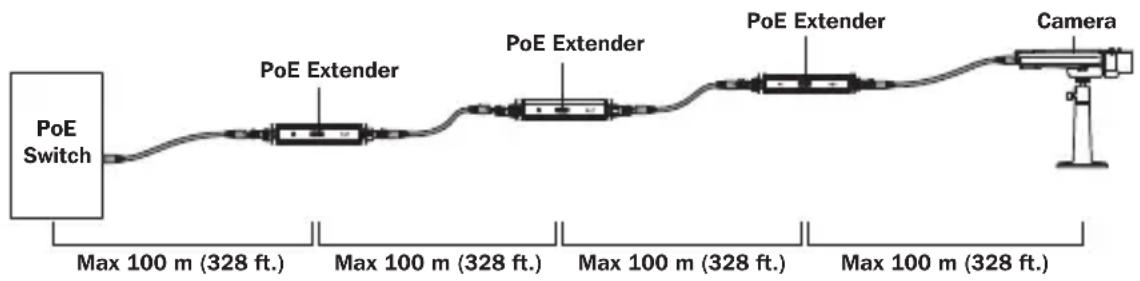

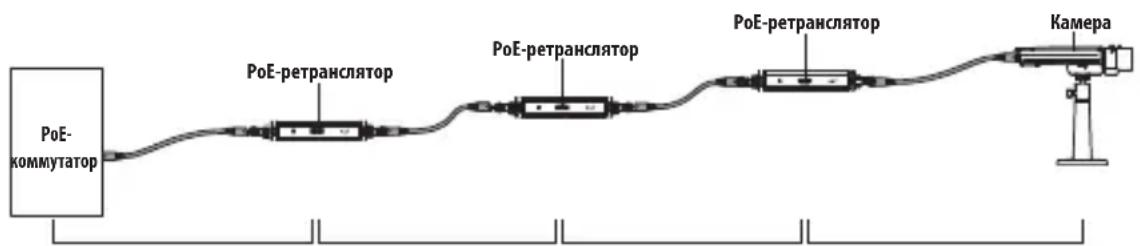

Multi-Extender Installation Diagram

Multiple Extender Installation

Maximum Supported Power

Multiple PoE Extenders can be connected every 100m (328 ft.) for greater distances. The actual figures depend on operating conditions. The range is determined using 24 AWG or heavier Cat5e or Cat6 cable, except where specified.

Examples for low power PoE devices (PoE Class 1, or require under 4W):

PoE Source
PoE switch (802.3af)	15W midspan (802.3af)	PoE+ switch (802.3at)	30W midspan (802.3at)
Maximum Distances
400 m / 1312 ft.	400 m / 1312 ft.	500 m / 1640 ft.	50 m / 1640 ft.

Examples for medium power PoE Devices (PoE Class 2, or require under 6W):

PoE Source
PoE switch (802.3af)	15W midspan (802.3af)	PoE+ switch (802.3at)	30W mid-span(802.3at)
Maximum Distances
300 m / 984 ft.	300 m / 984 ft.	m / 1312 ft.	m / 1312 ft.

Examples for full power PoE Devices (PoE Class 0 or 3, or require under 12W):

PoE Source
PoE switch (802.3af)	15W midspan (802.3af)	PoE+ switch (802.3at)	30W midspan (802.3at)
Maximum Distances
200 m / 656 ft.	200 m / 656 ft.	m / 984 ft.	300 m / 984 ft.

Multiple Extender Installation

Examples for PoE+ devices (PoE Class 4 that are under 22 watts, or 802.3at compliant):

PoE Source
PoE switch (802.3af)	15W midspan (802.3af)	PoE+ switch (802.3at)	30W midspan (802.3at)
Maximum Distances
Not applicable	Not applicable 200 m / 656 ft. 200 m /	656 ft.

Specifications

IEEE Standards IEEE 802	3af (Power over Ethernet)
	IEEE 802.3at (High-Power PoE+ Power over Ethernet)
	IEEE 802.3 (10Base-T Ethernet)
	IEEE 802.3ab (Gigabit Ethernet)
	IEEE 802.3u (100Base-TX Fast Ethernet)
	IEEE 802.3x (Flow control, for full duplex mode)
Media Support 100Base-	TX Cat5 UTP/STP RJ45, 8 pin
	1000Base-TX Cat5e/6 UTP/STP RJ45, 8 pin
Ports One RJ45 10/100/1	1000 Mbps Data + Power Input port
	One RJ45 10/100/1000 Mbps Data + Power Output port
Protection Functions Sho	t circuit protection for short GND
	Overload protection for currents over 0.6A
PoE Pinout Input IEEE 80	2.3af/at Standard Mode A
	Pin 1: DC (-)
	Pin 2: DC (-)
	Pin 3: DC (+)
	Pin 6: DC (+)
	Pin 7: DC (-)
	Pin 8: DC (-)
	Pin 4: DC (+)
	Pin 5: DC (+)
PoE Pinout Output IEEE 8	02.3af/at Standard Mode A
	Pin 1: DC (-)
	Pin 2: DC (-)
	Pin 3: DC (+)
	Pin 6: DC (+)
Operating Temperature -10°C to 45°C / 14°F to 113°F
Storage Temperature 20°C to 70°C / -4°F to 158°F
Operating Humidity 0% to 90% RH, Non-Condensing
Storage Humidity 0% to 95% RH, Non-Condensing
Unit Dimensions 145 x 60 x 40 mm / 5.7 x 2.4 x 1.6 in.

Warranty and Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
