USER MANUAL ARYA900 H.KOENIG

3 in 1 cordless vacuum & dry cleaner

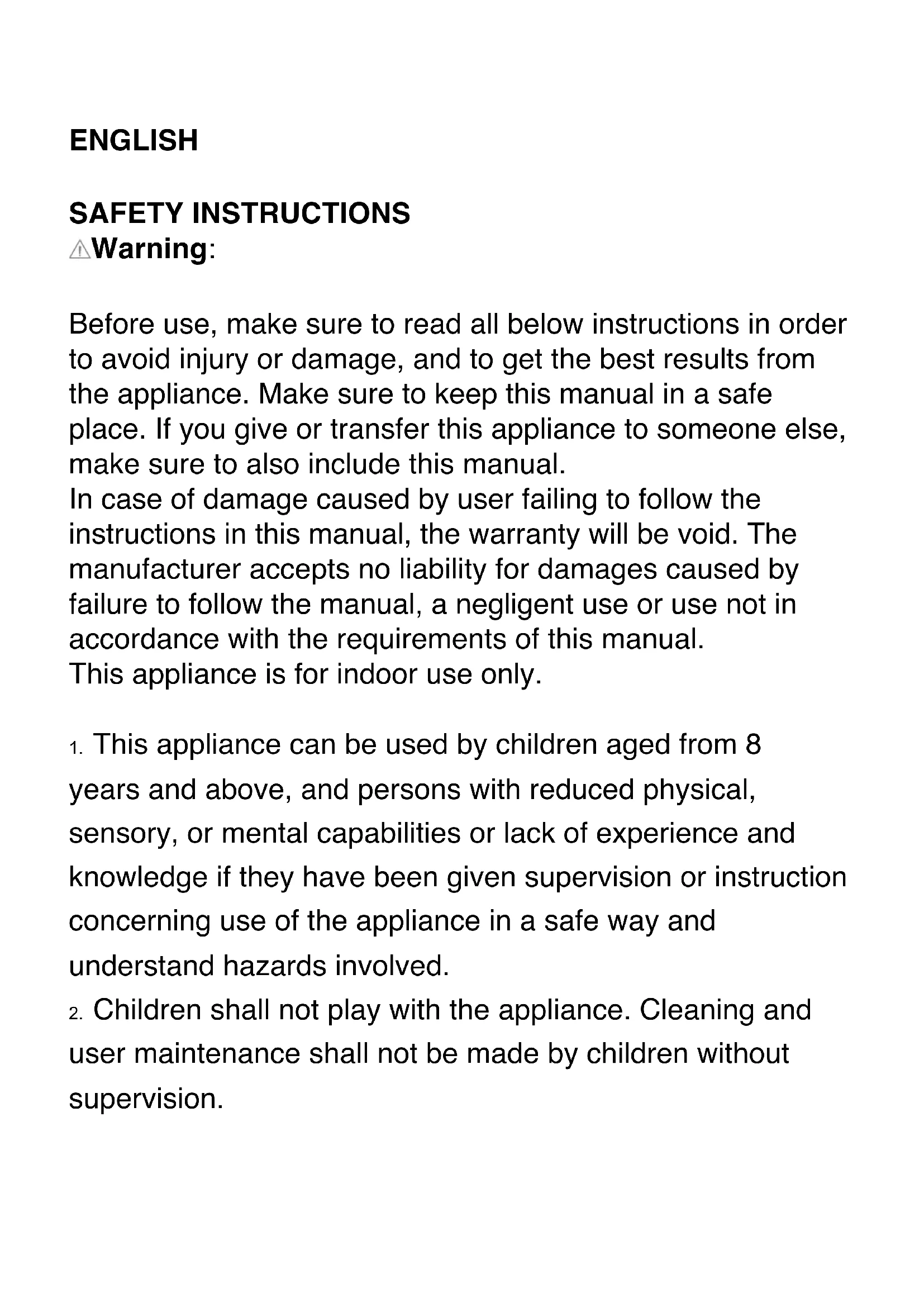

Before use, make sure to read all below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else, make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual, the warranty will be void. The manufacturer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual. This appliance is for indoor use only.

1. This appliance can be used by children aged from 8

years and above, and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand hazards involved.

2. Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children without supervision.3. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

4. Keep the appliance and its power cord out of reach of

children under 8 years of age.

5. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

6. Do not operate this appliance if it has a damaged cord or

plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

7. Do not touch the plug or any liver parts of the appliance.

This could cause electric shock. 4. Stop to use the adapter/plug if it is broken. This could cause electric shock. And call our professional for replacement.

8. Keep hair, loose clothing, fingers, and other parts of

body away from opening and moving parts of the appliance. Do not point the vacuum tube, accessories, or tools to eyes, ears, or put them into mouth.9. Stop to use the appliance if electric leakage, motor over- heating, or abnormal sound is found. And call our professional for help.

10. For recharging the battery, only use the supply unit

provided with this appliance. Other types of chargers can cause battery failure or extreme thermal effects. If the appliance is to be stored unused for a long period, unplug the adapter to turn off the power. 7. After using, please clean the dirty water tank, clear the ventilating duct clear to avoid blockage, reduced suction, motor overheating which will affect the service life of the appliance. Put the appliance in a dry place after using. Humidity will affect the insulation and service life of the appliance.

11. Do not immerse the main body, motorized brush, or

adapter into water or other liquids. There is danger of electric shock.

12. Check the suction nozzle regularly. If there is blockage,

please remove it to avoid the reduction of suction and affect the performance of the appliance. Power off the appliance before disassemble the roller.

13. Do not repair the appliance when it’s broken. Call our

professional to get help.14. The appliance can be used on indoor even hard floors, such as waxed floor, rubber floor, marble floor, granite floor, terrazzo floor, wood floor, bamboo floor, mirror brick surface, porcelain tile floor. The appliance will fail to reach best performance on uneven floors.

15. Do not pick up anything that is burning or smoking such

as cigarettes, matches, or hot ashes.

16. Do not operate the appliance too close to heaters,

radiators, or cigarette butts.

17. Do not pick up flammable or combustible liquids such as

gasoline, or use in areas where they may be presented.

18. Do not vacuum up hard or sharp objects such as glass,

nails, screws, or cions that could damage the appliance. Do not vacuum up drywall dust, fireplace ash, or embers. Do not use as an attachment to power tools for dust collection.

19. Do not vacuum up toxic solutions such as chlorine

bleach, ammonia, or drain cleaner.

20. Do not use the appliance to clean stains with strong

grease, strong viscosity, and strong dyeing, such as shoe polish, paintings, pigment.

21. Use extra care when cleaning on stairs.

22. Do not shake or bump the appliance violently. It could

bring the dirty water into the motor.23. Do not move or lift the appliance while it is working. Do not tilt the appliance to a side or put it horizontally. It could bring dirty water into the motor.

24. Put the appliance against the wall to avoid stumble.

25. Do not use the appliance if the clean water tank and

dirty water tank are not correctly assembled.

26. Do not put any objects into openings. Do not use with

any openings blocked. Keep free of dust, lint, hair, and anything else that may reduce air flow.

27. Do not charge the battery at temperature below 5℃ or

28. Never immerse the appliance, its power cord or plug in

water or any other liquid About self-drying The roller will enter self-drying mode after self-cleaning. Self- cleaning indicator will keep flashing green lights until it is ended. It takes 5 minutes for self-drying. Press on-off switch can turn off self-drying.Product introduction

ON/OFF button / self- cleaning button

Clean water tank releasing button

Dirty water tank releasing button

Dirty water tank handle

measuring cup HEPA filter adapter storage base

Clean water tank empty indicator

Self-cleaning (green light flashing) / Roller tangled (redlight flashing) indicator

Dirty water tank full indicatorInsert the end of the handle into the nozzle of the main body vertically until you hear a click. Make sure the handle is firmly installed. If you want to disassemble the handle, please press the latch in the hole on the back of the main body with a screwdriver. Meanwhile, pull up the handle. Press the dirty water tank releasing button to take out the dirty water tank. Put the bottom of the dirty water tank onto the holding point, then push the tank into the main body until you hear a click.Press the clean water tank releasing button to take out the clean water tank.

Silde the lock of the roller outwards and then upwards to take it out. Align the buckle at the ends of clean water tank with the slots of the brush, and press the tank until you hear a click. Align one end of the roller with the slot, and put the other end into the slot.Press to speed button to switch speed. Put the product on the storage base, and press on-off switch for 3 seconds to start self-cleaning. (Notice: please don’t charge the product while self-cleaning.) Please tilt the product while using. The tilt angle should be less than 142° or there will be water leak from dirty water tank. Please put the product on storage base after using.Water filling (method 1)

1. Pull out the plug on

3. Pour the water into the clean the clean water tank to

get some water. It’s water tank through the nozzle.

1. Take out the clean water tank. 2. Pull out the plug on the filling nozzle

3. Use the measuring cup to get the water.

4. Pour the water into the tank through the nozzle

the measuring cup to get some water. It’s possible to add cleaning product (tablet or liquid).Cleaning agent Compatible with different types of solutions such as liquid detergent, solids tabs and cleaning slices (included in the pack).

1. Press the dirt water tank releasing button to

2. Rotate the dirty water tank cover in above take out the dirty water tank.

Direction and open the dirty water tank.3. Take out the filters. 4. Pour the dirty water, and clean the dirty water tank.

Put the product on the storage base, then plug the adapter. Put away the adapter after charging is finished. Please keep the adapter away from water. While charging, please put the product upright on the storage base, and put them against to the wall to avoid stumble.

If you won’t use the product for a long time, please charge the product for three hours every three months to protect the product (no need fully charged). When you lift up the product, please make sure the brush is 90° from the main body to avoid water leak from the clean water tank. The plug of the water filling nozzle has a hole to balance the air pressure.Do not lay flat or shake violently so as to prevent dirty water leakage.Clean the product It’s recommended to maintain the products regularly in order not to affect the performance. Use wet cloth to clean the product. Before cleaning, please power off the product, and make sure not to wet inner electric device. Clean the filters

1. Take out the HEPA.2. Take out the filter assembly.3. Separate the filter assembly in 4. Clean the filter.

above direction Self-cleaning Self-cleaning can’t be used while charging. It’s recommended to use self-cleaning under more than 25% power, and refill the clean water tank. Please clean the dirty water tank after self-cleaning. Please clean the storage base if there is residual water or dirt. Press on-off switch for three seconds to start self-cleaning.It’s recommended to clean the clean water tank regularly to maintain the performance.

1. Take out the clean water tank.

2. Clean it under running water.

Clean it under running water

1.Take out the roller. 2. Remove dirt and hairs tangled around the roller.

3. Please take out the rubber gasket if you need to change

the roller cover.4. Unscrew and take out the roller cover.

5.Align the roller shaft with the hole

6. Align slot of the roller shaft with the slot of the

on the new roller cover. new roller cover, screw on, and cover with rubber gasket The roller can be cleaned under running water if necessary. Please wipe off the water on the ends of roller because the motor is in the roller.Trouble shooting To reduce the risk of shock and unintended operation, turn off power before servicing. Problem Possible cause Possible solution Not working Low battery Full charged the battery. Roller tangled Clean the roller. Poor suction Dirty water reaches max volume Clean dirty water tank. Roller, or dirty water tank not installed correctly Reinstall the roller and dirty water tank. Roller tangled Clean the roller. Mesh filer in the dirty water tank get blocked Clean the mesh filter. HEPA blocked or not installed Clean the HEPA. Nozzle or dirt passage blocked Clean nozzle or dirt passage. Abnormal sound in motor Nozzle or dirt passage blocked Clean nozzle or dirt passage. Dirty water reaches max volume Clean dirty water tank. No clean water come out Clean water tank not correctly installed Reinstall clean water tank. Clean water tank lack of water Refill clean water tank. Water leak from air outlet Floater not installed Install floater. HEPA is wet Dry HEPA. Can’t charged Plug isn’t well connected Make sure the plug is well connected. Adapter isn’t well connected with the appliance Make sure the adapter is well connected with the appliance. Dirty water tank full indicator flashing Dirty water tank is full or the dirt passage is blocked Clean dirty water tank, or clean dirt passage. Clean water tank empty indicator flashing Clean water tank is empty Refill clean water tank. Self- cleaning/roller tangled indicator flashing red lights Roller tangled Clean roller.WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.ENVIRONMENT

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Indicator lege tank schoon water
