V70 - Vacuum Cleaner Sauber - Free user manual and instructions

Vacuum type	Canister (with bag)
Brand	Sauber
Model	V70

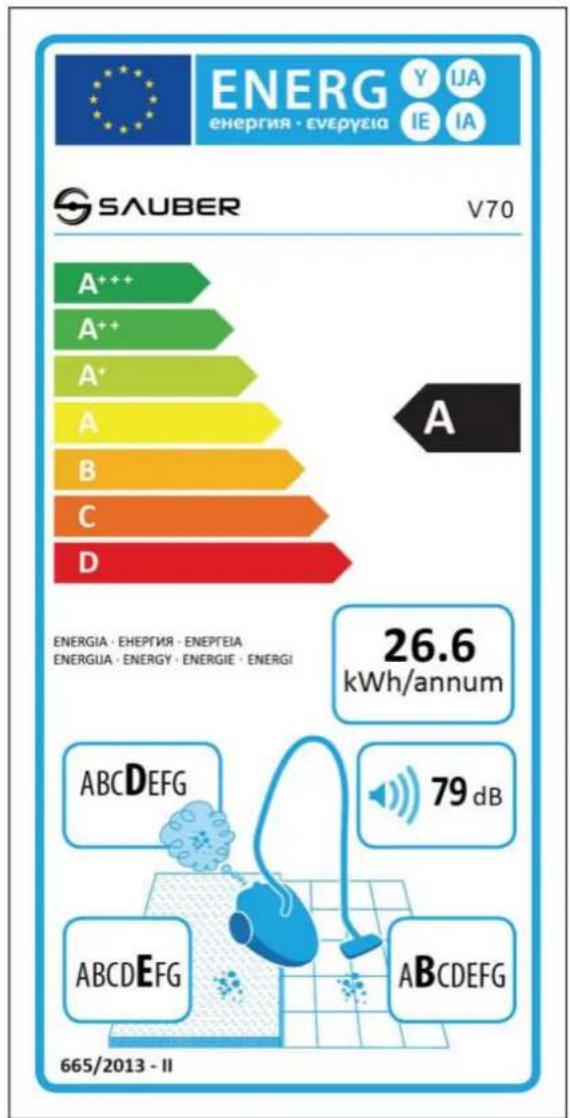

Energy class	A
Annual consumption	26,6 kWh
Noise level	79 dB
Bag type	Dust bag (paper or textile)
Filter	HEPA filter (exhaust filter) and motor protection filter
Power cord	With automatic rewind
Power adjustment	Yes, via speed control button
Included accessories	Floor brush, combo brush, telescopic tube, hose
Full bag indicator	Yes, red light
Warranty	3 years
Filter maintenance	Clean the motor protection filter 2 times per year, shake the HEPA filter regularly
Spare parts	Available at www.buyspareparts.eu
Use	Household only
Safety	Unplug before maintenance, do not vacuum liquids or hot objects

Frequently Asked Questions - V70 Sauber

How to change the dust bag?

Open the front cover by pressing the locking clip. Remove the full dust bag. For a paper bag, dispose of it and insert a new one by pushing it into the side slot. For a textile bag, empty it and replace it. Close the cover. Make sure the bag is correctly installed, otherwise the cover will not close.

How to clean the HEPA filter?

Unhook the exhaust filter grille. Shake the HEPA filter to remove accumulated dust. Replace the filter and attach the grille. Do not wash the HEPA filter with water unless otherwise indicated.

What to do if suction power decreases?

Turn off the appliance immediately. Check and clean all filters (motor protection filter and HEPA filter). Replace the dust bag if full. Check that no object is blocking the hose or accessories.

How to use the floor brush on different surfaces?

The floor brush has two positions: one for hard surfaces (position with bristles out) and one for soft surfaces/carpets (position with bristles retracted). Choose the appropriate position. Adjust the suction power: minimum for furniture, medium for carpets and hard floors, maximum for hard floors with specific brush.

Can the vacuum cleaner pick up liquids?

No, never vacuum liquids. This may cause electric shock and damage the appliance. Use the vacuum cleaner only on dry surfaces.

How to rewind the power cord?

Hold the cord plug and press the cord rewind pedal. Do not let the cord snap during rewinding. Do not exceed the red mark during unwinding.

What to do if the full bag indicator is red?

The red indicator signals that the dust bag is full or blocked. Open the cover and replace the bag. If the indicator remains red after replacement, check the filters.

Is the appliance suitable for commercial use?

No, this vacuum cleaner is designed for household use only. Commercial use may damage the appliance and void the warranty.

How to store the vacuum cleaner to save space?

The vacuum cleaner can be stored in upright or side position, as shown in the manual. Store it in a dry place, with the cord wound and accessories clipped on.

Where to buy spare parts?

Spare parts (bags, filters, accessories) are available on the website www.buyspareparts.eu. For repairs, contact customer service at [e-mail].

USER MANUAL V70 Sauber

Black and silver vacuum cleaner with coiled hose, shown from side profile (no text or symbols visible)

Stofzuiger (NL)

Vacuum Cleaner (EN)

Staubsauger (DE)

Aspirateur (FR)

CE

Inhoud – Content – Inhalt - Teneur

Before use make sure to read all of the below instruct ons in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instruc ons in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruct on concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inser ng the plug into the mains socket, please check that the voltage and frequency comply with the speci ca ons on the ra ng label.
6. If an extension cord is used it must be suited to the power consump on of the appliance, otherwise overhea ng of the extension cord and/or plug may occur.
7. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

8. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and openames.

9. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

10. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
11. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn o the appliance and send it to an authorized service center for repair.
12. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
13. Never a empt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
14. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
15. Never leave the appliance una ended during use.
16. This appliance is not designed for commercial use.
17. Do not use the appliance for other than intended use.
18. Do not wind the cord around the appliance and do not bend it.
19. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
20. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce air ow.
21. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
22. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
23. Do not use this appliance without dust bag or Iters in place.

24. Use extra care when vacuuming on stairs.

25. Do not pick up ammable or combust ble materials (lighter uid, gasoline, etc.) or use in the presence of explosive liquids or vapor.

26. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
27. Do not operate the appliance in an enclosed space lled with vapors given o by oil based paints, paint thinner, moth proo ng, ammable dust, or other explosive or toxic vapors.
28. Keep your work area well dry.
29. Do not use the cleaner to clean your pets or any animal.
30. When using and you hear a squeaking sound from the vacuum cleaner, or suc on power appears to be reduced, stop the machine immediately and clean all liters and change the dust bag.
31. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.
32. Tip: By reducing the suc on power you can move the oor brush easier on the oor. Set the suc on power to minimal for furniture, to medium for carpet and hard oors. Only use the maximum set ng on hard oors in combina on with a brush for hard oors.

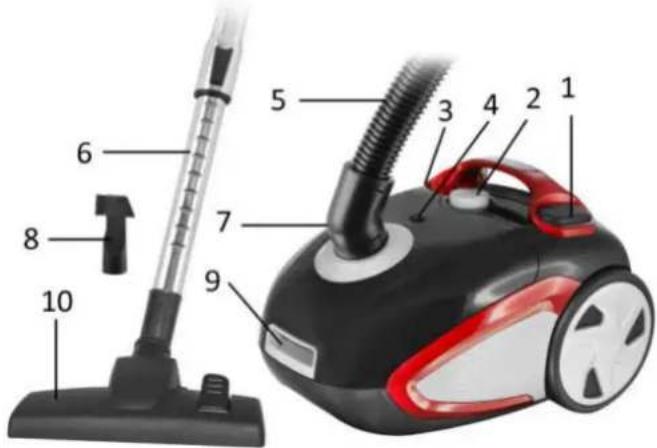

PARTS AND ACCESSORIES

1. On/o switch pedal
2. Speed control bu on
3. Cord rewinder pedal
4. Dust full indicator
5. Hose
6. Metal telescopic tube
7. Hose connector
8. Combi nozzle
9. Locking clip of front cover
10. Floor brush

OPERATING MODE

1. Connect the hose accessories:

Press the adaptors at both side of the hose end, and then insert the hose into the hose socket.

1. Connect the extension tube to the curved hose end.

Connect the different nozzle tools/oor brush to the tube for different cleaning purposes. The oorbrush has two positions, one for hard/even and one for so /tex le surfaces – Choose the right one.

1. Turn on the appliance:

Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power men oned on the range label.

Press the on/o switch pedal to turn on the power. Adjust the power to the required level depending on the cleaning func on.

1. Turn o the appliance:

A er using, press the on/o switch pedal, the appliance is turned o. Pull the plug out of the power socket; press the cord rewind pedal, the power cord will be drawn in.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

2. Tip: By reducing the suc on power you can move the oor brush easier on the oor. Set the suc on power to minimal for furniture, to medium for carpet and hard oors. Only use the maximum se ng on hard oors in combina on with a brush for hard oors.

MAINTENANCE

When the dust full indicator turns to red, it is me to clean the dust bag or replace with a new bag. To do that, please follow the instruc ons:

a) Open the front cover by pressing the lock clip.
b) Remove the dust bag.
c) Throw the full bag away. Then take a new one, insert it into the bag holder and put it in the slot of the cabinet.
d) Close the front cover.

NOTE:

1. The front cover cannot be closed unless the dust bag is installed in right posi on.

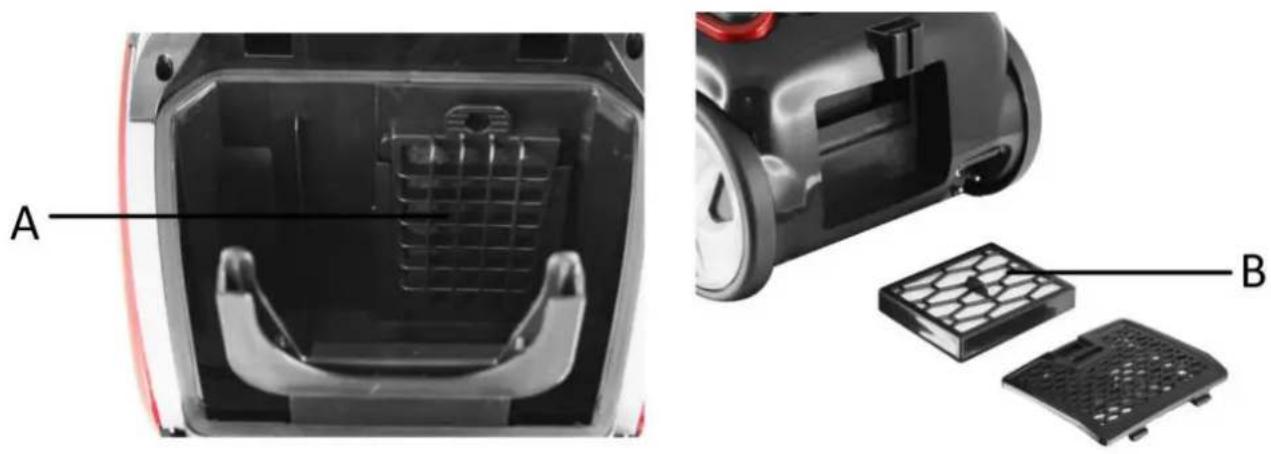

2. The motor protec on Iter (A) should be removed and rinsed twice a year or whenever it is visibly clogged. If the Iter is damaged, a new Iter should be replaced.

3. The outlet Iter (Hepa Iter) (B) should be cleaned in me. To do that, unclip the outlet grille, shake the Iter to clean any dust accumulated. Then relocate the Iter and clip the grille.

Exploded view of a black robotic vacuum cleaner showing internal components and housing (no text or symbols)

POWER CORD MARKING

NOTE: Do not exceed the red mark when pulling out the cord. The yellow mark shows the ideal cable length.

WARNING: the plug must be removed from the power socket before any maintenance or replacement.

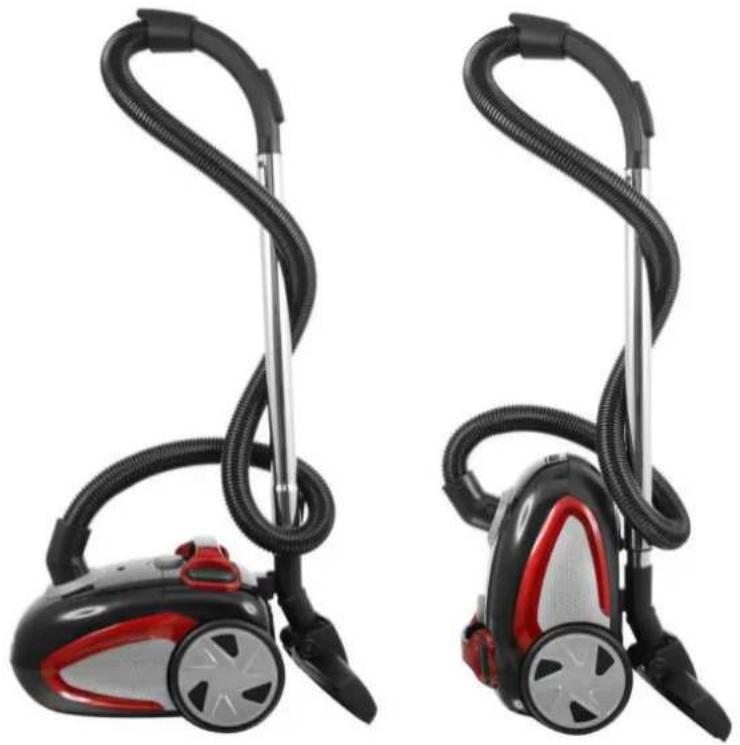

Parking:

This vacuum cleaner can be parked as below styles to save you room space.

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNICAL DATA

Voltage: 220-240V \~ 50/60Hz

Power: 800W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during produc on or transporta on, please return the device to your dealer. In addi on to statutory legal

rights, the purchaser has an op on to claim under the terms of the following guarantee:

For the purchased device we provide 3 years guarantee, commencing from the day of sale. If you have a defect ve product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunc ons due to interven ons and repairs by third par es or the ng of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequen al damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruc on manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plas c parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Direc ve 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collect on systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

www.saubereurope.com

Spare parts:

www.buyspareparts.eu

SICHERHEITSHINWEISE

FUNKTIONSWEISE

Interior and exterior views of a black robotic vacuum cleaner, showing internal components and labeled parts (A and B)

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNISCHE DATEN

MODE DE FONCTIONNEMENT

Interior and exterior views of a robotic vacuum cleaner (no text or symbols visible)

MARQUE DU CORDON ÉLECTRIQUE

Two identical black and red vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

CARACTÉRISTIQUES TECHNIQUES

Tension de service: 220-240V \~ 50/60Hz

Puissance: 800W

GARANTIE ET SERVICE APRÈS-VENTE
