V20 - Vacuum Cleaner Sauber - Free user manual and instructions

Brand	Sauber
Model	V20
Product type	Canister vacuum cleaner
Supply voltage	220-240 V ~ 50/60 Hz
Rated power	700 W
Collection type	With dust bag
Full tank indicator	Yes, red indicator light
Power control	Progressive adjustment (button on device)
On/off pedal	Yes, foot pedal
Cord winding pedal	Yes
Telescopic tube	Yes
Included accessories	Floor brush, combination nozzle, textile brush
Motor filter	Washable, clean twice a year
HEPA filter	Yes, washable
Dust bag	Replaceable
Noise level	Not specified
Warranty	3 years
Customer service	[e-mail], [phone]

Frequently Asked Questions - V20 Sauber

How to turn on the Sauber V20 vacuum cleaner?

Unwind the cord to the yellow mark (do not exceed the red), plug into a suitable outlet, then press the on/off pedal located on the top of the device. Use the speed control button to adjust the power.

When should the dust bag be changed?

Change the bag when the full tank indicator turns red or if suction weakens. Open the front cover, remove the old bag, insert a new one by pushing it into the slot, then close the cover.

How to clean the motor filter and HEPA filter?

The motor filter (A) should be removed and rinsed with water twice a year or if visibly dirty. The HEPA filter (B) should be dusted by shaking; if very dirty, wash it with warm water and let it dry completely before reinstalling.

What to do if suction is weak?

First check the dust bag: if full, replace it. Then check the filters (motor and HEPA): clean them if necessary. Also ensure that the hose, tube, and brushes are not blocked. If the problem persists, contact after-sales service.

Can I vacuum liquids with this model?

No, the Sauber V20 vacuum cleaner is designed only for dry waste. Never vacuum liquids, hot coals, cigarettes, matches, or flammable materials. This could damage the device and pose a risk of electrocution.

How to wind the power cord?

After turning off and unplugging the device, press the cord rewinding pedal. Hold the plug to prevent it from whipping. The cord will automatically retract inside.

What is the recommended power for different floors?

For hard floors, use maximum power with the special hard floor brush. For carpets, set to medium power. For furniture and delicate surfaces, use minimum power. Reduce power to facilitate moving the brush.

How to store the vacuum after use?

Unplug the device, wind the cord, and store it in a dry place. You can place it upright to save space. Keep accessories handy.

Does the 3-year warranty cover all defects?

The 3-year warranty covers manufacturing and material defects. It does not cover damage from improper use, unauthorized intervention, normal wear, or consumables (bag, filters). Keep your purchase receipt.

Where can I find spare parts for the Sauber V20?

Spare parts are available at www.buyspareparts.eu. For any questions, contact customer service at [e-mail] or [phone].

USER MANUAL V20 Sauber

1. Read these instruc ons carefully and keep them in a safe place.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc on concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Only use the appliance as described in this manual.
7. In case of damage caused by failure of not living up to this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use or use not in accordance with the requirements of this manual.
8. Keep the appliance and its cord out of reach of children less than 8 years.
9. Always remove the power cord: Before the unit is stored; Before you go moun ng or dismantle parts; Before cleaning or maintenance work; A er use.
10. Only have the appliance repaired by a quali ed service centre.
11. Qualified service center: a er-sales service of the manufacturer/importer, which is qualified to carry out

repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

1. Before use, check that the mains power supply voltage is the same and the voltage is the same as the voltage indicated on the appliance.
2. Always plug the appliance into an earthed plug socket.
3. Regularly check the power cord for damage.
4. Do not operate any appliance with a damaged cord or plug or a er the appliance malfunction ons, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examine on, repair or electrical or mechanical adjustment.
5. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
6. Make sure the power cord does not come into contact with hot surfaces or steam.
7. The machine should not be operated by means of an external mer-switch or by means of a separate system with remote control.
8. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
9. To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.
10. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
11. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn o the appliance and do not use it again.
12. Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

1. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
2. Only use the appliance indoors, in dry areas away from water.
3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
4. To reduce the risk of electric shock, do not use the appliance outdoors or on wet surfaces.
5. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
6. Close supervision is necessary for any appliance being used by or near children.
7. Never leave the appliance una ended during use.
8. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce air ow.
9. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
10. Do not pick up hot coals, cigar e, matches or any hot, smoking, or burning objects.
11. Do not use this appliance without dust bag or lters in place.
12. Use extra care when vacuuming on stairs.
13. Do not pick up ammable or combustible materials (lighteruid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
14. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc).

15. Do not operate the appliance in an enclosed space lled with vapors given o by oil based paints, paint thinner, moth proo ng, ammable dust, or other explosive or toxic vapors.

16. Keep your work area well dry.

17. Do not use the cleaner to clean your pets or any animal.
18. When using and you hear a squeaking sound from the vacuum cleaner, or suc on power appears to be reduced, stop the machine immediately and clean all liters and change the dust bag.
19. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.
20. Tip: By reducing the suc on power you can move the oor brush easier on the oor. Set the suc on power to minimal for furniture, to medium for carpet and hard oors. Only use the maximum se ng on hard oors in combina on with a brush for hard oors.

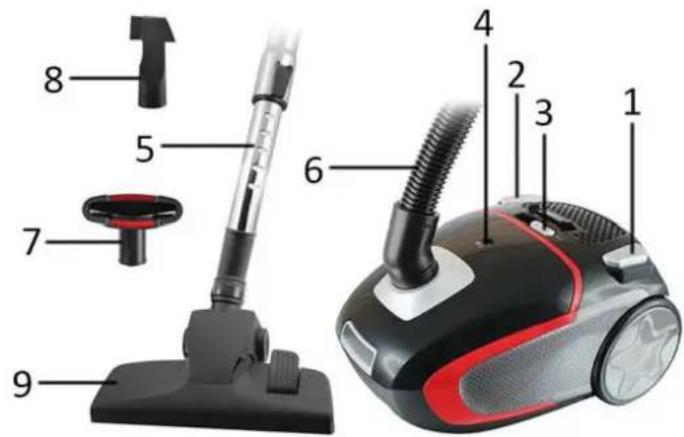

PARTS AND ACCESSORIES

1. On/o switch pedal
2. Cord rewind pedal
3. Power control bu on
4. Dust full indicator
5. Telescope tube
   6.Hose
6. Tex le nozzle
7. Combi nozzle
8. Floor brush

OPERATING MODE

1. Connect the hose accessories:

Press the adaptors at both side of the hose end, and insert the hose into the hose socket.

1. Connect the telescope tube to the curved hose end.

Connect the di erent nozzle tools/ oor brush to the tube for di erent cleaning purposes. The oor brush has two posi ons, one for hard and one for so /tex le surfaces - Choose the right one.

1. Turn on the appliance:

Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power men oned on the ra ng label. Press the on/o switch pedal to turn on the power. Adjust the power to the required level depending on the cleaning func on.

1. Turn o the appliance:

After using, press the on/o switch pedal, the appliance is turned o. Pull the plug out of the power socket; press the cord pedal, the power cord will be drawn in.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

Tip: By reducing the suc on power you can move the oor brush easier on the oor. Set the suc on power to minimal for furniture, to medium for carpet and hard oors. Only use the maximum se ng on hard oors in combina on with a brush for hard oors.

MAINTENANCE

When the dust full indicator turns to red, it is me to clean the dust bag or replace with a new bag. To do that, please follow the instrc ons:

a) Open the front cover by pressing the lock clip.
b) Remove the dust bag.
c) Then take a new one, insert it into the bag holder and put it in the slot of the cabinet.
d) Close the front cover.

NOTE:

1. The front cover cannot be closed unless the dust bag is installed in right position.
2. The motor protec on lter (A) should be removed and rinsed twice a year or whenever it is visibly clogged. If the iter is damaged, a new lter should be replaced.

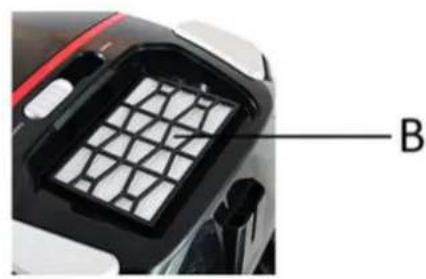

3. The outlet Iter (Hepa Iter) (B) should be cleaned in me. To do that, unclip the outlet grille, shake the Iter to clean any dust accumulated. Then relocate the Iter and clip the grille.

Power Cord Marking

NOTE: Do not exceed the red mark when pulling out the cord. The yellow mark shows the ideal cable length.
WARNING: the plug must be removed from the power socket before any maintenance or replacement.

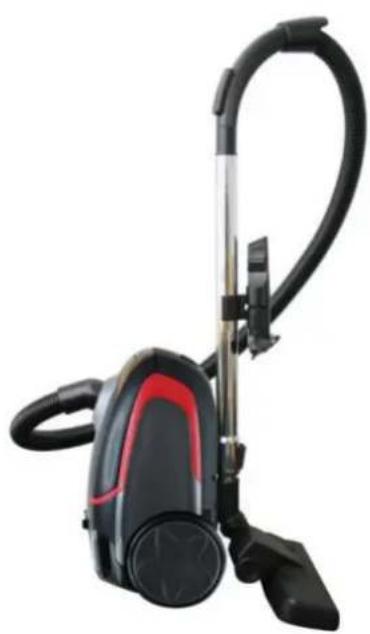

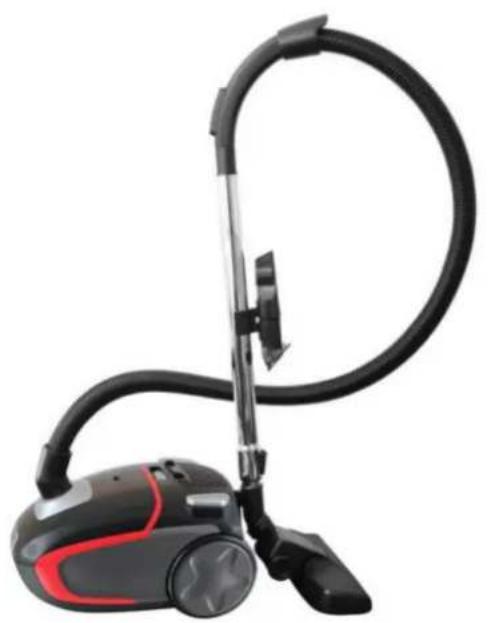

Parking:

This vacuum cleaner can be parked as below styleto save you room space.

TECHNICAL DATA

Voltage: 220-240V ~ 50/60Hz

Power: 700W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during produc on or transporte on, please return the device to your dealer. In addi on to statutory legal rights, the purchaser has an op on to claim under the terms of the following guarantee:

For the purchased device we provide 3 years guarantee, commencing from the day of sale. If you have a defec ve product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunction ons due to interven ons and repairs by third par es or the ng of non-origina parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instrc on manual, will lead to a void of warranty, if this results in consequen al damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instrc on manual is not properly executed. Damage to accessories does not mean free replacement of the

whole appliance. In such case please contact our service department. Broken glass or breakage of plas c parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19/EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material

resources. To return your used device, please use the return and collec on systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

www.saubereurope.com

Spare parts:

www.buyspareparts.eu
