GF239 - Cooker BUFFALO - Free user manual and instructions

Product type	Induction hob
Brand	Buffalo
Model	GF239
Dimensions (H x W x D)	130 x 360 x 690 mm
Weight	15 kg
Power supply	230 V, 50 Hz
Maximum power	7000 W
Power range per burner	500 - 3500 W
Nominal current	29,2 A
Compatible pan types	Mild steel, cast iron, enameled iron (magnetic)
Minimum pan diameter	12 cm
Usage	Indoor only
Safety	Automatic shut off without pan, utensil detection, overheat protection
Error codes	E01 (overheating), E02 (empty pan), E03 (overconsumption)
Cleaning	Damp cloth and soapy water, no abrasive products
Minimum distance to walls	15 cm
Electrical connection	Power socket with earth
Warranty	Consult Buffalo dealer

Frequently Asked Questions - GF239 BUFFALO

Which pans can I use on the Buffalo GF239 hob?

Use magnetic pans (mild steel, cast iron, enameled iron). Stainless steel, aluminum, copper, glass or ceramic pans are not suitable unless specified by the manufacturer. The diameter must be at least 12 cm.

What does error code E01 mean?

Code E01 indicates overheating of the appliance. Check that the ventilation filter (under the appliance) is clean and unobstructed. Let the appliance cool down. If the problem persists, contact Buffalo customer service.

Why does my hob beep and turn off?

This means that no utensil is detected or the utensil is not compatible with induction cooking. Use a suitable magnetic pan and place it in the center of the cooking zone.

How to clean the glass surface of the hob?

Unplug the appliance and let it cool down. Clean with a damp cloth soaked in warm soapy water. Do not use abrasive products or scouring pads. Dry thoroughly afterwards.

Can I use the hob outdoors?

No, this appliance is designed exclusively for indoor use. Do not expose it to moisture or weather.

What is the minimum distance to maintain between the appliance and walls?

Allow a space of at least 15 cm between the appliance and walls or other objects to ensure proper ventilation.

What to do if the glass surface is cracked?

Immediately isolate the power source (unplug the socket) and contact Buffalo customer service or a qualified technician. Do not use the appliance anymore.

Can people with a pacemaker use this appliance?

It is not recommended. Pacemaker wearers should not use the appliance and must stay at least 60 cm away from the hob when operating.

How to install the hob correctly?

Installation must be carried out by a certified technician. Place the appliance on a flat and stable surface. Make sure the power socket is suitable and the appliance is connected to earth.

What does error code E03 mean?

Code E03 indicates overconsumption or undervoltage. Turn off the appliance and let it cool down. If the message persists, contact Buffalo customer service or a qualified technician.

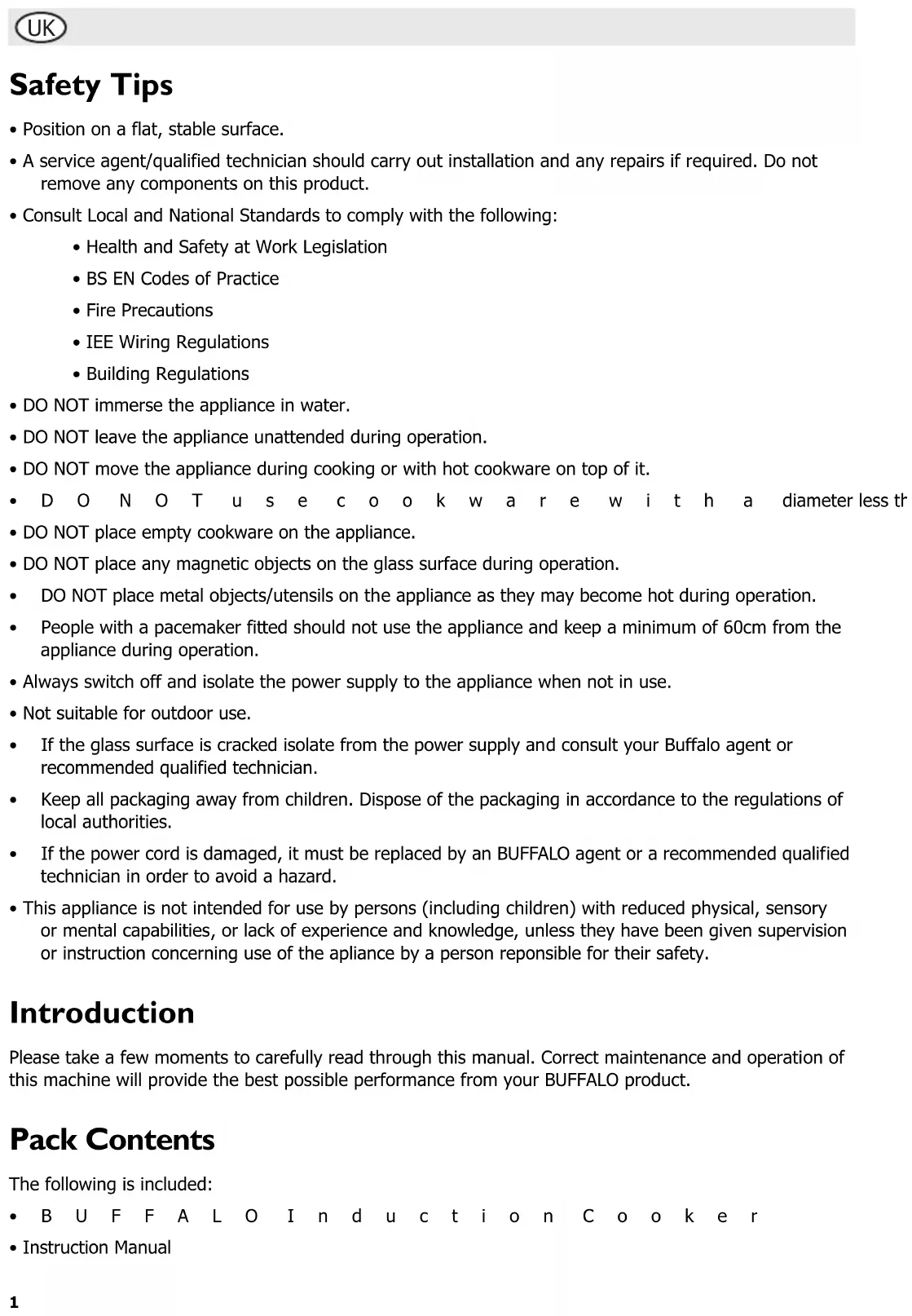

USER MANUAL GF239 BUFFALO

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
- DO NOT leave the appliance unattended during operation.
DO NOT move the appliance during cooking or with hot cookware on top of it.

• D O N O T u s e c o o k w a r e w i t h a diameter less th
DO NOT place empty cookware on the appliance.
- DO NOT place any magnetic objects on the glass surface during operation.
DO NOT place metal objects/utensils on the appliance as they may become hot during operation.
- People with a pacemaker fitted should not use the appliance and keep a minimum of 60cm from the appliance during operation.
- Always switch off and isolate the power supply to the appliance when not in use.
- Not suitable for outdoor use.
- If the glass surface is cracked isolate from the power supply and consult your Buffalo agent or recommended qualified technician.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• B U F F A L O I n d u c t i o n C o o k e r
- Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Maintain a distance of 15cm (6 inches) between the appliance and walls or other objects.

Installation must be carried out by a qualified technician.

Operation

Cookware

Suitable cookware includes:

• All magnetic pans
• Mild steel or plain steel (black iron) pans
• Enamelled/non-enamelled cast iron and iron pans

Unsuitable cookware includes:

Cookware with a diameter of less than 12cm
- Ceramic or glass cookware
- Stainless steel, aluminium, bronze or copper cookware unless marked as suitable for induction cooking
Cookware with feet
Cookware with a rounded bottom (e.g. wok)

Induction Cooking

Induction cooking is a very efficient method of cooking as it reduces heat loss between the pan and the atmosphere by as much as 40% . This makes it extremely energy efficient, as well as offering immediate heat-up, unlike traditional heating methods which require time to get to temperature.

The Induction cooker works by creating a magnetic field within suitable cookware, which causes an instant build-up of heat to cook the food.

Operation

1. Connect the appliance to the mains power supply.
2. Place suitable cookware on to the centre of the glass plate.

Note: Never place empty cookware on the appliance.

1. Turn the dial to the desired power as indicated on the display.
2. If the pan is removed or the wrong type of pan is used, the appliance will make a beeping noise and switch off after approximately 60 seconds.

Cleaning, Care & Maintenance

• Isolate the power supply and allow the appliance to cool before cleaning.
• Use warm, soapy water and a damp cloth to clean the appliance.
  DO NOT use abrasive cleaners or pads.
• D r y t h o r o u g h l y after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Error Message Cause	Solution
Unit Beeps No pan or pan	not suitable for induction cooking	Use pan suitable for induction cooking such as Vogue Stainless Steel Range
E01 Unit has over heated	Ensure ventilation filter (located)	underneath unit is clean and unblocked. Allow unit to cool. If error code still appears after unit has cooled contact a Buffalo agent or qualified engineer.
E02 Pan being heated is empty, temperature of pan is too high		Remove pan from unit. Allow unit to cool. Ensure pan contains product to be heated. If error code still appears after unit has cooled contact a Buffalo agent or qualified engineer.
E03 Power input has risen	fallen below units operating limits.	Switch off unit. Allow unit to cool. If error code still appears after unit has cooled contact a Buffalo agent or qualified engineer.

Technical Specifications

Model	Voltage	Power (max.)	Current	Power range (per ring)	Dimensions (h x w x d) mm	Weight (kg)
GF239	230V 50Hz	7000W	29.2A	500 - 3500W	130 x 360 x 690	15

Electrical Wiring

This appliance must be installed by a qualified technician.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Specifications techniques

DECLARATION OF CONFORMITY

• Conformiteitsverklaring - Déclaration de conformité - Konformitätserklärgung - Dichiarazione di conformità - Declaración de conformidad - Declaração de conformidade -

EMC Directive 2004/108/EC

LVD Directive 2006/95/EC

WEEE Directive 2002/96/EC

EN 55011:2007

EN 55014-2/A1:2001

EN 61000-3-2:2006

EN 61000-3-3/A2:2005

EN 60335-1/A13:2008

EN 60335-2-9/A12:2007

EN62233:2008

IEC 62321/1CD

BUFFALO

Fourth Way

Avonmouth

Bristol

BSII 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
