CE208 - Cooker BUFFALO - Free user manual and instructions

Product type	Induction hob
Brand	Buffalo
Model	CE208
Dimensions (H x W x D)	85 x 386 x 328 mm
Net weight	6.5 kg
Power supply	230 V ~ 50 Hz, 13 A
Maximum power	3000 W
Power range	500 - 3000 W
Number of cooking zones	1 zone (induction)
Minimum pan diameter	12 cm
Compatible pan types	Mild steel, cast iron, enameled iron (magnetizable)
Non-compatible pan types	Ceramic, glass, copper, aluminium (unless induction compatible)
Safety	Automatic shutdown, pan detection, overheating protection
Error messages	E01 (overheating), E02 (empty pan), E03 (overvoltage)
Cleaning	Damp cloth, lukewarm soapy water – no abrasive products
Installation	Minimum distance 15 cm from walls, flat and stable surface
Compliance	CE, WEEE
Power cord	Moulded plug BS1363, 13 A fuse, earthed
Repairs	Refer to a qualified Buffalo technician
Usage	Indoor use only, do not immerse

Frequently Asked Questions - CE208 BUFFALO

How to use the Buffalo CE208 induction hob?

Plug in the appliance, place a compatible pan in the centre of the hob, then adjust the power with the knob. The power is displayed on the digital display. Remove the pan to stop cooking.

Which pans to use with the CE208 model?

Use magnetizable pans made of mild steel, cast iron or enameled iron. The diameter must be at least 12 cm. Avoid ceramic, glass, and pans made of stainless steel, aluminium, bronze or copper unless otherwise stated by the manufacturer.

What to do if the appliance beeps?

The beep indicates that no utensil is detected or the utensil is not compatible. Place a suitable pan in the centre of the hob. If the beep persists after 60 seconds, the appliance turns off automatically.

What does error message E01 mean?

Error E01 indicates overheating of the appliance. Check that the ventilation filter underneath is clean and unobstructed, then let the appliance cool down. If the message persists, contact a qualified Buffalo technician.

How to clean the induction hob?

Unplug the appliance and let it cool down. Clean with a damp cloth soaked in lukewarm soapy water. Never use abrasive products or scouring pads. Dry thoroughly after cleaning.

Can I use stainless steel pans on the hob?

Only if the manufacturer specifies they are suitable for induction cooking. Generally, non-magnetic stainless steel does not work. Test with a magnet: if it sticks to the bottom, the pan is compatible.

What is the maximum power of the Buffalo CE208?

The maximum power is 3000 W (13 A). The adjustable range is from 500 to 3000 W via the knob.

How to install the hob safely?

Place the appliance on a flat and stable surface. Keep a distance of at least 15 cm between the appliance and walls or other objects. Do not install near heat sources or water.

What to do if the glass surface is cracked?

Unplug the appliance immediately and do not use it. Contact a Buffalo agent or an authorized qualified technician to replace the hob. A cracked glass presents a risk of electric shock.

Is the appliance dangerous for pacemaker wearers?

Yes, wearers of a pacemaker must not use this appliance and must stay at least 60 cm away from the appliance when in operation due to the magnetic field generated.

USER MANUAL CE208 BUFFALO

Exterior view of a BUFFALC portable electric stove with black top and yellow control knob (no text or symbols on body)

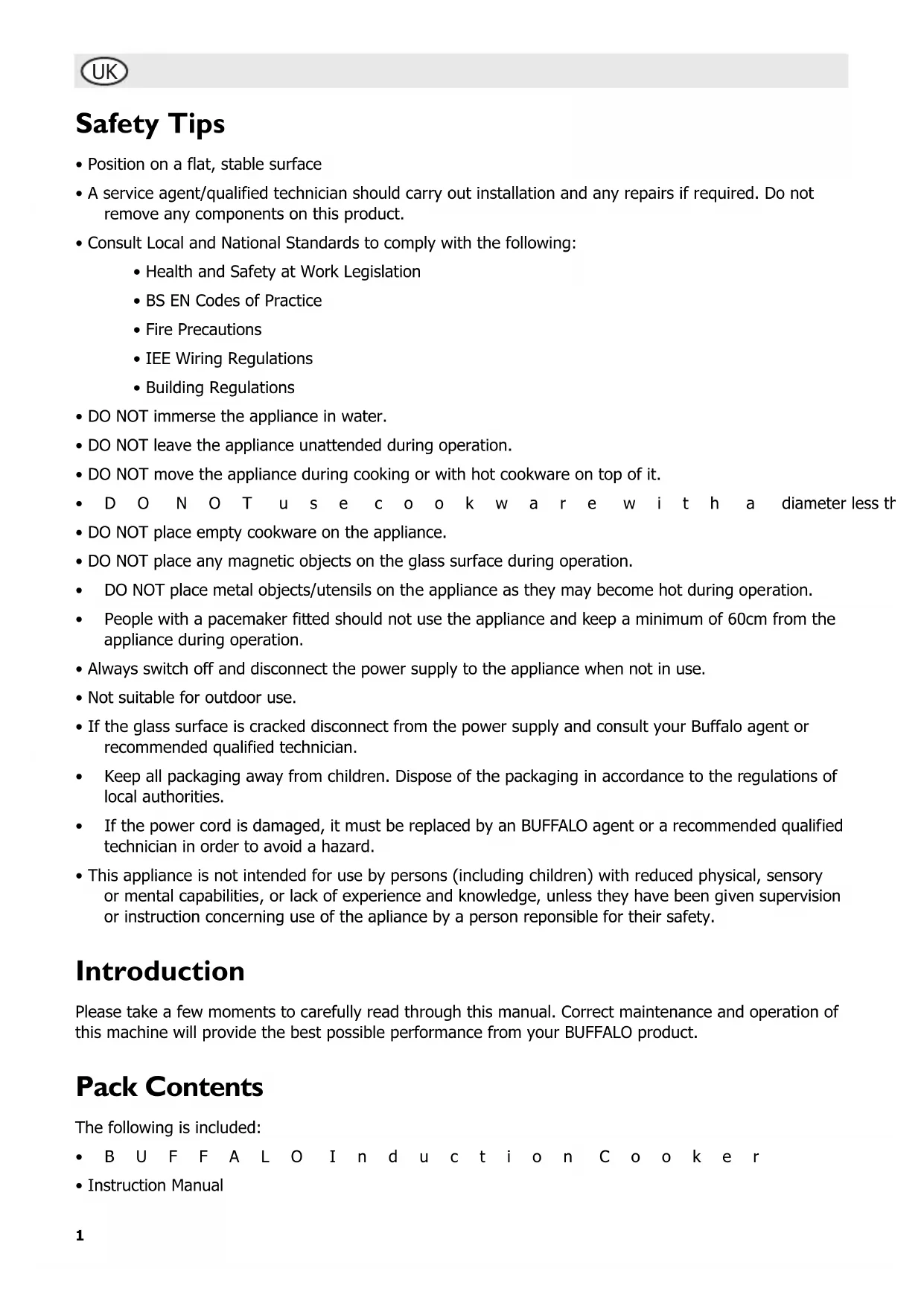

• Position on a flat, stable surface
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation
• BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
• Building Regulations

• DO NOT immerse the appliance in water.
• DO NOT leave the appliance unattended during operation.
• DO NOT move the appliance during cooking or with hot cookware on top of it.

• D O N O T u s e c o o k w a r e w i t h a diameter less tr
- DO NOT place empty cookware on the appliance.
- DO NOT place any magnetic objects on the glass surface during operation.
• DO NOT place metal objects/utensils on the appliance as they may become hot during operation.
- People with a pacemaker fitted should not use the appliance and keep a minimum of 60cm from the appliance during operation.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
- If the glass surface is cracked disconnect from the power supply and consult your Buffalo agent or recommended qualified technician.
- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Induction Cooker
• Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Maintain a distance of 15cm (6 inches) between the appliance and walls or other objects.

Operation

Cookware

Suitable cookware includes:

• All magnetic pans
• Mild steel or plain steel (black iron) pans
• Enamelled/non-enamelled cast iron and iron pans

Unsuitable cookware includes:

• Cookware with a diameter of less than 12cm
• Ceramic or glass cookware
• Cookware with feet
• Cookware with a rounded bottom (e.g. wok)

- Stainless steel, aluminium, bronze or copper cookware unless marked as suitable for induction cooking

Induction Cooking

Induction cooking is a very efficient method of cooking as it reduces heat loss between the pan and the atmosphere by as much as 40%. This makes it extremely energy efficient, as well as offering immediate heat-up, unlike traditional heating methods which require time to get to temperature.

The Induction cooker works by creating a magnetic field within suitable cookware, which causes an instant build-up of heat to cook the food.

Operation

I. Connect the appliance to the mains power supply.
2. Place suitable cookware on to the centre of the glass plate.

Note: Never place empty cookware on the appliance.

1. Turn the dial to the desired power as indicated on the display.

2. If the pan is removed or the wrong type of pan is used, the appliance will make a beeping noise and switch off after approximately 60 seconds.

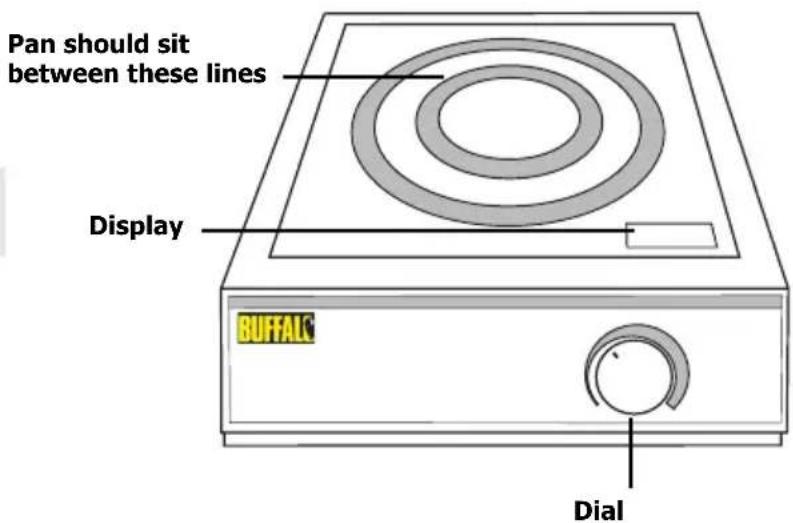

Pan should sit between these lines Display BUFFALC Dial

Cleaning, Care & Maintenance

• Disconnect from the power supply and allow the appliance to cool before cleaning.
• Use warm, soapy water and a damp cloth to clean the appliance.
• DO NOT use abrasive cleaners or pads.
• Dry t h o r o u g h l y after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Error Message Cause Solution
Unit Beeps No pan or pan	not suitablefor induction cooking	Use pan suitable for induction cooking such as Vogue Stainless Steel Range
E01 Unit has over heated	Ensure ventilation filter (located	underneathunit) is clean and unblocked. Allow unit to cool. If error code still appears after unit has cooled contact a Buffalo agent or qualified engineer.
E02 Pan being heated is empty,temperature of pan is too high		Remove pan from unit. Allow unit to cool.Ensure pan contains product to be heated. If error code still appears after unit has cooled contact a Buffalo agent or qualified engineer.
E03 Power input has risen	/fallenbelow units operating limits.	Switch off unit. Allow unit to cool. If error code still appears after unit has cooled contact a Buffalo agent or qualified engineer.

Technical Specifications

Model	Voltage	Power (max.)	Current	Power range	Dimensions (h x w x d) mm	Weight (kg)
CE208	230V 50Hz	3000W	13A	500 - 3000W	85 x 386 x 328	6.5

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

C E

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

user BUFFALS Botão circular

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade •

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento: Induction Cooker

EMC Directive 2004/108/ECLVD Directive 2006/95/ECWEEE Directive 2002/96/EC

EN 55011:2007 EN 55014-2/A1:2001 EN 61000-3-2:2006 EN 61000-3-3/A2:2005 EN 60335-1/A13:2008 EN 60335-2-9/A12:2007 EN62233:2008 IEC 62321/ICD

BUFFALO

Fourth Way Avonmouth Bristol BS11 8TB United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
