USER MANUAL OFZ 421 E OK

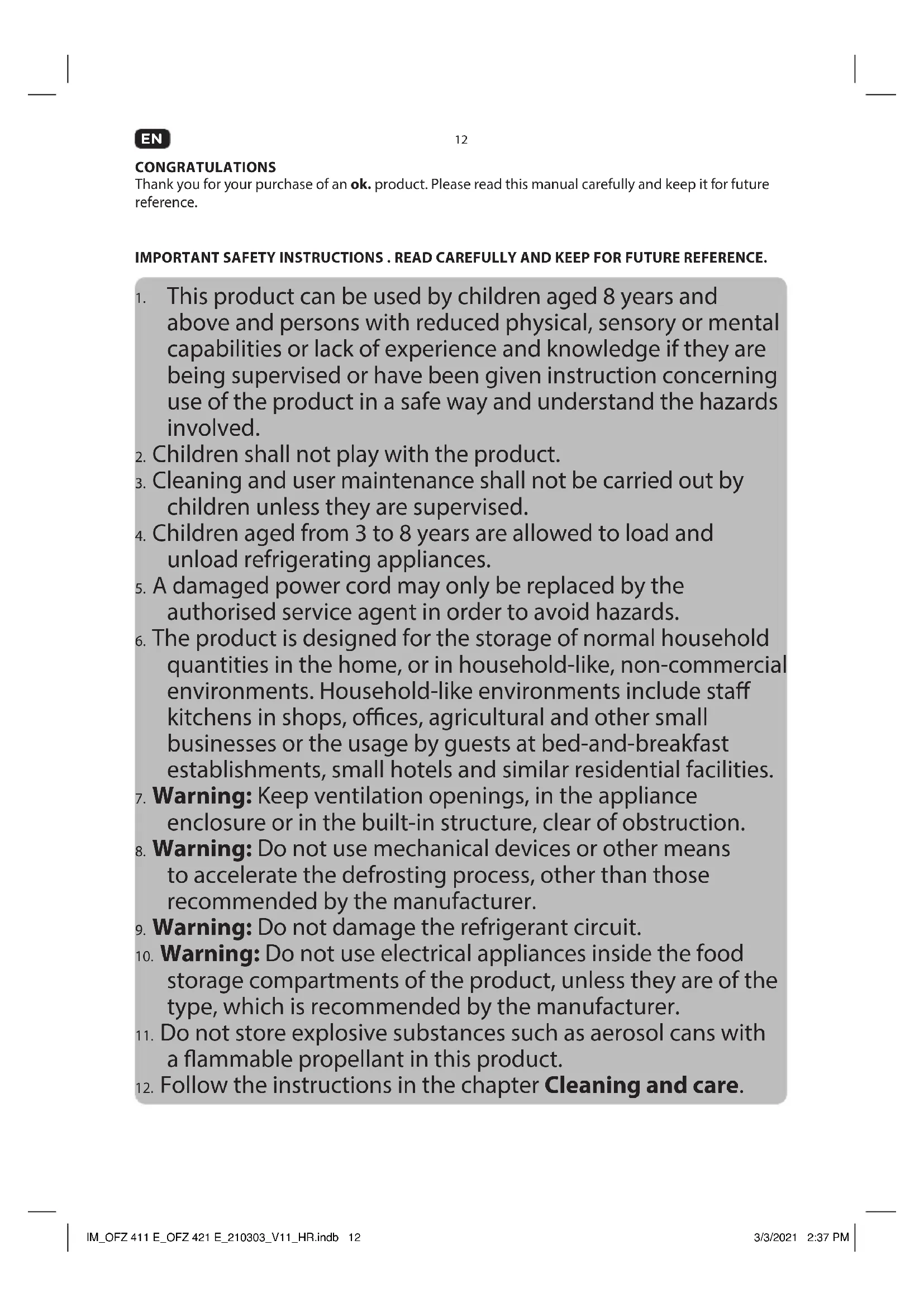

CONGRATULATIONS Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS . READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning use of the product in a safe way and understand the hazards involved.

2. Children shall not play with the product.

3. Cleaning and user maintenance shall not be carried out by

children unless they are supervised.

4. Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

5. A damaged power cord may only be replaced by the

authorised service agent in order to avoid hazards.

6. The product is designed for the storage of normal household

quantities in the home, or in household-like, non-commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or the usage by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

7. Warning: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

8. Warning: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those recommended by the manufacturer.

9. Warning: Do not damage the refrigerant circuit.

10. Warning: Do not use electrical appliances inside the food

storage compartments of the product, unless they are of the type, which is recommended by the manufacturer.

11. Do not store explosive substances such as aerosol cans with

a ammable propellant in this product.

12. Follow the instructions in the chapter Cleaning and care.

13. Warning: The refrigerant and insulation blowing gas are

ammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.

14. To avoid contamination of food, please respect the following

instructions: -Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance. -Clean surfaces, that come into contact with food, as well as the accessible drainage system on a regular basis. -Store raw meat and sh in suitable containers in the freezer, to avoid the foodstus coming into contact with other items stored in the freezer. -Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. -One-, two- and three-star compartments are not suitable for the freezing of fresh food. -If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

15. WARNING: When installing the unit, make sure that the

power cord is not pinched or damaged.

16. WARNING: Do not place portable multiple power outlets or

power adapters at the back of the equipment.

17. Read this manual thoroughly before rst use. It contains important information for your safety as

well as for the use and maintenance of the equipment.

18. Do not place any objects on top of the product.

19. Never immerse electrical parts of the product in water or any other uids during cleaning or

operation. Never hold the product under running water.

20. Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord,

the product has been dropped during installation etc.). For servicing and repairs, please consult an authorised service agent.

21. The mains voltage must match the information on the rating label of the product.

22. Only unplugging from the power socket can separate the product completely from the mains.

23. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

24. Keep this product including power cord and power plug away from all heat sources such as ovens,

hot plates and other heat-producing products/objects.

25. Only unplug from the power socket by the plug itself. Do not pull on the cord.

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

27. Use this product in dry indoor areas only and never outdoors.

28. This product is not intended for commercial use. It is designed for household use only.

29. Make sure that electrical components, live parts and the power cord do not become wet.

30. Use accessories supplied with the device or recommended by the manufacturer only!

31. Do not cover the product while in use. Fire hazard!

32. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

33. WARNING! Do not place portable socket-outlets and portable power suppliers at the rear of the

appliance. Caution: Risk of re! Flammable materials. WARNING! During usage, service and disposal of the appliance, please pay attention to symbol on the side, which is located on the rear of the appliance (rear panel or compressor). It is a warning symbol that indicates the risk of re. There are ammable materials in the refrigerant pipes and compressor. Make sure, that any source of re / open ame is out of the proximity of the device during usage, service and disposal. INTENDED USE This product is suitable for freezing food and beverages only. Any other use may damage the device or cause injuries. - This product is not intended to be used as a built-in appliance. - This product is intended to be used at ambient temperatures ranging from 16°C to 38°C. The product is only intended to be used in private households and shall not be used for commercial purposes. The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specied purpose. IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 14IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 14 3/3/2021 2:37 PM3/3/2021 2:37 PM15

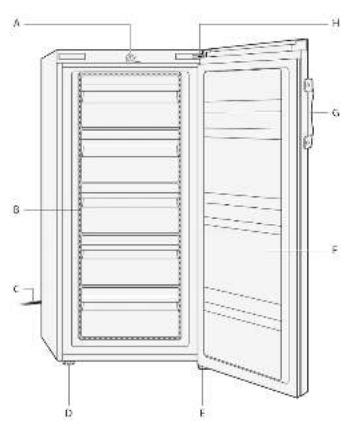

A. Temperature control MIN MID MAX B. Drawers C. Power cord with plug D. Adjustable feet, in front E. Lower door hinge F. Door G. Door handle (not assembled) H. Upper door hinge CONTENT 1 x Freezer 1 x Ice cube tray 1 x User manual 1 x Warranty card

BEFORE FIRST TIME USE

• Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care.

• After you have installed the refrigerator, wait for at least 6 hours before you connect it to the mains to permit the cooling system to regain full capacity.

WARRANTY AND SPARE PARTS

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years. IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 15IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 15 3/3/2021 2:37 PM3/3/2021 2:37 PM16

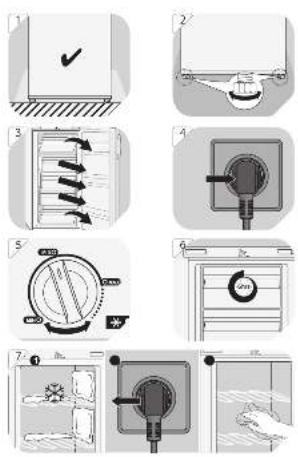

INSTALLATION Note: The installation should be performed by at least 2 persons to avoid dangers. Fig.

Place the unit on a level and stable surface. Keep the minimum distances to all sides. Fig.

Unevenness can be compensated with the adjustable front feet. Ensure, that the product is in a horizontal position to enable the correct working of the cooling circuit. It's adviced to use a spirit level for correct positioning. Fig.

The freezer is equipped with four drawers and one hatch at the bottom. The drawers can be removed for cleaning, but must be used to store the food, as otherwise the energy consumption might be increased due to ineective positioning of the food. OPERATION Fig.

Plug in the power plug into an appropriate mains socket outlet. Fig.

Turn the temperature regulator to the desired setting. Fig.

Allow the product to pre-cool for at-least 6 hours before starting to store food. TEMPERATURE REGULATOR Refer to below table for the specic temperatures of the levels MIN-MID-MAX: Interval MIN/°C MID/°C MAX/°C 3 -12 -18 -24 Note:

• The most common temperature for the freezer should be -18°C (MID) or lower.

• To determine the temperature of the product, obtain a suitable thermometer, and place it inside the product.

• The temperature of the product depends on the setting of the temperature regulator. Note that, the lower the set temperature, the higher the energy consumption of the product.

• Please make sure the door is closed properly and is not obstructed by foods.

• Never store warm or hot foodstus in the freezer, as this will impair the cooling performance of the appliance and will also defrost other foodstus. DEFROSTING Fig.

Defrost the freezer when the layer of ice on the surface reaches 3 to 4 mm. Remove all foods from the freezer. Unplug the freezer and open the door. After the ice has molten, wipe up the water and clean the interior. Note: In order to reduce the build-up of ice, make sure, that no items are stored in contact with the walls of the appliance, the door is opened only for a short period of time and never store warm/hot food in the freezer. IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 16IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 16 3/3/2021 2:37 PM3/3/2021 2:37 PM17

Adjustment of the door hinges Note:

• If necessary, or if the premises require it, the mounting of the door can be changed. To do this, follow below instructions in the given order.

• The following tools are required: Socket wrench or wrench 8 mm, phillips screwdriver, slotted screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

1. Remove the two plastic covers and put them aside.

2. Hold the door rmly, remove the two screws and pull the top hinge out of the door.

3. Remove the door from the lower hinge pin by gently pulling it upwards. Gently place it on a patted

surface, to avoid damaging it. Remove the lower hinge bracket on the right side of the unit and remove the leveling foot on the left side. Reverse their positions. Note: For detailed information see overview illustration

Caution After you have placed the refrigerator upright on its feet, wait for 6 hours before you connect it to the mains to permit the cooling system to regain full performance.

4. Install the lower hinge on the left side of the refrigerator. Install the adjustable foot on the right side

of the refrigerator. Unscrew also the stopper piece at the bottom of the door, turn it and x it to the opposite side.

5. Remove the hinge pin from the top hinge and screw it back into the hinge from the other side. Install

the door onto the lower hinge pin, now located on the left side of the appliance.

6. Install the upper hinge and hinge cover on the left side of the unit. Place the plastic cover on the hole

on the right side of the top of the refrigerator to cover the screw holes. Note: When installing the door, ensure that the top of the door is level with the top of the cabinet. If the door is not level, the rubber gasket will not make a good seal with the cabinet which can cause the appliance to malfunction.

INSTALLING THE DOOR HANDLE

7. Remove the two blind plugs at the desired side of the door.

8. Install the handle with screws provided.

9. Clip the two provided caps onto the screws.

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).

• Ensure unobstructed air ow around the freezer.

• If a layer of ice has built, defrost the unit. A thick layer of ice aects the transmission of the cold, thus the energy consumption will be increased.

• When opening and taking out food, only open the door shortly. A shorter door opening time reduces the amount of ice forming on the freezer walls.

• Select the temperature regulator setting according to the lling amount of the product.

• Use the provided drawers and if necessary further boxes etc. to store the food. This way the energy of the product is used eciently, and the energy consumption can be minimized.

• Only place cold or cooled down foodstus in the freezer. Never insert hot items.

• It’s advised not to remove all accessories, such as drawers, as this might increase the energy consumption.

• Unplug the product before cleaning.

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).

• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment for cleaning. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Wipe the door seal with clean water only, and dry it thoroughly afterwards.

• Removable parts e.g. the glass plate can be taken out for cleaning. DECOMMISSIONING If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Clean the interior of the freezer compartment and let it dry.

• Carefully clean all the accessories.

TROUBLESHOOTING If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt. Problem Possible causes Solution Product does not work • Interrupted power supply • Check the power supply Temperature in the compartments is not low enough.

• The door is not closed rmly or it is opened to often.

• Re-arrange the food so that the door can be closed rmly.

• Open the door less frequently

• The ambient temperature is lower than +16°C or higher than +38°C

• The product is intended to be operated in an ambient temperature of +16°C to +38°C TECHNICAL DATA Voltage : 220 - 240 V~ Frequency : 50 Hz Rated current : 0.5 A Energy Consumption kWh/24h kWh/year

0.45kWh 183kWh Net capacity of freezer : 160 L Freezing capacity : 7.20 kg/ 24h Ambient temperature : 16°C - 38°C Measurement (H x W x D) : 550 X 550 X 1420 mm Depth with door open : 1050 mm based on EN 62552: 2020 This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C Climate class Ambient temperature N +16°C to +32°C ST +16°C to +38°C Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identier, which can be found on the panel of the product as well as on the energy label or simply scan the QR-code on the energy label to access the model information. DISPOSAL Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Refrigerants must be evacuated and disposed of by a qualied specialist in accordance with federal and local regulations before the appliance is scraped. IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 19 IM_OFZ 411 E_OFZ 421 E_210303_V11_HR.indb 19 3/3/2021 2:37 PM 3/3/2021 2:37 PM20

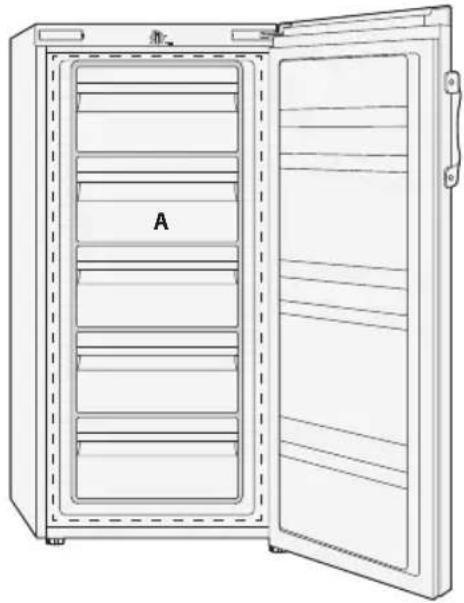

Area Recommended food and temperature setting A Freezer (-18°C) Foods for long-term storage - Top drawer: Storage of frozen food and ice cream. - Middle drawers: storage of frozen vegetables, chips - Bottom drawers: storage of raw meat, poultry,

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

GENERAL INFORMATION FOR STORING FOOD

• Store food when fresh and undamaged. The quality and freshness will then be retained for longer.

• In the case of convenience products and bottled goods, do not exceed the minimum sell-by date or use-by date specied by the manufacturer.

• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent avours being transferred between foods and the plastic parts from becoming discoloured.

• Leave warm food and beverages to cool down before placing them in the freezer compartment.

• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).

• The recommended temperature of the freezer, at which food should be stored, is -18°C.

• Storage time of frozen food: not longer than 12 month.

• The storage period specied on the packaging is decisive for commercially available frozen products.

INFORMATION FOR FREEZING FOOD

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.

• Distribute food in the compartments or frozen food containers.

• Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.

• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop. Note: Storage of foods at the wrong temperature may lead to an increase of food waste. Storage times and temperature Note: Overlong storage or storage at inappropriate freezing temperature may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months.

• Fish, shrimp, lamb, meat: 4-8 months.
