Brand	Beko
Model	VCO 42701 AR
Type	Canister vacuum cleaner
Power	750 W
Supply voltage	220-240 V ~ 50-60 Hz
Action radius	9 m
Noise level	75 dB(A)
Filtration system	Washable HEPA filter + motor protection filter
Included accessories	2-position brush, crevice tool, upholstery brush, dusting brush
Power adjustment	Mechanical control on the unit and on the handle
Telescopic tube	Yes, with adjustment lock
Cable rewinder	Yes, rewinding button
Dust container capacity	Approximately 2 liters (estimated)

Frequently Asked Questions - VCO 42701 AR BEKO

How to empty the dust container?

Press the dust container release button on the unit, then remove the container by holding its handle. Open the lid by pressing the latch and empty the contents. Close the lid until it clicks and put the container back in place.

How to clean the filters?

Remove the dust container, then take out the HEPA filter and the motor protection filter. Wash the sponge filter with clean water, squeeze it out and let it dry for 24h. For the HEPA filter, shake it or wash it under cold water, then air dry for 24h. Only reassemble when completely dry.

What to do if the vacuum cleaner has no suction?

Check that the dust container is not full, the filters are not clogged, and the hose is not blocked. If the problem persists, clean or replace the filters. Also ensure the power is not set too low.

Can I vacuum water or liquids?

No, this vacuum cleaner is designed only for dry cleaning. Never vacuum water, liquids, or damp substances, as this could damage the appliance and void the warranty.

How to adjust the suction power?

Turn the power adjustment knob on the unit clockwise to increase, and counterclockwise to decrease. You can also use the mechanical control on the handle. Four positions are available: carpet, Eco, parquet, and MAX.

How to use the accessories?

The accessories (upholstery brush, dusting brush, crevice tool) attach directly to the handle or telescopic tube. Gently pull the accessory to detach it after use. The crevice tool is ideal for hard-to-reach places.

How to store the vacuum cleaner after use?

Turn off the appliance and unplug it. Press the cable rewinding button to rewind the cord. Hang the floor/carpet brush by sliding its hook into the groove located under or at the back of the unit.

What to do if the cable does not retract?

Ensure the cable is not twisted or stuck. Gently pull the cable and press the rewinding button again. If the problem persists, contact a certified service center.

Can I use dust bags?

No, this vacuum cleaner is bagless: it uses a transparent dust container and washable filters. So you do not need to buy bags.

Where to find spare parts?

Use only original or manufacturer-recommended parts. Contact Beko customer service or an authorized dealer to obtain filters, accessories, or other spare parts.

USER MANUAL VCO 42701 AR BEKO

Simple line drawing of a decorative pattern with circular motifs inside a square frame (no text or symbols)

VCO 42701 AB

VCO 42701 AR

EN - DE - BG - CS - HU -RO - SL - ES - PL - IT - FR -NL - PT - RU - SQ - SR - MK - UA

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	4-11
DEUTSCH	12-21
BULGARIAN	22-30
ČESKY	31-39
MAGYAR	40-48
ROMANIAN	49-59
SLOVENŠČINA	60-68
ESPAÑOL	69-79
POLSKI	80-91
ITALIANO	92-101
FRANÇAIS	102-110
NEDERLANDS 111-119
PORTUGUÊS 120-128
RUSSIAN 129-142
SHQIPTARE	143-151
СРПСКИ	152-160
MAKEДОНСКИ	161-169
UKRAINIAN 170-180

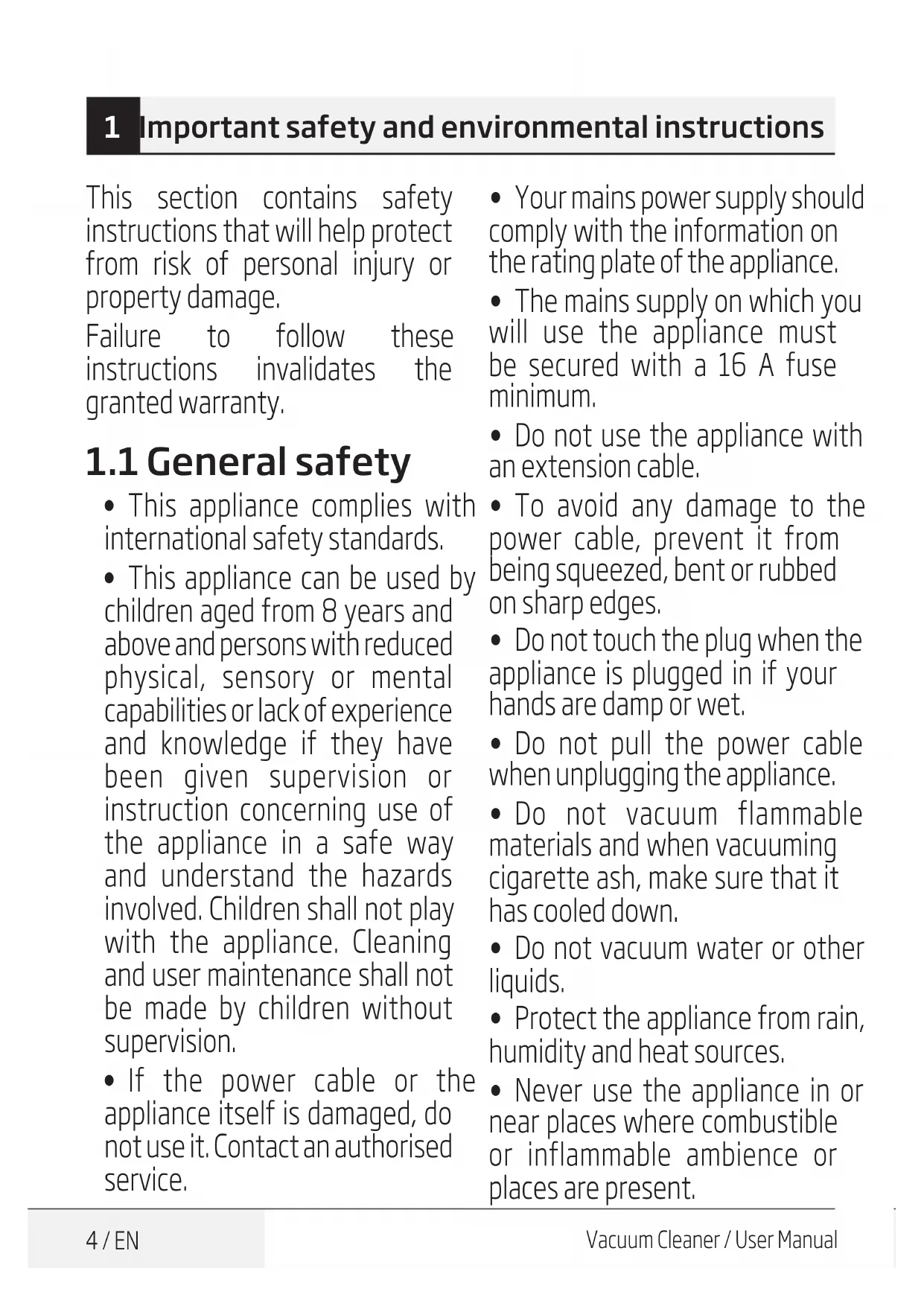

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the power cable or the appliance itself is damaged, do not use it. Contact an authorised service.

• Your mains power supply should comply with the information on the rating plate of the appliance.
• The mains supply on which you will use the appliance must be secured with a 16 A fuse minimum.

- Do not use the appliance with an extension cable.

- To avoid any damage to the power cable, prevent it from being squeezed, bent or rubbed on sharp edges.

- Do not touch the plug when the appliance is plugged in if your hands are damp or wet.

- Do not pull the power cable when unplugging the appliance.

- Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.

• Do not vacuum water or other liquids.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near places where combustible or inflammable ambience or places are present.

1 Important safety and environmental instructions

• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cable in water for cleaning.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorised service.
• Do not dismantle the appliance,
• Only use the original parts or parts recommended by the manufacturer.
• Do not use the appliance without filters; otherwise, it can get damaged.
• When vacuum-cleaning the stairs, the appliance should be located below the user.
• If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2015/863/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

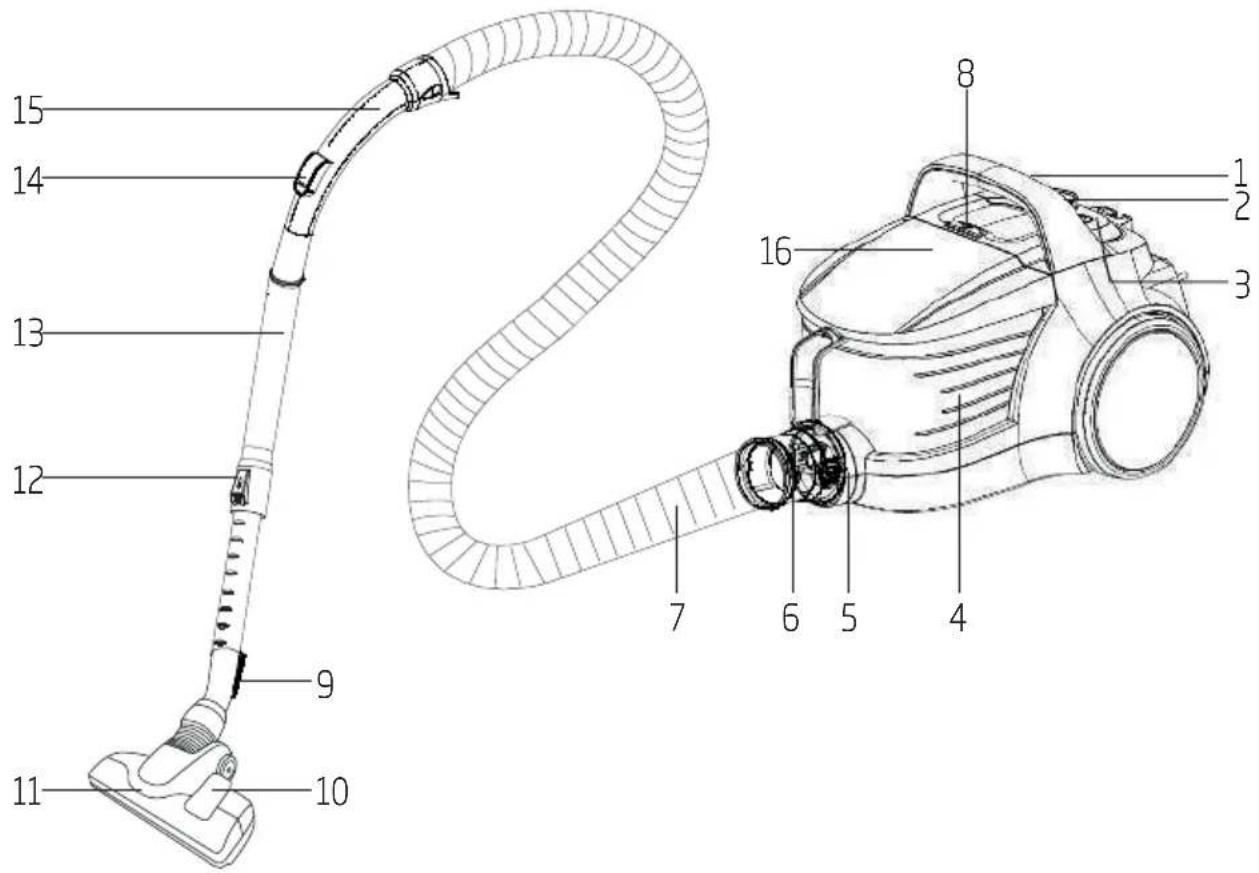

2.1 Overview

15 14 13 12 9 10 7 6 5 4 8 1 2 3

1. On/Off button
2. Suction power adjustment knob
3. Power cable winding button
4. Dust container
5. Suction nozzle
6. Hose cap
7. Hose
8. Dust container removal button
9. Parquet/carpet brush parking hook
10. Brush adjustment latch
11. High performance parquet/carpet brush
12. Telescopic tube adjustment latch
13. Telescopic tube
14. Vacuum control
15. Handle
16. Top lid

2.2 Technical data

Supply voltage : 220-240 V\~, 50-60 Hz

Power : 750 W

Operating radius : 9m

Sound : 75 dB(A)

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

3.2 Attaching/removing the hose

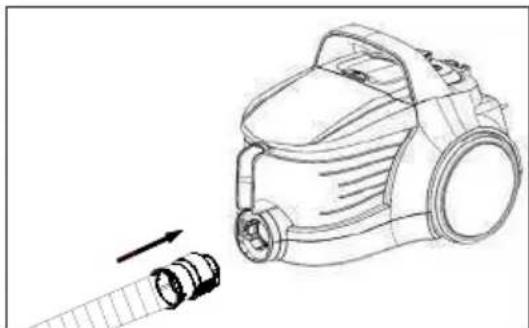

1. To attach the hose (7), push the hose cap (6) in the direction of arrow until it is aligned with the housing (you will hear a click).

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

- Projecting parts on the hose cap should be aligned correspondingly.

1. To remove the hose (7), press the unlocking buttons on the sides of the hose cap (6) and pull the hose.

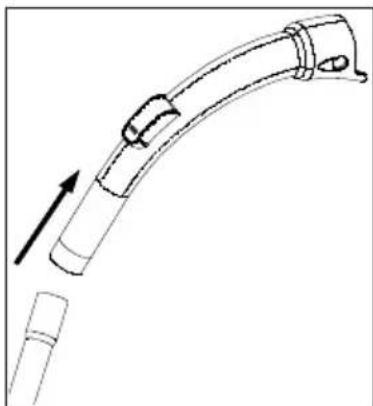

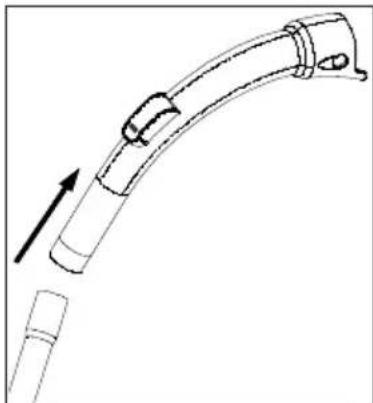

3.3 Attaching/removing the telescopic tube

1. Attach the telescopic tube (13) to the handle (15).

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

1. Pull the telescopic tube (13) from the handle (15) to remove it.

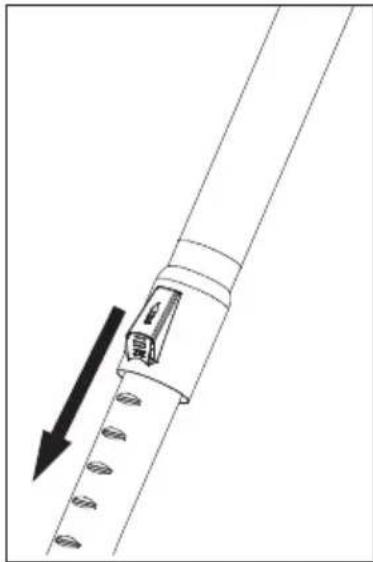

2. You can extend or shorten the telescopic tube (13) by sliding the telescopic tube adjustment latch (12) back and forth.

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

3.4 Attaching/removing the parquet/carpet brush

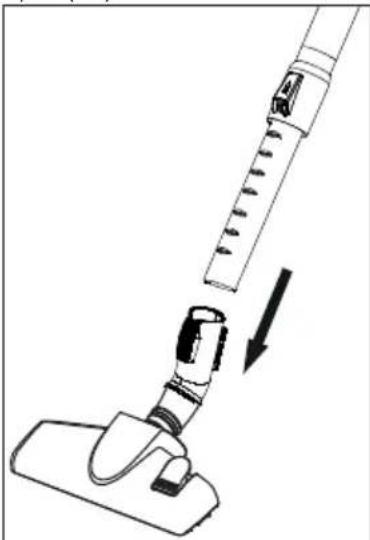

1. Attach the telescopic tube (13) to the parquet/ carpet brush (11) in the arrow direction.

Line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

1. You can remove the telescopic tube (13) from the parquet/carpet brush (11) by pulling it.

3 Usage

3.5 Adjusting the parquet/ carpet brush

Press the adjustment latch (10) located on the parquet/carpet brush (11) and;

- Vacuum on firm ground and parquet; extend the brush before vacuuming.

• Vacuum on carpets and rugs; retract the brush before vacuuming.

3.6 Adjusting the suction power

You can adjust the suction power of the appliance according to the type of the surface to be cleaned. You can turn the suction power adjustment knob (2) found on the appliance's body clockwise to increase the suction power. Turn the suction power adjustment knob anti-clockwise to decrease the suction power.

There are four settings for suction power:

- Turn the suction power adjustment knob (2) towards the carpet icon to clean carpets.

- Turn the suction power adjustment knob towards the eco icon to clean curtains, tablecloths and sofas.

- Turn the suction power adjustment knob towards the parquet icon to clean hard surfaces.

- Turn the suction power adjustment knob towards the MAX icon to clean heavily soiled hard surfaces and carpets.

3.7 Operation

1. Plug in the appliance after pulling the power plug located at the back of the appliance.

WARNING: Stop pulling the appliance cable when it comes to the yellow mark located on it. After the yellow mark, the red mark will come. Do not pull any more after reaching the red mark.

1. Use the suction power adjustment knob (2) found on the appliance to set it to the desired suction power (see 3.6).
2. Press the on/off button (1) to switch on your appliance.

3.8 Accessories

Accessories have been designed in one piece to save space and provide practical use.

Upholstery tool

Close-up of a black mechanical tool with textured grip and pointed tip (no text or symbols visible)

1. Grasp it from the dust brush area and pull it backwards slowly.
2. A click will be heard, indicating that the button on the body has seated into its slot.
3. Attach the end of the handle or the telescopic tube (13) to the inner side of the dust brush.
4. You can now start vacuum cleaning.
5. Pull the accessory to remove it when the process is complete.

3 Usage

Dust brush

Black handheld microphone with textured grip and neck (no visible text or symbols)

1. Grasp it from the dust brush area and pull it backwards slowly.

- A click will be heard, indicating that the button on the body has seated into its slot.

1. Attach the end of the handle or the telescopic tube (13) to the inner side of the upholstery tool.

- You can now start vacuum cleaning.

1. Pull the accessory to remove it when the process is complete.

Crevice tool

Black plastic mechanical component with a tapered end and flange (no visible text or symbols)

1. If the accessory is on, press the button found on the body and push it slightly to close.

- It clicks.

1. Attach the end of the handle or the telescopic tube (13) to the inner side of the upholstery tool.

- You can now start vacuum cleaning.

WARNING: The crevice tool must be adjusted to remain outside.

1. Pull the accessory to remove it when the process is complete.

WARNING: Do not make cleaning by using the handle's (15) end part.

3.9 Switching off the vacuum cleaner and parking feature

1. Switch off the appliance with the on/off button (1) and unplug it.
2. Press the cable winding button (3) to wind the cable inside the appliance.

Vertical parking feature

Attach the hook of the parquet/carpet brush (9) to the parking groove located at the bottom part of the appliance.

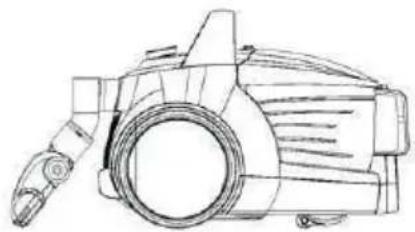

Horizontal parking feature

Attach the hook of the parquet/carpet brush (9) to the parking groove located at the rear side of the appliance.

Line drawing of a mechanical device with no visible text or symbols

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

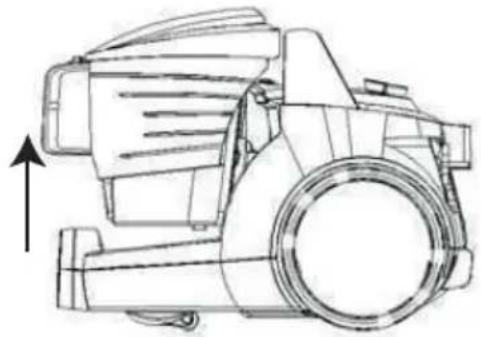

4.1 Emptying the dust container

1. Press the dust container removal button (8) to remove the dust container (4) and remove the dust container in the direction of the arrow by holding from the dust container carrying handle.

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

1. Open the lid of the dust container (4) by pressing the inner latch and empty the container.

2. When you have emptied the dust, close the dust container lid (4).

- A click will be heard.

1. Insert the dust container (4) into its place by holding it from the handle.

4.2 Cleaning the filters

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

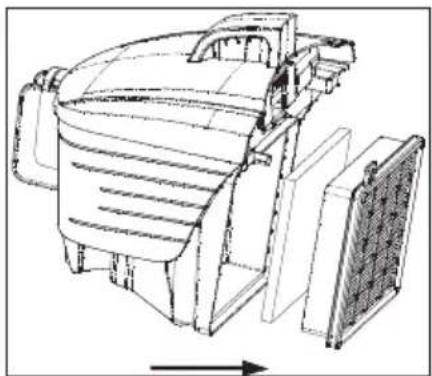

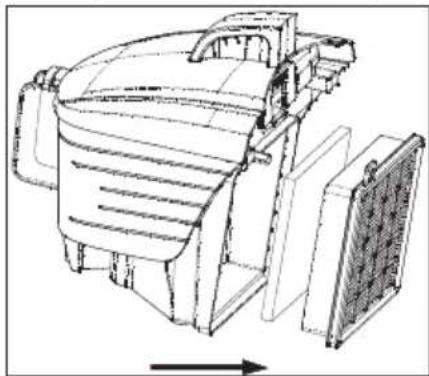

4.2.1 Motor protection filter and HEPA filter

These filters are located on the rear side of the dust container (4).

1. Press the dust container removal button (8) and remove the dust container (4).
2. Remove the HEPA filter and motor protection filter found at the back of the dust container (4).

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

1. After washing the sponge protection filter under running water, wring it out slightly and leave it to dry (for 24 hours minimum).
2. Shake off the HEPA inlet filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
3. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.

4 Cleaning and care

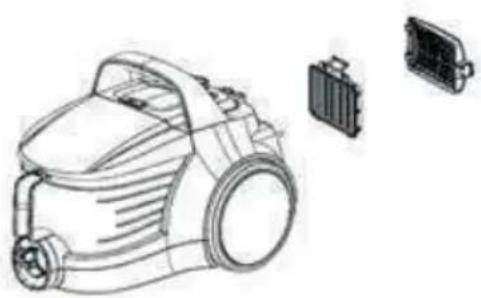

4.2.2 HEPA filter and outlet filter

HEPA outlet filter is located on the rear side of the appliance.

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

1. Remove the HEPA filter by pulling it from its handle.
2. Shake off the HEPA outlet filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
3. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.
4. Remove the outlet filter that is found at the back of the cover.
5. After washing the outlet filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Labeled diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a vacuum cleaner with a hose and pipe, showing no text or symbols

Diagram of a curved pipe or duct with an arrow indicating upward motion (no text or symbols present)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black mechanical tool with a flanged tip and textured end (no text or symbols visible)

Black microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with a flanged tip and tapered end (no visible text or symbols)

Line drawing of a mechanical device with a cylindrical body and attached lever (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

Close-up of a black mechanical tool with a curved tip and textured end (no text or symbols visible)

3 Употреба

Black handheld microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with tapered end and textured body (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved pipe or duct with an arrow indicating upward motion (no text or symbols present)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

Close-up of a black mechanical tool with textured grip and curved tip (no text or symbols visible)

Black microphone with textured grip and neck (no visible text or symbols)

Close-up of a black plastic connector with textured tip and pointed tip (no text or symbols visible)

Line drawing of a mechanical device with no visible text or symbols

4 Čištění a péče

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe connection (no text or symbols)

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Line drawing of a cleaning or cleaning tool with a downward arrow indicating motion (no text or symbols)

Close-up of a black plastic tool with serrated ends and a pointed tip (no text or symbols visible)

Black handheld microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with a tapered end and flange (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe assembly (no text or symbols)

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black mechanical tool with a flanged tip and textured end (no text or symbols visible)

Close-up of a black microphone with textured grip and neck (no visible text or symbols)

Close-up of a black plastic mechanical component with a pointed tip and textured end (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component and an arrow indicating motion (no text or symbols)

- Štrleči deli na pokrovčku cevi morajo biti ustrezno poravnani.

1. Če želite odstraniti cev (7), pritisnite gumbe za odklepanje na straneh pokrovčka cevi (6) in povlecite cev.

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black mechanical tool with textured grip and curved tip (no text or symbols visible)

Black microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with a tapered end and textured body (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with internal structure and mounting bracket (no text or symbols)

1. Gobasti zaščitni filter umijte pod tekočo vodo, ga nežno ožemite in pustite, da se posuši (najmanj 24 ur).

2. Stresite vhodni filter HEPA, da z njega odstranite prah. Nato ga lahko umijete, tako da njegovo čisto stran držite pod mrzlo tekočo vodo.

3. Če filter HEPA umijete, ga pustite, da se posuši na sobni temperaturi (najmanj 24 ur). Počakajte, da se popolnoma posuši, in ga šele nato ponovno uporabite.

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe assembly (no text or symbols)

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

Close-up of a black mechanical tool with a curved tip and textured end (no text or symbols visible)

Black microphone with textured grip and pointed tip (no visible text or symbols)

Close-up of a black mechanical component with a flanged end and tapered tip (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe, showing no text or symbols

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black mechanical tool with textured grip and pointed tip (no visible text or symbols)

Close-up of a black microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with a flanged end and tapered tip (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with internal structure and mounting bracket (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black plastic tool with serrated end and tapered tip (no text or symbols visible)

Close-up of a black microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with tapered end and flange (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a pipe and valve, showing no text or symbols

Diagram of a curved pipe or duct with an arrow indicating upward motion (no text or symbols present)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black mechanical tool with textured grip and pointed tip (no visible text or symbols)

Close-up of a black plastic microphone with textured grip and neck (no visible text or symbols)

Close-up of a black plastic mechanical component with textured ends and a pointed tip (no visible text or symbols)

Position parking verticale

Position parking horizontale

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe assembly (no text or symbols)

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black mechanical tool with a curved tip and textured end (no text or symbols visible)

Black plastic microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with a flanged end and tapered tip (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component inserted, showing no text or symbols.

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical device with a directional arrow indicating motion or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black plastic tool with textured grip and pointed tip (no text or symbols visible)

Close-up of a black microphone with a textured head and neck (no visible text or symbols)

Close-up of a black plastic connector with a flanged tip and textured end (no text or symbols visible)

Line drawing of a mechanical device with a cylindrical body and attached lever (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Simple line drawing of a decorative patterned square with circular motifs (no text or symbols)

VC0 42701 AB

VCO 42701 AR

RU

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black plastic tool with a curved tip and textured end (no text or symbols visible)

Close-up of a black handheld microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with tapered end and flange (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

4 Чистка и уход

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

(Kingclean Electric Co., Ltd., No.1, Xiangyang Road, New District, Suzhou City, Jiangsu Province, P.R.China, Tel: [phone]) Китай

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved pipe or duct with a directional arrow indicating upward motion (no text or symbols present)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black plastic tool with a curved tip and textured end (no text or symbols visible)

Close-up of a black plastic microphone with textured grip and neck (no visible text or symbols)

Close-up of a black plastic mechanical component with a flanged end (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

- Izbočene delove na poklopcu za crevo treba poravnati na isti način.

1. Da biste uklonili crevo (7), pritisnite dugmad za otključavanje sa strana poklopca za crevo (6) i povucite crevo.

3.3 Postavljanje/uklanjanje teleskopske cevi

1. Povežite teleskopsku cev (13) sa drškom (15).

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

1. Povucite teleskopsku cev (13) sa drške (15) da biste je uklonili.

2. Možete proširiti teleskopsku cev (13) pomeranjem klizne bravice za podešavanje teleskopske cevi (12) napred i nazad.

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

3.4 Postavljanje/uklanjanje četke za parket/tepih

1. Povežite teleskopsku cev (13) sa četkom za parket/tepih (11) u smeru strelice.

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

1. Možete ukloniti teleskopsku cev (13) sa četke za parket/tepih (11) tako što ćete je povući.

3 Upotreba

Close-up of a black plastic tool with a curved tip and textured end (no text or symbols visible)

Close-up of a black microphone with a textured handle and neck (no visible text or symbols)

Black plastic mechanical component with a tapered end and textured body (no visible text or symbols)

1. Ako je dodatak postavljen, pritisnite dugme koje se nalazi na telu i blago ga pritisnite da se zatvori.

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols present)

1. Otvorite poklopac posude za prašinu (4) pritiskom na unutrašnju bravu i ispraznite posudu.
2. Kada izbacite prašinu, zatvorite poklopac na posudi za prašinu (4).
3. Čuće se zvuk „klika”.
4. Postavite posudu za prašinu (4) na odgovarajuće mesto držeći je za dršku.

4.2 Čišćenje filtera

UPOZORENJE: Nemojte koristiti uređaje koji proizvode topao vazduh, kao što su fen za kosu ili grejalica, da osušite filtere.

UPOZORENJE: Nemojte postavljati filtere ako ih prethodno niste u potpunosti osušili; u suprotnom, može doći do mirisa vlage tokom upotrebe, voda može procureti sa zadnje strane uređaja ili se filteri mogu oštetiti.

UPOZORENJE: Postavite filtere na svoja mesta nakon što se osuše.

4.2.1 Filter za zaštitu motora i HEPA filter

Ovi filteri se nalaze sa zadnje strane posude za prašinu (4).

1. Pritisnite dugme za uklanjanje posude za prašinu (8) i uklonite posudu za prašinu (4).
2. Uklonite HEPA filter i filter za zaštitu motora koji se nalaze iza posude za prašinu (4).

Technical line drawing of a mechanical device with no visible text or symbols

1. Nakon pranja sunderastog zaštitnog filtera pod mlazom vode, blago ga iscedite i ostavite da se osuši (minimalno 24 sata).
2. Otresite HEPA filter ulaznog otvora da uklonite prašinu sa njega. Nakon toga, možete ga oprati držeći njegovu čistu stranu pod mlazom hladne vode.
3. Ako perete HEPA filter, osušite ga na sobnoj temperaturi (minimalno 24 sata). Nemojte ga koristiti dok se ne uverite da je potpuno suv.

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

1. Uklonite HEPA filter povlačenjem sa drške.
2. Otresite HEPA filter izlaznog otvora da uklonite prašinu sa njega. Nakon toga, možete ga oprati držeći njegovu čistu stranu pod mlazom hladne vode.
3. Ako perete HEPA filter, osušite ga na sobnoj temperaturi (minimalno 24 sata). Nemojte ga koristiti dok se ne uverite da je potpuno suv.
4. Uklonite izlazni filter koji se nalazi iza poklopca.
5. Nakon pranja izlaznog filtera pod tekućom vodom, iscedite ga blago i ostavite ga da se osuši (minimalno 24 časa).

4.3 Skladištenje

• Ako ne nameravate da koristite uređaj duže vreme, pažljivo ga odložite.
• Izvucite utikač uređaja iz struje.
• Čuvajte uređaj van domašaja dece.

4.4 Prenos i transport

• Tokom prenosa i transporta nosite uređaj u njegovom originalnom pakovanju. Pakovanje uređaja ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na uređaj ili njegovu ambalažu. Uređaj se može oštetiti.
• Ako vam uređaj ispadne, to može izazvati trajno oštećenje, odnosno uređaj može postati nefunkcionalan.

Line drawing of a vacuum cleaner with a cylindrical component inserted, showing no text or symbols.

Diagram of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Black plastic tool with textured grip and pointed tip (no text or symbols visible)

3 Употреба

Black microphone with textured grip and neck (no visible text or symbols)

Close-up of a black plastic connector with a textured handle and pointed tip (no text or symbols visible)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component inserted, showing no text or symbols.

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Close-up of a black mechanical tool with a curved tip and textured end (no text or symbols visible)

3 Використання

Close-up of a black microphone with textured grip and neck (no visible text or symbols)

Black plastic mechanical component with flanged ends and a tapered end (no visible text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)
