USER MANUAL TDC8001W Tomado

Symbols used in this document

INSTALLATIELOCATIE EN OMGEVING

APPARAAT WATERPAS ZETTEN

WAARSCHUWING!

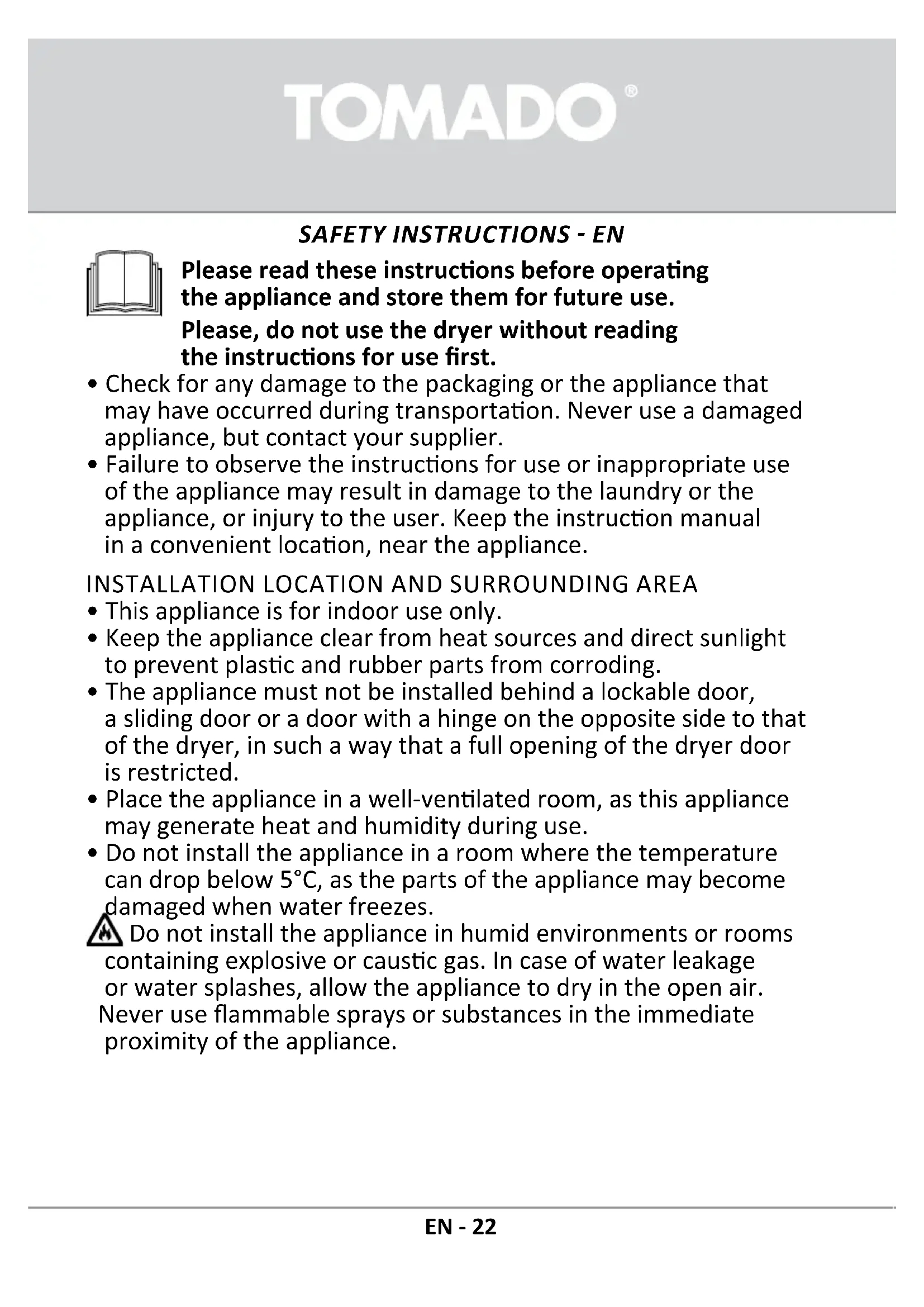

Please read these instructions before operating the appliance and store them for future use. Please, do not use the dryer without reading the instructions for use first.

• Check for any damage to the packaging or the appliance that may have occurred during transportation. Never use a damaged appliance, but contact your supplier.
• Failure to observe the instructions for use or inappropriate use of the appliance may result in damage to the laundry or the appliance, or injury to the user. Keep the instruction manual in a convenient location, near the appliance.

INSTALLATION LOCATION AND SURROUNDING AREA

• This appliance is for indoor use only.
• Keep the appliance clear from heat sources and direct sunlight to prevent plastic and rubber parts from corroding.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the dryer, in such a way that a full opening of the dryer door is restricted.
• Place the appliance in a well-ventilated room, as this appliance may generate heat and humidity during use.
• Do not install the appliance in a room where the temperature can drop below 5^ , as the parts of the appliance may become damaged when water freezes.

Do not install the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes, allow the appliance to dry in the open air. Never use flammable sprays or substances in the immediate proximity of the appliance.

TOMADO

INSTALLATION

• Place the appliance on a solid (concrete) base that is level and stable.
• Adjust the adjustable feet of the appliance to ensure the appliance is standing level and balanced.
• Before connecting the appliance to the power mains, wait at least 2 hours to allow it to reach room temperature.
• Dispose the packaging materials according to local regulations. Keep the material out of reach of children. Danger of suffocation.

ELECTRICAL INSTALLATION

• Connect the appliance to an earthed power socket protected by a fuse that complies with the values on the rating plate.
• Particularly make sure that the appliance is not placed on the power cord.

To avoid danger, a damaged power cord may only be replaced by the manufacturer, its service agent or similarly qualified persons.
If the appliance is damaged, it must not be operated until it is repaired by the manufacturer, service agent or similarly qualified persons.
- The appliance may not be connected to the power mains using an extension cord.
Do not connect the appliance to the power mains using an external switch device such as a programme timer, or connect it to a power mains that is regularly switched on and off by the power supply provider.
- Do not connect the appliance to an electrical outlet intended for an electric shaver or hair dryer.
The mains plug must be accessible after installation.
! Never use an extension cord or multiple plugs for making a connection.
Do not pull the plug out of the power socket if there is flammable gas around.
Never pull out the plug with wet hands.
Always unplug the appliance when it is not being used.

TOMADO

• Connection to the power supply has to be executed by an adequately trained technician or expert.
• Any repair and maintenance pertaining to safety or performance should be done by trained experts.
• In case of a defect, only use approved spare parts by authorised manufacturers.
• In case of incorrect appliance connection, incorrect use, or servicing by an unauthorised person, Tomado will not be responsible for any damage, as such damage will not be covered by warranty.

EXPLOSION AND FIRE HAZARD

• Please do not dry clothes with any flammable substances such as kerosene or alcohol. Otherwise, there may be an explosion.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified in the instructions provided with the fabric softener.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• Remove all objects from pockets such as lighters and matches.

TOMADO

• If it is unavoidable that fabrics containing vegetable or cooking oil or having been contaminated by hair care products are placed in a tumble dryer, these items should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• WARNING: Never stop a tumble dryer before the end of the drying cycle, unless all items are quickly removed and spread out so that the heat is dissipated.
• Openings must not be obstructed.
• The dryer filter has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.

CHILD SAFETY

• Before closing the appliance door and running the programme, make sure there is nothing except laundry in the drum (e.g. check if a child or animal climbed into the drum of the appliance).
• Do not let children aged 3 years and under come near the appliance, unless they are under constant supervision.
• This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been given instructions concerning the use of the appliance in a safe way and understand the hazards of inappropriate use. Children are not allowed to play with the appliance.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Children should be supervised, to prevent them from playing with the appliance.
• Do not climb or sit on the appliance.
• The appliance is made in compliance with all relevant safety standards.
• Remove the door or deactivate the lock when disposing of the appliance. Children are known to have gotten themselves locked in old appliances. To prevent such a situation, break the door lock of your appliance and tear off the electrical cables.

TOMADO

Only use the appliance for drying laundry as described in the instruction manual. The machine is not intended for dry cleaning.

• Only use products specifically designed for drying laundry. Tomado will not be responsible for any damages or discolouration of gaskets and plastic parts resulting from incorrect use of bleaching or colouring agents.
• In case of a defect, only use approved spare parts by authorised manufacturers.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before using the appliance.
• Fabric softeners or similar products should be used as recommended in their instructions.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.
• In case of incorrect connection of the appliance, incorrect use, or servicing by an unauthorised person, the user shall bear the cost of any damage, as such damage shall not be covered by warranty.
• When cleaning the appliance, only use non-corrosive cleaning agents.
• The warranty does not cover consumables, minor deviations in colour, increased noise that results from appliance age and which does not affect the functionality of the appliance, and aesthetic defects on components, which do not affect the functionality and safety of the appliance.

TRANSPORT/RELOCATION AFTER INSTALLATION

• Accumulated water must be drained out of the appliance.
• The appliance is heavy. Transport with care. Never hold any protruding part of the appliance when lifting. The door of the appliance cannot be used as a handle.

TOMADO

INTENDED USE

• The appliance is intended solely for household use. If the appliance is used for professional, commercial purposes or purposes exceeding normal use in a household, or if the appliance is used by a person who is not a consumer, the warranty period shall be equal to the shortest warranty period required by relevant legislation.

• This appliance is intended to be used in households and similar applications such as:

• staff kitchen areas in shops, offices or residential type environments;
  -farm houses;

• by clients in hotels, motels and other residential type environments;
• bed & breakfast type environments;

• areas for communal use in blocks of flats or in launderettes.

• The appliance is not intended for use by persons (including children) with physical or mental impairments, or persons lacking experience and knowledge. These persons should be instructed about the use of the appliance by a person responsible for their safety.

TOMADO

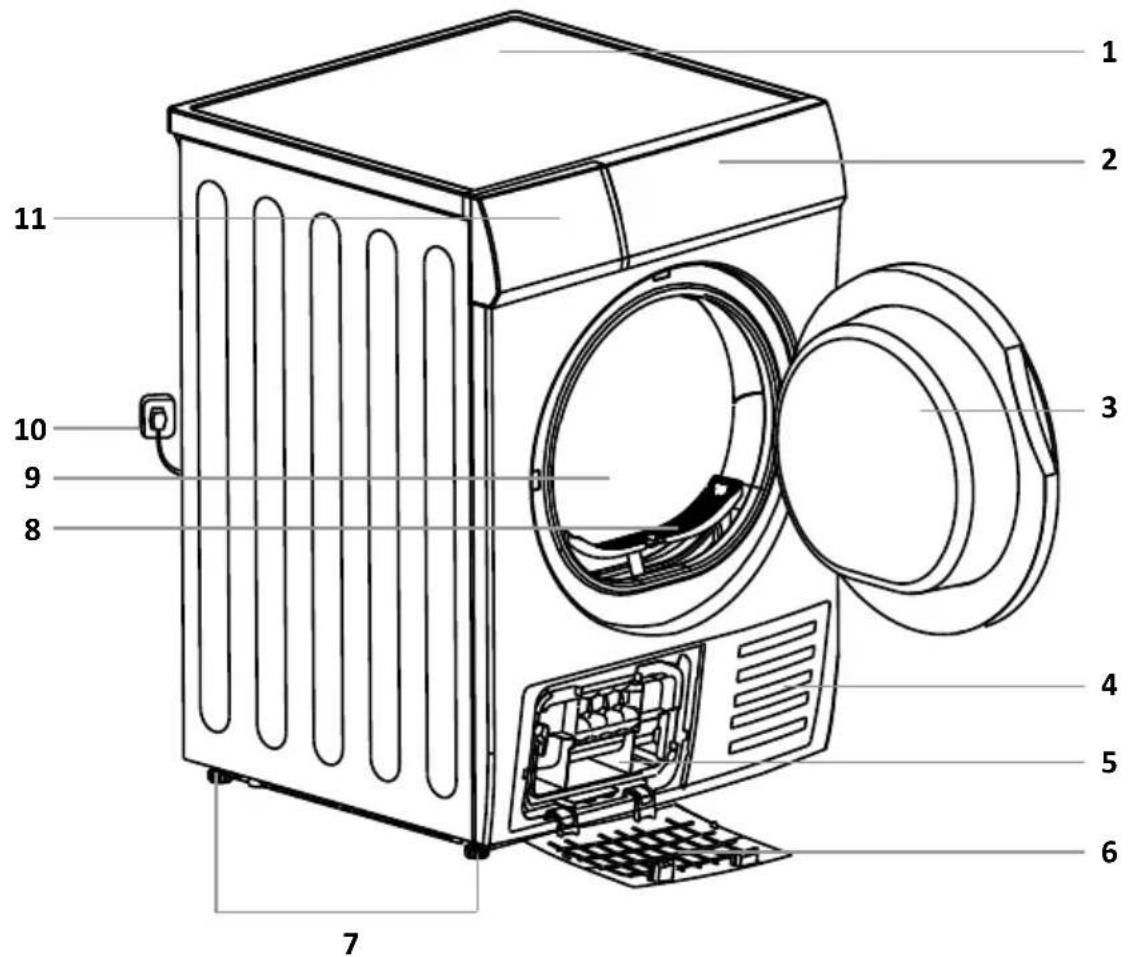

PRODUCT DESCRIPTION

1. Top cover
2. Control panel
3. Door
4. Air inlet
5. Condenser unit
6. Maintenance cover
7. Adjustable feet
8. Dryer filter
   9.Drum
9. Power supply cord
10. Condensate tank

1 x user manual1 x hose holder

TOMADO

INSTALLATION AND CONNECTION

REQUIRED SPACE FOR INSTALLING

WARNING!

• Stability is important to prevent the product from moving across the installation site! Make sure to level the appliance and install it on a stable base in longitudinal and traverse direction by screwing the adjustable feet up or down.
• Make sure the appliance is not standing on the power cord.
• Make sure to observe the minimum required clearances from the walls as indicated in the figure.
• Do not place the appliance on a carpet with long fibres, as this may impede air circulation.

The room in which the appliance is placed must meet the following requirements:

1. Dry, level and stable solid base
2. Avoid direct sunlight
3. A clean location, where dirt does not accumulate. Air must be able to circulate freely around the appliance. Do not obstruct the front air inlet or the air intake grills at the back of the machine.
4. Room temperature is between 10^ and 25^
5. Place the appliance in a well-ventilated room, as the use of this appliance may generate heat and humidity. Keep far away from heat sources such as coal, gas or wood burning appliances
6. Do not stack this dryer on a washing machine without a stacking kit.

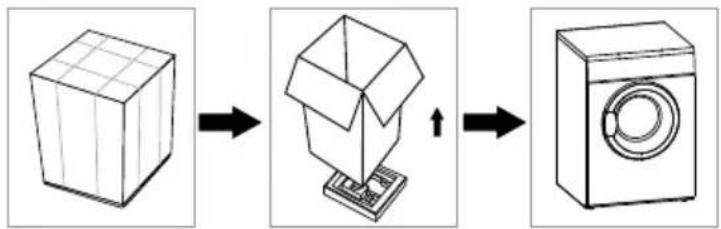

UNPACKING THE APPLIANCE

WARNING!

• Move the appliance with at least two people and wear protective clothing, such as sturdy gloves.
• Packaging material (e.g. films, styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging away from children.

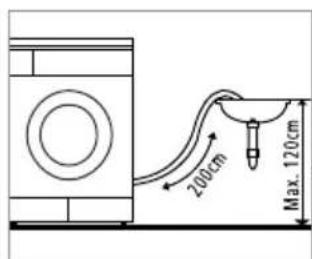

INSTALLING THE EXTERNAL DRAINAGE HOSE (INcluded)

• Install the external drainage hose if you do not want to use the internal condensate tank.

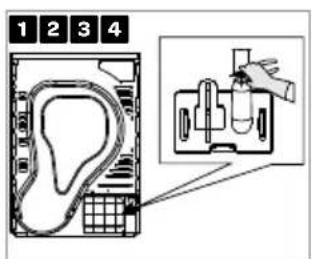

Use pliers to remove the drain hose from the hose connector

Insert the external drainage hose

Put the hose holder into a drain pipe, wash basin or any other sink.

TOMADO

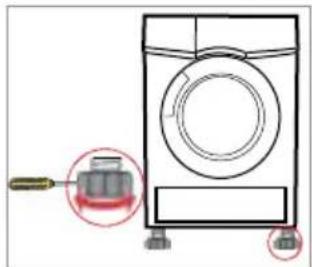

LEVELING THE APPLIANCE

WARNING!

• Incorrect levelling of the appliance with the adjustable feet may cause vibration, appliance moving across the room, and loud operation.

Use a level and a spanner to level the appliance.

1. Rotate the adjustable feet with a spanner.
2. Level the appliance in longitudinal and traverse direction.

CONNECTING THE APPLIANCE TO THE POWER MAINS

WARNING!

• Before connecting the appliance to the power mains, wait for at least 2 hours until room temperature has been reached.
• Connect the appliance to an earthed power outlet. After installation, the wall socket must be freely accessible. The socket must be fitted with an earth contact (in compliance with the relevant regulations).
  Information about your appliance is indicated on the rating plate.

WARNING!

• Using an over-voltage protection to protect the appliance in case of a lightning strike, is recommended.

WARNING!

• Do not connect the appliance to the power mains using an extension cord.

• Do not connect the appliance to an electrical outlet intended for an electric shaver or hair dryer.
• Any repair and maintenance pertaining to safety or performance must be done by trained experts.
• A damaged power cord may only be replaced by a person authorised by the manufacturer.

TOMADO

OPERATION

BEFORE FIRSTUSE

CAUTION!

• Before first use, clean the inside of the drum with a soft damp cloth.

• Put some clean rags into the drum.

• Insert the mains plug into the power socket and press the ON/OFF button①
• Select the WARM programme and press the START/ PAUSE button to start the appliance.

• When the programme is finished, please follow the CLEANING and CARE instructions to clean the dryer filter.

• During drying, the airflow and the pump will generate some noise, which is entirely normal.

BEFORE EACH DRYING CYCLE

1. Before each drying cycle, sort your laundry by reading the care labels.
2. Thoroughly spinning the laundry in the washing machine, shortens the drying time and saves energy.
3. For uniform drying results, sort the laundry according to fabric type and select the appropriate drying programme.
4. Before drying, please close buttons and zips, hooks and eyelets, tie any ribbons and turn the pockets inside out.
5. Leave jackets open and undo any long zips so that textiles dry evenly.
6. Sew in or remove underwiring from bras.
7. Close duvet covers and pillow cases to prevent small items from getting rolled up inside them.
8. Drying laundry made of particularly delicate fabrics that may be deformed is not recommended. The following types of laundry may not be dried in the appliance as this may cause your garments to deform:
9. leather garments and other leather products;
10. garments that are waxed or treated in any other way;
11. garments with major wooden, plastic or metal parts;
    garments with spangles;
12. garments with metal parts subject to rusting.
13. Do not over-dry the clothes, because over-dried clothes can easily get creases.

CAUTION!

• Do not put more load than rated in the appliance.

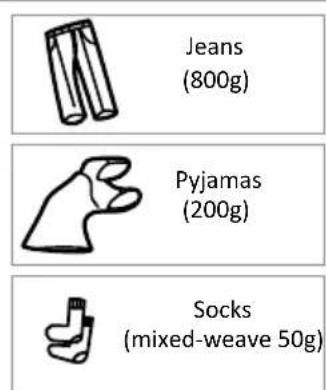

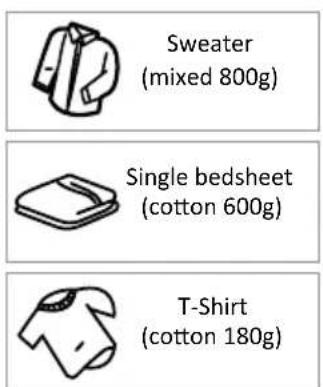

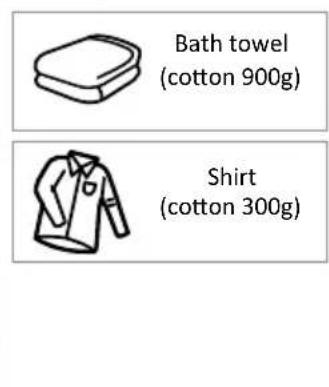

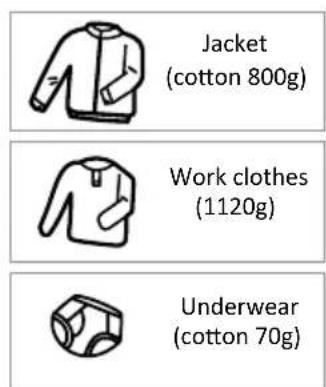

  See below for the reference weight of dry clothes (weight per item) Do not dry dripping wet laundry. The appliance might get damaged.

Only dry laundry suitable for tumble drying. Regard the laundry care labels:

Suitable for tumble drying

Normal drying process: drying in the appliance is possible with normal programmes and temperature of 80^

Mild drying process: caution is appropriate when tumble drying. Select a mild process with reduced thermal action.

Do not tumble dry: the garment is not suitable for drying in the appliance.

TOMADO

DRYING

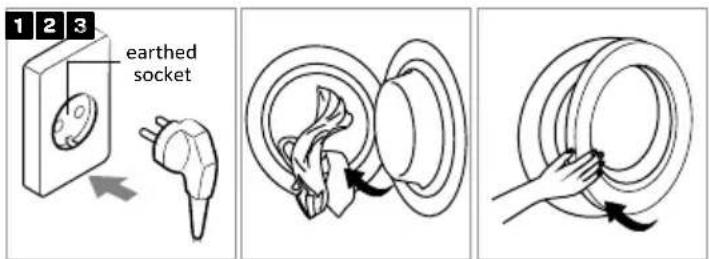

PREPARING BEFORE DRYING

Plug in Close the door Open the door and load

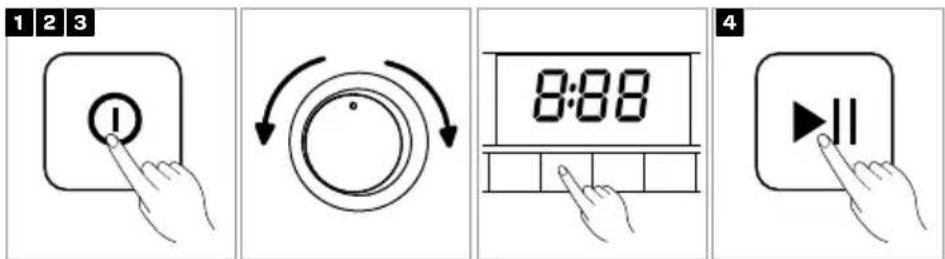

DRYING

Press ON/OFF to start Select a programme Select settings and/or Press START/PAUSE to the appliance additional functions start the program

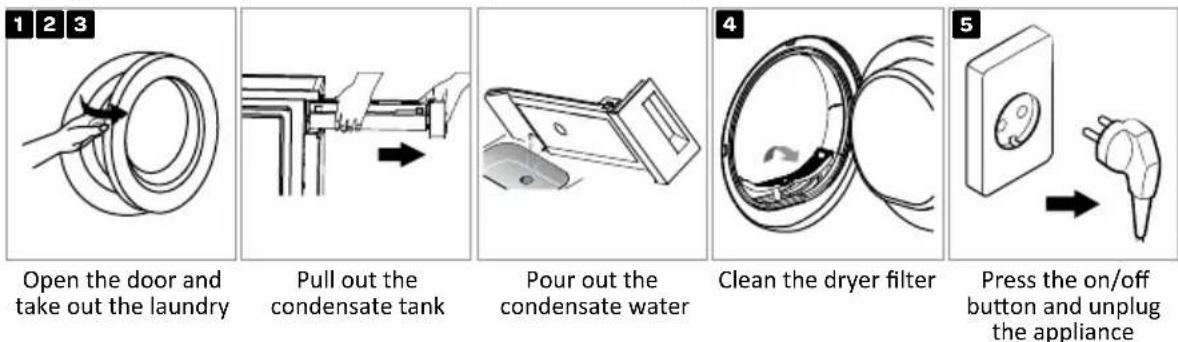

AFTER DRYING

When the programme is finished and the appliance is ready, a buzzer will sound and [0:00] appears on the display. The dryer automatically starts the anti-crease phase if the laundry is not removed from the drum.

When the door of the appliance is opened, the interior light switches on. Do not forget to press the on/off button before unplugging the appliance.

TOMADO

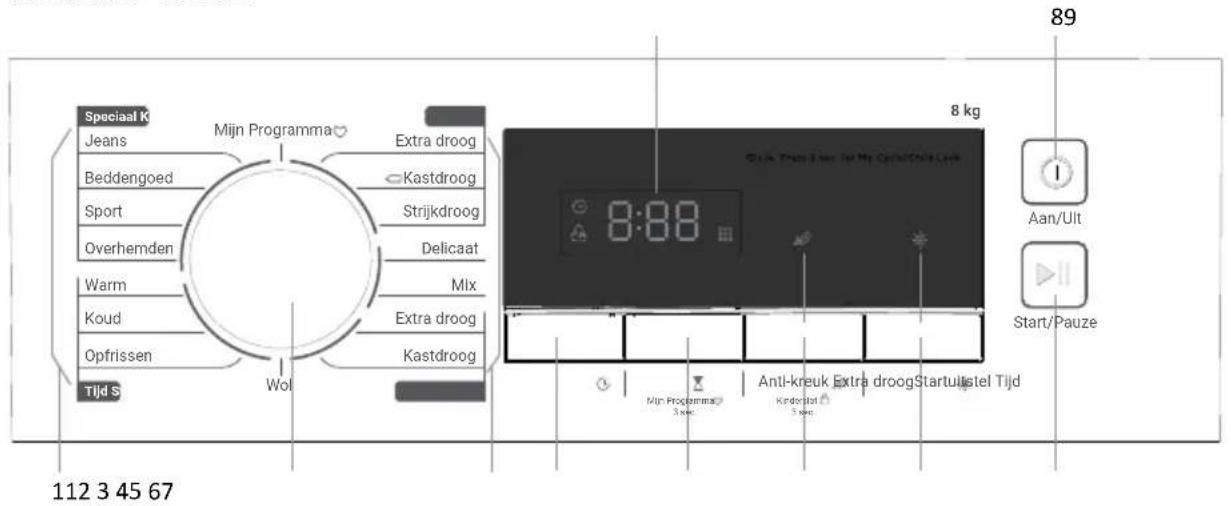

CONTROL PANEL

Nr.	Symbol	Button or Indicator	Description
1.		Programmes	Available programmes (see the table with programmes for more information).
2.		Programme selector knob	Turn the programme selector knob left or right to select the desired programme.
3.	Startuitstel	Start delay	Use this function to start the drying cycle after a certain amount of time has elapsed.
4.	Tijd	Time	Press the time button to adjust the drying time in 10 minute steps.
5.	Anti-kreuk	Anti-crease	At the end of the drying cycle, the default anti-crease time is 30 minutes. When the anti-crease option is activated, the anti-crease time at the end of the programme will be 120 minutes.
6.	Extra droog	Extra dry	The extra dry option allows you to adjust the dryness level of the laundry.
7.		Start/pause button	Press the button to start or pause the drying process. Opening the door also pauses the appliance. When closing the door, press the button again to resume the drying process.
8.		On/off	Press the on/off button to start the appliance or to turn it off.
9.	8:88	Display	The display shows the settings, estimated time remaining, options and status messages for your appliance. The display will remain on during the cycle.
	8	Child lock	When this indicator lights up, the child lock is activated.
	L	Start delay	When this indicator lights up, the start delay function is activated.
	D	Anti-crease	When this indicator lights up, the anti-crease function is added.
	E	Extra dry	When this indicator lights up, the extra dry function is added.
	H	Clean filter	Warning: when this indicator lights up, the dryer filter needs to be cleaned.
	FUL	Full condensate tank	Warning: when this indicator lights up, the condensate tank is full and needs to be emptied.

Startuitstel Start delay

Use this function to start the drying process after a certain amount of time has elapsed. When the set delay time expires, the selected drying programme will start automatically. The time starts to countdown on the display and the indicator blinks. To set the START DELAY proceed as follows:

1. Load your laundry and make sure the door of the appliance is closed.
2. Press the ON/OFF button, then turn the programme selector knob and select the desired programme.
3. Select the ANTI-CREASE function if needed.
4. Press the START DELAY button. Set the hours by repeatedly pressing or holding the START DELAY button. It can be set from 0 up to 24 hours.
5. Press the START/PAUSE button to activate the programme with delayed start.

CAUTION!

• If you press the START/ PAUSE button again, the delay function will be paused. Press the START/ PAUSE button again to resume the START DELAY.

Cancelling start delay

To cancel the START DELAY function, press the ON/OFF button.

Tijd Time

When one of the programmes Warm, Cold or Refresh is selected, press the time button to adjust the drying time in 10 minute steps.

Anti-kreuk

Anti-crease

At the end of the drying cycle, the default anti-crease time is 30 minutes. When the anti-crease option is activated, the anti-crease time at the end of the programme will be 120 minutes. Choose this option before starting the drying process. The anti-crease light will light up. This function prevents the laundry from creasing. During the anti-crease phase, the laundry can be removed.

The anti-crease option is not available for the programmes: Cool, Refresh and Wool.

Extra droog

Extra dry

The extra dry option allows you to adjust the dryness level of the laundry. It adds more time to the drying process.

Choose this option before starting the drying process. The extra dry option is not available for the programmes: Cotton iron, Warm, Refresh, Wool and Delicate.

Kinderslot 3 sec.

Child lock

This function is a safety feature and prevents children from misusing the control panel. To activate the child lock, proceed as follows:

• When the drying process is active, press the ANTI-CREASE button and hold for 3 seconds to activate the child lock. The child lock indicator lights up in the display.

Deactivating the child lock

• Press the ANTI-CREASE button and hold for 3 seconds to deactivate the child lock. The child lock indicator disappears from the display.

CAUTION!

When the CHILD LOCK is activated, all buttons are deactivated, except for the ON/OFF button.

The My Cycle option allows you to set your favourite programme with the extra options as you desire. To set your favourite programme, proceed as follows:

1. Select your favourite programme with the programme selector knob and any extra options you want to add.
2. Press and hold the TIME button for 3 seconds until the beep sounds. Your favourite programme has been saved.
3. Turn the programme selector knob to the MY CYCLE position and press START to start the drying process.
4. If you want to change the settings of My Cycle, repeat steps 1 and 2.

PROGRAMMES

Programme Max.		load	Programme description Start	delay	Time
Cotton [Katoen]	Extra dry [Extra droog]	8,0 kg	Use this programme for single or multi-layer cotton laundry. It will be dried completely for direct storage.	Yes No
	Standard [Kastdroog]
	Iron [Strijkdroog]		Use this programme for single layer cotton laundry. The laundry will remain damp after drying and is ready for ironing.
Delicate [Delicaat]		1,0 kg	Use this programme to dry highly delicate laundry made of synthetic fibres, which may be slightly moist after the drying process. We recommend using a special-purpose laundry bag.	Yes No
Mix 3,0 kg			Use this programme to dry laundry made of mixed fabrics from cotton and synthetics. After the drying process, the laundry will be dry.	Yes No
Synthetics [Synthetisch]	Extra [Extra droog]	3,5 kg	Use this programme for thick or multi-layer synthetic fabrics. It will be dried completely.	Yes No
	Standard [Kastdroog]		Use this programme for thin synthetic textiles, which will not be ironed, such as easy care shirts, baby clothes or socks.
Wool [Wol]		1,0 kg	This short programme is intended for softening or fluffing of clothes made of wool and silk, which have to be dried thoroughly according to manufacturer's instructions.	Yes No
Special [Specialaal]	Jeans 6,0 kg		Use this programme to dry jeans or leisure clothes that are spun at high speed in the washing machine.	Yes No
	Bedlinen [Beddengoed]	4,0 kg	Use this programme to dry bed linen, bed sheets or other large items.
	Sports 3,0 kg		Use this programme to dry sportswear and thin fabrics from polyester, which are not ironed.
	Shirts [Overhemden]	3,0 kg	Use this programme for easy care laundry, such as shirts and blouses equipped with anti-crease functionality to minimise the ironing effort. Place clothes loosely in the dryer. Once dried, remove quickly and hang it on a clothes hanger.
My cycle [Mijnprogramma]		--	Define and save your favourite programme and additional options.	Yes	--
Time [Tijd]	Warm [Warm]	--	Use this programme to dry individual items or complete the drying process of multi-layer fabrics with different drying behaviour, such as jackets, pillows or voluminous items. Min 10 minutes to max. 120 minutes (in 10 min. steps).	Yes YesCool
	[Koud]	--	Use this programme to air items without heating. Min. 10 minutes to max. 30 minutes (in 10 min. steps).
	Refresh [Opfrissen]	1,0 kg	Use this programme to refresh clothes that were kept in a closed environment for a long time or to remove odours. Min. 20 minutes to max. 150 minutes (in 10 min. steps).

CAUTION!

• Thick or multi-layered fabrics, e.g. bedlinen, jeans, jackets etc., are not easy to dry. It would be better to choose the Cotton Extra programme or add the Extra dry option.
• As uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying programme to dry them if some parts of the clothes are still damp after the programme has finished.

TOMADO

MAINTENANCE

WARNING! Always unplug the appliance before cleaning and maintenance.

CLEANING THE EXTERIOR OF THE APPLIANCE

Proper maintenance on the appliance can extend its useful life. Clean the exterior of the appliance and control panel using a soft damp cloth and water. If necessary, a diluted non-abrasive neutral cleaning agent can be used to clean the appliance.

EMPTYING THE CONDENSATE TANK

1. Pull out and hold the condensate tank with two hands.
2. Tilt the condensate tank, pour out the condensate water into the basin.
3. Install the condensate tank.

WARNING!

• Empty the condensate tank after each use. Should the condensate tank fill up completely, the programme will be paused and the symbol " d " will light up. Once the tank is emptied, the dryer can be restarted by pressing the START/PAUSE button.
• Do not drink the condensate water.
• Do not use the dryer without the condensate tank.

CLEANING THE DRYER FILTER

1. Open the door.
2. Take out the filter.
3. Open the filter and remove the fluff on the filter. You can clean it in water.
4. Dry the filter thoroughly before installing it again, or let it air dry for a few hours before installing it again.

NOTE!

• The lint accumulated on the dryer filter will block the air circulation, which will result in a longer drying time and an increased energy consumption. Therefore, the dryer filter must be cleaned after each use.
• Take notice of the correct orientation before inserting the dryer filter.
• Do not operate the dryer without the dryer filter!
• Clean the dryer filter after each use to prevent lint accumulation inside the dryer.

TOMADO

CLEANING THE CONDenser UNIT

Please clean the condenser unit approximately once every 3 months if frequently used.

Do not damage the condenser unit!

1. Leave the dryer to cool down.
2. Residual water may leak out, place an absorbent cloth under the maintenance cover.
3. Unlock the maintenance cover.
4. Completely open the maintenance cover.
5. Turn both locking levers towards each other.
6. Pull out the condenser unit.
7. Rinse the condenser unit with water to remove lint and fluff; let the water drain properly.
8. Clean the seals.
9. Re-insert the condenser unit, with the handle at the bottom.
10. Turn both locking levers.
11. Close the maintenance cover until it locks into position.

WARNING! Clean with water only; do not use hard/sharp-edged objects!

Do not operate the dryer without the condenser unit!.

TROUBLESHOOTING

Many malfunctions and faults that might occur in daily operation can be easily remedied. Time and money will be saved because a service call will not be needed.

The following guide may help you to find the reason for a malfunction and correct it.

Display Reason	Solutions
E30	Heating problem	Please contact the customer service if the problem persists.
E32	Humidity sensor error
E33	Temperature sensor error

• Only authorised technicians can carry out repairs.
• If the LED displays a different error code and the dryer does not work, please call the customer service.
• Before you call the customer service, please check if you can resolve the problems yourself, consulting the user instructions.

Problem Solution
Display is not on • Check if the power supply works. • Check if the mains plug is inserted. • Check the selected programme. • Press the ON/OFF button.	supply works. • Check if the mains plug is inserted. • Check the selected programme. • Press the ON/OFF button.
"FUL" lights up • Empty the condensate tank. • If the light still remains on, please call the service centre.	tank. • If the light still remains on, please call the service centre.
"BB" lights up	Clean the dryer filter.
Dryer does not start • Connect the tumble dryer to the mains. • Turn on the tumble dryer. • Check if the door is closed. • Check if the programme is set. • Press the START/PAUSE button.	tumble dryer to the mains. • Turn on the tumble dryer. • Check if the door is closed. • Check if the programme is set. • Press the START/PAUSE button.
Degree of dryness was not reached or drying time too long	Clean dryer filter and condenser unit. • Empty the condensate tank. • Check the drain hose. • Check if installation place is appropriate. • Keep the air inlet clean. • Use higher drying intensity level programme or time programme.
The dryer switches off at the end of the programme	• The dryer switches off automatically in order to save energy. This is not an error but a normal function.

WARNING!

If you cannot resolve the problems yourself and need help:

• Press the ON/OFF button.
• Pull out the mains plug and call the customer service.

TECHNICAL SPECIFICATIONS

Model TDC8001W

Dimension(L*W*H) 615x595x845 mm

Ambient temperature +5^ +35^

Rated input power 2700 W

Rated voltage 220-240 V\~

Rated frequency 50Hz

Weight of product 41kg

Rated capacity 8,0kg

NOTE!

• The rated capacity is the maximum capacity, make sure that the dry clothes loaded into the appliance do not exceed the rated capacity.
• Do not install the tumble dryer in a room with a risk of frost. At temperatures around freezing point, the tumble dryer may not be able to operate properly.
• There is a risk of damage if the condensate water is allowed to freeze in the pump, hoses and / or condensate tank.

PRODUCT INFORMATION SHEET

Model TDC8001W
Rated Capacity 8 kg
Dryer Type Condenser
Energy efficiency class B
Weighted annual energy consumption (AEc)\(^{[1]}\)	560,2 kWh / year
Automatic or non-automatic Automatic
EU Ecolabel N/A
Energy consumption of the standard cotton programme
Weighted energy consumption of the standard cotton programme at full and partial load 3,48 kWh
Energy consumption of the standard cotton programme at full load 4,73 kWh
Energy consumption of the standard cotton programme at partial load 2,55 kWh
Power consumption in the off-mode (Po) 0,4 W
Power consumption in the left-on mode (Pl) 0,6 W
Duration of the left-on mode 10 min
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load 111 min
Programme time of the standard cotton programme at full load 140 min
Programme time of the standard cotton programme at partial load	90 min
Condensation efficiency class A (most efficient) to G (least efficient)	B
Average condensation efficiency of the standard cotton programme at full load	81%
Average condensation efficiency of the standard cotton programme at partial load	81%
Weighted condensation efficiency of the standard cotton programme at full and partial load	81%
Sound power level of the standard cotton programme at full load	69 dB

(^*1) Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes.
Actual energy consumption per cycle will depend on how the appliance is used.
The programme 'Cotton Standard' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates.
This programme is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for cotton.

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU). Observe the rules that apply in your country for the separated collection of electric and electronic products. Correct disposal of the product prevents negative consequences for the environment and for public health. The packaging material of this product can be recycled 100% , return packaging material separately.

FICHE D'INFORMATIONS DU PRODUIT

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support

CONDITIONS DE LA GARANTIE
