USER MANUAL Diplomat WTD 710 5 350 E Burg Wächter

2.1 Description of basic functions

You can program your lock based on the following description. You can see the programming instructions on the display. To program the lock (enter into the menu), please press the “Function” key, when the symbol “M” is displayed. You can move within the menu using the keys “1” scroll up (symbol on display) and “2” scroll down (symbol on display). When the symbol “<” is displayed, you can use the “Function” key to skip to the next higher menu level, and choose a particular menu item using the “Enter /14 | English TRSE 6000 On” key. The battery symbol indicates the current battery status: Battery full [ ] [ ] [ ] Battery empty (please replace the batteries) Battery replacement page 42

2.2 Description of programming and user mode

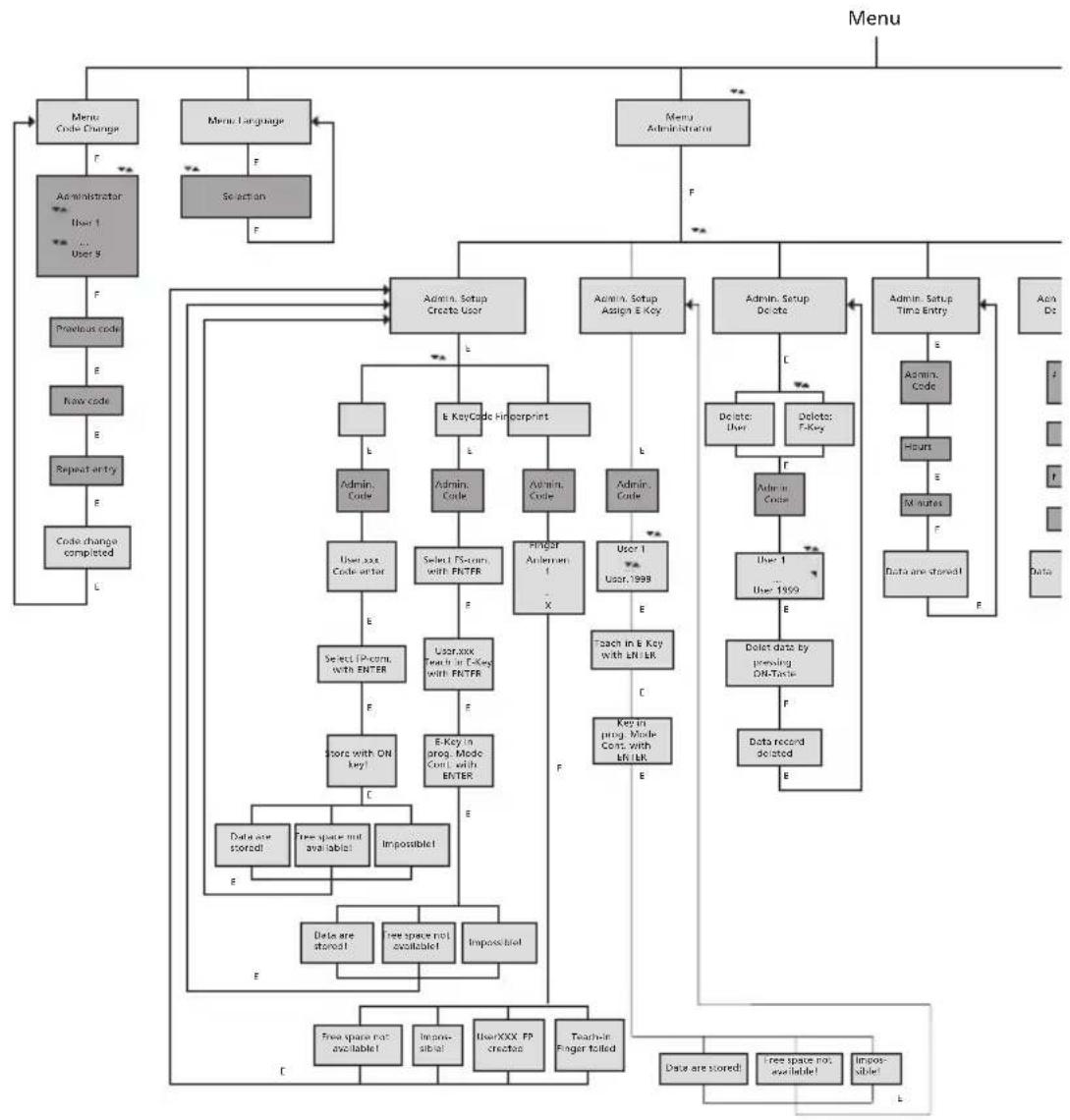

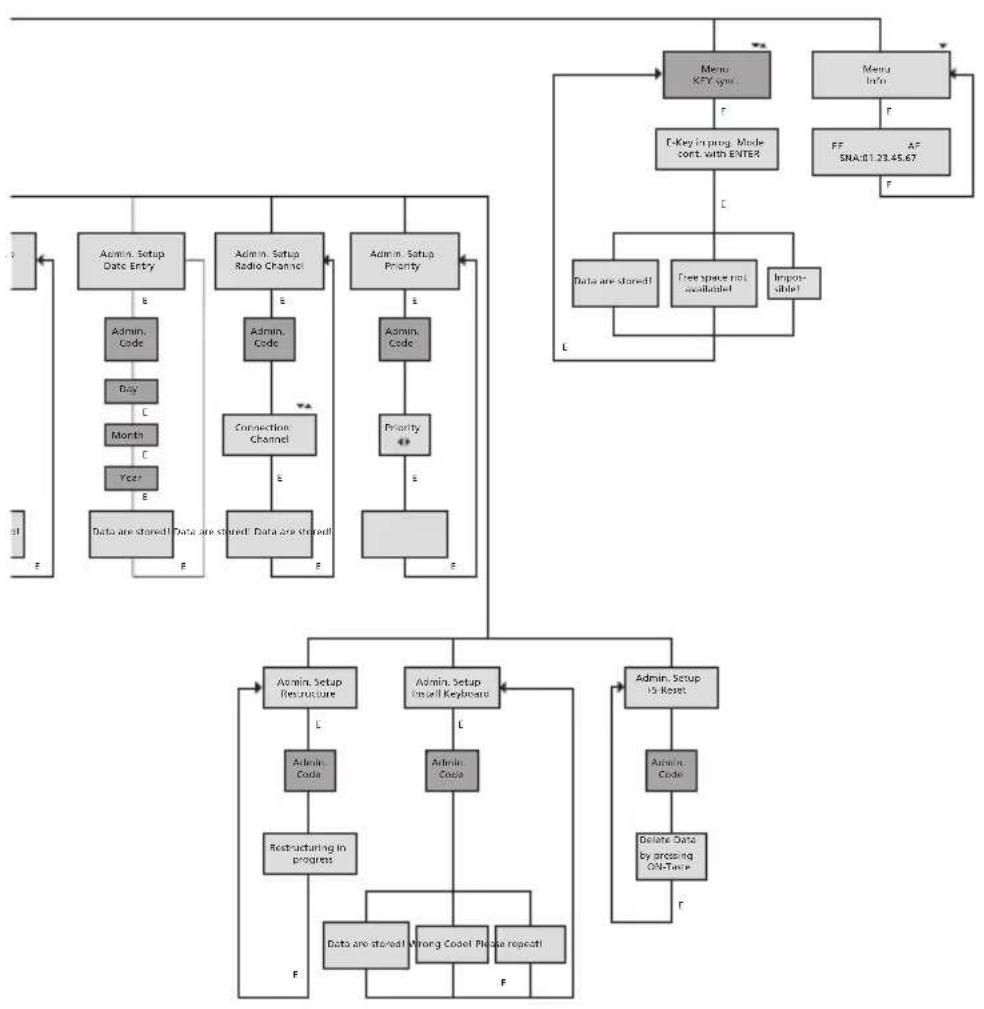

Please nd the menu structure shown on the following pages. Also the navigation is indicated. Additionally, each of the menu items is claried: Code change menu Change of the administrator and user codes Language / Sprache menu Language setup E-Key synchronization menu In this program, the channel of the E-Key is adapted to the channel of the input unit. This function is necessary when the radio channel of an input unit is modied, although other radio keys (with the old channel setup) are still logged. Info menu – Indication of version and serial number – SNA: Lock serial number (via type in the Administration code) Administrator menu This includes all the menus that can be used only with the administrator authorizations. They include: – Create User: Users can be created here. A user has either a code, or an E-Key, or both. A separate user is always created for a ngerscan. Anatomically, there are people, the ngerprints of whom are not sufciently articulated for the system. – Assign E-Key: An E-Key can be additionally assigned to a selected user here. – Delete: Users and E-Keys can be deleted here. When a user is deleted, also the code and the E-Key belonging to the user are deleted. When an E-Key is deleted, the user is retained. To delete a ngerscan, the corresponding user has to be deleted. To delete all the ngerscans, please use the “FS-Reset” function (see below).* – Time:14 | English TRSE 6000 TRSE 6000 English | 15 On” key. The battery symbol indicates the current battery status: Battery full [ ] [ ] [ ] Battery empty (please replace the batteries) Battery replacement page 42

2.2 Description of programming and user mode

Please nd the menu structure shown on the following pages. Also the navigation is indicated. Additionally, each of the menu items is claried: Code change menu Change of the administrator and user codes Language / Sprache menu Language setup E-Key synchronization menu In this program, the channel of the E-Key is adapted to the channel of the input unit. This function is necessary when the radio channel of an input unit is modied, although other radio keys (with the old channel setup) are still logged. Info menu – Indication of version and serial number – SNA: Lock serial number (via type in the Administration code) Administrator menu This includes all the menus that can be used only with the administrator authorizations. They include: – Create User: Users can be created here. A user has either a code, or an E-Key, or both. A separate user is always created for a ngerscan. Anatomically, there are people, the ngerprints of whom are not sufciently articulated for the system. – Assign E-Key: An E-Key can be additionally assigned to a selected user here. – Delete: Users and E-Keys can be deleted here. When a user is deleted, also the code and the E-Key belonging to the user are deleted. When an E-Key is deleted, the user is retained. To delete a ngerscan, the corresponding user has to be deleted. To delete all the ngerscans, please use the “FS-Reset” function (see below).* – Time: Entry of the time and calibration of the clock. The clock is automatically calibrated between two specic times. Exceptions are a replacement of batteries and the switchover from summer to winter time. – Date: Entry of date – Radio Channel: The radio channel can be set up here (12 channels to select from). This can be required when the radio channel is already used by another application, e. g. WLAN. In case of collision with WLAN systems, a space of three channels is recommended. Low Power 2.4 GHz Transceiver Maximum Transmit Output Power 1dBm Frequency usage range 2,400GHz … 2,4835 GHz ISM/SRD band system – Priority: In case the door cannot be opened after several attempts with the E-Key, the priority of the door can be increased by this function. Inversely, also the priority of other door within the direct environment can be reduced. – Restructure: The use of this function is recommended when several users have been deleted. – Register: When either the lock unit or the keyboard is replaced, the two units are newly tuned to each other. – FS-Reset*: All the stored ngerprints are deleted, however, the corresponding users are retained. Please select this menu and follow the instructions on the display also in case of repeated error functions related to the use of ngerscans. These ngers could not be stored because of security reasons.16 | English TRSE 6000

Display Input Administrator User E=Enter Menu Code Change Menu Language Menu Administrator Menu KEY sync. Selection Admin. Setup Create User E-KeyCode Fingerprint User.xxx Code enter Select FP-com. with ENTER Select FS-com. with ENTER E-Key in prog. Mode Cont. with ENTER Store with ON key! User.xxx Teach in E-Key with ENTER Teach-in E-Key with ENTER Data record deleted Key in prog. Mode Cont. with ENTER User 1

User 1999 Delet data by pressing ON-Taste Finger Anlernen

Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Hours Day Month Year Minutes Admin. Code Admin. Setup Assign E-Key Admin. Setup Time Entry Admin. Setup Date Entry Admin. Setup Radio Channel Admin. Setup Priority Delete: User Delete: E-Key Connection: Channel Restructuring in progress Free space not available! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Wrong Code! Please repeat! Delete Data by pressing ON-Taste Priority Admin. Setup Restructure Admin. Setup Install Keyboard Admin. Setup FS-Reset E-Key in prog. Mode cont. with ENTER Admin. Setup Delete New code Repeat entry Code change completed Data are stored! Data are stored! Free space not available! Free space not available! Free space not available! Data are stored! Free space not available! Impos- sible! Impos- sible! Impos- sible! UserXXX_FP created Teach-in Finger failed Impossible! Impossible! Previous code Administrator User 1

Menu Code Change Menu Language Menu Administrator Menu KEY sync. Selection Admin. Setup Create User E-KeyCode Fingerprint User.xxx Code enter Select FP-com. with ENTER Select FS-com. with ENTER E-Key in prog. Mode Cont. with ENTER Store with ON key! User.xxx Teach in E-Key with ENTER Teach-in E-Key with ENTER Data record deleted Key in prog. Mode Cont. with ENTER User 1

User 1999 Delet data by pressing ON-Taste Finger Anlernen

Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Hours Day Month Year Minutes Admin. Code Admin. Setup Assign E-Key Admin. Setup Time Entry Admin. Setup Date Entry Admin. Setup Radio Channel Admin. Setup Priority Delete: User Delete: E-Key Connection: Channel Restructuring in progress Free space not available! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Wrong Code! Please repeat! Delete Data by pressing ON-Taste Priority Admin. Setup Restructure Admin. Setup Install Keyboard Admin. Setup FS-Reset E-Key in prog. Mode cont. with ENTER Admin. Setup Delete New code Repeat entry Code change completed Data are stored! Data are stored! Free space not available! Free space not available! Free space not available! Data are stored! Free space not available! Impos- sible! Impos- sible! Impos- sible! UserXXX_FP created Teach-in Finger failed Impossible! Impossible! Previous code Administrator User 1

2.4 Detailed description of selected basic functions

1. Opening the safe using the factory code

– Press the On / Enter key – The Code / Fingerp indication is displayed (in case you possess electronics without ngerscan, Code is displayed instead.) – At this point you are asked to enter the Admin. Code (factory setting 123456) – The instruction Please turn knob is displayed Attention: The message Please turn knob implies the action with the knob of the locking unit, for which the opening code has been entered.

2. Changing the Administrator Code

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – Press the On / Enter key – The indication of Administrator is displayed – Press the On / Enter key – The indication of the Old code is displayed – At this point you are asked to enter the Admin. Code (factory setting 123456) – Press the On / Enter key – The indication of the New code is displayed – Enter the new code – Press the On / Enter key – The indication of Repeat code is displayed – Enter the new code – Press the On / Enter key – The indication of Code successfully changed is displayed

3. Creating a user with a code

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – By pressing the key 2 reach the Administrator menu – Press the On / Enter key – Admin setup Create user is displayed – Press the On / Enter key – Create code is displayed – Press the On / Enter key – At this point you are asked to enter the Admin. Code (factory setting 123456) – The indication of User 00x is displayed – Please enter the user code and conrm it with ENTER – Press the On / Enter key – FS combination to be conrmed with ENTER is displayed

– Press the On / Enter key and accordingly the Function key – After conrmation, Save with the On key is displayed.18 | English TRSE 6000 TRSE 6000 English | 19

2.4 Detailed description of selected basic functions

1. Opening the safe using the factory code

– Press the On / Enter key – The Code / Fingerp indication is displayed (in case you possess electronics without ngerscan, Code is displayed instead.) – At this point you are asked to enter the Admin. Code (factory setting 123456) – The instruction Please turn knob is displayed Attention: The message Please turn knob implies the action with the knob of the locking unit, for which the opening code has been entered.

2. Changing the Administrator Code

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – Press the On / Enter key – The indication of Administrator is displayed – Press the On / Enter key – The indication of the Old code is displayed – At this point you are asked to enter the Admin. Code (factory setting 123456) – Press the On / Enter key – The indication of the New code is displayed – Enter the new code – Press the On / Enter key – The indication of Repeat code is displayed – Enter the new code – Press the On / Enter key – The indication of Code successfully changed is displayed

3. Creating a user with a code

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – By pressing the key 2 reach the Administrator menu – Press the On / Enter key – Admin setup Create user is displayed – Press the On / Enter key – Create code is displayed – Press the On / Enter key – At this point you are asked to enter the Admin. Code (factory setting 123456) – The indication of User 00x is displayed – Please enter the user code and conrm it with ENTER – Press the On / Enter key – FS combination to be conrmed with ENTER is displayed

– Press the On / Enter key and accordingly the Function key – After conrmation, Save with the On key is displayed.

4. Creating a user with an E-Key

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – By pressing the key 2 reach the Administrator menu – Press the On / Enter key – Admin setup Create user is displayed – Press the On / Enter key – Create E-Key is displayed – Press the On / Enter key – At this point you are asked to enter the admin. Code (factory setting 123456) – FS combination to be conrmed with ENTER is displayed

– Press the On / Enter key and accordingly the Function key – User 00x Store E-Key using ENTER is displayed – Please bring the E-Key in the programming mode. – Press the On / Enter key – E-Key in Prog mode, continue with Enter is displayed – Press the On / Enter key – After conrmation, Save with the On key is displayed

If the message FS combination to be conrmed with ENTER is displayed you have to decide whether the user should get the full opening right or half of it. Full opening right: press Function key Half opening right: press ENTER key If you create a half opening right the Pin code is only to be allowed to open with another opening secret e. g. the ngerprint.

5. Storing a user with ngerprint*

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – By pressing the key 2 reach the Administrator menu – Press the On / Enter key – Admin setup Create user is displayed – Press the On / Enter key – By pressing the key 2 several times reach the Create ngerscan menu – Press the Function key – At this point you are asked to enter the admin. Code (factory setting 123456) – The indication of Create ngerscan is displayed – The indication of Store nger is displayed – Please pull your nger over the sensor for several times according to the instructions shown on the display – After a successful entry the indication User xxx successfully created is displayed20 | English TRSE 6000 Attention: When saving a ngerprint it is important that the nger is laid evenly and in a straight position over the sensor. Follow the instructions on the display. The nger is saved only when it can be read in an optimum quality.

6. Opening with ngerprint*

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Move the saved nger over the sensor – Value not achieved is displayed for a short time – The Code / Fingerp indication is displayed – At this point, enter an additional opening code. – The instruction Please turn knob is displayed

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – By pressing the key 2 reach the Administrator menu – Press the On / Enter key – Admin setup Create user is displayed – By pressing the key 2 reach the Admin. setup Delete menu – Press the On / Enter key – Delete user is displayed – Press the On / Enter key – At this point you are asked to enter the admin. Code (factory setting 123456) – Now you have to select the appropriate user by pressing the keys 1 or 2 – Press the On / Enter key – The indication of Delete data to be conrmed with the On key is displayed. – Press the On / Enter key – The indication of Data record deleted is displayed Additional users can be deleted using the On / Enter key. By pressing the Function key, you can reach higher menu levels up to the code entry.20 | English TRSE 6000 TRSE 6000 English | 21 Attention: When saving a ngerprint it is important that the nger is laid evenly and in a straight position over the sensor. Follow the instructions on the display. The nger is saved only when it can be read in an optimum quality.

6. Opening with ngerprint*

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Move the saved nger over the sensor – Value not achieved is displayed for a short time – The Code / Fingerp indication is displayed – At this point, enter an additional opening code. – The instruction Please turn knob is displayed

– Press the On / Enter key – The indication of Code / Fingerp is displayed – Press the Function key – The Change code menu is displayed – By pressing the key 2 reach the Administrator menu – Press the On / Enter key – Admin setup Create user is displayed – By pressing the key 2 reach the Admin. setup Delete menu – Press the On / Enter key – Delete user is displayed – Press the On / Enter key – At this point you are asked to enter the admin. Code (factory setting 123456) – Now you have to select the appropriate user by pressing the keys 1 or 2 – Press the On / Enter key – The indication of Delete data to be conrmed with the On key is displayed. – Press the On / Enter key – The indication of Data record deleted is displayed Additional users can be deleted using the On / Enter key. By pressing the Function key, you can reach higher menu levels up to the code entry.

Display Input Administrator User E=Enter Menu Code Change Menu Language Menu Administrator Menu KEY sync. Selection Admin. Setup Create User E-KeyCode Fingerprint User.xxx Code enter Select FP-com. with ENTER Select FS-com. with ENTER E-Key in prog. Mode Cont. with ENTER Store with ON key! User.xxx Teach in E-Key with ENTER Teach-in E-Key with ENTER Data record deleted Key in prog. Mode Cont. with ENTER User 1

User 1999 Delet data by pressing ON-Taste Finger Anlernen

Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Hours Day Month Year Minutes Admin. Code Admin. Setup Assign E-Key Admin. Setup Time Entry Admin. Setup Date Entry Admin. Setup Radio Channel Admin. Setup Priority Delete: User Delete: E-Key Connection: Channel Restructuring in progress Free space not available! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Wrong Code! Please repeat! Delete Data by pressing ON-Taste Priority Admin. Setup Restructure Admin. Setup Install Keyboard Admin. Setup FS-Reset E-Key in prog. Mode cont. with ENTER Admin. Setup Delete New code Repeat entry Code change completed Data are stored! Data are stored! Free space not available! Free space not available! Free space not available! Data are stored! Free space not available! Impos- sible! Impos- sible! Impos- sible! UserXXX_FP created Teach-in Finger failed Impossible! Impossible! Previous code Administrator User 1

Menu Code Change Menu Language Menu Administrator Menu KEY sync. Selection Admin. Setup Create User E-KeyCode Fingerprint User.xxx Code enter Select FP-com. with ENTER Select FS-com. with ENTER E-Key in prog. Mode Cont. with ENTER Store with ON key! User.xxx Teach in E-Key with ENTER Teach-in E-Key with ENTER Data record deleted Key in prog. Mode Cont. with ENTER User 1

User 1999 Delet data by pressing ON-Taste Finger Anlernen

Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Hours Day Month Year Minutes Admin. Code Admin. Setup Assign E-Key Admin. Setup Time Entry Admin. Setup Date Entry Admin. Setup Radio Channel Admin. Setup Priority Delete: User Delete: E-Key Connection: Channel Restructuring in progress Free space not available! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Wrong Code! Please repeat! Delete Data by pressing ON-Taste Priority Admin. Setup Restructure Admin. Setup Install Keyboard Admin. Setup FS-Reset E-Key in prog. Mode cont. with ENTER Admin. Setup Delete New code Repeat entry Code change completed Data are stored! Data are stored! Free space not available! Free space not available! Free space not available! Data are stored! Free space not available! Impos- sible! Impos- sible! Impos- sible! UserXXX_FP created Teach-in Finger failed Impossible! Impossible! Previous code Administrator User 1

Display Input Administrator User E=Enter Menu Code Change Menu Language Menu Administrator Menu KEY sync. Selection Admin. Setup Create User E-KeyCode Fingerprint User.xxx Code enter Select FP-com. with ENTER Select FS-com. with ENTER E-Key in prog. Mode Cont. with ENTER Store with ON key! User.xxx Teach in E-Key with ENTER Teach-in E-Key with ENTER Data record deleted Key in prog. Mode Cont. with ENTER User 1

User 1999 Delet data by pressing ON-Taste Finger Anlernen

Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Hours Day Month Year Minutes Admin. Code Admin. Setup Assign E-Key Admin. Setup Time Entry Admin. Setup Date Entry Admin. Setup Radio Channel Admin. Setup Priority Delete: User Delete: E-Key Connection: Channel Restructuring in progress Free space not available! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Wrong Code! Please repeat! Delete Data by pressing ON-Taste Priority Admin. Setup Restructure Admin. Setup Install Keyboard Admin. Setup FS-Reset E-Key in prog. Mode cont. with ENTER Admin. Setup Delete New code Repeat entry Code change completed Data are stored! Data are stored! Free space not available! Free space not available! Free space not available! Data are stored! Free space not available! Impos- sible! Impos- sible! Impos- sible! UserXXX_FP created Teach-in Finger failed Impossible! Impossible! Previous code Administrator User 1

Menu Code Change Menu Language Menu Administrator Menu KEY sync. Selection Admin. Setup Create User E-KeyCode Fingerprint User.xxx Code enter Select FP-com. with ENTER Select FS-com. with ENTER E-Key in prog. Mode Cont. with ENTER Store with ON key! User.xxx Teach in E-Key with ENTER Teach-in E-Key with ENTER Data record deleted Key in prog. Mode Cont. with ENTER User 1

User 1999 Delet data by pressing ON-Taste Finger Anlernen

Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Admin. Code Hours Day Month Year Minutes Admin. Code Admin. Setup Assign E-Key Admin. Setup Time Entry Admin. Setup Date Entry Admin. Setup Radio Channel Admin. Setup Priority Delete: User Delete: E-Key Connection: Channel Restructuring in progress Free space not available! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Data are stored! Wrong Code! Please repeat! Delete Data by pressing ON-Taste Priority Admin. Setup Restructure Admin. Setup Install Keyboard Admin. Setup FS-Reset E-Key in prog. Mode cont. with ENTER Admin. Setup Delete New code Repeat entry Code change completed Data are stored! Data are stored! Free space not available! Free space not available! Free space not available! Data are stored! Free space not available! Impos- sible! Impos- sible! Impos- sible! UserXXX_FP created Teach-in Finger failed Impossible! Impossible! Previous code Administrator User 1
