Ninebot KickScooter E22E - Electric scooter SEGWAY - Free user manual and instructions

Product Type	Electric Scooter
Brand	Segway
Model	Ninebot KickScooter E22E
Dimensions (unfolded)	111 × 42 × 112 cm
Dimensions (folded)	114 × 42 × 36 cm
Net Weight	13.5 kg
Max User Weight	100 kg
Recommended Age	14 years and up
Max Speed	20 km/h
Typical Range	22 km
Max Gradient	15 %
Battery	36 V, 184 Wh, lithium-ion
Charging Time	3.5 hours
Protection Rating	IPX4
Motor	300 W nominal
Braking	Electronic brake + foot brake
Lighting	Front LED light
Driving Modes	Limited, Standard, Sport Mode
Tires	9 inches, non-pneumatic, synthetic rubber
Connectivity	Bluetooth 4.0 + Segway-Ninebot app
Operating Temperature	10 °C to 40 °C
Storage Temperature	-20 °C to 30 °C
Package Contents	KickScooter, charger, hex key, screws, manual

Frequently Asked Questions - Ninebot KickScooter E22E SEGWAY

How to activate the Ninebot KickScooter E22E?

To activate the scooter, install the Segway-Ninebot app on your smartphone (iOS 9.0+ or Android 4.5+), turn on the scooter, connect via Bluetooth, and follow the instructions in the app. Until activated, the speed is limited.

What is the real range of the E22E?

The typical range is 22 km on a full charge under ideal conditions (75 kg, 25°C, flat ground). Actual range varies according to weight, temperature, riding style, and terrain.

Can I ride in the rain with the E22E?

No, it is not recommended to ride in the rain or on wet surfaces. The IPX4 rating protects against splashes, but water can reduce traction and damage electronic components.

How to change the driving mode?

Double-click the power button to switch between modes: Limited (reduced speed), Standard (balanced), and Sport (maximum speed). The active mode is displayed on the dashboard.

What is the maximum speed of the E22E?

The maximum speed is 20 km/h in Sport mode. Standard and Limited modes limit speed for safety.

How to fold and transport the scooter?

Place one foot on the folding pedal, push the handlebar forward, then lower it until it locks into the rear hook. You can then carry it by the central tube.

What to do if the battery does not charge?

Check that the charger is properly plugged in and the charging port is dry. If the charger LED does not light up, try another outlet. If the problem persists, contact Segway customer service. Only use the provided charger.

Can I install a second battery on the E22E?

Yes, the E22E supports an optional external battery. Remove the cover near the charging port, install the battery with the provided screws, then check proper operation. This increases range.

How to clean the KickScooter E22E?

Use a soft, damp cloth to clean the frame. For stubborn stains, use a toothbrush with toothpaste. Do not use solvents, alcohol, or high-pressure cleaners. Ensure the scooter is off and the charging port cover is closed.

What are the main safety warnings?

Always wear an approved helmet. Do not ride on public roads. Avoid wet or slippery surfaces. Do not exceed the maximum load of 100 kg. Do not ride two people. Check the folding mechanism before each use.

USER MANUAL Ninebot KickScooter E22E SEGWAY

Original Instructions

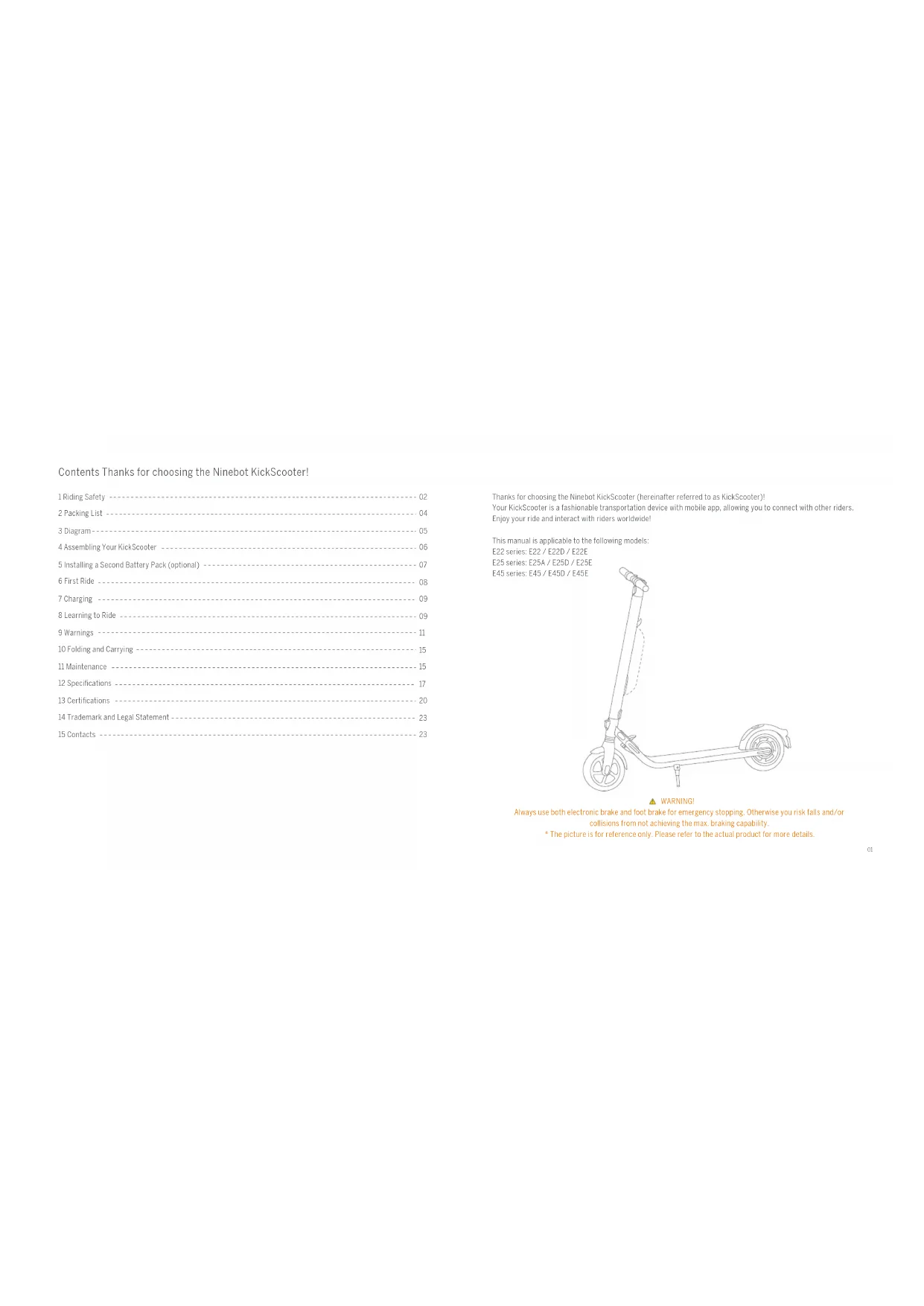

Contents Thanks for choosing the Ninebot KickScooter!

1 Riding Safety 02
2 Packing List 04

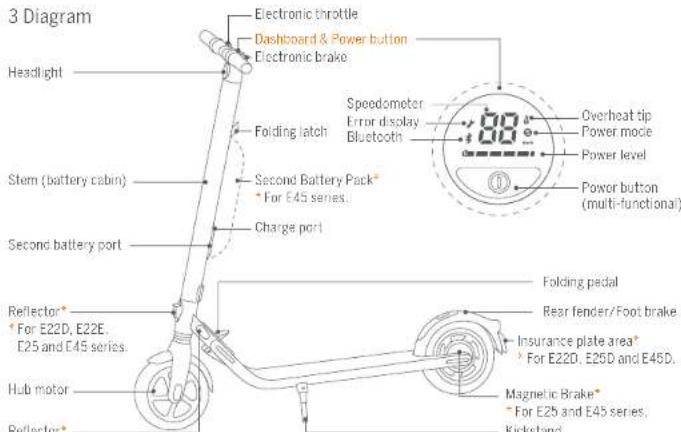

3 Diagram 05
Assembling Your KickScooter 06
5 Installling a Second Battery Pack (optional) 07
6FirstRide 08
7Chargg 09
8 Learning to Ride 09
9 Warnings 11
10 Folding and Carrying 15
11 Maintenance 15
12 Specifications 17
13 Certifications 20
14 Trademark and Legal Statement 23
15 Contacts 23

Thanks for choosing the Nebot KickScooter (hereinafter referred to as KickScooter)! Your KickScooter is a fashionable transportation device with mobile app allowing you to connect with other riders. Enjoy your ride and interact with riders worldwide!

This manual is applicable to the following models:

E22 series: E22/E22D/E22E
E25series:E25A/E25D/E25E
E45 series: E45/F45D/F45E

WARNING

Always use both electronic brake and foot brake for emergency stopping. Otherwise you risk falls and/or collisions from not achieving the max. braking capability.

The picture is for reference only. Please refer to the actual product for more details.

1 Riding Safety

1. The KickScooter is a recreational product. Before mastering riding skills, you need to practice. Neither Ninebot Inc. (means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates) nor Segway Inc. is responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the Kick Scooter your risk injury from loss of control, collisions, and falls. When entering into public spaces always correctly with the local laws and regulations. As with other vehicles, faster speeds require longer braking distance. Sudden braking on low friction surfaces could lead to wheel slip, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.
3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the shin strap in place, and provides protection for the back of your head.
4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential hazards.
5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and slow down. Avoid starting pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing. Please obey local traffic laws and regulations if situation is different.
   6 In places without laws, comply with the safety guidelines outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.
6. Do not allow anyone to ride your KickScooter on his/her own unless they have carefully read this manual and follow the New Rider Tutorial in the App. The safety of new riders is their responsibility. Assist new riders until they are comfortable with the basic operation of the KickScooter. Make sure each new rider wears a helmet and other protective gear.
7. Before each ride check for lone fasteners and damaged components. If the KickScoter makes abnormal sounds or signals an alarm immediately stop riding. Diagnose your KickScoter via the Segerway-Ninetoh App and call your dealer/distributor for service.
8. Be alert! Scan both far ahead and in front of your KickScooter - your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
9. To reduce risk of injury, you must read and follow all "CAUTION" and "WARNING" notices in this document. Do not ride at an unsafe speed. Under no circumstances should you ride on roads with motor vehicles. The manufacturer recommends riders be 14+ years old. Always follow these safety instructions:

A. People who should not ride the KickScooter include:

i. Anyone under the influence of alcohol or drugs
ii. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.
iii. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.
iv. Anyone whose weight is outside the stated limits (see Specifications).

V. Pregnant women.

B. Riders under the age of 18 years old should ride under adult supervision.
C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
D.To ride safely,you must be able to clearly see what is in front of you and you must be clearly visible to others.
E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.

1. Do not attempt to charge your KickScooter if it, the charger, or the power outlet is wet.
2. As with any electronic device, use a surge protector when charging to help product; your Kickscooter from damage due to power surges and voltage spikes. Only use the Sevgay supplied charger. Do not use a charger from any other different product models.
3. Use only Nibelot or Sogway approved aerals and accessories. Do not modify your KickScouter. Modifications to your KickScouter could interfere with the operation of the KickScouter, result in serious injury and/or damage, and void the Limited Warranty.
4. Children should not play with the Kick Scooter or parts of it nor should cleaning or maintenance be done by children. The use of the machine results in the transmission of vibrations throughout the driver's body.
5. Always place the KickScooter on its stand on a flat and stable surface. The KickScooter must be placed with the stand against the slope to prevent it from tipping over. Never place the KickScooter with the front facing down the slope, as the stand may close and tip the machine. Once the KickScooter is on its stand, check its stability to avoid any risk of falling (by slip, wind or slight jolt). Do not park the KickScooter in a busy area, but rather along a wall. If possible, always choose to park your KickScooter on its ground.
6. For a better driving experience, it is recommended to conduct a regular maintenance of the product.
7. Please read the user manual before charging the battery.
8. Do not touch the brake system. It could cause injuries.
9. The A -weighted emission sound pressure level is less than 70 dB(A). The mechanical vibrations transmitted by the KickScaster are less than 2.5mV / s

2 Packing List

User Materials

Second Battery Pack

Accessories

MS Flathred Screwex 7 (one extra)

3mmHexWenchBatteryCach

When unboxing your Kickscooter, please verify that the above items are included in the package. If any components are missing, please contact your dealer/distributor or nearest service center (see Contacts in the user manual). After verifying that all components are present and in good condition, you can assemble your new Kickscooter.

Please retain the box and packaging materials in case you need to ship your KickScooter in the future.

Remember to power off your KickScout and amputate the charge cable before assembling, mounting accessories or cleaning the mainframe.

04D5

*For F22D, F22E, F25 and F45 series.

Dashboard & Power button

Spodumelor: Indicales the current speed. Also displays error codes when faults are detected.

Battery level indicates the remaining battery level with 5 bars. Each bar equates to approximately 20% power level

Power mode:

Red S can:Sport mode (maximumpower/speed).

White "S" icon: Standard Mode (moderate power/speed), 1000000000000000000000000000000000000000000000000000000000000000

-03 5 cen, speed mth, hode, mth, pwoe/ speed)

Bluetooth A blirng Bluetooth i on indicates that the vehicle is ready to connect. A solid Bluetooth icon indicates that the vehicle is

conneced to a mobile device.

Pwr bollion: Short pess to power on Long press to power off. When powered on, press to turn on/off the headlight. Double-press to change power mode.

Overheat to The thermometer soon always on indcates that the battery temperature has reached 122°F (50°C). At this point, the vehicle

cannot accelerate normally and may not be charged. Do not use it until the temperature is restored to normal range

Error display. The lit wrench icon indicates the scooter error.

4 Assembling Your KickScooter

1. Unfold the stem and push it until you hear a click. Flip up the folding pole. Then unfold the kickstand to support the scooter. Note: Confirm that the latching axis on the folding mechanism is secured correctly.

1. Install six screws (two on each side) with the included hex wrench.

1. Firmly connect the wires inside the handlebar and the stem. Slide the handlebar onto the stem. Be aware of the correct orientation.

1. Verify that your KickScooter powers on and off

5 Installing a Second Battery Pack (optional)

1. Remove the three screws on the stem. Then remove the cover near the charge port and remove the M3 screw.

Warning: please use the screws provided with this product only.

1. Install the rail with the M4 (10mm) screws (3 pcs), provided with this product. Please make sure it is properly fixed.

1. Install the external battery on the rail and fix it with the M4 (20mm) screws (2 pcs) and M3 screw (1 pcs), provided with this product. After they are properly installed, block the screw holes with the rubber stopper.

6 First Ride

Segway-Ninebot App

There are safety risks when learning to ride the KickScooter. You must read the Riding Safety via the App before your first ride.

For your safety, your new KickScooter is not activated and will becpoccasionally after POWER ON.

Until activated, the KickScooter maintains a very low riding speed, and can not perform with full function. Install the Segway Ninebot App on your mobile device (with Bluetooth 4.0 and above). Connect to the KickScooter with Bluetooth, and follow the App instructions to activate your KickScooter and enjoy the full performance.

Scan the QR code to download the App (iOS 9.0 and above, Android™ 4.3 and above).

Install the Segway Ninebot App and register /login

Click "Vehicle" "Search vehicle" to connect to your KickScatcher.

The KickScooter will be when it has successfully connected... The Bluetooth icon will stop blinking and remain illuminated.

Follow the App instructions to activate the KickScooter and learn how to ride safely.

You can now start to use your KickScooter, check the status with the App, and interact with other users. Have fun!

(849

Power on the KickScooter. A blinking Bluetooth icon indicates the KickScooter is ready to connect.

learn how to ride safely.

7 Charging

Charging steps:

Open the charge part cover.

Insert the charge plug.

Close the charge port cover when finished.

WARNING

Do not connect the charger if the charge port or charge cable is wet. Do not charge or use your battery if it is damaged or see trace of water.

Your Kick Scooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge). Close the charge port cover when not charging.

8 Learning to Ride

Wear an approved helmet and other protective gear to minimize any possible injury.

1. Power on the scooter and check the power level. Charge the scooter if the battery level is low.

2. Stand on the foot deck with one foot and push off with another foot to start gliding.

3. Put your other foot on the foot clock to keep both feet stable. Press the throttle to speed up when you are balanced. Note: For your safety, the motor will not engage until the booster reaches 2.5 mph (4 km/h).

4. Slow down by releasing the throttle. Squeeze the electronic brake and stambo the rear fencer with foot at the same time for a sudden brake.

5. To turn, shift your body and turn the handlebar slightly.

WARNING

When braking ralily, you risk serious injury due to loss of fraction and falls. Maintain a moderate speed and look out for potential hazards.

9Warnings

DO NOT ride the scooter in the rain.

WARNING

Failure to follow these instructions could lead to serious injury.
Watch your head when passing through doorways.

Keep your speed between 3.1-6.2 mph (5-10 km/h) when you ride through speed bumps, elevator door slits, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.

Watch your speed when traveling downhill. Use both brakes together when traveling at high speed.

DO NOT press the throttle when walking with the scooter.

Avoid contacting obstacles with the tire/wheel.

DO NOT ride on public roads, motorways, or highways.

DO NOT rotate the handicbar violently while driving at high speed.

DO NOT carry heavy objects on the handlebar.

DO NOT ride the scooter with only one foot.

Do not ride through puddles or any other (water) obstacles. In such a case please lower your speed and bypass the obstacle.

The KickScooter is for one rider only. Do not ride with another person. Do not carry a child.

DO NOT stop on the folding pedal while riding.

DO NOT touch the hub motor after riding because it can get hot.

DO NOT take your hands off the handlebar while riding. Do not ride with one hand only.

DO NOT Rids up and down stairs or jump over obstacles.

WARNING

Always keep both hands on the handlebar or you risk serious injury due to loss of balance and falls. 14 always check the locked condition of the folding mechanism before each use.

10 Folding and Carrying

Step on the folding pedal while pushing the handlabor forward slightly.

Then fold the handlebar down until it looks into the rear fender.

When your KickScooter is folded up, simply lift it by the stem to carry.

11 Maintenance

Cleaning and Storing

Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth.

NOTE

Not wash your Kick Scooter with alcohol , gasoline , acetone , or other corrosive/Valable solvents . These substances may damage theappearance and internal structure of your Kick Scooter . Do not wash your Kick Scooter with a power washer or rinse .

WARNING

Make sure the KickScooter is powered OFF, the charging cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components.

Store year KickScooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hcl and cold) will accelerate the aging process of the plastic components and may reduce vitality life.

Maintenance and removal of the battery

Do not remove the battery. Removing the battery is complicated and can alter the operation of the machine. You can contact an authorized repairer if the product is still guaranteed. If the product is not guaranteed, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.seyway.com. For any further question, you can contact the customer service available at www.seyway.com.

Do not store or charge the battery at temperatures outside the stated limits (see Specifications), Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling are/ or disposal. A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70^) (22^) ) the battery range and performance is at its best; whereas using it at temperatures below 32^(10^) can decrease range and performance. Typically, at -45^(20^) range can be half that of the same battery at 70^(22^) . Battery range will recover when temperature rises. More details are available in the App.

Replica Tire

Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunction.

• Please contact an authorized repairer if the product is still under manufacturer guarantee. You can ask for the list of the authorized repairers to the customer service available at www.sezway.com.

If the product is no longer under guaranteed you can contact any specialized repairer of your choice. Should you have questions, you can contact customer service available at www.segway.com.

NOTE

Typically, a fully charged battery should retain charge for 120-150 days in Stanley Mode. A low power battery should retain charge for 30-60 days in Stanley Mode. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-discharge or under discharge will not be covered by the Limited Warranty.

WARNING

Do not charge or use your battery if it is damaged or see trace of water. Do not attempt to disassemble the battery. Risk of fire. No user serviceable parts.

WARNING

Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/ torque. Doing so could cause personal injury or property damage due to slips or falls.

The external flexible table of this transformer cannot be replaced; if the cord is damaged, the transformer must be discarded and replaced by a new one. Should you have questions, you can contact customer service available at www.segway.com. In case of accident or breakdown: Please contact an authorized repairer if the product is still under guarantee, if not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any question, please contact customer service available at www.segway.com. Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he/she advised to contact an authorized or a specialized repairer or customer service.

12 Specifications

	Item	E225/E220 E22
Dimensions	Length x Width x Height	43.7x18.5x44.1in(111x42x112cm) 42.9x16.5x44.1in(109x42x112cm)
	folded Length x Width x Height	44.5x16.5x14.2in(113x42x36cm)44.5x16.5x14.2in(113x42x36cm)44.5x16.5x14.2in(113x42x36cm)44.5x16.5x14.2in(113x42x36cm)44.5x16.5x14.2in(11,3x42x36cm)44.5x16.5x14.2in(113x42x36cm)44.5x16.5x14.2in(113x42x36cm)44.5x16.5x14.2in(113x42x36cm)44.5x16.5×14.2in(113x42x36cm)44.5x16.5×14.2in(113x42x36cm)44.5x16.5×14.2in(113x42x36cm)44.5x16.5×14.2in(113x42x36cm)4.5x16.5x14.2in(113x42x36cm)4.5x16.5x14.2in(113x42x36cm)4.5x16.5x14.2in(113x42x36cm)4.5x16.5x14.2in(113x42x36cm)4.5x 16.5x14.2in(113x42x36cm)4.5x16.5x14.2in(113x42x36cm)4.5x16.5x14.2in(113x42x36cm)4.5x16.5x14.2in(113x42x36cm）	Approx: 29.8 Ibs (13.5kg)
Rider	Payload	55-220 lbs (25-100 kg)
	Recommended Age	14+ years
	Required Height	3'11" - 6" 6" (120-200 cm)
Parameters	Max Speed	12.4 mph (20 km/h)
	Typical Range	13.7 miles (22 km)
	Max Slope	15%
	Traversable Terrain	asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14-105°C (10-40°C)
	Storage Temperature	-4-122°F (10-50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 3.5 h
Battery	Nominal Voltage	36 V=
	Max. Chargeable Voltage	42 V=
	Charging Temperature 32-104°C (0-40°C)
	Nominal Capacity	184 Wh
	Battery Management System	Soft-healing, short circuit, over-current, over-discharge and over-charge protection
	Number of Batteries (C)	1
Motor	Nominal Power	300 W, 0.5 xW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100-240 V
	Output Voltage	42 V=
	Output Current	1.7 A
Features	Brake limpi	LED rear limpi
	Riding Modes	Speed limit mode, Standard mode and Sport mode
Tire	Tires	Material: non pneumatic tires, synthetic rubber, Size: B inches

[2] Typical Range limited while riding under full power (1.65 lbs. (75 kg), load, 77°/2E/C), 60% of max. speed and average or maximum. Some of the factors that affect range include number of stars and slits, ambient temperature, etc.

[2] All Klein-Schwarz moedds case natal theoremy. Some of the parameters would change in this case.

	Item	E25D	E26E	E25A
Dimensions	Length x Width x Height	46.7 x 16.5 x 46.1 in (116 x 42 x 117 cm)
	folded: Length x Width x Height	46.9 x 16.5 x 14.2 in (119 x 42 x 36 cm)
Weight	Net Weight	31.5 lbs (14.3 kg)
Rider	Payload	55-220 lbs (25-100 kg)
	Recommended Age	14+ years
	Required Height	311" - 6" (120-200 cm)
Parameters	Max. Speed	12.4 mph (20 km/h)	15.5 mph (25 km/h)	17.4 mph (28 km/h)
	Typical Range (1)	15.5 miles (25 km)
	Max. Slope	15%
	Traversable Terrain	asphalt/Fat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14-104°F (-10-40°C)
	Storage Temperature	-4-122°F (-20-30°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 4 h
Battery	Nominal Voltage	36 V =
	Max. Charging Voltage	42 V =
	Charging Temperature 32-104°F	0-40°C
	Nominal Energy	215 Wh
	Nominal Capacity	5960 mAh
	Battery Management System	Over-heating, stock circuit, over current, over-discharge and over-charge protection
	Number of Batteries In	1
Motor	Nominal Power	300 W, 0.3 kW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100-240 V-
	Output Voltage	42 V =
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Shock Absorber Front
	Riding Modes	Speed limit mode, Standard mode and Sport mode
	Ambient Light /		Customizable colour	Customizable colour
Tire	Tires	Material: non-pneumatic tires, synthetic rubber, Size: 9 inches

[1]Typical Range: tested white-riding under full power, 185 kpa (75 kg) and 77° (25°C). 60% of max. speed or average trip statement.
Same of the factors that affected range include: speed, number of stars and slopes, ambient temperature, etc.
[2]AI KickSzenber mndels could install the second battery. Same of the parameters would change in this case.

	Item	E45	E45D	E45E
Dimensions	Length x Width x Height	45.7 x 16.5 x 46.1 in (116 x 42 x 117 cm)
	folded: Length x Width x Height	46.9 x 16.5 x 14.2 in (119 x 42 x 36 cm)
Weight	Net Weight	33.1 lbs (15.0 kg)
Rider	Payload	55-220 lbs (23-100 kg)
	Recommended Age	14+ years
	Required Height	3'11" - 6'8" (120-200 cm)
Parameters	Max Speed	18.6 mph (30 km/h)	12.4 mph (20 km/h)	15.5 mph (25 km/h)
	Typical Range*	28.0 milos (45 km)
	Max Slope	15%
	Traversable Terrain	asphalt/L/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14-104°F (-10-40°C)
	Storage Temperature	-4-122°F (-20-50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 7.5 h
Battery	Nominal Voltage	36 V=
	Max Charging Voltage	42 V=
	Charging Temperature 32-104° F	0-40°C)
	Nominal Energy	368 Wh
	Nominal Capacity	10.2 Ah
	Battery Management System	Over-heating, short circuit, near current, over-discharge and over-charge protection
	Number of Batteries	2
Motor	Nominal Power	300 W, 0.3 xW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100-240 V
	Output Voltage	42 V=
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Shock Absorber Front
	Riding Modes	Speed limit mode, Standard mode and Sport mode
	Ambient light Customizable colour	/		Customizable colour
Tire	Tires	Material: non-pneumatic tires, synthetic rubber, Size: 9 inches

[1]Typical Range testoc wile ricking under full power, 165 hts [75kg] had, 77F (25°C), 40% of max. speed on average on pavement
Some of the factors that affect range include speed number of starts and slips, ambient temperature, etc.

13 Certifications

For Model: E22, E25A, E45

This product is certified to ANSI/CAN/UL-2272 by CSA.

The battery complies 一 in UN/DT38.3

Federal Communications Commission (FCC) Compliance Statement for USA

This device complies with part 15 of the IEC rules. Operation is subject to the following two conditions: (2) This device may not cause harmful interference, and (3) this device must accept any interference received, including interference that may cause undesired operation.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FDC radiation exposure limits set forth for an uncontrolled environment.

Industry Canada (IC) Compliance Statement for Canada

This device contains with Industry Canada license-exempt RSs standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CANICES-3(B)/NMB-3(B)

Neither Sagway Inc. nor Ninebot is responsible for any changes or modifications that expressly approved by Sagway Inc. or Ninebot. Such modifications could void the user's authority to operate the equipment.

E2	FCC ID: 02ALS8-NT9529
	ID: 72634-NT3593

E2EA	CC ID: 2AL5B-450Q03
	IC: 26236-950003

EAS	FCC ID: 2A,5B,8K-3K0001
	IC: 22636-K3K0001

For Model E220, E22C,E25D E25E,C45D,C45E

This product is certified to ANSI/CAE/UL-2272 by CSA.

The battery complies with UN/DT 58.3

European Union Compliance Statement

Important WEEE Information

WEE Disposal and Recycling information Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU.

to prevent possible harm to the environment or human health from uncontrolled wastes disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Battery recycling Information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used ballons and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.

in accordance with the European Directive 2006/68/EC and amendment No.2013/96/EU. batteries are accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorbed municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances. Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection.

Restriction of Hazardous Substances (RoHS) Directive

This Nibelab (Changzhou) Tech Co., Ltd. product, with included parts (cables, cords, and so on) meets the requirements of Directive 2013/63/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2").

Radio Equipment Directive

The Company "Sewgy Europe BV" hereby declares that this device complies with the essential requirements and other relevant provisions of the IEL directive 2014/53/SU, the machine directive 2006/42/EC and the IRL's directive 2011/55/SU.

The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions

Segway Europe B.V.

EU Contact Address for regulatory topics only: Hogonilweg 8, 11010C Amsterdam, The Netherlands

Herby, Ninebor (Changzhou) Tech Co., Ltd. declares that the wireless equipment listed in this section are in compliance with the essential requirements and other relevant provisions of Directive 2027/53/EU.

Bluetooth	Frequency Band(s)	2.4500-2.4835GHz
	Max. RF Power	100mW

14 Trademark and Legal Statement

Ninot is the registered trademark of Nino. (Tanjin Tech Co., Ltd; Seegway and the Ricer Design are the registered trademarks of Seegway Inc., Android, Google Play. The trademarks of Google Inc., Apa Store is a service mark of Apa Inc., The registered owners reserve the rights of their trademarks referred to in this manual.

The KidScooter is covered by relevant patents. For patent information go to http://www.segway.com

We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and charges for design, your KickScooter may differ slightly from the one shown in this document. Visit the Apple App Store (OS) or the Google Play Store (Android) to download and install the App.

Please note that there are multiple Segway and Nibelot models with different functions, and some of the functions mentioned here may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the Kick Scooter product and documentation without prior notice.

© 2020 Minebot (Beijing) Tech Co. Ltd. All rights reserved

15 Contacts

Contact us if you experience issues relating to riding, maintenance and safety or errors/faults with your KickScooter

Americas:

Segway Inc.

14 Technology Drive, Bedford, NH 03110, USA

Tel：[phone]

Fax:[phone]

Tollfree:1-866-473-4929

E-mail Sales: [e-mail]

2- mail Service Technical [e-mail]

Website: www.segway.com

Europe, Middle East and Africa

Segway Europe B.V.

Iogebilweg 8-1101CG Amsterdam, The Netherlands

Website: www.segway.com

Have your KickScooter serial number or hand when contacting Segway

You can find your serial number on the underside of your Kick Scooter or Basic Information in the Sagway-Ninebot App.

Ninebot KickScooter

Manuel utiliseur

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the App to download the latest user materials. You must install the App, activate your KickScooler, and obtain the latest updates and safety instructions.

www.segway.com

ninebot

Series E22: E22/E220/E22E

Series E25:E25A/E25D/E25E

Series E45:E45/E45D/E45E

AVENTISSEMENT

Akkur Instaraththng for Denutger

Batteriescanning information for the European Union

Drugizestawakumulatorow

Wyposazonic

DWAG, 2. azoxydipheno benzocinnestiva sininikine (10 mg/kg) and 2. 5% acetic anhydride (2.5 mg/L) as agents.

Europe, Middle East and Africa;

Segway Europe B.V.

Hogehilweg 8,110100,Amsterdam,Polandia

Website: www.segway.com

(More Settings > Basic Information)
