Product Type	Electric Grill Plate
Brand	Gourmetmaxx
Model	07760
Article Number	07760
Power Supply	230 V ~ 50 Hz, 1250 W
Protection Class	I
Approximate Dimensions (W x D x H)	40 x 30 x 10 cm
Approximate Weight	3 kg
Plate Material	Steel with non-stick coating
Temperature Setting	5 levels: 100 °C, 120 °C, 170 °C, 185 °C, 200 °C
Heating Indicator	Indicator light (flashes during heating, turns off when temperature is reached)
Grease Collector	Yes, removable
Non-stick Coating	Yes
Usage	Cooking and grilling food, household use
Included Accessories	Grill plate, support, grease collector, thermostat, user manual
Care and Cleaning	Clean by hand with a damp cloth and mild detergent; do not immerse; do not use in dishwasher
Important Safety Instructions	Hot surfaces; do not touch during use; keep out of reach of children; do not use near flammable materials
Spare Parts and Repairability	Contact customer service for spare parts; do not repair yourself
Customer Service (phone)	[phone] (charges may vary by provider)
Warranty	Statutory warranty; damages due to improper use excluded
Disposal	Do not dispose with household waste; recycle via WEEE

Frequently Asked Questions - 07760 Gourmetmaxx

How to use the Gourmetmaxx 07760 grill plate for the first time?

Before first use, remove all packaging. Clean the plate with a damp cloth and mild detergent. Heat the appliance empty for a few minutes to remove manufacturing residues. A slight smoke or odor is normal.

What utensils to use on the non-stick plate?

Use heat-resistant wooden or plastic utensils. Avoid metal or sharp objects that could damage the non-stick coating.

Why does the indicator light flash during use?

The indicator light flashes while the appliance is heating. It turns off when the set temperature is reached. This indicates the plate is ready for use.

What to do if the appliance does not turn on?

Check that the thermostat is properly inserted into the connector, that the power plug is correctly plugged in, and that the socket works. Check the circuit fuse. If the problem persists, contact customer service.

How to clean the grill plate after use?

Unplug and let cool completely. Disassemble the appliance, empty the grease collector. Clean the plate with a damp cloth and mild detergent. Never immerse the plate or thermostat in water. Do not use abrasive cleaners or rough sponges.

Can I use the grill plate without the grease collector?

No, the grease collector is essential to collect cooking fats. Never use the appliance without this collector, as this poses a fire hazard or risk of property damage.

Which temperature to choose for grilling meat?

For quick cooking and nice browning, set the thermostat to level 4 (185 °C) or level 5 (200 °C). For more delicate foods, use a lower temperature (level 2 or 3).

How to prevent food from sticking to the plate?

Although the plate is non-stick, it is recommended to lightly grease it before first use. Do not use cooking spray which can damage the coating. Use a brush with a little oil.

The appliance emits an unpleasant odor during first use, is this normal?

Yes, this is normal. Manufacturing residues may produce a slight odor or smoke during the first heating. This disappears after several uses.

Where to store the grill plate after use?

Store the appliance in a dry, clean place, away from frost and direct sunlight. Ensure it is out of reach of children and pets. Do not wrap the cable around the appliance.

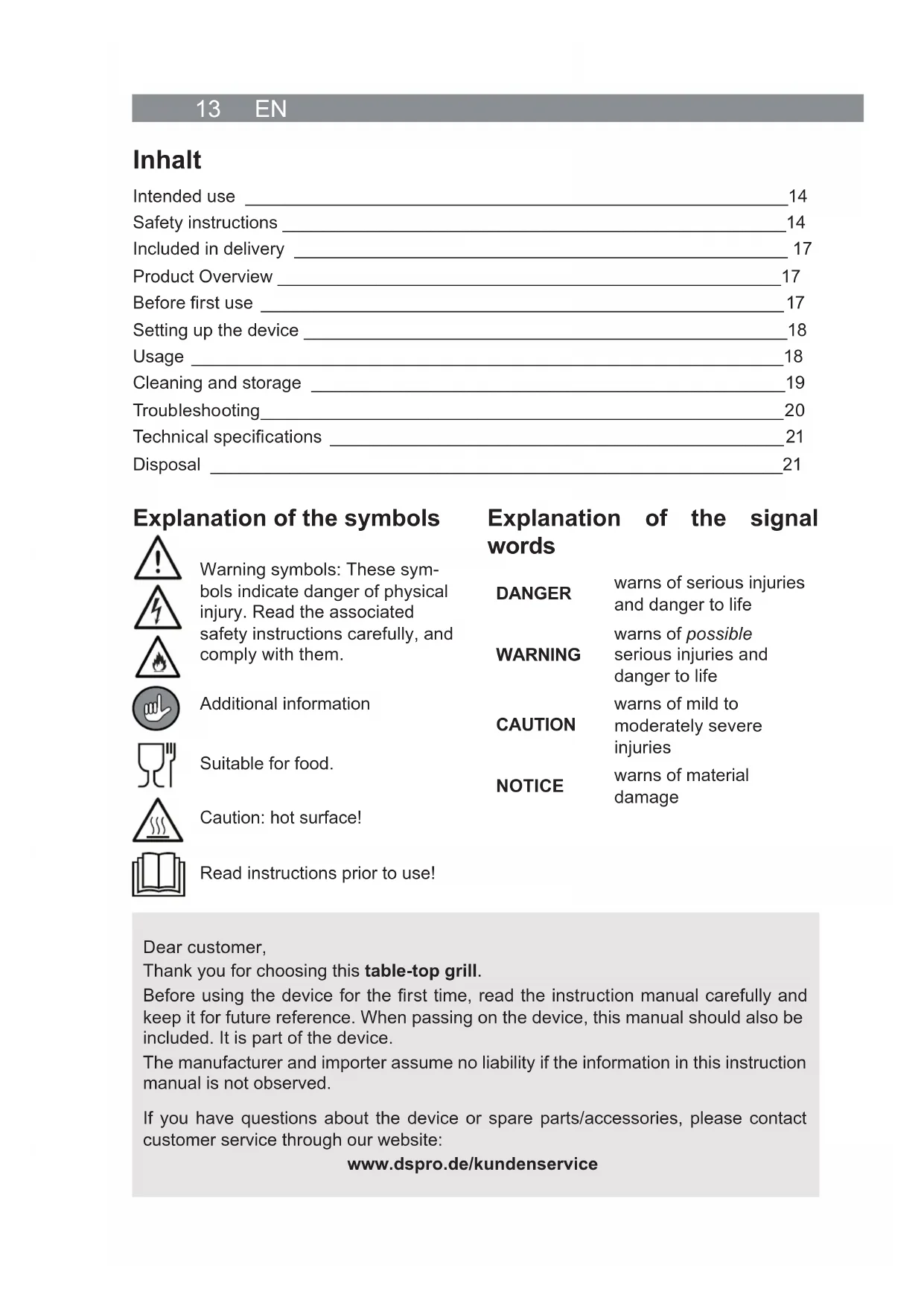

USER MANUAL 07760 Gourmetmaxx

Intended use 14
Safety instructions 14
Included in delivery 17
Product Overview 17
Before first use 17
Setting up the device 18
Usage 18
Cleaning and storage 19
Troubleshooting 20
Technical specifications 21
Disposal 21

Explanation of the symbols

Warning symbols: These symbols indicate danger of physical injury. Read the associated safety instructions carefully, and comply with them.

Additional information

Suitable for food.

Caution: hot surface!

Read instructions prior to use!

Explanation of the signal words

DANGER

warnings of serious injuries and danger to life

WARNING

wars of possible serious injuries and danger to life

CAUTION

wars of mild to moderately severe injuries

NOTICE

wars of material damage

Dear customer,

Thank you for choosing this table-top grill.

Before using the device for the first time, read the instruction manual carefully and keep it for future reference. When passing on the device, this manual should also be included. It is part of the device.

The manufacturer and importer assume no liability if the information in this instruction manual is not observed.

If you have questions about the device or spare parts/accessories, please contact customer service through our website:

• The device is designed for frying and grilling food.
• The device is intended for private use at home and is not suited for commercial use.
• Use the device only for the specified purpose and only as described in the instruction manual. Any other use is regarded as unintended.
• The guarantee does not cover any defects caused by improper use, damage, or attempted repairs. This also applies to normal wear and tear.

Safety instructions

This device may be used by children from 8 years of age, or by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, if they have been supervised or instructed regarding the safe use of the device and have understood the dangers arising from it.
Children are not allowed to play with the device.
- Cleaning and user maintenance must not be carried out by children unless they are over 8 years old and supervised.
Children younger than 8 years old and animals must be kept away from the device and the connection.

CAUTION: Hot surface! The device becomes very hot during use. Make absolutely sure that no heated parts are touched during and after use. Only touch the handles and controls while the device is in operation or immediately after it is turned off. Only transport or store the device after it has completely cooled down. Use suitable kitchen gloves.

• Never immerse the grill plate, thermostat and connection in water or other liquids and ensure that they cannot fall into water or get wet.
• The device is not intended to be operated with an external timer or a separate telecontrol system.
• The device must always be disconnected from the mains if supervision is not available and before assembly, disassembly or cleaning.
  In the interests of your own safety, check the device and the connection for damage before each use. Only use the device if it is functional.

If the device or the connection are damaged, they must be replaced by the manufacturer, customer service or a similarly qualified body (e.g. specialist workshop) in order to avoid hazards.
- Make absolutely sure to observe the cleaning instructions in the chapter "Cleaning and storage"!

DANGER - shock hazard

Only store the device in enclosed rooms.
Do not use the device in rooms with high humidity.

• Should the device fall into the water, immediately disconnect the power supply. Do not try to pull the device out of the water while it is connected to the mains! Have it checked by a specialist workshop before restarting.
• Never touch the device, thermostat and connection with wet hands when these components are connected to the mains.
  The thermostat socket and the connection have to be completely dry before using the device.

WARNING - Risk of injury

• Keep children and animals away from plastic bags and foils. There is a danger of suffocation.
  Make sure that the power cord is always out of reach of small children and animals. There is a danger of strangulation.
  During operation, hot steam may escape from the device. Therefore keep the head and hands away from the danger zone. There is a risk of scalding from heat and hot steam.
  The grill plate of the device becomes very hot. Be careful when placing and removing food! If necessary, use kitchen tongs made of plastic or wood. There is a danger of burns.
  The device must not be moved during operation. There is a danger of burns.
  Make sure that the connected power cord is not a tripping hazard. The power cord must not hang down from the installation surface, in order to prevent the device from tearing down.

WARNING - fire hazard

• Do not use the device in rooms containing easily flammable dust or toxic and explosive vapours.
• Do not connect the device to a multiple outlet with other consumers (high wattage) to avoid overloading and possible short circuit (fire).
  Do not use the device in conjunction with extension cords.
• Do not operate the device near flammable material. Do not place flammable or easily melting materials (e.g. cardboard, paper, wood, plastic) in or on the device.
• Do not cover the device during operation, to avoid the device catching fire. Ensure adequate ventilation while the device is in operation.

Do not place foodstuffs wrapped in cling film, plastic bags or paper on the grill plate.
Do not use the device as a heater.
In case of fire:
- Be sure to unplug the power immediately.
- Hot grease/oil can ignite when overheated. Do not extinguish burning grease/oil with water; instead, extinguish the flames with a fire blanket or similar or extinguish a grease fire with a fire extinguisher that is suitable for extinguishing cooking oil fires!
- DO NOT use water to extinguish, as the steam additionally creates a risk of scalding.
- Dispose of the device.

NOTICE - Risk of material and property damage

The device should only be connected to a properly installed socket with protective contacts that complies with the "technical data" of the device. The socket must also be easily accessible after connection, so that the network connection can be quickly disconnected.
Make sure that the power cord is not crushed, kinked or placed over sharp edges and does not come into contact with hot surfaces (this also applies to the hot surfaces of the device!).
- Turn the device off and unplug the power cord if an error occurs during operation, power failure or thunderstorm.
Use only heat-resistant utensils for placing and removing food. Keep metal objects or other sharp-edged objects away from the device. These could damage the non-stick coating of the grill plate. We recommend using kitchen utensils made of wood or plastic.
- Never splash cold water on the grill plate during or immediately after use. This could damage the non-stick coating!
- Never pull or carry the device by the connection. When pulling out of the socket always pull on the power plug and never on the power cord!
- Protect the device from other sources of heat, open flames, sub-freezing temperatures, prolonged humidity, moisture and impacts.
- Only use original accessories from the manufacturer so as not to impair the functioning of the device and to prevent possible damage.
- Only use the thermostat supplied with the device. Do not use the thermostat with other devices.
Do not wind the power cord around the thermostat.
Never place heavy objects on the device.

Included in delivery

Check the scope of delivery for completeness and transport damage. If the device or the power cord is damaged, do not use the device (!) and contact customer service.

• Grill plate with mains connection
  Grease drip tray
  Frame
• Connection with thermostat
  Instruction manual

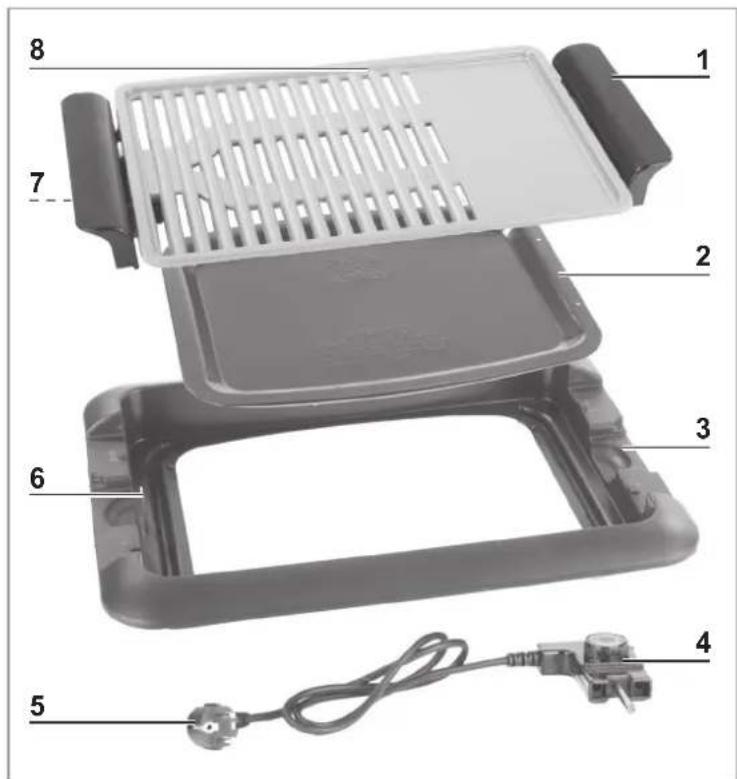

Product Overview

Thermostat

1 Handle of the grill plate
2 Drip tray
3 Frame
4 Thermostat
5 Connection
6 Thermostat bracket
7 Thermostat socket
8 Grill plate
9 Indicator light
10 Thermostatic control

Before first use

1. Remove all packaging material and any protective film used to secure it during transport. Never remove the type plate or any warnings.

2. The device may have production residues stuck to it. To avoid health problems, clean the device before first use:

3. Wipe the device with a clean, damp cloth.

4. Wipe the grill plate with a soft, damp cloth/sponge and, if necessary, a small amount of detergent. Dry thoroughly.

5. Before using for the first time, we recommend heating the device once for a few minutes to remove any production residues from the grill plate. Follow the instructions in the chapters "Setting up the device" and "Using".

During initial startup, production-related additives (e.g. grease) can lead to slight smoke and/or odour development. This is normal and not a defect of the device.

1. Clean the device again (see the "Cleaning and storage" chapter).

Setting up the device

• Do not put the device under kitchen cabinets or similar. These may be damaged due to rising steam!
  The device may only be operated in a horizontal position, never on its side or standing upright.
  The surfaces of furniture may contain components that can damage and soften the feet of the device. If necessary, place a suitable base under the feet.

• Place the device with a free space to the sides (at least 20~cm ) and above (at least 30~cm ) on a flat, firm, heat-resistant surface that is not sensitive to grease splashes.

1. Insert the drip tray (2) into the frame (3).

1. Insert the grill plate (8) into the frame. Make sure that the underside of the thermostat socket (7) is placed on the thermostat holder (6). Check the tightness of the grill plate.

1. Insert the thermostat (4) into the thermostat socket.

To disassemble the device, carry out the same steps in reverse order.

Usage

Beware of burns! Do not place any metal objects on or in the device. These can get very hot.
- Never use the device without the drip tray. Ensure that it is correctly inserted (see "Assembly") before the device is put into operation.

Although the grill plate has a non-stick coating, we recommend gently greasing it before using it for the first time. Do not use cooking spray, as this can damage the non-stick coating!

Line the drip tray (2) with aluminium foil before use to make subsequent cleaning easier.

1. Prepare the food as desired. A few recipesuggestions can be found later on in this guide.

1. Turn the thermostat knob (10) to 0.
2. Connect the plug to an easily accessible socket.
3. Set the desired temperature level with the thermostat knob: Turn the temperature level number to the warning light (9). There are 5 temperature levels:

Level 1	2	3	4	5
Temp. approx.	100°C	120°C	170°C	185°C

1. Allow the device to heat up. During heating, the warning light comes on.
2. If the warning light has gone out, place the food to be grilled on the grill plate (8).
3. After a while, turn the food over. When it has been sufficiently cooked and has reached the desired colour, remove from the grill plate.
4. Switch off the device after use (set the thermostat knob to position 0) and remove the mains plug from the socket.

Cleaning and storage

The device and the grill plate are not dishwasher safe!
- Do not use corrosive or abrasive cleaners, cleansing sprays or rough sponges or knives for cleaning. These can damage the surface.

1. Make sure that the device is completely cooled and disconnected from the power supply!
2. Disassemble the cooled device (see "Assembly"). Empty the drip tray (2).
3. Clean the grill plate (8) with a damp cloth and mild detergent. Make sure that no water gets into the thermostat socket (7)!
4. If necessary, wipe the thermostat (4) with a soft, damp cloth.
5. Clean the drip tray and frame (3) with warm water and some detergent if necessary.
6. Dry all parts thoroughly before reassembling and storing.
7. Check the connecting cable regularly for damage. Never wrap it tightly around the device (risk of cable breakage).
8. Store the device in a dry, clean, frost-free place away from direct sunlight and keep out of reach of children and animals.

Troubleshooting

If the device does not work properly, check if you can fix the problem yourself first. If these steps do not solve the problem, contact our customer service team.

Do not try to repair an electrical device yourself!

Problem Possible cause Remedying
The device is not working. The warning light (9) does not light up.	The thermostat (4) is not properly connected to the thermostat socket (7).	Correct the fi t.
	The power plug is not properly plugged into the socket.	Plug in the power plug.
	The socket is defective. Try another outlet.
	There is no mains voltage.	Check the fuse of the mains connection.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
The food is too dark.	The preparation time is too long.	Shorten the preparation time.
	The temperature is set too high.	Decrease the temperature.
The food is not fully roasted/baked.	The preparation time is too short.	Extend the preparation time.
	The temperature is set too low.	Increase the temperature.
During use, an unpleasant odour can be detected.	On first use.	An odour can often occur when using new devices for the fi rst time. The smell should disappear after the device has been used several times.
	The device is dirty.	Follow the instructions in "Cleaning and Storage".

Technical specifications

Productnumber: 07760

ID instructions: Z 07760 M DS V1.2 1218

Device

Model: JA802D15

Power supply: 230V 50Hz

Power: 1250 W

Connection

Model number: PST220

Power supply: 230V 50Hz,10A

Protection class: I

Disposal

Dispose of packaging materials in an environmentally sound way and take recyclables to collection facilities.

This device is subject to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). Do not dispose of this device as normal household waste, but through an officially approved disposal business according to environmental regulations.

Customer/importer:

DS Products Ltd, on Heisterbusch 1, D-19258 Gallin, Germany

Tel.: [phone]

(0 - 30 ct./min. from a German landline. Costs vary according to the provider.)

All rights reserved.
