Product Type	Wireless audio headset for Xbox
Brand	LucidSound
Model	LS35X
RF Frequency	2.40-2.48 GHz, 5.15-5.85 GHz
Output Power	+8 dBm ± 1.5 dB
Approximate Weight	350 g
Battery Life	Approximately 20 hours
Charging Time	Approximately 2-3 hours
Battery Type	Integrated rechargeable lithium-ion
Wireless Connectivity	Dongle USB (Xbox One, Windows 10)
Wired Connectivity	3.5mm audio cable
Microphone	Detachable external microphone
Compatibility	Xbox One, Windows 10
Integrated Controls	Volume, mute, mixing wheel
Warranty Period (Europe)	2 years
Warranty Period (Canada/USA)	1 year
Included Accessories	USB charging cable, 3.5mm mobile cable, external microphone
Certifications	CE, IC, RoHS
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Disposal	Complies with WEEE. Recycle batteries according to local regulations.
Repairability	Spare parts available via after-sales service (lucidsound.com)

Frequently Asked Questions - LS35X LucidSound

How to pair the LS35X headset with my Xbox One?

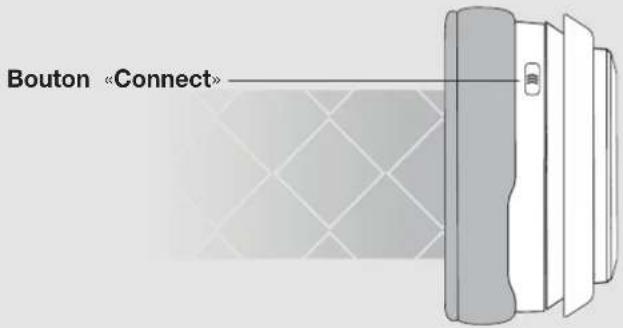

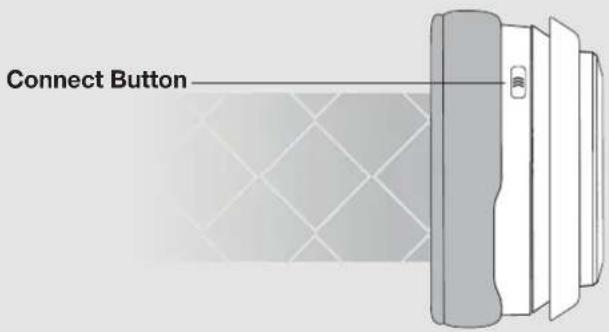

Make sure the USB dongle is plugged into the console. Turn on the headset by holding down the power button. The flashing LED indicates it is searching for a connection. If pairing does not happen automatically, press the sync button on the dongle then on the headset.

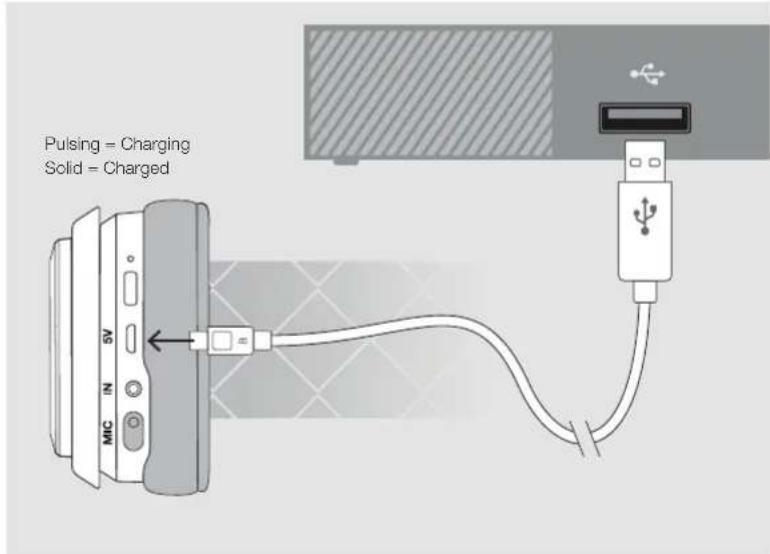

How to charge the LS35X headset?

Use the included USB charging cable. Connect it to the headset and a USB port (console or power adapter). The LED pulses during charging and becomes solid when charging is complete. Allow approximately 2 to 3 hours for a full charge.

What is the battery life of the LS35X headset?

The battery life is approximately 20 hours of continuous use. This may vary depending on volume and microphone usage.

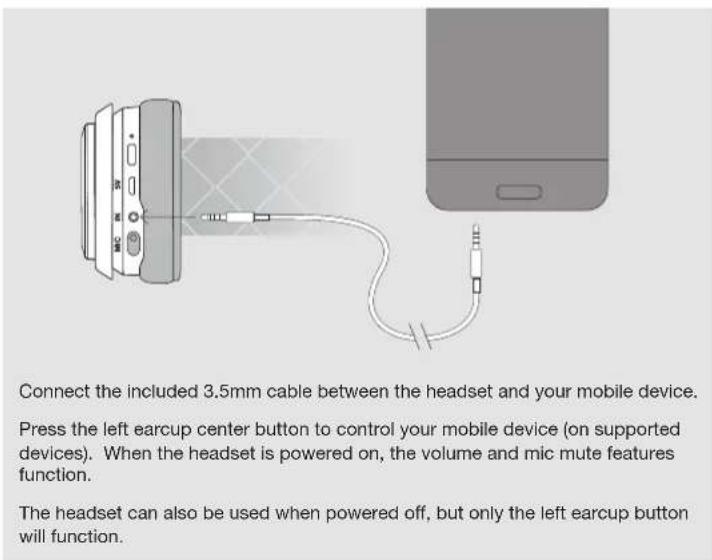

Can I use the LS35X headset in wired mode?

Yes, the headset is compatible with a 3.5mm audio cable (included). Plug it into the headset jack and your mobile device or controller. Wired mode does not require battery.

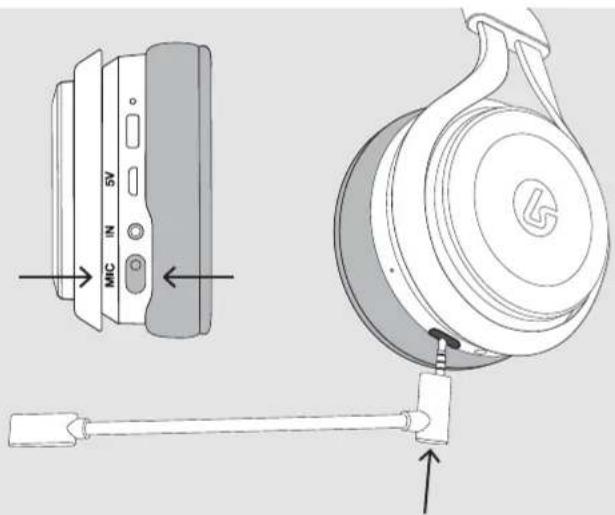

How to replace the microphone on the LS35X?

The microphone is detachable. Gently pull to remove it. To reattach, align the connectors and push until it clicks. A replacement microphone is available on the manufacturer's website.

What to do if the LS35X headset does not turn on?

First check that the battery is charged. Plug in the USB cable and wait a few minutes. Try a reset by holding the power button for 10 seconds. If nothing happens, contact after-sales service.

How to clean my LS35X headset?

Use a soft, dry cloth to wipe the surfaces. Never use chemical or abrasive products. For the ear cushions, remove them if possible and gently hand wash with mild soap.

What to do in case of wireless connection loss on the LS35X?

Make sure the USB dongle is properly plugged in. Move away from interference (routers, microwaves). Reset the connection by turning the headset off and on again, or by reconnecting the dongle.

How to update the firmware of the LS35X headset?

Firmware updates are available on the lucidsound.com website. Download the utility, connect the headset via USB and follow the on-screen instructions.

What is the wireless range of the LS35X headset?

The range can reach approximately 10 meters indoors, without major obstacles. Thick walls or other wireless devices may reduce this distance.

USER MANUAL LS35X LucidSound

https://bit.ly/2Oryut0 https://bit.ly/2XTB5F

EN For detailed setup instructions for PC go to:
FR Pour des instructions de configuration détaillées pour PC, allez à:
DE Für detailierte Setup-Anweisungen für PC gehen Sie zu:
IT Per istruzioni dettagliate sulla configurazione del PC, consultare://bit.ly/2VXTB5F
ES Para Obtener instrucciones de configuracion detalladas para PC, vaya a:

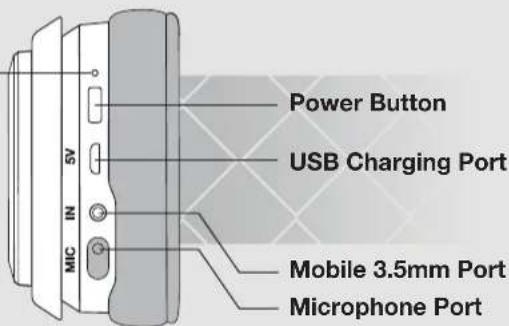

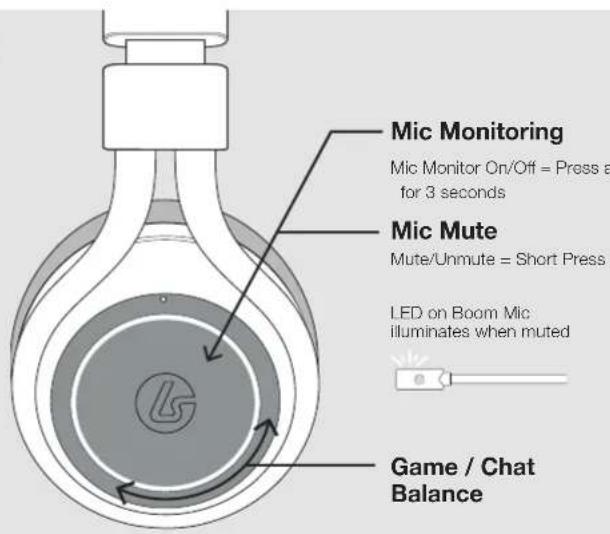

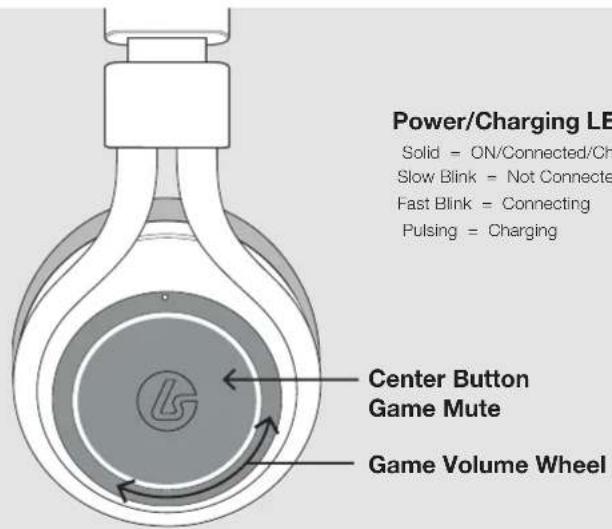

ENHEADSET

[L]

ENH

[R]

EN

ACCESSIONS

Boom Mic

Mic Port Cover

USB Charging Cable

Mobile 3.5mm Cable

MICROPHONE

ENC

EN

SUPPORT

?#！

Model No: LS35X IC:21203-LS35X LucidSound, Inc. Made in China

RF Frequency: 2.40-2.48 GHz, 5.15-5.85 GHz

Output Power: +8dBm±1.5dB

Manufacturer: LucidSound, Inc.

Importer: Information can be found at lucidsound.com

This device complies with Industry Canada licence-exempt RSS-247 standard. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0.5cm between the radiator and your body.

EU DECLARATION OF CONFORMITY

C

Hereby we guarantee that snakebyte distribution GmbH, located at 13 Konrad-Zuse-Str., Schwerte 58239, Germany, is marketing this device LS35X under the brand name LucidSound and complies with the legal requirements and the requirements of Directive 2014/53/EU. This notification is listed under: lucidsound.com/EUDOC.

WEEE (Waste Electrical and Electronic Equipment Directive)

If you eventually want to dispose of this product at a later time, please observe the following instructions: Electronic equipment should not be disposed of together with household waste. Please recycle the device if the appropriate recycling ways are available to you. Please contact your local authority or retailer and ask them for advice on recycling.

RoHS

This product has been certified as RoHS compliant in accordance with Directive 2011/65/CE.

Disposal of Batteries/Rechargeable Batteries

Please follow regional guidelines for the disposal of rechargeable batteries or contact local authorities, your household waste disposal service or the shop where you purchased the product. Batteries/rechargeable batteries must not be disposed of into the normal household garbage. Please use a rechargeable battery disposal in your neighborhood or community, if available.

Warranty

LucidSound, Inc. warrants this product to be free from defects in materials and workmanship for the warranty period. This non-transferable, 1-year limited warranty is only to you, the first end-user purchaser. If a defect covered by this warranty occurs AND you provide proof of purchase, LucidSound, Inc., at its option, will repair or replace the product at no charge (excluding shipping).

The LucidSound, Inc., 1-year limited warranty is available to customers worldwide. Your sole and exclusive remedy is repair or replacement of your LucidSound product. In no event shall LucidSound's liability exceed the original purchase price of the product. This warranty does not apply to: (a) normal wear and tear or abusive use; (b) industrial, professional or commercial use; (c) if the product has been tampered with or modified. This non-transferrable warranty is only valid in the region/country in which the headset was originally purchased.

SUPPORT

?

EN

To receive warranty service, please contact us at:

lucidsound.com

(toll free) 888-661-4469

1-760-579-6969

Europe

LucidSound, Inc. 2-year limited warranty is available to customers in Europe.

Australia

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a 1 year replacement warranty in which you are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

What you must do: If a defect has appeared within 90 days from the date of purchase, the product may be returned to the retailer for a replacement.

If a defect has appeared after 90 days from the date of purchase, you must initiate a repair by following the online repair process at www.lucidsound.com.au.

Once all details are completed, you will receive a return authorisation number. Then, label and ship your LucidSound headset - including the return authorisation (RA) number, freight prepaid, to LucidSound's authorised repair centre.

LucidSound

c/o Tecworks International Pty Ltd

Unit 1/12 Tollis Place

Seven Hills NSW 2141

Please ensure the return authorisation (RA) number is prominently displayed on the outside of your packaging. The cost incurred to return the product to the retailer or to the authorised repair centre as part of a Warranty claim are your responsibility.

What we will do:

During the Warranty Period, we will, at our option, repair or replace the product or any defective parts. We will also bear the reasonable costs of standard return shipping. If this cannot be done, then we will refund the purchase price to you.

AU wholesale distributor:

Bluemouth Interactive Pty Ltd, Level 2, 2 Darling Street, South Yarra, Victoria, 3141

Email: [e-mail]

©2018 Lucid Sound, Inc. 5939 Darwin Ct., Suite 100, Carlsbad, CA 92008 U.S.A.

Microsoft, Xbox, Xbox "Sphere" Design, Xbox One, and Windows are registered trademarks of the Microsoft group of companies. All other trademarks are the property of their respective owners.

The shape and design of this product are a trade dress of Lucid Sound, Inc., its subsidiaries and affiliates. All rights reserved. All other product names and images are trademarks or registered trademarks of their respective owners. Made in China. Product features, appearance and specifications may be subject to change without notice. Please retain this information for future reference.

SQUE

[G]

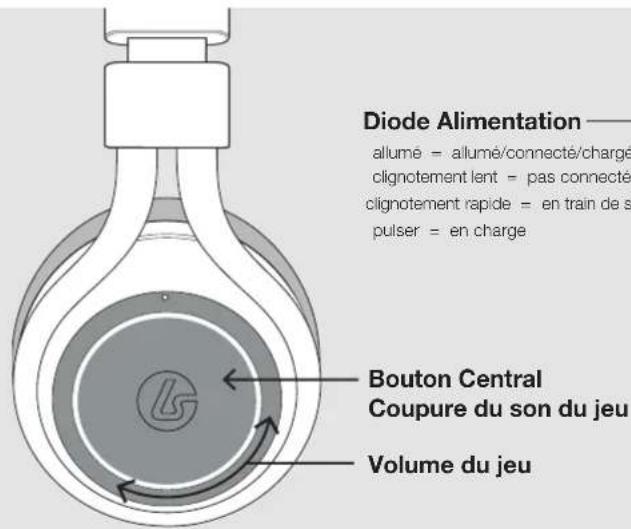

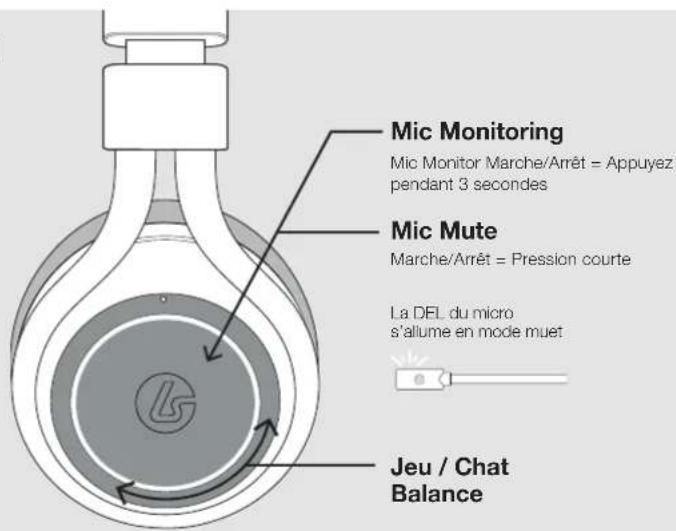

FRC

[D]

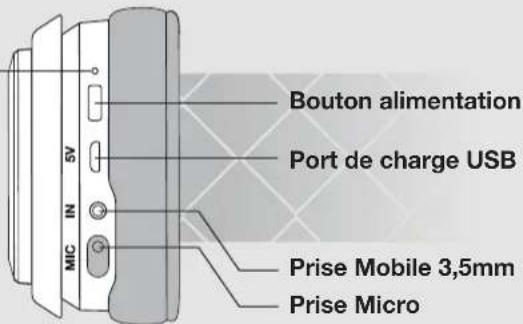

FR

ACCESSIONS

Micro externe

lucidsound.com/EUDOC

Garantie

lucidsound.com/EUDOC

EU DECLARATION OF CONFORMITY

C

lucidsound.com/EUDOC
