USER MANUAL Mixon 8 Pro Reloop

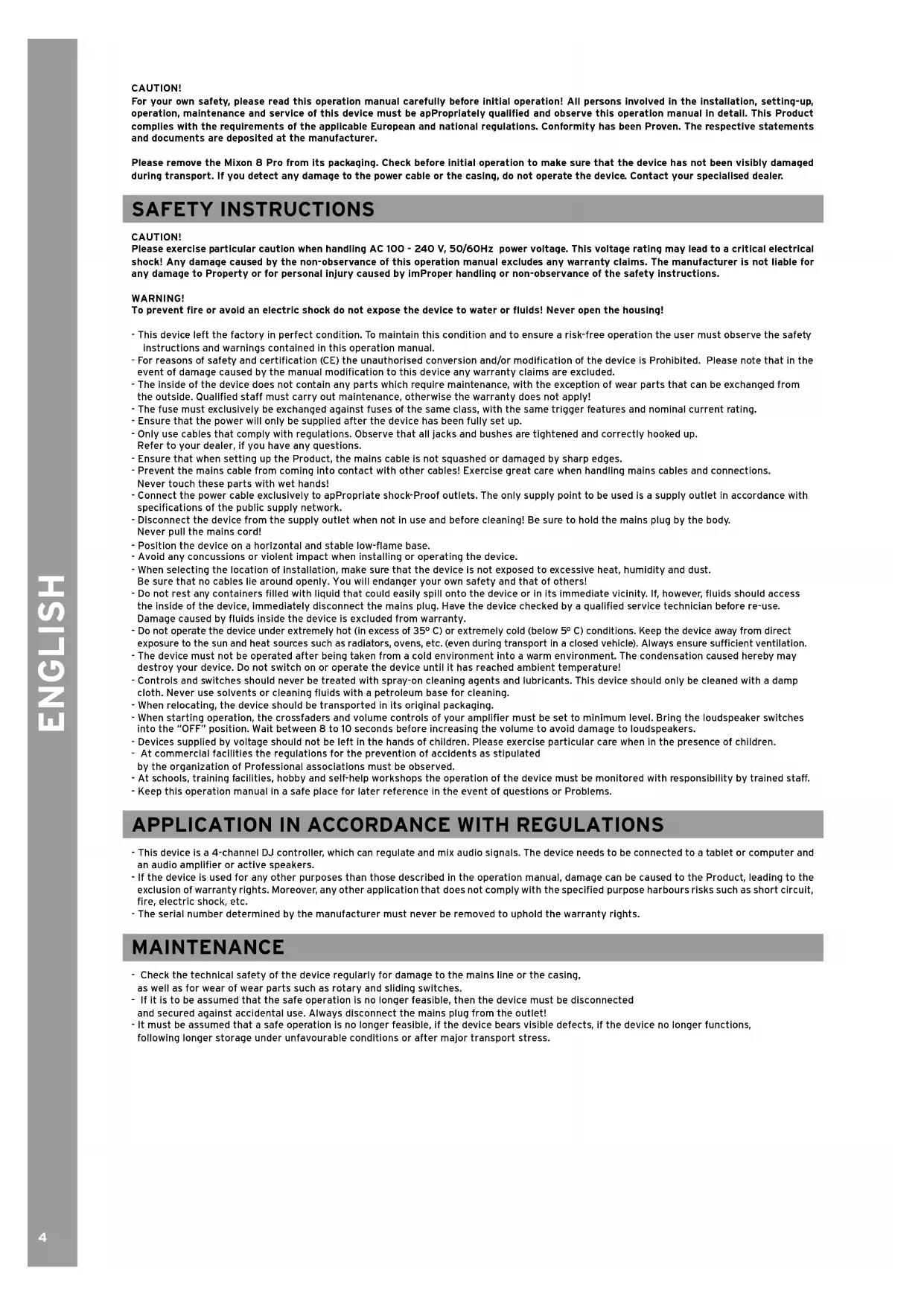

- This device is a 4-channel DJ controller, which can regulate and mix audio signals. The device needs to be connected to a tablet or computer and an audio amplier or active speakers. - If the device is used for any other purposes than those described in the operation manual, damage can be caused to the Product, leading to the exclusion of warranty rights. Moreover, any other application that does not comply with the specied purpose harbours risks such as short circuit, re, electric shock, etc. - The serial number determined by the manufacturer must never be removed to uphold the warranty rights. MAINTENANCE - Check the technical safety of the device regularly for damage to the mains line or the casing, as well as for wear of wear parts such as rotary and sliding switches. - If it is to be assumed that the safe operation is no longer feasible, then the device must be disconnected and secured against accidental use. Always disconnect the mains plug from the outlet! - It must be assumed that a safe operation is no longer feasible, if the device bears visible defects, if the device no longer functions, following longer storage under unfavourable conditions or after major transport stress.5 ENGLISH ENGLISH CONTROLS FRONT SIDE REAR PANEL SET UP AND CONNECT THE MIXON 8 PRO:

1. Connect the output devices (speakers, headphones, etc.) to the Mixon 8 Pro.

The audio output takes place via the master output (XLR and cinch) and booth output (6.3 mm jack). 2. Connect the input devices (microphones) to the Mixon 8 Pro. The output of the respective microphone input is controlled via channel 3 for microphone 1 and via channel 4 for microphone 2. The corresponding input signal must be selected on the channel before hand.

3. Make sure that the Mixon 8 Pro is switched off and the Master and Booth controls are set to „Min“.

4. Connect all units to the power source and switch on the units.

5. If you want to use the Mixon 8 Pro with Serato DJ Pro, see the installation instructions below for further steps.

If you choose to use djay Pro AI, please refer to the steps below.

Serato DJ Pro installation macOS - Go to serato.com click on Products and select the download for “Serato DJ Pro”. - If you are not already logged in to serato.com please create an account. - After you have logged in and clicked on Products ¬ Serato DJ Pro, you will see the latest Serato DJ Pro version and a download banner on the right-hand side. - Click to download the installation le. - Once the download is complete, you can start the installation. - Read the terms and conditions and click „Agree“ when you are nished. - Follow the different steps until the installation is complete. - Afterwards you will nd your Serato DJ Pro software in the Applications folder. NOTE! Depending on the operating software you are using, you may need to enable Serato access in your security settings. Serato DJ Pro installation Windows - Go to serato.com click on Products and select the download for “Serato DJ Pro”. - If you are not already logged in to serato.com please create an account. - You will see the latest Serato DJ Pro version and a download banner on the right hand side. - Click to download the installation le. - The Serato DJ Pro Windows Installer appears as an ‚archived‘ zip le, which can be opened with Windows Explorer. Alternatively, you can use your favourite archive manager, such as Winzip or 7zip. - Once the download is complete, you can start the installation. - If you are using the Windows Explorer, you can double-click on the downloaded le and you will see the Serato DJ Pro executable. - If you are using a third-party archive manager, such as Winzip or 7zip, you can right-click on the context-sensitive menu and select „Extract Here“, which will extract the Serato DJ Pro le and place it in the location you selected to save the original le. - Double-click the resulting Serato DJ Pro exe le from the archive after opening or extracting the archive to start the Serato DJ Pro setup. You will now see the license terms. Check the „I agree to the license terms and conditions“ box and then click „Install“. NOTE! When using Windows, it is necessary to install an ASIO driver! djay Pro AI iPad/iPhone Installation & Connection: You can download the djay Pro AI app from the App Store. - Download the djay Pro AI app from the App Store. - Set the USB source switch -62- to “iOS”. - Connect your existing Lightning or USB-C cable to the Reloop Mixon 8 Pro’s USB-“iOS” Port -61-, as well as to your “iOS” device. - Open the previously downloaded djay Pro AI app. Your Mixon 8 Pro will be recognized automatically and can now be operated. ENGLISH ENGLISH7 OPERATION Serato DJ Pro djay Pro AI MIXER SECTION: 1. Stereo/Mono-Switch Selects between stereo or mono output of the master out signal. Selects between stereo or mono output of the master out signal.

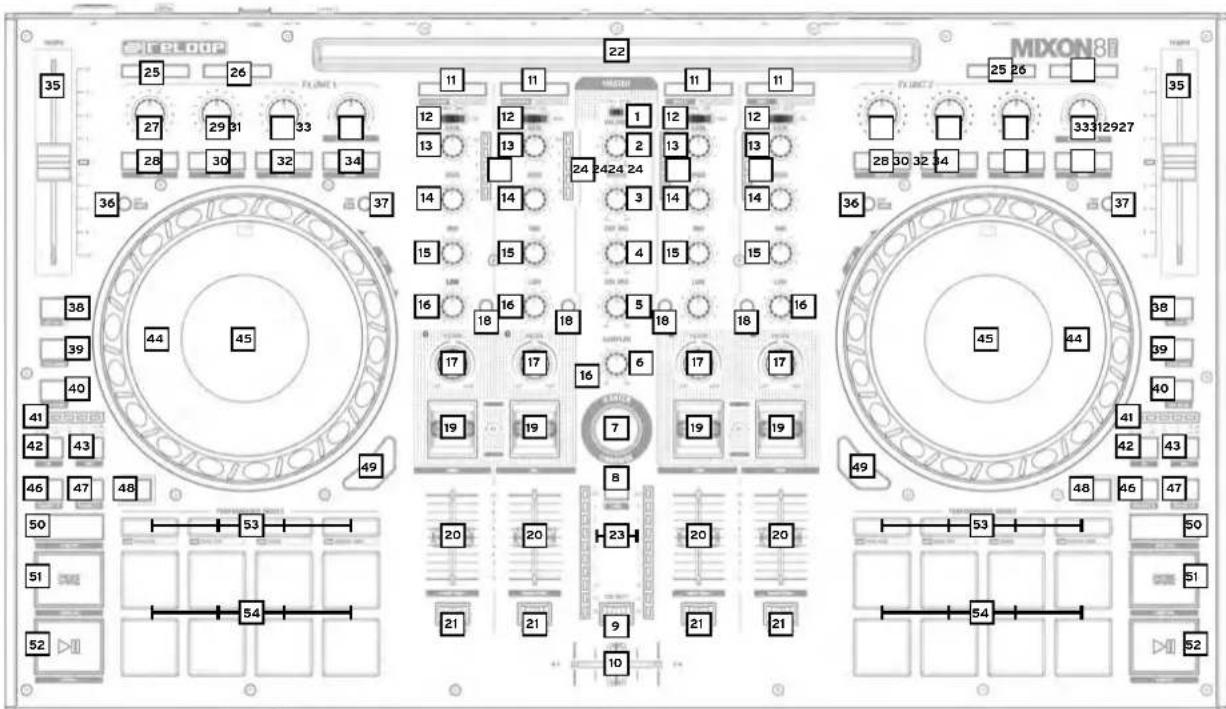

5. Cue Mix Mixes the Cue and Master signal for pre-listening Mixes the Cue and Master signal for pre-listening

The Browse Encoder navigates through your libraries. Press the browse encoder to conrm your selection. - SHIFT+Turn Browse Encoder: Fast browsing (quick search). - SHIFT+Press Browse Encoder: Toggles between waveform and library view. The Browse Encoder navigates through your libraries. Press the browse encoder to conrm your selection. - SHIFT+Turn Browse Encoder: Fast browsing (quick search). - SHIFT+Press Browse Encoder: N/A

With the Back button you can jump back one menu item at a time in your Navigation. - SHIFT+Back: Switches through the available views. With the Back button you can jump back one menu item at a time in your Navigation. - SHIFT+Back: Enlarges the playlist view.

Separates the headphone signal, on both sides, into master and selected pre-listening signal. Separates the headphone signal, on both sides, into master and selected pre-listening signal.

Crossfades between the selected left and right channel. Via. Note! You can use the crossfader assignment switch (21.), assign the desired Channel to a side or switch it off completely. switch off completely. - A: Left crossfader side - Centre position: Assignment deactivated - B: Right crossfader side Crossfades between the selected left and right channel. Via. Note! You can use the crossfader assignment switch (21.), assign the desired Channel to a side or switch it off completely. switch off completely. - A: Left crossfader side - Centre position: Assignment deactivated - B: Right crossfader side

11. Load Channel (1-4)

Loads the selected track from the library onto the deck. Double-click to assign the playing track to both decks (instant doubles). - SHIFT+Load Channel 3: Loads the selected track into the the Prepare folder - SHIFT+Load Channel 1: Opens the Prepare folder. - SHIFT+Load Channel 2: Switches between the available available SDJ windows (FX, SP-6, Rec etc.) - SHIFT+Load Channel 4: Switches through the user interfaces interfaces (les, browser, etc.) Loads the selected track from the library to the deck. - SHIFT+Load Channel 3: Loads the selected track to the deck the Queue List***** - SHIFT+Load Channel 1: Opens/closes the queue list***** - SHIFT+Load Channel 2: Switches between the different deck views - SHIFT+Load Channel 4: Switches between the different library sources ( iTunes/supported streaming services/ video/history/nder)***

12. Signal-In-Switch

Selects between the input signals of the respective channel. - Channel 3: Mic 1/USB A/USB B/Line - Channel 1: USB A/Pono Line/USB B - Channel 2: USB A/Phono Line/USB B - Channel 4: Mic 2/USB A/USB B/Line Selects between the input signals of the respective channel. - Channel 3: Mic 1/USB A/USB B/Line - Channel 1: USB A/Pono Line/USB B - Channel 2: USB A/Phono Line/USB B - Channel 4: Mic 2/USB A/USB B/Line

13. Gain Controls the channel volume Controls the channel volume

14. EQ High Controls the channel high Controls the channel high

15. EQ Mid Controls the channel mids Controls the channel mids

16. EQ Low Controls the channel bass Controls the channel bass

Turn to the left for a low pass lter, turn to the right for a high pass lter. (LED lights up when the channel lter is activated). Turn to the left for a low pass lter, turn to the right for a high pass lter. (LED lights up when the channel lter is activated).

Routes the selected channel to the cue channel. (pre-listening channel). - Hold SHIFT + press PFL Cue in time to the music, to determine the BPM value. Routes the selected channel to the cue channel. (pre-listening channel). - Hold SHIFT + press the button in time to the music, to determine the BPM value.

Activates the effects you have selected in the respective FX Unit. (FX Unit 1 for Deck 3/1 and FX Unit 2 for Deck 2/4). - Centre position: Effect is switched off. - ON (engage effect toggle switch to the front): Effect is permanently activated. - HOLD (pull back effect toggle switch): Effect is activated activated temporarily. Note! You can choose from the effects included in the software. Activates the effects you have selected in the respective FX Unit. (FX Unit 1 for Deck 3/1 and FX Unit 2 for Deck 2/4). - Centre position: Effect is switched off. - ON (engage effect toggle switch to the front): Effect is permanently activated. - HOLD (pull back effect toggle switch): Effect is activated activated temporarily. Note! You can choose from the effects included in the software.

Switch Using the crossfader assignment switch, you can assign the desired channel to a croosfader side or switch it off completely. - A: Left crossfader side - Centre position: Assignment deactivated - B: Right crossfader side Using the crossfader assignment switch, you can assign the desired channel to a croosfader side or switch it off completely. - A: Left crossfader side - Centre position: Assignment deactivated - B: Right crossfader side 22. Docking Station You can place your iOS device in the docking station. You can place your iOS device in the docking station.

23. Master Volume LED Bar Indicates the master volume by means of LED. Indicates the master volume by means of LED.

24. Channel Volume LED Bar Indicates the channel volume by means of LED. Indicates the channel volume by means of LED.

Arms the microphone on the respective channel (1/4). Note! In order to activate the microphone channel, you must set the signal-in switch (12.) of the desired channel to Mic. - Channel 1: Mic 1 - Channel 4: Mic 2 Arms the microphone on the respective channel (1/4). Note! In order to activate the microphone channel, you must set the signal-in switch (12.) of the desired channel to Mic. - Channel 1: Mic 1 - Channel 4: Mic 2 26. Mic 1/2 Talkover Enables/disables the talkover function for the selected microphone (1/2). Enables/disables the talkover function for the selected microphone (1/2).

27. FX 1-Encoder (FX Unit 1/2)

- Single FX Mode: Controls FX parameter (FX depth) - SHIFT Single FX Mode: Selects effect for FX unit - Multi FX Mode: Controls FX depth of FX / slot 1 - SHIFT Multi FX Mode: Selects effect for FX unit / slot 1 - Single FX Mode: N/A - Multi FX Mode: Controls Dry/Wet value of FX Slot 1

- Single FX Mode: De-/activates the effect - Multi FX Mode: De-/activates effect 1 - SHIFT+FX 1 Arm: Toggles through the effect slot menus for FX Slot 1. Enables/disables effect 1. - SHIFT+FX 1 Arm: Switches through the effect slot menus for FX Slot 1.

29. FX 2-Encoder (FX Unit 1/2)

- Single FX Mode: Controls FX parameters - SHIFT Single FX Mode: N/A - Multi FX Mode: Controls FX depth of FX / slot 2 - SHIFT Multi FX Mode: Selects effect for FX unit / slot 2 - Single FX Mode: N/A - Multi FX Mode: Controls Dry/Wet value of FX Slot 2

- Single FX Mode: Controls FX parameters - SHIFT Single FX Mode: N/A - Multi FX Mode: Controls FX depth of FX / slot 3 - SHIFT Multi FX Mode: Selects effect for FX unit / slot 3 - Single FX Mode: N/A - Multi FX Mode: Controls Dry/Wet value of FX Slot 3.

- Single FX Mode: Enables/disables various parameters. - Multi FX Mode: Enables/disables effect 2. - SHIFT+FX 3 Arm: Toggles through the effect slot menus for FX Slot 3. Enables/disables effect 3. - SHIFT+FX 3 Arm: Switches through the effect slot menus for FX Slot 3.

34. Tap (FX Unit 1/2)

Manual setting of the FX tempo by pressing for FX unit. Press and hold to reset the value. - SHIFT+Tab: Toggles between Single or Multi FX modes control or display. Activates FX Slot 1-3 as long as the key is pressed. When the button is released, FX Slot 1-3 is deactivated. - SHIFT+Tap: Toggles between FX and Neural Mix™ mode. PLAYER SECTION:

Adjusts the tempo of the track. - SHIFT + pitch fader: You can change the position of the pitch fader while maintaining the tempo of the track. Adjusts the tempo of the track. - SHIFT + pitch fader: You can change the position of the pitch fader while maintaining the Tempo of the track.

Enables/disables slip mode. If the slip mode is active, the track starts at the exact point, at which it would be if you had not performed any actions. - SHIFT+Slip: Enables/disables the vinyl mode of the jog wheel. Note! When Vinyl is activated, the jog wheel stops the playhead. (or scratches it). Pitch bending is also possible by by moving the edge of the jog wheel. If vinyl is deactivated, the jog wheel will only perform only the pitch bend Function. Enables/disables slip mode. If the slip mode is active, the track starts at the exact point, at which it would be if you had not performed any actions. - SHIFT+Slip: Enables/disables the vinyl mode of the jog wheel. Note! When Vinyl is activated, the jog wheel stops the playhead. (or scratches it). Pitch bending is also possible by by moving the edge of the jog wheel. If vinyl is deactivated, the jog wheel will only per- form only the pitch bend Function.

Toggles between elapsed & remaining time. (elapsed/remaining) - SHIFT+Time: Switches the playing direction of the respective deck to reverse. Toggles between elapsed & remaining time. (elapsed/remaining) - SHIFT+Time: Switches the playing direction of the respective deck to reverse.

Deactivates/activates Key Lock. If the button is held longer, the tempo will reset. - SHIT+Key Lock: Enables/disables Key Sync*. Deactivates/activates Key Lock. If the key is held longer, the tempo is reset. - SHIT+Key Lock: Enables/disables Key Sync

Mutes/unmutes the respective deck while the song continues to play in the back- ground. The deck is reactivated at the selected cue point via the Hot Cue buttons. - SHIFT+Censor: Changes the pitch range. (+/-8, +/-16 and +/-50) Mutes/unmutes the respective deck while the song continues to play in the back- ground. The deck is reactivated at the selected cue point via the Hot Cue buttons. - SHIFT+Censor: Changes the pitch range. (+/-8, +/-10, +/-25, +/-50 and +/-75)

Enables/disables the selected auto-loop length. The loop length can be read via the loop LED bar. - SHIFT+Auto Loop: De-/activates the selected saved loop. Enables/disables the selected auto-loop length. The loop length can be read via the loop LED bar. - SHIFT+Auto Loop: De-/activates the selected saved loop. ENGLISH9 Serato DJ Pro djay Pro AI

Displays the currently selected loop length: - 1/32 LED 1 ashes - 1/16 LED 2 ashes - 1/8 LED 3 ashes - 1/4 LED 4 ashes - 1/1 LED 1 lights up constantly - 2/1 LED 2 lights up constantly - 4/1 LED 3 lights up constantly - 8/1 LED 4 lights up constantly - 16/1 LED 5 lights up constantly - 32/1 LED 1-5 lights up constantly Displays the currently selected loop length: - 1/32 LED 1 ashes - 1/16 LED 2 ashes - 1/8 LED 3 ashes - 1/4 LED 4 ashes - 1/1 LED 1 lights up constantly - 2/1 LED 2 lights up constantly - 4/1 LED 3 lights up constantly - 8/1 LED 4 lights up constantly - 16/1 LED 5 lights up constantly - 32/1 LED 1-5 lights up constantly

42. 1/2x Loop Halves the length of the current loop. Halves the length of the current loop.

43. 2x Loop Doubles the length of the current loop. Doubles the length of the current loop.

The jog wheel stops the playhead or scratches it (Vinyl Mode On -> SHIFT+SLIP). Pitch bending is also possible by moving the edge of the jog wheel. Note! If the vinyl mode is deactivated, turning the jog wheel, will only perform the pitch bend function. - SHIFT+Turn Jog Wheel: Performs a needle search (fast forward) in the track. The jog wheel stops the playhead or scratches it (Vinyl Mode On -> SHIFT+SLIP). Pitch bending is also possible by moving the edge of the jog wheel. Note! If the vinyl mode is deactivated, turning the jog wheel, will only perform the pitch bend function. - SHIFT+Turn Jog Wheel: Performs a needle search (fast forward) in the track.

45. Jogwheel Display

The jog wheel display shows information about the track currently loaded in the deck. ( USB A/B, Deck 1/3 2/4, Time, BPM, Pitch, Pitchrange, continuous LED display for the position in the track and rotating track marker). The jog wheel display shows information about the track currently loaded in the deck. ( USB A/B, Deck 1/3 2/4, Time, BPM, Pitch, Pitchrange, continuous LED display for the position in the track and rotating track marker)

Toggles between the decks on the respective player. - Left player: Deck 1/3 - Right player: Deck 2/4 Toggles between the decks on the respective player. - Left player: Deck 1/3 - Right player: Deck 2/4

- During playback: The track returns to the temporary cue point and stops. - In pause mode: Sets a new temporary cue point at the current position. If the Cue button is pressed again, the temporary cue is played as long as Cue is held. - SHIFT+CUE: The playhead returns to the beginning of the track or loads the previous track, if the button is pressed for more than one second during playback. - During playback: The track returns to the temporary cue point and stops. - In pause mode: Sets a new temporary cue point at the current position. If the Cue button is pressed again, the temporary cue is played as long as Cue is held. - SHIFT+CUE: The playhead returns to the beginning of the track or loads the previous Track if the button is pressed for more than one second during playback.

Activates playback/pause - SHIFT+CUE: Triggers the temporary cue and the playhead will continue from that point. Activates playback/pause - SHIFT+CUE: Triggers the temporary cue and the playhead will continue from that point. ENGLISH10 Serato DJ Pro djay Pro AI PERFORMANCE SECTION:

53. Performance Pad Modes

(1-4) Activates the pad mode (1-4) marked on the pads. Note! Pressing again activates the second level pad modes (5-8). Activates the pad mode (1-4) marked on the pads. Note! Pressing again activates the second level pad modes (5-8). 1: Hot Cue: Triggers the 8 available cue points per deck. The hot cue colours can be customised in the software and the pads are and the pads will light up in the corresponding colours. Note! Parameter knobs perform flip functions****: Play, Record, Loop, On/Off - SHIFT+PAD: Deletes the current cue point. 1: Hot Cue: Triggers the 8 available cue points per deck. The hot cue colours can be customised in the software and the pads are and the pads will light up in the corresponding colours - SHIFT+PAD: Deletes the current cue point.

Pads 1-4 (de)activate a Loop Roll when the pad is held. Each pad is assigned to a specic loop length from 1/32 - 4/1. The Loop Roll range can be shifted via the Parameter 1 buttons. Pads 5-8 control the Beat Jump function.

Each pad de-/activates a loop roll when the pad is held each pad is assigned a specic loop length from 1/32 – 4/1.

Up to 8 loops can be saved. Each pad represents one loop slot. To save a loop, Set an auto loop and press a pad. Press it again to delete the loop. - SHIFT+PAD: Triggers the loop.

Up to 8 loops can be saved. Each pad represents one loop slot. To save a loop, Set an auto loop and press a pad. Press it again to delete the loop. - SHIFT+PAD: Triggers the loop.

Pads 1-8 trigger the 8 available sample slots. Using the parameter buttons, you can switch back and forth through banks A, B, C, D. The volume can be adjusted with the Sampler (6.). - SHIFT+PAD: Stops the sample. Pad modes in the second level:

Pads 1-8 trigger the 16 available sample slots. Sampler mode on the left deck controls samples 1-8, sampler mode on the right deck controls samples 9-16. If the sampler mode button is pressed for 2 seconds, PAD VELOCITY and AFTER- TOUCH are activated. The samples can now be played back at different volumes. Note! Sampler View is only available in 2-deck view. - SHIFT+PAD stops the sample. Pad Modes in the second layer:

In combination with Pitch n Time DJ, you can play back your cues in different tones. There are 3 keys available. To switch between them, press the left or right PARAM 1 button. The pad with the basic tone is always white illuminated; here the cue point is played with the regular pitch. When you are in Pitch Play mode, pressing the pads will play back your cue point At different pitches. - SHIFT+PAD: Selects a different Hot Cue Point for Pitch Play.

You can play your cues in different keys. There are 3 keys available. To switch between them, press the left or right PARAM 1 button. The pad with the root key is always lit in white; here the cue point is played with the regular pitch. When you are in pitch play mode, pressing the pads will play your cue point in different Pitches. - SHIFT+PAD: Select a different Hot Cue Point for Pitch Play.

Up to 8 saved ips can be displayed, pads 1-8 start your previously saved ips. - SHIFT+PAD: Jumps directly to the respective ip and starts it.

The drum pads have different instant effects that are activated by pressing the respective pad.

If the slicer is activated, a dened section is divided into eight equal parts. These eight sliced sections are distributed to the corresponding performance pads. When the playhead reaches the end of the section, it moves beyond the section and forms a new section.

If the slicer is activated, a dened section is divided into eight equal parts. These eight sliced sections are distributed to the corresponding performance pads. When the playhead reaches the end of the section, it moves beyond the section and forms a new section.

In scratch bank mode, you can assign an audio le from your Serato DJ Pro Library to each of the 8 performance pads. When a pad is pressed, the respective le is loaded onto the deck. The pads on the left are loaded on deck 1 and the pads on the right are loaded on deck 2. To set up your scratch bank les, click on the on the scratch bank icon in the top bar of Serato DJ Pro. There you will see the Scratch Bank panel. In this panel, you can load or eject the audio les you want and dene your personal settings. The settings include the start point, repeat on/off and key lock on/off. By clicking on the button in the upper left corner of the of the scratch bank panel, you can toggle between the expanded and simple view. - SHIFT+PAD: Hold down the SHIFT and click on any Scratch Bank pad to delete the currently loaded le and and reload the last track loaded on that deck.

In Neural Mix™ mode you can control the Algoriddim Neural Mix™ functions via the drum pads. The drum pads are assigned as follows: - PAD 1: Drum Solo On/Off = Mute Harmonic & Vocal - PAD 2: Harmonic Solo On/Off = Mute Drum & Vocal - PAD 3: Vocal Solo On/Off = Mute Drum & Harmonic - PAD 4: Drum Swap On/Off (deactivates the drum stem of the selected channel and activates solo for the drum stem of the other channel) - PAD 5: Drum Solo Hold = Mute Harmonic & Vocal - PAD 6: Harmonic Solo Hold = Mute Drum & Vocal - PAD 7: Vocal Solo Hold = Mute Drum & Harmonic - PAD 8: Drum Swap Hold (deactivates the drum stem of the selected channel and activates solo for the drum stem of the other channel)

54. Performance Pads (1-8)

Colour-coded, velocity-sensitive drum pad section, to controll the different performance modes. Colour-coded, velocity-sensitive drum pad section, to controll the different performance modes. FRONT SECTION:

Knob for adjusting the crossfader opening behaviour. Knob for adjusting the crossfader opening behaviour.

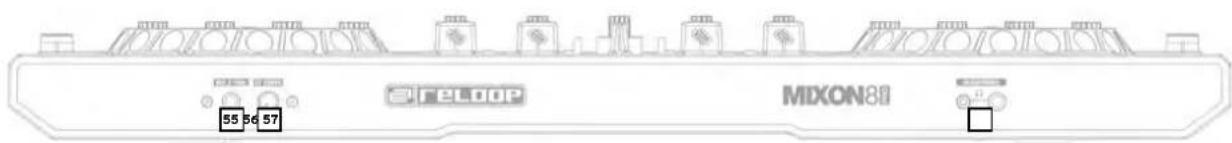

57. Headphone Connections

(3,5 mm / 6,3 mm) Headphone output (3.5 mm / 6.3 mm jack connection) Headphone output (3.5 mm / 6.3 mm jack connection) ENGLISH11 Serato DJ Pro djay Pro AI REAR SECTION: 58. Mic 1-In (XLR/TRS) Microphone input 1 combi jack (XLR / 6.3 mm jack connector) Microphone input 1 combi jack (XLR / 6.3 mm jack connector)

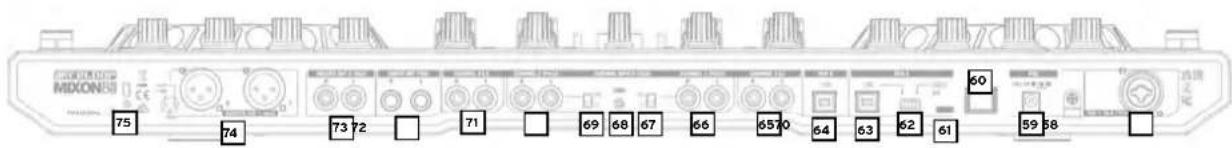

59. PSU-Power Connection

Mains cable connection for external power supply. Mains cable connection for external power supply.

Power On/Off Power On/Off

61. USB-C Port (iOS)

USB-C port for iOS USB-C port for iOS

USB port 2 for PC/Mac USB port 2 for PC/Mac

65. Line-In Channel 3 (RCA)

Channel 1 Signal-In selection switch for Channel 1. Signal-In selection switch for Channel 1.

68. Grounding-Screw (GND) Grounding screw Grounding screw

69. Phono/Line-Switch

Channel 2 Signal-In selection switch for Channel 2. Signal-In selection switch for Channel 2.

71. Line-In Channel 4 (RCA) Line input Channel 4 (RCA) Line input Channel 4 (RCA)

72. Booth-Out (TRS) Booth output (2 x 6.3 mm jack) Booth output (2 x 6.3 mm jack)

73. Master-Out 2 (RCA) Master output 2 (RCA unbalanced) Master output 2 (RCA unbalanced)

74. Master-Out 1 (XLR) Master output 1 (XLR balanced) Master output 1 (XLR balanced)

75. Kensington Lock Theft protection Theft protection
