Product Type	Garage Door Remote Control
Brand	LiftMaster
Model	61LMC
Number of buttons	1 (configurable by model)
Frequency	390 MHz
Technology	Fixed code at 390 MHz
Power Supply	12V battery (type 10A14)
Battery life	Approximately 1 year
Programming	Via DIP switches or smart/learning button
Compatibility	LiftMaster garage door openers with 390 MHz receiver
Range	Not specified (estimate: 30-50 meters)
Dimensions	Approximately 5 x 3 x 1 cm (estimate)
Weight	Approximately 50 g with battery
Housing material	Plastic
Color	Black/White depending on model
LED indicator	Yes, during programming
Safety	Do not let children handle; never operate without visibility; keep out of reach of children
Maintenance	Clean with a dry cloth; replace used battery
Replacement parts	12V 10A14 battery, sun visor clip 29C128
Repairability	Not user-repairable (except battery and DIP switches)
Compliance	FCC / IC
Technical support	1-800-528-9131 (United States)

Frequently Asked Questions - 61LMC LIFT-MASTER

How do I program my 61LMC remote with a LiftMaster garage door opener?

Press and release the smart/learning button on the opener. The LED lights up. Within 30 seconds, press and hold the remote button until the lights flash or you hear a click. Programming is complete.

What battery should I use for the 61LMC remote?

Use a 12V alkaline battery type 10A14. Remove the used battery by sliding the cover and insert the new one respecting polarity.

How do I program the remote without an existing remote?

Set the DIP switches on the remote to any position (+, 0, -). Then follow the procedure with the opener's smart/learning button.

Can I use the 61LMC remote with a three-channel receiver?

Yes, the 3-button models (like 33LM) are compatible with the 423LM receiver. For the 1-button 61LMC, it can be programmed on a single channel.

Is the 61LMC remote compatible with older garage doors?

It is compatible with all LiftMaster products using a fixed code at 390 MHz. Check the frequency of your receiver.

How do I change the battery of the 61LMC remote?

Slide open the battery compartment cover. Remove the old battery and insert a new 12V 10A14 battery respecting polarity. Close the cover.

What to do if the remote does not work after battery change?

Check that the battery is inserted correctly with the right polarity. If the problem persists, reprogram the remote by following the procedure with the learning button.

Can I add a second remote to my opener?

Yes, repeat the programming procedure for each new remote. The opener accepts multiple remotes.

Is the 61LMC remote delivered with a holder or wrist strap?

No, the remote is delivered without accessories. You can purchase the sun visor clip (ref. 29C128) as an option.

How do I clear the opener's memory to erase all remotes?

Press and hold the smart/learning button on the opener for about 6 to 10 seconds until the LED turns off. All codes are erased. You will need to reprogram all remotes.

USER MANUAL 61LMC LIFT-MASTER

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product that uses a 390 MHz fixed code. The single-button remote control will activate one device, the 2-button remote control will activate up to 2 devices, and the 3-button remote control will activate up to 3 devices.

BEFORE YOU BEGIN

Locate the dip switches on your remote control

Single-Button and 3-Button Remote Controls:

Slide the battery cover open to access the dip switches in the remote control.

2-Button Remote Control:

The 2-button remote control has two sets of dip switches.

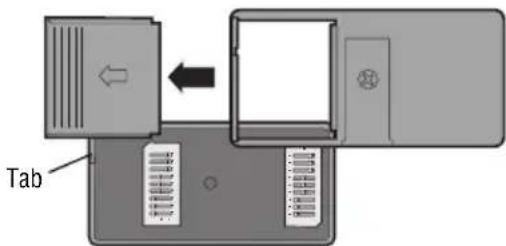

Slide the battery cover open to access the dip switches for the smooth button. Remove the screw on the back of the remote control and remove the cover by pressing the tab. This will access the dip switches for the ribbed button.

3-Button Mini Remote Control:

The large top button is recommended for use with a garage door opener and/or light control product. The other push buttons can be used to operate another garage door opener and/or light control product.

Access the dip switches by turning the remote over and removing the back of the case. Be careful to avoid moving circuit board components.

Single and 3-Button Remote Controls

2-Button Remote Controls

Mini Remote Controls

Use a pen or screwdriver to slide the dip switches.

Programming the remote control to an existing remote control

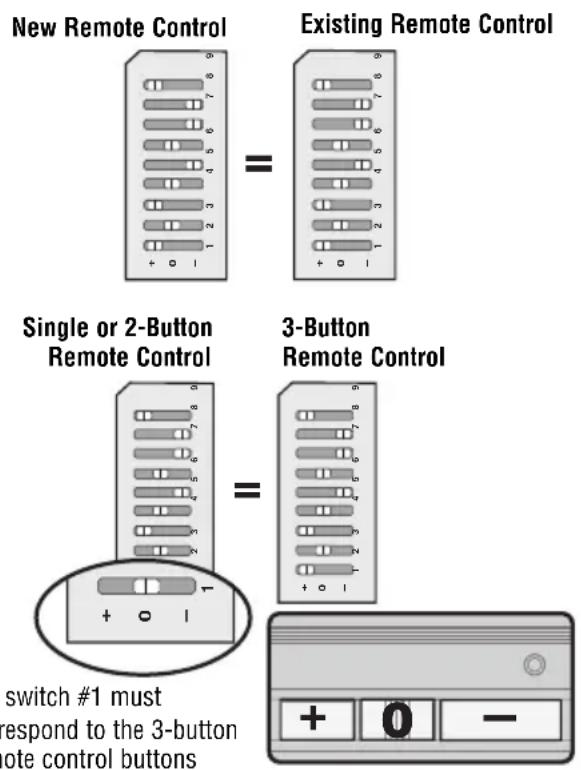

Locate the dip switches in the new and old remote controls. Place remote controls side by side and set the dip switches in the remote controls to matching positions (+,0,-) .

Programming a 3-button remote control

When programming a single or 2-button remote control to a 3-button remote control it is very important to set dip switch #1 to the correct position. The dip switch in the single or 2-button remote control MUST correspond to the buttons on the 3-button remote control as shown.

Example: If you are programming a single-button remote control to the middle button on the 3-button remote control, dip switch #1 in the single-button remote control MUST be set to "0" in order for both buttons to work.

Programming the remote control without an existing remote control

Set the dip switches in the remote controls to any position you want (+,0,-) .

Programming with Smart/Learn button

1 Press and release the Smart/Learn button on your product. The LED will light.
2 Within 30 seconds press and hold the button on the remote control that you wish to activate your product.
Programming is complete.
Repeat the steps above for each button and/or remote control you would like to program.

Programming with dip switches

1 Check the dip switch settings on the back of your product.

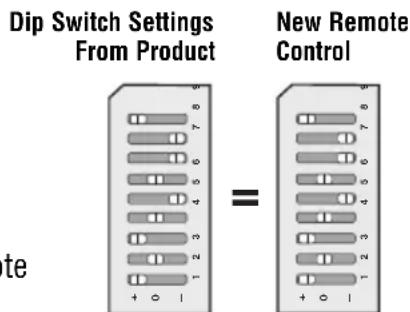

2 Use a pen or screwdriver to slide the dip switches in the remote control to match the dip switches on the back of the product.

When the dip switches have been set press the remote control button to activate your product.

WARNING

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 33LM 3-button remote controls can also be used with a 423LM 3-channel receiver and a 3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

1 Use a screwdriver to pry open the receiver cover.
2 Verify that the slide switch on receiver is set to the N.C. position (other wise the commercial door operator will not operate).

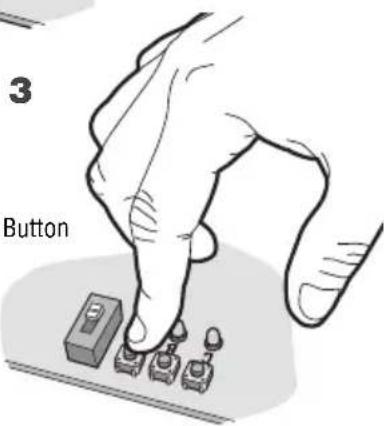

3 Press and release the Smart/Learn button labeled "A" on the receiver. The adjacent LED will flash.
4 Within 30 seconds press and release the red button on the remote control. The red button is now programmed for CLOSE mode.

NOTE: If the remote control button is not pressed within 30 seconds, the LED next to the selected Smart/Learn button will turn OFF. In that case, press the Smart/Learn button again to repeat programming.

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver Smart/Learn button "B" to program the CLOSE mode; and again with the green button on the remote control and the receiver Smart/Learn button "C" to program the OPEN mode.

5 Replace the receiver cover.

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

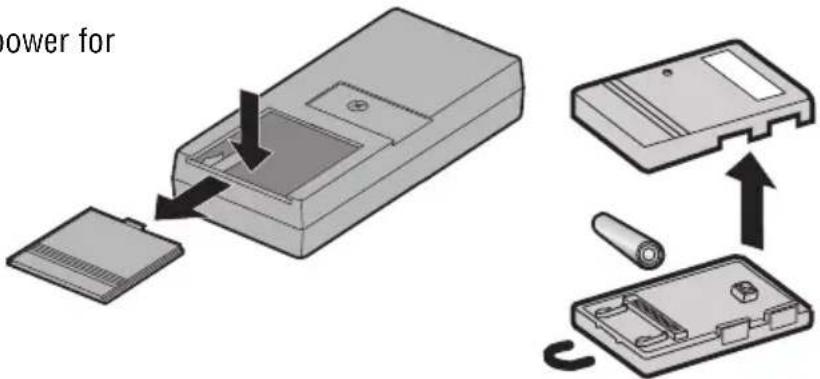

The 12 volt battery should produce power for 1 year.

Dispose of old batteries properly.

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

REPLACEMENT PARTS

Visor clip 29C128

12V battery 10A14

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

www.liftmaster.com
