362LMC - Automatic gate remote LIFT-MASTER - Free user manual and instructions

Product Type	Automatic gate remote control
Brand	LIFT-MASTER
Model	362LMC
Number of buttons	2
Coding technology	Fixed code 315 MHz
Power supply	12V battery (type 10A14)
Battery life	Approximately 1 year
Compatibility	LiftMaster devices using fixed code 315 MHz
Use	Gates, garage doors, barriers
Programming	By Dip switches (adjustable code)
Safety	Keep out of reach of children; operate only when door is visible
Maintenance	Clean with a dry cloth
Battery replacement	Easy, access by sliding the cover
Dimensions	Compact
Weight	Light
Material	Plastic
Spare parts	12V battery (10A14), sun visor clip (29C128)
Repairability	Battery replacement only
Certifications	FCC, Industry Canada
Manual included	French, English (downloadable)

Frequently Asked Questions - 362LMC LIFT-MASTER

How to program my 362LMC remote control?

To program the remote control without an existing remote, set the Dip switches to any position (+, 0, -). To program with an existing remote, place the remotes side by side and match the Dip switch positions. Then, press the smart/learn button on the receiver, and within 30 seconds, hold down the desired button on the remote.

What to do if my remote control stops working?

First check the battery: if it is dead, replace it with a 12V battery type 10A14. If the problem persists, check that the Dip switches match those of the receiver. If the device still does not respond, contact technical support at 1-800-528-9131.

How to replace the battery?

Slide the battery compartment cover to access the battery. Replace the used battery with a new 12V battery (ref. 10A14). Close the cover. Dispose of used batteries according to local regulations.

What is the range of the remote control?

The typical range is about 30 meters in open field, but may vary depending on obstacles and installation. For optimal range, avoid metal obstacles and hold the remote control high.

Can I use this remote control with another type of gate?

The 362LMC remote control is designed for LiftMaster devices using a fixed code at 315 MHz. It may be compatible with other brands if the receiver uses the same frequency and coding, but this is not guaranteed. Check compatibility with the manufacturer.

How to reset the remote control in case of loss?

If you lose a remote, it is recommended to change the codes of all remotes and the receiver to prevent unauthorized access. To do this, reprogram all remotes with new Dip switch positions, then press the smart/learn button on the receiver and reprogram each remote.

Is the remote control compatible with older LiftMaster models?

Yes, the 362LMC remote control is compatible with older LiftMaster models using a fixed code at 315 MHz, including models 361LM, 362LMC, 363LM, and 333LM. Check that your receiver supports this frequency.

How to clean my remote control?

Use a soft, dry cloth to clean the outside of the remote control. Do not use chemical or abrasive products. Avoid letting moisture get inside.

What does the LED flashing mean?

During programming, the receiver's LED flashes to indicate it is in learning mode. If the LED turns off before programming, it means the 30-second time has elapsed; then repeat the procedure. In normal operation, the LED may flash when a button is pressed to confirm signal transmission.

Where can I download the full manual?

The full manual is available for free download on the site notice-facile.com or on the official LiftMaster website. You can also request a translation in another language by providing your email address on the manual page.

USER MANUAL 362LMC LIFT-MASTER

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product that uses a 315 MHz fixed code. The single-button remote control will activate one device, the 2-button remote control will activate up to 2 devices, and the 3-button remote control will activate up to 3 devices.

BEFORE YOU BEGIN

Locate the Dip Switches on Your Remote Control

Single-Button and 3-Button

Remote Controls:

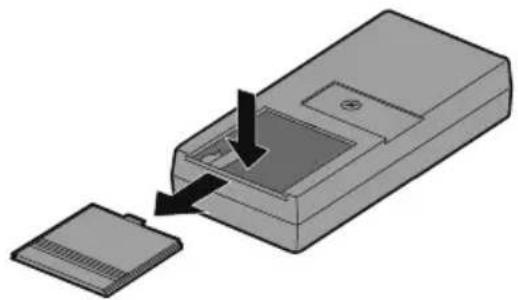

Slide the battery cover open to access the dip switches in the remote control.

2-Button Remote Control:

The 2-button remote control has two sets of dip switches.

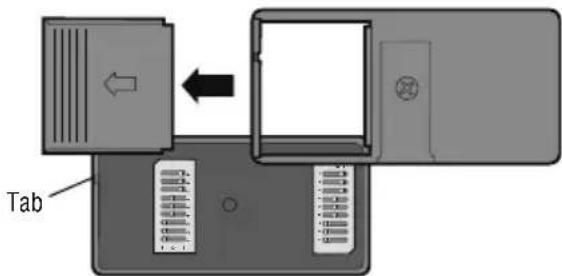

Slide the battery cover open to access the dip switches for the smooth button. Remove the screw on the back of the remote control and remove the cover by pressing the tab. This will access the dip switches for the ribbed button.

Single and 3-Button Remote Controls

2-Button Remote Controls

Tab

Locate the Smart/Learn Button for Your Product

NOTE: Your product may look different than the products illustrated.

The Smart/Learn button is typically located on the logic board of the operator or external receiver. Refer to your product owner's manual for the exact location of the Smart/Learn button.

Smart/Learn Button

SET THE DIP SWITCHES

Use a pen or screwdriver to slide the dip switches.

Programming the remote control without an existing remote control

Set the dip switches in the remote controls to any position you want (+,0,-).

Programming the remote control to an existing remote control

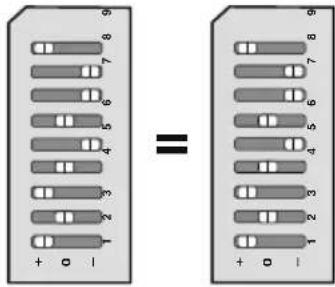

Locate the dip switches in the new and old remote controls. Place remote controls side by side and set the dip switches in the remote controls to matching positions (+,0,-).

Programming a 3-button remote control

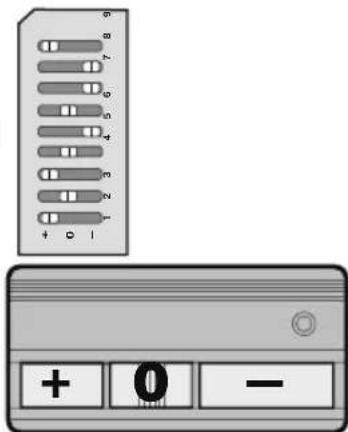

When programming a single or 2-button remote control to a 3-button remote control it is very important to set dip switch #1 to the correct position. The dip switch in the single or 2-button remote control MUST correspond to the buttons on the 3-button remote control as shown.

Example: If you are programming a single-button remote control to the middle button on the 3-button remote control, dip switch #1 in the single-button remote control MUST be set to "0" in order for both buttons to work.

New Remote-Control

New Remote Control

Diagram showing two identical electrical or electronic component layouts with labeled pins and polarity indicators

Existing Remote Control

Single or 2-Button Remote Control

8 7 6 5 4 3 2 1 + - =

Dip switch #1 must correspond to the 3-button remote control buttons

3-Button Remote Control

Diagram showing a device with labeled buttons and a vertical panel of electronic components, including plus, minus, and control buttons.

PROGRAMMING

1 Press and release the Smart/Learn button on your product. The LED will light.
2 Within 30 seconds press and hold the button on the remote control that you wish to activate your product.

Programming is complete.

Repeat the steps above for each button and/or remote control you would like to program.

1 Smart/Learn Button

Hand inserting a small component into a wall socket (no text or symbols visible)

2

Line drawing of a hand holding a card (no text or symbols visible)

WARNING

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 333LM 3-button remote controls can also be used with a 323LM 3-channel receiver and a 3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

1 Use a screwdriver to pry open the receiver cover.
2 Verify that the slide switch on receiver is set to the N.C. position (other wise the commercial door operator will not operate).

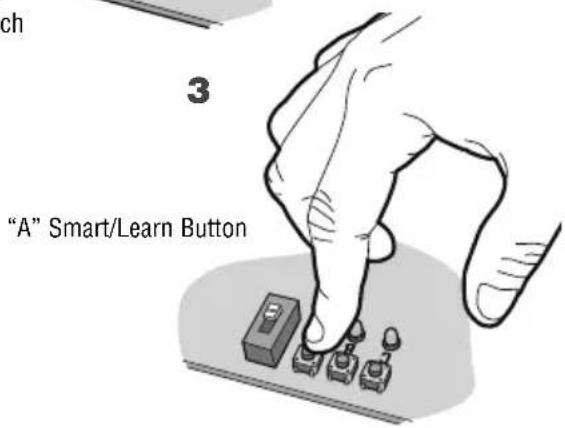

3 Press and release the Smart/Learn button labeled "A" on the receiver. The adjacent LED will flash.
4 Within 30 seconds press and release the red button on the remote control. The red button is now programmed for CLOSE mode.

NOTE: If the remote control button is not pressed within 30 seconds, the LED next to the selected Smart/Learn button will turn OFF. In that case, press the Smart/Learn button again to repeat programming.

1

2 N.C. Slide Switch

"A" Smart/Learn Button 3

Hand inserting a card into a memory card (no text or symbols visible)

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver Smart/Learn button "B" to program the CLOSE mode; and again with the green button on the remote control and the receiver Smart/Learn button "C" to program the OPEN mode.

5 Replace the receiver cover.

5

THE REMOTE CONTROL BATTERY

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

The 12 volt battery should produce power for 1 year.

Dispose of old batteries properly.

Diagram of a device with a lid and internal component, showing a close-up of the lid (no text or symbols present)

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

REPLACEMENT PARTS

Visor clip 29C128

12V battery 10A14

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

www.liftmaster.com
