2444056 - Iron RUSSELL HOBBS - Free user manual and instructions

Product type	Steam station with iron
Brand	Russell Hobbs
Model	2444056
Power	2400 W (estimate)
Water tank capacity	1.5 L (estimate)
Steam pressure	Up to 5 bars (estimate)
Continuous steam rate	Up to 90 g/min (estimate)
Functions	Steam ironing, dry ironing, vertical steam, auto shut-off
Adjustable thermostat	Yes, with indicator light
Anti-scale system	Replaceable anti-scale cartridge
Filter	Removable and cleanable filter
Soleplate	Non-stick or ceramic (not specified)
Cord length	2 m (estimate)
Weight	2.5 kg (estimate)
Dimensions (W x D x H)	35 x 25 x 30 cm (estimate)
Usage	Domestic use
Safety	Auto shut-off in case of overheating, overheat protection
Maintenance	Do not immerse, clean with a damp cloth, replace anti-scale cartridge regularly
Spare parts	Anti-scale cartridge available from the manufacturer
Warranty	2 years (estimate)

Frequently Asked Questions - 2444056 RUSSELL HOBBS

Which water should I use in the tank?

You can use tap water. If the water is very hard, use demineralized water suitable for irons. Avoid chemically demineralized water.

How to fill the water tank?

Remove the tank by separating it from the base unit, fill up to the max mark, then reinsert it.

How to adjust the temperature?

Turn the thermostat to align the desired symbol (● cold, ●● medium, ●●●/max hot) with the mark. The light flashes then stays on when the temperature is reached.

How to use steam?

Set the temperature to ●● or higher. Use the steam button to select the amount (low, medium, high). Press the steam button to release steam, release to stop.

Why does steam not come out immediately?

The first use or after refilling, the station pumps water to prime the system. This can take 20 to 30 seconds. This is normal.

Can I dry iron?

Yes, do not press the steam button. To avoid accidental triggering, use an empty tank.

How to use vertical steam?

Set the thermostat to max. Ensure there is ventilation behind the fabric. Use the steam button with short presses.

When and how to replace the anti-scale cartridge?

The cartridge must be replaced when the warning light flashes (about 100 uses in soft water). Turn off and unplug, let cool, remove the tank, extract the cartridge, insert a new one, then prime the system by producing steam.

How to clean the filter?

The filter must be cleaned after 6 uses (or depending on water hardness). Unplug, let cool, remove the tank, unscrew the filter, rinse it under the tap, then replace it and reset the indicator.

What to do in case of overheating?

The appliance has a safety cut-out. If it stops working, unplug it and contact an authorized service center for repair.

USER MANUAL 2444056 RUSSELL HOBBS

Black and white photo of a steam power iron with attached branding (no visible text or symbols on the device itself)

1 2 3 MAX 7

4 5 6 8 9

10 11 12

A

Line drawing of a steam iron device with attached cable and connector (no text or symbols)

Line drawing of a steam iron with attached circuit board (no text or symbols)

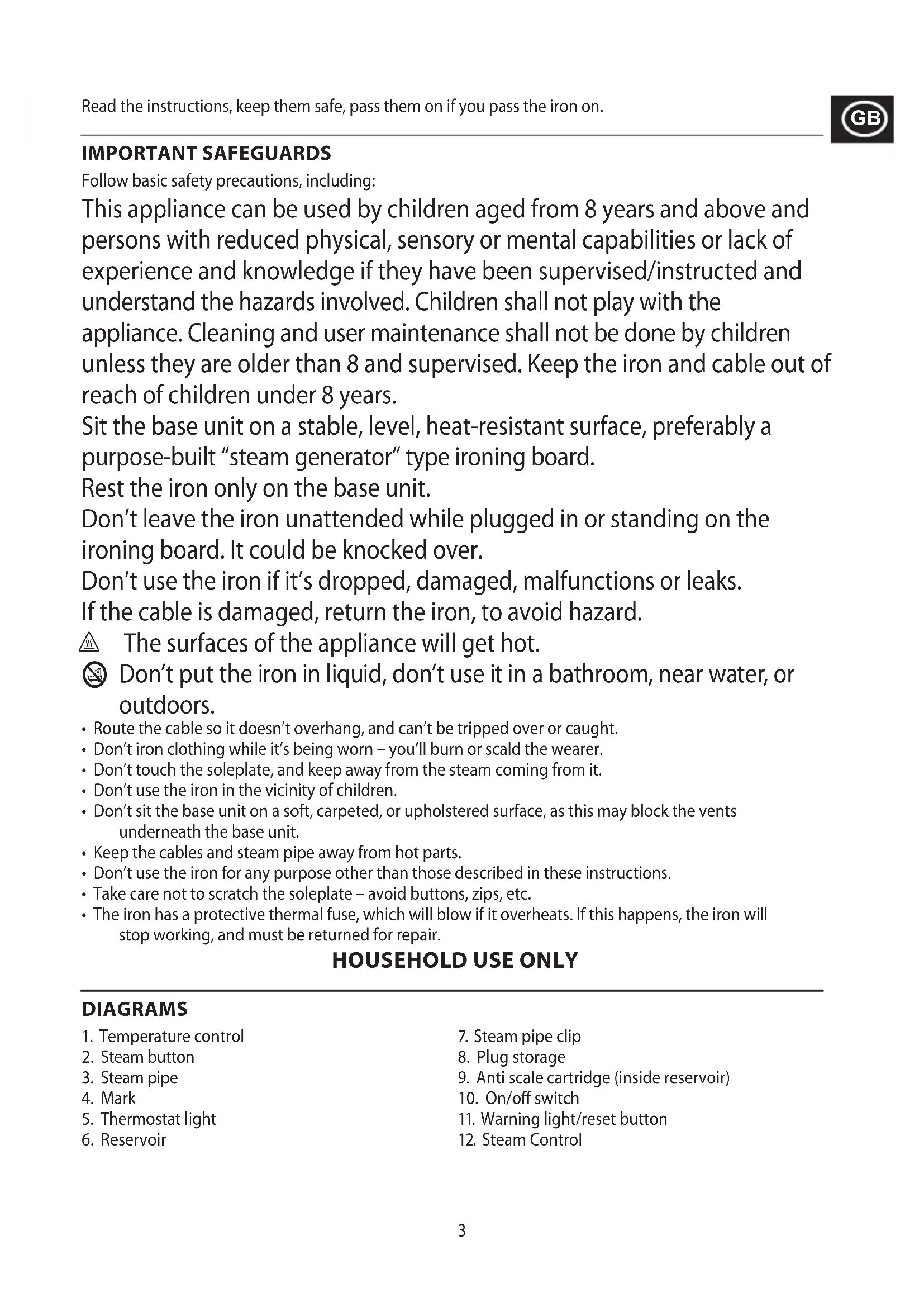

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the iron and cable out of reach of children under 8 years.

Sit the base unit on a stable, level, heat-resistant surface, preferably a purpose-built “steam generator” type ironing board.

Rest the iron only on the base unit.

Don't leave the iron unattended while plugged in or standing on the ironing board. It could be knocked over.

Don't use the iron if it's dropped, damaged, malfunctions or leaks.

If the cable is damaged, return the iron, to avoid hazard.

The surfaces of the appliance will get hot.

Don't put the iron in liquid, don't use it in a bathroom, near water, or outdoors.

• Route the cable so it doesn't overhang, and can't be tripped over or caught.
• Don't iron clothing while it's being worn – you'll burn or scald the wearer.
• Don't touch the soleplate, and keep away from the steam coming from it.
• Don't use the iron in the vicinity of children.
• Don't sit the base unit on a soft, carpeted, or upholstered surface, as this may block the vents underneath the base unit.
• Keep the cables and steam pipe away from hot parts.
• Don't use the iron for any purpose other than those described in these instructions.
• Take care not to scratch the soleplate – avoid buttons, zips, etc.
• The iron has a protective thermal fuse, which will blow if it overheats. If this happens, the iron will stop working, and must be returned for repair.

HOUSEHOLD USE ONLY

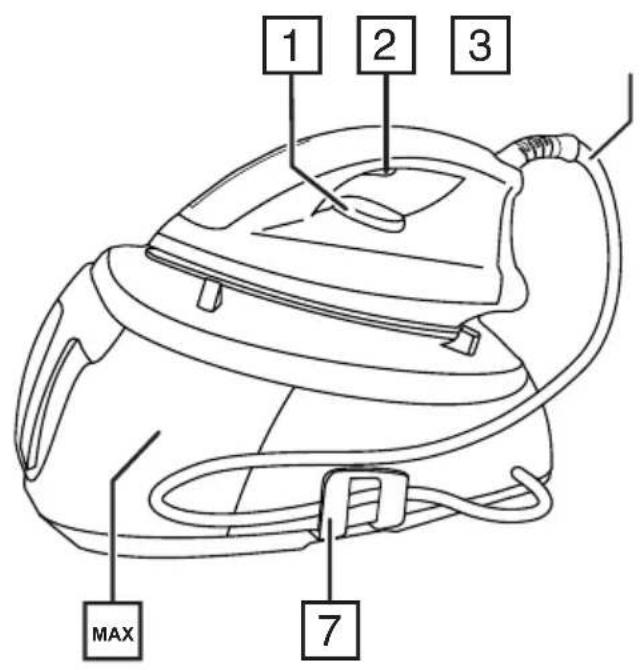

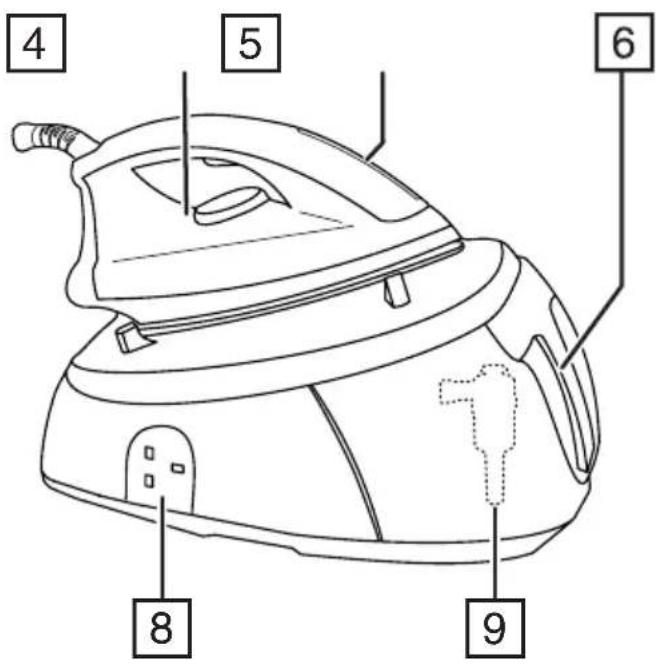

DIAGRAMS

1. Temperature control
2. Steam button
3. Steam pipe
4. Mark
5. Thermostat light

6. Reservoir

7. Steam pipe clip

8. Plug storage
9. Anti scale cartridge (inside reservoir)

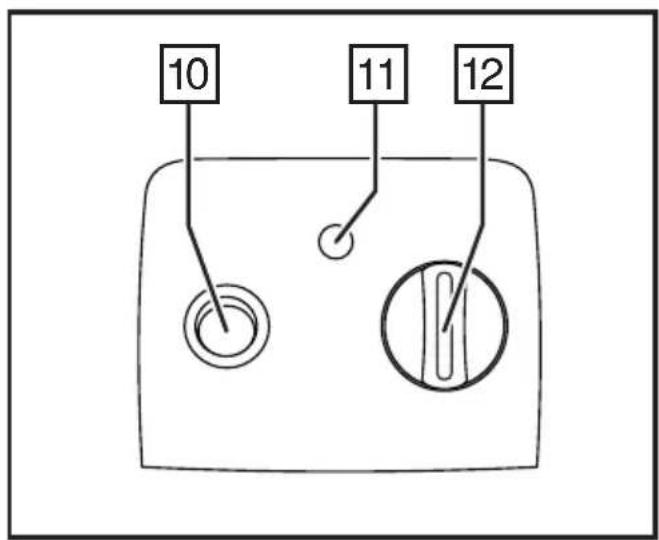

10. On/off switch
11. Warning light/reset button
12. Steam Control

BEFORE FIRST USE

• Remove any labels, stickers or packaging from the iron and soleplate.
• Before using the iron for the first time, or if it's not been used for a long time, iron a scrap piece of cotton (an old towel is ideal) to remove any accumulated residues.
• Don't worry if the iron smokes a bit at first, it will soon stop as the manufacturing residues evaporate.

FILLING/REFILLING

You may use the iron with tap-water, but if you live in a hard water area, you should use distilled water (not chemically descaled or softened water).

If you buy distilled water, check that it's suitable for use in irons.

1. Remove the reservoir by pulling it away from the body of the steam generator using the grip on the front of the reservoir.
2. Fill the reservoir to the max mark. Do not exceed the max mark.
3. Refit the reservoir into the base unit.

PRELIMINARY SETTINGS

1. Put the iron on top of the base unit.
2. Put the plug into the power socket (switch the socket on, if it's switchable).
3. Turn the unit on by setting the on/off button to I.
4. Turn the temperature control to bring the setting you require next to the mark. The thermostat light will flash until the iron has reached its desired temperature. Once the temperature has been reached the light will remain on.
5. Use the steam control to select the amount of steam you want (♀ = low, ♂ = medium, ♂ = high).

TEMPERATURE SELECTION GUIDE

1. Check for textile care symbols (☒☐☐☐☐).
2. Iron fabrics needing low temperatures first, then those that need medium temperatures, and finish with those needing high temperatures (or max).
3. Turn the temperature control to bring the setting you require next to the mark.
   If the instructions on the fabric label differ from this guide, follow the instructions on the label.

Label marking	Dot setting
cool – nylon, acrylics, polyester	●
warm – wool, polyester mixtures	●●
hot – cotton, linen	●●●/max
do not iron

When the soleplate reaches operating temperature, the thermostat light will stay permanently on.

STEAM IRONING

1. If you intend to use steam, the temperature setting must be at
2. Use the steam control to select the amount of steam you want
3. Squeeze the steam button to produce steam, release it to stop.
   or higher.

$$ (\widehat {\mathcal {H}} = \text { low }, \widehat {\mathcal {H}} = \text { medium }, \widehat {\mathcal {H}} = \text { high }). $$

NOTE: When you first start your steam station and pull the trigger for steam ironing, there will be a delay as your steam station pumps water from the reservoir to prime the system. This is normal and may take 20-30 seconds. This will also happen after refilling the reservoir.

DRY IRONING

You can dry iron by just not pressing the steam button, but if you want to make sure you don't press it accidentally, then you should iron with an empty reservoir. You can do your dry ironing first, then switch off, fill the reservoir and do your steam ironing.

VERTICAL STEAMING

Remove wrinkles from hanging clothes, hanging curtains, and furnishing fabrics.

• Check that there's adequate ventilation behind the fabric otherwise moisture may build up causing mildew.
• Check that there's nothing behind the fabric that may be damaged by the steam.
• Check that pockets, turn-ups, and cuffs are empty.
• Set the temperature control to max.
• Hold the iron close to (but not touching) the fabric.
  We recommend using the steam button to produce steam for smaller areas, as it gives you better control.

AFTER USE

1. Put the iron on top of the base unit and turn the temperature control to ●.
2. Set the on/off switch to O and unplug the base unit.
3. Empty the reservoir.
4. Let the iron cool down completely before cleaning it, moving it, or storing it away.
5. The steam pipe can be coiled together and placed into the hose clip.

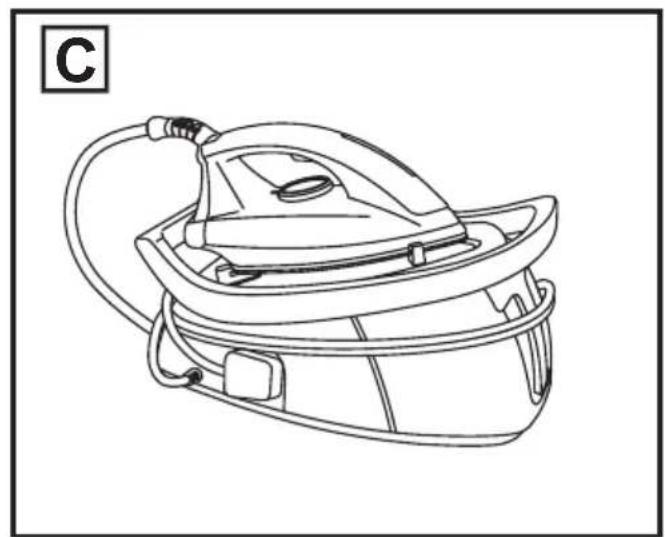

6. Wrap the mains cable around the steam generator in an anti-clockwise direction then slot the plug into the socket (Fig C).
7. The water reservoir must be emptied when storing your steam station vertically.

CARE AND MAINTENANCE

1. Unplug the base unit, and let the appliance cool down fully.
2. Wipe outer surfaces with a damp cloth.
3. Remove spots from the soleplate with a little vinegar.
4. Take care not to scratch the soleplate.

ANTI-SCALE CARTRIDGE

To extend the life of the appliance and to avoid problems with lime scale, your steam generator is fitted with an anti-scale cartridge. The life of the anti-scale cartridge depends on the frequency of use and the hardness of the water in your area. In a soft water area this should be about 100 uses. Do not put any descaling products (including vinegar) into the reservoir. This can damage the appliance.

To replace the cartridge:

1. Switch off and unplug your steam generator.
2. Allow your steam generator to cool down for at least 1 hour until the soleplate is cold.
3. Remove the reservoir from the front of the unit.

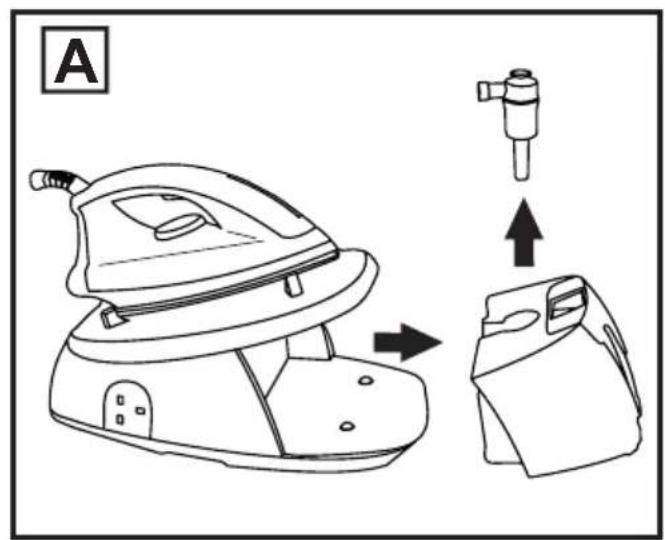

4. Pull the anti-scale cartridge vertically out of the reservoir. Note that the cartridge may contain water when it is removed (Fig A).
5. Fit the new cartridge and push it down firmly into the reservoir.
6. Refill and refit the reservoir.
7. Plug in your steam generator.
8. Once the appliance is ready, pull the steam trigger until the steam is being produced. This will prime the system.

Important: Using the appliance without changing the cartridge can cause a reduction in the generated steam output and damage the appliance. The guarantee will not cover damage caused to the appliance by not changing the anti-scale cartridge when required.

REPLACEMENT ANTI-SCALE CARTRIDGES

Contact your local service agent with the model number for information on how to purchase replacement anti-scale cartridges. See the enclosed guarantee card for details.

FILTER

We recommend that you remove and clean the filter every 6 uses depending on the water hardness in your area. The warning light/reset button will flash to remind you that the filter needs cleaning. Doing this will extend the life of the unit.

To remove the filter:

1. Unplug the appliance and let it cool down.
2. ⚠️ Allow your steam generator to cool down for at least 1 hour until the soleplate is cold.
3. Remove the reservoir from the front of the unit. The filter is behind the reservoir.

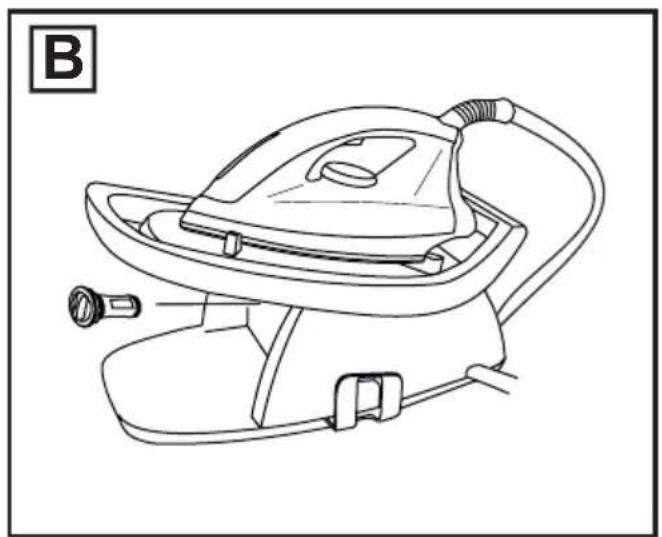

4. Turn the filter anticlockwise and remove it (Fig B).
5. Rinse the filter under a tap.
6. Refit the filter and tighten it firmly.
7. Reset the reminder light.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
