2704056 - Rice cooker RUSSELL HOBBS - Free user manual and instructions

Brand	Russell Hobbs
Model	2704056
Product Type	Rice Cooker and Steamer
Capacity	Approximately 1.2 L (estimate)
Inner Bowl Material	Non-stick Coating
Functions	Rice cooking, steaming, automatic keep warm
Included Accessories	Spatula, measuring cup, steamer basket
Cleaning	Bowl, lid, and steamer basket dishwasher safe
Safety	Use by children aged 8 and above under supervision, replaceable cable by a professional
Spare Parts	Inner bowl, lid, steamer basket, spatula, measuring cup available
Repairability	Power cord replaceable by manufacturer or authorized technician
Warranty	Consult the manufacturer
Power Supply	220-240 V, 50/60 Hz (standard estimate)
Power	Approximately 400-600 W (estimate)

Frequently Asked Questions - 2704056 RUSSELL HOBBS

How to use the Russell Hobbs 2704056 rice cooker?

Measure the rice with the measuring cup, rinse it, place it in the bowl, add water up to the corresponding mark, close the lid, plug in, press the switch, cooking starts automatically. After cooking, let it rest for 10 minutes before serving.

What foods can I steam?

Vegetables, fish, chicken, shrimp, etc. Place the food in the steamer basket above the water, follow the cooking times indicated in the manual.

How to clean the rice cooker?

Wash the bowl, lid, and basket with warm soapy water or in the dishwasher. Wipe the exterior with a damp cloth. Never immerse the base in water.

Can I use pre-cooked or other types of rice?

Yes, but adjust the water amount. The manual recommends using the provided cup and filling marks.

How to prevent rice from sticking to the bottom?

Ensure the bowl is non-stick and the water amount is correct. After cooking, let it rest and stir with the spatula to loosen the grains.

Does the cooker turn off automatically?

Yes, once cooking is complete, the indicator turns off and the keep warm indicator turns on. The appliance automatically switches to keep warm mode.

Can I leave the cooker on overnight?

No, it is recommended to unplug the appliance after use. Keep warm should not exceed a few hours.

How to replace the power cord?

The cable must be replaced by the manufacturer, an authorized technician, or a qualified person. Do not attempt to repair it yourself.

Are the parts dishwasher safe?

Yes, the inner bowl, lid, and steamer basket can be washed in the dishwasher.

What safety precautions should I take?

Keep the appliance out of reach of children under 8 years, use gloves to handle the hot bowl, direct steam away from you, do not cover the appliance, and do not place it near water.

USER MANUAL 2704056 RUSSELL HOBBS

White and black rice cooker with a lid, no visible text or symbols on the body

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surfaces of the appliance will get hot.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don't put frozen meat or poultry in the appliance – defrost fully before use.
• Cook meat, poultry, and derivatives (mince, burgers, etc.) till the juices run clear. Cook fish till the flesh is opaque throughout.
• Don't try to cook anything in the body of the cooker – cook only in the removable bowl.
• Don't reach over the appliance, and keep hands, arms, face, etc. clear of the escaping steam.
• Fill with at least 1 cup of water.
• Don't fill above the top of the fill mark.
• Don't cover the appliance or put anything on top of it.
• Unplug the appliance when not in use.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

HOUSEHOLD USE ONLY

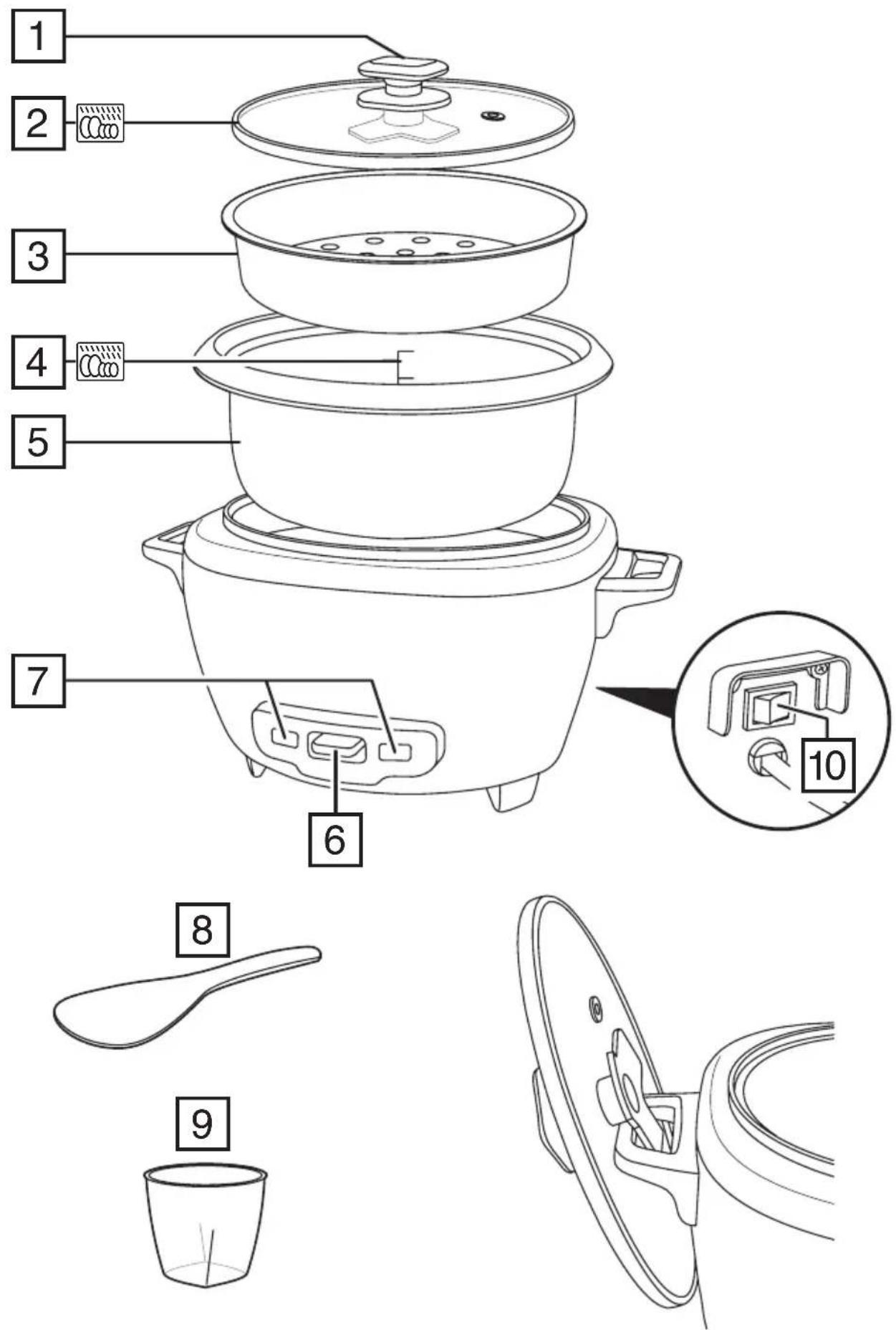

PARTS

1. Knob

2. Lid

3. Basket

4. Fill mark

5. Bowl

6. Switch

7. Lights

8. Spatula

9. Measuring cup

10. On/off switch

You may wash these parts in a dishwasher

BEFORE USING FOR THE FIRST TIME

Wash the bowl, lid, and basket in warm soapy water, rinse and dry

PREPARATION

1. Sit the appliance on a stable, level, heat-resistant surface, near a power socket.
2. Don't use the appliance near or below curtains, shelves, cupboards, or anything else likely to be damaged by the escaping steam.
3. Have oven gloves (or a cloth) to hand, and a heat-resistant mat or dinner plate to put the bowl on after cooking.
4. Put the bowl inside the cooker.

COOKING

1. Use the measuring cup to put the rice into the bowl.
2. Fill the bowl with water up to the number corresponding to the number of cups of rice used.
3. Give the bowl quarter of a turn each way, to ensure the bottom of the bowl makes good contact with the element.
4. Put the lid on the bowl.
5. Put the plug into the power socket. Move the on/off switch to 1. Move the switch to the position. The light will come on.
6. Move the switch to . The light will go out.
7. When the rice is cooked, the switch will move to , the light will go out, and the light will come on.
8. Let the rice rest for about 10 minutes, then unplug the cooker.
9. Put on the oven gloves.
10. Steam and hot air will escape when you lift the lid. Tilt it slightly to direct the steam away from you.
11. Lift out the bowl and set it down on a heat-resistant mat or dinner plate.
12. Use the spatula to turn and mix the rice, to let all the steam escape.
13. Sometimes the layer of rice in contact with the bowl will form a crust.
14. If you don't want it you can remove it with the spatula, after you've served the rice.

ADDITIONAL INGREDIENTS

• If you add any additional ingredients (raisins, fruit, nuts, etc.), you should reduce the amount of rice to compensate for the amount of water they'll absorb.
• Raisins and dried fruit will absorb as much water as rice, so put them into the measuring cup along with the rice.
• Nuts won't generally absorb much water, so you can normally add them after you've measured the rice.

1. Add the required amount of water – Use method 1 or 2 above.
2. Put the basket on top of the bowl and put the food into the basket.
3. For uniform cooking, cut all pieces of food to roughly the same size.
4. For peas, or anything that'll break up or drop into the water, make a parcel with aluminium foil.
5. Take care when removing the parcel – wear oven gloves and use plastic tongs/spoons.
6. Put the lid on top of the basket.
7. Operate the cooker the same way you would when cooking rice.
8. Follow the steaming times.
9. Don't leave food in the cooker after steaming – it'll go soggy.
10. Note the type and quantity of food and the amount of water. Next time, adjust the amount of water and let the cooker look after the timing.

FINISHED?

1. Switch off the appliance and unplug it.
2. Don't move the rice cooker with the full bowl inside it. It will be heavy, and the cable may catch on something as you move.
3. Remove the bowl from the rice cooker before emptying it. If you try to remove food from the bowl while it's in the rice cooker, you may spill the contents into the rice cooker. This will damage it.

CARE AND MAINTENANCE

1. Switch off the appliance, unplug it and let it cool.
2. Wash the lid, bowl, and rack in warm, soapy water, rinse and dry.
3. Wipe all surfaces with a clean damp cloth.
   You may wash these parts in a dishwasher.

COOKING TIMES AND FOOD SAFETY

food (fresh) quantity time (minutes)
asparagus 400g 15-18
green beans 200g 20
broccoli 200g 18
brussels sprouts 200g 20
cabbage (quarter)		25-30
carrots (sliced)	200g 15-20
cauliflower	200g 15
corn cobs	2	24-35
courgette (sliced)	200g	10-12
potatoes (quartered)	400g 25-30
spinach	200g 5-8
chicken (boneless)	400g 6-8
fish fillets	400g 8-10
fish steaks	2	20-23
prawns	250g	10-12
lobster tail (frozen)		12-15
mussels 250g 15

• Don't use mussels that are open prior to cooking. Steam until the shells open fully, and discard any that aren't open after cooking.
• These times are for a single layer of food. You'll need to experiment to find the times which suit your favourite foods and food combinations.
  • Cook meat, poultry, and derivatives (mince, burgers, etc.) till the juices run clear. Cook fish till the flesh is opaque throughout.
• You should cook leaf vegetables as little as possible, to keep them green and crisp. Plunging them into iced water will stop the cooking process.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

APENAS PARA USO DOMÉSTICO

ESQUEMAS

STELL OG VEDLIKEHOLD

UPORABA KUHALA ZA KUHANJE NA PARI

1. Dodajte potrebnu količinu vode. Koristite gornje načine 1 ili 2.
2. Stavite košaru na vrh posude i stavite hranu u košaru.
3. Za ravnomjerno kuhanje, izrežite sve komade hrane otprilike na istu veličinu.
4. Ukoliko kuhate grašak ili bilo šta što može prsnuti ili upasti u vodu, napravite paketić od aluminijske folije.
5. Budite pažljivi kod skidanja paketića: stavite rukavice za pećnicu i koristite se plastičnim hvataljkama/žlicama.
6. Stavite poklopac na vrh košare.
7. Pustite kuhalo da radi na isti način kao da se radi o kuhanju riže.
8. Slijedite vrijeme kuhanja na pari.
9. Nemojte ostavljati hranu u kuhalu poslije kuhanja na pari, jer će postati gnjecava.
10. Zabilježite vrstu i količinu hrane i količinu vode. Sljedeći put, popravite količinu vode i ostavite da se kuhalo brine o vremenu.

JESTE LI ZAVRŠILI?

1. Isključite uređaj i izvucite kabel iz utičnice.
2. Nemojte pomjerati kuhalo za rižu ako se na njemu nalazi puna posuda. Kuhalo će biti teško i kabel se može zaplesti oko nečega dok se krećete.
3. Prije pražnjenja, skinite posudu s kuhala za rižu. Ukoliko nastojite da izvadite hranu iz posude dok je još na kuhalu, riža može ispasti u kuhalo i oštetiti ga.

ČIŠĆENJE I ODRŽAVANJE

1. Isključite uređaj, izvucite utikač iz utičnice i ostavite ga da se ohladi.
2. Operite posudu, poklopac i rešetku u toploj sapunici, isperite i osušite.
3. Obrišite sve površine čistom vlažnom krpom.
   Te dijelove možete prati u perilici.

VRIJEME PEČENJA I SIGURNOST HRANE

hrana (svježa) količina vrijeme (u minutama)
šparoge 400g 15-18
mahune 200g 20
brokule 200g 18
prokulice 200g 20
kupus (četvrt)		25-30
mrkve (rezane)	200g 15-20
cvjetača 200g 15
klipovi kukuruza	2	24-35
tikvice (rezane)	200g	10-12
krumpiri (rezani)	400g 25-30
špinat	200g 5-8
piletina (bez kostiju)	400g 6-8
riblji fileti 400g 8-10
riblji odresci	2	20-23
rakovi	250g	10-12
jastogov rep (zamrznuti)		12-15
dagnje	250g 15

• Nemojte koristiti dagnje koje su već otvorene prije kuhanja. Kuhajte na pari dok se školjke potpuno ne otvore i bacite one koje se nisu otvorile poslije kuhanja.
• Ovo vrijeme odnosi se na pojedinačni sloj hrane. Morat ćete vršiti nekoliko proba kako biste pronašli vrijeme koje najbolje odgovara vašim omiljenim jelima i njihovim kombinacijama.
• Kuhajte meso, perad i prerađevine (mljeveno meso, hamburgere, itd) dok se iz njih ne pojavi bistri sok. Kuhajte ribu dok joj boja ne postane potpuno mutna.
• Kuhajte lisnato povrće što je manje moguće, kako bi se održali zelenim i hrskavim. Ako ih potopite u ledenu vodu, zaustavlja se proces kuhanja.

RECIKLAŽA
