Brand	Pando
Model	PI3400
Product type	Built-in induction hob
Number of cooking zones	3
Glass dimensions (W x D)	810 x 370 mm
Cutout dimensions (W x D)	760 x 340 mm
Power supply	230 V ~ single-phase or 400 V ~ two-phase, 50/60 Hz
Total power	6400 W
Left cooking zone (∅300 mm)	2300 W (booster 3000 W)
Center cooking zone (∅180 mm)	1100 W (booster 1400 W)
Right cooking zone (∅200 mm)	1400 W (booster 2000 W)
Functions	Booster, timer, keep warm, pause, lock, automatic cooking, recall
Safety	Pan detection, residual heat indicator, automatic shut-off, lock
Maintenance	Clean with water and dish soap, avoid abrasives
Warranty	3 years
After-sales service	[e-mail]

Frequently Asked Questions - PI3400 Pando

How to activate the control panel lock?

To lock, start the hob with the On/Off button, then simultaneously press the B key on the panel and the 0 indicator of the right cooking zone until a beep is heard. Then press the same 0 key again. The L symbol appears. To unlock, repeat the operation with the B key and the L indicator.

What does the symbol [U] on the display mean?

The [U] symbol indicates that no suitable pan is detected on the cooking zone, or the pan is not compatible with induction. Place a ferromagnetic pan of sufficient diameter to make the symbol disappear.

How to use the Booster function?

Select the cooking zone, then press the [B] key. Maximum power is activated for 10 minutes. A [P] is displayed. To stop, slide on the slider to [0] or press [B] to return to level 9.

How to clean the ceramic glass after cooking?

Turn off the appliance and let it cool. Clean with water and mild dish soap, or a specific ceramic glass cleaner. Do not use abrasives, metal sponges, or steam. Remove sugar immediately to avoid damaging the surface.

Why does the fan continue to run after turning off the hob?

This is normal. The cooling fan protects the electronics and stops automatically once the internal temperature is low enough. Do not worry.

What to do if error code [E4] appears?

The [E4] code indicates a configuration error. Follow the reconfiguration procedure: unplug the hob, wait, plug it back in. Then use a ferromagnetic pan of diameter ≥16 cm to reconfigure each zone. If the problem persists, contact customer service.

What types of pans to use on this induction hob?

Use pans with a ferromagnetic base: steel, cast iron, stainless steel with magnetic base, aluminum with magnetic base. Check with a magnet. Do not use copper, glass, ceramic, plain aluminum, or non-magnetic stainless steel.

How to set the timer for a cooking zone?

Select the zone, set the power, then press [CL]. Use the slider to set the minutes, confirm with [CL] for each digit. The countdown starts. At the end of cooking, a sound signal sounds.

What does the symbol [H] displayed mean?

[H] means 'residual heat'. The cooking zone is still hot after use. Do not touch it or place sensitive objects until the symbol disappears.

How to recall the last settings after turning off the hob?

Press the On/Off button to turn it back on, then within 6 seconds, press the Pause/Recall key (symbol [⑪]). The previous settings (power levels, timers) are restored.

USER MANUAL PI3400 Pando

Close-up of a Pando electric stove with visible circuit lines and control buttons (no text or symbols on the stove itself)

Pando

integralcooking

PI 3100

PI 3400

ES - P.01

Installation and user manual

Guarantee certificate

DE - P.95

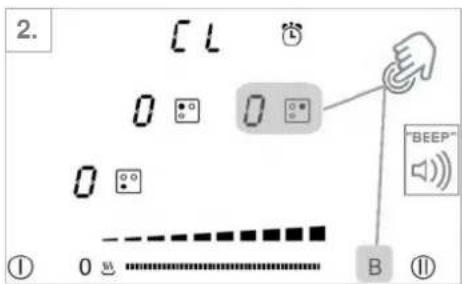

2. C L 0 0 0 ① 0 B ⑪ "BEEP"

3. CL 0 0 0 B ⑪

4. ① 0 B

- Desbloqueo:

2. L L L ① 0 ≈ ≈ B "BEEP"

3. L L L L L ① 0 B ⑪

4. CL O O O ① 0 B ⑪

CONSEJOS DE COCCIÓN

Circular metallic object with a star-like pattern and concentric rings, no visible text or symbols.

Base aluminio

Close-up of a black circular showerhead with metallic spherical patterns (no text or symbols visible)

Anillo ferromagnético

Simple line drawing of a magnifying glass with a shaded ring and a sad face emoji (no text or symbols)

Diagram showing a computer monitor with a sad face icon and a dashed line, possibly indicating a warning or alert.

Ø180 Ø120

Hand-drawn diagram showing a steaming container with steam rising, a sad face emoji, and a stick figure below.

Illustration of three food items: a pan with no smoke, a steamer with a pan, and a frying pan (no text or symbols)

OUTRAS PROTECÇÕES....32

2. CL 0 0 0 ① 0 m B "BEEP"

3. CL 0 0 0 1 0 B ⑪

4. ① 0 ≡ B ⑪

- Desbloqueio:

2. L L L ① 0 B ⑪ "BEEP"

3. CL L L L ① 0 B ⑪

4. C L 0 0 0 ① 0 B ⑪

CONSELHOS DE COZEDURA

Simple line drawing of a computer monitor with a sad face emoji on the right, no text or symbols present.

Ø180 Ø120

Pass

Three identical 3D-rendered kitchen utensils with crossed panes and a frying pan, plus an inset image showing a single pan (no text or symbols)

ATENÇÃO!

FONCTION PAUSE....62

FONCTION RAPPEL 62

2. C L 0 0 0 ① 0 B "BEEP" B

3. CL 0 0 0 ) 0 B ⑪

4. C L L L L ① 0 B ②

- Déverrouillage :

Circular metallic object with a star-like pattern and dot pattern, no visible text or symbols.

Base aluminium

Close-up of a black showerhead with visible circular pattern and central dot (no text or symbols)

Simple diagram showing a circular ring with hatching and an empty sad face icon (no text or symbols)

Simple diagram showing a computer monitor with a sad face icon and dashed lines indicating motion or interaction.

Ø180

Simple diagram showing a steaming container with a sad face emoji, connected to a horizontal line and a downward arrow labeled 'SODA' at the bottom.

Illustration of a frying pan with three panes and a side view showing a pan (no text or symbols)

ATTENTION!

L'utilisation de

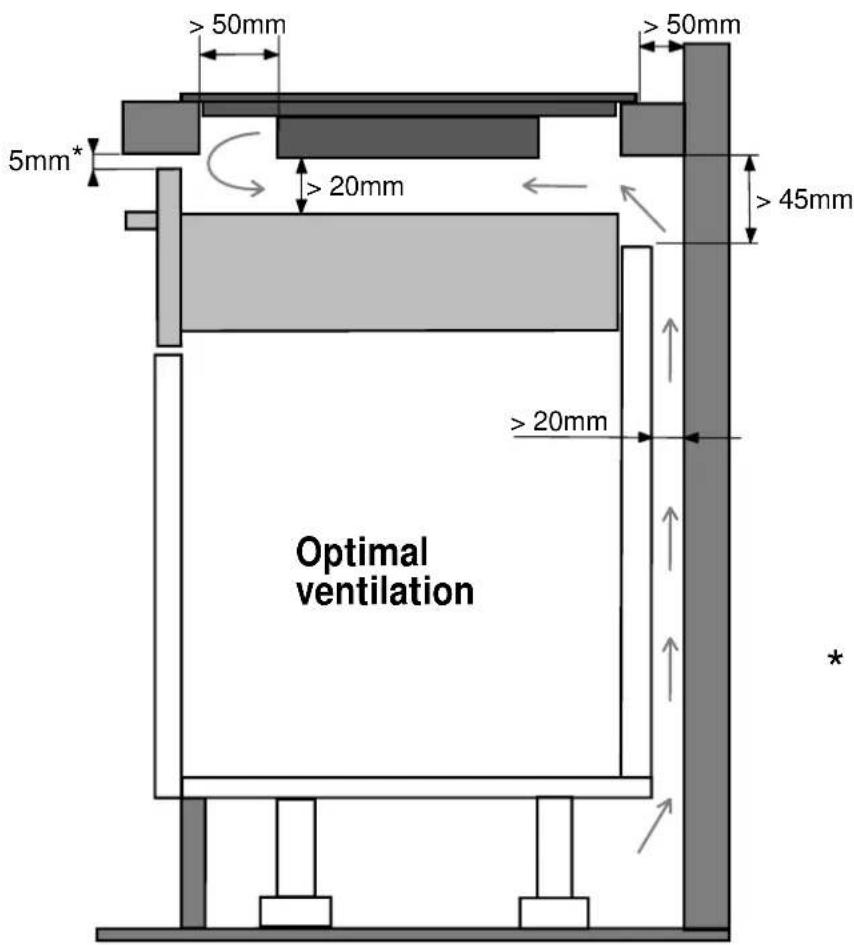

>50mm 5mm* >20mm >50mm >45mm >20mm Ventilation optionale *

First of all we wish to thank you for the trust shown on our Company by purchasing one of our products. We are sure you have made the right choice.

In Pando, not only we offer first quality products, but also we make available a large professional team to serve and assist you on any query you may have regarding installation and/or performance.

We also suggest you to pay a visit to our web site (www.pando.es/en) to get to know us better and where you will find all product range containing all necessary commercial and technical information.

A wide selection of extractor hoods can be found there; Wall Hoods, Ceiling, Island or Canopy Hoods. Four types of installation making possible to adapt ourselves to any type of kitchen based on different needs.

At the same time, we take the opportunity to introduce you our collection of in house essential appliances, such our new high performance Ovens and Microwaves, Induction and Gas Hobs to make real your best recipes. Wine Coolers and Aging Wine Coolers to maintain and keep your wines in best of conditions and built-in Dishwashers with latest technology.

All that under a brand with over 40 year history in the market, making products like a real craftsman, and gathering in them the best of our experience to please all your needs.

We sincerely look forward you to have fun, experience and enjoy with the comfort and capacity of what already became your new kitchen ally.

Many Thanks

The PANDO Team

Dear customer,

Thank you for having chosen our induction hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.

SUMMARY

SAFETY....75

PRECAUTIONS BEFORE USAGE....75

USING THE APPLIANCE 75

PRECAUTIONS TO PREVENT DAMAGE TO THE APPLIANCE 76

PRECAUTIONS IN CASE OF APPLIANCE FAILURE....77

OTHER PRECAUTIONS 77

DESCRIPTION OF THE APPLIANCE....78

TECHNICAL CHARACTERISTICS....78

CONTROL PANEL 79

USE OF THE APPLIANCE....79

DISPLAY....79

VENTILATION....79

STARTING-UP AND APPLIANCE MANAGEMENT 80

BEFORE THE FIRST USE....80

INDUCTION PRINCIPLE 80

SENSITIVE TOUCH....80

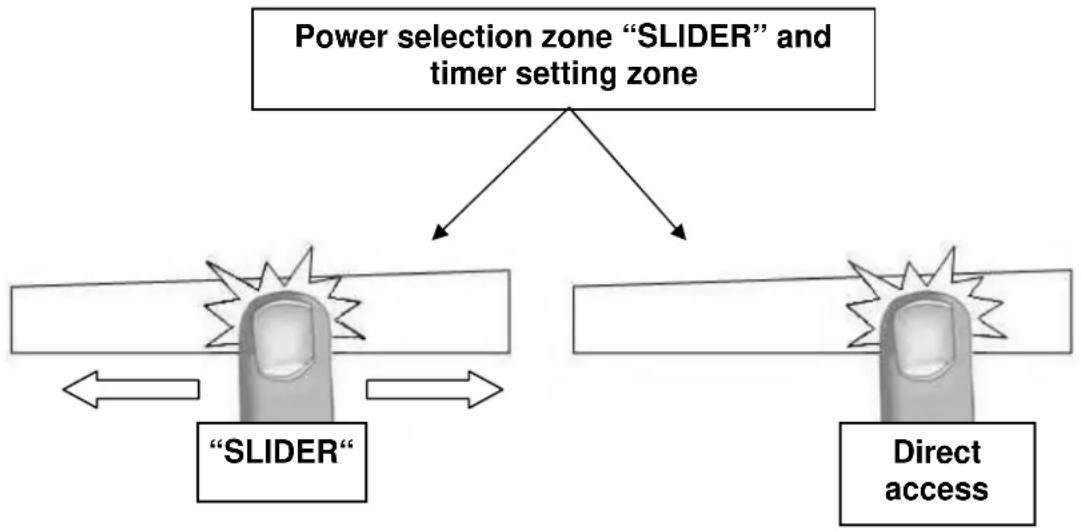

POWER SELECTION ZONE "SLIDER" AND TIMER SETTING ZONE 80

STARTING-UP 81

PAN DETECTION 81

RESIDUAL HEAT INDICATION 81

BOOSTER FUNCTION 82

TIMER 82

AUTOMATIC COOKING 83

PAUSE FUNCTION 84

RECALL FUNCTION 84

"KEEP WARM" FUNCTION....84

CONTROL PANEL LOCKING....85

COOKING ADVICES 86

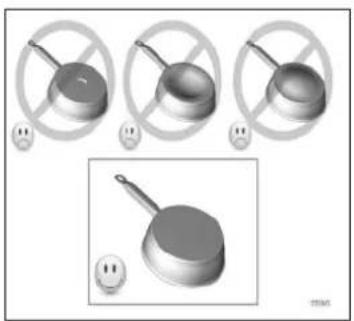

PAN QUALITY 86

PAN DIMENSION....87

EXAMPLES OF COOKING POWER SETTING....87

MAINTENANCE AND CLEANING ....87

WHAT TO DO IN CASE OF A PROBLEM....88

ENVIRONMENT PRESERVATION 90

INSTALLATION INSTRUCTIONS....91

ELECTRICAL CONNECTION 93

AFTER-SALES SERVICE AND WARRANTY....94

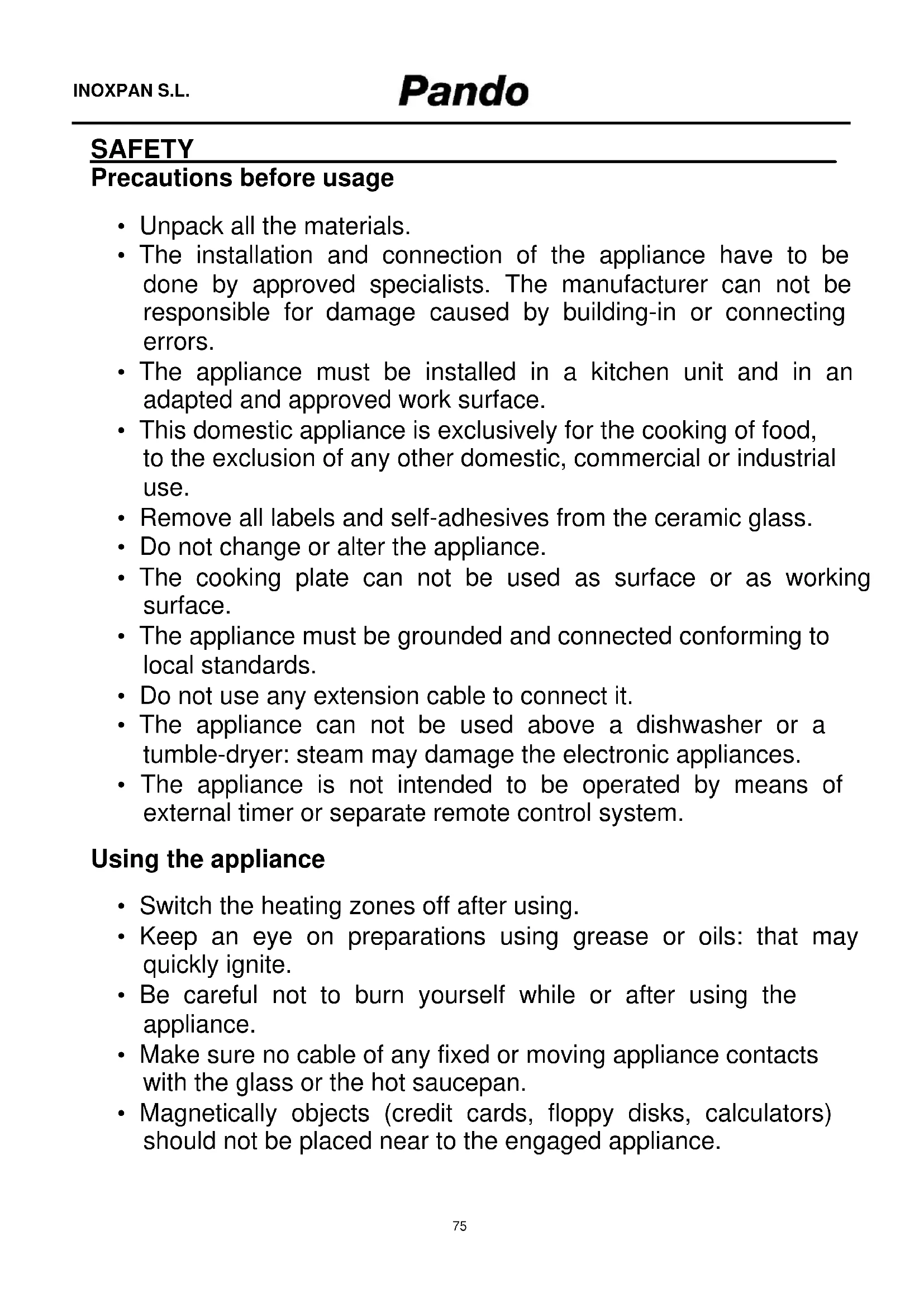

SAFETY

Precautions before usage

• Unpack all the materials.
• The installation and connection of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors.
• The appliance must be installed in a kitchen unit and in an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate can not be used as surface or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance can not be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on preparations using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.

• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

• Do not place any metallic object except heating containers. In case of untimely engaging or residual heat, this one may heat, melt or even burn.

• Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

Precautions to prevent damage to the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).

- WARNING: Danger of fire: do not store items on the cooking surface.

- Never place any hot container over the control panel.

- If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.

- Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other precautions

• Make sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
• Do not use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER PCOR QUALITY POTS OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

DESCRIPTION OF THE APPLIANCE

Technical characteristics

Type PI3100 PI3400
Total power 6700 W 6400 WEnergy consumption for the hob EC_hob **	175.5 Wh/kg	178.8 Wh/kg
Front left heating zone // left zone ∅ 220 mm ∅ 300 mmMinimum detection ∅ 100 mm ∅ 110 mmNominal power* 2300 W 2300 WBooster power* 3000 W 3000 WStandardised cookware category** C DEnergy consumption EC_cw **	171.1Wh/kg	178.1 Wh/kg
Rear left heating zone // central zoneMinimum detection ∅ 90 mm ∅ 90 mmNominal power* 1100 W 1100 WBooster power* 1400 W 1400 WStandardised cookware category** BEnergy consumption EC_cw **	∅ 180 mm ∅ 180 mmB177.3 Wh/kg	177.3 Wh/kg
Right heating zoneMinimum detection ∅ 110 mm ∅ 90 mmNominal power* 2300 W 1400 WBooster power* 3000 W 2000 WStandardised cookware category** D CEnergy consumption EC_cw **	∅ 280 mm ∅ 200 mm178.1 Wh/kg	181 Wh/kg

* The given power may change according to the dimensions and material of the pan.

** calculated according to the method of measuring performance (EN 60350-2).

	PI3100		PI3400
∅ EXT.	∅ MÍN.	∅ MÁX.	∅ MÍN.	∅ MÁX.
∅ 180 mm	90mm	200mm	90mm	200mm
∅ 200 mm	-	-	90mm	220mm
∅ 220 mm	100 mm 240mm		-	-
∅ 280 mm	110mm	300mm	-	-
∅ 300 mm	-	-	110mm	300mm

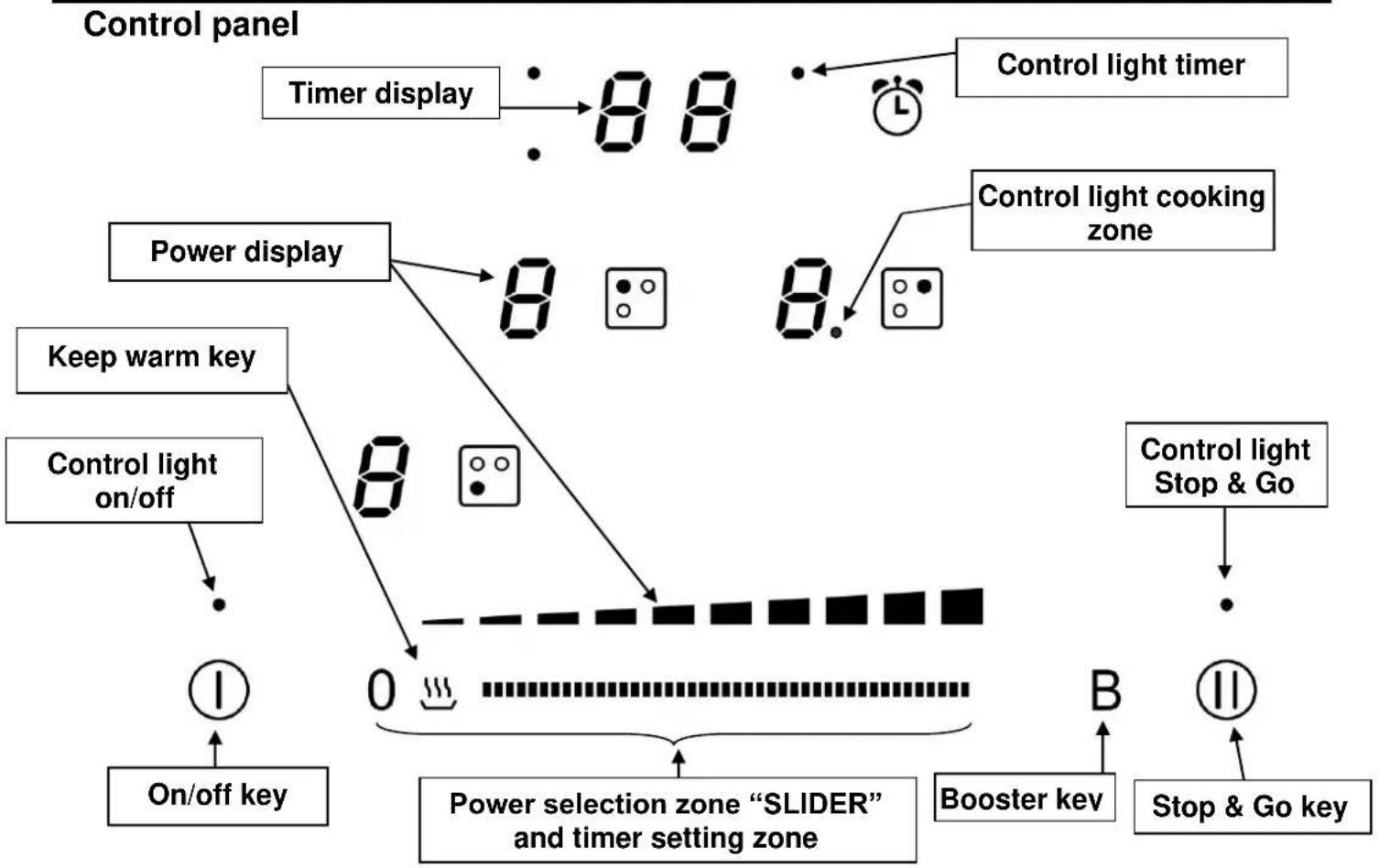


USE OF THE APPLIANCE

Display

Display Designation Function

1. Zero The heating zone is activated.

1...9 Power level Selection of the cooking level.

U No pan detection No pan or inadequate pan.

A Heat accelerator Automatic cooking.

E Error message Electronic failure.

H Residual heat The heating zone is hot.

P Power The boosted power is activated.

L Locking Control panel locking.

U Keep warm Maintain automatically of 70^ C.

II Stop&Go The hob is in pause.

Π Bridge 2 cooking zones are combined.

Ventilation

The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The ventilation starts his high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it with a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
• Are excluded: copper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,...

The induction heating zone adapts automatically to the size of the pan. With a too small diameter the pan doesn't work. This diameter is varying in function of the heating zone diameter. If the pan is not adapted to the induction hob the display will show [U].

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.

In the case of a general use press only one key at the same time.

Power selection zone "SLIDER" and timer setting zone

To select the power with the slider, slide your finger on the "SLIDER" zone. You can already have a direct access if you put your finger directly on the chosen level.

Starting-up

- S tart up / switch off the hob:

Action	Control panel	Display
To start	press key [ ]	[0] are blinking
To stop	press key [ ]	nothing or [H]

- Start up / switch off a heating zone:

Action	Control panel	Display
Zone selection	Press [0] of the selected zone	[0] and control light on
To set	Slide on the “SLIDER”	[0] to [9]
(adjust the power)	to the right or to the left
To stop	Slide to [0] on “SLIDER”	[0] or [H]
	or press on [0]	[0] or [H]

If no action is made within 20 second the electronics returns in waiting position.

Pan detection

The pan detection ensures a perfect safety. The induction doesn't work:

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [U]. This symbol disappears when a pan is put on the heating zone.
• If the pan is removed from the heating zone the operation is stopped. The display shows [U]. The symbol [U] disappears when the pan is put back to the heating zone. The cooking continues with the power level set before.

After use, switch the heat element off: don't let the pan detection [U] active.

Residual heat indication

After switching off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.

The symbol [ H ] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Booster function

The booster function [B] grants a boost of power to the selected heating zone.

If this function is activated the heating zones work during 5 minutes with an ultra high power.

The booster is foreseen for example to heat up rapidly big quantities of water, like nuddles.

- Start up / Stop the booster function:

Action Control panel Display

Zone selection Press key [0] from the zone [0] and control light on

Start up the Booster Press key [ B ] [ P ] during 5 min

Stop the Booster Slide on the "SLIDER" [P] to [0]

Or press [ B ] [ 9 ]

• Power management:

The cooking hob is equipped with two booster functions. When the booster function is activated, and not to exceed the maximum power, the electronic system orders to reduce automatically the power level of an other heating zone. The display is blinking on [9] during a few seconds and then shows the maximum of power allowed :

Heating zone selected The other heating zone: (example: power level 9)

[B] is displayed [9] goes to [7] depending the type of zone

Timer

The timer is able to be used simultaneous with all 3 heating zones and this with different time settings (from 0 to 99 minutes) for each heating zone.

- Setting and modification of the cooking time :

Example for 16 minutes at power 7 :

Action	Control panel	Display
Zone selection	press display [0] selected	[0] and control light on
Select the power level	slide on the “SLIDER” to [7] [7]
Select « Timer »	press display [CL]	[00]
Set the units	slide on the “SLIDER” to [6] [0 fixed] [6 blinking]
Valid the units	press display [06]		[0 blinking] [6 fixed]
Set the tens	slide on the “SLIDER” to [1]		[1 blinking] [6 fixed]
Valid the tens	press display [16] [16]
The time is confirmed and the cooking starts.

• To stop the cooking time:

Example for 13 minutes at power 7 :

Action	Control panel	Display
Zone selection	press display [0] selected	[0] and control light on
Select « Timer »	press key [13]	[13]
Deactivate the units	slide on the “SLIDER” to [0]	[1 fixed] [0 blinking]
Valid the units	press display [10]		[1 blinking] [0 fixed]
Deactivate the tens	slide on the “SLIDER” to [0]	[0 blinking] [0 fixed]
Valid the tens	press display [00]	[00]

• Automatic stop at the end of the cooking time:

As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.

To stop the sound and the blinking it is enough to press the key [00].

- Egg timer function :

Example for 29 minutes :

Action

Control panel

Display

Activate the hob	press display [ ]	zone control lights are on
Select« Timer »	press display [ CL ]	[ 00 ]
Set the units	slide on the “SLIDER” to [ 9 ]	[ 0 fixed ] [ 9 blinking ]
Valid the units	press display [ 09 ]	[ 0 blinking ] [ 9 fixed ]
Set the tens	slide on the “SLIDER” to [ 2 ]	[ 2 blinking ] [ 9 fixed ]
Valid the tens	press display [ 29 ]	[ 29 ]

After a few seconds the control light stops with blinking.

As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.

To stop the sound and the blinking it is enough to press the display [00]. The hob switches off.

Automatic cooking

All the cooking zones are equipped with an automatic “go and stop” cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the pre-selected level.

- Start-up :

Action

Control panel

Display

Zone selection press display [0] selected [0] and control light on

Full power setting slide on the “SLIDER” to [9] pass from [0] to [9]

Automatic cooking re-press on display “SLIDER” [9] [9] is blinking with [A]

Power level selection slide on the “SLIDER” to [7] [9] pass to [8] [7]

(for example “7”) [7] is blinking with [A]

- Switching off the automatic cooking :

Action

Control panel

Display

Zone selection press [7] from the zone [7] blinkingwith [A]Power level selection slide on the “SLIDER” [1] to [9]

Pause function

This function defines all the hob's cooking activity and allows restarting with the same settings.

- Startup/stop the pause function :

Action

Control panel

Display

Engage pause press [ ] during 2s displays [ II ] in the heating zone displays Stop the pause press [ ] during 2s pause control light is blinking press an other touch or pause control light is off slide on the "SLIDER"

Recall Function

After switching off the hob ( Ⓞ, it is possible to recall the last settings.

• cooking stages of all cooking zones (power)
- minutes and seconds of programmed cooking zone-related timers
• Automatic heat up function

The recall procedure is following:

• Press the key [ ]①
• Then press the key [ ] within 6 seconds

The precedent settings are activated.

"Keep warm" Function

This function allows to reach and maintain automatically a temperature of 70^ C. This will avoid liquids overflowing and fast burning at the bottom of the pan.

Zone selection Press display [0] selected [0] to [9] or [H]

To engage (72°) Press on key [ ] on the "SLIDER" [U]

To stop Press on display [ ] selected [ U ] Slide on the "SLIDER" [ 0 ] to [ 9 ] or [ H ]

This function can be started independently on all the heating zones.

When the pan leaves the cooking zone of the "Keep warm" function remains active during approximately 10 minutes.

The maximum duration of keeping warm is 2 hours.

Control panel locking / unloking:

To avoid modifying a setting of cooking zones, in particular during of cleaning the control panel can be locked (with exception to the On/Off key [1])

- Locking:

1. Press ON key [ ]
2. Press simultaneously [B] and [0] from the right zone display until you hear "Beep." (If this Beep is not heard, repeat the steps 1 and 2.)
3. Re-press [0] from the right zone display].
4. The "L" symbol will appear in the 3 zones, indicating that they are locked.

2. C L 0 0 0 ① 0 B ⑪ "BEEP"

3. CL 0 0 0 ) 0 B ⑪

4. ① 0 B ⑪

- Unlocking:

1. Press ON key [ ]
2. Press simultaneously [B] and [L] from the right zone display until you hear "Beep." (If this Beep is not heard, repeat the steps 1 and 2.)
3. Re-press [B].
4. The "L" symbol will disappear in the 3 zones, indicating that they are unlocked.

2. L L L ① 0 .... B "BEEP"

3. C L L L L ① 0 B ⑪

4. CL 0 0 0 ① 0 B ⑪

COOKING ADVICES

Pan quality

Adapted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Not adapted materials : aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

Ferromagnetic base

Circular metallic object with a star-like pattern on its surface, no visible text or symbols.

Aluminium base

Close-up of a showerhead with metallic spherical filter and central aperture (no text or symbols visible)

Ferromagnetic ring

Simple line drawing of a magnifying glass with a shaded ring and a sad face emoji (no text or symbols)

Ferromagnetic elementBase smallerToo great a distant not parallel to the inductorthan the potFerromagnet

Simple diagram showing a computer monitor with a sad face emoji and dashed lines indicating motion or signal flow.

Ø180 Ø120

25555555 35555555

The manufacturers specify if their products are compatible induction.

To check if pans are compatibles :

• Put a little water in a pan placed on an induction heating zone set at level [9]. This water must heat in a few seconds.
  • A magnet stucks on the bottom of the pan.

NOTE: Overheating of an empty pot with a curved base or a logo or embossed hollow in the centre could damage the inductor.

Illustration of three kitchen utensils with no visible text or symbols, alongside a separate image of a frying pan (no text or symbols present)

¡ATTENTION! The use of improper containers may cause malfunction or damage to the appliance that would not be covered by the manufacturer's warranty.

SOUNDS DURING USE:

• Noises during cooking. Some kitchen utensils, depending on the quality of the ferritic base of the container, may be more intense if the composition of the base is poor or poor.
• A slight "click click" sound is heard. This sound is normal. It is a safety indicator to detect presence of the container on the inductor. It activates automatically when you turn on the hob and during cooking.
• A slight hum is heard. It is a normal sound that comes from the transmission of energy from the inductor to the base of the container (electromagnetic waves).

Pan dimension and types of material.

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.

Caution! Certain pans made of special materials such as cast iron, i.e. grill plates, have low temperature dissipation property, accumulate significant amounts of heat that is conducted by direct contact of the pan to the ceramic glass, causing overheating inside the appliance, which could lead to damages Therefore, we recommend not using very high power and using average ranges with this type of pan.

Examples of cooking power setting

(the values below are indicative)

1 to 2 Melting	Reheating	Sauces, butter, chocolate, gelatineDishes prepared beforehand
2 to 3 Simmering	Defrosting	Rice, pudding, sugar syrupDried vegetables, fish, frozen products
3 to 4 Steam Vegetables	es, fish, meat
4 to 5 Water Steamed	potatoes, soups, pasta,	fresh vegetables
6 to 7 Medium cooking	Simmering	Meat, lever, eggs, sausagesGoulash, roulade, tripe
7 to 8 Cooking Potatoes	es, fritters, wafers
9 Frying, roosting	Boiling water	Steaks, omelettes, fried dishesWater
P Frying, roosting	Boiling water	scallops, steaksBoiling significant quantities of water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-cleaner or pressure washer.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.
• Ensure the cooking pans are clean and in good condition prior to using them to prevent any damage to the surface of the device

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn't start-up :

• The hob is badly connected on the electrical network.
  • The protection fuse cut-off.
• The looking function is activated.
• The sensitive keys are covered of grease or water.
• An object is put on a key.

The control panel displays [U]:

• There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.

The control panel displays [ E ] :

- Call the After-sales Service.

The control panel displays [L]:

• Refer to the chapter control panel locking page.

One or all cooking zone cut-off :

• The safety system functioned.
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and its bottom overheated.
- The hob also has an automatic reduction of power level and breaking Automatic overheating

Continuous ventilation after cutting off the hob :

• This is not a failure, the fan continuous to protect the electronic device.
• The fan cooling stops automatically.

The automatic cooking system doesn't start-up :

• The cooking zone is still hot [H].
- The highest power level is set [9].

The control panel displays [U]:

• Refer to the chapter "Keep warm".

The control panel displays [ II ]:

• Refer to the chapter "Pause".

The control panel displays [ ]:

• Refer to the chapter "Bridge".

When the symbol [ E 4 ] appears :

• The table must be reconfigured by following the following steps :
  I) Important: before you start, make sure there is no more pot on the hob
  II) Disconnect the appliance from the grid by removing the fuse or turning the circuit breaker off
  III) Reconnect the table to the grid
  IV) Procedure :
  * take a pot with a ferromagnetic bottom and a minimum diameter of 16 cm
  * start the procedure within 2 minutes after connecting the hob to the grid

* don't use the [①] touch

V) First step : cancel the existing configuration

1) Press the touch n°2 and hold down
2) The symbol [-] will appear on each display
3) With your other hand, press successively and quickly (less than 2s) on each [-] display.
Begin from the front right side and turn contrary clockwise, as described on the picture (from a to c).

A double "beep" means an error occurred. If so, start again from item 1).

4) Remove your fingers from the touch control, then push again on touch 1 during few seconds, until blinking [ E ] symbols appear.
5) Wait until [ E ] symbols stop blinking.
6) After few seconds, [ E ] are automatically transformed in [ C ]. The existing setup has been cancelled.

VI) Second step : new setup

1) Use a ferromagnetical pot with a minimum diameter of 16 cm
2) Select a cooking zone by pushing on the corresponding [ C ] display
3) Place the pot on the area to be set
4) Wait until the [ C ] display becomes a [- ]. The selected cooking zone is now configured.
5) Follow the same procedure for each cooking zone with a [ C ] display.
6) All the cooking zones are configured once all the displays are turned off.
Please use the same pot for the whole procedure.
Never put several pots together on the zones during the setup-process.

- If [ E 4 ] displaying remains, please call the customer care

The control panel displays [ ] or [ Er03 ] :

- An object or liquid covers the control keys. The symbol disappears a soon as the area is cleaned or the object has been removed.

The control panel displays [E2] or [EH]:

- The hob is overheated, let it cool and then turn it onagain.

The control panel displays [ E3 ] :

- The pan is not adapted, change the pan.

The control panel displays [E6]:

- Defective electrical network. Control the frequency and voltage of the electrical network.

The control panel displays [ E8 ] :

- The air inlet of the ventilator is obstructed, release it.

The control panel displays [E C]:

- Configuration error. Set the table again, referring to the chapter "The [E 4] symbol appears."

A slight "click click" sound is heard when placing a container on a stove:

- This sound is normal. It is a safety indicator to detect the presence of the container on the inductor. It is automatically activated when the hob is turned on and during cooking.

If one of the symbols above persists, call the Customer Service.

COLLECTION OF APLIANCES

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2012/19/EU on electrical and electronic appliance waste (WEEE).

ENVIRONMENTAL PROTECTION AND WASTE TREATMENT

DISPOSAL OF THE PACKAGING. The packaging is marked with in Green Dot.

In its commitment to the protection of the environment and in compliance with the provisions of the European Directive 94/62 / EC on packaging and packaging waste and the derived Law 22/2011 on Contaminated Residues and Soils, Pando entrusts entities of social economy an Integrated Management System, responsible for the periodic collection at the consumer's home or in its vicinity of used packaging and packaging waste for subsequent treatment.

To remove all packaging materials such as cardboard, expanded polyurethane, and film, use the appropriate containers.

This ensures the correct treatment and reuse of packaging materials.

INSTALLATION INSTRUCTIONS

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

2mm 2 3

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

• The plate is equipped with two fans located at the bottom. Please observe the distances for the circulation of the ventilation air.
• Ensure that there is a distance of 50mm between the hob and the wall or sides.
• The ventilation distance between the plate base and the upper section of a ventilated oven or drawer, must beat least 20mm. The separation distance for non forced ventilation ovens must be greater in accordance with the oven manufacturer's recommendations.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.
• The mural rods of edge must be heat-resisting.
• Not to install the hob to the top of a not ventilated oven or a dishwasher.
• To guarantee under the bottom of the hob casing a space of 20 mm to ensure a good air circulation of the electronic device.
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects. Take care when placing metal objects such as cooking pans or cutlery as these may overheat and cause burns.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guarantees a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760 mm.
• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

Fitting - installing:

> 50mm 5mm* > 20mm > 45mm > 20mm Optimal ventilation *

¡ATTENTION! Improper installation and dailure to observe the ventilations may lead to malfunction of breakdown of the device that is not covered by the manufacturer's warranty

* Front ventilation recommended, with this we avoid excess temperature in hob, furniture and equipment under the hob.

• The cut out sizes are:

Cut size Glass size
Model ThicknessDepthWidthDepthWidth
PI3100 4520590490560
PI3400 4370810340780

PI 3100 520 590 4 45 560 50 490

PI 3400 370 810 4 45 760 340 50

ELECTRICAL CONNECTION

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly aware of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses, circuit breaker or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~ 50 / 60 Hz.

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains Connection Cable diameter Cable Protection calibre
230V~ 50/60Hz	1 Phase + N	3 x 2,5 mm ^2	H 05 VV - FH 05 RR - F	25 A *
400V~ 50/60Hz	2 Phases + N	4 x 1.5 mm ^2	H 05 VV - FH 05 RR - F	16 A *

* calculated with the simultaneous factor following the standard EN 60 335-2-6

Connection of the hob

Setting up the configurations:

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V\~1P+N

Put a bridge between terminal 1 and 2.

Attach the earth to the terminate “earth”, the neutral N to terminal 4 (Blue and Grey), the Phase L to one of the terminals 1 or 2 (Brown and Black)

Biphase 400V\~2P+N

Attach the earth to the terminate "earth",

the neutral N to terminal 4 (Blue and Grey), the Phase

L1 to the terminals 1 (Brown) and the Phase L2 to the terminal 2 (Black)

See connection diagramon device label

①②③④ L N 1P+N ①②③④ L1 L2 N 2P+N ①②③④ L1 L2 230V 2P

Caution! Frequent loosening and screwing of the screws on the connection box risks damaging the efficiency of the tightness once screwed. It is therefore advisable to keep screwing and unscrewing to a minimum.

Ensure that the cables are correctly inserted and tightly screwed down.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

PANDO - AFTER-SALES SERVICE (SAT) AND WARRANTY

INOXPAN S.L. E-MAIL: [e-mail]

TEL. [phone] / FAX: [phone] WEBSITE: http://www.pando.es/asistencia-tecnica/

Please call the above phone number, or contact us via fax or e-mail to request any technical assistance, either within or outside of the warranty. We wish to inform you that only operations involving product faults will be covered by the warranty.

WARRANTY CERTIFICATE:

INOXPAN, SL, as manufacturer of this device, guarantees the same for a period of three years from the date of purchase, against any manufacturing defects that may affect its proper operation. Proof of purchase must be presented in order to avail of this warranty.

During this period, the Company undertakes to replace or repair any faulty part due to defects or manufacturing defects in the device free of charge, until proper operation and the necessary labour and expenses incurred as a result of such repair or replacement.

The following points will not be covered by the warranty, where the user must cover the costs of materials, labour and transport relating to the technical service in this case:

• If the installation of the induction plate has not been carried out by an Authorised Professional Specialist, Qualified Electrician or Pando's Official Technical Service personnel who meet the requirements of safety standards and electrical power regulations.
• Breakdowns or damage caused by transport or intervention of personnel from outside this unauthorized company.
• Problems caused by improper installation of the induction plate, checks of the installation or operation and cleanings.
• Tampering with the wiring and connections of the device.
• Malfunctions and damage caused by external abnormalities or variations of the power supply or natural disasters such as storms, lightning, floods, etc.
• Aesthetic damage such as dents, scratches, cracks, tears and stains on the device caused by improper installation or tampering, use of unsuitable utensils and containers or ones in poor condition, or the use of non-recommended cleaning products.
• When the device is intended for non-domestic use, which it has not been designed for.
• Malfunction of the device owing to breach of the regulations, instructions and recommendations stated in the device installation and user manual.

INOXPAN, SL, is expressly excluded from any liability for any direct or indirect damages to persons or things owing to breakdowns or defects of the device caused by improper handling of the same.

This warranty is only valid when the same is met. The model, registration, the stamp of the trade dealer or establishment must be stated, and must be accompanied by the receipt indicating date of purchase.

Anything not expressly stated in this Certificate will be regulated by the provisions of General Law for the Defense of Consumers and Users Law 26/84, of 19 July, as well as Retail Trade Regulations 7/ 96 of 13 January.

MODEL
REGISTRATION NO.
AUTHORIZED SPECIALIST INSTALLER
PURCHASE DATE
DEALER STAMP

2 CL 0 0 0 ① 0 B ⑪ "BEEP"

3 CL 0 0 0 0 ① 0 B ⑪

4 CL L L L ① 0 B (Ⅱ)

Entriegelung:

2 L L L L L BEEP ① 0 B ⑪

3 CL L L L ① 0 B ⑪

4 CL 0 0 0 ① 0 B ⑪

KOCHEMPFEHLUNGEN

Kochgeschirr

Circular metallic object with a star-like pattern and a smiley green icon on the right (no text or symbols)

Aluminiumboden

Close-up of a showerhead with circular pattern and a sad face emoji (no text or symbols)

Magnetischer Ring

Simple line drawing of a magnifying glass with a shaded ring and a sad face emoji (no text or symbols)

Simple line drawing of a rectangular object with two diagonal lines extending from its top, no text or symbols present.

Diagram showing a container with steam rising, with sad face expressions below and 'GOOD' text at bottom

Three identical 3D-rendered objects with crosshairs, one holding a pan, shown in a separate view (no text or symbols)

ACHTUNG!

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2012/19/EU on electrical and electronic appliance waste (WEEE).

ENVIRONMENTAL PROTECTION AND WASTE TREATMENT

DISPOSAL OF THE PACKAGING. The packaging is marked with in Green Dot.

In its commitment to the protection of the environment and in compliance with the provisions of the European Directive 94/62 / EC on packaging and packaging waste and the derived Law 22/2011 on Contaminated Residues and Soils, Pando entrusts entities of social economy an Integrated Management System, responsible for the periodic collection at the consumer's home or in its vicinity of used packaging and packaging waste for subsequent treatment.

To remove all packaging materials such as cardboard, expanded polyurethane, and film, use the appropriate containers.

This ensures the correct treatment and reuse of packaging materials.

MONTAGEHINWEISE

QR code with a hammer and sickle symbol in the center, likely linking to a service or application.

SERVICIO POST VENTA España, Portugal y Andorra

QR code with a central logo depicting a hammer and sickle symbol

CE
