QL3 - Flashlight Dörr - Free user manual and instructions

Product Type	Multifunctional LED Work Light
Brand	Dörr
Model	QL3
Interchangeable Heads	3 (zoom head, surface work light, mini zoom head)
Head Attachment System	Quick-Lock
Integrated Magnet	Yes, on the battery compartment cover
Light Source	White LED, CRI ≥ 65
Number of Brightness Levels	2 (30% and 100%)
Maximum Brightness	250 lumens (zoom), 350 lumens (surface), 180 lumens (mini zoom)
Maximum Range	150 m (zoom), 25 m (surface), 100 m (mini zoom)
Battery Life (full battery)	2.5 h (zoom), 1.5 h (surface), 4.5 h (mini zoom)
Power Supply	1 x 18650 Lithium-ion battery 3.7 V 2200 mAh (included)
Charging	Micro USB, included power adapter (5V 1A)
USB Operation	Possible with a power bank
Body Diameter	3 cm
Length (body + head)	20.5 cm (zoom), 35.5 cm (surface), 56 cm (mini zoom)
Weight (body + head + battery)	236 g (zoom), 253 g (surface), 270 g (mini zoom)
Material	Aluminum (zoom), aluminum/plastic (surface and mini zoom)
Shock Resistance	Up to 1 m drop height
Protection Rating	IP30
Cleaning	Slightly damp microfiber cloth, no harsh chemicals
Safety	Do not look directly into the LED, keep out of reach of children, do not open
Package Contents	Lamp body, 18650 battery, Micro USB cable, power adapter, 3 heads, carrying case, safety instructions
Certifications	CE, RoHS

Frequently Asked Questions - QL3 Dörr

How to charge the QL3 lamp?

Open the rubber cover of the Micro USB connector, plug the included USB cable into a power source (power adapter or power bank). The red LED indicates charging, it turns green after approximately 2 hours.

Can I use the lamp without a battery?

Yes, you can power it via the Micro USB port with a power bank. The battery is not necessary in this case.

How to change the lamp head?

Hold the lamp body, pull the Quick-Lock lock down to remove the head. Insert the new head into the receptacle and push until the lock engages.

What is the battery life of the lamp?

Battery life depends on the head used: approximately 2.5 h with the zoom head, 1.5 h with the surface work light, and 4.5 h with the mini zoom head.

How to attach the lamp to a metal surface?

The battery compartment cover is magnetic. Simply place the lamp on a clean metal surface (hood, scaffolding) to hold it, freeing both hands.

What to do if the lamp does not turn on?

Check that the battery is inserted in the correct direction (+/-) and that it is charged. Make sure the head is properly engaged. If the problem persists, contact a specialist.

Is the QL3 lamp waterproof?

It is weather-resistant with IP30 rating, meaning it protects against solid objects >2.5 mm but not against water jets. Avoid rain and humidity.

How to clean the lamp?

Use a slightly damp microfiber cloth (no harsh chemicals like gasoline). Turn off the lamp and remove the battery before cleaning.

Can I use other batteries than the one supplied?

Only use a 18650 Lithium-ion battery with protection against overvoltage, undervoltage, short circuit, and polarity reversal.

What to do in case of malfunction or drop?

If the lamp falls, do not use it without having it checked by a qualified electrician. Never attempt to open or repair it yourself; contact a specialist.

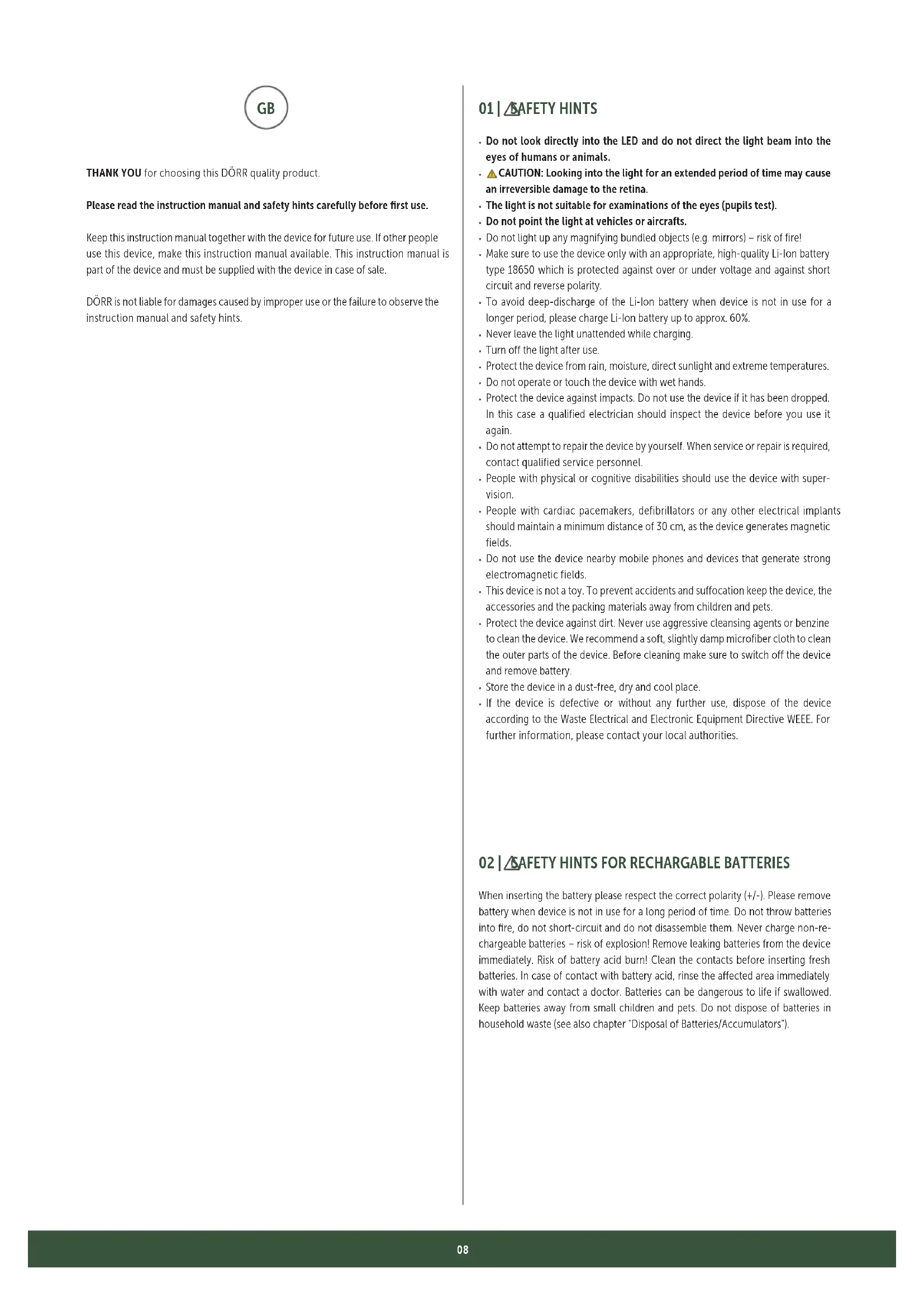

USER MANUAL QL3 Dörr

THANK YOU for choosing this DORR quality product.

Please read the instruction manual and safety hints carefully before first use.

Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale.

DORR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.

01 SAFETY HINTS

• Do not look directly into the LED and do not direct the light beam into the eyes of humans or animals.
  CAUTION: Looking into the light for an extended period of time may cause an irreversible damage to the retina.
  The light is not suitable for examinations of the eyes (pupils test).
• Do not point the light at vehicles or aircrafts.
• Do not light up any magnifying bundled objects (e.g. mirrors) - risk of fire!
• Make sure to use the device only with an appropriate, high-quality Li-ion battery type 18650 which is protected against over or under voltage and against short circuit and reverse polarity.
• To avoid deep-discharge of the Li-ion battery when device is not in use for a longer period, please charge Li-ion battery up to approx. 60% .
• Never leave the light unattended while charging.
• Turn off the light after use.
• Protect the device from rain, moisture, direct sunlight and extreme temperatures.
• Do not operate or touch the device with wet hands.
• Protect the device against impacts. Do not use the device if it has been dropped. In this case a qualified electrician should inspect the device before you use it again.
• Do not attempt to repair the device by yourself. When service or repair is required, contact qualified service personnel.
• People with physical or cognitive disabilities should use the device with supervision.
• People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30~cm , as the device generates magnetic fields.
• Do not use the device nearby mobile phones and devices that generate strong electromagnetic fields.
• This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.
• Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to switch off the device and remove battery.
• Store the device in a dust-free, dry and cool place.
• If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

02 | SAFETY HINTS FOR RECHARGABLE BATTERIES

When inserting the battery please respect the correct polarity (+/-) . Please remove battery when device is not in use for a long period of time. Do not throw batteries into fire, do not short-circuit and do not disassemble them. Never charge non-rechargeable batteries - risk of explosion! Remove leaking batteries from the device immediately. Risk of battery acid burn! Clean the contacts before inserting fresh batteries. In case of contact with battery acid, rinse the affected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries away from small children and pets. Do not dispose of batteries in household waste (see also chapter "Disposal of Batteries/Accumulators").

03 | PRODUCT DESCRIPTION

The DORR QL-3 LED Multifunctional working light is an all-round talent - the quick-lock system allows to exchange the supplied three light heads within seconds. The built-in magnet fi xes the light body to any metallic surface and gives you the opportunity to have both hands free.

04 FEATURES

• Ultra-bright, white LED light with 2 power levels 30% and 100%
  Quick-lock system for fast exchange of the different light heads
• 3-in-1: Zoom head, working light, mini zoom head
  Maximum brightness: 180 - 350 Lumen depending on light head
  Light body with magnet
  Including long-life Lithium- ion battery, USB charging cable and AC adapter
• Shock and weather proof housing

05|NOMENCLATURE

1 Magnetic battery compartment cover
2 Battery compartment
3 Light body
4 On/Off button
5 Quick-lock closure
6 Light head socket
7 Rubber cover for Micro USB port
8 Micro USB port
9 LED charging indicator (red/green)
10 Zoom head

10a) Zoom head adapter

11 Working light

11a) Working light adapter
11b) Bendable joint (2x)
12 Mini zoom head

12a) Mini zoom head adapter

12b) Gooseneck

13 Rechargeable Li-Ion battery (type 18650 3.7 V 2200 mAh)
14 USB charging cable
15 AC adapter

06|OPERATION

The QL-3 working light comes with a powerful and long-life rechargeable Li-lon battery (type 18650 3.7 V 2200 mAh). Before first use, please fully charge the battery:

06.1 INSERTING THE BATTERY

Turn the battery compartment cover (1) counter clockwise to open the battery compartment (2). When inserting the supplied Li-ion battery (13) into the battery compartment (2) mind correct polarity +/- . In order to close the battery compartment (2) again, turn the battery compartment cover (1) clockwise.

06.2 CHARGING THE RECHARGEABLE LI-ION BATTERY

Open the rubber cover for USB port (7). When open you will see the Micro USB port (8). Connect the USB charging cable with the supplied USB cable (14) and either a USB charging source or the AC adapter (15) and a power outlet. While charging the LED charging indicator (9) will light up in red. After approximately 2 hours the Li-iron battery (13) is fully charged - the LED charging indicator (9) lights up in green. Close the rubber cover for USB port (7) again.

You may use the working light alternatively with a power bank (optional). It is irrelevant if the rechargeable battery (13) is inserted or not.

06.4 TURNING ON/OFF AND FUNCTIONS OF THE WORKING LIGHT

07 | LIGHT HEADS

07.1 EXCHANGING THE LIGHT HEADS

Hold the light body (3) with one hand and slide the quick lock closure (5) downwards away from the light head- remove the light head.

Place the desired light head (10/11/12) onto the light head socket (6) and press down the head until the quick lock closure (5) snaps in.

07.2 USAGE OF THE LIGHT HEADS

1. Zoom head (10)

• Torch light with 250 Lumen maximum brightness
  Range up to 150 meters
• Zoom function allows to adjust the cone of light:

2. Bendable working light (11)

350 Lumen strong LED
Over 8 cm long LED stripe
- 2 articulated joints (11b)
Big cone of light

Powerful 180 Lumen LED dot
- Gooseneck (12b) 40 cm long
Small size to light up areas difficult to reach
- Zoom function allows to adjust the cone of light:

08 | MAGNET

Attach the magnetic battery compartment (1) of the light body (3) to every metallic surface e.g. front lids of cars, construction site scaffold olds to have both hands free.

09 | CLEANING AND STORAGE

Never use aggressive cleansing agents or benzine to clean the head light. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Turn off the device and remove battery before cleaning. Store the device in a dust-free, dry and cool place. This device is not a toy - keep it out of reach of children. Keep away from pets.

11 | CONTENT

1x Light body
1x Li-Ion rechargeable battery type 18650
1x Micro USB charging cable
1x AC adapter
1x Zoom head
1x Mini Zoom head
1x Working light
1x Storage case
1x Safety hints

12 | DISPOSAL, CE MARKING

12.1 DISPOSAL OF BATTERIES/ACCUMULATORS

Batteries are marked with the symbol of a crossed out bin. This symbol indicates that empty batteries or accumulators which can no longer be charged should not be disposed of with household waste. Waste batteries may contain harmful substances that can cause damage to health and to the environment. Please use the return and collection systems available in your country for the disposal of the waste batteries.

12.2 WEEEINFORMATION

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

12.3 ROHS CONFORMITY

This product is compliant with the European RoHS directive for the restriction of use of certain hazardous substances in electrical and electronic equipment and its amendments.

12.4 CE MARKING

The CE marking complies with the European standards and indicates that the product meets the requirements of the applicable EU directives.
