239193 - Induction cooktop Fine Dine - Free user manual and instructions

Product Type	Induction Cooktop
Brand	Fine Dine
Model	239193
Supply Voltage	220-240 V ~ 50/60 Hz
Rated Power	800 W
Protection Class	Class II
Power Range	1 to 10
Dimensions of the cooktop (built-in)	∅236 mm
Dimensions of the control panel (built-in)	55 x 130 mm
Dimensions of the control box	137 x 61 x 42 mm (H)
Dimensions of the main element	∅245 x 78 mm (H)
Diameter of compatible cookware	12 to 20 cm
Cookware material	Iron, cast iron, magnetic stainless steel or enameled cast iron
Functions	On/Off, power adjustment
Safety	Automatic shutdown in case of overheating, cookware detection, protection against abnormal voltages
Cleaning	Damp cloth with mild detergent, do not immerse
Warranty	12 months
Use	Indoor only, domestic use

Frequently Asked Questions - 239193 Fine Dine

How to turn on the Fine Dine 239193 induction cooktop?

To turn on the cooktop, press and hold the ON/OFF button for 1 to 2 seconds. The screen displays 'ON'. Then, adjust the power from 1 to 10 using the +/- button.

What to do if the device does not turn on?

Check that the plug is properly inserted into a suitable electrical outlet. Make sure you have pressed the ON/OFF button. If the problem persists, contact your retailer.

Why does the fan continue to run after turning off the cooktop?

This is normal: the fan cools the internal components. Wait for it to stop before unplugging the device.

What does the error code E1 on the screen mean?

The code E1 indicates an internal temperature that is too high. Unplug the device, remove the cookware and let it cool completely before using it again.

Which cookware is suitable for the induction cooktop?

Use flat-bottomed cookware with a diameter of 12 to 20 cm, made of iron, cast iron, magnetic stainless steel or enameled cast iron. Avoid bottoms made of ceramic, glass, copper, bronze or aluminum.

How to clean the induction cooktop?

Unplug the device and wait for it to cool completely. Clean the surface with a damp cloth and mild detergent. Never immerse the device in water.

Can I use aluminum cookware on this cooktop?

No, aluminum cookware is not suitable because it is not magnetic. Only use materials compatible with induction (iron, cast iron, magnetic stainless steel).

What is the maximum power of the device?

The rated power is 800 W with an adjustable range from 1 (minimum) to 10 (maximum).

Is the device compatible with an external timer?

No, the device is not designed to work with an external timer or a separate remote control system.

How to dispose of the device at the end of its life?

Do not dispose of the device with household waste. Take it to an appropriate collection point for recycling electrical and electronic equipment. Contact your local council for more information.

USER MANUAL 239193 Fine Dine

Metallic portable stove with a circular heating element and a digital display unit (no visible text or symbols)

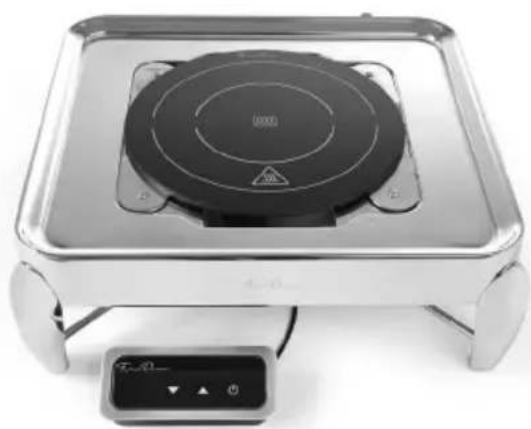

Exterior view of a stainless steel electric stove with a digital control panel (no visible text or symbols)

Item: 239193 239551

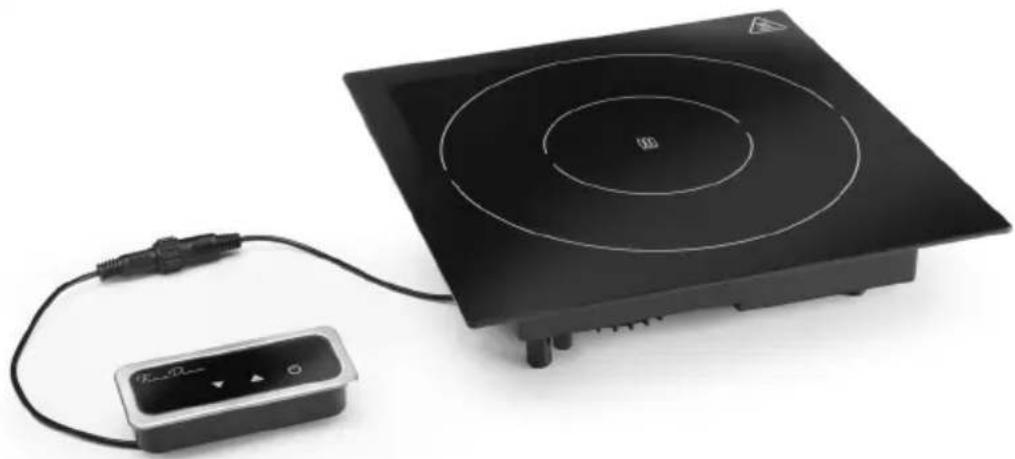

Black square electrical stove with circular heating screen and connected power adapter (no visible text or symbols)

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance.

Simple icon of a house with an arrow pointing left, labeled 'INDOOR' below (no other text or symbols)

For indoor use only.

Symbol of a waste sorting machine with crossed-out bins and a blank base, commonly used in recycling or disposal contexts.

RoHS

CE回

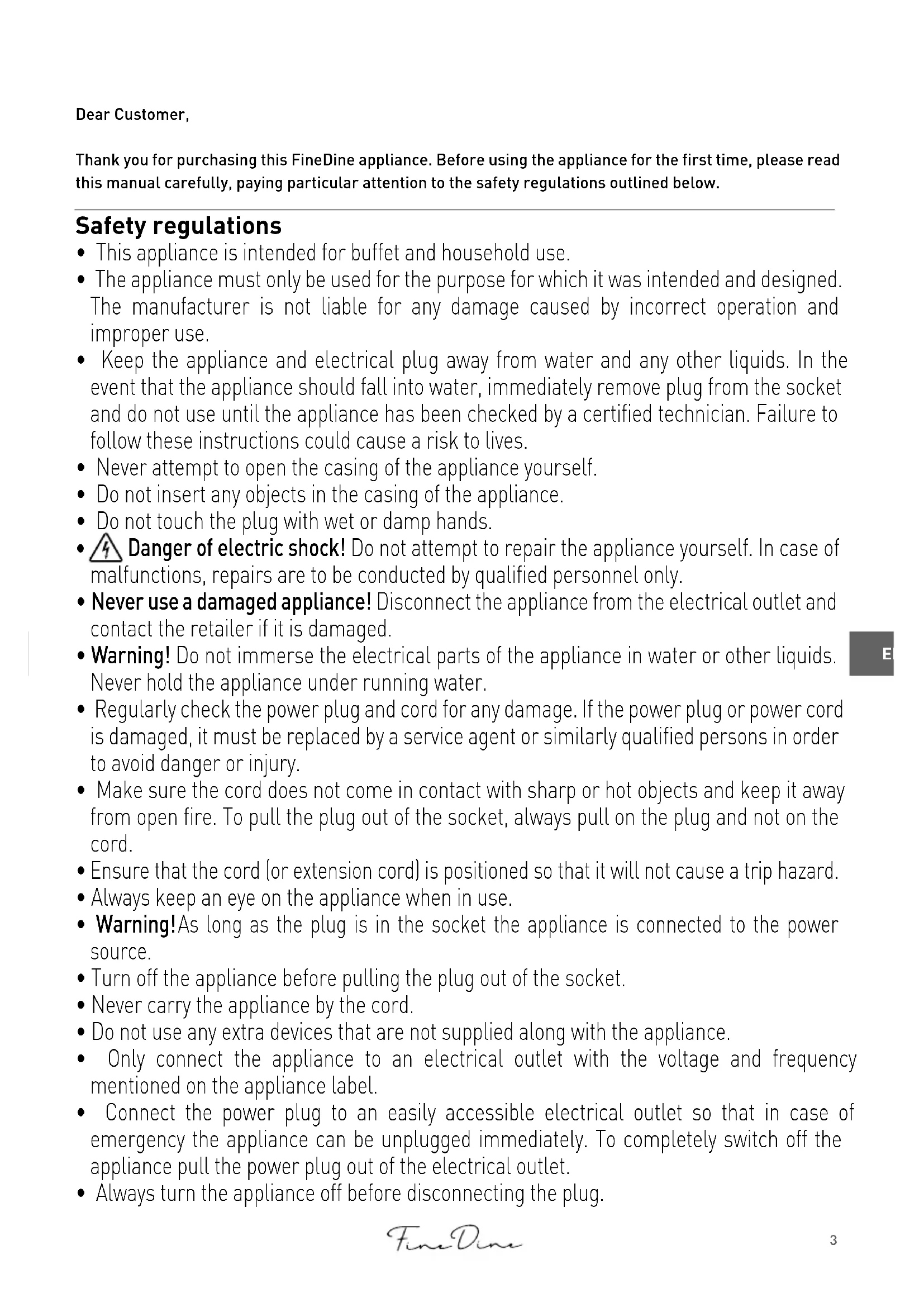

Thank you for purchasing this FineDine appliance. Before using the appliance for the first time, please read this manual carefully, paying particular attention to the safety regulations outlined below.

Safety regulations

• This appliance is intended for buffet and household use.
• The appliance must only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunctions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact the retailer if it is damaged.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. If the power plug or power cord is damaged, it must be replaced by a service agent or similarly qualified persons in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.
• Ensure that the cord (or extension cord) is positioned so that it will not cause a trip hazard.
  • Always keep an eye on the appliance when in use.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Connect the power plug to an easily accessible electrical outlet so that in case of emergency the appliance can be unplugged immediately. To completely switch off the appliance pull the power plug out of the electrical outlet.
  • Always turn the appliance off before disconnecting the plug.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
• This appliance must not be used by children under any circumstances.
• Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cleaning.
• Never leave the appliance unattended during use.

Special Safety Regulations

- Use the appliance only as described in this manual.

- This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.

- Caution! Danger of burns! The temperature of the heating surface and other accessible surface is very high during use. Touch the control panel only.

- Do not place the appliance near objects that may be affected by a magnetic field such as TVs, radios, bank cards and credit cards.

- Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.) Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

- Make sure the appliance is not placed near water vapour or greasy vapours. The fan in side of the appliance will take in these vapours and this will cause grease or moisture to accumulate in the appliance which may result in a short-circuit in the appliance.

- Do not use the appliance near explosive or flammable materials, credit cards, magnetic discs or radios.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the heating plate since they can get hot.

- WARNING: Keep all ventilation openings in the appliance clear of obstruction.

- WARNING: If the heating surface is cracked or damaged, switch off the appliance to avoid the possibility of electric shock.

- Allow at least 15 cm spacing around the appliance for ventilation purpose during use.

- Do not use hard utensils to hit the heating plate surface. Do not use water jet, flush directly with water or steam cleaner as the parts will get wet and electric shock might be resulted.

- Take care when operating the appliance, as rings, watches and similar objects worn by the user could get hot when in close proximity to the heating surface.

- Caution! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.

• Do not wash the appliance with water. Washing can cause leakages and increase the risk of electric shock.
• Do not clean or store the appliance unless it is completely cooled down.
• Do not place empty cookware on the appliance during operation as this may damage the cookware.
• Only use the cookware of the type and size recommended. (See ---> Suitable cooking equipment).
• This is a class II appliance and therefore grounding connection is not required.

Intended use

• This appliance is intended for buffet and household use.
• This appliance is intended for keeping food warm in suitable chafing dishes or directly via cookware. Any other use may lead to damage of the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed as misuse of the device. The user shall be solely liable for the improper use of the device.

Control panel of the appliance

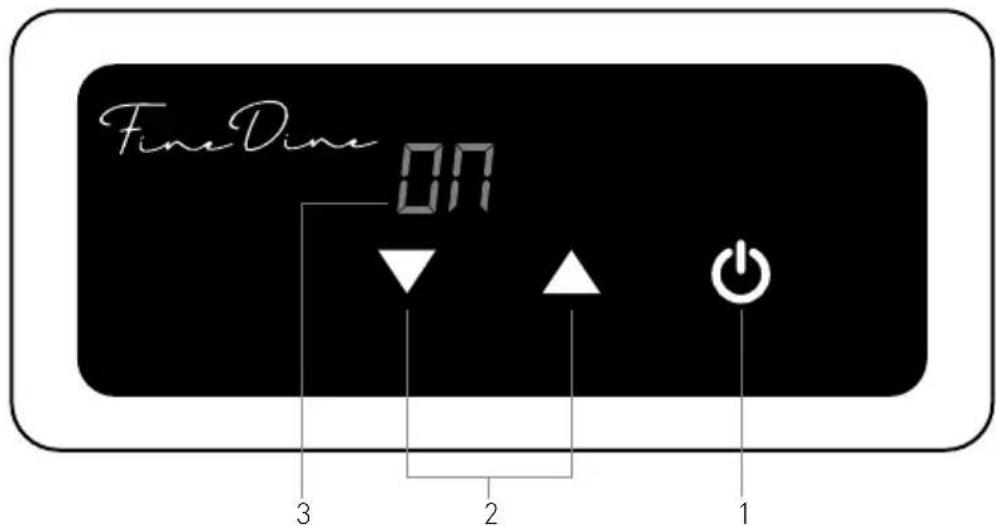

FineDine ON 3 2 1

1. ON/OFF button: Press and hold to switch ON the appliance
2. Decrease / Increase power level (Range: 1 \~ 10, level 1 is the lowest and level 10 is the highest)
3. Digital display : Showing ON / Standby mode and power level

Preparations before using for the first time

• Remove all protective packaging and wrapping.
• Check if the appliance is undamaged. In case of incomplete delivery or damages, contact the supplier and do not use the appliance (See == > Warranty).
• Clean the appliance before use (See == > Cleaning and Maintenance).
• Ensure the appliance is completely dry.
• Place the appliance on a horizontal, stable and heat resistant surface that is safe from water splashes.
• Ensure that there is sufficient ventilation. Keep a minimum distance of 15 cm around the appliance.

- Do not place the appliance in close proximity to devices which are sensitive to disturbances by magnetic sources (e.g. radios, tape decks).

Note:

1. Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated.

2. There is an optional spare part for item 239193 only: stainless steel mounting ring (item 239186, not included) which can be installed together to fix them in a place.

Suitable cooking equipment

	Suitable Not suitable
Bottom of cookware Flat bottom		Curved, uneven, rounded bottom
Material Cookware with iron, cast iron, magnetic stainless steel or enamelled iron bottom.		Cookware with ceramic, glass, copper, bronze, or aluminium bottom.
Diameter of the bottom Between 12 cm and 20 cm. Less than 12 cm or more than 20 cm.
Type of cookware Cookware with a bottom thickness over 1.5 mm.		Completely closed containers or cans.

Note: Using a pan or pot that's not suitable for induction cooking may damage the appliance.

Operation

• Place a suitable pan or pot at the centre of the heating surface of the appliance. (See - - > Suitable cooking equipment for the appliance).
  Note: Do not place empty cookware as this may damage the cookware.
• Then, connect the cord of the control box with the induction plate.
• Connect the power plug to a suitable electrical socket.

• “- -” will be shown on the digital display (3) and ON indicator light up. The appliance is in STAND-BY mode now.

• Press and hold ON/OFF button (1) for 1 \~ 2 seconds to start operation. will be displayed on (3).

• Set the power level by pressing increase or decrease button (2). (Power level range: 1 \~ 10).
• Now, the appliance starts cooking operation. The set power level will be shown on the digital display (3) during operation.
• After finishing, press the ON / OFF button (1) to switch the appliance to STANDBY mode. And “- -” will be shown on the digital display (3).

Note:

1). After an extended period of operation, the cooling fan can keep running after placing the appliance in STANDBY mode. This is normal, wait until the cooling fan stops running before disconnecting the power supply.
2). The heating surface is hot after use, even af-

ter switching the appliance to STANDBY mode. Please wait until the appliance is completely cooled down before touching or cleaning.

3). If during operation the cooking equipment is removed or not placed the machine will 'Beep, and shut itself OFF within 1 minute.

Error codes display

Error codes shown on the display (3)	Possible cause Possible solution
E1	The temperature of the appliance is too high	Unplug the appliance, remove the cookware, wait until the appliance is completely cooled down before trying again.
E2 The temperature of the cookware is too high.Possibly, the cookware is empty and appliance will shut down for protection.	Unplug the appliance, remove the cookware, wait until the appliance is completely cooled down before trying again.
E3 Input supply voltage is too high (>260V~) or too low (<145V~).	Make sure that the appliance is connected to a suitable electrical power supply.

Cleaning and Maintenance

Attention: Always unplug the appliance from the electrical power outlet and let it cool down completely before cleaning and storage.

Cleaning

• Never immerse the appliance in water or other liquids.
• Clean the cooled exterior surface with a slightly damp cloth or sponge with some mild soap solution.

- Never use abrasive sponges or detergents, steel wool or metallic utensils to clean the interior or exterior parts of the appliance.

Storage

- Before storage, always make sure the appliance has already been disconnected from the electrical outlet and cooled down completely.

• Store the appliance in a cool, clean and dry place.
• Never put heavy objects on the appliance during storage, it can damage the appliance.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider.

- Error codes shown on the digital display (3). (See --> Error codes display)

Problems Possible cause Possible solution
The appliance does not switch ON.	- Power connections are not connected properly with the power grid.- ON / OFF button (1) is not pressed.	- Check the power plug to make sure it is connected properly.- Press and hold ON / OFF button (1) to switch the appliance ON.
Cooling fan is operating even after the appliance is switched to OFF mode.	- This is normal. The cooling fan continues running in Standby mode for some time to cool down all internal elements.	- Wait until the cooling fan stops rotating.

Technical specification

Item no. 239193 239551
Operating voltage & frequency 220-240V ~ 50/60Hz
Rated input power 800W 1000W
Protection class	Class II
Power level range 1 ~ 10 (level 1 is the lowest and level 10 is the highest)
Dimension (control box) 137x61x(H)42mm
Dimension (main part) ∅245x(H)78mm	350x350x(H)80mm
Build-in dimensions (main part)	∅236mm	290x290mm
Build-in dimensions (control box)	55x130mm

Remark: Technical specification is subjected to change without prior notification.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural re-

sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

Important notice to UK users

This appliance is fitted with a UK approved mains plug and a 13A fuse. Should the fuse need to be replaced, an ASTA or BSI approved BS1362 fuse, rated at 13A must be used. If the plug needs re-

placing, ensure that the fuse is removed beforehand. Always dispose of defunct plugs and fuses immediately.

Connecting a mains plug

The wires in the mains lead are coloured as following:

Blue: NEUTRAL Brown: LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:

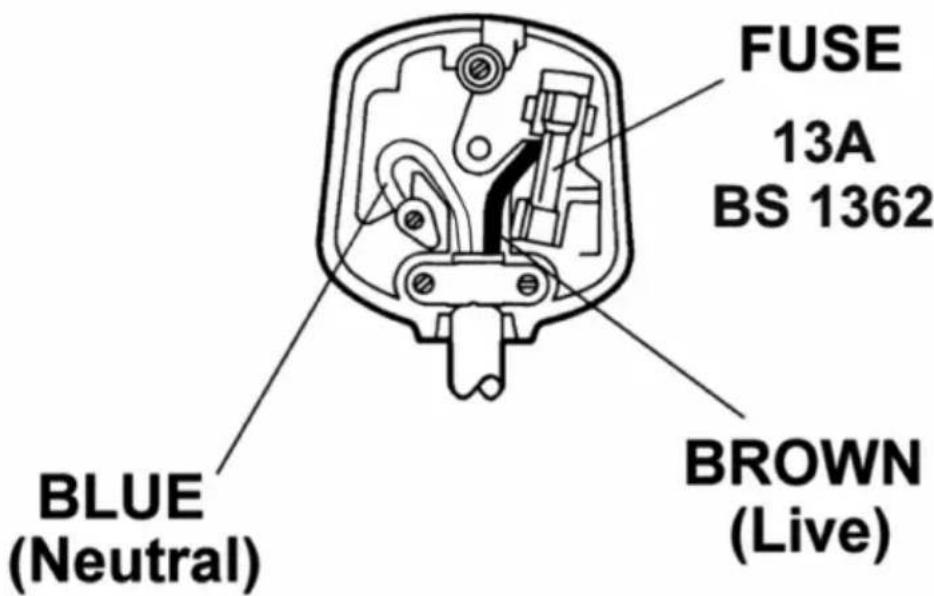

FUSE 13A BS 1362 BLUE (Neutral) BROWN (Live)

- The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.

- The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

If you have any doubt about the electrical supply to you appliance, consult a qualified electrician before use.

Fine Dine ON 3 2 1
