Product type	Rocking chair / recliner
Brand	Topmark
Model	Beau
Usage	From birth up to 9 kg (0-6 months approximately)
Dimensions (approx.)	70 x 40 x 60 cm (unfolded)
Weight (approx.)	4 kg
Power supply	None (non-electric product)
Main functions	Rocking, play arch with 2 toys, 3-point restraint system
Care and cleaning	Clean the frame with a damp cloth and mild detergent. Padding hand wash cold, do not machine wash, do not tumble dry. Arch and toys: damp sponge with mild soap. Air dry, avoid direct sunlight.
Safety	Always use the safety belt with crotch strap. Never leave the child unattended. Do not use on an elevated surface. Do not use as a car seat. Do not lift with the child inside. Keep away from flames and hot liquids.
Spare parts and repairability	Use only spare parts approved by the manufacturer. Contact the store or customer service if parts are missing or defective.
Warranty	2 years from the date of purchase; does not cover normal wear or damage due to misuse.
Standard	EN 12790

Frequently Asked Questions - Beau Topmark

How to assemble the play arch?

The play arch must be assembled by an adult. Insert the ends of the arch into the slots on the sides of the frame, making sure it is securely attached. Never use the arch to carry the recliner.

What is the maximum weight allowed?

The recliner is designed for children weighing up to 9 kg (approximately 0 to 6 months). As soon as the child can sit up without assistance, discontinue use.

Can I use this recliner as a bed for the night?

No, this recliner is not intended for extended periods of sleep. It does not replace a baby bed. For sleeping, always place your child in an appropriate bed.

How to clean the padding and toys?

Remove the padding from the frame and hand wash it in cold water with mild soap. Do not machine wash or tumble dry. Clean the arch and toys with a damp sponge and mild soap. Let it air dry completely, away from sunlight.

Is the safety belt mandatory?

Yes, always use the safety belt with the crotch strap. Fasten it until you hear a 'click' and adjust it to be comfortable without being too tight.

Can I use this recliner in a car?

No, this recliner is not a car seat. It does not protect the child in case of an accident. NEVER use the recliner as a car seat.

How to store the recliner?

Store it in a dry, clean place. Before folding, make sure it is completely dry. Do not stack other objects on top. Avoid leaving it in a car trunk or in direct sunlight.

What to do if a part is damaged?

Immediately replace any bent, torn, worn, or broken part. Use only spare parts approved by the manufacturer. Contact the store or customer service ([e-mail]).

Can I lift the recliner with my child inside?

No, NEVER lift the recliner when the child is seated inside. Always move it empty.

What does the 2-year warranty cover?

The warranty covers manufacturing or material defects. It does not cover damage due to improper use, normal wear, overloading, or incorrect folding. Keep your purchase receipt.

USER MANUAL Beau Topmark

Gray baby crib with two plush toys hanging on the backrest (no text or symbols visible)

BEAU

0-6M

9 kg

T2065

Gebruiksaanwijzing

Instruction for use

Gebrauchsanleitung

Mode d'emploi

! WAARSCHUWING

Safety warning illustration showing pictograms of human and pedestrian crossing behaviors with directional arrows

OMHOOG TREKKEN

Click Click

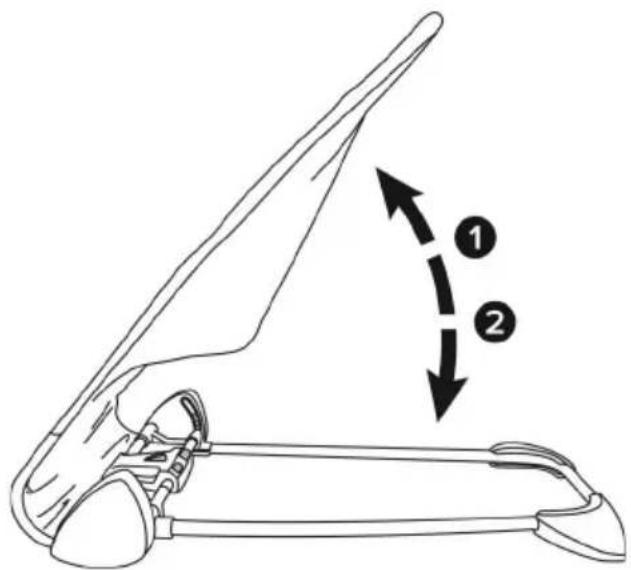

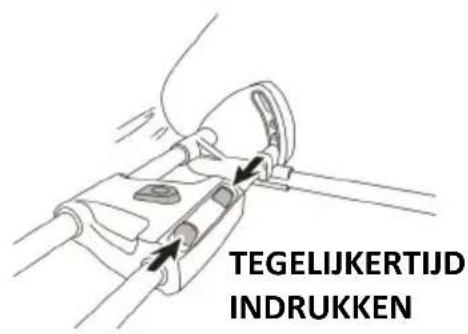

2. Hoogte verstellen in 2 standen.

Diagram illustrating two directional movement paths labeled 1 and 2, with arrows indicating movement direction.

TEGELIJKERTIJD INDRUKKEN

ATTENTIE: VERSTEL DE WIPSTOEL NIET ALS HET KINDJE ERIN ZIT.

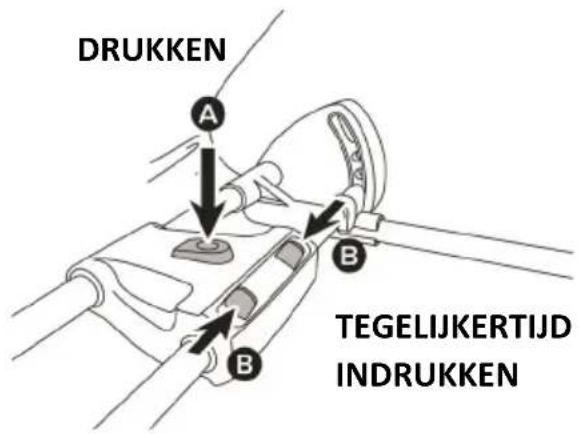

3. Inklappen.

Illustration of a hand holding a pen inside a circle with an arrow indicating motion (no text or symbols)

TREK NAAR BENEDEN

DRUKKEN A B TEGELIJKERTIJD INDRUKKEN

Line drawing of a mechanical component with internal parts and mounting base (no text or symbols)

ATTENTIE: VERSTEL DE WIPSTOEL NIET ALS HET KINDJE ERIN ZIT.

MONTEREN/IN GEBRUIK NEMEN

4. Bevestigen speelboog.

A

Simple line drawing of a sheep inside a cow's head, with arrows indicating motion (no text or symbols)

Diagram showing a person hanging from a circular object with a downward arrow and a letter C, likely illustrating a physics or math concept.

Click Click

Line drawing of a baby in a baby chair with two sleeping faces (no text or symbols)

Line drawing of a seatbelt buckle with magnified detail view (no text or symbols)

Diagram of a mechanical component with labeled parts A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

VERZORING EN ONDERHOUD

IMPORTANT! REED CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Your child’s safety may be affected if you do not follow these instructions.
• Use only spare parts delivered by importer for replacing parts or reparation.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures.

WARNING

• Never leave the child unattended.
• The use of this reclined cradle is recommended for children from 0-6 months. The maximum weight is up to 9 kg.
• Do not use the reclined cradle once your child can sit unaided.
• This reclined cradle is not intended for prolonged periods of sleeping.
• This reclined cradle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• Never use reclined cradle as a car seat; it will not protect your baby during an incident.
  • Always use the restraint system.
• Make sure reclined cradle is fully assembled, check to ensure that the adjuster is secure before each use.
• Before making adjustments to reclined cradle ensure that child's body is clear of any moving parts.

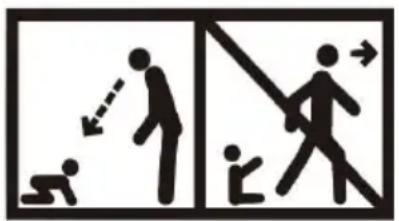

• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.

WARNING

Safety warning illustration showing pictograms of human and child walking with directional arrows indicating movement or safety.

- Do not allow child to stand in reclined cradle.

• The use of this reclined cradle is recommended for 1 child only.
• It is dangerous to use this recline cradle on an elevated surface, e.g. a table etc.
• Place the reclined cradle on a firm horizontal and rough surface.

- Do not allow any children, animals or other object to be placed under or near the reclined cradle while child is seated in the reclined cradle.

- Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the reclined cradle.

- Avoid hot liquids, power cables and other possible dangers may come within range of a child.

- Do not place items with a string around child's neck (pacifier cords, hood strings etc).

- Do not allow strings to hang into bouncer, including blind cords or suspended toys other than what is eventually provided with this product.

- Do not use the reclined cradle if any components are broken or missing.

- Replace any damaged parts immediately.

- Do not use accessories or replacement parts other than the ones recommended by the manufacturer.

- Never lift or carry reclined cradle while child is seated.

- Never put reclined cradle near steps or stairs.

- Never use the toy bar to carry the reclined cradle.

- Adult assembly of toy bar required.

- Assure the toy bar is correctly assembled on both sides of the reclined cradle.

- To avoid injury, please remove the toys when the child is able to grab them with hands and/or feet.

Check if following spare parts are in the box:

• Chassis
  • Inlay with safety belt
  • Toy bar with 2 pcs. of soft toys

Note that the fabric patterns, colour pictures and accessories on this product in this instruction manual may vary from that of the product that you have purchased.

If one or more of the above mentioned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING

Please keep all packaging material away from baby's and children, to prevent suffocation.

ASSEMBLING/USING

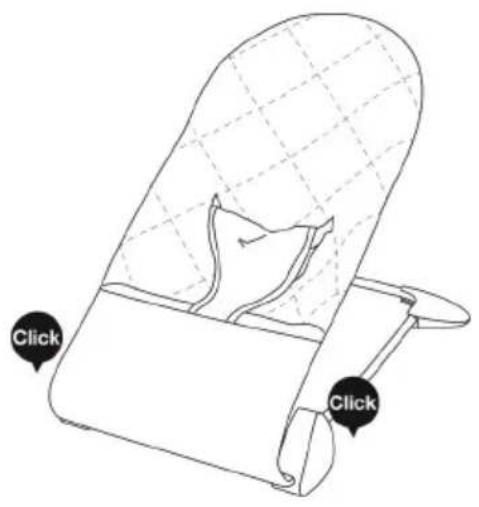

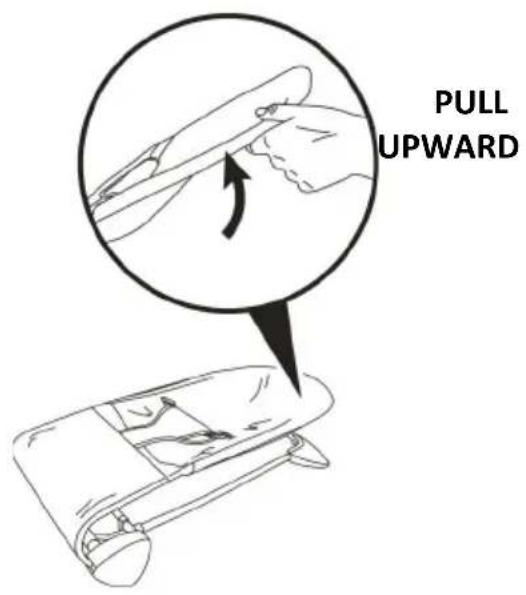

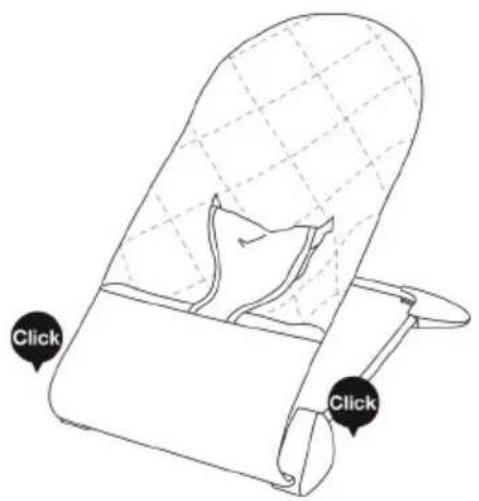

1. To unfold.

Make sure the supporting iron bar falls securely into correct docking position.

EN

PULL UPWARD

Click Click

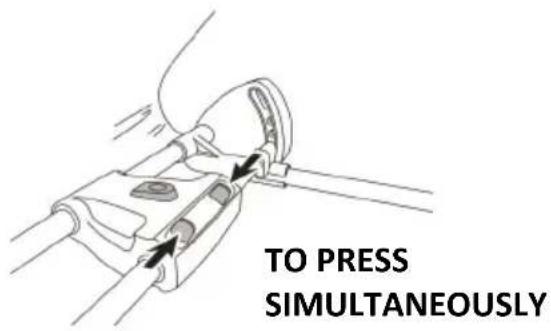

2. 2 positions for height adjustment.

Diagram illustrating two directional movement paths labeled 1 and 2, with arrows indicating movement direction.

TO PRESS SIMULTANEOUSLY

NOTE: DO NOT ADJUST WHILE THE CHILD IS IN THE RECLINED CRADLE.

ASSEMBLING/USING

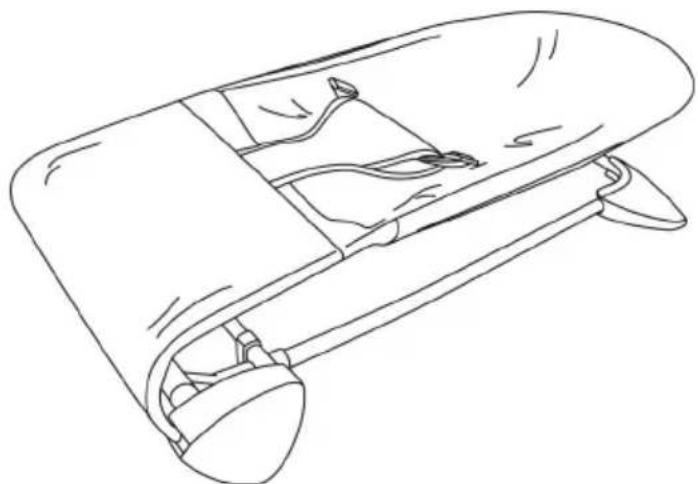

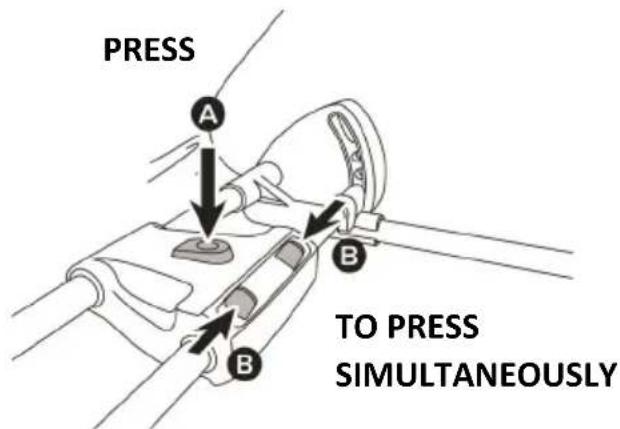

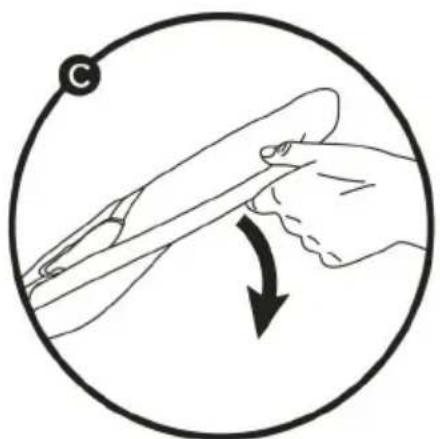

3. To fold.

Illustration of a hand holding a pen, with a curved arrow indicating motion or direction (no text or symbols)

PULL DOWNWARD

EN

PRESS A B TO PRESS SIMULTANEOUSLY B

Line drawing of a mechanical component with internal parts and mounting base (no text or symbols)

NOTE: DO NOT ADJUST WHILE THE CHILD IS IN THE RECLINED CRADLE.

ASSEMBLING/USING

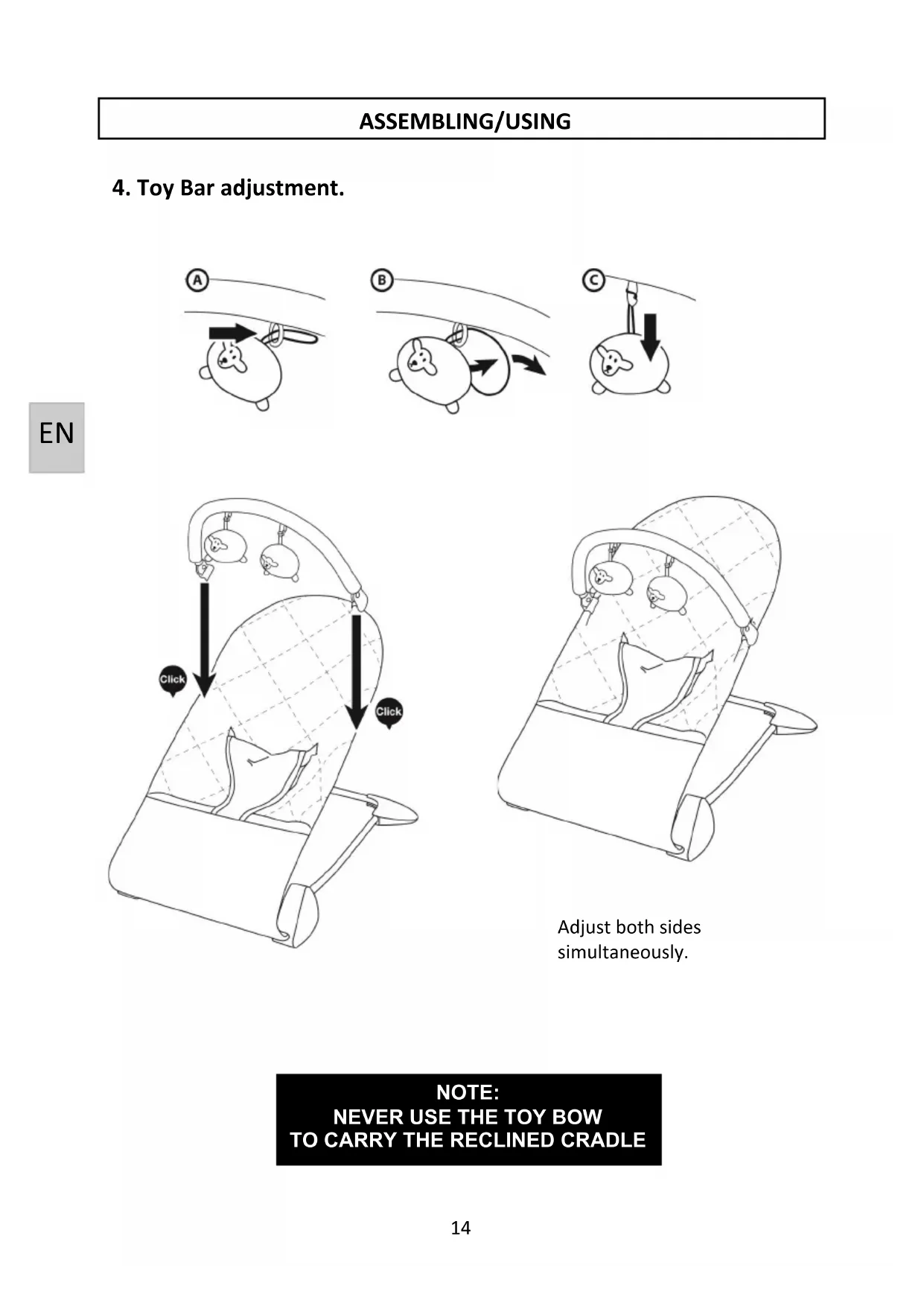

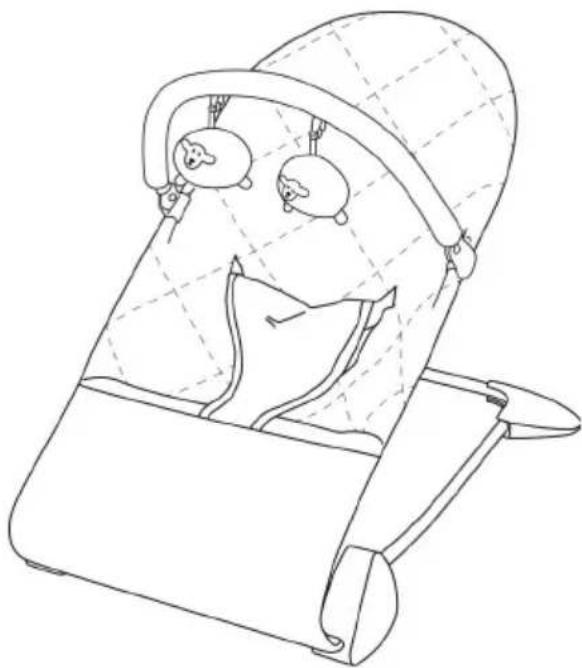

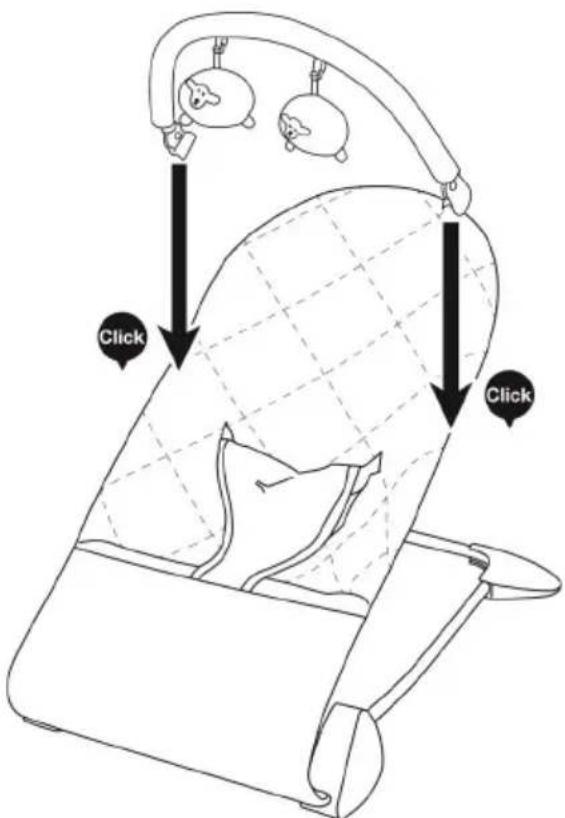

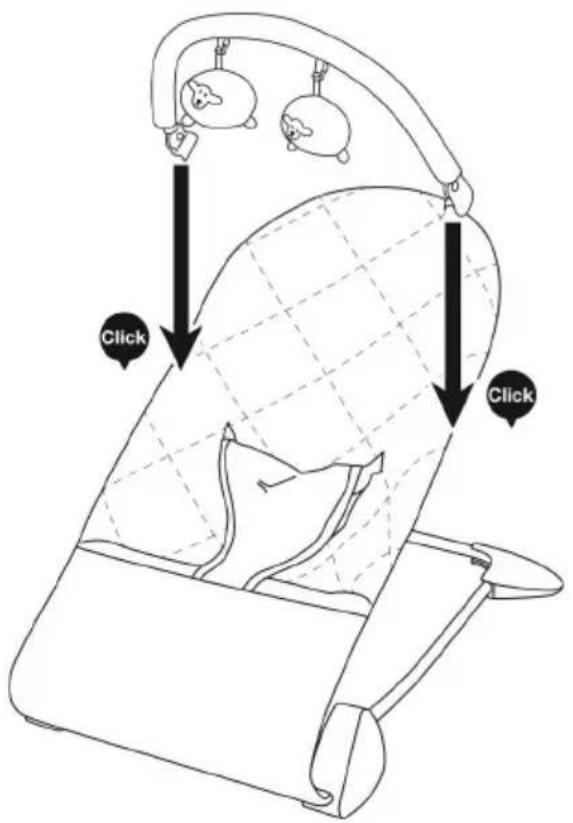

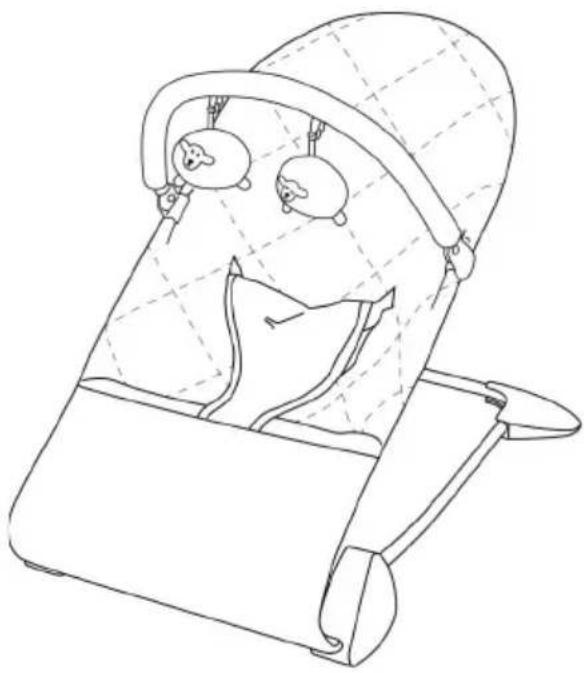

4. Toy Bar adjustment.

A

Simple line drawing of a sheep inside a cow's head, with arrows indicating movement (no text or symbols)

Simple cartoon illustration showing a person fishing with a downward arrow and a letter C, symbolizing a fishing or fishing scenario.

EN

Click Click

Line drawing of a baby in a baby chair with two sleeping faces (no text or symbols)

Adjust both sides simultaneously.

NOTE: NEVER USE THE TOY BOW TO CARRY THE RECLINED CRADLE

ASSEMBLING/USING

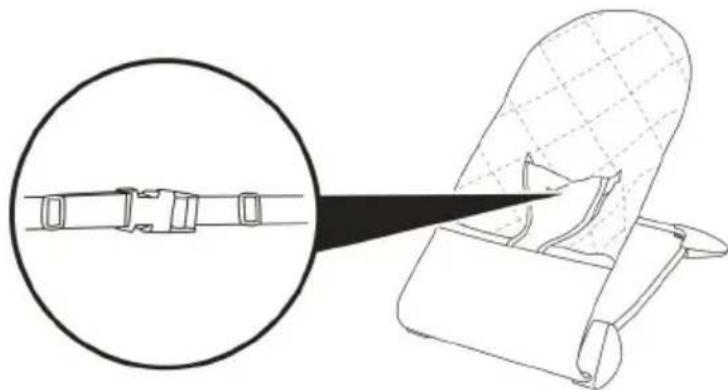

5. To fasten the harness.

Line drawing of a seatbelt buckle with magnified detail view (no text or symbols)

① A ②

Pass the safety belt through the crotch strap and fit the buckle in place until you hear "click" making sure that it is correctly anchored. Adjust belt to fit snugly.

To open the buckle, press on the two hooks that overhang at the same time and pull on them.

WARNING: Always use the crotch strap along with the safety belt.

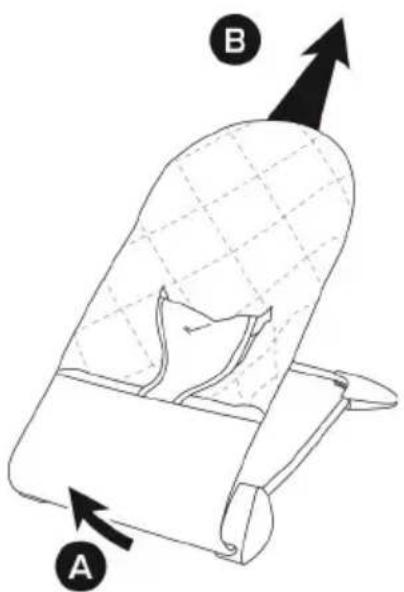

6. To remove the seat pad.

Pull out the seat pad.

Line drawing of a cat-shaped object with labeled points A and B, showing internal structure without any text or symbols.

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of time.

Do not use abrasive cleaners. Do not soak in water. The chassis may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Always store your product in a clean dry place.

Do not leave in the boot of car.

EN

Avoid exposure to salt water, as this may encourage the formation of rust. If reclined cradle is used in this environment completely clean your reclined cradle afterward to remove sand and salt from mechanisms.

Should parts become stiff, squeak or difficult to operate ensure dirt is not the cause.

When storing reclined cradle, never stack other items on top of it, this may damage the reclined cradle.

Do not dry clean or use bleach.

Remove the seat pad from the frame, fasten buckles on seat restraint and seat pad.

Do not machine wash, tumble or spin dry. Hand wash with cold water.

Play bow and toys may be cleaned using a damp sponge with soap or mild detergent. Do not immerse in water.

Allow it to dry completely before folding or storing it away.

In some climates the parts may be affected by mold and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ventilated area.

Always check parts regularly for tightness of screws, nuts and other fasteners, tighten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only parts and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the first owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 12790

Click Click

Diagram illustrating a mechanical or robotic device with labeled directional arrows and numbered components

Line drawing of a mechanical component or assembly (no text or symbols)

Simple line drawing of a sheep inside a cow's head, with arrows indicating motion (no text or symbols)

Diagram showing a person fishing with a downward arrow and a letter C, likely illustrating a fishing or fishing scenario.

Click Click

Line drawing of a baby in a baby chair with two sleeping figures on the backrest (no text or symbols)

Line drawing of a car seatbelt with magnified detail view (no text or symbols)

Line drawing of a mechanical component with labeled parts A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

PFLEGE

Safety warning illustration showing pictograms of a person using a tool to avoid injuries and take a walking path, with directional arrows indicating movement.

Click Click

FR

Diagram illustrating two directional movement paths labeled 1 and 2, with arrows indicating movement direction.

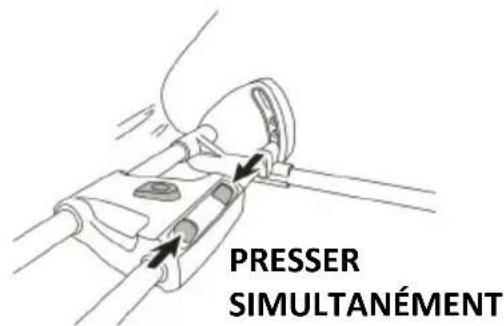

PRESSER SIMULTANÉMENT

NOTE: NE RÉGLEZ PAS PENDANT QUE L'ENFANT EST DANS LE TRANSAT.

MONTAGE/UTILISATION

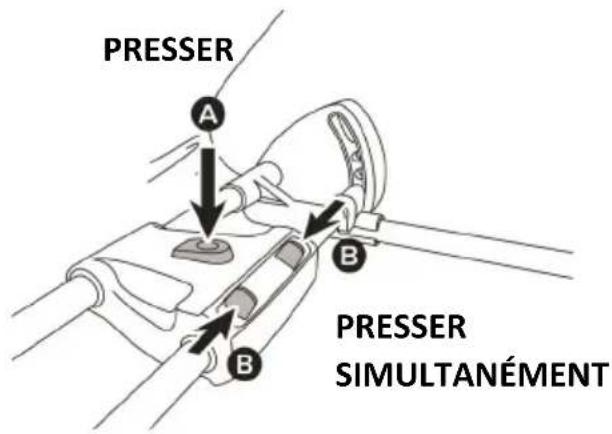

3. Replier.

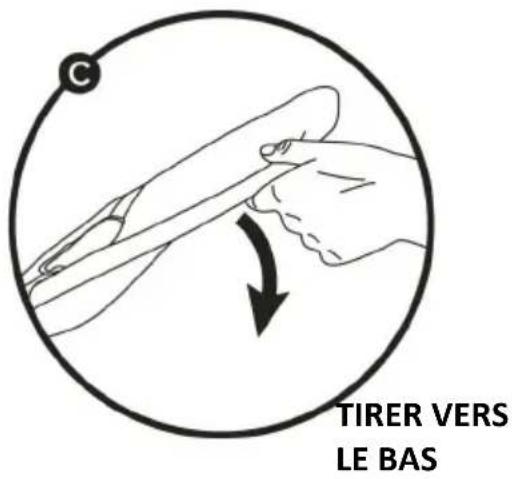

C TIRER VERS LE BAS

PRESSER A B PRESSER SIMULTANÉMENT B

FR

Line drawing of a mechanical component with internal parts and mounting base (no text or symbols)

NOTE: NE RÉGLEZ PAS PENDANT QUE L'ENFANT EST DANS LE TRANSAT.

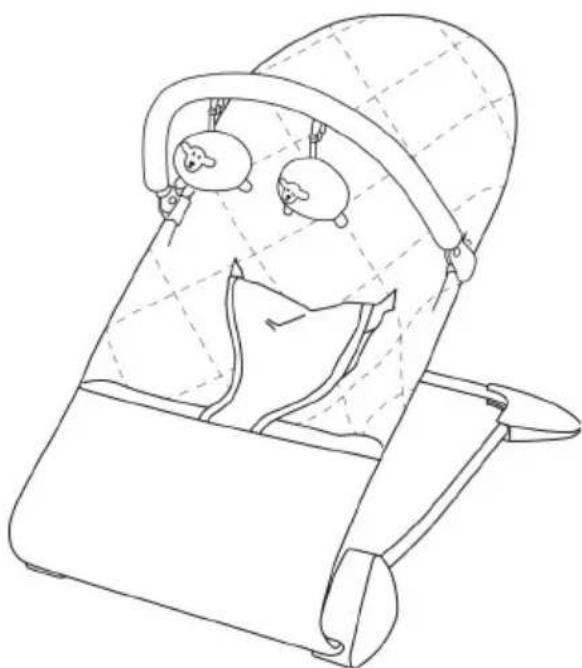

MONTAGE/UTILISATION

Simple line drawing of a sheep inside a cow's head, with arrows indicating motion (no text or symbols)

Diagram showing a person hanging from a rope with a downward arrow and a cow inside, labeled with a letter C.

FR

Click Click

Line drawing of a baby in a baby chair with two sleeping figures on the backrest (no text or symbols)

Line drawing of a seatbelt buckle with magnified detail view (no text or symbols)

① A ②

Line drawing of a mechanical component with labeled parts A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

SOIN ET ENTRETIEN

Diagram illustrating human walking and deflection rules with labeled figures and directional arrows

Illustration of a hand holding a pen, with an arrow indicating rotation or movement (no text or symbols present)

TIRE HACIA ARRIBA

Click Click

ES

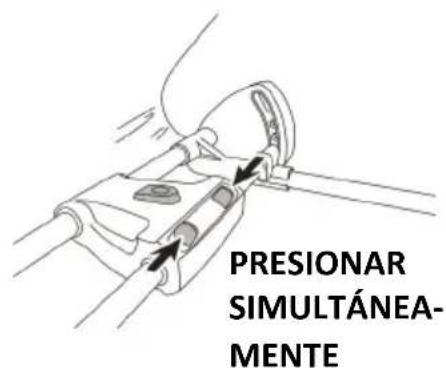

2. Altura adjustable en 2 positions.

Diagram illustrating two directional movement paths labeled 1 and 2, with arrows indicating movement direction.

PRESIONAR SIMULTÁNEA- MENTE

NOTA: NO AJUSTAR MIENTRAS EL BEBÉ ESTÁ EN LA HAMAQUITA.

INSTALACION/USO

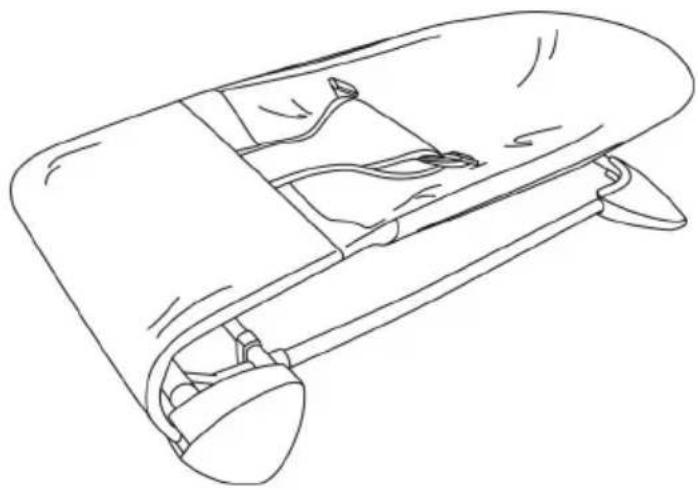

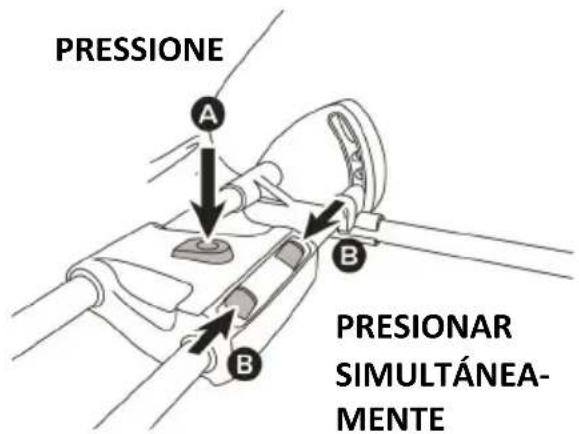

3. Plegar.

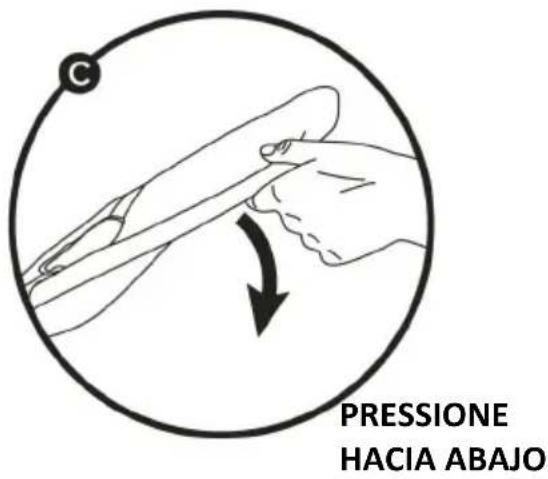

C PRESSIONE HACIA ABAJO

PRESSIONE A B B PRESIONAR SIMULTÁNEA- MENTE

ES

Line drawing of a mechanical component with internal parts and mounting base (no text or symbols)

NOTA: NO AJUSTAR MIENTRAS EL BEBÉ ESTÁ EN LA HAMAQUITA.

INSTALACION/USO

Simple line drawing of a sheep inside a cow's head, with arrows indicating motion (no text or symbols)

Diagram showing a person fishing with a downward arrow and a letter C, likely illustrating a fishing or fishing concept.

Click Click

Line drawing of a baby in a baby chair with two sleeping figures on the backrest (no text or symbols)

Line drawing of a seatbelt buckle with magnified detail view (no text or symbols)

① A ②

Line drawing of a cat-shaped object with labeled points A and B, showing internal structure without any text or symbols.
