Package Contents

B110-SP-HDMI In-Line Surge Protector
- Grounding Wire, 12 in.
- Mounting Screws (x2)

• Screw Anchors (x2)
• Grounding Wire Screw
• Quick Start Guide

Product Features

• Protects an HDMI input and output against Electrostatic Discharge (ESD), lightning surges and cable discharge events
• Meets IEC regulations:

o IEC 61000-4-2 (ESD) + / - 15kV (air), + / - 8kV(contact)
o IEC 61000-4-4 (EFT) 40A (5/50ns)
o IEC 61000-4-5 (Lightning) 5A (8 / 20 s)

Lightning protection reaction speed: < 1ns
Solid-state silicon-avalanche technology
- Low TMDS loss
Supports UHD resolutions up to 4K x 2K @ 30 Hz
HDMI 1.4 and HDCP-compliant
- Easy in-line installation with integrated mounting ears
Passive by design - no external power required

Installation

Note: The following instructions assume that two HDMI devices are currently connected together.

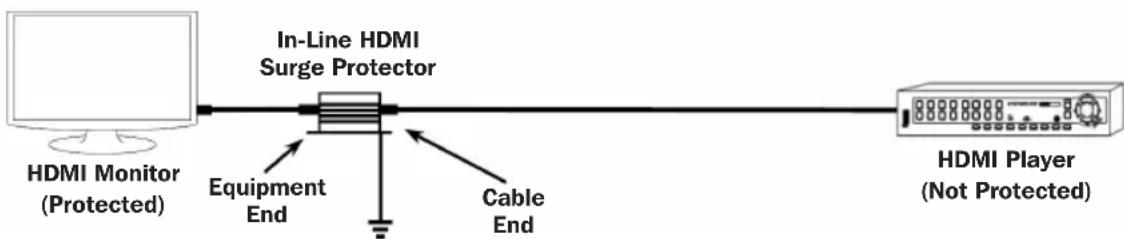

Single Device Protection:

1. Disconnect the installed HDMI cable from the device you wish to protect and attach this cable to the "Cable End" of the In-Line HDMI Surge Protector.
2. With a user-supplied HDMI cable, connect the device to be protected to the "Equipment End' of the In-Line HDMI Surge Protector.

Note: For maximum protection, the HDMI cable between the "Equipment End" of the In-Line HDMI Surge Protector and the HDMI equipment to be protected should not exceed 3 ft. (0.9 m). Tripp Lite P568-003-Series High-Speed HDMI cables are recommended.

1. Connect the ground wire to either end of the In-Line HDMI Surge Protector and then to earth ground.

Package Contents

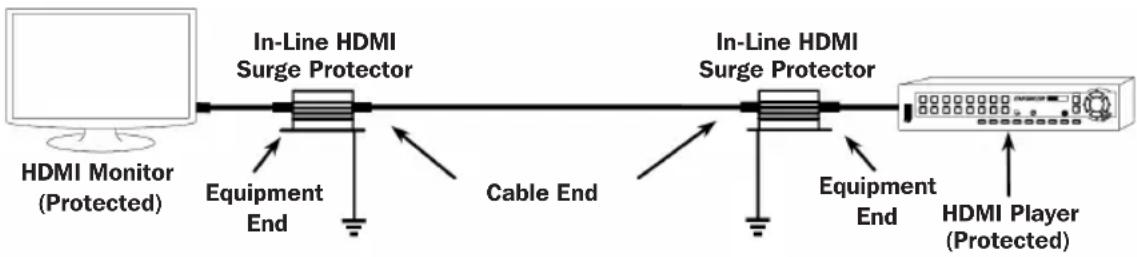

Multiple Device Protection:

1. Disconnect the installed HDMI cable from both devices you wish to protect.
2. Connect the In-Line HDMI Surge Protector to each end of the previously uninstalled HDMI cable, ensuring both ends of the HDMI cable are connected to the "Cable End" of the In-Line HDMI Surge Protector.
3. With user-supplied HDMI cables, connect the "Equipment End" of each In-Line HDMI Surge Protector to the HDMI devices you wish to protect.

Note: For maximum protection, the HDMI cable between the "Equipment End" of the In-Line HDMI Surge Protector and the HDMI equipment to be protected should not exceed 3 ft. (0.9 m). Tripp Lite P568-003-Series High-Speed HDMI cables are recommended.

1. Connect the ground wire to either end of each In-Line HDMI Surge Protector and then to earth ground.

Specifications

Input / Output Connectors HDMI Type-A (Female)
ESD Protection 15kV (ESD), 8kV (Contact)
EFT Protection 40A (5/50ns)
Lightning Protection	5A (8/20μs)
Lightning Protection Reaction Speed <1ns
Operating Temp 32°F to 131°F (0°C to 55°C)
Maximum Video Resolution 4K x 2K @ 30 Hz
HDMI 1.4
HDCP Pass through (up to 2.2)
Dimensions 1 x 1 x 2.3 in. (25.4 x 25.4 x 58.3 mm)
Weight 0.08 lb. (35g)

Warranty and Product Registration

2-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

KpaTKoe pyKOBoDCTBO NOpIb30BaTeJra

BcTpoeHbI cTeBoi oJIbTp cnHTepoeycom HDMI Ira nOpOBbIX CNTeM ONoBeUeHnA

Modélb: B110-SP-HDMI

English 1 • Espanol 5 • Français 9

EAC

PQyJNnBbHcJIeA HKNCT8B.

1111 W. 35th Street, Chicago, IL 60609 USA - www.triplite.com/support

OxpaHReTcA ABTopcMnPabOM © 2019 Tripp Lite. NpepeaTa3anpeaaetca.

CopejxMoe ynaKOBKn

BCTpoeHHbI cTeBoH ΦnIbTp MoJ. B110-SP-HDMI
Пювовдзамленидунов30cm
KpeNexKhbIe BnHTbI (2 1T.)

• AHHKepHbIe 6oNTbl (2 wT.)
  BnTdIgKpennHn npoBoa3aemneHn
  KpaTkoepykoBOCTBO noIb3OBATeJIa

XapakTepnCTnKn n3dennr

• 06ecneuBaet3aunTyHDMI-BXoJaN BbIXoJaOT 3NeKtpocTaTnuecknx pa3paIOB (3CP), rpo3OBbIX nepeHaepnpxeHm np3paIOB B KaebNbHbIX CnCTeMax
• Co0TBeTCTByeT Tpe6OBAHnM CneIyUoIuX HopMaTHBOB IEC: oIEC 61000-4-2 (ESD) +/- 15 KB (Bo3Iyx), +/- 8 KB (KoHTaKT)

o IEC 61000-4-4 (3aunta oT KpaTKOBpeMeHHbX BbIbpcoc HapnpxeHn) 40 A (5/50 HC)
o IEC 61000-4-5 (3aIuTa oT rpo3OBbIX nepeHapJxKeHn) 5 A (8/20 MkC)

CkoocTb cpaabTaBnHm MOHNHe3aunTb: <1HC
TexHIOIgRcNcNoJIb3OBAHnEMJaBUNHOro np608 B noJynpOBOdHnKax
Hn3Kne noTeprn TMDS
Подержka pa3peшенB ctahandapTe CBepxBbICOKOуеткгdo 4K x 2K npn 30 Tc
CoTBeTCTBnTepe6oBaHnM CTaHdApToB HDMI 1.4 n HDCP
Ipoctota IOKJIIOUeHn 3a Cuet BCTpoEHbIX MOHTaXHBIX npoyuINH
- PaccnBhI npHnIpa6oTbI (6e3 Heo6xOIMocTn BHeuHero nITaHna)

yctaHOBka

PpmeaHn. B npBBeHHbIX Hnke nHCTpyKuaX npEaNoIaTaEcT, qTo DBA HDMl-ycTropoCTBa coeInneHb meKdy c6oJi.

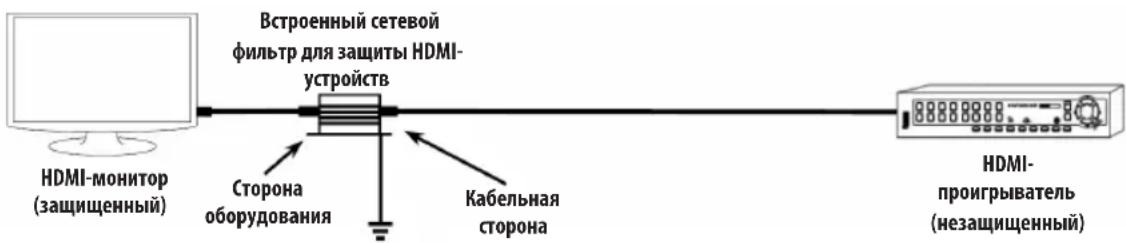

3aunta ondoro yctpoCTBa:

1. OToeHNHTe NOKIOueHbI HDMI-Ka6enb OT yCTpoNCTBa, NOJExKaUero 3auNTe, IN BCTaBbTe erO B rHe3do C MapKnipOBko "Cable End" ("Ka6enbHaag CTPOHa") BCtpoEHnOro CETeBOrO fInbTpa IIN3aunTBHDMI-yCTpoNCTB.
   2.Поdkночte 3aunuaemoe yctpoiCTBO K rhe3dy c MapknpoBko "Equipment End"(Ctopona o6opydoBaHna") Bctpoehhoro ceTeBOrO fNtbp Ta nla 3auntbHDMl-yctpoiCTB.

PnmeuHne. nBa oecneueHna MaKcImaIbHoi 3auNTb IINHa HDMi-KabEn Mexy d He3dOm Ha "CtoPoHe o6OpdyobHnra" BCTpoEHoro cTeBOrO fNtBtpa IIN3aunTb HDMi-ycTroPocTB N3aunMaembIM o6OpdyOBaHmE He DOnxHa PpeBbIaTb 0,9M. IInr Toien peKoMeHduETca NcNoB3ObaTb BblcokocpocThbE HDMi-KabEn Tripp Lite cepnn P568-003.

3.ПодсоeMHHTe OINH KOHeI npOBa 3a3eMJIeHnK JIO6oB CTOpOHe BCTpoEHHO CTeBOrO fNtpa dIra 3aUHTbHDMI-yCTpOriCTB,aDpyroKoHe- K WInHe 3a3eMJIeHnI.

CopejxMoe ynaKOBKn

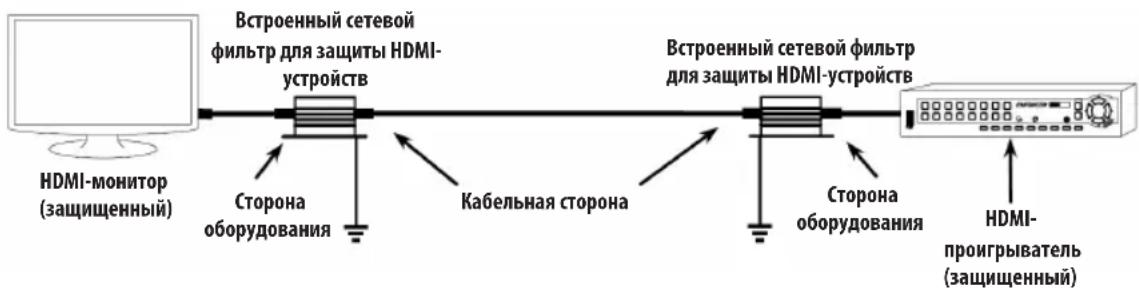

3aunTa HeckoIbKnx yctpoiCTB:
