USER MANUAL NLPWD15E FRIGIDAIRE

Installation Instructions

15" Pedestal

27" (68,5 cm) 15" (38 cm) 26.5" (67 cm) 42.5" (108 cm)

137147900 A (0904)

KIT COMPONENTS:

1 Pedestal Installation Instructions.
2 Front brackets.A
2 Front bracket spacers.B
2 Rear brackets.C
14 #10 (16 x .500) screws.D

COMPOSANTS DU NÉCESSAIRE:

IMPORTANT Total weight IN closed drawer or combination of IN and ON TOP OF open drawer should not exceed 65 lb. (29.5 kg).

Optional universal wrench available from dealer

Clé universelle

9/16" or 14 mm box wrench

Clé polygonale de

9/16 po ou de 14 mm

Llave de cubo de

9/16 po o 14 mm

AND ET Y

Phillips screwdriver

Tournevis Phillips

Destornillador Phillips

AND ET Y

Carpenter's level

• Failure to disconnect from power source before stacking could result in personal injury or even death.
• Improper installation of dryer venting could result in personal injury or damage to property.
  • To avoid back or other injury, have more than one person move or lift the washer or dryer.

English continued on page 2.

AVERTISSEMENT

NOTE Due to higher center of gravity of appliance on pedestals, some side-to-side rocking is normal during operation. Vibration can be minimized by assuring appliance is installed properly, including being level and solid on all four (4) legs by following these directions.

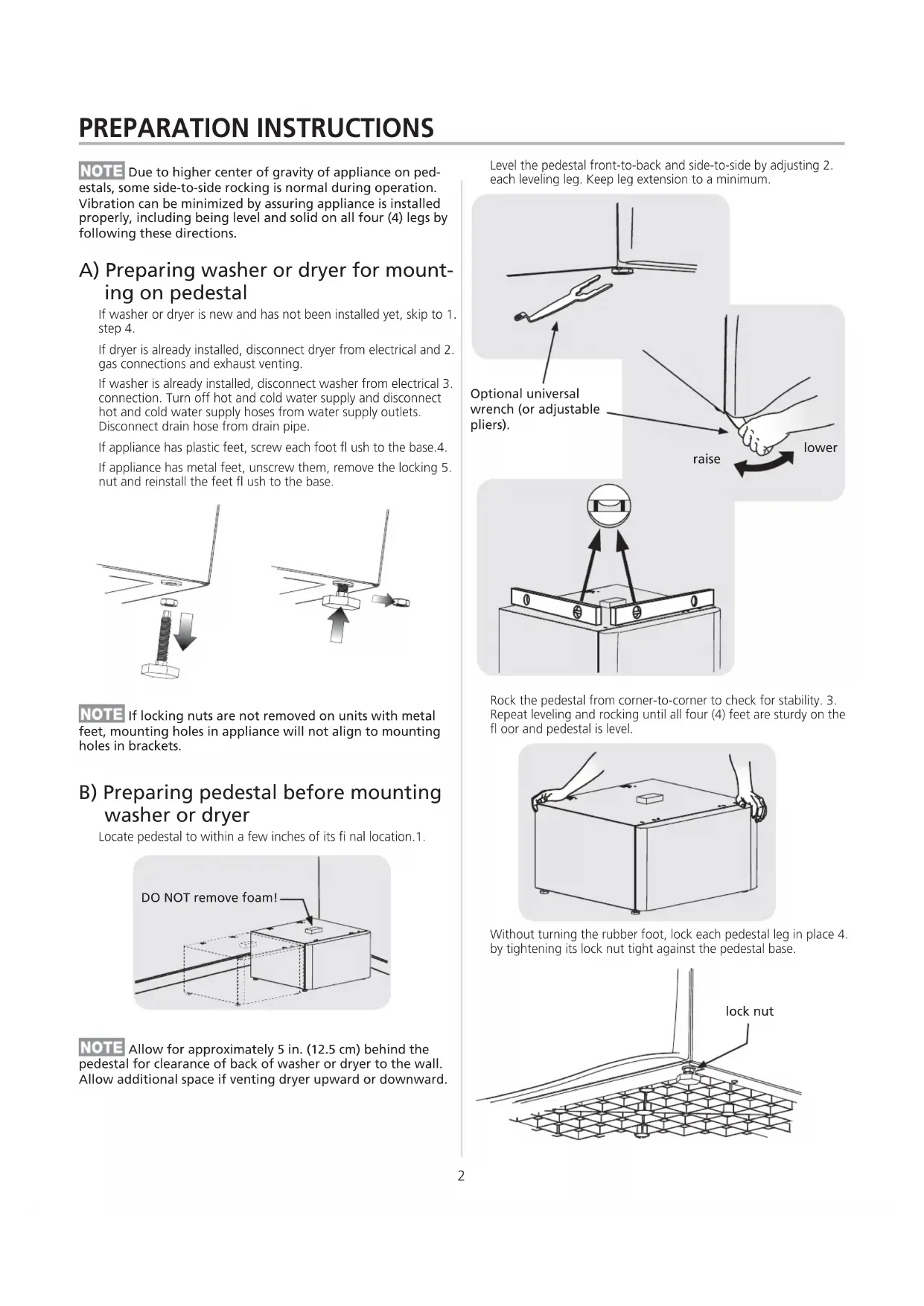

A) Preparing washer or dryer for mounting on pedestal

If washer or dryer is new and has not been installed yet, skip to 1. step 4.

If dryer is already installed, disconnect dryer from electrical and 2. gas connections and exhaust venting.

If washer is already installed, disconnect washer from electrical 3. connection. Turn off hot and cold water supply and disconnect hot and cold water supply hoses from water supply outlets. Disconnect drain hose from drain pipe.

If appliance has plastic feet, screw each foot fl ush to the base.4.

If appliance has metal feet, unscrew them, remove the locking 5. nut and reinstall the feet flush to the base.

Diagram showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

NOTE If locking nuts are not removed on units with metal feet, mounting holes in appliance will not align to mounting holes in brackets.

B) Preparing pedestal before mounting washer or dryer

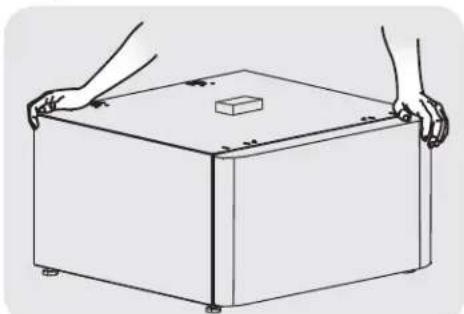

Locate pedestal to within a few inches of its final location.1.

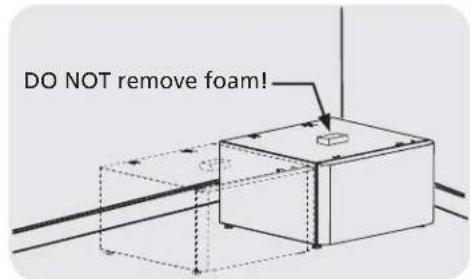

DO NOT remove foam!

NOTE Allow for approximately 5 in. (12.5 cm) behind the pedestal for clearance of back of washer or dryer to the wall. Allow additional space if venting dryer upward or downward.

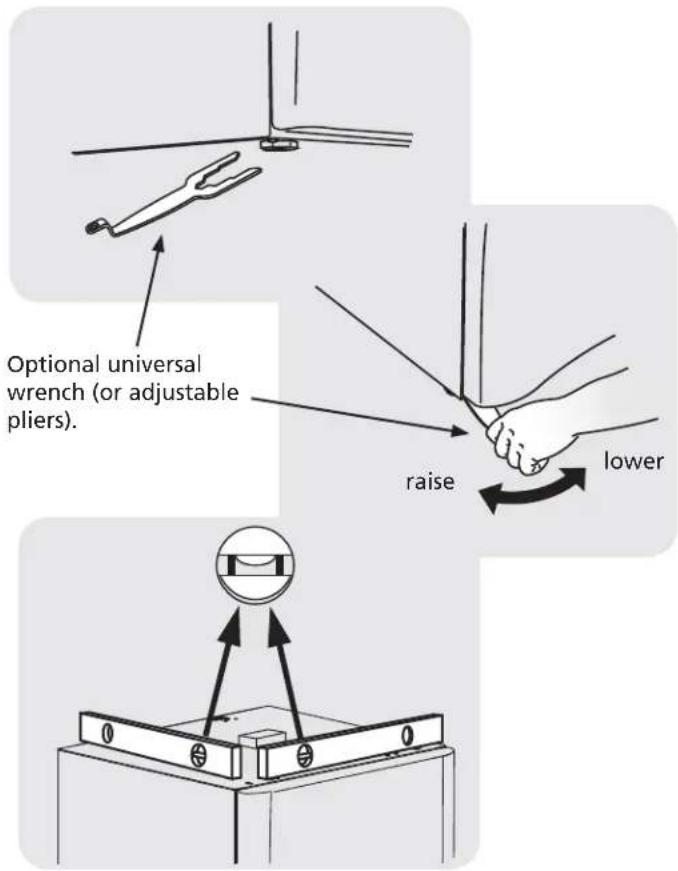

Level the pedestal front-to-back and side-to-side by adjusting 2. each leveling leg. Keep leg extension to a minimum.

Optional universal wrench (or adjustable pliers). raise lower

Rock the pedestal from corner-to-corner to check for stability. 3. Repeat leveling and rocking until all four (4) feet are sturdy on the floor and pedestal is level.

Line drawing of a rectangular box with two hands holding it, featuring a small cube on top (no text or symbols)

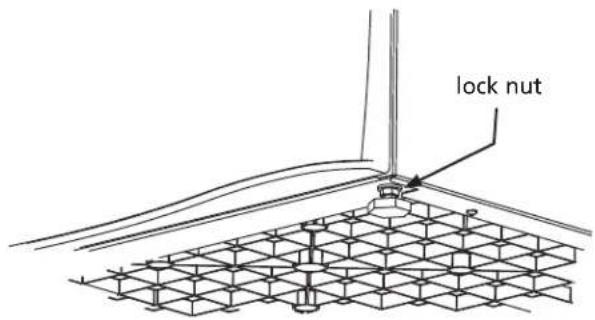

Without turning the rubber foot, lock each pedestal leg in place 4. by tightening its lock nut tight against the pedestal base.

lock nut

C1) Attaching washer mounting hardware

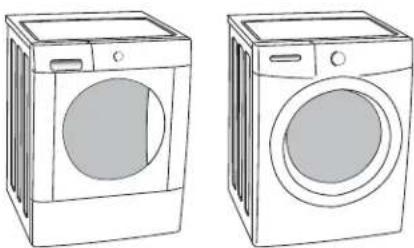

Use the following instructions for mounting either of these types 1. of washers to the pedestal:

Line drawings of two washing machines side by side, no text or symbols present

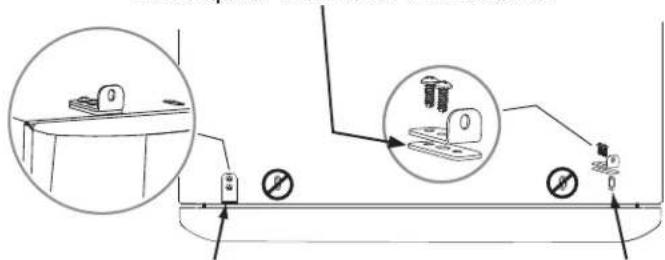

Attach each front clip to outer-most set of holes with 2 screws 2. and supplied spacer.

Locate spacer under each front bracket.

Diagram showing a device with labeled components and safety indicators, including a magnified inset of a tray with no text.

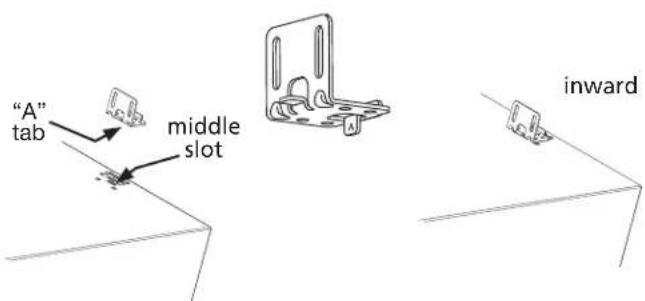

Insert "A" tab of each rear bracket into the middle slots on rear 3. of pedestal. Orient bracket inward for washer mounting.

"A" tab middle slot inward

Install 2 screws through each rear bracket into aligning pedestal 4. holes.

Line drawing of a sewing machine needle stitching a flat surface (no text or symbols)

D1) Mounting washer

CAUTION - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the washer.

Using two or more persons, slightly tip the washer back and lift it 1. onto the pedestal. Still tipped, slide the washer back against the rear brackets and gently set down the front so the appliance is between the front and rear brackets.

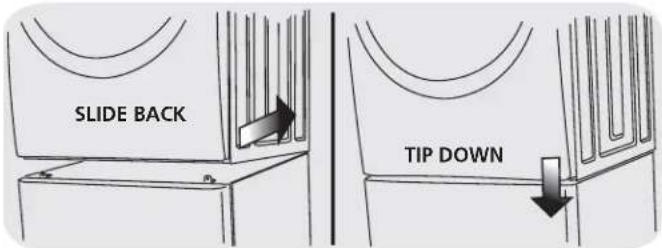

SLIDE BACK TIP DOWN

Adjust the appliance side-to-side to align its mounting holes with 2. the pedestal's bracket holes.

Install 2 screws through each rear bracket into the base of the 3. washer.

Technical line drawing of a mechanical assembly with no visible text or symbols

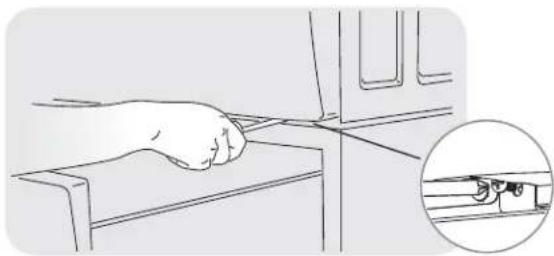

With the pedestal drawer open for better access, install a screw 4. through each front bracket into the base of the washer.

Line drawing of a hand pressing down on a mechanical component, with an inset showing a close-up of a small mechanical component (no text or symbols)

E) Installing or re-installing washer

Slide appliance/pedestal into place.1.

Check for levelness and rock all four (4) legs again. Repeat until 2. level and solid.

Refer to 3. Washer Installation Instructions for complete details on installing water, drain, or electrical.

7.0 cu ft DRYER (STYLE 1) INSTRUCTIONS

C2) Attaching dryer (style 1) mounting hardware

Use the following instructions for mounting any of these types of 1 dryers to the pedestal:

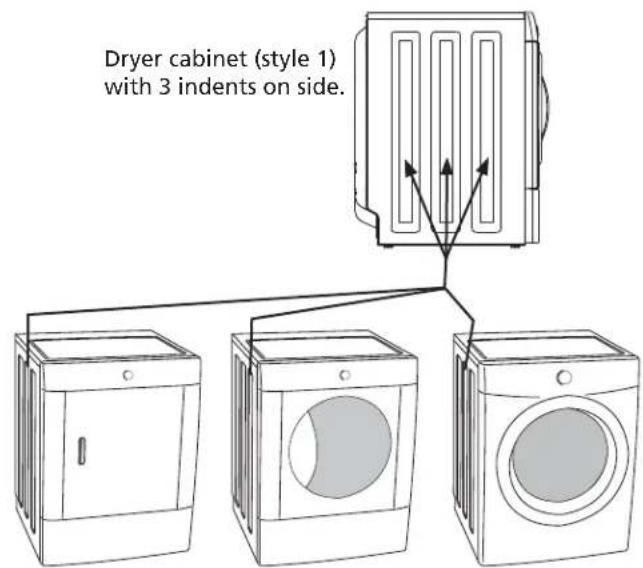

Dryer cabinet (style 1) with 3 indents on side.

Attach each front clip to outer-most set of holes with 2 screws.2.

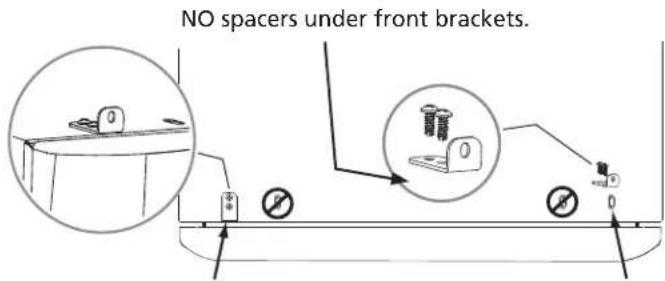

NO spacers under front brackets.

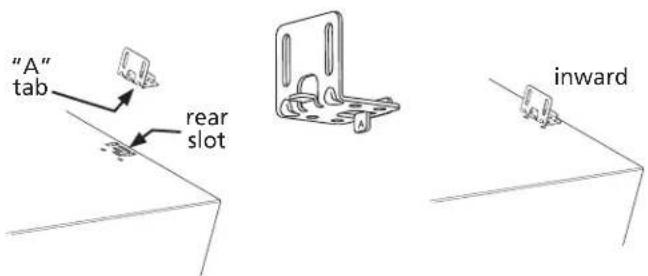

Insert "A" tab of each rear bracket into the rear slots on rear of 3. pedestal using rear bracket spacers. Orient bracket inward for "style 1" dryer mounting.

"A" tab rear slot inward

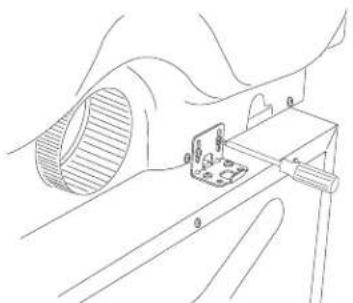

Install 2 screws through each rear bracket into aligning pedestal 4. holes.

Line drawing of a mechanical clamp or bracket with a screwdriver inserted (no text or symbols)

D2) Mounting dryer (style 1)

CAUTION - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the dryer.

Using two or more persons, slightly tip the dryer back and lift it 1. onto the pedestal. Still tipped, slide the dryer back against the rear brackets and gently set down the front so the appliance is between the front and rear brackets.

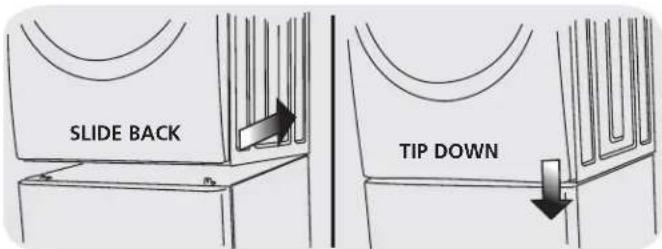

SLIDE BACK TIP DOWN

Adjust the appliance side-to-side to align its mounting holes with 2. the pedestal's bracket holes.

Install 2 screws through each rear bracket into the base of the 3. dryer.

Technical line drawing of a mechanical assembly with a component inserted into a housing (no text or symbols)

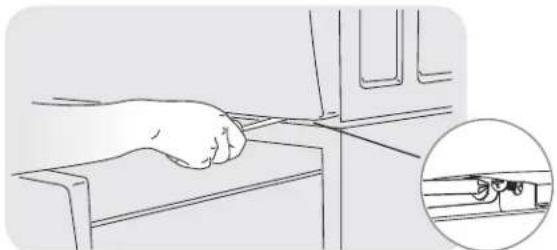

With the pedestal drawer open for better access, install a screw 4. through each front bracket into the base of the dryer.

Line drawing of a hand using a tool on a device, with an inset showing a close-up of the handle (no text or symbols)

E) Installing or re-installing dryer (style 1)

Slide appliance/pedestal into place.1.

Check for levelness and rock all four (4) legs again. Repeat until 2. level and solid.

Refer to 3. Dryer Installation Instructions for complete details on installing electrical, gas, or exhaust venting.

5.8 cu ft DRYER (STYLE 2) INSTRUCTIONS

C3) Attaching dryer (style 2) mounting hardware

Use the following instructions for mounting any of these types of 1 dryers to the pedestal:

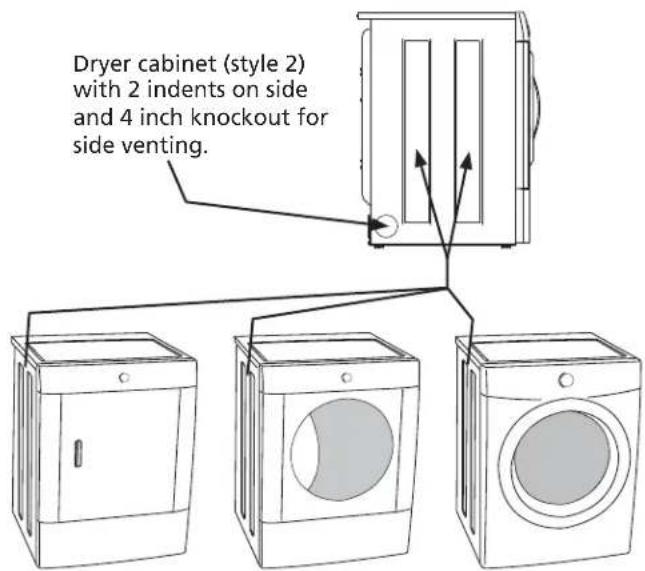

Dryer cabinet (style 2) with 2 indents on side and 4 inch knockout for side venting.

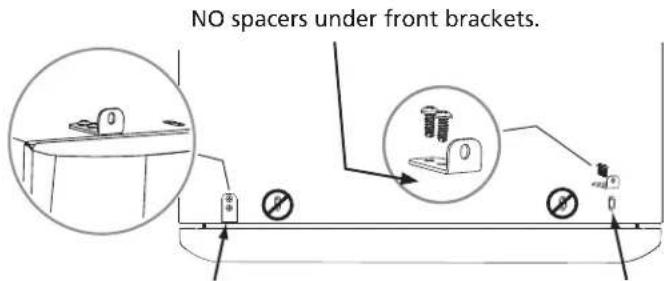

Attach each front clip to outer-most set of holes with 2 screws.2.

NO spacers under front brackets.

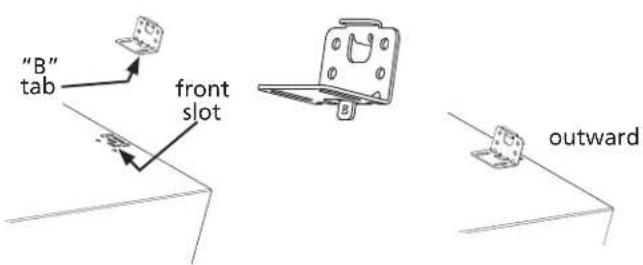

Insert "B" tab of each rear bracket into the front slots on rear of 3. pedestal. Orient bracket outward for "style 2" dryer mounting.

"B" tab front slot outward

Install 2 screws through each rear bracket into aligning pedestal 4. holes.

Line drawing of a screwdriver inserted into a bracket (no text or symbols)

D3) Mounting dryer (style 2)

CAUTION - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the dryer.

Using two or more persons, slightly tip the dryer back and lift it 1. onto the pedestal. Still tipped, slide the dryer back against the rear brackets so tabs on rear brackets engage the slots on the back of the dryer. Gently set down the front so the appliance is between the front and rear brackets.

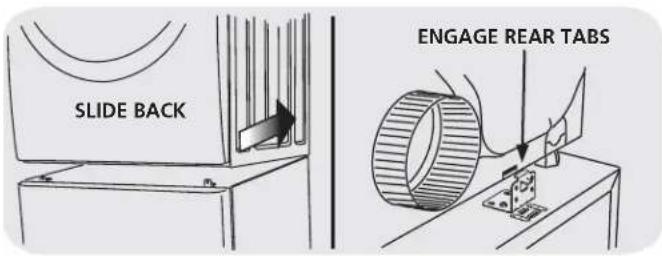

SLIDE BACK ENGAGE REAR TABS

TIP DOWN

Adjust the appliance side-to-side to align its mounting holes with 2. the pedestal's bracket holes.

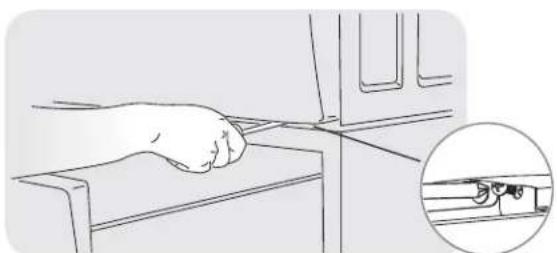

With the pedestal drawer open for better access, install a screw 3. through each front bracket into the base of the dryer.

Line drawing of a hand gripping a device with a magnified inset showing a small mechanical component (no text or symbols)

E) Installing or re-installing dryer (style 2)

Slide appliance/pedestal into place.1.

Check for levelness and rock all four (4) legs again. Repeat until 2. level and solid.

Refer to 3. Dryer Installation Instructions for complete details on installing electrical, gas, or exhaust venting.

REMARQUE

Diagram showing a mechanical assembly with a spring and nut, no text or symbols present

Diagram showing a mechanical assembly with an upward arrow and directional arrows, no text or symbols present.

REMARQUE

Line drawing of a rectangular box with two hands holding it, featuring a small cube on top (no text or symbols)

Line drawings of two different washing machines side by side, no text or symbols present

Diagram showing electrical circuit connections with switches and power supply, including magnified insets of components like a battery and switch.

Line drawing of a screwdriver inserted into a workpiece on a flat surface (no text or symbols)

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled components and a magnified inset of a workbench.

Line drawing of a mechanical clamp or bracket with a screwdriver inserted, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand pressing down on a mechanical component, with an inset showing a close-up of the component (no text or symbols)

Diagram showing a mechanical setup with labeled components and directional arrows, including zoomed-in insets of parts.

Simple line drawing of a screwdriver pressing a component on a flat surface (no text or symbols)

Line drawing of a hand pressing down on a device with an inset showing a close-up of the cable (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating motion, no text or symbols present

Line drawing of a rectangular box with a small square on top, being handled by two hands (no text or symbols)

Line drawings of two washing machines side by side, no text or symbols present

Diagram showing a device setup with labeled components and directional arrows, including zoomed-in insets for inspection or testing.

Line drawing of a sewing machine needle stitching a flat surface (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand pressing down on a mechanical component, with an inset showing a close-up of the handle (no text or symbols)

Diagram illustrating a mechanical setup with labeled components and directional arrows, including zoomed-in detail and force indicators.

Line drawing of a mechanical clamp or bracket with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand using a tool to press or install a device on a mechanical component, with an inset showing a close-up of the device (no text or symbols present)

Diagram showing a mechanical setup with labeled components and directional arrows, including zoomed-in insets of parts.

Simple line drawing of a screwdriver pressing a component on a flat surface (no text or symbols)

Line drawing of a hand pressing down on a mechanical component, with an inset showing a close-up of the handle (no text or symbols)
