USER MANUAL MilkUp Lavazza

• Conservare l’imballo dell’apparecchio, poiché in caso di successive movimentazioni potrà essere utile. Servizio Clienti Lavazza A MODO MIO Fax: [phone] I e-mail: [e-mail] C.so Novara 59 10154 TORINO GARANZIA E ASSISTENZA TECNICA LAVAZZA A MODO MIOEN Intended use: This appliance is intended to be used in household and similar applications such as: – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments. It is prohibited to make any technical changes to the appliance. Do not use the appliance for unauthorized purposes since this would cre- ate serious hazards! The appliance may not be used by children under 8 years of age or per- sons with physical, sensory or mental impairment, or lacking the necessary experience, unless supervised or after being instructed in the safe use of the appliance and understanding the potential dangers. Do not let children play with the appliance. Keep the appliance and its mains lead out of the reach of children under 8 years of age. The necessary cleaning and maintenance must not be carried out by chil- dren if not under direct supervision. Installation site: Store the appliance in a safe place, where no one can upturn it or be injured by it. Do not store the appliance at a temperature of below 4°C; frost can damage it. Do not use the appliance outdoors. Do not stand the appliance on very hot surfaces and/or near naked flames. Power supply: Only plug the appliance into a suitable power socket. The voltage must corre- spond to that specified on the appliance plate. Power supply cable: Do not use if the power lead is faulty. If the power lead is damaged, it must be replaced by the manufacturer or its technical assistance service to avoid any risks. Do not run the power lead around corners, sharp edges or over very hot items. Do not pull or hold the appliance by the lead. Do not pull on the lead to remove the plug; do not touch with wet hands. Do not allow the power lead to drop freely from tables or shelves. Danger of electrocution: Live parts should never come into touch with water. Do not immerse the appliance in water. SAFETYEN Protect children under 8 years of age: Prevent children from playing with the appliance. Children are not aware of the risks related to electric household appliances. Do not leave the appliance packaging materials within the reach of children. Danger of burns: The milk container heats during operation. Do not touch the hot parts immediately after using the appliance. Always grasp the container from the handle. Cleaning: Before cleaning the appliance, unplug from the power socket and wait for it to cool. Do not immerse the appliance in water! All tampering within the appliance is strictly prohibited. To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent. Appliance storage: When the appliance is unused for a long period of time, unplug from the socket and store in a dry place, out of the reach of children. Protect it from dust and dirt. Servicing / Maintenance: In case of failure, problems or a suspected fault resulting from falling of the appliance, immediately unplug the appliance. Do not attempt to op- erate a faulty appliance. Servicing and repairs can only be performed by Authorized Service Centres. All liability for damages resulting from work not carried out by professionals is declined. Appliance disposal at the end of its operational life: INFORMATION FOR THE USER: the symbol of the crossed-out wheeled bin on the appliance or its packaging indicates that the product must be disposed of separately from other waste at the end of its opera- tional life. The user must therefore take the appliance to be disposed of to an appro- priate separate collection centre for electrical and electronic equipment. Appropriate separate collection for the dismantled appliance being subsequently sent out for recycling, treatment and for environmentally friendly disposal, contribute to the prevention of possible negative effects on the environment and on human health, and encourage recycling of the materials the appliance is made of. Specific administrative sanctions provided for by current regulations will be applied for illicit disposal of the product by the user. SAFETYEN

• Instruction booklet - warranty sheet

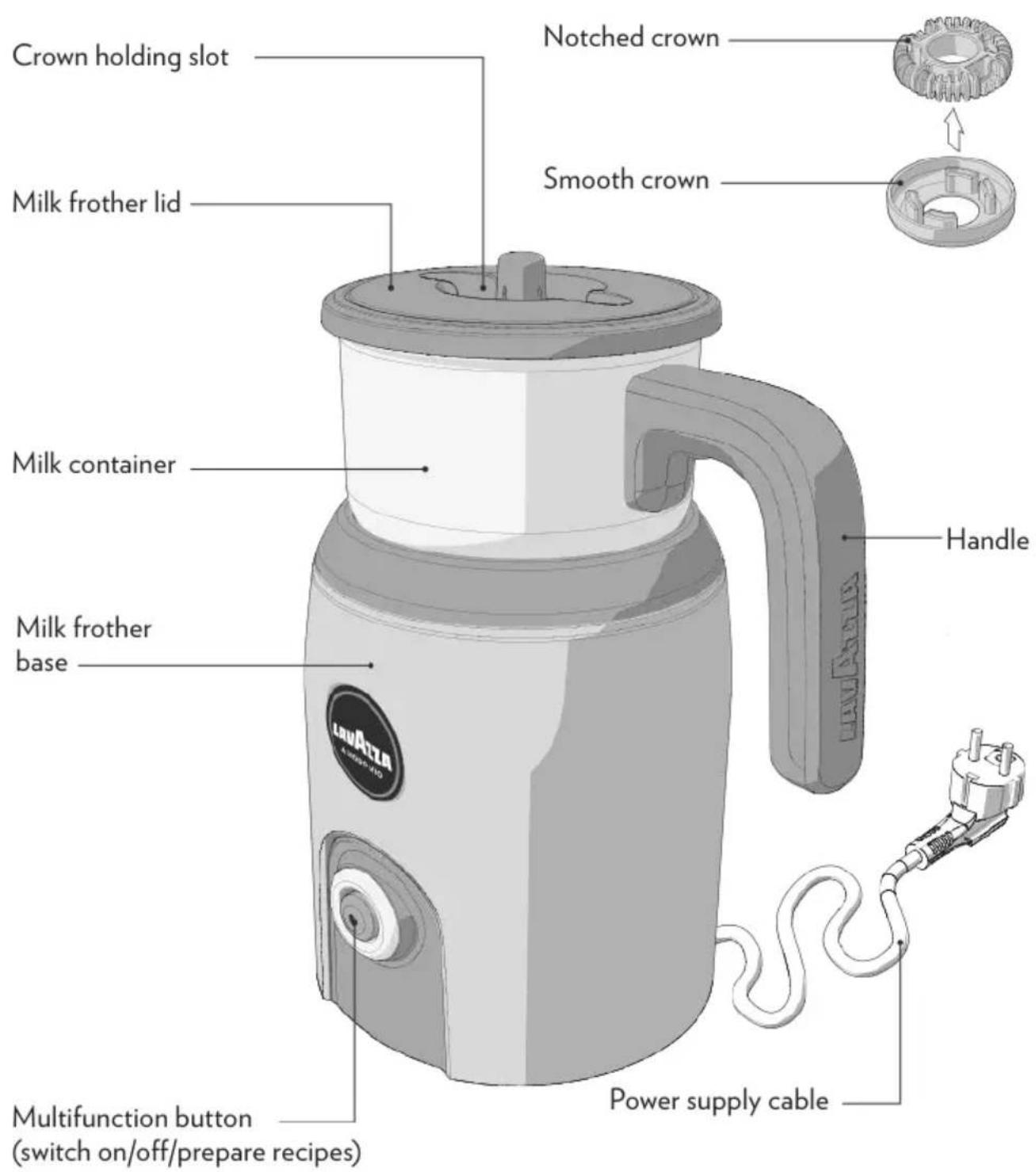

• Quick guide Multifunction button (switch on/o/prepare recipes) Milk frother lid Handle Power supply cable Milk frother base * The characteristics and the package content can vary according to the target market PACKAGE CONTENT * Milk container Smooth crown Notched crown Crown holding slotEN This appliance has only been designed to heat and froth milk and prepare hot chocolate. Do not put any other types of liquid or solid substances in the container, other than those indicated by Lavazza. Do not leave the milk frother unguard- ed when operating. Do not leave the milk frother unattended when in use. To get the best results, use cold milk from the fridge. Make sure that the bottom of the container and the contact area inside the base are clean and dry. FILLING AMOUNT Always respect the MIN and MAX level marked inside the container. Do not operate the milk frother with an empty container or with a quantity of milk below the MIN level (60 ml). This can cause the appliance to overheat. In case of overheating, the appliance will automatically turn off. Do not fill the contain- er over the MAX level, it may cause hot milk to splash. No liability is held for damage caused by:

• incorrect use not in accordance with the intended purposes;

• repairs not carried out by authorized service centres;

• tampering with the power supply cable;

• tampering with any parts of the appliance;

• the use of non-original spare parts and acces- sories;

• storage at temperatures below 4°C;

• use in places with temperature below 10°C or above 40°C;

• use in places with relative humidity above 95%; In these cases, the warranty is not valid. Remove any packaging materials and check that all components are present. Before the appliance is used for the first time, or after extended periods of non-use, it should be thoroughly cleaned as de- scribed in the section “MAINTENANCE AND CLEANING”. This appliance can only be operated with original accessories provided by the manufacturer. No lia- bility will be assumed for any damage caused by misuse of the milk frother or non-compliance with the instructions contained in this manual.

STARTING THE MILK FROTHER

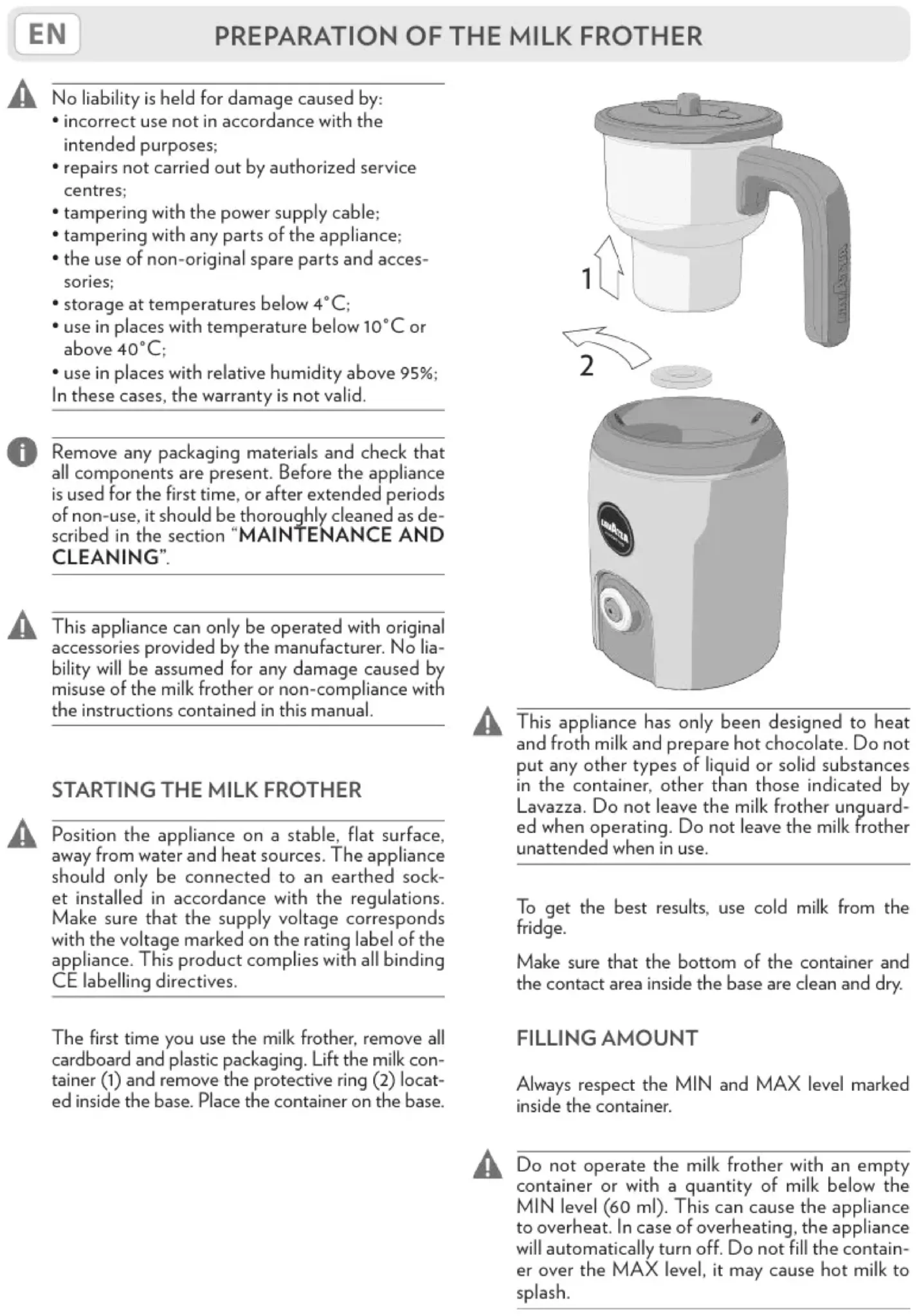

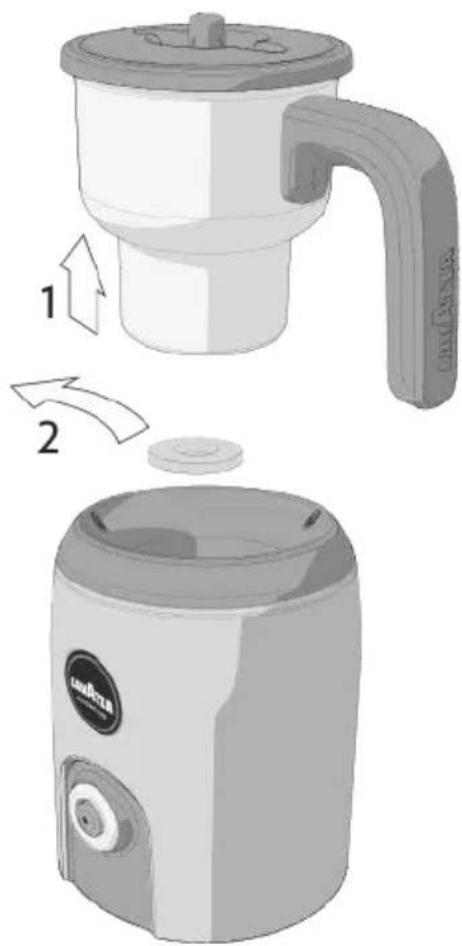

Position the appliance on a stable, flat surface, away from water and heat sources. The appliance should only be connected to an earthed sock- et installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives. The first time you use the milk frother, remove all cardboard and plastic packaging. Lift the milk con- tainer (1) and remove the protective ring (2) locat- ed inside the base. Place the container on the base.

MILK FROTHER SETTINGS

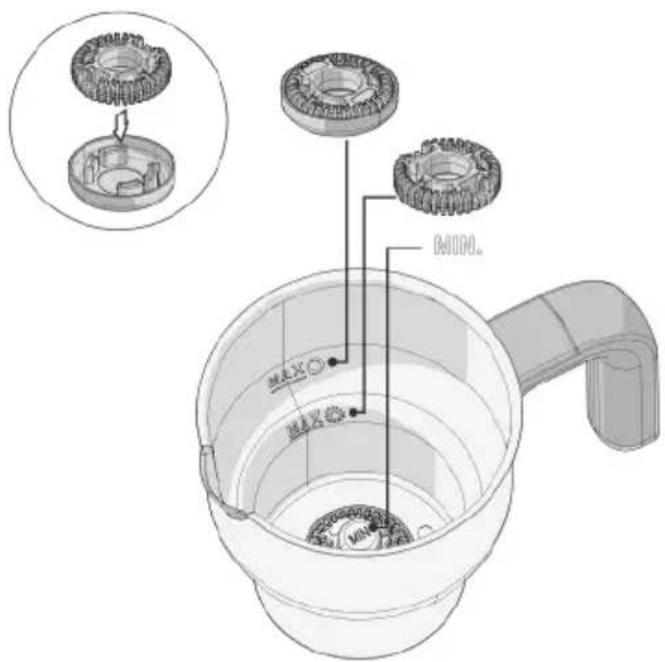

To froth milk, fill the container up to the 120 ml

• mark under the MAX level To heat up and blend the milk, fill the container up to the 180 ml

• To heat and froth the milk at the same time, use only the notched crown.

• To heat the milk and blend (e.g.. hot chocolate), adjust the notched crown inside the smooth crown, place them in the container making sure that the smooth crown is facing down. Do not use the milk frother without inserting the supplied crowns.

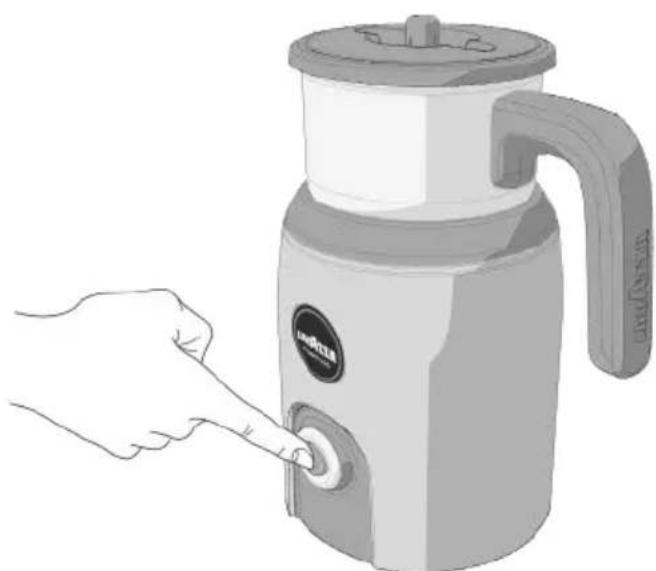

Place the container on the base, making sure it is positioned correctly. Remove the lid from the milk container. Insert the chosen crown onto the pin rising up from the assembly in the base of the container Notched crown (to froth milk) Smooth crown (to heat and blend) Pour the milk into the container. Refer to chapter “FILLING AMOUNT”. Place the lid on the container. Press the multifunction button. The lid must always be inserted during operation. Do not remove the milk container until the cycle has been completed. The appliance emits a beep. The multifunction button switches on with a flash- ing white light. The appliance starts the heating cycle. The heating process ends automatically when the milk is sufficiently hot. The appliance emits a double beep to indicate the end of the heating process. The multifunction button turns off. Remove the hot container only by the handle .EN

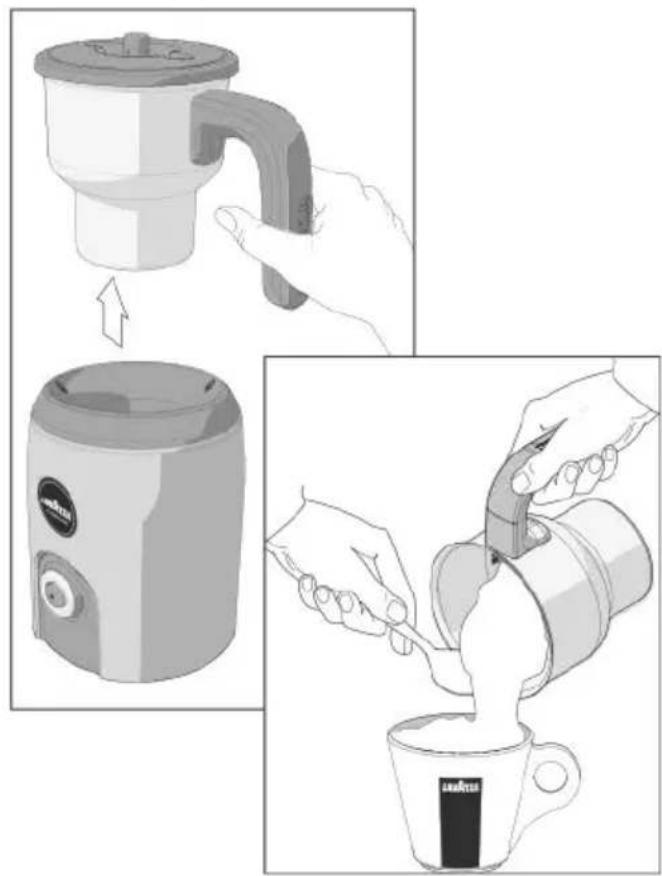

Open the lid and pour the frothed milk into the cup. Make sure that the crown stays in the container while the milk is being poured into the cup. Ensure the appliance is disconnected from the power outlet and that it has cooled down before cleaning. For more detailed information, refer to “MAINTENANCE AND CLEANING”.

TEMPORARY OR FINAL INTERRUP-

If you want to stop the milk heating cycle, press the multifunction button again. To reactivate the heating cycle or froth the milk, press the multifunction button again. If the milk is sufficiently hot at the moment of the interruption of the process, the appliance will not be able to be restarted.

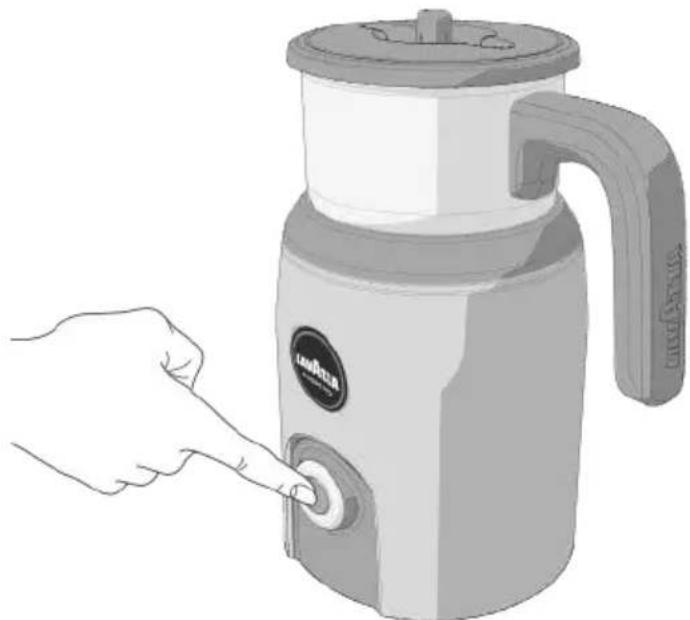

It is possible to froth milk without having to heat it up. Proceed as shown in points     to     in section “HEAT AND FROTH MILK”. Press and hold the multifunction button for at least 3 seconds. The appliance emits a long sound. The multifunction button turns on with a quick white flashing light. The appliance turns on and starts to froth the milk. After a minute the frothing process ends automat- ically. The appliance emits a double beep to indicate the end of the frothing cycle. The multifunction button turns off. Open the lid and pour the frothed milk into the cup. Make sure that the crown stays in the container while the milk is being poured into the cup.

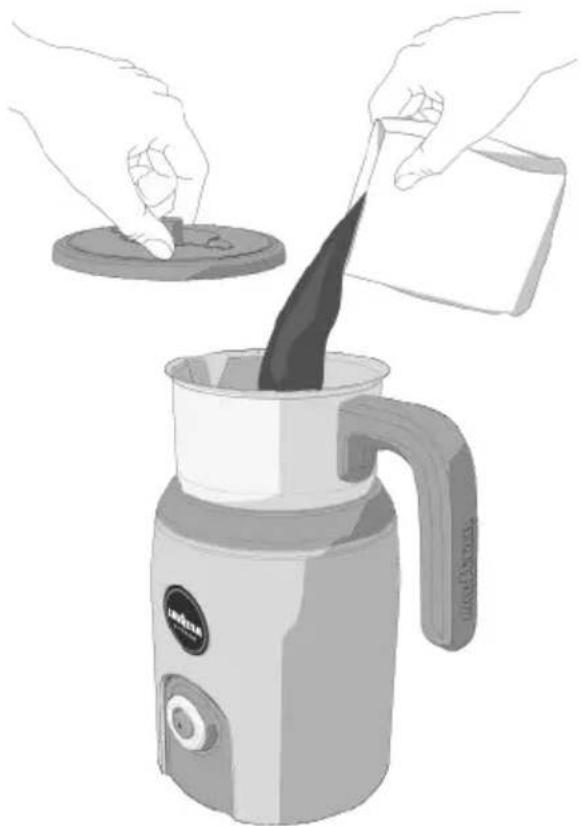

The appliance is also suitable for the preparation of chocolate drinks. Proceed as shown in points     to     in section “HEAT AND FROTH MILK”. After about a 1 minute, while in the process of heating, open the lid and pour the desired quantity of cocoa powder. Place the lid back again. The lid must always be inserted during operation; it can only be opened to add cocoa powder. To avoid blocking the mechanism, do not use chocolate flakes or pieces. The heating process ends automatically when the chocolate is sufficiently hot. The appliance emits a double beep to indicate the end of the heating process.

USE OF THE MILK FROTHER

The multifunction button turns off.

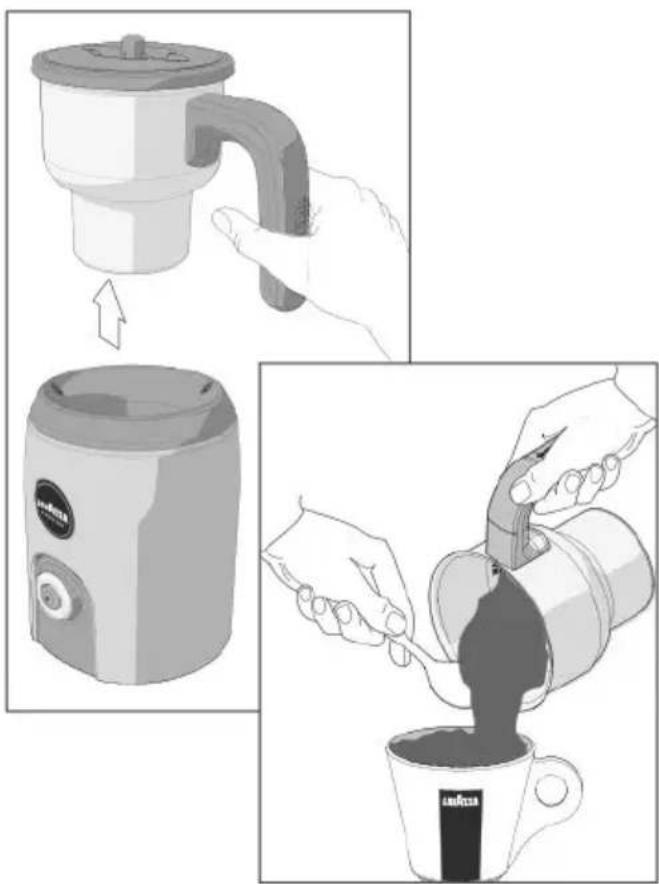

Open the lid and pour the chocolate into the cup Make sure that the crown stays in the container while the chocolate is being poured into the cup. Ensure the appliance is disconnected from the power outlet and that it has cooled down before cleaning. For more detailed information, refer to

“MAINTENANCE AND CLEANING”.EN

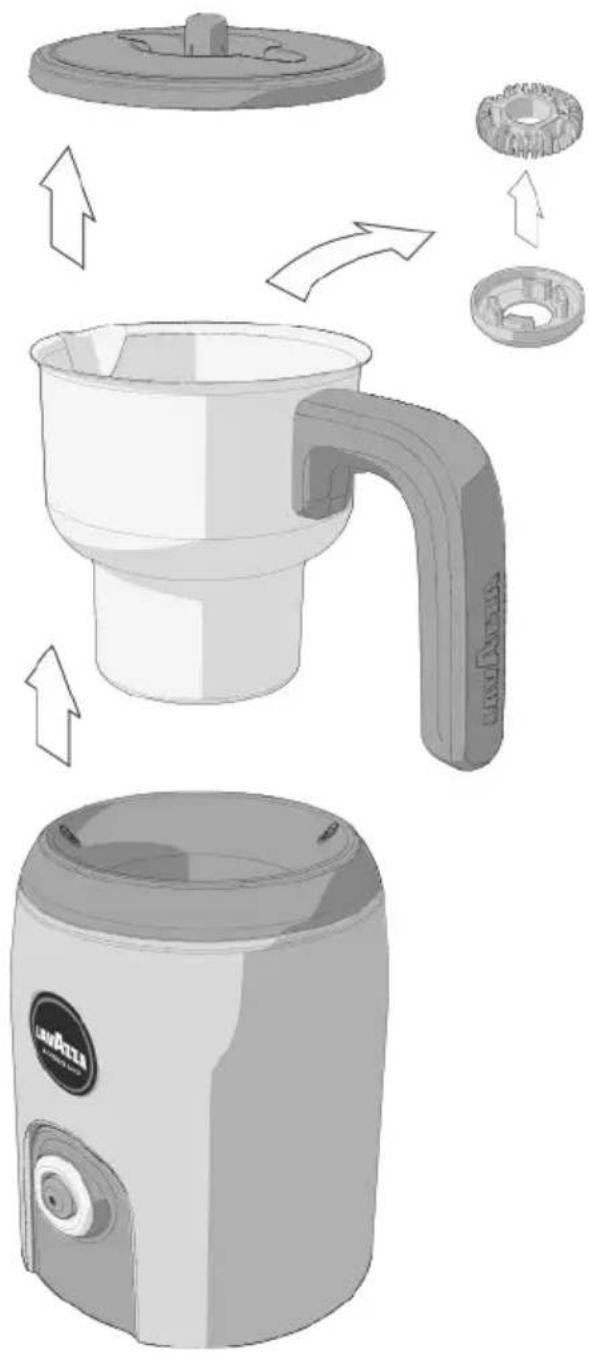

CLEANING THE MILK FROTHER

Disconnect the power plug from the outlet be- fore cleaning the milk frother and its accessories. To avoid the risk of electric shock, do not clean or immerse in water the power cord or the base of the appliance.

MAINTENANCE AND CLEANING

• The container, the crown and the lid must be washed after each use with warm water and a little detergent, or washed in the dishwasher.

• If necessary, the notched crown can be cleaned with a small brush.

• Thoroughly dry all accessories.

• The base can be cleaned with a soft damp cloth dipped in a small amount of liquid detergent.

• Do not use abrasive detergent solutions or solvents.EN TROUBLESHOOTING Problem encountered Possible causes Solution The milk frother does not switch on. Power light off after having pressed the multifunction button. »   Appliance not connected to the electricity grid. »   The device is connected to multiple outlets or power bar. »   No current at the current outlet. »   Electrical circuit failure. »   Make sure the power cord is properly plugged into the current outlet. »   Connect the device directly to the current outlet. »   Connect another device to check the power supply. »   Contact Lavazza’s Customer Service. The milk frother does not froth the milk. »   Toothed ring not present in the milk container. »   Smooth ring fitted. »   Milk frother damaged. »   Make sure the toothed ring is present and inserted correctly. »  Use with toothed ring only. »   Contact Lavazza’s Customer Service. Poor quality milk froth. »   Components are inserted incorrectly. »   The milk container is dirty. »   Incorrect quantity of milk. »  Unsuitable milk. »   Time to wait too long between end of preparation and taking of the selected beverage. »   Make sure to use the correct ring for the preparation of the selected beverage. »   Make sure that the milk container is clean. »   Make sure that the correct quantity of milk has been used, respecting the levels shown. »   It is recommended to use unskimmed milk, semi-skimmed or skimmed milk at refrigerator temperature (about 4-8°). »   Take the beverage at the end of preparation. Red flashing light  . »   Appliance overheated (internally). »   Milk container not present. »   Components not installed correctly or blocked. »   Electrical circuit failure. »   Make sure the air fan at the back is not covered or obstructed by dust. Wait some seconds and try again. »   Make sure the milk container is present. »   Make sure that the milk container has been inserted in the correct position and that there are no obstructions or foreign bodies inside its housing. »   Make sure to have inserted the ring/s properly. »   Contact Lavazza’s Customer Service. Milk leaking from the container. »   Excessive milk amount. »   Components installed incorrectly. »   Observe the indicated MAX levels. »   Do not use the toothed ring at the MAX level indicated for use with the smooth ring. The milk has not been heated, it remained cold. »   Multifunction button pressed incorrectly. »   Milk frother damaged. »   Press and release the multifunction button once and do not hold it down for 3 seconds. »   Contact Lavazza’s Customer Service. Too hot or burnt milk. »   Incorrect quantity of milk. »   Milk frother damaged. »   Make sure you have not used an amount of milk below the MIN level. »   Contact Lavazza’s Customer Service.EN Problem encountered Possible causes Solution The milk frother is noisy. »   Components installed incorrectly. »   Presence of foreign bodies. »   Make sure to have inserted the ring/s properly. »   Make sure that the lid is properly fitted into place. »   Make sure that the appliance is on a stable top. »   Make sure no foreign body is present inside the milk container. Cold beverage preparation failed. »   Hot beverage preparation selection. »   Milk frother damaged. »   Press and keep the button pressed for 3 seconds. »   Contact Lavazza’s Customer Service. Preparation stops shortly after starting. »   Too hot glass. »   Warm milk used. »   Milk frother damaged. »   Rinse the glass with cold water and pour cold milk. »   Do not reuse with milk already heated. Use cold milk. »   Contact Lavazza’s Customer Service. TROUBLESHOOTING TECHNICAL SPECIFICATIONS

• Nominal Voltage - Power Rating - Power Supply: See label on the appliance

• Measurements: Height Width Depth 230 mm 205 mm 130 mm

• Weight: approx. 1 kg

• Milk container: Max 180 ml - Removable

• Housing materials: Thermoplastic

• Magnetic induction heating systemEN

• Housing materials: Thermoplastic

• Magnetic induction heating system WARRANTY AND TECHNICAL ASSISTANCE LAVAZZA A MODO MIO What to do if you should require assistance If you are in any doubt or need technical assistance please do not hesitate to contact: Our dedicated staff will be happy to answer your questions and give any information regarding warranty and the provision of technical assistance. Contact Lavazza A Modo Mio Customer Service and:

• describe the defect or problem;

• provide necessary information: the date the device was purchased or delivered, and the serial number of the appliance. In the event of a verified technical defect, the Lavazza A Modo Mio Customer Service will provide you with all the necessary information to allow the appliance to be collected by the courier and repaired or replaced. Package the clean appliance in its original packaging or alternative packing able to protect against breakage during transport All transport costs will be charged to Lavazza. Warranty conditions

1) Lavazza warrants the appliance free from defects for a period of two years from the purchase date or

delivery date, whichever the later.

2) The date on the receipt, transport document or delivery note confirms the official date of delivery and is

considered proof of that date. A defect is defined as a significant limitation or reduction in the value or suitability for use of the appliance.

3) Should the product be defective prior to the delivery date, LAVAZZA may choose to repair or replace

the appliance, at no charge to the consumer. The risks and costs relating to the transport of the appliance to the Assistance Centre will be the responsibility of Lavazza.

4) The warranty does not cover any part that is defective because of negligence during use or storage, misuse,

failure to follow operating instructions, improper installation, repairs carried out by unauthorised persons, use of unoriginal accessories and spare parts, normal wear and tear due to correct use of the appliance (such as build-up of lime scale, worn gaskets or exhausted water filter), lightning, moisture, fire, use with incorrect voltage, other events that cannot be attributed to the manufacturer or to manufacturing defects of the appliance.

5) Any intervention carried out during the warranty period will not result in an extension or renewal of the

period of the warranty. Replaced parts automatically become LAVAZZA’s property.

6) To request repairs of the appliance the consumer can contact Lavazza A Modo Mio Customer Service.

Any necessary information relating to withdrawal of the appliance will be provided. The faulty appliance, if it is under warranty, should be sent to the Assistance centre together with a copy of the documentation providing proof of the date of purchase or delivery.

7) Lavazza declines any responsibility for direct or indirect injury to people or animals or damage to property

due to failure to comply with safety rules shown in the instruction booklet, in particular regarding the installation, use and maintenance of the appliance. IMPORTANT

• Keep your receipt of purchase, courier transport document (in the event of purchase with home delivery), or any other document providing proof of the date of purchase or delivery of the ap- pliance.

• Keep the original appliance packaging as it may be useful in case of any future transportation needs. Customer Service LAVAZZA A MODO MIO Fax. [phone] I e-mail: [e-mail] Consumer information and warranty Congratulations on the purchase of your new Lavazza A Modo Mio Milk frother. If you should experience any problems or need technical assistance with the device, you can contact us directly on:

• view the helpful tools and information on our website: www.lavazzamodomio.com.au
