USER MANUAL ZoneAire Compact ZCP08SA Friedrich

IMPORTANT SAFETY GUIDELINES

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the same configuration as your air conditioner's plug. If different, consult a Licensed Electrician.

Do not use plug adapters.

Do not use an extension cord.

Do not remove ground p

Always plug into a grounded 3 prong outlet. Failure to follow these instructions can result in death, fire, or electrical shock.

WARNING

Refrigeration system under high pressure

Do not puncture, heat, expose to flame or incinerate.

Only certified refrigeration technicians should service this equipment.

R410A systems operate at higher pressures than R22 equipment. Appropriate safe

service and handling practices must be used.

Only use gauge sets designed for use with

R410A. Do not use standard R22 gauge sets.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is a safety Alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety measures will follow the safety alert symbol with the word "WARNING".

or "CAUTION". These words mean:

Indicates a hazard which, if not avoided, can result in severe personal injury or death and damage to product or other property.

Indicates a hazard which, if not avoided, can result in personal injury and

damage to product or other property.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what will happen if the instructions are not followed.

NOTICE

Indicates property damage can occur if instructions are not followed.

IMPORTANT

Do not install and use your portable air conditioner unit before carefully reading this instruction guide.

Please retain this manual brochure for product warranty and future reference

CAUTION

Operate this unit in an ambient of 89^ or less.

The heating function of the unit should be operated in an indoor ambient temperature between 44^ and 73^ .

Clean air filter periodically to enjoy the most efficient cooling.

When the unit is shut off, please wait at least 3.5 minutes before restarting; this is to prevent the compressor from being damaged.

This unit is for indoor cooling, heating and dehumidifying.

When turning on the unit, the fan will operate but the compressor will start up after the cooling alarm flashes for three minutes.

In heating function, the heating alarm will flash for 3.5 minutes before the compressor and fan start up.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in Table 1.

Table 1.
MODEL	CIRCUIT RATING OR TIME DELAY FUSE		REQUIRED WALL RECEPTACLE
	AMP VOLT		NEMA NO.
P08SA, P10SA, P12SA	15	125 5-1	5P

INTRODUCTION

Congratulations on your purchase and welcome to Friedrich!

ZoneAire® Compact: PORTABLE AIR CONDITIONER

The Air Conditioner has been designed and manufactured to the highest standards of modern engineering. Our product not only provides you a remote control to operate all of the functions easily and conveniently but also includes the following benefits:

• 3-IN-1 SYSTEM: Offers cooling, dehumidification and bonus heat for year-round conditioning and comfort.
• Innovative design: One side offers cooling, simply turn the unit around and attach the hose for heating.
  Easy-roll casters.
  Built-in hose storage.
• Dual, easy-access antimicrobial nylon filters
• Electronic control pad provides easy identifying icons for simplified user operation
  24-hour programmable timer for cooling, heating and dehumidification modes
• Unique Sleep Control function - Increases temperature 2 degrees every 4 hours
• LCD remote control

UNPACKING INSTRUCTIONS

UNPACKING INSTRUCTIONS

1. Place the unit in the correct upright position before unpacking.
2. Cut the two packing straps.
3. Slide the carton in an upward motion and it will release from the base.
4. Grip the carry handles located on either sides of the unit and carefully lift until it slides out of the foam base.

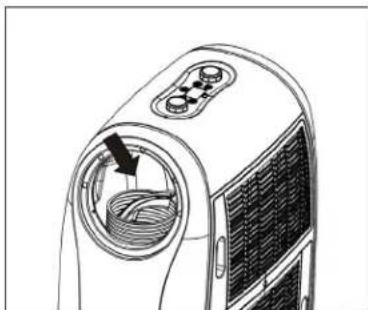

5. Remove the hot air outlet to take out the exhaust hose and [upper/ lower] hose adapters.
6. Install the exhaust hose on the unit before operating the unit.

CONTENTS

CONTENTS

1. Portable air conditioner unit
2. Remote control [1 pc]
3. A-type window kit
4. Upper/ Lower hose adapters
5. Joint tube
6. Exhaust hose (1 pc)
7. Batteries (2 pcs)
8. User Manual (1 pc)

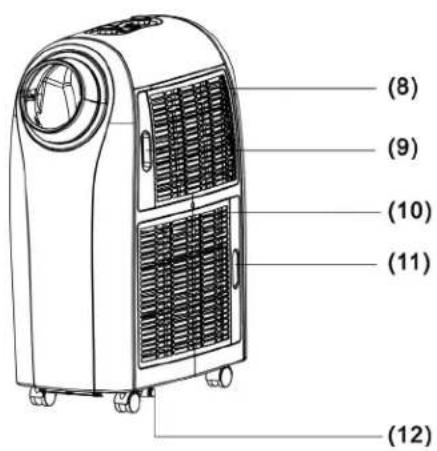

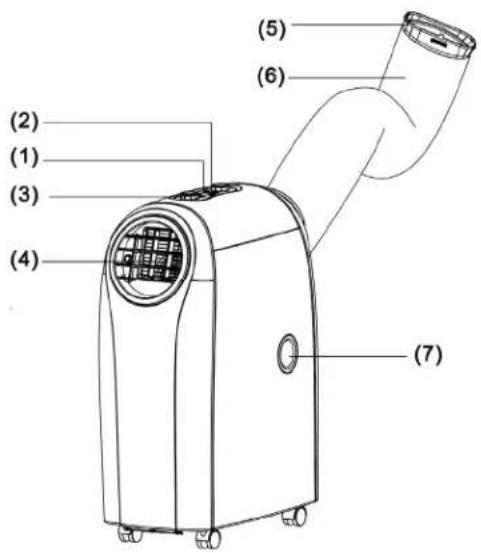

PARTS

1. Control panel
2. Remote control receiver
3. Adjusting Dials
4. Adjustable air vent
5. Joint tube
6. Exhaust hose
7. Upside drain hole
8. Cool air inlet
9. Cool air filter
10. Hot air inlet
11. Hot air filter
12. Downside drain hole

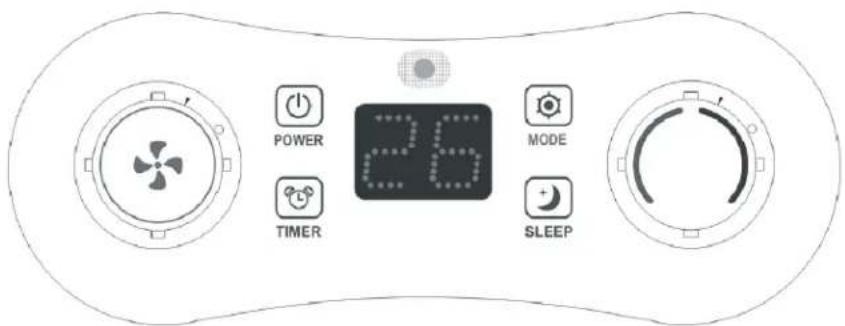

DISPLAY FUNCTIONS

D DISPLAY

DWER

ODE

MER

EEP mode

1. FUNCTIONS Key Description:

POWER{On/OffKey]

• Standby mode (Default)
• Turn On/ Off the unit
• Turn on the unit, the indicator lights on.

• Turn of the unit to standby mode, the indicator lights off.

• MODE (Functions switch key): the switching cycle is Cooling (Default) > Dehumidifying > Heating, and back to Cooling again.

COOLING/Heating/ Dehumidification Modes:

The indicator light turns blue for cooling, red for heating, and green for dehumidification> If the compressor shuts down, the indicator blinks.

The display window shows setting temperature on screen.

1. TEMPERATURE REGULATION Knob (UP/Down)

2. Rotate the dial ( ) in clockwise direction; the value will increase 1^ / 1^ per scale. The maximum value is 30^ / 86^ ( 25^ / 77^ ). Rotate the dial in a counter-clockwise direction to decrease the value 1^ / 1^ per scale. The minimum value is 17^ / 63^ ( 15^ / 59^ ).

3. In DEHUMIDIFYING mode, the dial is inactive.

4.PROGRAMMABLE TIMER

• Press the key to activate the timer, the indicator lights on; press the key again to cancel the timer setting, the indicator light will turn off.
• While the unit is operating or in standby, press the key and rotate the dial in clockwise/ counter-clockwise direction to set the Auto-Off time from 0 to 24 hours.
• During the TIMER mode, press and hold the key for 1 second, the time increases continuously
• To set the time, press the key before rotating the dial. The display will flash the on/off time during setting and show the time setting on screen.

DISPLAY FUNCTIONS

5. L.E.D. DISPLAY

The display indicates the current setting temperature or the timer setting. When the set temperature or the timer is adjusted, the new setting is shown then the display returns the current set temperature. The display is also used to show error codes should a fault occur, see TROUBLESHOOTING.

6. FAN SPEED

Rotate the dial in clockwise direction, the speed changes from F1 (Low) F2 (Medium) F3 (High) AU (Auto)

Rotate the dial in counter-clockwise direction, the speed changes backwards from AU (Auto) F3 (High) F2 (Medium) F1 (Low)

In COOLING mode, fan speeds are available from F1 (Low), F2 (Medium), and F3 (High) to AU (Auto). Default fan speed is in F2 (Medium) speed. Rotate the knob to F1 (Low) F2 (Medium) F3 (High) AU (Auto) fan speed.

If "AUTO" is selected (During cooling function),"HIGH" or "MEDIUM" or "LOW" will be selected automatically according to the difference between setting temperature and ambient temperature.

7. TIMER MODE

TIMER scale: from 0 to 24 hours.

• Use the TIMER to set the Auto-Off time during operating or in Stand-By mode
• While setting the TIMER, use the key or the dial () is available to adjust to the desired time.
• With each press of the TIMER key, the value on the display will increase from "00" "01" ...to "24" and back to "00" again.
• Set the Auto-On / Auto-Off timer:
• Press the key to preset the Auto-Off timer, and the display will flash the setting time. The display will return to show operating mode after 5 seconds.
• Press the key before the preset time to cancel the Auto-Off timer, and the unit will be turned off directly.
• While setting the Auto-On timer, you can preset the functions at the same time.
• Press the key to set the Auto-On timer. After setting up, the display shows the rest of time.
• Press the key before the preset time to cancel the Auto-On timer, and the unit will be turned on directly
• After setting up the Auto-On timer, the unit is still available to be controlled or be switched to other functions.

DISPLAY FUNCTIONS

8. SLEEP CONTROL FUNCTION

In "Sleep" mode, your unit will automatically go into low fan speed allowing the temperature to slowly drift up (in cooling) or down (in heating). See below:

• While in cooling mode, press the SLEEP key to set the temperature. It increases 2^ after an hour and at most increases 4^ after 2 hours.
• While in heating mode, press the SLEEP key to set the temperature. It decreases 2^ after hour and at most decreases 4^ after 2 hours.
• Press the SLEEP key again to cancel the setting.

9. ALARM

When the water tank is full, "E4" will be displayed on the display panel. To resume operation, please remove the rubber cap of the drain hose to drain out the water firstly. The E4 warning will disappear after draining, and then you can restart the unit by pressing the POWER key.

REMOTE CONTROL FUNCTIONS

Icon	Function
	Cooling
-	Heating
	Dehumidifying
	Sleeping
88:88 ON OFF	Timer ON/OFF
88°C F	Temperature
AUTO	Automatic air flow speed
HI	High speed
MED	Medium speed
LO	Low speed

Top view

Front view

Instruction for the operating keys:

When a remote control signal is transmitted, a transmission icon on the display flashes once, indicating the signal has been transmitted.

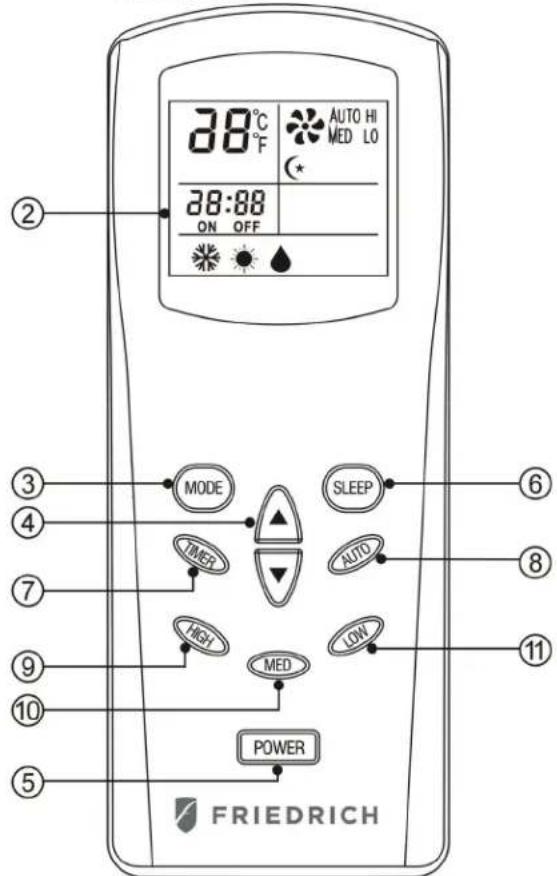

REMOTE CONTROL FUNCTIONS

1. Transmission window
2. Liquidcrystaldisplay
3. Mode select key:

Select from among the three functions: cooling, heating and dehumidifying. The fast key function indicates the above operating modes in a cycle when the key is pressed without being released. However, the transmission icon will not appear until the key is released and the confirmed mode is transmitted.

1. Setting keys for room temperature:

The set temperature will rise by 1^ when the key is pressed once and the set temperature will fall by 1^ when the key is pressed once. Both keys have the fast key function and can make the set temperature rise or fall continuously when the keys are pressed without release.

1. Power key:

When this key is pressed, the memorized modes and other information about temperature, speed, direction of airflow, sleep, etc., in the remote control will be transmitted to the unit and it will operate correspondingly. When the key is pressed again, the main unit will stop immediately.

1. Sleepkey

When this key is pressed, the air flow of the unit changes into sleep mode (low speed).

(1) Press "SLEEP" key, set sleep function; press again, and cancel sleep setting.
(2) The temperature will increase 2^ F half an hour after setting sleep function, and will increase at most 4^ F every two hours after that.
(3) When the main power supply is cut off, the sleep function setting will be cancelled automatically.
(4) When you turn off the unit, sleep function setting will be cancelled automatically.

REMOTE CONTROL FUNCTIONS

7. Timer key:

TIMER-ON: The timer-on is used to turn on the unit automatically after the setting time is over.

1. Press the "TIMER" key at stand-by status to set the time desired.
2. Once the set time has come to an end. The unit will turn on automatically.
3. Press the "POWER" key before time out, the setting time will be canceled and the unit will turn on.

TIMER-OFF: The timer-off is used to turn off the unit automatically after the set time is over.

1. Press the "TIMER" key at stand-by status to set the time desired.
2. Once the setting hour has come to an end. The unit will turn off automatically.
3. Press the "POWER" key before the time out, the set time will be canceled and the unit will turn off.

Note: Press "Timer" key when unit is off, The unit will be automatically Turn on, The setting method same as above

1. Autokey

Automatic fan speed

1. Highkey

High fan speed

1. Med key

Middle fan speed

1. Low key

Low fan speed

DRAIN PIPE

NOTICE

This unit can evaporate the condensation and distribute through the exhaust hose automatically.

1. The drain pipe doesn't have to be installed, when the unit is in cool mode. Please make sure that the rubber cap is locked on drain hole, when the unit is running.
2. When operating the heating function, the "①" rubber cap on drain hole should be pulled out and proper drain pipe should be installed in order to improve heating.
3. When operating the dehumidifying function the "①" rubber cap on drain hose should be pulled out and proper drain hose should be installed.

Please remove the air exhaust hose, connect a drain hose to the drain hole and lead the water to the outside in order to intensify dehumidifying capacity.

When the water tank is full, "E4" will be displayed on the display panel. Please remove the rubber cap" ① of the drain hole to drain out the water first.

After drainage is completed, please restart the unit so it can operate normally.

MAINTENANCE AND CLEANING

ELECTRICAL SHOCK HAZARD

Disconnect all power before servicing or cleaning. Failure to follow these instructions can result in death, electrical shock or fire.

MAINTENANCE

PLEASE DISCONNECT THE POWER CORD BEFORE CLEANING.

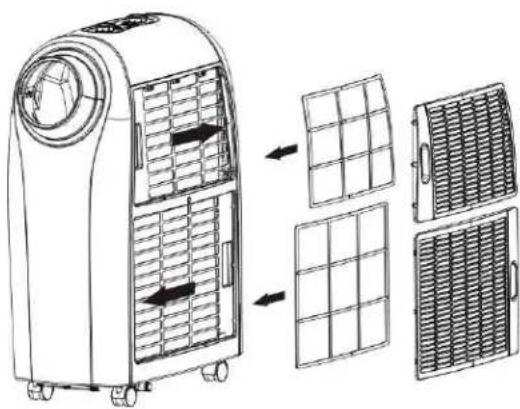

AIR FILTER

The air filter located on the left hand side of the unit and can be removed simply by pulling the frame up.

Clean the air filter with a vacuum cleaner ensuring all dust is removed.

CONDenser/EVAPORATOR

Use a brush attachment with a vacuum cleaner.

Safety Precautions

Install in an accessible location.
- Only operate the unit in an upright position.
- Do not place in direct sunlight to avoid discoloration of the plastic.
- Do not use the unit on or in water to avoid electrical shock.
- Do not use near gas appliances, flammable liquids, or fires.

Power Sources

Make sure your electrical receptacle has the same configuration as your air conditioner's plug. If different, consult a Licensed Electrician.
- Do not use plug adapters.
- Do not use an extension cord.
- Do not remove ground prong.
Always plug into a grounded 3 prong outlet. Failure to follow these instructions can result in death, fire, or electrical shock.

OtherWarnings

• Do always keep the unit 3 feet away from TV sets or radios to avoid the risk of electromagnetic interference.
• Do always keep the air outlets free from obstructions.

INSTALLATION

PLACE FOR USE

1. Because the machine distributes hot air, please don't place or operate in a narrow place.
2. Do not work the machine in a humid place.
3. Don't place the machine in a sunlit corner otherwise the unit might shut down due to the overheat and the color of the machine may soon fade out.

HELPFUL HINTS

The unit is fitted with a special thermal cut off device.

Please ensure the unit is not placed against objects which will obstruct air intake e.g. furniture or curtains as this will affect its performance dramatically.

Do not overextend the exhaust hose beyond its full extension or attach additional extensions.

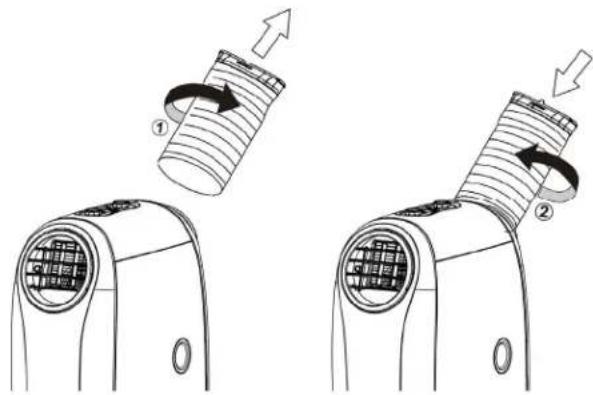

EXHAUST HOSE INSTALL

1. To attach the flexible exhaust hose to the unit, rotate the hose clockwise (as shown in figure ①) directly onto the hot-air outlet ring.
2. To remove the flexible exhaust hose from the unit, rotate the hose counter-clockwise (as shown in figure ②) off of the hot-air outlet ring.

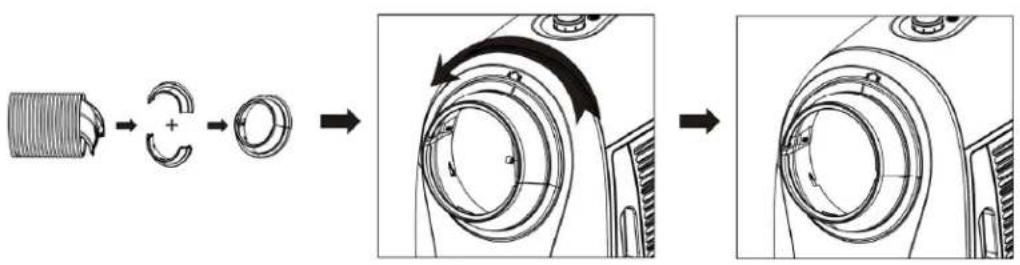

HOT AIR OUTLET INSTALLATION

Follow below steps to assemble hose adapters on the unit before operating.

INSTALLATION

WINDOWKITINSTALL

1. Install the Flexible Exhaust Hose and the Adjustable Window Slider Kit vertically or horizontally.
2. Slide the window kit to adjust the length of the window.

Window elidor kit

Window slider kit

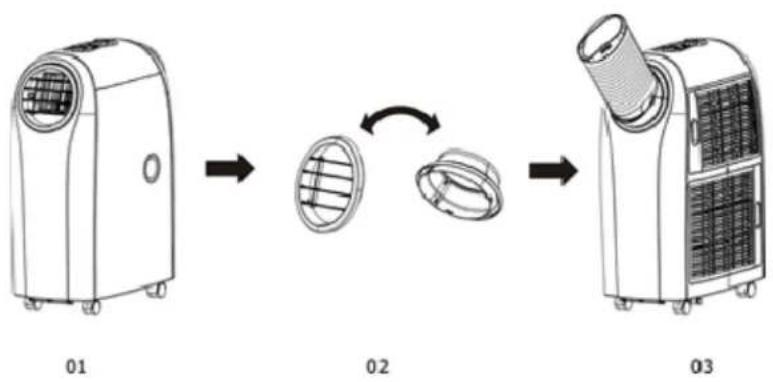

How to enjoy heating function

1. Remove and reverse the hot and cold air outlet, and re-install the air outlets as seen in picture 03.
2. Turn on the unit around and feed hose through window, or other opening, as shown in "Window Kit Install" section above.

TROUBLESHOOTING

TROUBLESHOOTING

ERROR CODE	CAUSE TROUBLESHOOTING
E1	Electrical short on both temperature sensor and PCB	Contact an electrician for repair
E2	Electrical short of temperature sensor copper tube and PCB wiring	Contact an electrician for repair
E4 Water plate	is full	Pull out the rubber stopper located at the bottom of the unit to drain the water out.

(CE) N 842/2006: R410A is a kind of fluorinated greenhouse gases covered by the Kyoto Protocol. Its total global warming potential (GWP) is 2088.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible hazards to the environment or human health from uncontrolled waste disposal, please recycle it to prove the sustainable reuse of material resources. Please ask return and collection systems or contact the retailer where the product was purchased to return your used device, they can recycle products safely.

FRIEDRICH

Friedrich Air Conditioning Co.

10001 Reunion Place, Suite 500

San Antonio, TX 78216

1-800-541-6645

www.friedrich.com

ZoneAire MD Compact : CLIMATISEUR PORTATIF

CONDUIT D'ÉVACUATION

AVIS

Friedrich Air Conditioning Co.

10001 Reunion Place, Suite 500

San Antonio, TX 78216

1-800-541-6645

www.friedrich.com
