T TNF 8112 OX - Fridge WHIRLPOOL - Free user manual and instructions

Product type	Refrigerator
Brand	Whirlpool
Model	T TNF 8112 OX
Defrost technology	No-Frost (automatic)
Interior lighting	LED
Internal fan	Yes (with optional antibacterial filter)
Open door alarm	Yes (after 5 minutes, LED flashing)
Fast cooling function	Yes
Temperature adjustment	Yes (via control panel)
Adjustable hinges	Yes (door leveling)
Reversible door	Yes (opening direction can be changed)
Adjustable feet	Yes
Fruit and vegetable drawer	Yes
Bottle holder	Yes (on some models)
Glass shelves	Yes
Antibacterial filter	Optional (if equipped)
Water drain outlet	Yes (cleaning tool provided)
Condenser cleaning	Recommended (vacuum cleaner)
Power supply	220-240V ~ 50Hz (standard)
After-sales service	Contact Whirlpool

Frequently Asked Questions - T TNF 8112 OX WHIRLPOOL

How to adjust the temperature of my Whirlpool T TNF 8112 OX refrigerator?

Refer to the supplied Quick Start Guide to access temperature settings. The appliance is preset at the factory to the recommended average temperature. Use the control panel to adjust.

What to do if the open door alarm triggers?

The alarm triggers if the door remains open for more than 5 minutes. The LED light flashes. Close the door quickly. If the door remains open for more than 8 minutes, the light goes out.

How to activate the fast cooling function?

The Fast Cooling function increases cooling capacity. Refer to the Quick Start Guide to activate it. It is recommended to keep the fan running to maximize efficiency.

Why are there water droplets on the rear walls?

This is normal: it indicates that the automatic defrost (No-Frost) is in progress. The water drains through an outlet to an evaporation tray.

How to clean the water drain outlet?

Use the tool provided with the appliance to clean the outlet located on the rear wall, near the fruit and vegetable drawer. Clean it regularly to prevent blockages.

The fan does not run continuously, is this normal?

Yes, the fan activates or deactivates based on temperature and humidity. It does not run continuously even when activated. This is normal.

What to do in case of prolonged power outage?

For a power outage up to 24 hours, keep the door closed. For more than 24 hours, consume perishable foods first. A full appliance stays cold longer.

How to reverse the door opening direction?

The opening direction is reversible. If the operation is performed by the After-Sales Service, it is not covered by the warranty. Refer to the manual for detailed instructions.

The LED lighting is not working, what to do?

Check the power supply. If the LEDs are defective, contact After-Sales Service for replacement. LEDs are only available from authorized centers.

How to maintain the rear condenser?

Regularly clean the condenser (at the rear) with a vacuum cleaner to remove dust and lint. This improves energy efficiency and performance.

USER MANUAL T TNF 8112 OX WHIRLPOOL

Close-up of wooden clothespins and clips, no text or symbols visible

Käyttöohje Consignes d'utilisation Használati útmutató Пайдалану нұсқаулығы

Black and white photo of multiple glass bottles with black lids, arranged in rows (no visible text or labels)

Close-up of several glasses with blurred background (no text or symbols visible)

Close-up of a white cylindrical device with perforated surface and mounting bracket (no visible text or symbols)

Chapter 1: INSTALLATION ....5

1.1. INSTALLING SINGLE APPLIANCE ....5
1.2. INSTALLING TWO APPLIANCES ....5
1.3. ADJUST DOORS (If available) 5

Chapter 2: FUNCTIONS....6

2.1.DOOR OPEN ALARM....6
2.2. FAST COOLING ⏻ 6
2.3.FAN*6
2.4. TEMPERATURE SETTING 6
2.5. NO-FROST REFRIGERATOR COMPARTMENT 6
2.6. REFRIGERATOR LIGHT....6

Chapter 3: USE....7

3.1. NOTES ......7

Chapter 4: FOOD-STORAGE TIPS ....7

4.1. AIR VENTILATION....7
4.2. HOW TO STORE FRESH FOOD AND BEVERAGE 7
4.3. WERE TO STORE FRESH FOOD AND BEVERAGE ....7

Chapter 5: FUNCTIONAL SOUNDS ....8

Chapter 6: RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE....9

6.1. ABSENCE / VACATION ......9
6.2.MOVING 9
6.3. POWER FAILURE....9

Chapter 7: MAINTENANCE AND CLEANING....9

Chapter 8: TROUBLESHOOTING GUIDE ......10

8.1. BEFORE CONTACTING AFTER-SALES SERVICE.... 10
8.2. FAILURES 10

Chapter 9: AFTER-SALES SERVICE ....11

Others:

REVERSE DOOR SWING.... 132

NOTE:

The instructions apply to several models, so there may be differences. Sections which only apply to certain appliances are indicated with an asterisk (*).

Functions which are dedicated specially for your already bought model of product you will find in QUICK START GUIDE.

1. INSTALLATION

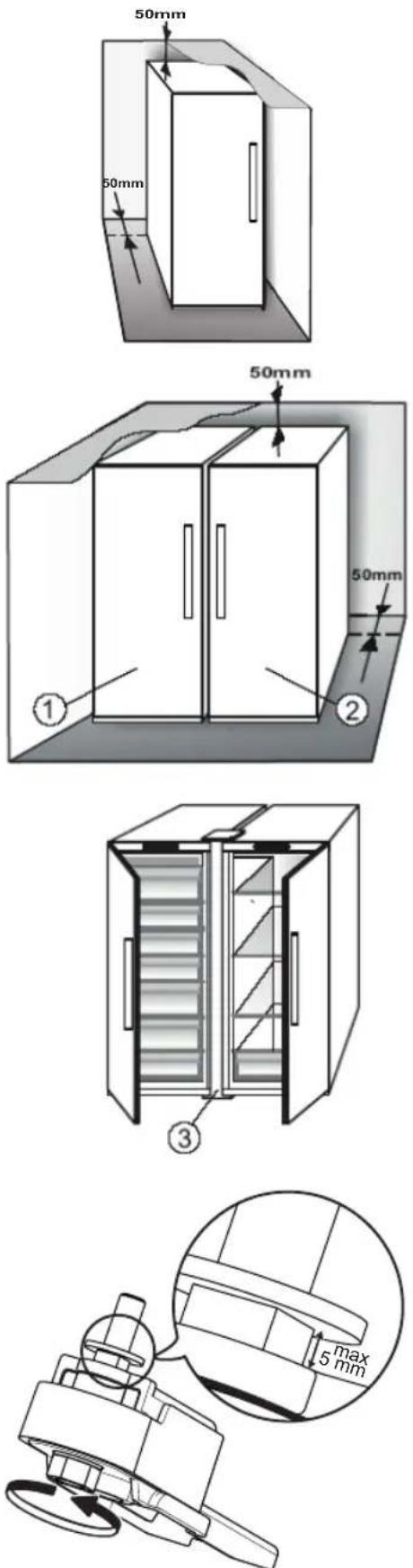

1.1. INSTALLING SINGLE APPLIANCE

To guarantee adequate ventilation, leave a space on both sides and above the appliance.

The distance between the rear of the appliance and the wall behind the appliance should be at least 50mm.

A reduction of this space will increase the Energy consumption of product.

1.2. INSTALLING TWO APPLIANCES

During installing the freezer ① and the fridge ② together ensure that the freezer is located on the left and the fridge on the right (as shown on the drawing). Left side of refrigerator is equipped with special device in order to avoid condensation problems between appliances.

We recommended installing two appliances together using the linking-kit ③ (as shown on the drawing). You can buy it in Service.

1.3. ADJUST DOORS (If available)

To level the doors using the adjustable lower hinge (select models)

If the refrigerator door is lower than the freezer door, raise the refrigerator door by turning the adjustment screw counterclockwise using a M10 wrench.

If the freezer door is lower than the refrigerator door, raise the freezer door by turning the adjustment screw counterclockwise using a M10 wrench.

2. FUNCTIONS

2.1. DOOR OPEN ALARM

The Door Open Alarm is activated when the door is left open for more than 5 minutes. Indication of the alarm is shown by the blinking of the LED Door Light. If the door is left open more than 8 minutes the LED Door Light switches off.

2.2. FAST COOLING

The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment.

Using Fast Cooling ⚡ function it is possible to increase the cooling capacity in the refrigerator compartment.

To maximize the cooling capacity, please keep the fan switch on.

2.3. FAN\*

The Fan improves temperature distribution inside the product, allowing better preservation of stored food. By default, the fan is switched on. It is advisable to keep the fan switched on when the ambient air temperature is above 27 ÷ 28^ or if you notice drops of water on the glass shelves or in sever humidity conditions. Please note that when the fan is switched on it will not continuously work. The fan will start/stop working depending on the temperature and/or humidity level inside the product. It is therefore absolutely normal if the fan does not move even if the fan is switched on. To activate or deactivate this function – see enclosed Quick Start Guide.

Note:

Do not obstruct the air intake area with food items.

To guarantee the right performance at lower ambient temperature (colder than 18^ C) and to minimize Energy Consumption, turn off the fan.

If the appliance has the Fan it can be equipped with the antibacterial filter.

Remove it from the box placed in the crisper drawer and insert into the cover of fan.

The replacement procedure is included in the filter box.

2.4. TEMPERATURE SETTING

The appliance is normally factory-set for operation at the recommended medium temperature.

For details of setting temperature - see enclosed Quick Start Guide.

Note: Displayed set points correspond to the average temperature throughout the whole refrigerator

2.5. NO-FROST REFRIGERATOR COMPARTMENT

Refrigerator compartment defrosting is completely automatic.

Droplets of water on the rear wall inside the refrigerator compartment indicate that the automatic defrost phase is in progress. The defrost water is automatically run into a drain hole and collected in a container, where it evaporates.

2.6. REFRIGERATOR LIGHT

The light system inside the fridge compartment uses LEDs light, allowing a better lightning as well as very low energy consumption.

If the LED light system does not work, please contact the Service to replace it.

Important:

The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.

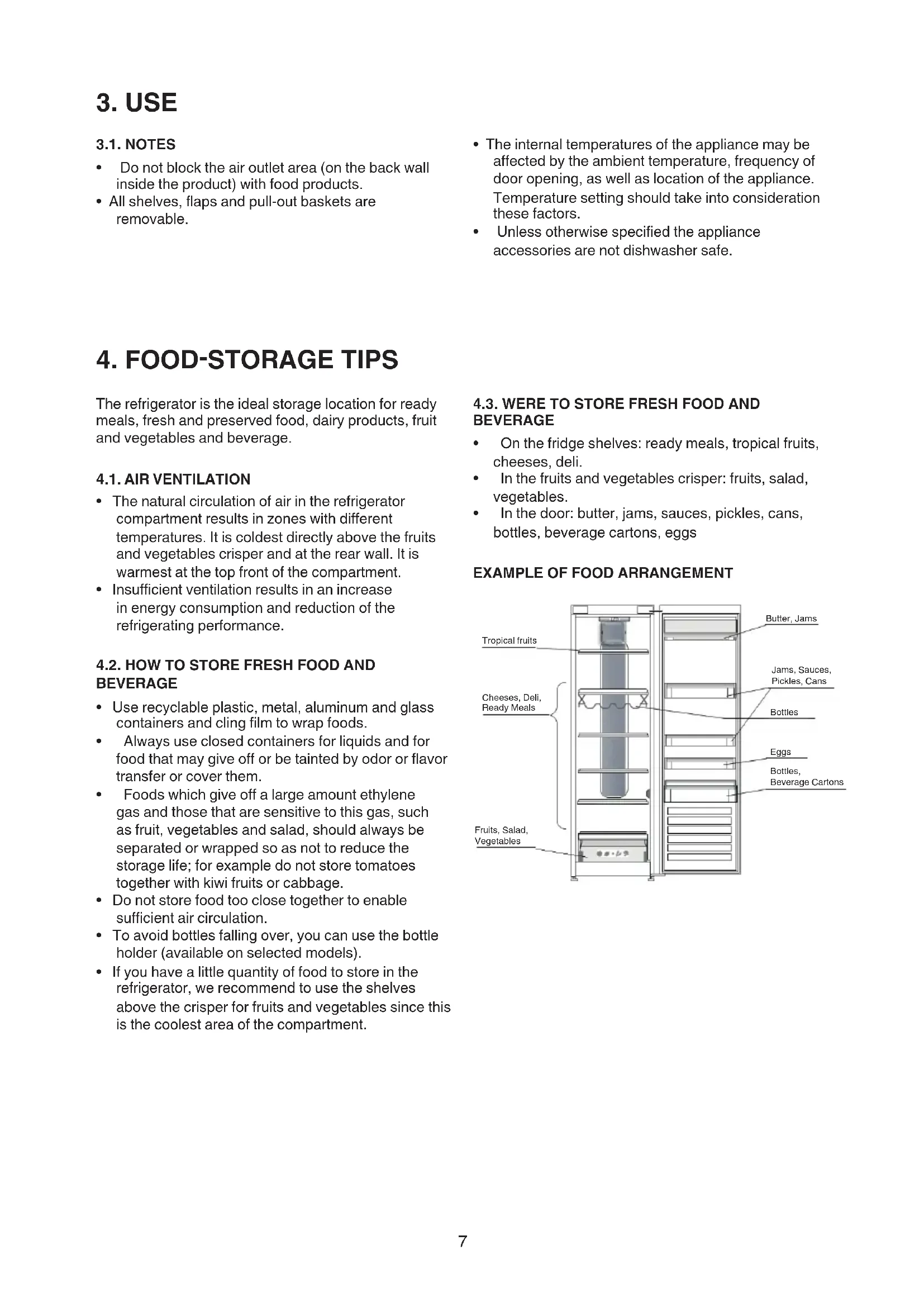

3. USE

3.1. NOTES

• Do not block the air outlet area (on the back wall inside the product) with food products.
• All shelves, flaps and pull-out baskets are removable.

- The internal temperatures of the appliance may be affected by the ambient temperature, frequency of door opening, as well as location of the appliance. Temperature setting should take into consideration these factors.

- Unless otherwise specified the appliance accessories are not dishwasher safe.

4. FOOD-STORAGE TIPS

The refrigerator is the ideal storage location for ready meals, fresh and preserved food, dairy products, fruit and vegetables and beverage.

4.1. AIR VENTILATION

• The natural circulation of air in the refrigerator compartment results in zones with different temperatures. It is coldest directly above the fruits and vegetables crisper and at the rear wall. It is warmest at the top front of the compartment.
• Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance.

4.2. HOW TO STORE FRESH FOOD AND BEVERAGE

• Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.
• Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them.
• Foods which give off a large amount ethylene gas and those that are sensitive to this gas, such as fruit, vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage.
• Do not store food too close together to enable sufficient air circulation.
• To avoid bottles falling over, you can use the bottle holder (available on selected models).
• If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment.

4.3. WERE TO STORE FRESH FOOD AND BEVERAGE

• On the fridge shelves: ready meals, tropical fruits, cheeses, deli.
• In the fruits and vegetables crisper: fruits, salad, vegetables.
• In the door: butter, jams, sauces, pickles, cans, bottles, beverage cartons, eggs

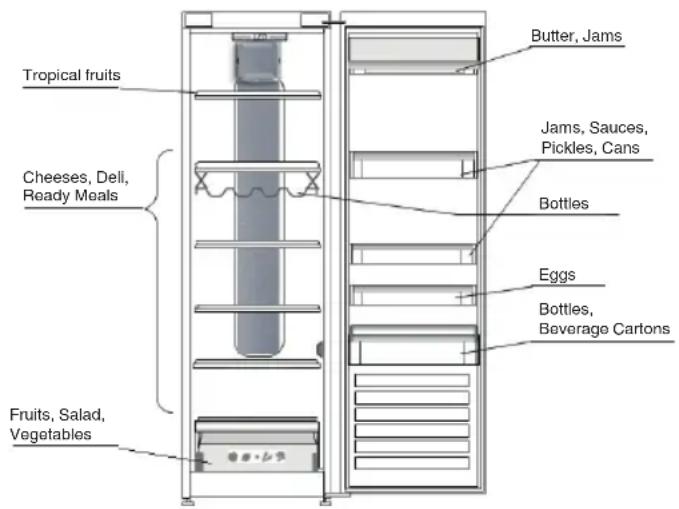

EXAMPLE OF FOOD ARRANGEMENT

5. FUNCTIONAL SOUNDS

Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.

Some of the functional sounds can be reduced through

• Leveling the appliance and installing it on an even surface.
• Separating and avoiding contact between the appliance and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contact with each other.

Some of the functional sounds you might hear:

A hissing sound when switching on the appliance for the first time or after a long pause.	A gurgling sound when refrigerant fluid enters into the pipes.	BRRR sound is from the compressor running.
Buzzing sound when water valve or fan start working.	A cracking sound when compressor starts or when ready ice drops into ice box abrupt clicks when compressor switches on and off.	The CLICK is from the thermostat which adjusts how often the compressor is running.

6. RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

6.1. ABSENCE / VACATION

In case of vacation its recommended to use up food and to disconnect the appliance to save energy.

6.2.MOVING

1. Take out all internal parts.
2. Wrap them well, and fix them together with adhesive tape so that they do not bang together or get lost.
3. Screw the adjustable feet so that they do not touch the support surface.
4. Close and fix door with adhesive tape and, again using adhesive tape, fix the power cable to the appliance.

6.3. POWER FAILURE

In the event of a power failure, call the local office of your electricity supply company and ask how long it is going to last.

Note: Bear in mind that a full appliance will stay cold longer than a partially filled one.

If food is found to be in a poor condition, it is best to throw it away.

For power failures lasting up to 24 hours.

1. Keep the door of the appliance closed. This will allow the stored food to stay cold as long as possible.

For power failures lasting more than 24 hours.

1. Try to use up the food, which is more easily perishable.

7. MAINTENANCE AND CLEANING

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors. Never use abrasives. Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion. Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth. Do not use steam cleaners.

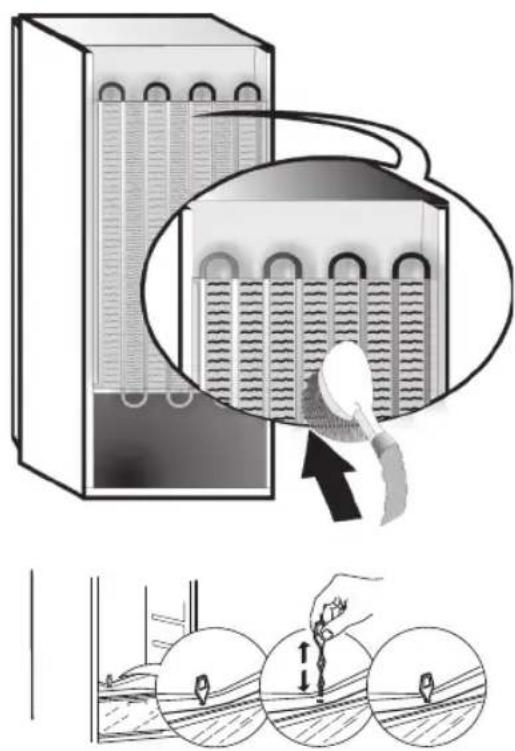

Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.

Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.

Important:

• The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.
• The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.

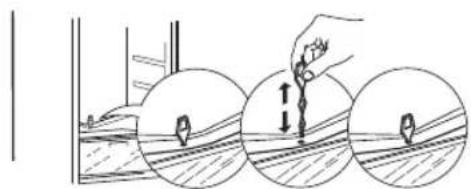

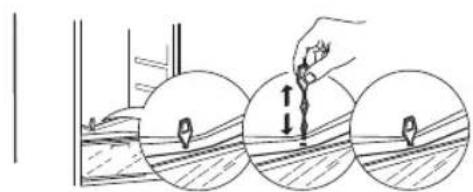

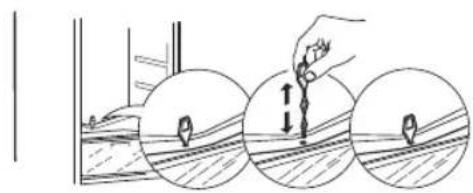

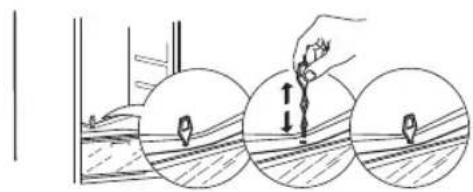

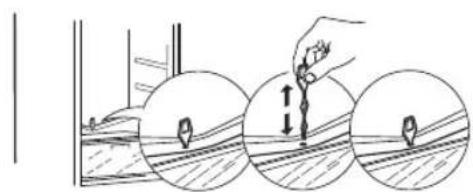

To ensure continuous and correct flow of defrost water, regularly clean the inside of the draining hole on the back of the refrigerator near the fruit and vegetable drawer, using the tool provided.

8. TROUBLESHOOTING GUIDE

8.1. BEFORE CONTACTING AFTER-SALES SERVICE...

Performance problems often result from little things you can find and fix yourself without tools of any kind.

PROBLEM SOLUTION
The appliance is not working: • Is the power cable plugged into a live socket with the proper voltage?Have you checked the protection devices and fuses of the electrical system in your home?
If there is water in the defrost pan:	• This is normal in hot, damp weather. The pan can even be half full. Make sure the appliance is level so that the water does not overflow.
If the edges of the appliance cabinet, which come in contact with the door seal, are warm to the touch:	• This is normal in hot weather and when the compressor is running.
If the light does not work: • Have you checked the protection devices and fuses of the electrical system in your home?Is the power cable plugged into a live socket with the proper voltage?In case the LEDs are broken the user must call the Service for exchange of the same type available only at our After-sales Service Centers or authorized dealers.
If the motor seems to run too much:	• Motor running time depends on different things: number of door openings, amount of food stored, temperature of the room, setting of the temperature controls.Is the condenser (back the appliance) free of dust and fluff?Are the door properly closed?Are the door seals properly fitted?On hot days or if the room is warm, the motor naturally runs longer.If the appliance door has been left open for a while or if large amounts of food have been stored, the motor will run longer in order to cool down the interior of the appliance.
If the appliance temperature is too high:	• Are the appliance controls correctly set?Has a large amount of food been added to the appliance?Check that the door is not opened too often.Check that the door close properly.
If the doors do not open and close properly:	• Check that food packages are not blocking the door.Check that the internal parts or automatic ice maker are not out of position.Check that the door seals are not dirty or sticky.Ensure the appliance is level.

8.2. FAILURES

When any failure appears any LEDs indicator start blinking, it is necessary to call service. The appliance will work preserving the food stored.

Note: In case of power failure, appliance goes back to normal operation and previously chosen temperature setpoint is restored.

9. AFTER-SALES SERVICE

Before contacting After-Sales Service:

Switch the appliance on again to see if the problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.

If, after performing the checks described in the Troubleshooting Guide and switching the appliance on again, your appliance still does not work properly, contact the After-sales Service, explain the problem.

Specify:

• the model and appliance serial number (stated on the rating plate),
  • the nature of the problem,

SERVICE

0000 000 00000

• the Service number (the number after the word SERVICE on the data plate on the inside of the appliance),
• your full address,
• your telephone number and area code.

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

СЪДЪРЖАНИЕ

Глава 1: МОНТИРАНЕ ....13

2. ФУНКЦИИ

2.1. АЛАРМА ЗА ОТВОРЕНА ВРАТИЧКА

Three grayscale icons showing a hand pressing a button, a cabinet, and a hanging clock (no text or symbols)

6. ПРЕПОРЪКА В СЛУЧАЙ НА НЕИЗПОЛЗВАНЕ НА УРЕДА

6.1. ОТСЪСТВИЕ/ВАКАНЦИЯ

Illustration of a heat exchanger with cooling fins and a magnified view showing internal flow (no text or symbols)

Diagram showing three circular views of a mechanical or structural component with a hand adjusting a tool, no text or symbols present.

8. РЪКОВОДСТВО ЗА ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

8.1. ПРЕДИ ДА СЕ ОБЪРНЕТЕ КЪМ ОТДЕЛА ЗА СЛЕДПРОДАЖБЕНО ОБСЛУЖВАНЕ...

2. FUNKCE

2.1. UPOZORNĚNÍ NA OTEVŘENÁ DVÍŘKA

8. ODSTRAŇOVÁNÍ PORUCH

8.1. NEŽ SE OBRÁTÍTE NA SERVISNÍ STŘEDISKO...

2. FUNKTIONER

2.1. ALARMEN ÅBEN LÅGE

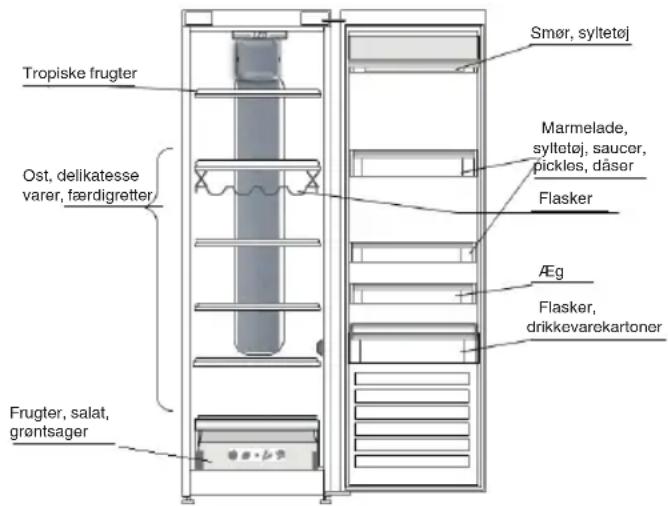

EKSEMPEL PÅ OPTIMAL FYLDNING

Illustration of a server rack with heat exchanger and a magnified view showing internal components (no text or symbols)

Diagram showing three circular views of a container with liquid, one being cut with a tool, no text or symbols present.

8. FEJLFINDINGSOVERSIGT

8.1. F∅R SERVICEAFDELINGEN KONTAKTES...

Luku 2: TOIMINNOT ....38

2.1. OVI AUKI -HÄLYTYS 38
2.2. PIKAJÄÄHDYTYS 📋 38
2.3.TUULETIN* 38
2.4. LÄMPÖTILA-ASETUS 38
2.5. NO-FROST HUURTUMATON JÄÄKAAPPIOSASTO 38
2.6. JÄÄKAAPIN SISÄVALO 38

Luku 3: KÄYTTÖ 39

3.1. HUOMAUTUKSIA 39

Luku 4: VINKKEJÄ RUOAN SÄILYTYKSEEN ......39

4.1. ILMANVAIHTO 39
4.2. TUORETARVIKKEIDEN JA JUOMIEN SÄILYTYSOHJEITA 39
4.3. TUORETARVIKKEIDEN JA JUOMIEN SÄILYTYSPAIKAT 39

Luku 5: TOIMINTAÄÄNET....40

Luku 6: SUOSITELTAVAT TOIMENPITEET, JOS LAITETTA EI KÄYTETÄ....41

6.1. PITKÄ POISSAOLO / LOMA-AIKA 41
6.2. SIIRTÄMINEN 41
6.3. SÄHKÖKATKO 41

Luku 7: LAITTEEN HUOLTO JA 41

Luku 8: VIANETSINTÄOPAS ....42

8.1. ENNEN KUIN OTAT YHTEYTTÄ HUOLTOON.... 42
8.2.VIAT 42

Luku 9: HUOLTOPALVELU....43

Muut:

OVEN KÄTISYYDEN VAIHTAMINEN 132

HUOM.:

Illustration of a server rack with heat exchanger and tool, showing internal components and three close-up views of the rack (no text or symbols)

8. VIANETSINTÄOPAS

8.1. ENNEN KUIN OTAT YHTEYTTÄ HUOLTOON...

2. FONCTIONS

2.1. ALARME DE PORTE OUVERTE

Illustration of three industrial components: a tree, a globe with a grid, and a server unit (no text or symbols)

Illustration of a server rack with heat exchanger and a magnified view showing internal components (no text or symbols)

8. GUIDE DE DÉPANNAGE

8.1. AVANT DE CONTACTER LE SERVICE APRÈS-VENTE...

2. FUNKCIÓK

2.1. NYITOTT AJTÓRA FIGYELMEZTETŐ JELZÉS

Illustration of three industrial components: a tree, a globe with a grid, and a server unit (no text or symbols)

Illustration of a server rack with heat exchanger and cooling system, showing heat transfer process (no text or symbols)

1-TAPAY: OPHATY....61

2. ФУНКЦИЯЛАР

2.1. АШЫК ЕСІК ДАБЫЛЫ

Illustration of a laboratory setup with a bottle, glass tube, equipment, and a computer monitor (no text or symbols)

Illustration of three industrial or commercial scenes: a person with a tree, a globe, and a server unit (no text or symbols)

Three simple diagrams showing a hand pressing a button, a safe, and a lamp with a clock (no text or symbols)

Diagram showing a device with heat exchanger and cooling unit, no text or symbols present

Diagram showing a hand using scissors to cut or mark a surface with three circular insets (no text or symbols)

2. FUNKSJONER

2.1. ALARM FOR ÅPEN D∅R

Illustration of a heat exchanger with cooling fins and a magnified view showing internal structure (no text or symbols)

8. FEILS∅KINGSLISTE

8.1. F∅R DU KONTAKTER ETTERSALGSSERVICEN...

Illustration of a server rack with heat exchanger and tool interacting with a device, showing internal components and process steps (no text or symbols)

8. INSTRUKCJA ROZWIĄZYWANIA PROBLEMÓW

8.1. ZANIM SKONTAKTUJESZ SIĘ Z SERWISEM TECHNICZNYM...

2. FUNCTII

2.1. ALARMA DE UŞA DESCHISÄ

Illustration of three industrial or service-related icons: a tree with 'Bertt' on the left, a globe on the right, and an elevator with 'Bertt' on the right (no text or symbols on icons themselves)

Three simple line drawings: a hand inserting a wall, a closed storage cabinet, and a hanging object with a label (no text or symbols present)

6. RECOMANDĂRI ÎN CAZUL NEUTILIZĂRII APARATULUI

6.1. ABSENTĂ / VACANTĂ

Diagram illustrating a mechanical process with a device and three circular insets showing progressive machining steps (no text or symbols)

8. GHID DE REMEDIERE A DEFECTIUNILOR

8.1. ÎNAINTE DE A CONTACTA SERVICIUL DE ASISTENȚĂ TEHNICĂ POST-VÂNZARE...

2. FUNKCIE

2.1. ALARM OTVORENÝCH DVERÍ

8. NÁVOD NA ODSTRAŇOVANIE PORÚCH

8.1. PRV NEŽ SA OBRÁTITE NA POPREDAJNÝ SERVIS...

2. FUNCIONES

2.1. ALARMA DE PUERTA ABIERTA

Illustration of three industrial components: a tree, a globe with a grid, and a server unit (no text or symbols)

Three grayscale illustrations of household appliances: a hand holding a door, a refrigerator, and a lamp (no text or symbols)

Illustration of a server rack with heat exchanger and tool, showing internal components and process steps (no text or symbols)

INNEHÅLLSFÖRTECKNING

Kapitel 1: INSTALLATION....117

1.1. INSTALLERA ENSKILD APPARAT 117
1.2. INSTALLERA TVÅ APPARATER 117
1.3. JUSTERA LUCKOR (Om tillgängligt) 117

Kapitel 2: FUNKTIONER....118

2.1. DÖRRLARM.... 118
2.2. SNABBKYLNING 118
2.3. FLÄKT 118
2.4. TEMPERATURINSTÄLLNING 118
2.5. KYLDEL MED AUTOMATISK AVFROSTNING 118
2.6. KYLSKÅPSLAMPA 118

Kapitel 3: ANVÄNDNING....119

3.1. ANMÄRKNINGAR.... 119

Kapitel 4: TIPS FÖR LIVSMEDELSFÖRVARING ....119

4.1. VENTILATION 119
4.2. FÖRVARING AV FÄRSKA LIVSMEDEL OCH DRYCKER.... 119
4.3. VAR FÄRSKA LIVSMEDEL OCH DRYCKER SKA FÖRVARAS 119

Kapitel 5: FUNKTIONSLJUD ....120

Kapitel 6: OM APPARATEN INTE ANVÄNDS ....121

6.1. FRÅNVARO/SEMESTER.... 121
6.2.FLYTT 121
6.3. STRÖMAVBROTT 121

Kapitel 7: RENGÖRING OCH UNDERHÅLL 121

Kapitel 8: FELSÖKNING....122

8.1. INNAN DU KONTAKTAR SERVICEORGANISATIONEN.... 122
8.2.FEL 122

Kapitel 9: SERVICE....123

Övrigt:

OMHÄNGNING AV DÖRR.... 132

OBS!

2. FUNKTIONER

2.1. DÖRRLARM

Illustration of a server rack with heat exchanger and cooling unit, showing heat transfer process (no text or symbols)

8. FELSÖKNING

8.1. INNAN DU KONTAKTAR SERVICEORGANISATIONEN...

Illustration of three industrial or service icons: a tree with 'Berrie' label, a globe with grid pattern, and a server unit with 'Berrie' label (no text beyond labels)

Illustration of a server rack with heat exchanger and cooling unit, showing internal components (no text or symbols)

Diagram showing three circular views of a mechanical component with a hand adjusting a tool, no text or symbols present.
