8-Port Unmanaged Plus Industrial Gigabit 10/100/1000 Base-T Ethernet Switch w/ 2 GBE SFP Slots, DIN Mountable Model: NGI-U08C2 5-Port Unmanaged Plus Industrial Gigabit PoE Ethernet Switch, 4x PoE+ 30W, DIN Mountable Model: NGI-U05POE4 5-Port Unmanaged Plus Industrial Gigabit PoE Ethernet Switch w/ 2 SFP Ports, 4x PoE+ 30W, DIN Mountable Model: NGI-U05C2POE4 8-Port Unmanaged Plus Hardened Gigabit PoE Ethernet Switch w/ 2 SFP Ports, 8x PoE+ 30W, DIN Mountable Model: NGI-U08C2POE8 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support Copyright © 2021 Tripp Lite. All rights reserved. Owner’s Manual WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR

• DIN-rail mounting clip (pre-installed on unit)

• 5 or 8 10/100/1000Mbps RJ45 ports with PoE/PoE+ (NGI-U08C2 is a non-PoE switch)

• Each PoE port provides up to 30W o Total PoE power budget of 120W (NGI-U05C2POE4 and NGI-U05POE4 models) Power budget of 240W when input voltage is 48VDC or 120W when input voltage is 24VDC

• Flow and storm control

• Rugged high-strength metal case

• Industrial temperature switch models support operating temperature range of -40°F to 167°F (-40°C to 75°C)

• Easy to read LEDs indicate connection and activity status for each port Package Contents Product Features3

• N200-Series Cat6 Gigabit Molded UTP Ethernet Cables

• N286I-1P25GLXD1 Industrial Gigabit SFP Transceiver, 1000LX 1.25G

• N286I-1P25GSXD Industrial Gigabit SFP Transceiver, 1000SX 1.25G Optional Accessories Product Features

• Meets the following IEEE standards: o IEEE 802.3 10Base-T o IEEE 802.3u 100Base-T o IEEE 802.3ab 1000Base-T o IEEE 802.3 Auto Negotiation o IEEE 802.3z 1000Base-SX/LX o IEEE 802.1p Class of Service (NGI-U08C2 and NGI-U08C2POE8 Models Only) o IEEE 802.3az EEE (NGI-U08C2POE8 Only) o IEEE 802.3af PoE o IEEE 802.3at PoE+

• Supports MAC address auto-learning and auto-aging

• Pre-installeddurablerailclipmountsrmlytoanystandard35mmDIN Rail

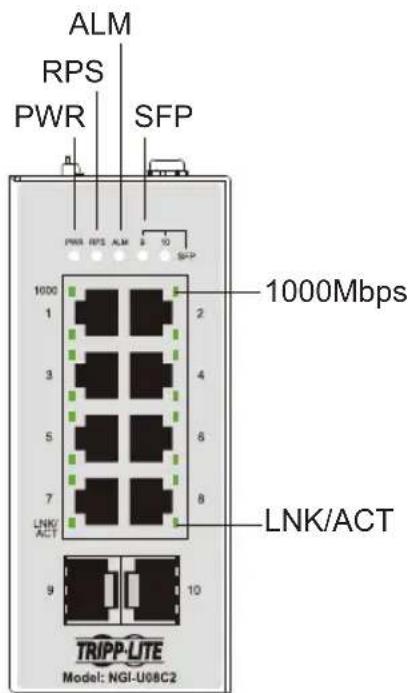

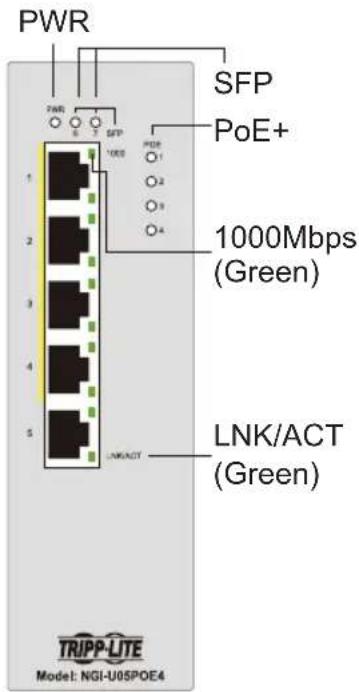

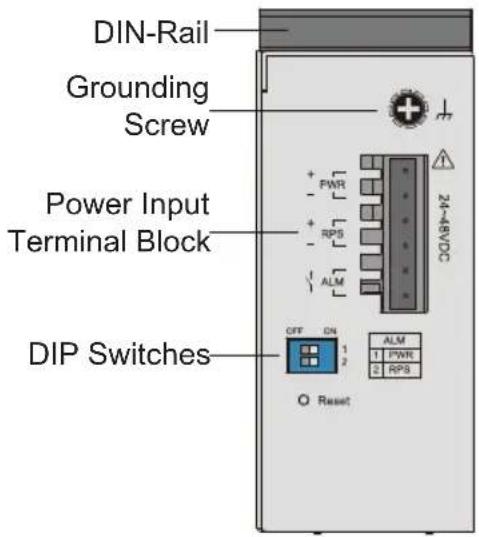

• User-congurableDIPswitchesforalarms(NGI-U08C2POE8Only)4 NGI-U08C2 (non-PoE) NGI-U05POE4 Product Overview Grounding Screw DIN-Rail 1000Mbps 1000Mbps (Green) PoE+ LNK/ACT LNK/ACT (Green) ALM RPS PWR PWR SFP Reset SFP Grounding Screw Grounding Screw Power Input Terminal Block Power Input Terminal Block DIP Switches Top View Top View Front View Front View5

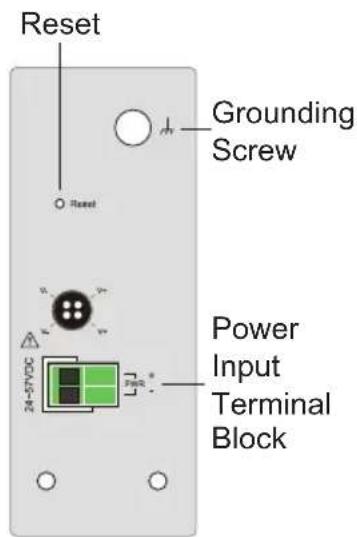

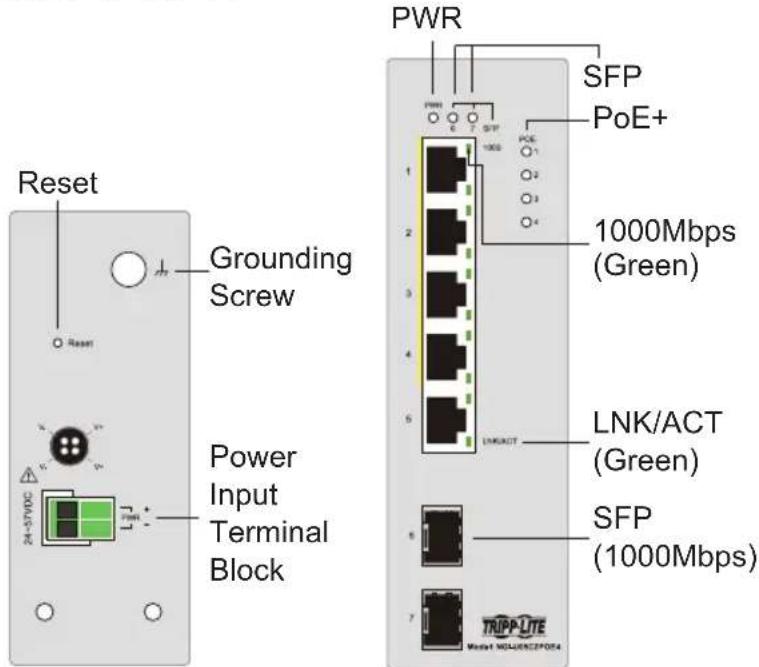

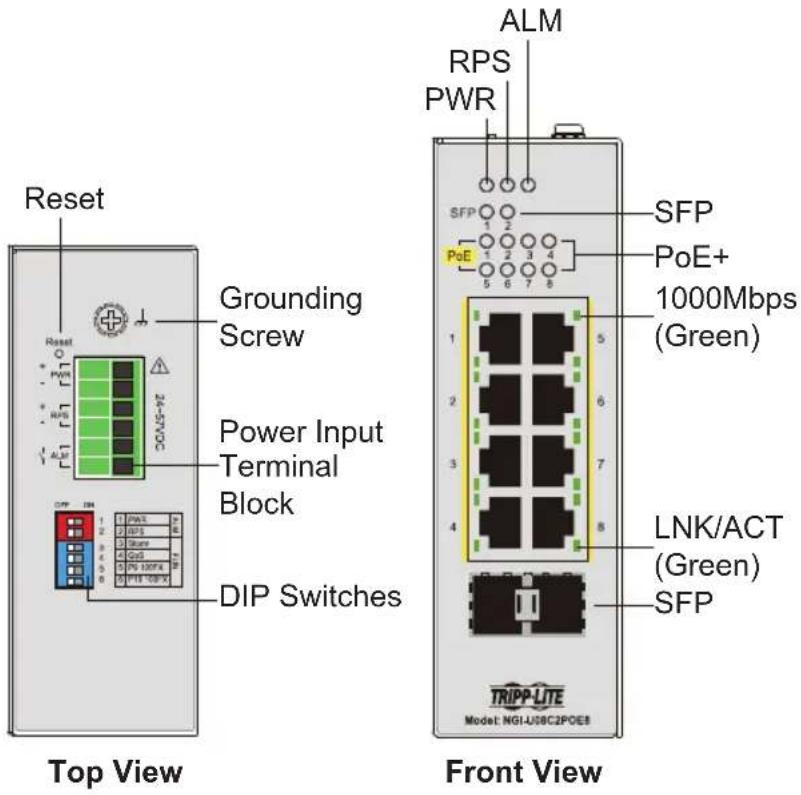

Product Overview Top View Top View Front View Front View Grounding Screw Grounding Screw DIP Switches Power Input Terminal Block Power Input Terminal Block Reset Reset PWR SFP SFP PoE+ PoE+ 1000Mbps (Green) 1000Mbps (Green) LNK/ACT (Green) LNK/ACT (Green) SFP (1000Mbps) SFP ALM RPS PWR6 Mounting and Dismounting to DIN-Rail Mounting the Switch Place the Gigabit Ethernet PoE+ switches or NGI-U08C2 switch on the DIN rail from above using the slot, then push the front of the switch toward the mounting surface until it snaps into place with a click sound. Dismounting the Switch Press the switch from top and pull out the lower edge of the switch, then remove the switch from the DIN rail. ATTENTION: Use of a corrosion-free mounting rail is advisable. When installing, make sure to allow enough space to properly install the cabling and allow ample airow. Mounting the Switch Removing the Switch7 Mounting and Dismounting to DIN-Rail Wiring Requirements

WARNING: Safety measures should be taken before

connecting the power cable. Turn o󰀨 the power before connecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. DO NOT use a voltage greater than what is specied on the product label. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If current exceeds the maximum rating, the wiring can overheat causing serious damage to your equipment. Please read and follow these guidelines:

• Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. Note: Do not run signal or communications wiring and power wiring through the same wire conduit. To avoid interference, wires with dierent signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire to determine which wires should be kept separate. A general rule is that wiring that shares similar electrical characteristics can be bundled together.

• Always separate input wiring from output wiring.

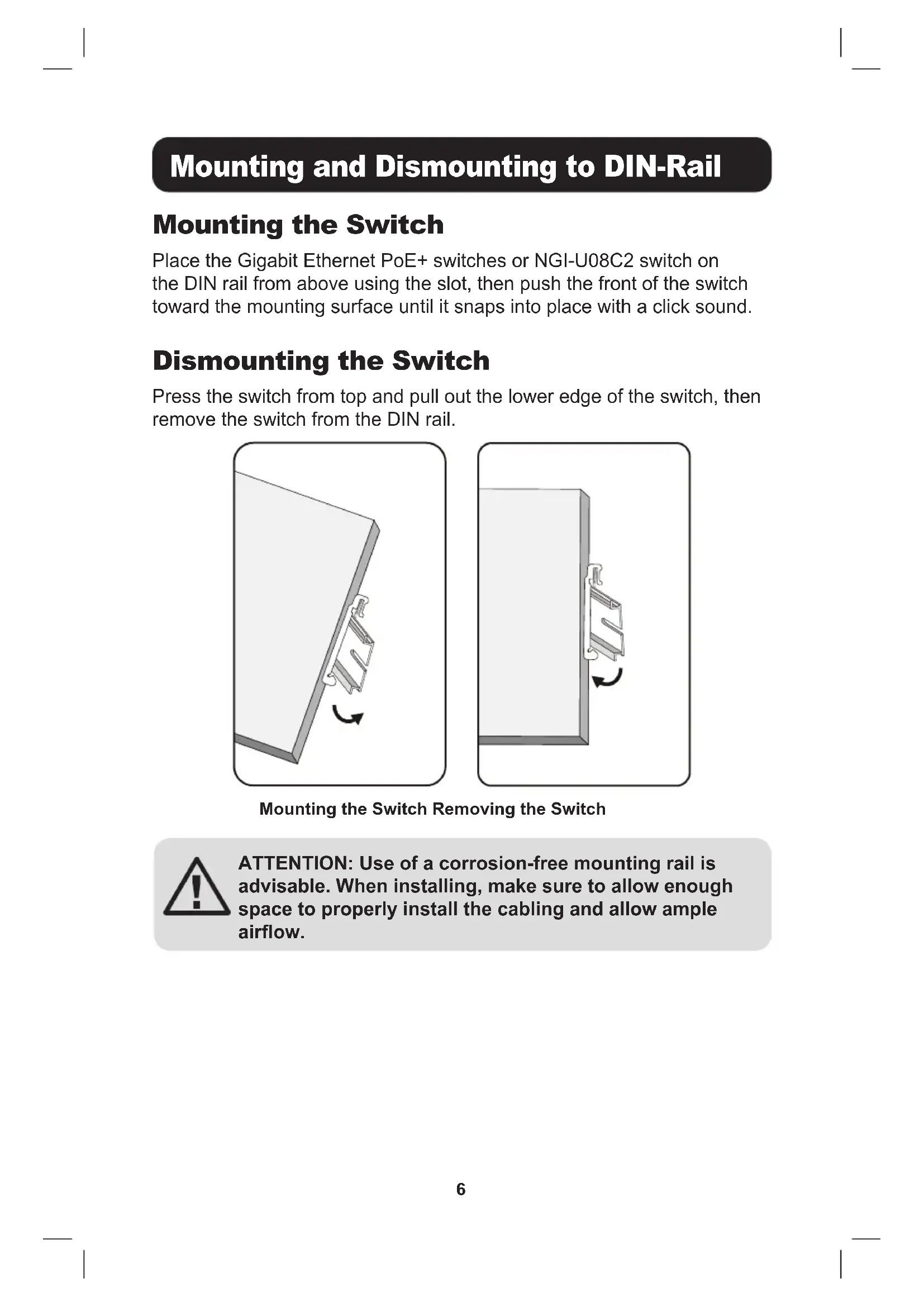

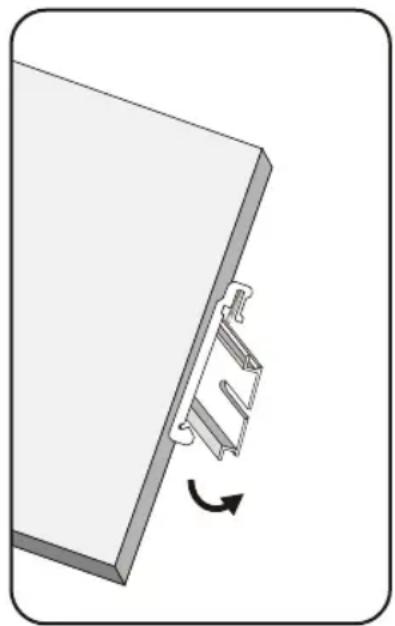

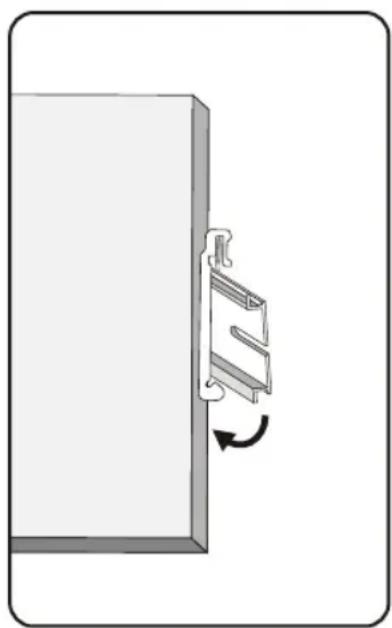

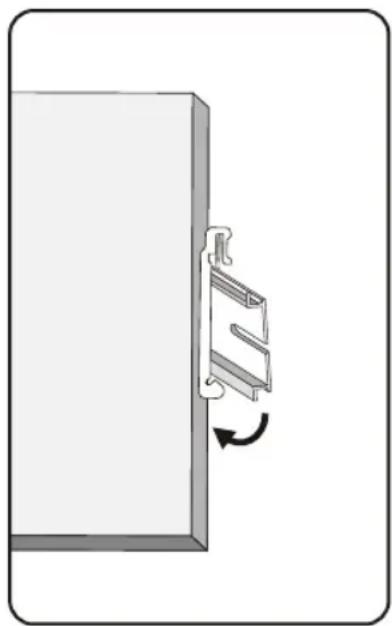

• Labelling the wiring to all devices in the system is advised.8 Mounting and Dismounting to DIN-Rail Power Input Safety measures should be taken before connecting the power cable. Turno󰀨thepowerbeforeconnectingmodulesorwires.Thecorrect power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. DONOTuseavoltagegreaterthanwhatisspeciedontheproduct label. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If current exceeds the maximum rating, the wiringcanoverheatcausingseriousdamagetoyourequipment. CAUTION: The surface of the power output may be hot, do not touch. Wear protective equipment before making contact.9 Wiring Power Input NGI-U08C2 with 6-Pin Terminal Block Use “PWR” for Primary Power input and “RPS” for Redundant Power input.ThetopviewofTerminalBlockisshowninthegurebelow: Caution:

• Use copper conductors only.

• Use wiring cable with rated temperature at least 221°F (105°C).

• Tightenthewiretoatorquevalue4.5lb•in(0.5N•m).

• The wire gauge for the terminal block should range between 12~24 AWG (4~0.25 mm2). To insert the power wire and connect the 24~48VDC at a maximum of 0.4A DC power to the power terminal block:

• Useaatheadscrewdrivertoloosenthewireclampscrews.

• Insert the negative/positive DC wires into the PWR-/PWR+ terminals, respectively.

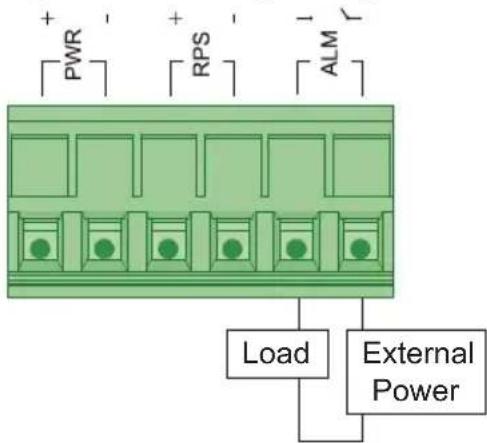

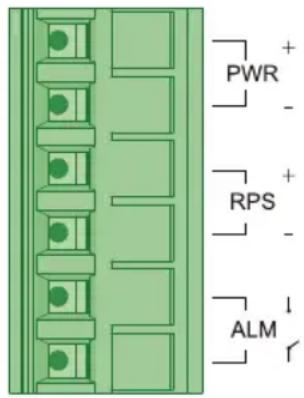

• Tighten the wire-clamp screws to prevent the wires from loosening. ATTENTION: Use a power supply rated for 24~48VDC. The device power must be supplied by SELV circuit. Terminal Block10 Wiring Power Input Wiring the Relay Contact (ALM) The NGI-U08C2 has one set of relay alarm output. This relay contact uses two contacts of the terminal block on the top panel. The two contacts of the 6-pin terminal block connector are used to detect user- conguredevents.Thetwowiresattachedtothefaultcontactsform anopencircuitwhenauser-conguredeventistriggered.Ifauser- conguredeventdoesnotoccur,thefaultcircuitremainsclosed. DIP Switch Settings The switch supports an Alarm Relay Output function where you can connect an alarm light or a buzzer. When events occur enabled by the DIPs, the switch will operate the relay ON to enable the alarm light or buzzer.Theloadcanbeanalarmlight,abuzzerorotherequipment. Relay rating: 24V, 1A Load External Power11 Wiring Power Input User-Congurable Switches PWR or RPS “DIP ON”: When there is a power loss, the switch will operate as “Relay ON”. If connecting only to single power source and a power loss occurs, the switch system will shut down and not operate as “Relay ON”. Port 1~ Port X: “DIP ON”: If the port link is down, the switch will operate as “Relay ON”. In doing so, it can help to inform when link-down events occur. ItisnotrequiredtoconnectalarmequipmenttotheAlarmRelayoutput port. An ALARM LED indicator is located on the front panel. Default settings for the DIP switch are set to OFF positions. DIP Position Description PWR

Primary power alarm reporting is enabled. OFF Primary power alarm reporting is disabled. RPS

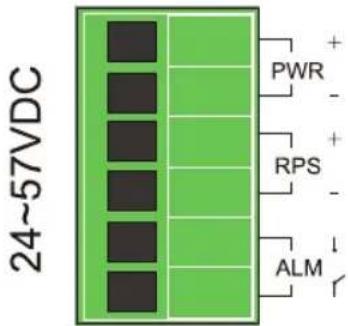

Redundant power alarm reporting is enabled. OFF Redundant power alarm reporting is disabled. PWR ON OFF RPS12 Wiring Power Input Redundant Power Input (NGI-U08C2POE8 Only) Use “PWR” for Primary Power input and “RPS” for Redundant Power input. To insert the power wire and connect the +24~57VDC power to the power terminal block:

• Useaatheadscrewdrivertoloosenthewireclampscrews.

• Insert the corresponding wires into the contacts.

• Tighten the wire clamp screws to prevent the wires from loosening. Top View of the Terminal Block13 Wiring Power Input DIP Switch Settings and Reset Button DIP Position Description PWR

Primary power alarm reporting is enabled. OFF Primary power alarm reporting is disabled. RPS

Redundant power alarm reporting is enabled. OFF Redundant power alarm reporting is disabled. Storm

Broadcast/DLF storm control is enabled. OFF Broadcast/DLF storm control is disabled. QoS

Port 9 link speed is set to 100Base-FX. OFF Port 9 link speed is set to 1000Base-SX/LX. P10 100FX

Port 10 link speed is set to 100Base-FX. OFF Port 10 link speed is set to 1000Base-SX/LX. Reset Button: Press the button for a hardware reset (initialization). Refer to “Top View of the Terminal Block” diagram for button location. Note: The reset button function is only for hardware reset, it does not aect any setting because the switch model does not require software.14 Wiring Power Input Thersttworelatetoalarmdesign:

• PWR/RPS Theswitchsupportsdualpowerinput,wedenethesepowersource as Primary Power Supplier (PWR) and Redundant Power Supplier (RPS). These two DIP switches are designed to provide an alarm mechanical to monitor the power connective status. If DIP switch is set to ON means alarm function is enabled. The remaining four relate to functionality:

• Storm Storm control is used to prevent the local area network (LAN) from being disrupted by broadcast or destination lookup failure (DLF) storm. The storm occurs when broadcast or DLF packets are generatedandoodintotheLAN,thisexcessivetra󰀩cdegrades network performance. If the DP switch is set to ON, it means system will measure broadcast and DLF packets and suppress them if the threshold is reached.

• QoS The switch supports two types of QoS, Port-based QoS (Port Priority) and VLAN Tag-based QoS (802.1p). Port priority is only enabled on port 1 and port 2 which ingress packets will be handle with high transmissionpriority.IfVLANpacketswithpre-denedpriorityare comingintoswitch(anyport),systemwillrefertoit’sspeciedpriority for transmission.

• Fiber Speed – P9 and P10 For legacy operation, there is a dual-speed support (100BASE-FX / 1000BASE-SX/LX)onswitchberports.Dependingonthenetwork environment, a user can choose the proper SFP transceiver and set therelatedDIPswitchforberconnectivity.15 Wiring Power Input Wiring Power Input (NGI-U05C2POE4 and NGI-U05POE4 Models Only) You can use “PWR” from the terminal block or 4-pin Mini-DIN for Power input. Top view of connectors are shown below: Caution:

• Use copper conductors only.

• Use wiring cable with rated temperature at least 221°F (105°C).

• Tightenthewiretoatorquevalue4.5lb•in(0.5N•m).

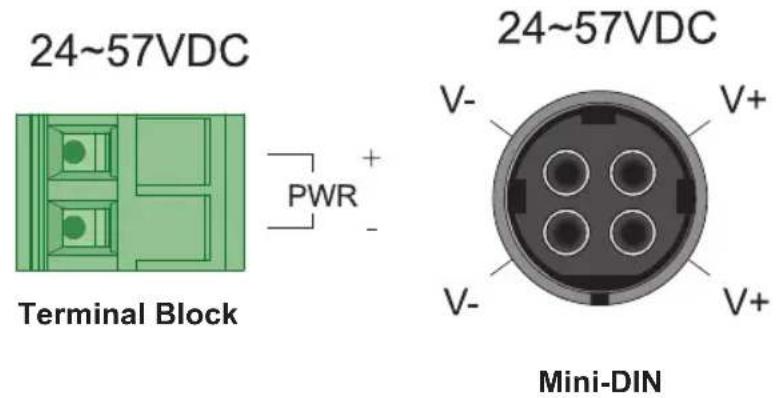

• The wire gauge for the terminal block should range between 12~18 AWG (4~0.75 mm2). Connecting to Terminal Block To insert the power wire and connect the +24~57VDC at a maximum of 6A DC power to the power terminal block:

• Useaatheadscrewdrivertoloosenthewireclampscrews.

• Insert the negative/positive DC wires into the PWR-/PWR+ terminals, respectively.

• Tighten the wire clamp screws to prevent the wires from loosening. Terminal Block Mini-DIN16 Wiring Power Input Connecting to the 4-Pin Mini DIN Connector

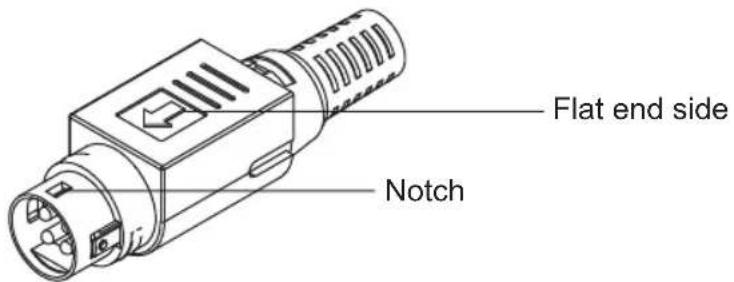

• Facetheatendtotherightsideoftheswitchandinsertintothe female 4-pin receiver. Note: Make sure the notch is securely inserted properly into female receiver.

• While removing, pull the connector upwards to release the lock and take it out. ATTENTION: Use a power supply rated for 24~48VDC. The device power must be supplied by SELV circuit. RJ45 Cabling Connect one end of an Ethernet/RJ45 cable into the Ethernet port of the switch and the other end to the attached networking device.

• Ports 1-4 of the switch support Fast Ethernet in addition to Gigabit Ethernet 10/100/1000Base-T PSE Ports (NGI-U05POE4/ NGI-U05C2POE4 models only).

• Ports 1-8 of the switch support Fast Ethernet in addition to Gigabit Ethernet 10/100/1000Base-T (NGI-U08C2/POE models only).

• Port 5 of the switch supports Fast Ethernet in addition Gigabit Ethernet 10/100/1000Base-T RJ45 Port (NGI-U05POE4/NGI-U05C2POE4 models only).

• Ports 6-7 of the NGI-U05C2POE4 support only Gigabit speed SFP Slots.

• All RJ45 ports on the Gigabit Ethernet PoE+ and non-PoE switches support Auto Negotiation and Auto MDI/MDI-X to eliminate the need for crossover cabling. Note: Category 5e cable, Cat6 or above should be used. Flat end side Notch17 Wiring Power Input Grounding the NGI-Series Switches Groundingandwireroutinghelptolimitthee󰀨ectsofnoisedueto electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION: This product is intended to be mounted to a well-grounded mounting surface (such as a metal panel).18 LED Indicators NGI-U08C2 (Non-PoE) LED (Color) Status Description PWR (Green) Illuminated Primary power is supplied to the switch. O󰀨 Primarypowero󰀨orfailure. RPS (Green) Illuminated Redundant power is supplied to the switch. O󰀨 Redundantpowero󰀨orfailure. ALM (Red) Illuminated External signal device will be activated through the terminal block ALM when there is any alarm. Alarm for following conditions:

• Power lost (primary or secondary).

• Abnormal voltage input. O󰀨 No alarm to report. SFP 9~10 (Green) Illuminated SFP port link-up. Blinking Activity (receiving or transmitting data). O󰀨 Port disconnected or link failed. 1000 (Green) Illuminated Port is operating in 1000Mbps speed.

Port is operating in 10/100Mbps speed. LNK/ACT (Green) Illuminated Ethernet link up. Blinking Activity (receiving or transmitting data). O󰀨 Port disconnected or link failed.19 LED Indicators NGI-U05C2POE4 and NGI-U05POE4 LED (Color) Status Description PWR (Green) Illuminated Power On by terminal block PWR or 4-pin mini DIN connector.

Terminal block PWR/4-pin mini DIN connector is not available. POE 1-4 (Green) Illuminated Supplying power to PD devices.

No power supplied to PD devices. 1000 (Mbps) Illuminated Copper ports communicate at 1000Mbps speed.

Copper ports communicate at 10/100Mbps speed. LNK/ACT (Green) Illuminated Ethernet link is up. Blinking Activity (receiving or transmitting data). O󰀨 Port disconnected or link failed. SFP

(Green) Illuminated Data is transmitting / receiving. O󰀨 Port disconnected or link failed.20 LED Indicators

LED (Color) Status Description PWR (Green) Illuminated Primary Power is connected.

Primary Power failure or not available. RPS (Green) Illuminated Redundant Power is connected.

Redundant Power failure or not available. ALM (Red) Illuminated Alarm for no Primary power or Low I/P voltage.

No alarm to report or DIP function is disabled. PoE 1-8 Ports (Green) Illuminated PoE power is delivered to the powered device (PD).

PoE power feeding is not functioning. 1000 (Green) Illuminated Link on 1000Mbps. O󰀨 Link on 100Mbps or 10Mbps. LNK/ACT (Green) Illuminated Ethernet link is up. Blinking Activity (receiving or transmitting data). O󰀨 Port disconnected or link failed. SFP (Green) Illuminated Data is transmitting / receiving. O󰀨 Port disconnected or link failed.21 Specications Model NGI-U08C2 (Non-PoE) NGI-U05C2POE4 NGI-U05POE4 NGI-U08C2POE8 Power Input Voltage Dual power inputs 24~48VDC/0.4A Single power input 24~57VDC/6A Single power input 24~57VDC/6A Dual power inputs 24~57VDC/6A Connection 6-pin terminal block 2-pin terminal block 2-pin terminal block 6-pin terminal block Reverse Polarity Protection Present Present Present Present Power Consumption (System Only) 11W 14W 13W 14W Grounding Screw Present Present Present Present PoE (Per Port) No 30W 30W 30W PoE Power Budget No 120W 120W 120W@24VDC 240W@48VDC Interface RJ45 8 x 10/1001000Base-T copper ports support Auto-Negotiation, Auto MDI/MDI-X, Full/ Half Duplex and Flow Control. 4 x 10/1001000Base-T PoE+, 1 x 10/1001000Base-T copper ports support Auto-Negotiation, Auto MDI/MDI-X, Full/ Half Duplex and Flow Control. Four copper ports support PoE/PoE+. 4 x 10/1001000Base-T PoE+, 1 x 10/1001000Base-T copper ports support Auto-Negotiation, Auto MDI/MDI-X, Full/ Half Duplex and Flow Control. Four copper ports support PoE/PoE+. 8 x 10/1001000Base-T PoE+ copper ports support Auto- Negotiation, Auto MDI/MDI-X, Full/ Half Duplex and Flow Control. Eight copper ports support PoE/PoE+. Fiber Ports 2x 1000Base-X SFP slots 2x 1000Base-X SFP slots

2x 1000Base-X SFP slots LED Indicators PWR (Green): Power by terminal block PWR RPS (Green): Power by terminal block RPS ALM (Red): PWR and RPS fails SFP 9~10 (Green): Port 9~10 SFP link-up 1000 (Green): Port 1~8 Ethernet speed 1000Mbps LNK/ACT (Green): Data Transmitting/ Receiving PWR (Green): Power PoE 1~4 (Green): Supplying power to PD device SFP 6~7 (Green): Port 6~7 SFP link-up 1000 (Green): Port 1~5 Ethernet speed 1000Mbps LNK/ACT (Green): Data Transmitting/ Receiving PWR (Green): Power PoE 1~4 (Green): Supplying power to PD device 1000 (Green): Port 1~5 Ethernet speed 1000Mbps LNK/ACT( Green): Data Transmitting/ Receiving PWR (Green): Power by terminal block PWR RPS(Green): Power by terminal block RPS ALM (Red): PWR and RPS fails PoE 1~8 (Green): Supplying power to PD device 1000 (Green): Port 1~8 Ethernet speed 1000Mbps SFP 9~10 (Green): Port 9~10 SFP link-up LNK/ACT (Green): Data Transmitting/ Receiving Alarm Relay Output 1 alarm relay output for power loss

1 alarm relay output for power loss22 Specications Model NGI-U08C2 (Non-PoE) NGI-U05C2POE4 NGI-U05POE4 NGI-U08C2POE8 Environmental Operating Temperature -40°F~167°F (-40°C~75°C) 14°F~140°F (-10°C~60°C) 14°F~140°F (-10°C~60°C) -40°F~167°F (-40°C~75°C) Storage Temperature -40°F~185°F (-40°C~85°C) -40°F~185°F (-40°C~85°C) -40°F~185°F (-40°C~85°C) -40°F~185°F (-40°C~85°C) Operating Humidity 5 to 95% RH (non-condensing) 5 to 95% RH (non-condensing) 5 to 95% RH (non-condensing) 5 to 95% RH (non-condensing) Storage Humidity 5 to 95% RH (non-condensing) 5 to 95% RH (non-condensing) 5 to 95% RH (non-condensing) 5 to 95% RH (non-condensing) Operating Altitude 6561 ft. (2000 m) 6561 ft. (2000 m) 6561 ft. (2000 m) 6561 ft. (2000 m) Regulatory Approvals EMI/EMC FCC Part 15 EN 55011 EN 61000-6-4 EN 61000-6-2 EN 55032 EN 55024 FCC Part 15 EN 55011 EN 61000-6-4 EN 61000-6-2 EN 55032 EN 55024 FCC Part 15 EN 55011 EN 61000-6-4 EN 61000-6-2 EN 55032 EN 55024 FCC Part 15 EN 55011 EN 61000-6-4 EN 61000-6-2 EN 55032 EN 55024 ATTENTION: If the switch is used in a manner not specied here, the protection provided by the switch may be impaired.23 Warranty and Product Registration 3-Year Limited Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of three (3) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitationofincidentalorconsequentialdamages,sotheabovelimitationsor exclusionsmaynotapplytoyou.Thiswarrantygivesyouspeciclegalrights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use

whetherthisdeviceissuitable,adequateorsafefortheuseintended.Since individual applications are subject to great variation, the manufacturer makes no representationorwarrantyastothesuitabilityortnessofthesedevicesforany specicapplication. Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* *No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfor a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference inaresidentialinstallation.Thisequipmentgenerates,usesandcanradiate radiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.24 Warranty and Product Registration Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmento󰀨andon,theuseris encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdi󰀨erentfromthattowhich the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Anychangesormodicationstothisequipmentnotexpresslyapprovedby TrippLitecouldvoidtheuser’sauthoritytooperatethisequipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) UndertheWasteElectricalandElectronicEquipment(WEEE)Directive and implementing regulations, when customers buy new electrical and electronicequipmentfromTrippLite,theyareentitledto:

• Use copper conductors only.

• Use wiring cable with rated temperature at least 221°F (105°C).

• N286I-1P25GLXD1 Industrial Gigabit-SFP-Transceiver, 1000LX 1,25G
