HQPE10006 - Laser pointer HQ Power - Free user manual and instructions

Product type	Ambient laser projector
Brand	HQ Power
Model	HQPE10006
Power supply	5 VDC, 1000 mA (adapter included)
Laser class	Class 2 (according to IEC 60825-1 / EN 60825-1)
Wavelengths	533 nm (green) and 665 nm (red)
Maximum power	0.516 mW (green+red combination)
Protection rating	IP44
Use	Indoor and outdoor (with precautions)
Maximum projection distance	14 m
Maximum coverage area	360 m² at 14 m
Warranty	24 months (according to general conditions)
Maintenance	Clean with a damp cloth; do not use aggressive products
Safety	Do not look directly at the beam; keep out of reach of children
Included accessories	Power adapter, support stands
Certification	CE, compliant with applicable standards
Ventilation	Respect the minimum distances around the device
Repairability	No user-serviceable parts; contact the retailer

Frequently Asked Questions - HQPE10006 HQ Power

How to clean the laser projector?

Clean the device occasionally with a damp cloth. Do not use aggressive chemicals, solvents, or strong detergents.

Can I use the device outdoors?

Yes, the device is designed for outdoor use thanks to its IP44 protection rating. Make sure to screw the plug cap tightly to ensure waterproofing.

What is the laser class of this projector?

The projector is laser class 2 according to IEC 60825-1 and EN 60825-1. The maximum power is 0.516 mW. Avoid direct exposure to the beam.

What safety precautions should be taken?

Never look directly into the laser beam. Do not disassemble the device. Keep out of reach of children. The device heats up during use, respect the ventilation distances.

What to do if the device does not turn on?

Check that the power adapter is properly connected and that the polarity is correct. If the problem persists, contact your retailer. Do not attempt to repair the device yourself.

What is the laser power?

The maximum power is 0.516 mW for the combination of the two wavelengths (green 533 nm and red 665 nm). Under normal operation, the green power is 0.269 mW and the red power is 0.137 mW.

Is it normal for the device to heat up?

Yes, the casing heats up during use. It is important to respect the minimum distances around the device to ensure adequate ventilation.

Can I replace parts myself?

No, there are no user-serviceable parts. Never open the casing. For any replacement parts, contact your retailer.

What is the warranty period?

The warranty is 24 months from the effective date of purchase for consumer products in the EU, subject to the general warranty conditions.

How to install the device?

Place the projector on the provided stands and turn it to the right. Connect the 2-pin connector of the adapter respecting polarity, screw the cap for waterproofing, then connect the power. Adjust the desired angle.

USER MANUAL HQPE10006 HQ Power

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

• This device can be used by children aged from 3 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Do not disassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• The housing might heat up during usage. Keep minimum distances around the device for sufficient ventilation.
• Not suitable for ordinary lighting in household room illumination.

HQPE10006

• Do not stare directly at the light source, as this may cause

○ epileptic seizure in sensitive people
temporarily loss of sight (flash blindness)
o permanent (irreversible) eye damage.

IEC 60825-1 and/or EN 60825-1
	Measured Distance	Wavelength	Accessible Emission Limit
Normal operation for green	100 mm	533	0.269 mW
Normal operation for red	100 mm	665	0.137 mW
Normal operation for green + red	100 mm	-	0.516 mW

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

4. Distance to Surface Ratio

distance	coverage
3 m	20 m²
6 m	90 m²
8 m	140 m²
10 m	200 m²
12 m	280 m²
14 m	360 m²

5. Operation

5.1 Indoor Use

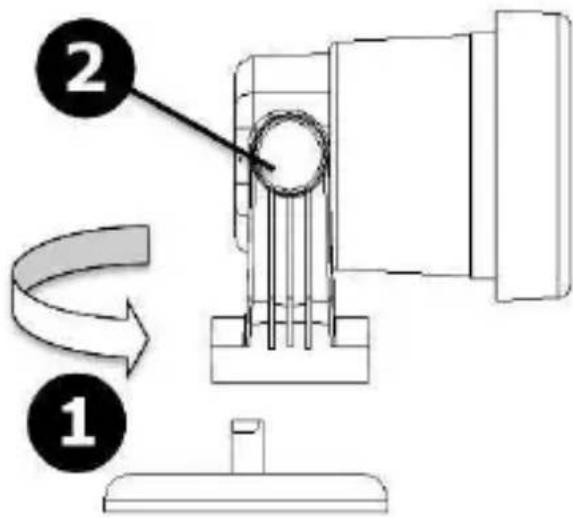

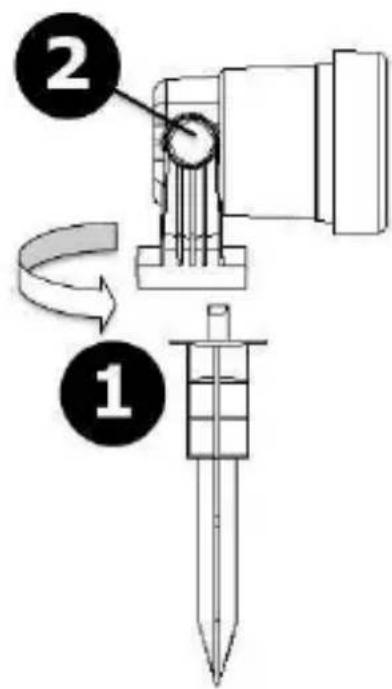

1. Place the projector onto the stand base [1] and turn clockwise until locked.
2. Connect the 2-pin plug of the power cord to the adaptor inlet insuring proper polarity. To avoid water getting in, make sure to turn the plug cap clockwise until secure.
3. Connect the power adapter to the mains.
4. Adjust the angle of the projector as desired [2].

5.2 Outdoor Use

1. Place the projector onto the stand base [1] and turn clockwise until locked.
2. Connect the 2-pin plug of the power cord to the adaptor inlet insuring proper polarity. To avoid water getting in, make sure to turn the plug cap clockwise until secure.
3. Connect the power adapter to the mains.
4. Adjust the angle of the projector as desired [2].

6. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

7. Technical Specifications

power supply. 5 VDC, 1000mA (adaptor incl.)

laser class. 2

IP rating.. IP44

projection distance. 10-15 m

laser power

green 0.269 mW (533 nm)

red. 0.137 mW (665 nm)

green ^+ red. 0.516 mW

dimensions 400 x 104 mm

weight. 550 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

distance de projection. 10-15 m

puissance laser

vert. 20 mW (533 nm)

rouge 100 mW (665 nm)

vert + rouge. 0.516 mW

dimensions 400 x 104 mm

poids 550 g
