HHBS 9.8F LT X - Basket HOTPOINT - Free user manual and instructions

Brand	Hotpoint
Model	HHBS 9.8F LT X
Product Type	Cooker hood
Category	Extracting or filtering hood (charcoal kit optional)
Dimensions (H x W x D)	62-114 x 71-114 x 12.5 cm (adjustable)
Exhaust diameter	12.5 cm
Power supply	220-240 V, 50/60 Hz
Number of speeds	3 + intensive
Lighting	LED (replacement by after-sales service)
Grease filter	Metal, dishwasher-safe (quick cycle, low temperature)
Charcoal filter	Active, replacement every 4 months maximum
Control	Touch
Automatic shut-off	Yes (timer 10-20 min depending on speed)
Temperature sensor	Yes (automatic activation of medium speed)
Minimum height above cooktop	50 cm (electric) / 65 cm (gas or mixed)
Installation	Extracting (exhaust duct not supplied) or filtering (separate charcoal kit)
Maintenance	Monthly cleaning of exterior and grease filters
Safety	Automatic shut-off, overheat protection, power cut, use by children not recommended without supervision
Spare parts	Grease filters, charcoal filters, LED lamps (via after-sales service)
General information	Hotpoint hood HHBS 9.8F LT X – manual downloadable at docs.hotpoint.eu

Frequently Asked Questions - HHBS 9.8F LT X HOTPOINT

How to clean the grease filters?

The metal grease filters should be cleaned once a month, by hand with a non-aggressive detergent or in the dishwasher on a low-temperature quick cycle. Washing in the dishwasher may cause discoloration but does not affect performance. To remove the filter, pull the spring release handle.

When to replace the charcoal filter?

The charcoal filter must be replaced after a maximum of 4 months of use, or when the saturation indicator (if present) flashes. It cannot be cleaned or regenerated.

How to activate the charcoal filter saturation indicator?

With the hood turned off, press and hold the T2 and T3 keys simultaneously. First T3 flashes, then T2 also flashes to confirm activation. To deactivate, repeat the operation until only T3 flashes.

What to do if the hood does not work?

Check that there is no power cut, that a speed has been selected, and that the circuit breaker has not tripped. If nothing works, unplug the hood for 5 seconds and plug it back in. If the problem persists, contact after-sales service.

What distance should be between the hood and the cooktop?

The minimum distance is 50 cm for an electric cooktop and 65 cm for a gas or mixed cooktop. If the cooktop instructions indicate a higher distance, respect that value.

How to install the hood in filtering version?

To use the hood in filtering version, you must purchase and install the accessory kit including a charcoal filter. The filter is fixed at the back of the metal tab, then at the front with two knobs. Follow the instructions in the manual.

How to replace the LED lamp?

The hood is equipped with LED lighting. In case of failure, contact the technical assistance service for replacement. Do not attempt to do it yourself.

What does the flashing of keys T2, T3, and T4 mean?

The simultaneous flashing of T2, T3, and T4 indicates automatic operation in case of high temperature. The sensor detects heat and automatically activates the medium extraction speed. The hood stops when the temperature drops.

The hood turns off by itself, is that normal?

Yes, if you have activated the automatic shut-off (timer) via the T4 key. The shut-off duration depends on the speed: 20 min in silent, 15 min in medium, 10 min in high. The shutdown may also be due to a power cut or circuit breaker tripping.

Can I use the hood without the grease filter?

No, never use the hood without the grease filter properly installed. The absence of the filter exposes internal components to grease and increases the risk of fire.

USER MANUAL HHBS 9.8F LT X HOTPOINT

EN Instructions for use

FR Mode d'emploi

Diagram of two building interior layouts with directional arrows indicating movement or flow (no text or symbols)

19

Illustration of a hand holding an object, no text or symbols present

Warning symbols and hand gesture illustration showing warning, person, and handshake

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including a magnified inset of a base structure.

Diagram illustrating a mechanical assembly process with labeled components and directional arrows, including a tape measure and a grid-based tray.

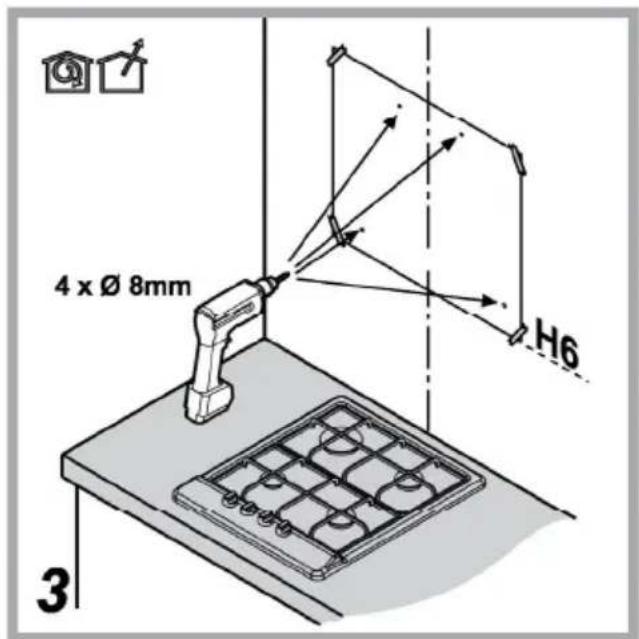

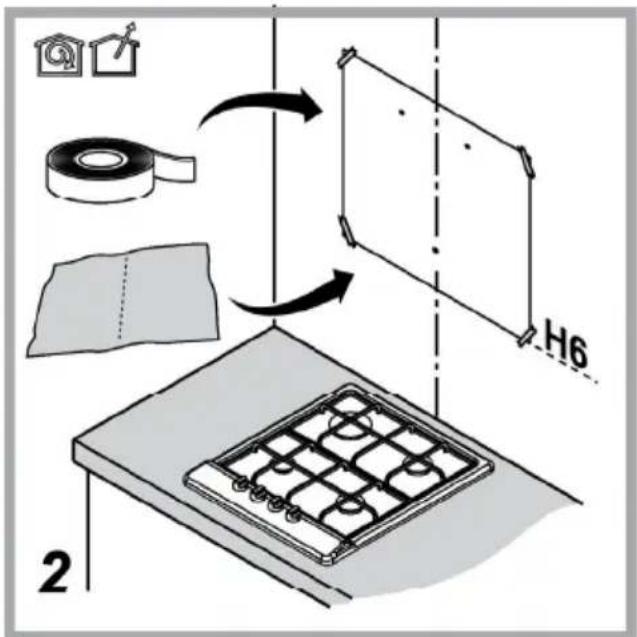

4 x Ø 8mm H6 3

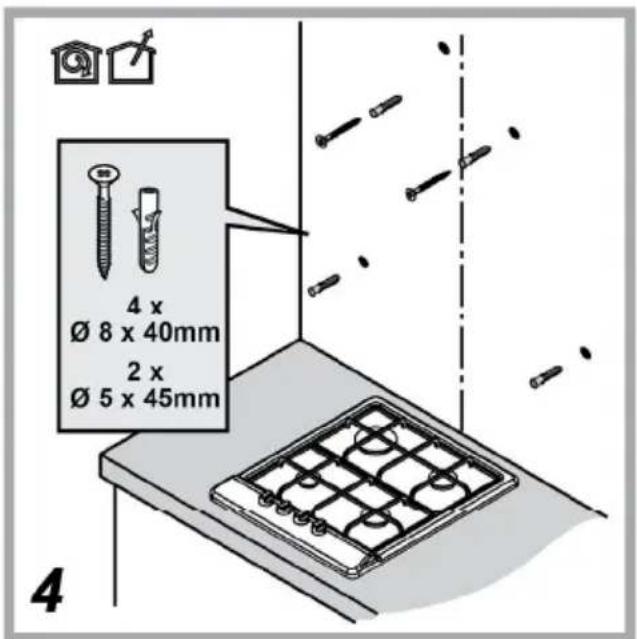

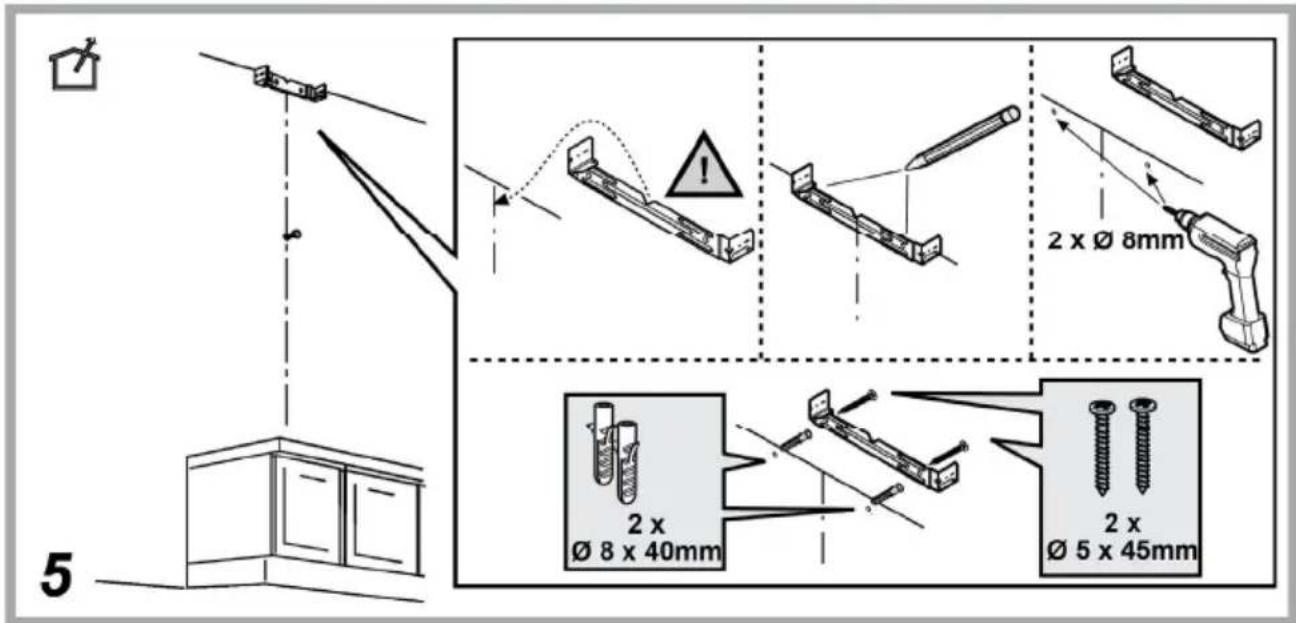

4 x Ø 8 x 40mm 2 x Ø 5 x 45mm 4

2 x Ø 8mm 2 x Ø 8 x 40mm 2 x Ø 5 x 45mm

6 > 1cm Ø 16cm > 5cm

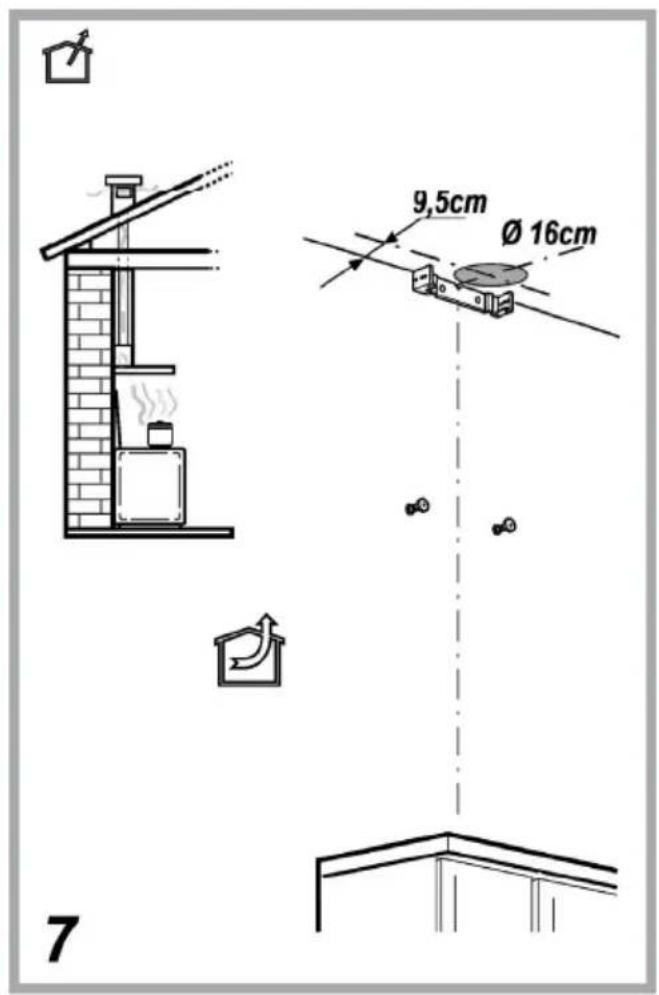

9,5cm Ø 16cm 7

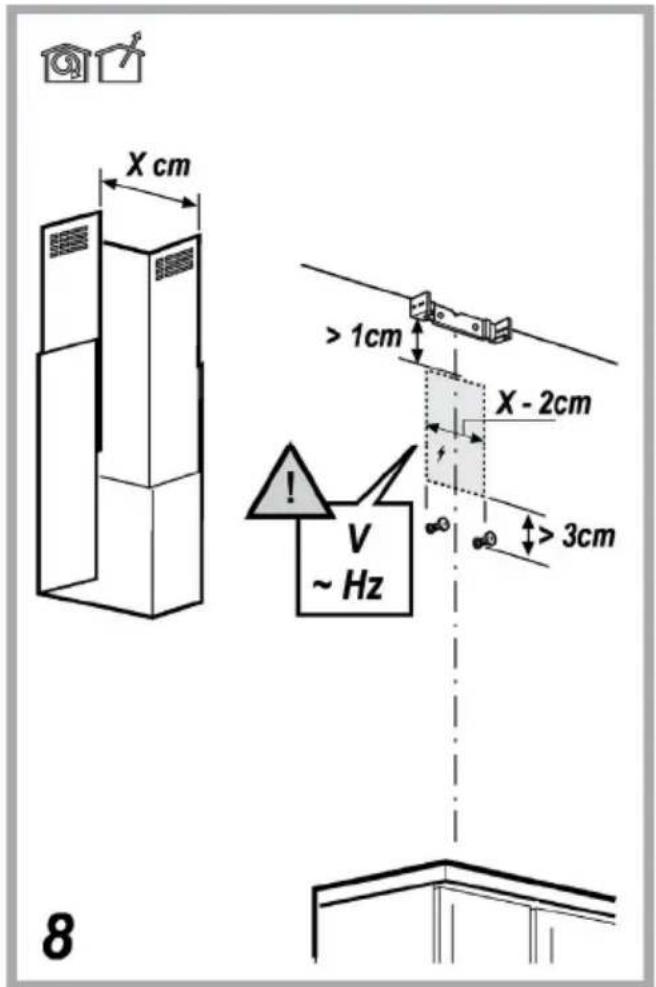

X cm > 1cm X - 2cm ! V ~ Hz > 3cm 8

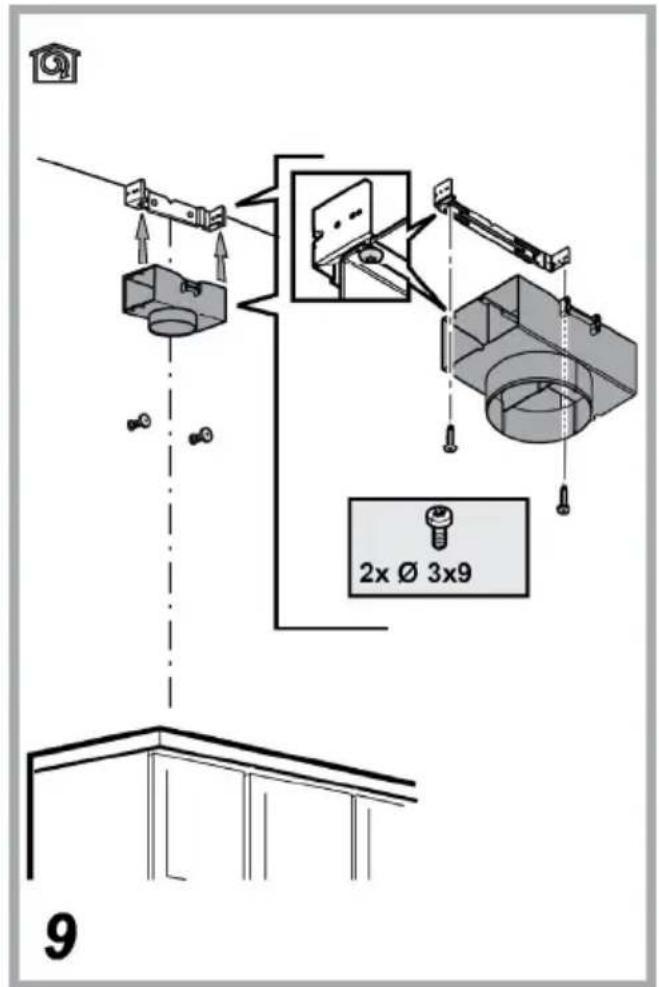

2x Ø 3x9 9

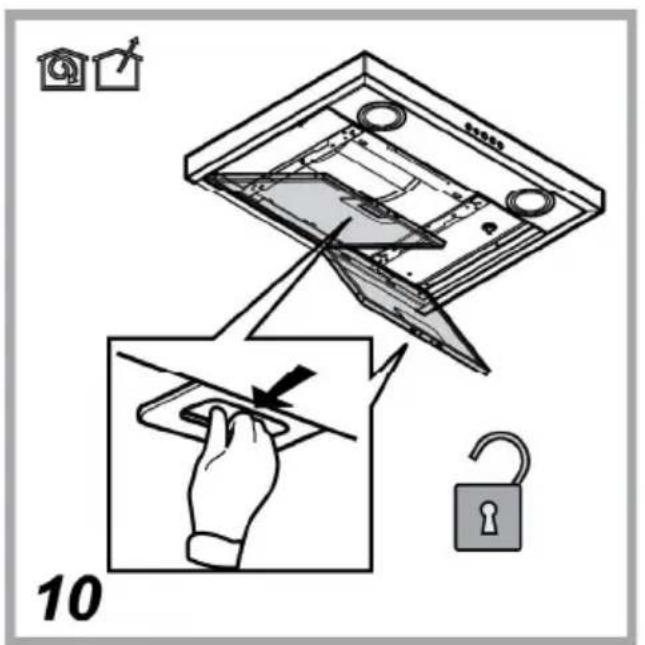

10

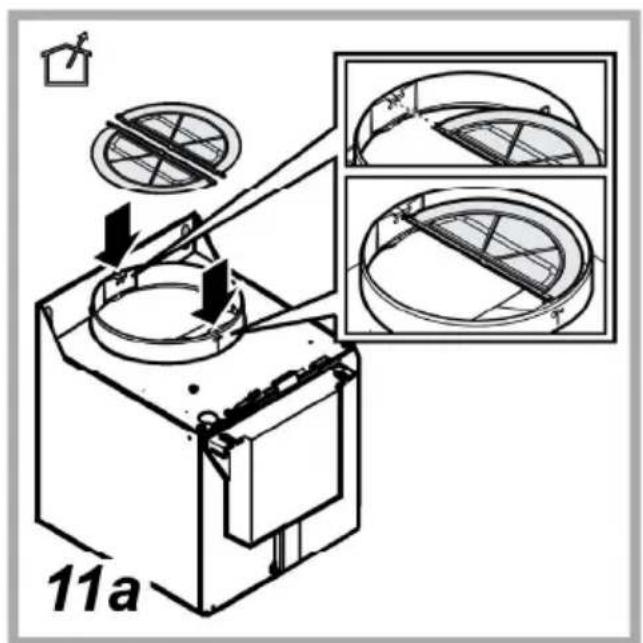

11a

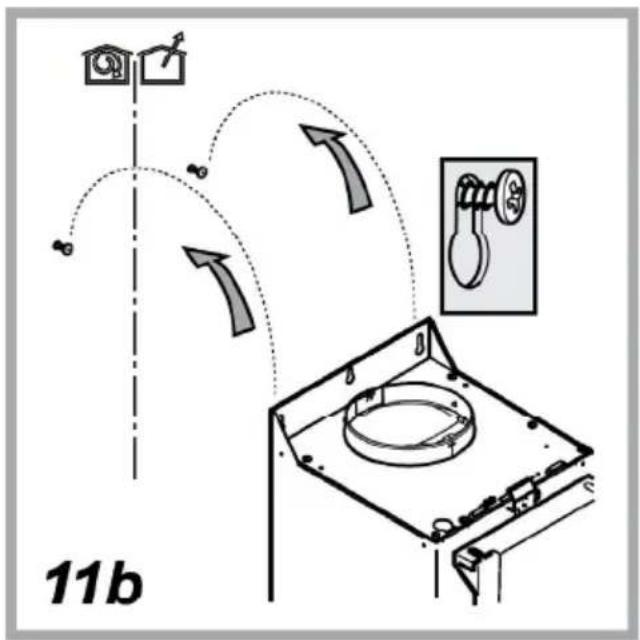

11b

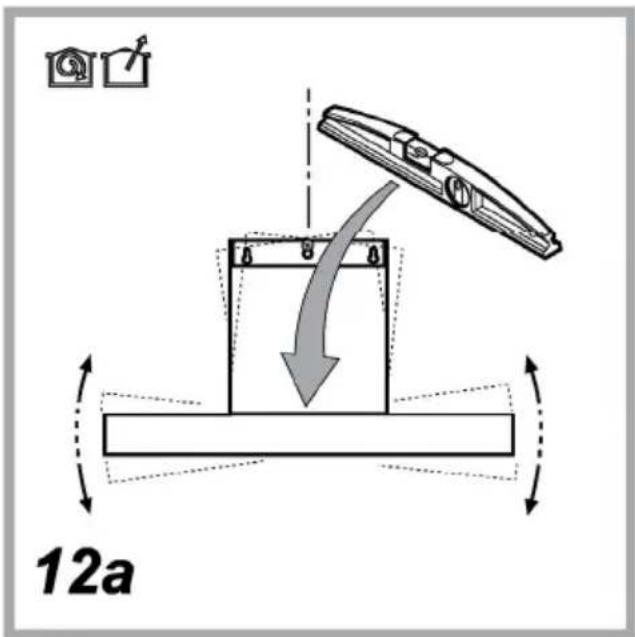

12a

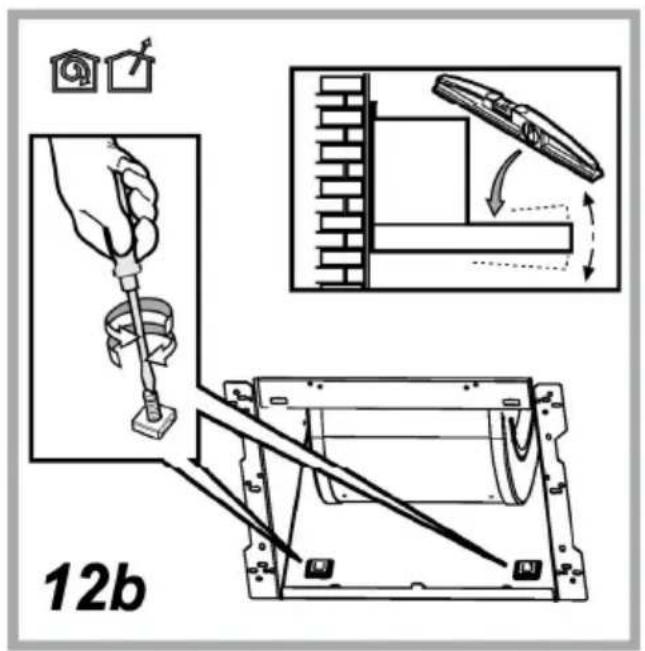

12b

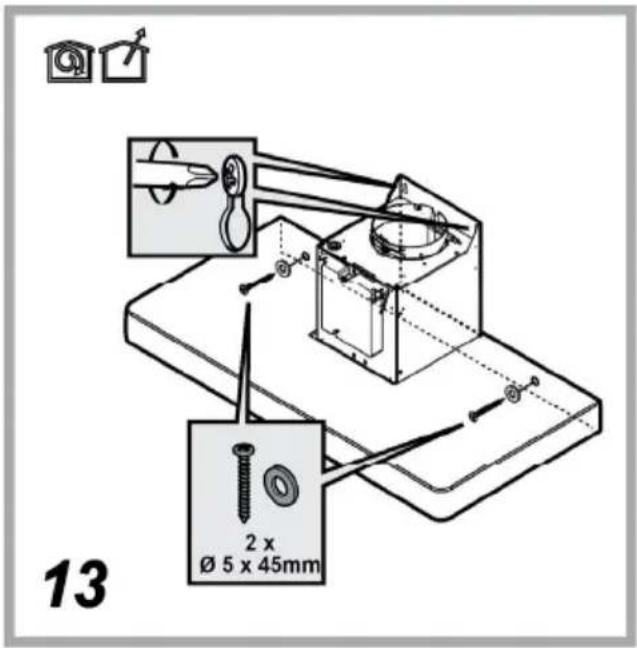

13 2 x Ø 5 x 45mm

Illustration of a hand holding a device with a curved band, no text or symbols present

Technical illustration of a mechanical device with a rotating lever and base mount (no text or symbols)

Diagram of a mechanical setup with a cable, switch, and component (no text or symbols)

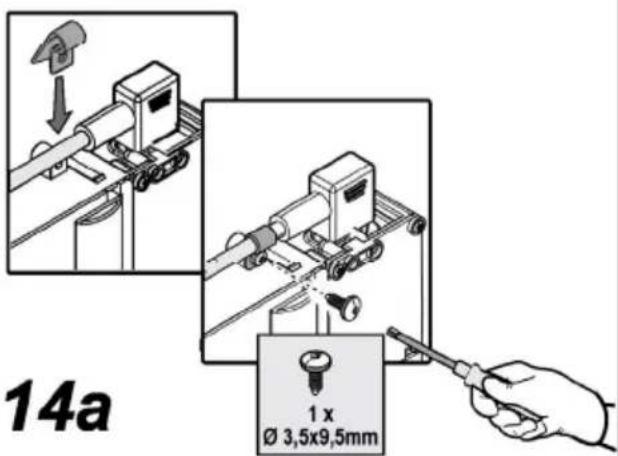

14a 1 x Ø 3,5x9,5mm

Q

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

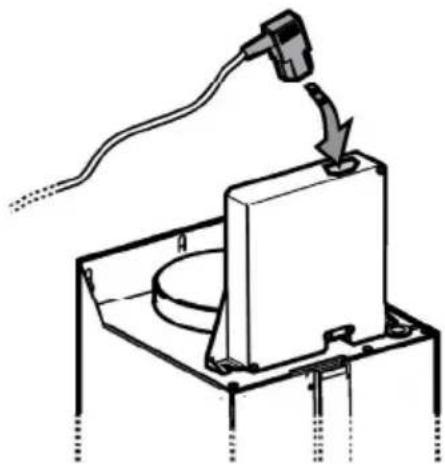

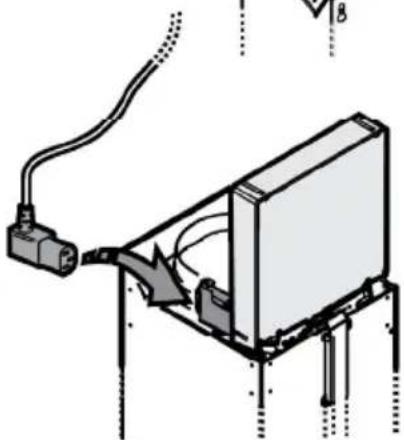

Diagram of a device with cable and connector, showing internal wiring and connection (no text or symbols)

4b 1 x Ø 3,5x9,5mm

14b

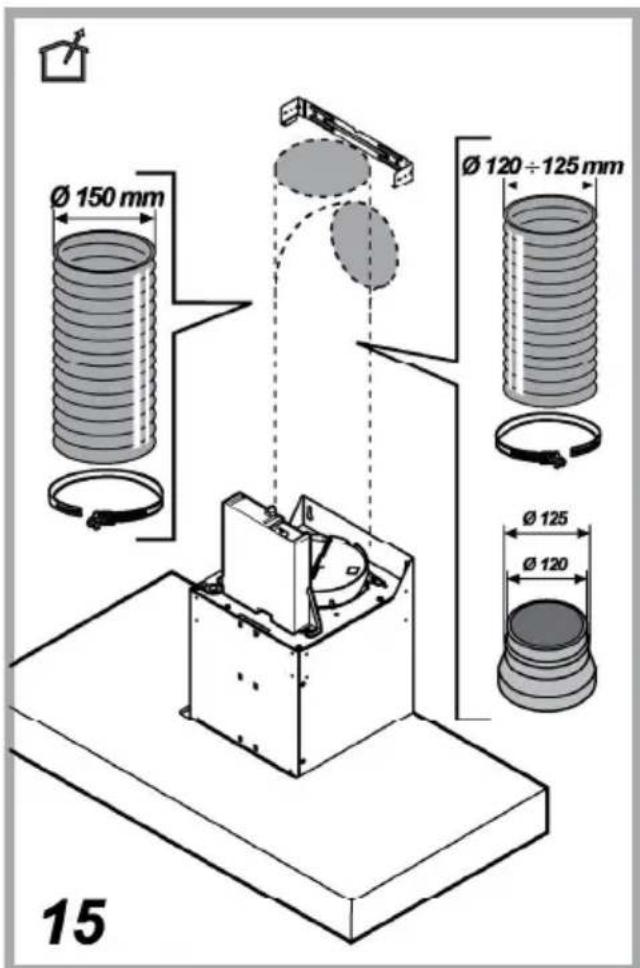

Ø 150 mm Ø 120 ÷ 125 mm Ø 125 Ø 120 15

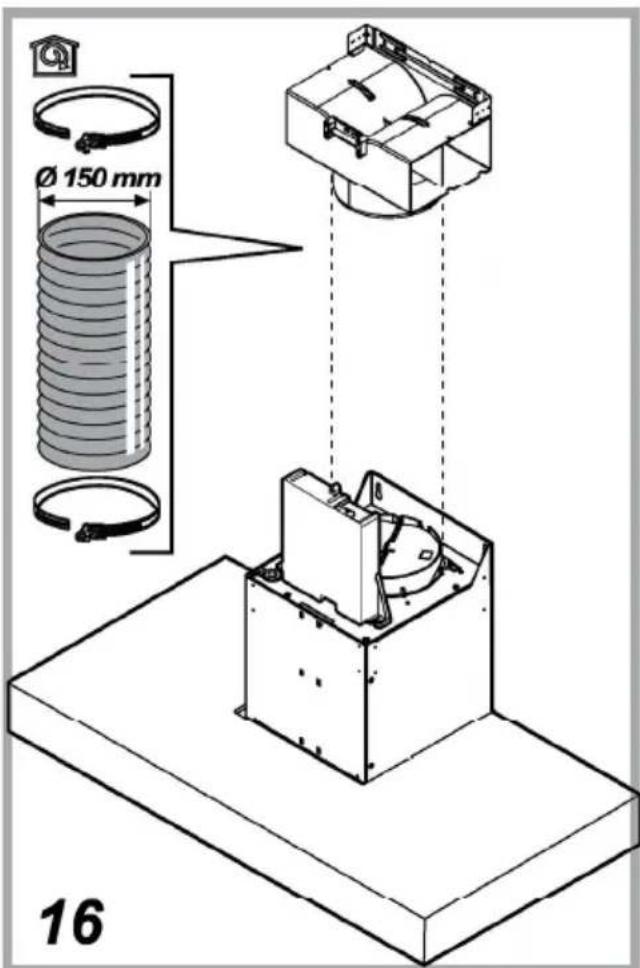

Ø 150 mm 16

Isometric diagram of a mechanical device with a coiled spring mounted on a base, showing internal components and directional arrows (no text or symbols)

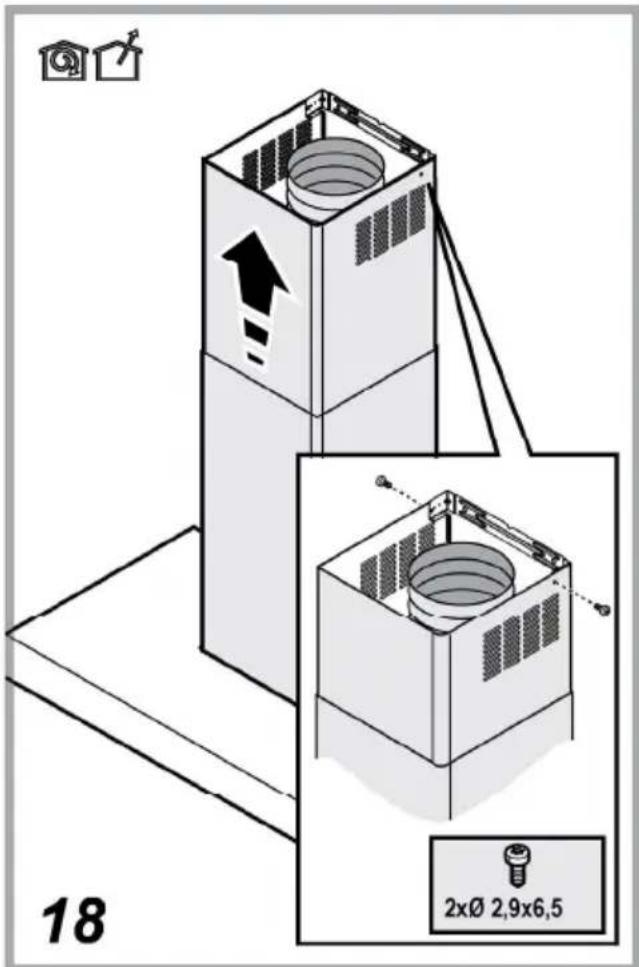

18 2xØ 2,9x6,5

19

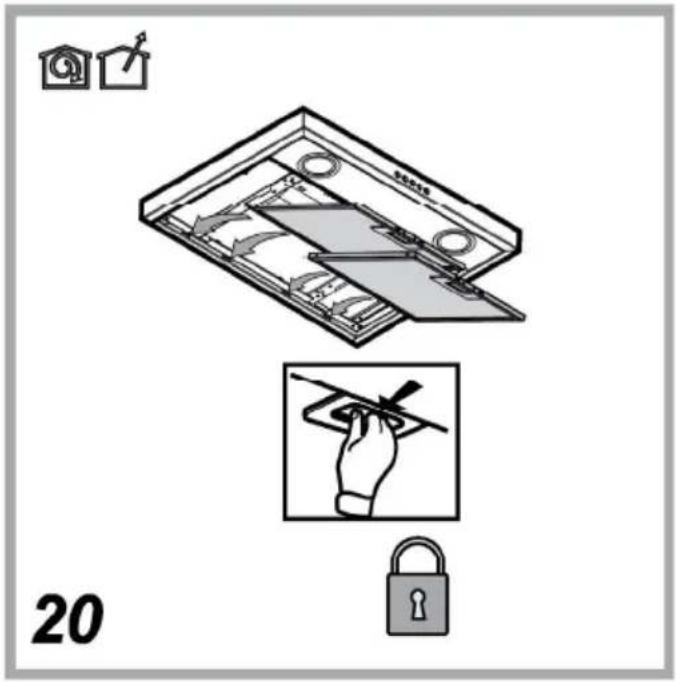

20

IT

SICUREZZA GENERALE

Hand holding a mechanical clamp or bracket with a black arrow indicating force application (no text or symbols visible)

Diagram illustrating a door lock mechanism with labeled components and lock states

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a barcode scanning process with labeled components and a magnified inset showing an airplane.

EN

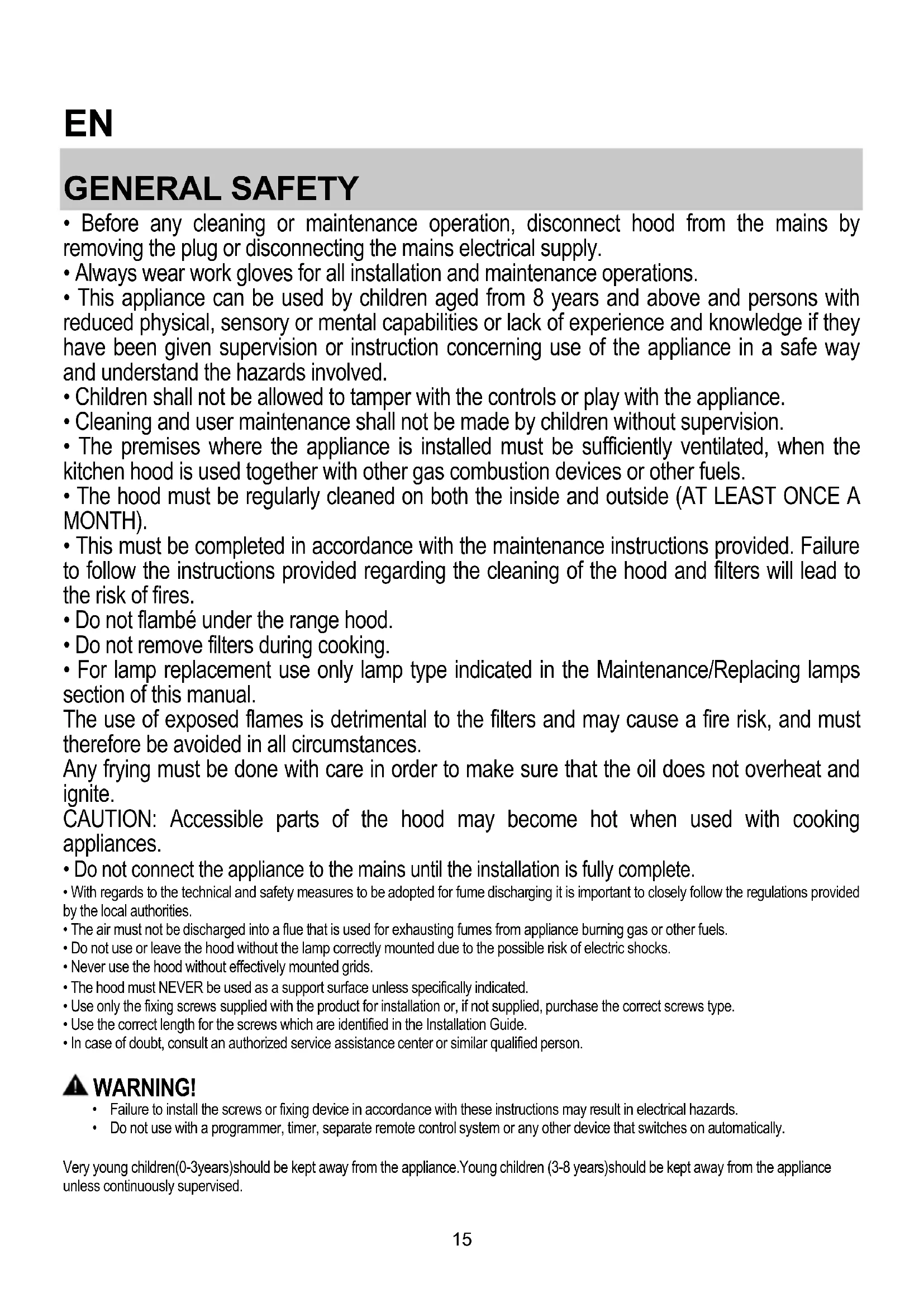

GENERAL SAFETY

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.
  The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
  Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
  CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.
• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
  • In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is not for professional use. Do not use the appliance outdoors.

The appliance must be handled and installed by two or more persons-risk of injury.

Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician.

Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

Replacing the power cable

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

T1

T2

T3

T4

T5

T6

To select hood functions, simply touch the controls:

T1. Button ON/OFF suction motor

T2. Button to select medium suction speed (power)

T3. Button to select high and intensive suction speed (power)

Press once to select high suction speed (power) (LED T3 on);

Press again to select intensive suction speed (power) (LED T3 flashing).

Note: The intensive suction (power) speed lasts for approximately 5 minutes, then the high suction speed (power) is set automatically.

T4. Automatic shutdown button (Timer) and saturation indicator for charcoal filter:

Automatic shutdown:

Press this button to set the automatic shutdown of the active suction speed (power):

Silent suction speed (power): 20 minutes

Medium suction speed (power): 15 minutes

High suction speed (power): 10 minutes

Saturation indicator charcoal filter

When flashing, perform maintenance of the charcoal filter, if installed, then keep the button T1 pressed for a long time to stop the flashing.

T5. Button to select 'silent' suction speed (power) and saturation indicator for grease filter

Note: when flashing, perform maintenance of the grease filter; then keep the button T1 pressed for a long time to stop the flashing.

T6. Button ON/OFF lighting

T2+T3+T4 flashing: automatic operation under high temperature conditions (see relevant paragraph)

Activation of the charcoal filter saturation indicator

This indicator is normally deactivated. To activate it, proceed as follows:

With the hood off, press and keep pressed simultaneously T2 and T3: T3 starts flashing first, then T2 as well, to indicate successful activation.

Deactivation of charcoal filter saturation LED: repeat the operation described above; T3 and T2 start flashing, then only T3 to indicate successful deactivation.

Automatic operation under high temperature conditions

The hood is equipped with a sensor which detects the temperature. When this becomes too high, the sensor automatically turns on the medium suction speed (power). The hood turns off as soon as the temperature detected by the sensor is lowered significantly.

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent.

DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

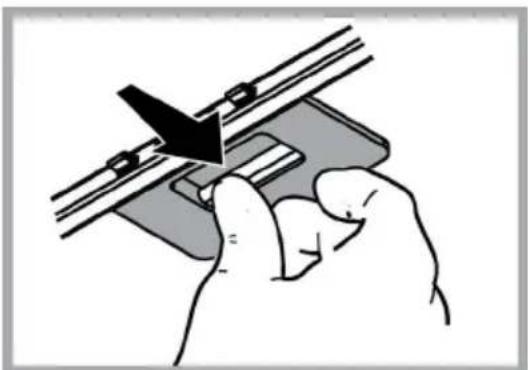

To remove the grease filter, pull the spring release handle.

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Maintenance of the charcoal filter

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

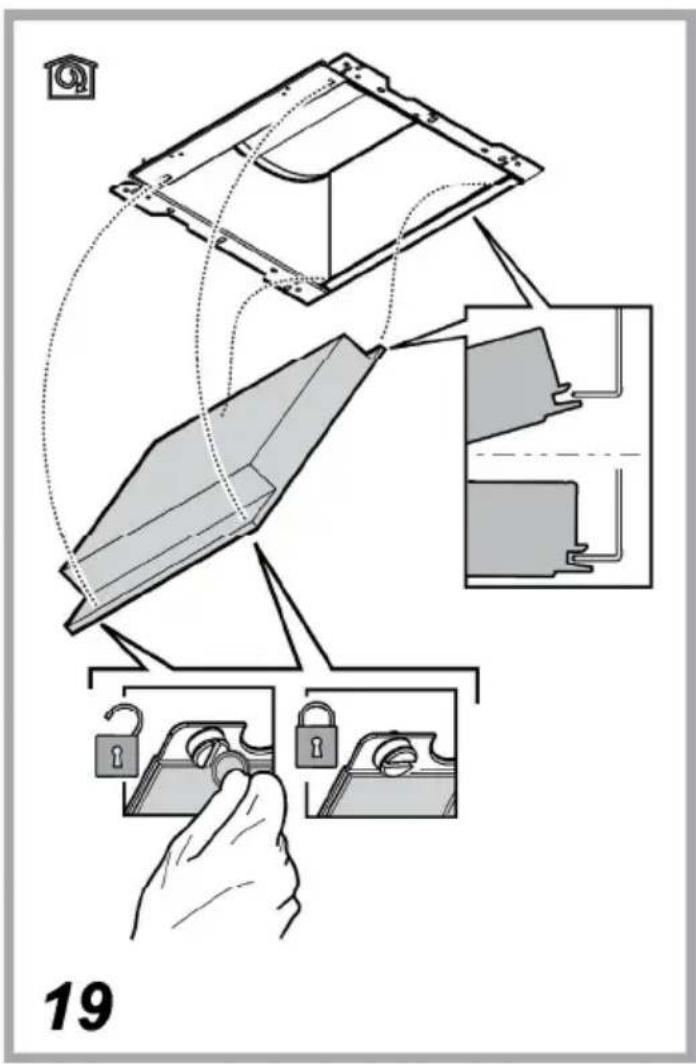

Assembly

Hook the charcoal filter at the back on the metal tongue of the hood first, then on the front with the two knobs.

Disassembly

Remove the charcoal filter by turning the knobs fixing it to the hood by 90°.

Diagram illustrating the installation of a 3D printer with lock and padlock components, showing hand positioning and assembly steps.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

• If the hood performs inefficiently:

Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

- If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)	Width (cm)	Depth (cm)	∅ of the exhaust tube (cm)
62-11471-114	89,8 45,5 15	12,5 - 12
62-11471-114	69,8 45,5 15	12,5 - 12
62-114[IMAGE]71-114	59,8 45,5 15	12,5 - 12

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not provided with the product

QR code image containing encoded data, no visible human-readable text

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.hotpoint.eu
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

Diagram illustrating barcode scanning process with labeled components and a magnified view of the first step.

FR

SÉCURITÉ GÉNÉRALE

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and lock mechanisms, showing hand positioning and assembly steps.

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and icons

ES

SEGURIDAD GENERAL

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and lock mechanisms

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and icons

PT

SEGURANÇA GERAL

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and lock mechanisms

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled components and a magnified view of the first step.

NL

ALGEMENE VEILIGHEID

Hand holding a tool with a black arrow pointing downward, no text or symbols visible

Diagram illustrating the installation process of a device, showing hand holding lock and locking keys with labeled components.

Vervanging lampjes

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and barcode icons

PL

OGÓLNE BEZPIECZEŃSTWO

Hand holding a mechanical clamp or bracket with a black arrow indicating force application (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and lock mechanisms

Wymiana żarówek

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and a magnified inset showing a person's face.

TR

GENEL GÜVENLİK

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and lock mechanisms

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled components and a magnified view of the first step.

EL

ΓΕΝΙΚΗ ΑΣΦΑΛΕΙΑ

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and hand interaction, showing steps from clamping to locking.

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and a magnified inset showing a person's face.

RU

ОБЩИЕ ПРАВИЛА ТЕХНИКИ БЕЗОПАСНОСТИ

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly process with hand holding lock and lock mechanism, showing steps from assembly to locking.

Замена ламп

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and a magnified inset showing a hand holding an object.

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and lock mechanisms

Заміна лампочок

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and barcode icons

Hand holding a mechanical tool with a black arrow indicating a cutting or dissection (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and lock mechanisms

Výměna svítidel

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and barcode icons

SK

VŠEOBECNÁ BEZPEČNOST

Hand holding a mechanical tool with a black arrow indicating direction (no text or symbols visible)

Diagram illustrating the process of installing a device with lock and locking components, showing hand positioning and assembly steps.

Výmena žiaroviek

Odsávač pary je vybavený systémom osvetlenia založenom na technoloógii LED.

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and a magnified inset showing a hand holding a magnifying glass.

RO

SIGURANTĂ GENERALĂ

Hand holding a mechanical clamp or bracket with a black arrow indicating force application (no text or symbols visible)

Diagram illustrating a mechanical assembly process with labeled components and lock mechanisms

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a hand holding a pen.

HU

ÁLTALÁNOS BIZTONSÁGI ELŐÍRÁSOK

Hand holding a mechanical tool with a black arrow indicating a cutting or dissection (no text or symbols visible)

Diagram illustrating the process of installing a device with lock and locking components, showing hand positioning and assembly steps.

Izzók cseréje

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified view of the first step.

ЖАЛПЫ КАУІПСІЗДІК

Hand holding a mechanical tool with a black arrow indicating a cutting or dissection (no text or symbols visible)

Diagram illustrating a door lock mechanism with labeled components and lock states

Лампаларды ауыстыру

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode processing steps with labeled boxes and a magnified inset showing a person's face.

			(الارتفاع (سم)
		89.845.512 - 1124562114-71
		69.845.512 - 1124562114-71
		59.845.512 - 1124562114-71	[IMAGE]

Silhouette of a person pushing a shopping cart (no text or symbols)

Diagram illustrating barcode scanning process with labeled components and barcode icons

QR code image containing encoded data, no visible human-readable text

بشير الرمز __ الموجود على المنتج أو على الوثائق المرفقة إلى أن هذا المنتج لا يجب التعامل معه في نهاية عمره التشفيي على Angola، Angola. Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola: Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola, Angola

Diagram illustrating a mechanical assembly process with hand holding lock and lock mechanism, showing steps from assembly to cleaning.

التنظيف

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

صيانة مرشح الكربون
